Lojer Delta Series Instruction Manual

Lojer Delta
treatment tables
Instructions of use
18.2.2013

Copyright © Lojer Oy, 2013
02/2013 Rev. 1.0
Contents
1 Lojer Delta- treatment tables .............................................................................................................................................3
1.1 Desciption of parts ............................................................................................................................................................ 3
1.2 Options and accessories .................................................................................................................................................... 4
1.3 Symbols used on the device .............................................................................................................................................. 5
2 Introduction ....................................................................................................................................................................... 5
2.1 Inspection upon delivery ................................................................................................................................................... 5
2.2 Before use ......................................................................................................................................................................... 6
3 Using the treatment table .................................................................................................................................................. 6
3.1 Maximum inclination......................................................................................................................................................... 6
3.2 Central locking of the castors (optional) ........................................................................................................................... 7
3.3 Height adjustment............................................................................................................................................................. 7
3.4 Adjusting the middle section (drainage) ........................................................................................................................... 8
3.5 Adjusting the foot section ................................................................................................................................................. 8
3.6 Adjusting the head section ................................................................................................................................................ 8
3.7 Adjusting the arm rests ..................................................................................................................................................... 9
3.8 Adjusting the side supports............................................................................................................................................... 9
3.9 Double hinged face section (accessory) ............................................................................................................................ 9
4 Cleaning and disinfecting ................................................................................................................................................. 10
4.1 Metal and plastic surfaces............................................................................................................................................... 10
4.2 Upholstery ....................................................................................................................................................................... 10
5 Maintenance .................................................................................................................................................................... 11
5.1 Biannual measures .......................................................................................................................................................... 11
5.2 Annual measures ............................................................................................................................................................. 12
5.3 Troubleshooting .............................................................................................................................................................. 12
5.4 Preventive maintance...................................................................................................................................................... 12
6 Technical information ...................................................................................................................................................... 14

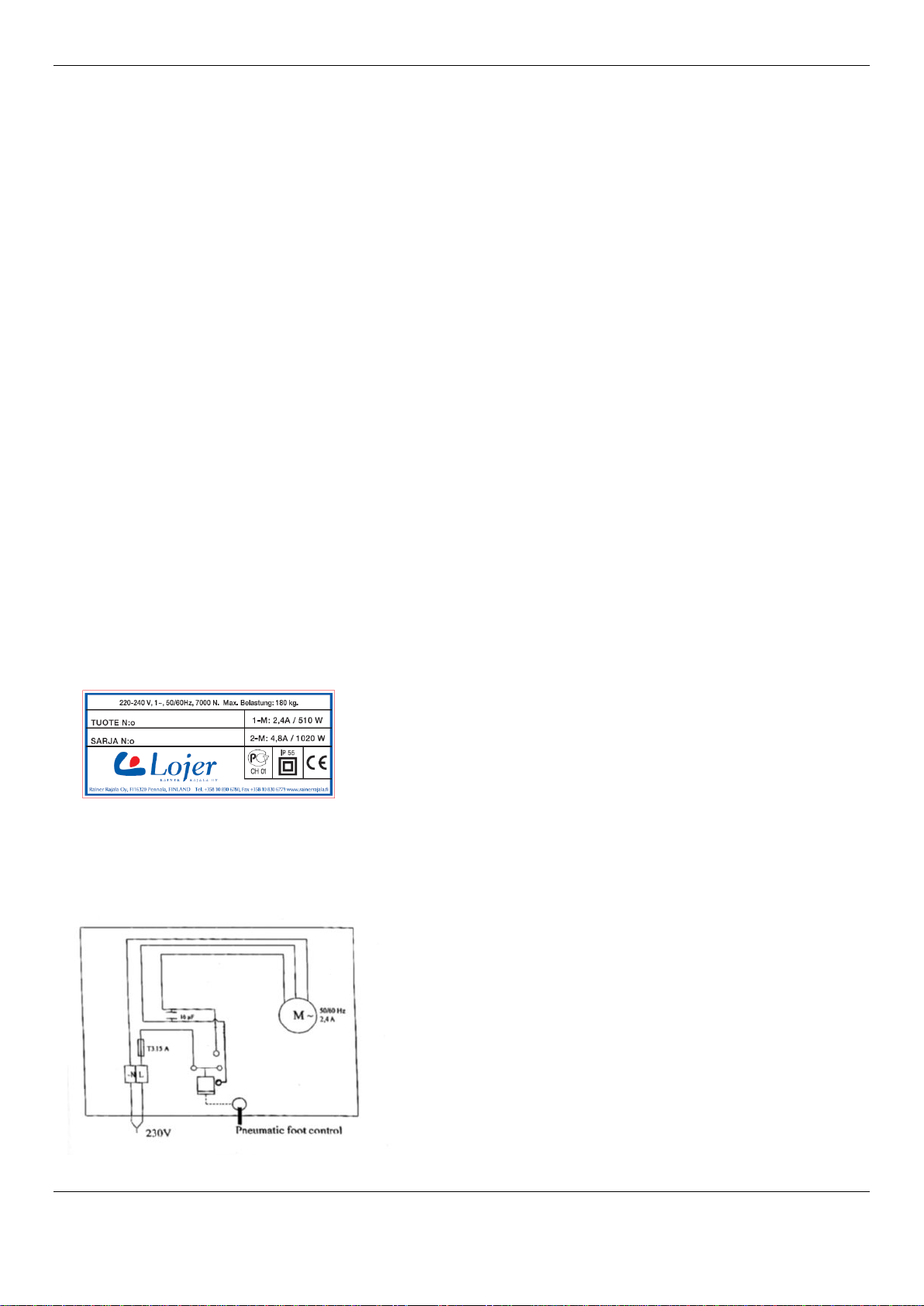

6.1 Circuit diagrams............................................................................................................................................................... 14
6.2 Standards......................................................................................................................................................................... 15
7 Recycling .......................................................................................................................................................................... 15
8 Contact information ......................................................................................................................................................... 16
To avoid injury, follow the instructions given in this document.

3
Copyright © Lojer Oy, 2013
02/2013 Rev. 1.0
Figure 1: Lojer Delta 1MD7L Standard
1Lojer Delta- treatment tables
Lojer Delta treatment tables are intended for professionals to be used for massage and wide range of physiotherapy. The tables
are designed for a treatment given on the lying surface. Delta-tables can also be used as an examination table.
Delta-series include:
1MD4 Professional and Standard
1MD7 Professional and Standard
2MD602 Professional and Standard
1MD1X X-frame
This document gives instructions for operating and maintaining Lojer treatment tables. Please familiarise yourself with these
instructions before using the table. Use the device only as described and for the specified applications. Store these instructions
in an appropriate way, making sure that the instructions are available to all possible users throughout the life of the device.
To avoid injury, follow the instructions given in this document
1.1 Desciption of parts
The sections of the Lojer Delta treatment tables are shown below (Figure 1, Figure 2).
1
Central locking pedal
2
Foot section
3
Middle section
4
Arm rest
5
Head section, head section adjustment lever
6
Arm rest adjustment lever
7
Castors
8
Side support

4
Copyright © Lojer Oy, 2013
02/2013 Rev. 1.0
Figure 2: Lojer Delta 2MD602 Professional
Figure 3: Lojer Delta 1MD1X X-frame
1.2 Options and accessories
Options and accessories available for Lojer Delta treatment tables:
Place free height adjustment bar
Castors
Double hinged head section
Handswitch
Foot pedal
Frame for foot pedal (Standard and Professional)
1
Castors
2
Place free height adjustment bar
3
Arm rest adjustment lever
4
Arm rest
5
Head section, head section adjustment lever
6
Middle section
7
Foot section
8
Side support
9
Central locking pedal
1
Castors
2
Head section, head section adjustment lever
3
Lying surface
4
Central locking pedal
5
Foot control

5
Copyright © Lojer Oy, 2013
02/2013 Rev. 1.0
Paper roll holder
Special width (50-60 cm)
SKAI upholstery

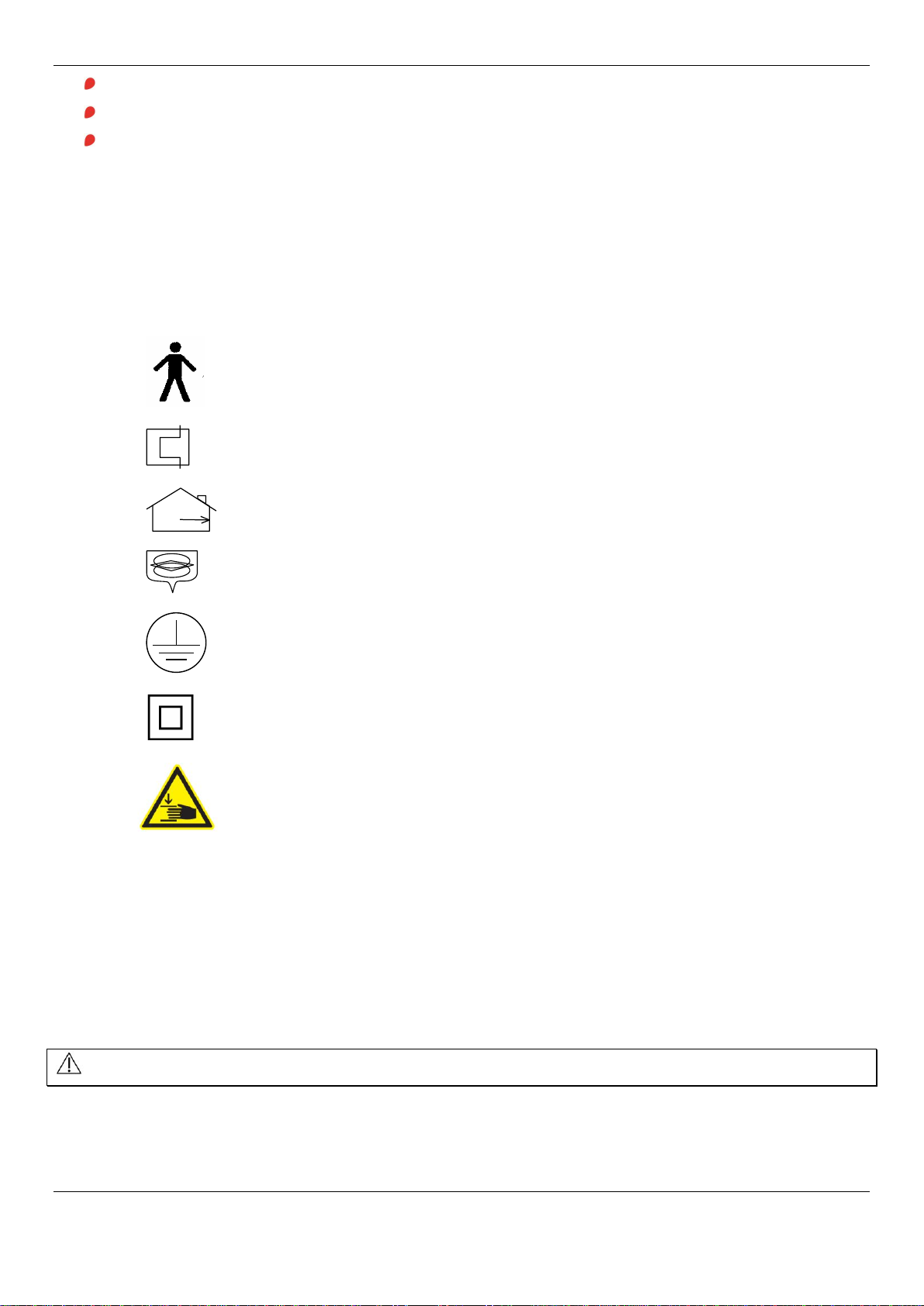

1.3 Symbols used on the device
Symbol
Description
CE
This product meets the requirements of Medical Device Directive
93/42/EEC
IP55
Suojattu pölyltä, kestää vesiruiskun joka suunnasta
Type B device
Transformer is equipped with overheating protection.
Indoor use only.
Protectively isolated structure
Protective ground (class I-device)
Class II electrical device (double isolated)
Warning labels (squeezing hazard) placed on the place free height
adjustment bar or on the lower frame.
2Introduction
2.1 Inspection upon delivery
Before the device is taken into use, check that the packaging is intact and that it has not been damaged during transportation.
Please notify the transport company and the supplier of any transit damage within two (2) days of receiving the delivery.
Ensure that the delivery contains all the parts detailed in the delivery note. If there is anything missing from the delivery
consignment, please contact the supplier immediately.
The device can be stored at a temperature of -5...+60 °C. The permitted humidity is 30...75 %.

6
Copyright © Lojer Oy, 2013
02/2013 Rev. 1.0
2.2 Before use
The device is intended to be used in normal, dry indoor conditions. Ensure that the temperature of the room is between +10…40
°C and the humidity is within the range of 30…75 %. If there is chance that device has been exposed to temperatures below 0°C,
allow it to adjust to the indoor temperature for at least 5 hours before using any of its features.
Familiarise yourself with the instructions and carry out the following before using the table:
Make sure that all packing materials have been removed
Make sure that the device can move freely uo and down.
Place the device in the location where it will be used and lock the castors.
Connect the power plug to a socket whose supply voltage corresponds to the voltage shown on the device’s
type plate. Make sure that the cord runs freely from the connection box.
For safety reasons always connect the power cord to grounded socket.
Do not bind the power cord to the device as the lifting motion can severe the cord. Ensure that the cord is easily
detachable in an emergency situation.
Make sure that the distance to the socket is not more than 2 meters.
Always detach the power cord before moving the device. Make sure that the cord doesn’t get stuck between
parts of the frame or under the castors.
If the power cord is damaged, unplug it immediately. Do not use the device and contact the service. Use only the
original power cord.
Make sure that the patient doesn’t accidentally move/touch the place free bar or any other control device.
Do not place anything under the device (e.g. chair, because the device has to be able move freely). Make sure
that the patient’s limbs do not get caught in the frame of the device.
Do not place the device under any wall structures or too close to the wall.
Do not modify the structure of the device or install parts other than those mentioned in this document.
Do not use the device or the accessory if it doesn’t work properly. Contact the service
Do not lift the device from the head section, arm rests or the side supports. Do not push the device on to a door
sill.
WARNING! Children or people with no experience of the device or those with restricted understanding must not
use the device. Children must be supervised to ensure that they do not play with the device! For safety reasons
use the safety switch or unplug the power cord when the device is left unsupervised.
3Using the treatment table
Note! Do not use the electrical functions of the device non-stop for longer than the permissible two (2) minutes. Longer continuous use may
cause the transformer to overheat. If you use electrical functions non-stop for two (2) minutes, keep to the operating time ratio and do not use
any electrical functions for 18 minutes.
3.1 Maximum inclination
The height adjustment range of the Delta treatment tables:
Standard; 1MD4 57-87 cm, 1MD7L and 2MD602 58-89 cm
Professional; 1MD4 47-98 cm, 1MD7L and 2MD602 48-100 cm.
The foot section adjustment range to 75 ° angle.

7
Copyright © Lojer Oy, 2013
02/2013 Rev. 1.0

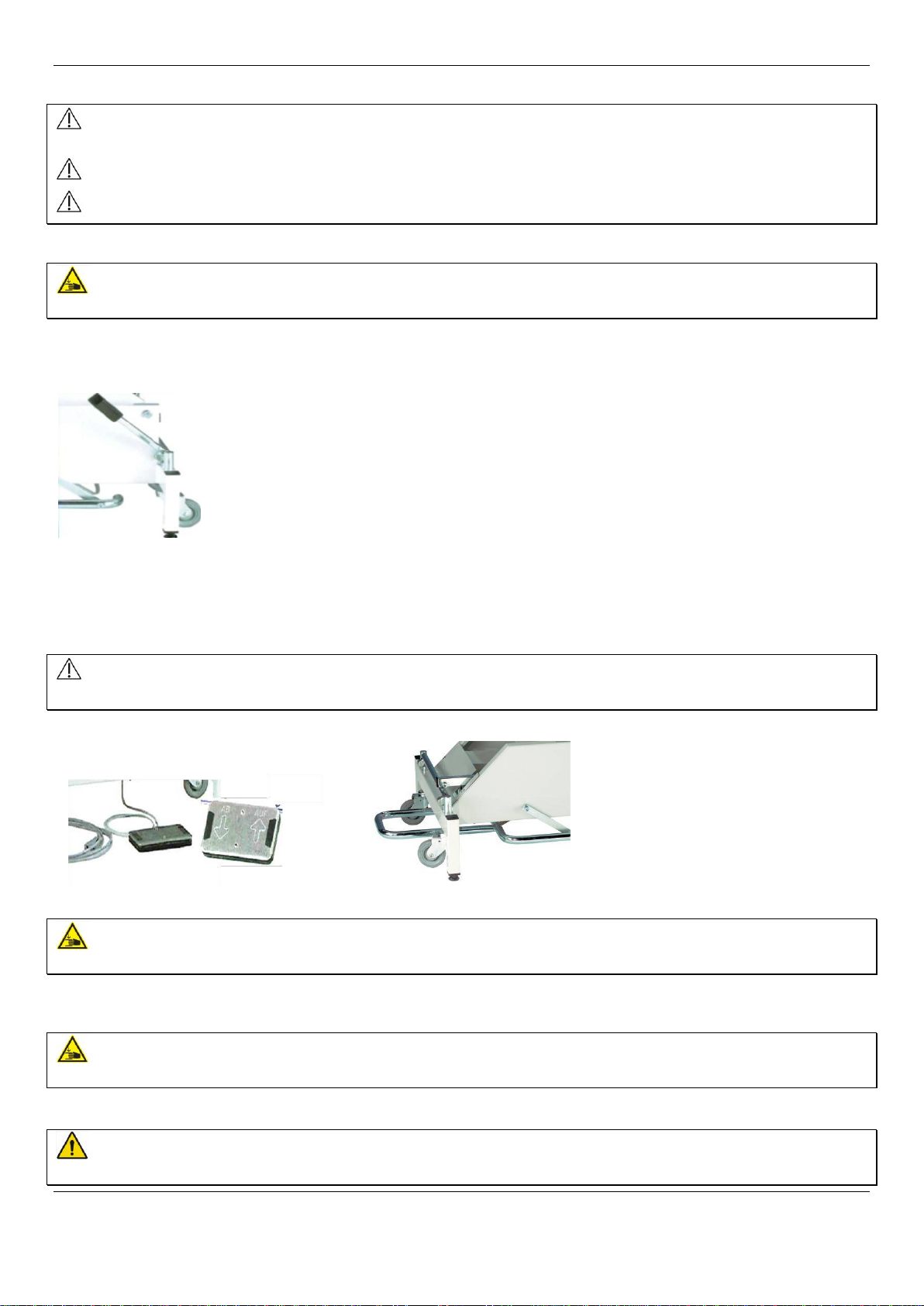

Figure 5: a) foot control b) place free adjustment bar
Figure 4: Central locking pedal
3.2 Central locking of the castors (optional)
Always remember to unplug the power cord before moving the device. Make sure that the cord is not left
between the structure of the table or under the castors.
Make sure that the castors are locked before starting the treatment.
Do not use the device for moving the patients.
SQUEEZING HAZARD! Make sure that nothing gets between the structure or under the device during
lifting/lowering.
Castors with central locking are available as an option for Delta treatment tables. In order to free the locking, press the pedal on
either side of the table down (Figure 4). To set ready for use, release the pedal.
3.3 Height adjustment
The height of the table can be adjusted with pneumatic foot control (Figure 5a)). Height can be adjusted also with place free
height adjustment bar (accessory) (Figure 5b)).
Make sure that under no circumstances the patient is not able to touch the foot control or the place free bar.
Use the safety switch when necessary.
a) b)
SQUEEZING HAZARD! Make sure that nothing is between the structure or under the device during
lifting/lowering.
Height adjustment is possible from all sides of the table with the place free height adjustment bar. The table top rises when you
press the bar and lowers when the bar is lifted.
SQUEEZING HAZARD! Make sure that under no circumstances the patient is not able to touch the foot control or
the place free bar. Use the safety switch when necessary.
WARNING! Children or people with no experience of the device must not use the device. For safety reasons use
the safety switch or unplug the power cord when the device is left without supervision.

8
Copyright © Lojer Oy, 2013
02/2013 Rev. 1.0
Figure 6: Middle section adjustment a) 1MDx-models b) 2MD602-models
Figure 7: Adjusting the head section
3.4 Adjusting the middle section (drainage)
There is either a mechanical (Figure 6a) (1) or electrical (Figure 6b) (2) adjustment of the middle section depending on the
model.
Do not adjust the middle section while the patient is on the table.
a) b)
SQUEEZING HAZARD! Make sure that nothing is between the structure or under the device during
lifting/lowering.
3.5 Adjusting the foot section
Make sure that the middle section is locked before adjusting the foot section. Lift the foot section to desired position. It will lock
to its place automatically. Before lowering free the locking and push the section down.
SQUEEZING HAZARD! Make sure that nothing is between the structure or under the device during
lifting/lowering.
3.6 Adjusting the head section
Lift the adjustment lever (1) (Figure 7) and lift/push the head section to the desired position.
Max. load of the head section is 50 kg.
Do not lift the table on the head section.

9
Copyright © Lojer Oy, 2013
02/2013 Rev. 1.0
Figure 8: Adjusting the arm rest
Figure 9: Adjusting the side support
Figure 10: Adjusting the double hinged head section
3.7 Adjusting the arm rests
Open the adjustment lever (1) () and adjust the height of the arm rest. Tighten the lever. The arm rests can be adjusted also
sideways.
Do not sit on the arm rest. Max. load 30 kg.
Do not lift the table on the arm rests.
3.8 Adjusting the side supports
Lift the side support up and push it towards the head section in order to lock it (Figure 9). In order to lower the support push it
towards the foot section and turn it down.
Do not sit on the side support. Maximum load on the side support is 30 kg.
Do not lift the table from the side supports.
3.9 Double hinged face section (accessory)
The counter adjustment can be adjusted by freeing the adjustment lever (1) while lifting/pressing the head section (Figure 10).

10
Copyright © Lojer Oy, 2013
02/2013 Rev. 1.0
SQUEEZING HAZARD! Make sure that nothing is between the structure or under the device during
lifting/lowering.
4Cleaning and disinfecting
Before cleaning remove all accessories.
Unplug the power cord.
Clean stains as soon as possible.
In order to keep the surfaces in good condition do the cleaning regularly. Do cleaning/disinfectant always between patients. Do
more thorough cleaning once a month. Follow the cleaning/disinfecting instructions given by the respective facility.
4.1 Metal and plastic surfaces
Clean the metal and plastic surfaces and the hand controls with a damp cloth and weak alkaline cleaning fluid. Use small brush
for corners and other difficult spots. Rinse with clean water and dry carefully after cleaning. Do not use excessive fluids.
Use disinfectant (alcohol or chlorine) and follow the disinfectant manufacturer’s instructions for use. Let dry by evaporation in
room temperature.
Plastic surfaces (ABS, HDPE, PP) are highly resistant to chemicals. Plastic is resistant to bleaching agents (alkaline compounds),
dilute organic or inorganic acids. Also solvents and cleaning agents may be used.
Plastic surfaces may get damaged if aromatic hydrocarbons (benzene and its derivates), ketones, ethers, esters and chlorinated
hydrocarbons are used. Plastic might also deteriorate if it is exposed to various chemicals at the same time.
Stainless steel surfaces are highly resistant to chemicals. Use for mild detergent solution for cleaning. Ammonia and most of the
solvents can be used to remove difficult stains. Avoid chlorine based solutions.
Painted or chromed metal surfaces can be cleaned with mild detergent. They are also highly resistant to chemicals. Do not use
harsh abrasive powders on these surfaces.
All surfaces must be dry before using the device.
For safety reasons before cleaning unplug the power cord.
Do not use water spray (shower, high-pressure water guns) for cleaning.
Do not clean in high temperature and air humidity.
Do not expose the device to excessive moisture which can result in liquid pooling.
Do not use solvents or petrol for cleaning. Do not use acids for cleaning.
Dry all surfaces thoroughly after cleaning or disinfection.
Disinfecting wears out the surfaces. After disinfecting clean the surfaces with clean, damp cloth. Dilute the
disinfectant according to the manufacturer’s instructions.
4.2 Upholstery
Skai-material:
PROPERTIES:
LONG SERVICE LIFE
FLAME RETARDANT
AGREEABLE IN USE
RESISTANT TO DISINFECTANTS
ABRASION RESISTANT
TEAR-RESISTAMT
