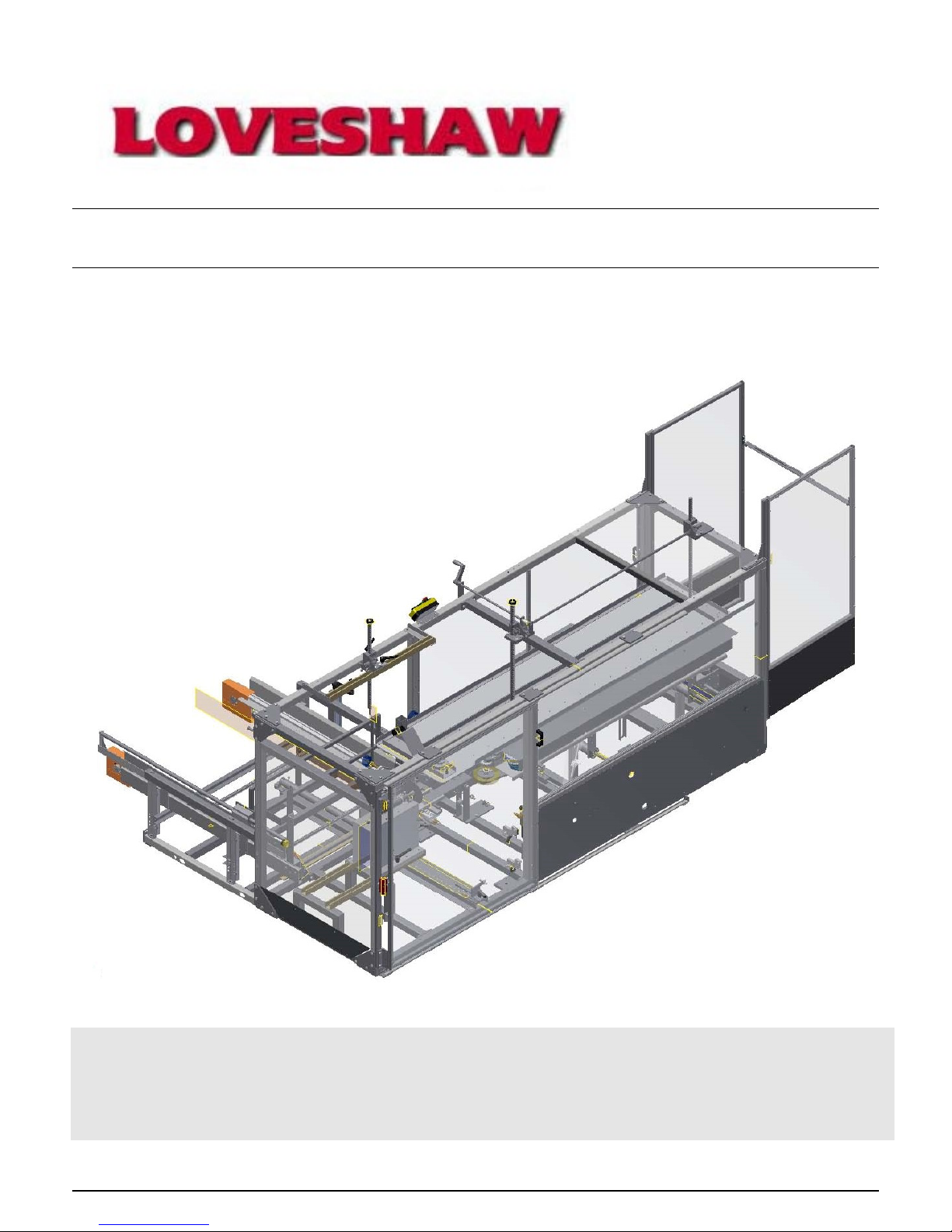

Loveshaw Little David CF50T User manual

Little David™ Case Erector
CF50T / XL Case Erector
Version: D
Operator’s Manual

Contact Information
Copyright Loveshaw
Loveshaw
2206 Easton Turnpike, PO. Box 83
South Canaan, PA 18459
Tel: [phone] • 570-937-4921
Fax: [phone]
www.loveshaw.com
Loveshaw Europe
Unit 9 Brunel Gate
West Portway Industrial Estate
Andover, Hampshire SP10 3SL
ENGLAND
Tel: [phone]
Fax: [phone]

TABLE OF CONTENTS
SECTION #1 GENERAL SAFETY PRECAUTIONS
SECTION #2 MACHINE SPECIFICATIONS
SECTION #3 INSTALLATION PROCEDURES
SECTION #4 SEQUENCE OF OPERATION
SECTION #5 SET-UP AND SIZE CHANGE-OVER
SECTION #6 START UP PROCEDURE
SECTION #7 SHUT DOWN PROCEDURE
SECTION #8 MAINTENANCE SCHEDULE
SECTION #9 HOW TO ORDER PARTS
SECTION #10 SPARE PARTS LIST
SECTION #11 TROUBLE SHOOTING
SECTION #12 WARRANTY
SECTION #13 TAPE CARTRIDGE MANUAL
SECTION #14 ILLUSTRATED ASSEMBLIES & SCHEMATICS

GENERAL SAFETY PRECAUTIONS
BEFORE INSTALLING, OPERATING, OR SERVICING THIS EQUIPMENT, READ THE FOLLOWING
PRECAUTIONS CAREFULLY:
1. THIS MACHINE IS EQUIPPED WITH MOVING PARTS. DO NOT PLACE HANDS IN THE
MACHINE WHEN PARTS ARE MOVING.
2. ALWAYS USE A ROLLER-TYPE EXIT CONVEYOR, AND ALWAYS REMOVE BOXES
AFTER THEY CLEAR THE EXIT END OF THE MACHINE.
3. USE CAUTION WHEN NEAR CARTRIDGE KNIFE OR WHEN THREADING TAPE.
KNIFE IS VERY SHARP, AUTOMATICALLY OPERATED AND LINKED TO THE WIPE-
DOWN ROLLERS.
4. DO NOT ATTEMPT TO OPEN OR WORK ON ELECTRICAL BOX, JUNCTION BOXES,
OR OTHER ELECTRICAL COMPONENTS WITHOUT FIRST DISCONNECTING POWER
TO THE MACHINE. SHOCK HAZARD EXISTS IF POWER IS NOT DISCONNECTED.
5. DO NOT BYPASS ANY DESIGNED-IN SAFETY FEATURES SUCH AS INTERLOCKS,
GUARDS OR SHIELDS.
6. DO NOT PLACE HANDS OR BODY INSIDE CONFINES OF MACHINE WHILE IT IS
RUNNING.
7. ALWAYS DISCONNECT POWER SOURCE AND AIR SUPPLY (IF APPLICABLE)
BEFORE SERVICING MACHINE.
8. SAFETY GLASSES SHOULD BE WORN WHEN WORKING ON OR AROUND MACHINE.

MACHINE SPECIFICATIONS
MACHINE MODEL: CF50T/XL
STANDARD DISCHARGE HEIGHT: 23"
AMERICAN ELECTRICAL REQUIREMENTS:
PRIMARY VOLTAGE:
CONTROL VOLTAGE:
EUROPEAN ELECTRICAL
REQUIREMENTS:
PRIMARY VOLTAGE:
CONTROL VOLTAGE:
110 VOLTS, 1 PHASE, 60 HERTZ
110 VOLTS, 1 PHASE, 60 HERTZ
220 VOLTS, 1 PHASE, 50 HERTZ
220 VOLTS, 1 PHASE, 50 HERTZ
CASE CAPACITY:
LENGTH:
WIDTH:
HEIGHT:
7" (178mm) MIN. TO 24" (610mm) MAX.
6" (152mm) MIN. TO 20" (406mm) MAX.
4" (102mm) MIN. TO 20" (508mm) MAX.
LUG DRIVE SPEED: 85 FEET/MIN.
MACHINE SPEED: STANDARD: 10 CASES/MIN.
CLOSURE MATERIAL:
2" OR 3" PRESSURE SENSITIVE TAPE
MAXIMUM ROLL DIAMETER: 15"
AIR REQUIREMENTS: 15 C.F.M. AT 14 CASES PER MIN. AT 80 PSI
MACHINE OPTIONS:
1. LOW TAPE ALARM
2. LOW HOPPER ALARM
3. CASTERS
4. LEVELING PADS
5. JAM DETECTION

INSTALLATION PROCEDURE
1. EXERCISE CARE WHEN HANDLING THIS MACHINE. A SUDDEN JOLT OR JAR MAY CAUSE
SERIOUS DAMAGE.
2. DO NOT REMOVE THE SHIPPING SKID UNTIL MACHINE HAS BEEN MOVED TO A POINT OF
INSTALLATION. THE SKID IS DESIGNED FOR EASY AND SAFE HANDLING OF YOUR
MACHINE.
3. RAISE OR LOWER THE MACHINE TO THE DESIRED OPERATING ELEVATION USING THE
LEVELING JACK SCREWS AND LEVEL THE MACHINE.
4. A GREAT DEAL OF TROUBLE MAY BE CAUSED IF THE ELECTRICAL CURRENT IS SUPPLIED
BY LINES WHICH ARE NOT HEAVY ENOUGH. IF THIS OCCURS, THE MOTOR AND
CONTROLS CANNOT OPERATE AT THEIR FULL CAPACITY AND OVER HEATING MAY
RESULT. A SIMILAR CONDITION WILL EXIST IF POOR ELECTRICAL CONNECTIONS ARE
MADE. IT'S THEREFORE WORTHWHILE TO MAKE SURE THAT EVERYTHING IS
ELECTRICALLY CORRECT.
5. ELECTRICAL POLARITY MUST BE SUPPLIED TO THE MACHINE EXACTLY AS SHOWN ON
THE ELECTRICAL DIAGRAM. POWER MUST BE SUPPLIED TO (L1) SIDE OF THE CIRCUIT
AND THE (L2) SIDE WILL BE NEUTRAL. IF THIS IS NOT CORRECT, THE CIRCUIT
PROTECTORS (ECP 1) WILL TRIP OUT BECAUSE OF A SHORT CIRCUIT.
6. THE COMPRESSED AIR SUPPLIED TO THE MACHINE SHOULD BE CLEAN AND DRY, AS
THE FILTER IS ONLY MEANT TO REMOVE MINOR PARTICLES OR SLIGHT AMOUNTS OF
MOISTURE. DIRT OR MOISTURE IN THE AIR LINE CAN CAUSE THE ERRATIC OPERATION
OF CONTROL VALVES.
7. CONNECT THE AIR SUPPLY TO AN AIR SOURCE WITH A MINIMUM LINE PRESSURE OF 80
PSI.
8. BEFORE STARTING THE MACHINE, LOAD THE TAPE CARTRIDGE WITH TAPE AND THREAD
THE TAPE. SEE THREADING DIAGRAM ON TAPE UNIT.
9. FOR PROPER START-UP PROCEDURE, SEE THE START-UP PROCEDURE SECTION OF
THIS MANUAL.
10. SAFETY GLASSES SHOULD BE WORN WHEN WORKING ON OR AROUND MACHINE.

SEQUENCE OF OPERATION
INITIAL CONDITIONS:
A. MAIN AIR VALVE TURNED ON.
B. POWER CORD CONNECTED.
C. EMERGENCY STOP BUTTON IS PULLED OUT.
D. SELECTOR SWITCH IS SET TO “AUTO”.
E. HOPPER HAS BLANKS PROPERLY LOADED.
GENERAL SEQUENCE:
1. PRESS THE "START" PUSH-BUTTON (PB1). MOTOR CONTACTOR (K1) IS ENERGIZED
AND THE MOTOR STARTS.
2. NORMALLY OPEN CONTACT (K1) CLOSES, PROGRAMMABLE CONTROLLER IS
ENERGIZED, AND THE SEQUENCE STARTS.
3. THE CASE PUSHER (SOL 4) AND VACUUM TROLLEY (SOL 5) GO TO HOME POSITION.
4. AS SOON AS PROXIMITY SWITCHES 1 (TROLLEY) AND 3 (PUSHER) ARE ACTIVATED,
AND PHOTOCELL 3 (HOPPER) IS BLOCKED, OUTPUT 2 ENERGIZES THE VACUUM
VALVE (SOL 2) AND THE VACUUM TROLLEY (OUTPUT 1) MOVES FORWARD TO PICK
UP A BLANK.
5. AT THE TROLLEY EXTENDED POSITION, PROXIMITY SWITCH 2 ACTIVATES (INPUT 1),
ENERGIZING TIMER 4. AFTER A PRE-SET TIME, TIMER 4 TIMES OUT, DE-ENERGIZING
THE VACUUM TROLLEY SOLENOID (OUTPUT 1).
6. THE VACUUM CUP TROLLEY THEN RETURNS TO THE HOME POSITION, ACTIVATING
PROXIMITY SWITCH 1 (INPUT 0), ENERGIZING THE MINOR FLAP FOLDER (SOL 6,
OUTPUT 3).
7. PROXIMITY SWITCH 1 ENERGIZES TIMER 3. AFTER A PRESET TIME, TIMER 3 TIMES
OUT DE-ENERGIZING THE VACUUM VALVE (SOL 2, OUTPUT 2). THE FORMED CASE IS
RELEASED, READY FOR TRANSFER.
8. AS THE CHAIN LUG IS DETECTED BY PHOTOCELL 1 (PC1), THE INTERNAL RELAY 1004
TURNS ON THE CASE PUSHER VALVE (SOL4, OUTPUT 5). THE FORMED CASE IS
PUSHED INTO THE FEED ROLLERS, AND THEN ACCELERATED INTO THE CHAIN LUG
DRIVE.

9. AT THE EXTENDED POSITION OF THE CASE PUSHER, PROXIMITY SWITCH 4 IS
ACTIVATED, ENERGIZING THE INTERNAL RELAY 1003. THIS RELAY THEN DE-
ENERGIZES THE CASE PUSHER VALVE (SOL4, OUTPUT 5), SENDING THE CASE
PUSHER TO THE HOME POSITION.
10. AS OUTPUT 5 IS DE-ENERGIZED, TIMER 6 STARTS TIMING. WHEN TIMER 6 TIMES
OUT, THE MINOR FLAP FOLDER (SOL 6, OUTPUT 3) IS DE-ACTIVATED. THE MACHINE
IS NOW READY FOR THE NEXT CYCLE.
11. REPEAT SEQUENCE STARTING AT GENERAL SEQUENCE #4.
NOTE 1:
THE CASE-ON-DEMAND PHOTOCELL (PC2) IS LOCATED DOWNSTREAM FROM THE MACHINE.
IF THIS SWITCH IS BLOCKED, INPUT 8 IS ENERGIZED AND THE CASE PUSHER WILL NOT
PUSH ANYMORE CASES INTO THE LUG DRIVE UNTIL THE PHOTOCELL IS CLEARED.
NOTE 2:
GS1, GS2, OR GS3 OPEN IF THEIR RESPECTIVE SAFETY DOOR IS OPENED. THE MOTOR
THEN STOPS AND THE MAIN AIR SUPPLY IS DUMPED (SOL1, OUTPUT 0). ALL THE AIR
CYLINDERS WILL LOOSE AIR PRESSURE. THE SAFETY DOORS MUST BE CLOSED TO RE-
START THE MACHINE.

CONTROL DESCRIPTION
DEVICE DESCRIPTION PART NUMBER
GS1, GS2, GS3
SAFETY GATE SWITCHES
A195SG-TM1
PROX1 PROXIMITY SWITCH ACTIVATES WHEN
TROLLEY IS HOME 302575
PROX2 PROXIMITY SWITCH ACTIVATES WHEN
TROLLEY IS PICKING BOX N597
PROX3 PROXIMITY SWITCH ACTIVATES WHEN CASE
PUSHER IS RETRACTED N597
PROX4 PROXIMITY SWITCH ACTIVATES WHEN CASE
PUSHER IS EXTENDED N597
PROX5 OPTIONAL – LOW HOPPER
PROX6 OPTIONAL – CASE JAM (USED W/ PC5)
PC1 CHAIN LUG DETECTOR 303526
PC2 CASE DEMAND 303528
PC3 HOPPER DEMAND 303526
PC4 OPTIONAL – LOW TAPE DETECTION
PC5 OPTIONAL – CASE JAM (USED W/ PROX6)
PC6 OPTIONAL – NO TAPE DETECTION
PC7 OPTIONAL – CASE AT TAPE INSPECTION
SOL 1 MAIN AIR SLOW START/DUMP VALVE N402-100
SOL 2 CONTROLS VACUUM ON / OFF N402-99
SOL 3 CONTROLS BLANK HOPPER DRIVE N402-97
SOL 4 CONTROLS CASE PUSHER N402-97
SOL 5 CONTROLS TROLLEY N402-97
SOL 6 CONTROLS FLAP FOLDERS N402-97
PB1 CYCLE START BUTTON
PB2 E-STOP BUTTON
PB3 STEP MODE PUSH BUTTON
SS1 MANUAL/AUTO MODE SWITCH

SET UP and SIZE CHANGE OVER
NOTES: TURN POWER OFF BEFORE MAKING ANY ADJUSTMENTS
TO THIS MACHINE.
REFER TO ASSEMBLY DRAWINGS FOR ITEM I. D.
1. HOPPER WIDTH ADJUSTMENT:
SET POINT: WIDTH OF BLANK + 1/8”
TO ADJUST HOPPER WIDTH, FIRST LOOSEN THE LOCKING CLAMP (ITEM # 19), THEN,
TURN ADJUSTING RATCHET (ITEM # 20) UNTIL THE BLANK FITS LOOSELY (1/8” CLEARANCE)
BETWEEN THE ADJUSTABLE BLANK GUIDE (ITEM # 14) AND THE FIXED BLANK GUIDE
(ITEM # 23). TIGHTEN THE LOCKING CLAMP BEFORE STARTING MACHINE.
2. HOPPER HEIGHT ADJUSTMENT:
SET POINT: 1/2” THE WIDTH OF THE ERECTED BOX
TO ADJUST HOPPER HEIGHT, ROTATE THE HANDLE ON THE TOP OF THE HYDRAULIC PUMP
(ITEM # 10). CLOCKWISE TO RAISE AND COUNTERCLOCKWISE TO LOWER. YOU CAN SET
THIS ADJUSTMENT USING THE SCALE ON THE SIDE OF THE HYDRAULIC CYLINDER (ITEM # 6)
DIVIDE THE WIDTH OF THE CASE IN 2, AND SET THE POINTER (ITEM # 21) TO THAT POSITION
ON THE SCALE. WHEN YOU ARE FINISHED ADJUSTING THIS ASSEMBLY, PUT THE HANDLE
ON THE HYDRAULIC PUMP BACK INTO ITS LOCKED POSITION.
EXAMPLE: IF THE CASE YOU ARE RUNNING IS 10" WIDE, YOU WOULD SET THE POINTER
TO 5" ON THE SCALE.
3. FINGER ASSEMBLIES:
SET POINT: CENTER OF SLOT, 1/4” DEEP
THE TOP AND BOTTOM FINGERS MUST BE POSITIONED IN A MANNER AS TO SLIP THROUGH
THE SLOTS OF THE KNOCK-DOWN CASE AT THE MANUFACTURERS JOINT AND SLIGHTLY
HOLD THE INSIDE REAR PANEL AS THE VACUUM CUPS PULL THE CASE FROM THE
HOPPER. FIRST, SET BOTH FINGERS SO THAT THEY ARE APPROXIMATELY 3/8" FROM THE
FRONT FACE OF THE CASE. THIS IS ACCOMPLISHED BY LOOSENING AND ROTATING THE (2)
SET SCREWS THAT HOLD THE FINGERS. ONCE SET, THIS ADJUSTMENT SHOULD NOT NEED
TO BE CHANGED FOR DIFFERENT BOXES.

TOP FINGER:
SET THE HORIZONTAL POSITION OF THE FINGER SO THAT IT LIES IN THE CENTER OF THE
SLOT. LOOSEN THE RATCHET HANDLE (ITEM # 23) AND SLIDE THE ASSEMBLY BY HAND
THEN RE-TIGHTEN THE RATCHET HANDLE. SET THE VERTICAL POSITION OF THE FINGER
SO THAT APPROXIMATELY 1/4” OF THE FINGER TIP IS IN THE SLOT. VERY WIDE BOXES MAY
REQUIRE MORE FINGER AND VERY STIFF BOXES MAY REQUIRE LESS. MOVE THE FINGER
UP OR DOWN BY LOOSENING THE RATCHET HANDLE WHILE HOLDING THE GEAR KNOB
(ITEM # 13). TURN THE GEAR KNOB TO ACHIEVE THE PROPER SETTING AND RE-TIGHTEN
THE RATCHET HANDLE.
BOTTOM FINGER:
THE BOTTOM FINGER REQUIRES THE SAME SET-UP AS THE TOP FINGER. HOWEVER, ONCE
THE VERTICAL POSITION IS SET INITIALLY, IT SHOULD NOT NEED ADJUSTMENT FOR MOST
OTHER BOXES BECAUSE THE BOTTOM OF THE CASE IS ALWAYS THE SAME DISTANCE FROM
THE FINGER. THE HORIZONTAL POSITION IS SET BY LOOSENING THE CLAMP KNOB AND
SLIDING THE FINGER BY HAND. RE-TIGHTEN THE CLAMP KNOB.
4. CASE PUSHER:
SET POINT: LENGTH OF ERECTED BOX
THE CASE PUSHER/REAR FLAP FOLDER ASSEMBLY WILL BE SET SO THAT THE PUSHER
PLATE (ITEM # 4) IS APPROXIMATELY 1/4" AWAY FROM THE REAR MINOR PANEL OF THE
FORMED CARTON, AS IT SITS ERECTED ON THE BOTTOM FLAP FOLDERS. TO ACCOMPLISH
THIS, LOOSEN THE (2) RATCHET HANDLES (ITEM # 22) AND SLIDE THE ASSEMBLY. ALIGN
THE REAR EDGE OF THE CASE PUSHER FRAME TO THE SCALE EQUAL TO THE LENGTH OF
THE CARTON. TIGHTEN RATCHET HANDLES BEFORE STARTING MACHINE.
EXAMPLE: IF THE CASE YOU ARE RUNNING IS 16" LONG, YOU WOULD ALIGN THE FRAME
WITH 16" ON THE SCALE.
5. VACUUM TREE:
SET POINT: CENTER OF MAJOR PANEL
CASE LENGTH ADJUSTMENT:
THE VACUUM TREE SHOULD BE POSITIONED HORIZONTALLY IN THE CENTER OF THE MAJOR
PANEL (LENGTH OF THE BOX). TO SET, PUSH THE TROLLEY TOWARD THE HOPPER SO THAT
IT IS NEAR THE BLANK. LOOSEN RATCHET HANDLE (ITEM # 39) AND SLIDE THE TREE TO THE
MIDDLE OF THE MAJOR PANEL. RE-TIGHTEN RATCHET HANDLE.
VACUUM CUP POSITION:
THE VACUUM CUPS SHOULD BE SET ON EACH CORNER OF THE MAJOR PANEL TO PROVIDE
THE BEST SUPPORT. TRY NOT TO HAVE ANY CUPS LANDING OVER A SCORE LINE ON THE

BLANK. THE CUPS SHOULD BE OFFSET FROM THE EDGES BY ABOUT 1/4”. WHENEVER
POSSIBLE USE ALL FOUR CUPS TO RUN THE BOXES. TWO CUPS MAY BE USED IF THE
MAJOR PANEL IS TOO SMALL. FOR TALL BOXES (OVER 10”) THE VACUUM POST EXTENSION
MAY BE USED. TO SET, LOOSEN THE CENTER KNOBS FOR VERTICAL POSITION. LOOSEN
THE OUTER KNOBS TO ALLOW THE ARMS TO SWEEP THROUGH THEIR ARC. THIS PROVIDES
BOTH WIDTH AND HEIGHT ADJUSTMENT. BE SURE TO TIGHTEN ALL KNOBS WHEN FINISHED.
TO REMOVE A SET OF CUPS (2), DISCONNECT THE HOSES AT THE QUICK RELEASE
COUPLING, LOOSEN THE CENTER KNOB AND SLIDE THE BAR UP AND OFF THE POST.
IMPORTANT!!!! BEFORE STARTING MACHINE, PUSH THE TROLLEY BY
HAND BACK AND FORTH THROUGH THE FORMING AREA TO CHECK FOR
INTERFERENCE WITH THE FLAP FOLDERS.
6. TROLLEY STOP:
SET POINT: 1/2 THE WIDTH OF THE ERECTED BOX
THE TROLLEY STOP SETTING IS BASED ON THE WIDTH OF THE BOX. IT ALIGNS THE
ERECTED BOX WITH THE LUG DRIVE SYSTEM. THE STOP WILL BE SET TO HALF THE
WIDTH OF THE BOX USING THE SCALE PROVIDED AND THE REAR EDGE OF THE STOP.
EXAMPLE: IF THE CASE YOU ARE RUNNING IS 10" WIDE, YOU WOULD SET THE STOP
TO 5” ON THE SCALE.
7. LUG DRIVE WIDTH ADJUSTMENT:
SET POINT: 1/2 THE WIDTH OF THE ERECTED BOX
TO SET, TURN THE HANDWHEEL ON THE OPERATORS SIDE OF THE MACHINE. TURNING THE
HAND WHEEL CLOCKWISE WILL OPEN THE DRIVE, COUNTER-CLOCKWISE WILL CLOSE UP
THE DRIVE. OPEN THE SLIDING GATES AND USE THE SCALE TO GET AN APPROXIMATE SET
POINT. ALIGN THE EDGE OF THE DRIVE ANGLE WITH THE SCALE USING 1/2 THE WIDTH OF
THE BOX AS THE PARAMETER.
EXAMPLE: IF THE CASE YOU ARE RUNNING IS 10" WIDE, YOU WOULD ALIGN THE EDGE
WITH 5” ON THE SCALE. TO CHECK, PUT A FULLY FORMED CARTON INTO THE
DRIVE SECTION AT DISCHARGE END. THERE SHOULD BE APPROXIMATELY
1/8” CLEARANCE ON EACH SIDE OF CARTON.
8. TOP SLED ADJUSTMENT:
SET POINT: HEIGHT OF ERECTED BOX + 1/16”
TO SET, PUT A FULLY FORMED CARTON INTO THE DRIVE SECTION AT THE DISCHARGE
END. USE THE CRANK HANDLE LOCATED NEAR THE OPERATOR’S STATION TO RAISE OR
LOWER THE SLED UNTIL IT CONTACTS THE TOP OF THE BOX FLAPS. THE BOX SHOULD HAVE

LIGHT PRESSURE ON IT, NOT BINDING. ALIGN THE SCALE TO THE TOP OF THE BRACKET AT
A MEASUREMENT EQUAL TO THE HEIGHT OF THE BOX PLUS 1/2 THE WIDTH
(IN INCHES).
OTHER SET-UP CONSIDERATIONS:
WHEN HANDLING SMALL CASES, ONLY TWO VACUUM CUPS WILL BE REQUIRED.
REMOVE ONE OF THE VACUUM CUP BARS ALONG WITH THE VACUUM CUPS.
DISCONNECT THE TWO HOSES USING THE QUICK RELEASE FITTINGS WHICH WILL
AUTOMATICALLY SEAL OFF THE VACUUM SYSTEM.
WHEN RUNNING A TALL BOX, USE THE VACUUM POST EXTENSION SO THE CUPS WILL
REACH THE UPPER CORNERS OF THE MAJOR PANEL.
TWO SETS OF FLAP FOLDING TOOLS ARE PROVIDED. THE SMALLER SET SHOULD BE
USED FOR BOXES UP TO 12” IN LENGTH. THE LARGER SET SHOULD BE USED FOR
BOXES LONGER THAN 12” IN LENGTH.
TWO PUSHER DISKS ARE PROVIDED. THE SMALLER DISK SHOULD BE USED FOR BOXES
UP TO 8” IN WIDTH. THE LARGER DISK SHOULD BE USED FOR BOXES OVER 8” WIDE.
THE FORMING BAR, (ALONG WITH THE FINGERS) HELPS OPEN THE BLANK AS IT IS
PULLED INTO THE FORMING AREA. IT SHOULD STRIKE THE CENTER OF THE MINOR
PANEL AND CAUSE A GRADUAL OPENING. IT IS ADJUSTABLE IN TWO DIRECTIONS,
TOWARD THE HOPPER AND TOWARD THE LUG DRIVE. FOR MOST BOXES, NO
ADJUSTMENT WILL BE NECESSARY. IF YOU ARE HAVING DIFFICULTY OPENING A BOX,
YOU CAN TRY ADJUSTING HOW SOON AND WHERE THE BAR STRIKES THE MINOR
PANEL. MOST BOXES (PROVIDED THEY MEET THE CORRUGATED SPEC), WILL RUN
SATISFACTORILY BY ADJUSTING THE FINGER DEPTH AND FORMING BAR POSITION.
IMPORTANT!!!!!: MAKE SURE TO TIGHTEN ALL FASTENERS AFTER CHANGING
TOOLS OR MAKING ADJUSTMENTS BEFORE STARTING MACHINE.

START UP PROCEDURE
THIS MACHINE IS TO BE USED, AS DESCRIBED, BY PROPERLY
TRAINED PERSONNEL.
WARNING:
NEVER.....START THE MACHINE UNTIL ALL PERSONNEL ARE CLEAR.
NEVER.....LUBRICATE OR REPAIR THE MACHINE WHILE IT IS RUNNING.
NEVER.....PUT YOUR HANDS IN THE MACHINE WHILE IT IS RUNNING.
NEVER.....ALLOW ANY PART OF YOUR BODY TO COME IN CONTACT WITH MOVING
PARTS OF THE MACHINE WHILE IT IS RUNNING.
1. CLOSE THE SAFETY DOORS.
2. LOAD BLANKS INTO THE HOPPER.
3. RETURN BOX SUPPORT ANGLE TO THE TOP OF THE SLED. MAKE SURE THE ANGLE
IS NOT HANGING OVER WHERE IT COULD GET CAUGHT BY A BLANK.
4. PULL OUT THE E-STOP BUTTON.
5. SET SELECTOR SWITCH TO MANUAL.
6. PRESS THE START BUTTON (LUG DRIVES SHOULD START).
7. PRESS THE STEP BUTTON TO ADVANCE THE MACHINE THROUGH A CYCLE.
CHECK EACH STAGE TO MAKE SURE SET-UP IS CORRECT.
8. INSPECT INITIAL BOX FOR FORMING AND TAPING QUALITY.
9. SET SELECTOR SWITCH TO AUTO. MACHINE WILL START PROCESSING BOXES
AUTOMATICALLY.
IF MACHINE DOES NOT START, CHECK THE FOLLOWING:
SAFETY GATES ARE CLOSED.
HOPPER DEMAND PHOTO EYE IS BLOCKED.
(ORANGE INDICATOR SHOULD BE ON)
DOWNSTREAM CASE-ON-DEMAND EYE IS NOT BLOCKED.
(RED FLASHING INDICATOR SHOULD NOT BE ON)

SHUT DOWN PROCEDURE
EMERGENCY SHUT DOWN.
TO SHUT THE MACHINE DOWN IN AN EMERGENCY, PRESS THE E-STOP BUTTON OR OPEN
A SAFETY GATE.
NOTE: YOU WILL HAVE TO CLEAR ANY CASES THAT WERE BEING FORMED BY THE
MACHINE BEFORE YOU CAN RESTART THE MACHINE.
NORMAL SHUT DOWN.
1. LET THE MACHINE FINISH THE CYCLE OF CASES BEING FORMED.
2. PRESS THE E-STOP BUTTON.

MAINTENANCE SCHEDULE
TURN MACHINE OFF BEFORE PERFORMING ANY MAINTENANCE.
ELECTRICAL
CHECK MONTHLY:
1. CHECK OVER-CURRENT RELAY SETTINGS. TIME (ΔT) MUST BE SET TO 0.
CURRENT (ΔI) SET JUST ABOVE THRESHOLD OF RED LIGHT COMING ON.
2. INSPECT FOR LOOSE WIRES THROUGHOUT THE MACHINE AND INSIDE THE
PANEL BOX.
2. INSPECT FOR MOISTURE INSIDE THE PANEL BOX.
3. CLEAN LENS ON PHOTOCELLS.
PNEUMATIC
CHECK DAILY:
1. CHECK THAT THE REGULATOR IS SET TO 80 PSI.
2. CHECK FLOW CONTROL SETTINGS TO ENSURE CYLINDERS ARE NOT RUNNING
HARDER THAN NECESSARY. IF THE CYLINDER SPEED IS NOT METERED PROPERLY,
EXCESSIVE NOISE AND PREMATURE WEAR OF THE COMPONENTS WILL RESULT.
CHECK WEEKLY:
1. INSPECT AIR FILTER AND DRAIN IF NECESSARY. WATER IN THE AIR LINES WILL
CAUSE THE MACHINE TO RUN ERRATICALLY AND WILL EVENTUALLY CAUSE THE
SOLENOID VALVES TO FAIL.
2. INSPECT AND CLEAR THE VACUUM GENERATOR. CHECK THAT VACUUM LINES
ARE IN GOOD CONDITION AND FREE FROM DEBRIS.
3. INSPECT THE COMPONENTS AND THE AIR LINES FOR LEAKS. LOSS OF AIR MEANS
LOSS OF SPEED AND EFFICIENCY.
4. INSPECT THE VACUUM CUPS FOR CRACKS OR TEARS.
CHECK MONTHLY:
1. INSPECT AIR CYLINDERS FOR BUSHING AND BUMPER WEAR.
2. INSPECT THE VACUUM HOSES FOR CRACKS OR CRIMPS.

MECHANICAL
CHECK WEEKLY:
1. INSPECT THE BOTTOM FLAP FOLDER ASSEMBLIES. CHECK FOR BEARING WEAR.
LUBRICATE PIVOT BUSHINGS WITH A GREASE GUN AND A MULTI-PURPOSE LITHUIM
GREASE. CHECK THE CLEVIS FOR WEAR AND LUBRICATE WITH A TEFLON BASED
SPRAY SUCH AS DUPONT TEFLON LUBRICANT WITH MOLY. CHECK AIR
CYLINDER MOUNTINGS FOR TIGHTNESS.
2. INSPECT ALL LEAD SCREWS AND CHAINS THROUGHOUT THE ENTIRE MACHINE.
CLEAN AND LUBRICATE ALL SCREWS AND CHAINS WITH A TEFLON LUBRICANT.
3. INSPECT THE LUG CHAIN DRIVES. ADJUST CHAIN TENSION AND LUBRICATE WITH A
TEFLON LUBRICANT AS NECESSARY. CHECK FOR CHAIN AND SPROCKET WEAR.
CHECK SPROCKET ALIGNMENT. TIGHTEN ALL FASTENERS.
4. INSPECT THE MOTOR/REDUCER ASSEMBLY. CHECK OIL LEVEL IN REDUCER BY
REMOVING THE BREATHER AND INSERTING A LONG THIN PIECE OF MATERIAL (A ZIP-
TIE WORKS WELL) UNTIL IT TOUCHES THE FLOOR OF THE BOX. WITHDRAW THE
PIECE AND CHECK THE DEPTH OF THE OIL. IT SHOULD BE APPROXIMATELY 1.25”
DEEP. IF NECESSARY, ADD 90 WT. GEAR OIL SUCH AS MOBILGEAR 600 XP 150.
ADJUST AND LUBRICATE THE DRIVE CHAIN WITH A TEFLON LUBRICANT.
NOTE: RIGHT ANGLE GEAR BOXES (LUG DRIVE) ARE PERMANENTLY LUBRICATED
AND MAINTENANCE FREE.
5. CHECK TAPE CARTRIDGE KNIFE FOR DEBRIS. CLEAN WITH AN OILY RAG. NEVER
USE SHARP OBJECTS TO CLEAN KNIFE.

HOW TO ORDER SPARE PARTS
FOR GENERAL INFORMATION AND ORDERING PARTS CONTACT:
THE LOVESHAW CORPORATION
2206 EASTON TURNPIKE, BOX 83
SOUTH CANAAN, PA.
18459
TEL: [phone]
PLEASE HAVE YOUR MACHINE MODEL AND SERIAL NUMBER WHEN CALLING FOR PARTS
OR SERVICE. THEY CAN BE FOUND ON THE LABEL LOCATED ON THE OUTSIDE OF THE
ELECTRICAL PANEL BOX.
WHEN CALLING LOVESHAW FOR PARTS:
A. GIVE THE MACHINE MODEL AND SERIAL NUMBER.
B. GIVE THE ASSEMBLY PART NUMBER AND DESCRIPTION.
(I.E., .TSACF50/A - TOP SLED ASSEMBLY)
C. GIVE ITEM NUMBER, PART NUMBER, AND DESCRIPTION.
(I.E., ITEM # 7, 204330, 1/2"I.D. X 5/8"O.D. FLANGE BUSHING)
BY FOLLOWING THE PROCEDURE DESCRIBED ABOVE, YOU WILL ASSIST US IN SUPPLYING
YOU WITH CORRECT PARTS FOR YOUR MACHINE AND ELIMINATE ANY MISUNDERSTANDING
BETWEEN YOUR PURCHASING AGENT AND OUR PARTS DEPARTMENT.
SEE THE LIST OF SUGGESTED SPARE PARTS ON THE NEXT PAGE, BY STOCKING THESE
PARTS, YOU WILL ELIMINATE EXCESSIVE DOWN TIME WAITING FOR SHIPMENT OF PARTS.

RECOMMENDED SPARE PARTS KIT
MODEL CF50T/XL
PART # QTY DESCRIPTION
.CAC60 (*) 1 TAPE CARTRIDGE 2”
PSC11B60-4 (*) 4 KNIFE BLADE 2”
.CAC61 (**) 1 TAPE CARTRIDGE 3”
PS4117A60-4 (**) 4 KNIFE BLADE 3”
CF50-0103-4 2 WHEEL, POLYURETHANE
203214 2 THRUST WASHER
SPR-1037 2 SPRING, EXTENSION
204143 2 LINK, CHAIN
HC202 2 MASTER LINK
HC302 2 HALF LINK
200287 1 BUMPER
N401-245 1 CYLINDER, FLAP FOLDER
N531 1 ROD CLEVIS
202822-2 1 SPRING, HOPPER BACKSTOP
N576 1 VACUUM GENERATOR
N402-99 1 VALVE, VACUUM
N402-97 2 VALVE, STACK (SINGLE REPLACEMENT)
N596 1 SWITCH BAND
N597 2 REED SWITCH
N590 1 FLOW CONTROL
N600 1 FILTER ELEMENT
N400-46 1 FLOW CONTROL, QUICK EXHAUST
SHK-007 1 SHOCK ABSORBER
N594 1 ROD CLEVIS, TROLLEY CYLINDER
203075 1 ROD EYE BEARING
201816 2 KNOB, VACUUM ARM
203220A 4 VACUUM CUP (BLUE)
SPR-1073 4 SPRING
202146 1 KNOB
202669 1 RATCHET HANDLE, LOCKING
204823 1 RATCHET HANDLE, LIFTING
203354 2 BRUSH HOPPER 10”
A125SB-10-R 1 FUSE, 10 AMP
A125SB-2/10-312 1 FUSE, 2/10 AMP
303526 1 PHOTOELECTRIC SENSOR
302575 1 PROXIMITY SWITCH
A195SG-TM1 1 SWITCH, SAFETY GATE
A195SG-TM1 KEY 1 SWITCH KEY, SAFETY GATE
N401-242/R 1 SEAL KIT, 40 mm CYLINDER
N401-241/R 1 SEAL KIT, 50 mm CYLINDER
(*) THESE COMPONENTS ARE FOR 2” MACHINE, (**) THESE COMPONENTS ARE FOR 3” MACHINE.
www.loveshaw.com

TROUBLE SHOOTING
IF THE MACHINE WILL NOT START CYCLING OR STOPS IN MID-CYCLE. IT IS LIKELY A
SENSOR OR SWITCH IS NOT IN THE CORRECT STATE. REFER TO THE “SEQUENCE OF
OPERATION” SECTION AND CHECK EACH COMPONENT.
1. CHECK THE SAFETY GATES TO ENSURE THAT THEY ARE CLOSED.
2. CHECK THAT PROXIMITY SWITCHES AND PHOTOCELLS ARE BEING TRIPPED.
3. INSPECT WIRING FOR LOOSE CONNECTIONS.
4. INSPECT AIR LINES FOR LOOSE CONNECTIONS OR LEAKS.
PROBLEM SOLUTION
1. VACUUM SYSTEM IS NOT OPERATIONAL. A. SOLENOID VALVE MAY BE DEFECTIVE. PUSH
MANUAL OVERRIDE TO SEE IF VALVE FUNCTIONS.
IF SO, CHECK SOLENOID FOR CONTINUITY.
REPLACE IF DEFECTIVE.
B. SPOOL IN VALVE MAY BE STUCK. DISASSEMBLE
VALVE, CLEAN THOROUGHLY, REPLACE DEFECTIVE
PARTS. REASSEMBLE.
C. SYSTEM MAY BE BLOCKED. CHECK SUPPLY
LINES AND GENERATOR FOR BLOCKAGE.
REMOVE OR REPLACE PART IF NECESSARY.
2. VACUUM TROLLEY WILL NOT MOVE A. SOLENOID VALVE MAY BE DEFECTIVE. PUSH
TOWARD HOPPER TO PICK UP BLANK. MANUAL OVERRIDE TO SEE IF VALVE FUNCTIONS.
(CYLINDER IN RETRACTED POSITION). IF SO, CHECK SOLENOID FOR CONTINUITY.
REPLACE IF DEFECTIVE.
B. SPOOL IN VALVE MAY BE STUCK. DISASSEMBLE
VALVE, CLEAN THOROUGHLY, REPLACE DEFECTIVE
PARTS. REASSEMBLE.
C. HOME POSITION PROXIMITY SWITCH (PROX 1)
MAY BE DEFECTIVE OR OUT OF ADJUSTMENT.
ADJUST POSITION SLIGHTLY UNTIL INDICATOR
LIGHT TURNS ON. IF NOT, CHECK FOR CONTINUITY.
IF DEFECTIVE, REPLACE.
