LS tractor LB1300 User manual

LS LOADER OPERATOR MANUAL
LS LOADER
OPERATOR MANUAL
PO Box 70, Battleboro, NC 27809
Tel : [phone]
Fax : [phone]
www.lstractor.com
www.lstractorusa.com
INNOVATIVE
TECHNOLOGY
PARTNER
MBH1370A
LB1300
TRACTOR Model
•MT225S
P/NO PM-LB1300
REVISION : 04
OPERATOR MANUAL
LS BACKHOE
LS BACKHOE

Tractor
Backhoe
Code
Bucket
Option
MT225S
30139708
• 9”: 30141213
•12”: 30141914
•16”: 30144229
• Thumb : 40450910
• Dirt pad : 40370235
• Street pad(2ea) : 40396857
• Street pad(4ea) : 40393894
LS BACKHOE
OPERATOR MANUAL / SERVICE MANUAL
Model: LB1300

1
WARRANTY CONDITIONS
Warranty coverage:
LS Mtron tractor division, herein referred to as LS Mtron, undertakes to replace or repair any part of a
LS Mtron backhoe where damage has been proven to be caused by defects in material or workmanship.
This warranty is valid for a period of 1 year from the date of the original retail sale. Parts replaced or
repaired under the terms of this warranty are guaranteed only until the original warranty expires. Warranty
only applies to the original purchaser.
It is further understood and agreed that the defect should be immediately reported to the selling dealer.
The selling dealer will generally perform warranty repairs or replacements and the purchaser shall deliver
the LS Mtron backhoe to the dealer's place of business or repair.
The obligation of LS Mtron to the purchaser under this warranty is limited to the repair or replacement
of defective parts by an authorized LS Mtron dealer. Repair or replacement in accordance with this
warranty shall constitute fulfillment of all liabilities of LS Mtron and the selling dealer in respect to
LS Mtron backhoe.
There are no warranties beyond those which expressly appear herein. Any implied warranty of
merchantability or fitness for a particular purpose is specifically excluded here from.
Warranty provisions:
LS Mtron's liability under this warranty is subject to the observance by the purchaser of the following
provisions:
▶The purchaser shall at all times in the operation of any LS Mtron product, use those brands
and grades of lubricating oils, lubricants or fuel and spare parts officially approved by LS Mtron.
▶The LS Mtron backhoes shall have been used in accordance with the procedures specified in the
operator's manual. This warranty does not extend to damage resulting from misapplication, abuse,
misuse, failure to preform maintenance, negligence, fire, accidents or changes or faulty mounting
carried out by the purchaser. When making a warranty exchange of parts, the purchaser shall
compensate LS Mtron for the time that the parts have been used if they have been exposed to
extreme wear.
▶Compensation is not paid for physical harm, deadlock, resulting damages or other losses.
▶To obtain warranty service, the purchaser must (1) report the product defect to an authorized
LS Mtron dealer and request repair within the applicable warranty term and (2) present evidence
of purchase.
▶The warranty shall be void if the LS Mtron backhoe has been altered or repaired outside of a LS Mtron
dealership or travel of dealer personnel to customer location for warranty repair. The customer shall
also pay any premium for overtime labor requested by the customer.
▶Temporary repairs or additional costs due to the work being performed after normal working hours
will not be compensated.
▶The above warranty is in lieu of all other warranties on LS Mtron's behalf and neither party assumes
any other liability in connection with LS Mtron's products.
Right to make design and product changes:
LS Mtron reserves the right to make changes in the design and other changes in its LS Mtron products at
any time without incurring any obligation with respect to any product previously ordered, sold or shipped.

2
PLEASE NOTE
Make sure all potential operators of the equipment review this manual and all safety messages
contained within.
This safety symbol indicates important safety messages in this manual.
When you see this symbol, carefully read the message that follows and be alert to the
possibility of personal injury or death.

3
TABLE OF CONTENTS
▣Safety precautions 4
▣Safety decals
6
▣Backhoe specifications
9
▣Introduction
10
▣Tractor preparation
11
▣Backhoe operation 12
▣Backhoe installation
16
▣Tractor hydraulic kit mounting
19
▣Tractor seat mounting
21
▣How to use reversible seat
26
▣Backhoe removal
28
▣Backhoe mounting
30
▣Lubrication and maintenance
32
▣Trouble shooting
34
▣Hydraulic system schematic
38
▣Torque tightening chart
39
▣Parts lustrations
40
IMBH10. Sub frame group 41
IMBH20. Main frame group 42
IMBH30. Swing frame group 47
IMBH40. Boom group 48
IMBH50. Bucket, Dipperstick group 49
IMBH61. Hydraulic line group 51
IMBH62. Hydraulic control fitting group 53
IMBH70. Bucket cylinder group 55
IMBH71. Dipper stick cylinder group 57
IMBH72. Boom cylinder group 59
IMBH73. Swing cylinder group 61
IMBH74. Stabilizer cylinder group 63
IMBH90. Option 1(THUMB) 65
IMBH91. Option 2(DIRT PAD) 66
IMBH92. Option 3(STREET PAD) 67
IMBH93. Option 4(STREET PAD) 68
IMG980. Decal group 69
▣Service manual 71

4
SAFETY PRECAUTIONS
Understand that your safety and the safety of
other persons are measured by how you service
and operate this backhoe. Know the position
and operations of all controls before you they
to operate. Make sure you check all controls
in all safe area before starting.
▶Read this manual completely and thoroughly
And make sure you understand all controls.
All equipment has a limit Make sure you are
aware of the stability and load characteristics
of this backhoe before you begin operation.
The safety information given in this manual does
not replace any safety codes, insurance needs,
federal, state and local laws. Make sure your
machine has the correct equipment required by
your local laws and regulations.
This safety alert symbol indicates important safety messages in this manual.
When you see this symbol, carefully read the message that follows and
be alert to the possibility of personal injury or death.
SAFETY PRECAUTIONS
Before starting the engine of your tractor, make
sure, all operation controls are in park lock or
neutral position.
Operate controls only when seated in the
operator's seat.
Equip your tractor with a ROPS cab or frame
for your protection. See your tractor operator's
manual for correct seat belt usage.
A frequent cause of personal injury or death is
persons falling off and being run over. Do not
permit others to ride on your tractor. Only one
person, the operator, should be on the machine
when it is in operation.
Before leaving the tractor, stop the engine, put all
controls in neutral, engage the parking brake and
remove the key from the ignition.
When using remote hydraulic tractor valves on
some tractors, the backhoe lift and dump cylinders
will continue moving unless the control levers are
manually returned to neutral, or until relief pressure
is reached at the ends of piston strokes. Observe
the bucket movement and maintain control with
the control levers.
Stop the backhoe arms gradually when lowering
or lifting loads.
Stay off slopes too steep for safe operation.
Shift down before you start up or down a hill
with a heavy load. Avoid "Freewheeling"
Travel speed should be such that complete
control and machine stability are maintained
at all times. Where possible, avoid operation near
ditches, embankments and holes.
Reduce speed when turning, crossing slopes,
and on rough, slick or muddy surfaces.
Never use your hand to check for suspected
leaks under pressure. Use a piece of cardboard
or wood for this purpose. Escaping hydraulic oil
or diesel fuel leaking under pressure has enough
force to penetrate the skin and cause infection or
other injuries by leaking fluid. If this occurs seek
medical attention immediately.
To prevent personal injury, relieve all pressure
before disconnecting fluid lines.
Before applying hydraulic pressure, make sure
all hydraulic connections are tight and
components are in good condition.

5
SAFETY PRECAUTIONS
Contact with overhead power lines can cause severe
electrical burn or death from electrocution.
Make sure there is enough clearance between raised
equipment and overhead power lines.
Add recommended rear tire liquid weight or rear
wheel weights for increased stability.
A backhoe attachment should be transported in a
low position at slow ground speeds. Make turns
slowly and use the tractor brakes cautiously.
A loaded attachment in the raised position alters the
center of gravity location of the machine and
increases the possibility of mishaps.
Make sure all parked backhoe on stands are on a
hard level surface with all safety devices
engaged to prevent backhoe from falling and being
damaged or injuring someone.
When using a backhoe, be alert of bucket, boom
and arm position always.

6
SAFETY DECALS

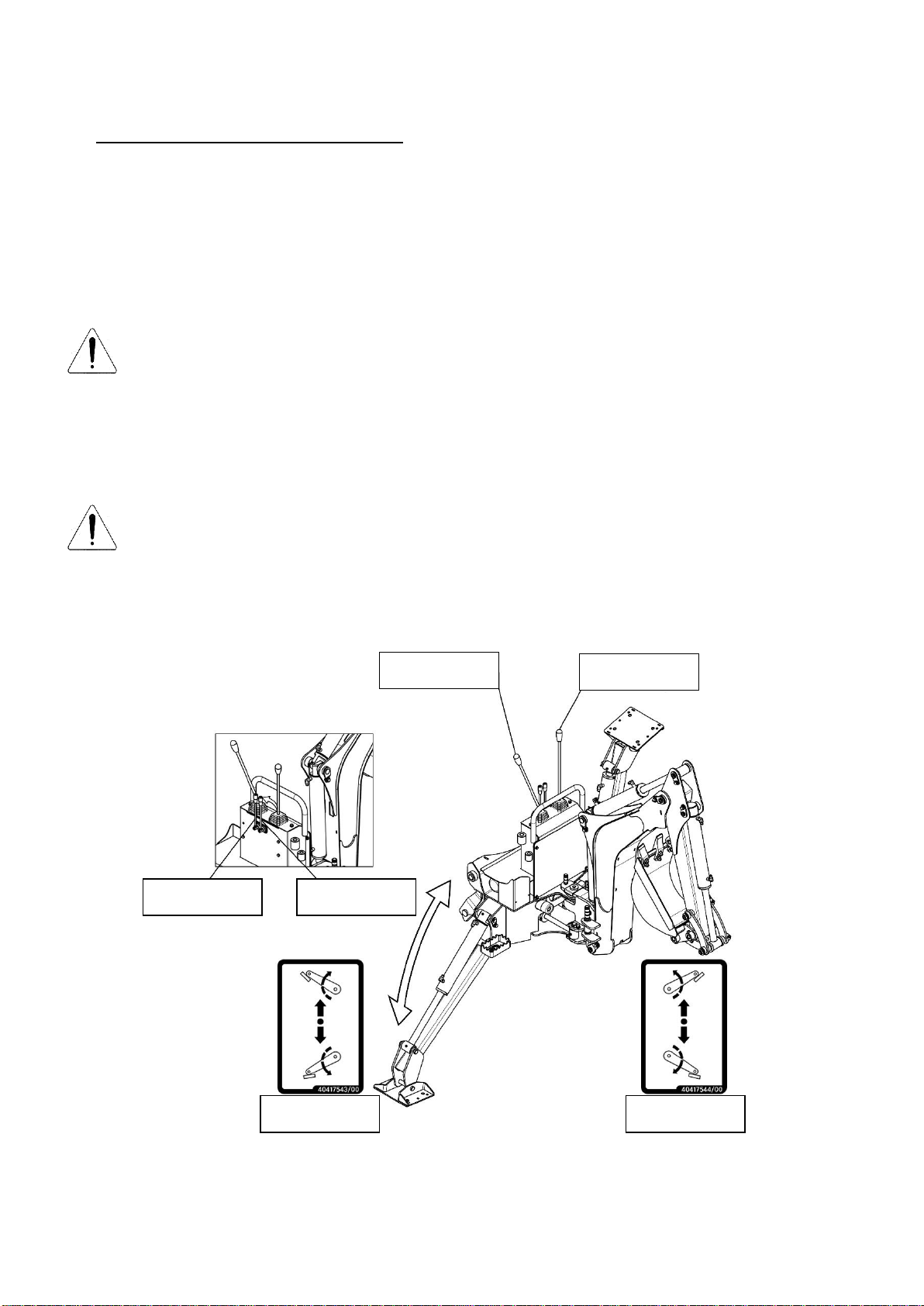

Safety decal locations
Important: Warning decals are visible when getting on backhoe. Refer to the left and right hands
used in this manual, It's the position of the operator when seated in the operating position of backhoe
Care of safety decals.
1. Keep safety decals clean and free of obstructing material.
2. Clean safety decals with soap and water and dry with a soft cloth.
3. If a component with a safety decal(s) affixed is replaced with a new
part, make sure new safety decal(s) are attached in the same location(s)
as the replaced components.
4. Mount new safety decals by applying on a clean dry surface and pressing
air bubbles to outside edges.
40358865 40417406
40255430 40358867

7
SAFETY DECALS
40358868 40417542
40417545 40417547
40417543 40717544
40358874 40358875

8
SAFETY DECALS
40358876 40358812
40358878 40410884
40410879
40436070

9
BACKHOE SPECIFICATION
Backhoe model : LB1300
Tractor model : MT225S
A
Digging death (Two-foot flat bottom)
2,157
mm
84.9
In
B
Reach from center line of swing pivot
2,887
mm
113.7
In
C
Loading height (Bucket at 60°)
1,643
mm
64.7
In
D
Maximum leveling angle
10
°
10
°
E
Swing arc
180
°
180
°
F
Transport height (Maximum)
1,864
mm
73.4
In
G
Transport overhang
1,102
mm
43.4
In
H
Bucket rotation
177
°
177
°
I
Stabilizer spread (Down position)
2,087
mm
82.2
In
J
Stabilizer spread (Up position)
1,662
mm
65.4
In
K
Angle of departure
21
°
21
°
Shipping weight (Without bucket)
390
kg
860
lb.
Bucket digging force
1,367
kg
3,013
lb.
Dipper stick digging force
760
kg
1,675
lb.
Operating pressure
155
Kgf/cm2
152
bar
Bucket (Option)
305
mm
12
in
Cylinder
Bore DIA
Retracted length
Stroke
Rod DIA
mm
inch
mm
inch
mm
inch
mm
inch
Boom
65
2.6
605
23.8
375
14.8
35
1.4
Bucket
60
2.4
514
20.2
310
12.2
35
1.4
Dipper stick
65
2.6
595
23.4
330
13.0
35
1.4
Swing
60
2.4
175
6.9
220
8.7
25
1.0
Stabilizer
60
2.4
520
20.5
305
12.0
35
1.4
Bucket
Teeth Q'TY
Struck capacity
Heaped capacity
Shipping weight
9" Bucket
3
0.73 cu. ft.
0.87 cu. ft.
46lbs
12" Bucket
3
1.01 cu. ft.
1.24 cu. ft.
56lbs
16" Bucket
3
1.38 cu. ft.
1.76 cu. ft.
64lbs
Specifications may vary depending on tractor model, tire size and bucket used.

10
INTRODUCTION
The purpose of this manual is to assist you in
maintaining and operating your backhoe. Read
it carefully, it furnishes information and
instructions that will help you achieve years of
dependable performance. Some information may
be general in nature due to unknown and varying
conditions. However, through experience and
these instructions, you should be able to develop
operating procedures suitable to your situation.
"Right" and "Left" as used throughout this manual
are determined by facing the direction the
machine will travel when in use.
The photos, illustrations and data used in this
manual is current at the time of printing, but
due to possible in-line production changes, your
machine may vary slightly in detail.
The manufacturer reserves the right to redesign
the machine as may be necessary without
notification.
▶Backhoe Components
Terms for backhoe components have some
variations throughout the industry.
▶Important
Illustrations used in this manual may not show all
safety equipment that is recommended to ensure
safe operation of tractor and backhoe. Refer to
the safety precautions section of this manual for
information concerning safety. consult your dealer
for further information.
▶Warranty registration
The delivery and warranty registration forms must
be filled out and signed to validate your warranty
protection. The items on the form under "I hereby
Acknowledge" should be read and understood.
The terms and conditions of the warranty on this
machine are specified in the front of this manual.
▶Serial number and location
The serial number is important information about
the machine and it may be necessary to know it
before obtaining the correct replacement part.
The serial number is located on the bottom right
front of valve cover. The serial number should be
recorded on the delivery and registration form
and below for your reference.
1 Bucket
2 Bucket cylinder
3 Dipper stick
4 Dipper stick cylinder
5 Boom
6 Boom cylinder
7 Swing frame
8 Swing cylinder
9 Main frame and control panel
10 Stabilizer
11 Stabilizer cylinder
Backhoe serial number information
Date purchased
Backhoe serial number
Subframe serial number
Dealer name and telephone number

11
TRACTOR PREPARATION
Caution :
Do not exceed the manufacturer's rating
for maximum gross vehicle weight. Refer to
operator's manual or ROPS serial plate
provided with tractor.
Caution :
Certain specific conditions may not permit
safe use of backhoe at backhoe rating or
may require more careful restricted
operation at the rated load.
▶ROPS system
▶Tractor hydraulic system
Tractor operation in a backhoe application
significantly increase demands on the tractor
hydraulic system. Check the tractor
Hydraulic system fluid level daily. Refer to
your Tractor operator's manual maintenance
section for instructions regarding tractor
hydraulic system maintenance.
Adhere to recommendation in your Tractor
operator's manual concerning hydraulic
fluid and filter specifications, and change intervals.
The tractor must be equipped with an approved
ROPS system to ensure adequate operator's
protection.
Caution :
The tractor/backhoe must only be operated with all safety equipment properly installed.
▶Tire inflation
Front tires must be maintained at the maximum
recommended inflation to maintain normal tire
profile with the added weight of backhoe/material.
Rear tires must be maintained at equal pressure
within the recommended tire inflation range.
Unequal rear tire inflation can prevent backhoe
attachment from contacting the ground across its
full width.
▶Wheel tread settings
Tractor front wheel tread setting must be
restricted to wheel tread spacing recommended
in the tractor operator's manual.

12
BACKHOE OPERATION
Caution :
The tractor/backhoe should only be
operated with all safety equipment properly
installed. Keep assistants or bystanders a safe
distance from the equipment operating area.
▶Precautionary notes
- Check below items before operating for your
safety.
- Read and understand this manual to avoid
accidents.
- Check the hydraulic fitting lines to be
correct and set tightly
- Maintain and repair (If it is needed) the
parts or assemblies, check bolts and pins
to be sure they are positioned tightly.
- Check tractor with the Tractor operator's
manual that it can prepared for operating.
- Warm up and operate the tractor and
backhoe carefully. Purge any air in the
hydraulic lines and cylinders by fully
cycling all cylinders several times.
- Check hydraulic level in the tank. It should
be full (Refer to the Tractor operator's
manual).
- Do not operate the hydraulics when not
seated in the backhoe operator's seat.
- Keep all assistants out of area of operation.
- Do not operate rapidly.
- Do not allow riders other than the operator
to be on the tractor while operating.
▶Important:
Use tractor engine speed that your experience
permits. At first set PTO RPM of the tractor to slow.
Do not use the boom, dipper stick, swing and
stabilizers to lift, push or pull objects. Use only to
maneuver and operate the bucket.
▶Important:
Practice quickly turning off the engine or stopping
the backhoe immediately in case of an emergency.
▶Important:
Do not operate while the rear tractor wheels are off
the ground by stabilizer. It is dangerous to operate
the backhoe while rear wheels are off the ground.
Position vehicle so that the backhoe is as near to the
pile as possible and in such a direction as to
minimize the amount of tractor turning required to
dump.
Keep the unit clean and perform regular service.
Observe safety messages whenever cleaning,
servicing, or lubricating.
▶We urge you to follow this advice
1. Read and understand this manual as well as the
Tractor operator's manual.
2. Remember and observe the safety precautions
brought to your attention in this manual, the
tractor manual and on the machinery itself.
3. Use good common sense in the everyday
operation of this unit.
Safety recommendations can never be all-
inclusive, and you are responsible for
watching out for and avoiding unsafe conditions.
4. Never exceed the limits of a piece of
machinery. If its ability to do a job or to do
so safely is in question, don't try it.
5. Don't hurry the learning process or take the
unit for granted. Ease into it and become
familiar with your new backhoe and tractor.
Caution : When lowering a heavy load, ease
it downward slowly. Never drop a loaded
attachment and "Catch it hydraulically".
Stopping a load after it has gained downward
momentum places undue strain on the unit and may
cause unnecessary damage to the backhoe or tractor
or even worse, personal injury.
Caution : Before disconnecting hydraulic
lines, relieve all hydraulic pressure. Escaping
hydraulic oil under pressure can have
enough force to penetrate the skin causing serious
personal injury. If injured by escaping hydraulic oil
seek medical attention immediately.
Caution : Do not operate the loader if the
fittings are leaking or if the hoses are
damaged. A sudden line burst would cause
the mainframe to drop suddenly, causing damage to
the tractor or loader or injury to personnel.

13
BACKHOE OPERATION
▶Initial backhoe operation
Before operating the backhoe, fully raise and lower
the boom, arm, swing and stabilizers two or three
times. Then raise the bucket above the ground and
cycle the bucket cylinders three times. Lower the
bucket to the ground. Check the tractor hydraulic oil
and the correct oil level.
Caution:
Before leaving the machine, stop the engine,
remove the key, place all controls in neutral,
and either set the parking brake or place tractor in
park as equipped.
Always keep cylinders in a retracted position when
the backhoe is not in use to guard against rust and
contamination which may cause damage to the
cylinder rods or hydraulic system.
Also, lock the swing and boom while tractor is
moving and storing for an extended period.
▶Cold weather operation
For smooth operation in cold weather, let the tractor
warm up. Slowly cycle all the cylinders several times
to warm the oil in the hydraulic system. The backhoe
may operate erratically until the hydraulic oil has
warmed to operating temperatures.
Caution :
Operate controls only when seated in the operator's seat.
Left and right stabilizer controls
Bucket/crowd
Boom/swing
Left stabilizer
Right stabilizer
Decal for
Left stabilizer
Decal for
Right stabilizer

14
BACKHOE OPERATION
Push the left-hand inner control lever, left stabilizer lowers. And pull up the lever, left stabilizer raises.
Push the right-hand inner control lever, right stabilizer lowers. And pull up the lever, right stabilizer raises.
Do not dig near the stabilizers to avoid possible accident.
Do not lift the tractor rear wheels by stabilizers. Also, be sure the stabilizers are seated on hard ground to
support. The backhoe / tractor.
Boom and swing controls
Push the left-hand outer control lever, boom moves down, and pull
back the lever, boom moves up. Also, pushing the lever fully forward
into the detent position, allows the boom to float. In the float position,
the boom can drift up or down without pressure.
Move the left-hand outer control lever to the left, boom swings to the
left. Move lever right, backhoe boom swing moves to the right.
Bucket and crowd controls
Push the right-hand outer control lever, arm (Dipper stick) moves
away from operator, and pull back the lever, arm (Dipper stick) moves
toward the operator.
Move the right-hand outer control lever to the left, bucket curls in.
Move lever right, bucket extends out from operator.
These two levers ( Boom and swing control lever, Bucket and crowd control lever ) provide
four simultaneous operations. Both experience and practice are needed to eliminate excess
motion and increase operating efficiency.

15
BACKHOE OPERATION
▶Swing lock and boom lock
When transporting or dismounting backhoe, you must lock the backhoe's swing and boom.
Position boom straight back and drop pin through holes in swing frame and boom. When not in use,
store pin in hole provided on swing frame and boom.
Observe the following safety warnings when working with your new backhoe/tractor.
Caution :
When using a backhoe, be aware of bucket and boom location always.
When raising an arm (Dipper stick) with bucket rolled forward, material can spill onto non target
area causing injury to assistant or damage other objects.
Caution :
Do not dig near stabilizers. Ground under stabilizers could collapse. Make all movements slow and
gradual when practicing operation.
Caution :
Operate from backhoe operators’ seat only. Pay attention, be ready to stop, immediately in case of
an emergency.
Caution :
To help prevent roll-over, adjust the rear wheels to their widest setting to maximize stability. Refer
to your tractor operator's manual for recommendations.
Swing look
Boom look

16
BACKHOE INSTALLATION
◈Position the tractor on a hard level surface.
Caution : Lift and support all loader components safely.
(1) REAR PLATE CP. LH –1EA
(2) FRAME CP-LH –1EA
(3) REAR PLATE CP. LH –1EA
(4) FRAME CP-RH –1EA
(5) BOLT, M16x50L –4EA
(6) SPRLNG WASHER, M16 –12EA
(7) NUT, M16 –4EA
(8) BOLT, M12x40L –4EA
(9) SPRLNG WASHER, M12 –8EA
(10) BOLT, M12x55L –4EA
(11) BOLT, M14x45L –6EA
(12) SPRLNG WASHER, M14 –6EA
(13) BOLT, M16x40L –8EA
(14) PLAIN WASHER, M16 –4EA

17
BACKHOE INSTALLATION

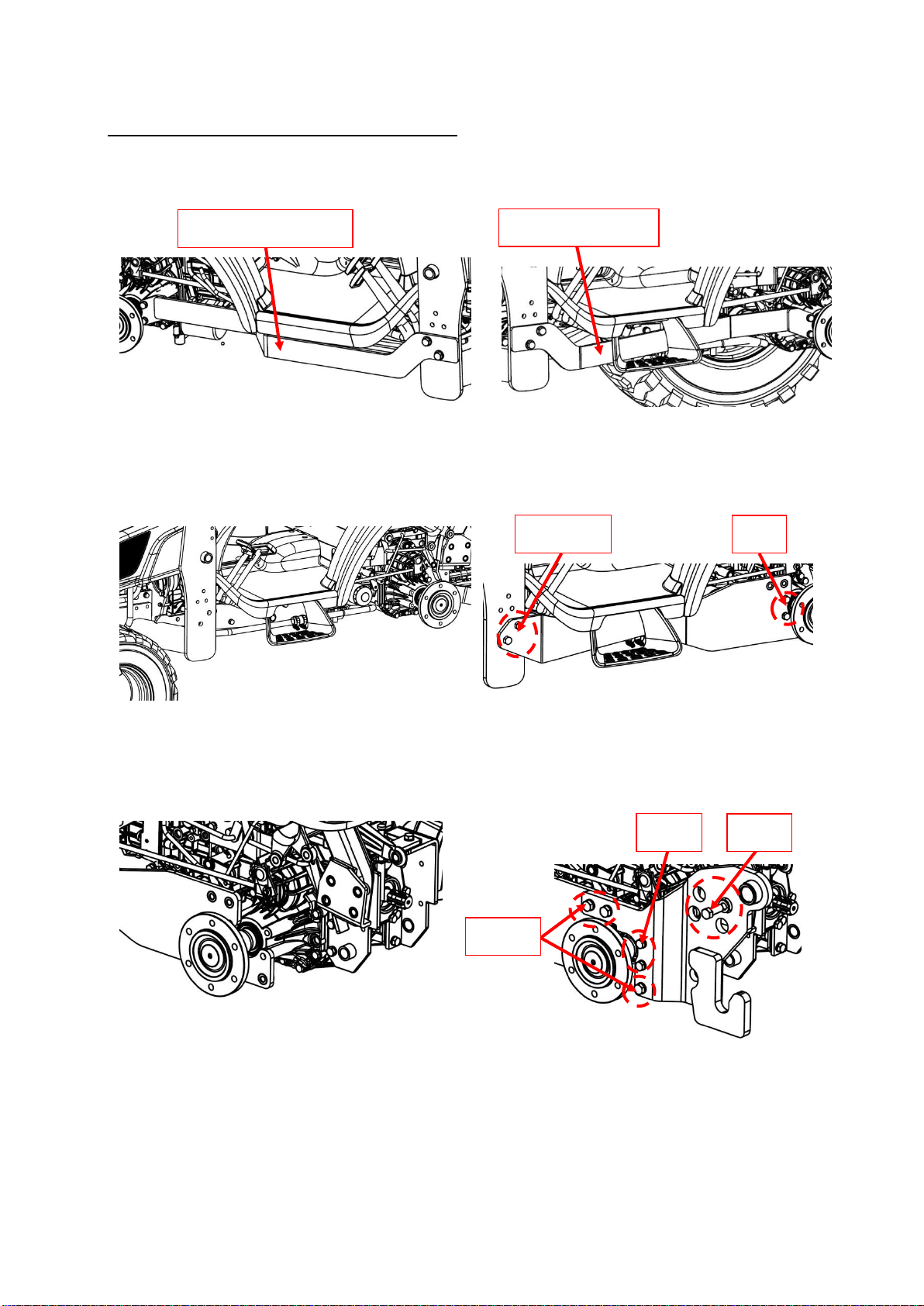

1. Uninstall the left-hand & right-hand Back axle for loader mount on the tractor frame.
2. Install the left-hand Rear plate CP LH mount on the left-hand tractor frame & loader frame, secure with M12x40L
bolts(8), M12 spring washers(9) - (Torque to 94N.m(70lb ft)), M16x50L bolts(5), M16 spring washers(6), M16 plain
washers(14), M16L nuts(7). - (Torque to 234N.m(173lb ft)).
3. Install the left-hand Frame CP LH mount on the left-hand tractor frame, secure with M12x55L bolts(10), M12
spring washers(9) - (Torque to 94N.m(70lb ft)), M14x55L bolts(11), M14 spring washers(12) - (Torque to
151N.m(111lb ft)), M16x40L bolts(13), M16 spring washers(6). - (Torque to 234N.m(173lb ft)).
right-hand Back axle
left-hand Back axle
5, 6, 7, 14
8, 9
11, 12
13, 6
10, 9

18
BACKHOE INSTALLATION
4. Install the right-hand Rear plate CP LH mount on the right-hand tractor frame & loader frame, secure with
M12x40L bolts(8), M12 spring washers(9) - (Torque to 94N.m(70lb ft)), M16x50L bolts(5), M16 spring washers(6),
M16 plain washers(14), M16L nuts(7). - (Torque to 234N.m(173lb ft)).
5. Install the left-hand Frame CP LH mount on the left-hand tractor frame, secure with M12x55L bolts(10), M12
spring washers(9) - (Torque to 94N.m(70lb ft)), M14x55L bolts(11), M14 spring washers(12) - (Torque to
151N.m(111lb ft)), M16x40L bolts(13), M16 spring washers(6). - (Torque to 234N.m(173lb ft)).
6. Connect strap to backhoe assembly and lift using hoist crane. And adjust the crane position to align the
mounting frame and backhoe assembly. And once the backhoe is positioned, assemble the Lock pin in the hole.
5, 6, 7, 14
8, 9
11, 12
13, 6
10, 9
Lock pin
