Ltech LT-860-8A User manual

LT-860-8A, w
0-100% dimming or different lighting effect;
workable with single color, bi-color or RGB LED lamps.
ith the standard RDM remote device management protocol, supports DMX512 signal
bi-directional communication, achieves remote management of reading and writing DMX address (DMX
master controller must recognize the RDM protocol). Realize
LT-860-8A
CV RDM/DMX Decoder
1
1. Technical Specs:
2. Product Dimension:
LT-860-8A
Input Signal:
:
Max Current Load: 8A×3CH Max 24A
Max Power Load: 120W/288W/576W(5V/12V/24V)
Gray Scale Level: 256 Levels per Channel
RDM, DMX512
Input Voltage 5~24VDC
Dimming Range:
:
: L170×W64×H30mm
: L172×W66×H34mm
: 215g
0~100%
Working Temperature -30℃~55℃
Dimensions
Package Size
Weight (G.W)
warranty
5 years
LT-860-8A is a 3CH DMX CV decoder with three digital tubes displaying DMX address, built-in
DMX signal amplifier. Support four self-testing dynamic change modes. Any color adjusted by DMX
console can be stored on the decoder and played dynamically offline. A user-friendly way to DIY
changing effect.
RDM/
2
DMX Signal
Output Socket
DMX Signal
Input Socket
Address values
hundreds of digits+/-
Address values
ten's place+/-
Address values
unit's place+/-
DMX Console Color
Save Keys
Indicator Light ,
DMX/RDM Mode, Self-testing Mode.
for RUN
DMX Address
Play DIY Dynamic Mode
1-4 Self-testing Dynamic Mode:
(Other function: long press to turn on/off the buzzer)
Recovery Parameter:
In the DMX Decoder Mode, the “ DMX” indicator light is on, the “RUN” indicator light flash
quickly if RDM/DMX signal input. In the self-testing mode or editing dynamic effect mode, the “MODE”
indicator light is on.
RDM/
Setting the hundreds for DMX address(0-5).
Setting 4 kinds of self-testing dynamic modes
when continue to add/subtract(6-9, display P1-P4).
Inside DMX
Signal Amplifier
4.1 Stand-alone Use
(Short press to display the preset static color.
Long press to save the current RGB data of DMX console)
3. Operation Interface Instruction:
RGB jumping/7 color jumping/RGB fading/7 color fading
Press "100+"key and "100-" key at same time

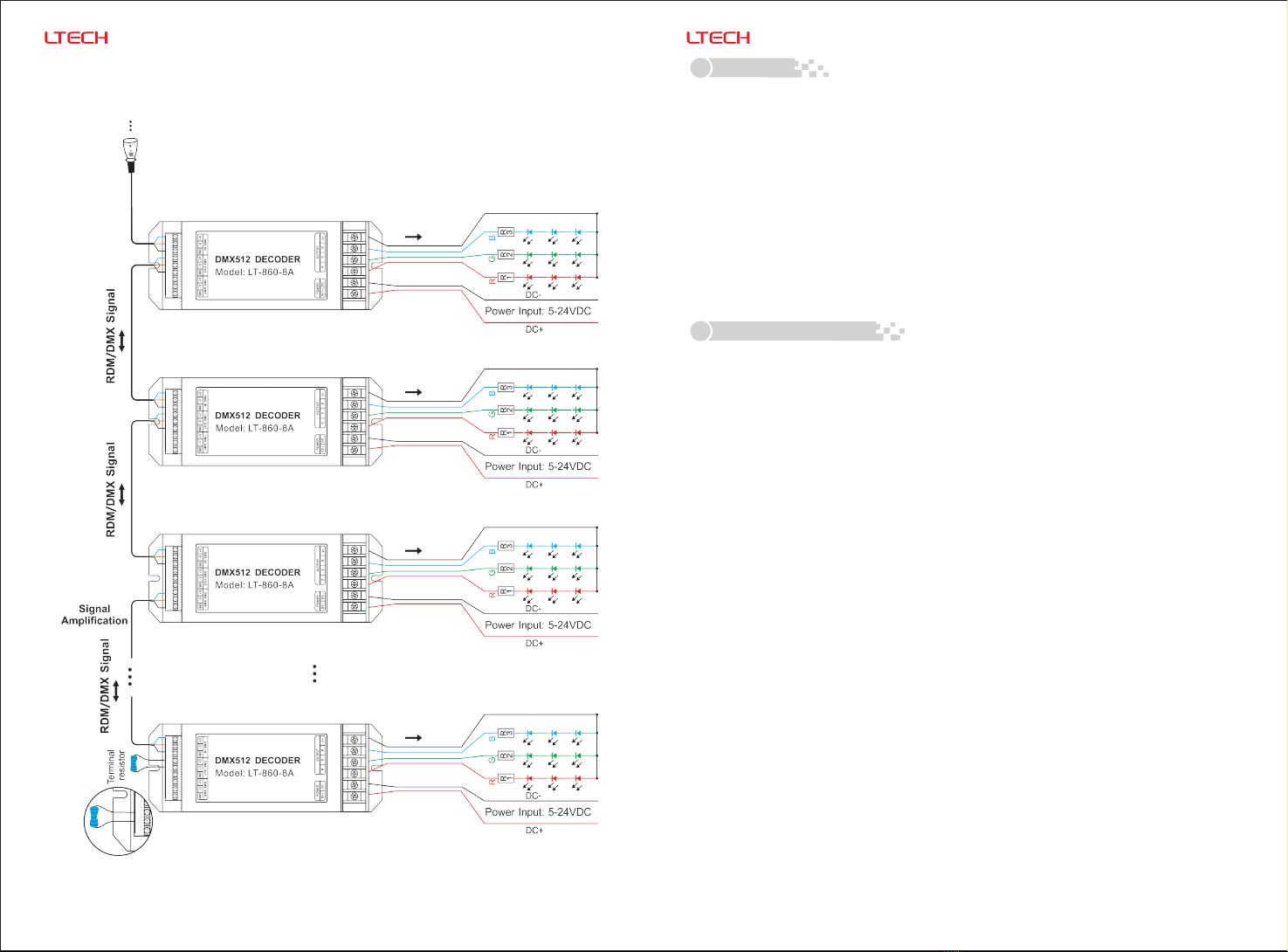

4. Wiring Diagram:
3.2 Nixie Tube State Display
Speed
Nixie Tube Display
LED Lamps
Connection Socket
Power Input
Socket
LT-860-8A CV RDM/DMX Decoder LT-860-8A CV RDM/DMX Decoder
www.ltechonline.com

3
4.2 DMX Mode
RDM/DMX Signal Input
LT-860-8A CV RDM/DMX Decoder
4
5. Attention
6. Warranty Agreement
5.1 The product shall be installed and serviced by the qualified person.
5.2 This product is non-waterproof. Please avoid the sun and rain. When installed outdoors please
ensure it is mounted in a water proof enclosure.
5.3 Good heat dissipation will prolong the working life of the controller. Please ensure good ventilation.
5.4 Please check if the output voltage of the LED power supply used comply with the working voltage
of the product.
5.5 Please ensure that adequate sized cable is used from the controller to the LED lights to carry
the current. Please also ensure that the cable is secured tightly in the connector.
5.6 Ensure all wire connections and polarities are correct before applying power to avoid any
damages to the LED lights.
5.7 If a fault occurs please return the product to your supplier. Do not attempt to fix this product
by yourself.
★ This manual only applies to this model. We reserve the right to make changes without prior notice.
6.1 We provide lifelong technical assistance with this product:
● A 5-year warranty is given from the date of purchase. The warranty is for free repair or
replacement if cover manufacturing faults only.
● For faults beyond the 5-year warranty, we reserve the right to charge for time and parts.
6.2 Warranty exclusions below:
● Any man-made damages caused from improper operation, or connecting to excess voltage
and overloading.
● The product appears to have excessive physical damage.
● Damage due to natural disasters and force majeure.
● Warranty label, fragile label and unique barcode label have been damaged.
● The product has been replaced by a brand new product.
6.3 Repair or replacement as provided under this warranty is the exclusive remedy to the customer.
We shall not be liable for any incidental or consequential damages for breach of any stipulation
in this warranty.
6.4 Any amendment or adjustment to this warranty must be approved in writing by our company only.
LT-860-8A CV RDM/DMX Decoder
Update time: 2014.12.20
*
An amplifier is needed when more than 32 decoders are connected, signal amplification should not be more than
5 times continuously.
*
terminal resistor at the end of each line.
If the recoil effect occurs because of longer signal line or bad line quality , please try to connect 0.25W 90-120Ω
www.ltechonline.com
