Ltech LT-916 Reference manual

4. With the operations can be completed via the
RDM master console, such as parameters browsing & setting, DMX address
setting, equipment recognition, etc.
RDM remote management protocol,
3. Support 3 kinds of DMX ports : 3-pin XLR, RJ45 and green terminal (with signal
amplifier function).
2. Easy operation with digital display and the touch buttons.
1. Designed for Hi-power multiple channels application, 16 channels output, and up to
1152W output power.
5. With short circuit protection and over current protection, as well as warning function
when fault.
8. 16bit (65536 levels) / 8bit (256 levels) grey level optional.
Product Introduction:
6. With fast self-testing function.
www.ltech-led.com
7. High/low frequency PWM for optional.
1
LT-916
Short circuit / Over current protection
www.ltech-led.com
16
CHANNELS
8 bit / 16 bit
3 kinds of DMX interfaces

Product Size:
Unit: mm
www.ltech-led.com www.ltech-led.com
2 3
Powered by DC1
Max. 24A
Powered by DC2
Max. 24A
DC1 DC2
M
<
<
Technical Specs:
LT-916
DMX512/RDM
3-pin XLR, RJ45, Green terminal
12~24Vdc
3A × 16CH Max 48A
(0~36W...72W) × 16CH Max. 1152W
8bit (256 levels) / 16bit (65536 levels)
Short circuit / Over current
-30℃~65℃
L180×W122×H39mm
L193×W127×H41mm
730g
Model :
Input Signal :
DMX Interface :
Input Voltage :
Current Load :
Output Power :
Grey Level :
Protection :
Working Temperature :
Dimensions :
Package Size :
Weight (G.W.) :

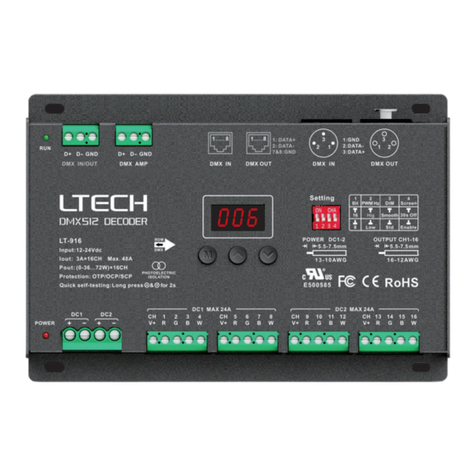

Main Component Descripition:
12-24V
Power input
dc Green terminals
LED lamps connection
DMX/RDM input & output
3-pin XLR RJ45 Green terminals
(with signal amplifier function)
Dip switch
Screen
Hig Smooth
Low Std
30S off
Enable
PWM Hz DIM
16
Bit
8
Digital display
Digital display will enter the locked
mode without operating after 15S.
Long press “M” key to unlock.
Short press “M” key to switch numbers.
Press “ ””v” key to adjust value.
^
Power
indicator
Signal
indicator
Digital
display Dip
switch
Press or keys simultaneously for 2-3 seconds, decoder will enter self-testing function.“ ” ”v”
^

www.ltech-led.com
4
Wiring Diagram:
1. DMX console onnectionc :
If the recoil effect occurs because of longer signal line or bad line quality, please try to
connect 0.25W 90-120Ω terminal resistor at the end of each line.
LT-916 is equipped with 3 types DMX terminals for users’
selection. The following diagram takes 3-pin XLR as an
example, same connecting method for the rest two: RJ45
& green terminal (with amplifier function).
5
2 Connecting LED lights:
www.ltech-led.com

67
3. The connection diagram of 3 kinds of DMX/RDM terminals:
RJ45 Connected in Parallel
These 3 terminals can be connected in a mixed way.
4. The connection diagram of :AMP signal amplifier terminal
www.ltech-led.com www.ltech-led.com
*
Installation Attention : please reserve enough ventilation distance between decoders (>20mm),
be sure not to block the vent, or will affect lifetime of decoder for .poor heat dissipation
Connecting with green terminal or an extra amplifier will be needed when more than 32
decoders are connected or use overlong signal wire(as shown below).
Signal amplifier should not be more than 5 times continuously.
*

8
www.ltech-led.com
Attention:
Warranty Agreement:
1. The product shall be installed and serviced by the qualified person.
2. This product is non-waterproof. Please avoid the sun and rain. When installed outdoors
please ensure it is mounted in a water proof enclosure.
3. Good heat dissipation will prolong the working life of the controller. Please ensure good
ventilation.
4. Please check if the output voltage of the LED power supply used comply with the
working voltage of the product.
5. Please ensure that adequate sized cable is used from the controller to the LED lights to
carry the current. Please also ensure that the cable is secured tightly in the connector.
6. Ensure all wire connections and polarities are correct before applying power to avoid
any damages to the LED lights.
7. If a fault occurs, please return the product to your supplier. Do not attempt to fix this
product by yourself.
1. We provide lifelong technical assistance with this product:
A 5-year warranty is given from the date of purchase. The warranty is for free
repair or replacement if cover manufacturing faults only.
For faults beyond the 5-year warranty, we reserve the right to charge for time and
parts.
2. Warranty exclusions below:
Any man-made damages caused from improper operation, or connecting to excess
voltage and overloading.
The product appears to have excessive physical damage.
Damage due to natural disasters and force majeure.
Warranty label, fragile label and unique barcode label have been damaged.
The product has been replaced by a brand new product.
3.
4. Any amendment or adjustment to this warranty must be approved in writing by our
company only.
Repair or replacement as provided under this warranty is the exclusive remedy to
the customer. We shall not be liable for any incidental or consequential damages
for breach of any stipulation in this warranty.
★ This manual only applies to this model. reserve the right to make changes
without prior notice.
We
www.ltech-led.com Update Time: 2017.11.30_A0
