luceco LED3EP80 Manual

NOTE – To comply with regulations, Installation must be carried out by
suitably qualified competent person and in accordance with the current
IEE Wiring Regulations (BS7671) and Building Regulations.
The Emergency pack requires 2 Live feeds, 1 to charge the battery pack
and 1 for switching of the product.
ENSURE ELECTRICAL SUPPLY AND BATTERY CONNECTION IS
DISCONNECTED/ISOLATED BEFORE COMMENCING INSTALLATION OR
ANY MAINTENANCE WORK. HIGH VOLTAGE COULD BE PRESENT AT
THE OUTPUT CONNECTION IF THE BATTERY IS NOT DISCONNECTED.
INSTALLATION – NON DIMMING
Turn OFF power supply, ensure all required equipment and tools
are present.
The emergency pack is supplied pre-wired for easy connection
to luminaires and drivers. 5 connections need to be made:
• Live/Neutral to input of Driver A
• Output of driver to inverter B
• LED luminaire input C
• Indicator light D
• Connect Battery E
• Mains input F
DRIVER (A & B)
The emergency pack is supplied pre-wired for connection to
the LED driver supplied with the luminaire. Use the L/N cable
from the emergency pack (2) as the input for the LED driver, and
connect the pre-wired connector from output of the driver to
input for emergency pack.
LUMINAIRE INPUT (C)
Connect male lead from inverter to female socket on luminaire.
Align arrows, push together and twist to lock. (2)
INDICATOR LED (D)
Drill a 18mm hole close to the installation location of the
luminaire. Feed the indicator cable through the cut out, insert
into the housing then push both into the ceiling until secure. (3)
Tech Help Line
UK - 0845 194 7584
Non UK - +44 (0)1952 238 100
Visit our website at
Luceco is a registered trade mark of Nexus Industries Ltd.
Supplied by
BG Electrical Ltd
Stafford Park 1 TF3 3BD ENGLAND
Remote 3hr
Emergency Pack
PART CODE: LED3EP80
Installation & Operating Instructions
SPECIFICATIONS
• Suitable for use with Mains voltage of 230/240V AC
• This product must be disconnected before insulation
resistance testing of the lighting circuit
• Check for electrical cables and pipes before installation
1
3
GUARANTEE
year 1
WARRANTY
year
on site
2
Page 1
www.luceco.co
WARNING - AVOID RUNNING THE LED MAINS DRIVER AND EMERGENCY PACK WITHOUT THE LOAD CONNECTED. FAILURE TO DO SO MAY
RESULT IN DAMAGE TO THE LED LUMINAIRE.
Turn OFF Power Supply
Page 4
Tech Help Line
UK - 0845 194 7584
Non UK - +44 (0)1952 238 100
Visit our website at
Luceco is a registered trade mark of Nexus Industries Ltd.
Supplied by
BG Electrical Ltd
Stafford Park 1 TF3 3BD ENGLAND
Installation & Operating Instructions
EMERGENCY LIGHTING TESTING
Months 1 to 11 inclusive – Function test, interrupt the permanent/unswitched supply and check the luminaire operates in emergency
mode at reduced output
Month 12 (Annual) – As months 1 to 11 but for a full 3 hour duration
Luminaire Ref / Location: .................................... In case of difficulty, contact the installation engineers:- Tel: ...............................................................
Full recharge time 24 hours Duration 3 hours Lamp type - LED
ROUTINE TEST RECORD
Year 1 Year 2 Year 3 Year 4 Year 5
Monthly test Signed Date Signed Date Signed Date Signed Date Signed Date
Functional
Functional
Functional
Functional
Functional
Functional
Functional
Functional
Functional
Functional
Functional
3 Hour
WARRANTY
Products are protected by warranty for a period of 3 year warranty, extendable to 7 years with online registration from date of purchase
against defects in material and workmanship (unless otherwise stated). Should a product fail to perform as described within the
warranty period it will be repaired or replaced with the same or equivalent product by Luceco, free of charge provided that you: (1)
return the product to us with shipping charge prepaid, (2) provide us with proof of the original date of purchase and (3) quote our return
authorization number.
Repaired or replaced products will be returned to you with shipping charges prepaid. Replacement products may be refurbished
or contain refurbished materials. If in our sole discretion, we are unable to repair or replace a defective product, we will refund the
purchase price of the product.
This warranty will not apply if in our judgment, the product fails due to damage in shipment, handling, storage, accident, abuse or
misuse, or if it has been used in a manner not conforming to our product instructions, has been modified in any way, or has any serial
number removed or defaced. Repair or attempted repair will void this warranty. Our maximum liability under the terms of this warranty
is limited to the purchase price of the product covered by the warranty.
The warranty is given under English Law. If any part of this warranty is deemed unenforceable (including any provision in which we
exclude our liability to you) the enforceability of any other parts of the warranty will not be affected. These terms do not reduce your
statutory rights.
THESE TERMS AND CONDITIONS ARE SUBJECT TO CHANGE WITHOUT PRIOR NOTICE
For further details, terms and conditions and online registration please see www.luceco.co
www.luceco.co
LED3EP80
AB
C
D
F
E
3
TESTING/COMMISSIONING
• Ensure the load is connected.
• Connect the battery.
• Switch on the unswitched supply - Check the charge LED illuminates.
• Switch on the maintained supply - Check the LED illuminates as normal.
• Switch off the maintained supply.
• Switch off the unswitched supply - Check the charge LED extinguishes and the load LED illuminates at a reduced output.
• Enter the commissioning date on the battery pack. Switch on the unswitched supply
• From Initial installation the intergral batteries will require 24 hours to reach full charge status
DIMMABLE DRIVER CONNECTION
For use with Dimmable Drivers, an additional single core cable is required.
Dimming is only possible with retractive switches and/or DALI.
Open connection block, move existing switched live from SL to L (permanent live).
Add additional single core for new switched live, connect new switched live to switch Dim L on driver,
a single core cable (40-60mm length) is used to bridge between neutral in, and switch Dim N.
Connect L/N from emergency pack to driver and other connections as normal.
Please consult Dimmable Driver instructions for further information.
BATTERY (E)
Push the battery connector together, ensuring correct polarity.
DO NOT FORCE PLUG. (4) NOTE - the luminare may illuminate
due to any stored battery charge.
MAINS INPUT (F)
The emergency pack requires a permanent, switched live and
neutral. A earth is not required as the case is Class 2, but
provision has been given for a loop through for earth. Connect
to 4 way connection block as per labelled.
Tech Help Line
UK - 0845 194 7584
Non UK - +44 (0)1952 238 100
Visit our website at
Luceco is a registered trade mark of Nexus Industries Ltd.
Supplied by
BG Electrical Ltd
Stafford Park 1 TF3 3BD ENGLAND
Installation & Operating Instructions
4
Page 2
www.luceco.co
Tech Help Line
UK - 0845 194 7584
Non UK - +44 (0)1952 238 100
Visit our website at
Luceco is a registered trade mark of Nexus Industries Ltd.
Supplied by
BG Electrical Ltd
Stafford Park 1 TF3 3BD ENGLAND
Installation & Operating Instructions
TECHNICAL INFORMATION
• From initial installation the integral batteries will require 24 hours to reach full charge status.
• Following a full discharge, 12-14 hours should be allowed for the batteries to re-charge.
• The green LED charge indicator signifies that the batteries are charging and will remain illuminated when the bulkhead is
switched off.
• The batteries have a rated service life of 4 years and should be checked and considered for replacement at that point.
• A record of routine testing should be kept to ensure emergency luminaires are maintained and operated correctly.
• The battery has a 4 year service life provided it is operated and maintained by regular testing, as detailed in this document.
Failure to maintain or change the battery may result in reduced duration in emergency mode.
Page 3
www.luceco.co
Code LED3EP80
Dimensions 245mm x 95mm x 40mm
Total Weight 0.9Kg
Supply Voltage 30/240 Volts AC 50/60 Hz
Power Rating 4 Watts
Power Factor 0.8
Duration 3 hours
Ambient Temp. 0°C to + 55°C
Max Case Temperature * 70°C
Max Battery Temperature 55°C
Battery Fuse Internal
Supply Fuse - TP60 20 x 5mm 1A Quick Blow
Supply Fuse - RCE Not fitted
Battery Pack 3.6V/4.5Ah Ni-Cd
Charge Current 200mA
Recharge Period 24 Hours
ENVIRONMENTAL PROTECTION W.E.E.E
This symbol is known as the “crossed-out wheelie Bin Symbol”. When this symbol is marked on a product or battery, It means that
it should not be disposed of with your general household waste. Some chemicals contained within electrical/electronic products or
batteries can be harmful to health and the environment. Only dispose of electrical/electronic/battery items in separate collection
schemes, which cater for the recovery and recycling of materials contained within. Your co-operation is vital to ensure the success of
these schemes and for the protection of the environment.
261
96
40
216
Ø4
SL
E
N
L
SL
E
N
L
Old
New
Connector block
New wire
From inverter
Dimmable driver
New wire - N
New wire from
connector
E
L
N
Dim N
Dim L

Other luceco Lighting Equipment manuals

luceco LAC12P22S40 Manual

luceco

luceco LAC12P22S40 Manual

luceco LXB12W Series Manual

luceco

luceco LXB12W Series Manual

luceco Ceres Series Manual

luceco

luceco Ceres Series Manual

luceco TITAN HIGHBAY EMERGENCY Manual

luceco

luceco TITAN HIGHBAY EMERGENCY Manual

luceco LBM290W11E40 Manual

luceco

luceco LBM290W11E40 Manual

luceco LED Fire Rated Downlight Manual

luceco

luceco LED Fire Rated Downlight Manual

luceco UTF6WD2W Manual

luceco

luceco UTF6WD2W Manual

luceco UTF6WCCT Manual

luceco

luceco UTF6WCCT Manual

Popular Lighting Equipment manuals by other brands

Chroma Inspire XT CHINHLRGBWXT user manual

Chroma

Chroma Inspire XT CHINHLRGBWXT user manual

Manfrotto Lastolite LL LB1105 manual

Manfrotto

Manfrotto Lastolite LL LB1105 manual

Milwaukee M12 2127-20 Operator's manual

Milwaukee

Milwaukee M12 2127-20 Operator's manual

TOBIAS GRAU XT-S FLOOR TWO Assembly instructions

TOBIAS GRAU

TOBIAS GRAU XT-S FLOOR TWO Assembly instructions

Red Arrow POL14LEDEMSCF quick start guide

Red Arrow

Red Arrow POL14LEDEMSCF quick start guide

American Lighting OMNI Puck installation instructions

American Lighting

American Lighting OMNI Puck installation instructions

Iluminar DE CMH FIXTURE user manual

Iluminar

Iluminar DE CMH FIXTURE user manual

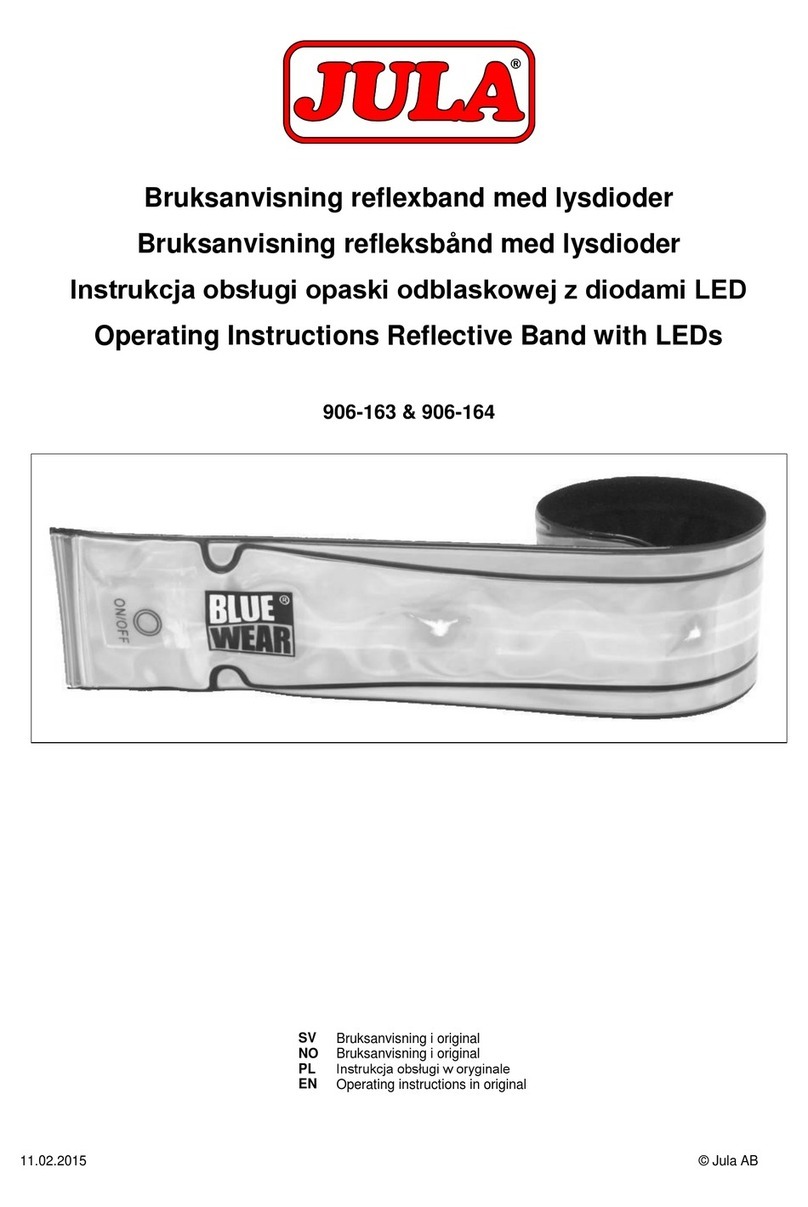

Jula 906-163 operating instructions

Jula

Jula 906-163 operating instructions

SAC SAC-LEAD-LED Installation

SAC

SAC SAC-LEAD-LED Installation

Gemas 14141 manual

Gemas

Gemas 14141 manual

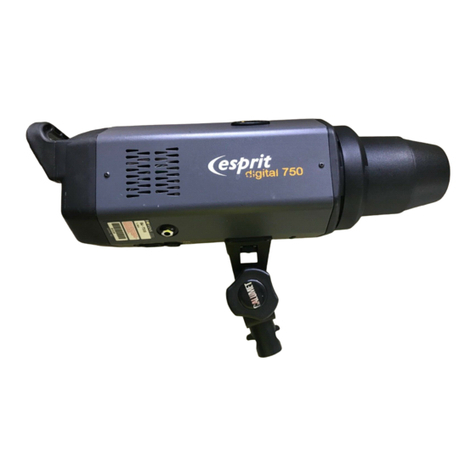

Bowens ESPRIT DIGITAL 750 operating instructions
