Lumel PD10 User manual

1
USB/RS-485
INTERFACE
CONVERTER
PD10 TYPE
USER’S MANUAL

2

3
Contents
1. APPLICATION .......................................................................................... 5
2. CONVERTER SET ..................................................................................... 5
3. CONVERTER INSTALLATION ................................................................... 6
3.1. Converter installation and safety requirements ................................. 6
3.2. Description of converter leads.......................................................... 7
3.3. Installation of the COM port for Windows ........................................ 8
3.4. Installation of COM port controllers on the computer....................... 8
3.5. Example of Lumel Heat and Lumel 3000 configuration
to co-operate with PD10................................................................. 11
4. OPERATION DESCRIPTION ................................................................... 11
5. TECHNICAL DATA ................................................................................. 12
6. EXECUTION CODES AND ORDERING .................................................... 13
7. MAINTENANCE AND GUARANTEE ........................................................ 14

4

5
1. APPLICATION
The PD10 converter is a device which transmits data from the USB
interface to the RS-485 industrial interface. USB interface, as the first,
is destined to communicate with the device having a USB Host port,
which is the most frequently a PC computer.
The RS-485 interface, as the second, is destined to communicate with
devices in the object side. The maximal baud rate is 1 Mb/s. This baud
rate depends on the RS-485 cable length. The converter does not inter-
fere in the structure of transmitted data and is compatible with several
industrial communication protocols, e.g. Modbus RTU, Modbus ASCII,
a.s.l. In order to protect devices at both sides of interfaces, a galvanic
separation is applied.
A program controller of the virtual serial port COM for the computer PC
is added to the set.
It allows to exchange data by master programs with industrial objects
through the P10 converter.
2. CONVERTER SET
The PD10 converter set includes:
nPD10 converter 1 pc
nUser’s manual 1 pc
nGuarantee card 1 pc
nUSB cable of 1.8 m long 1 pc
nCD with drivers 1 pc
When unpacking the converter, please check the set completeness
and whether the type and execution code on the data plate correspond
to the order code.

6
3. CONVERTER INSTALLATION
3.1 Converter installation and operational safety
The converter is a portable device supplied from the USB bus. Dimen-
sions of the converter are presented on the fig. 1.

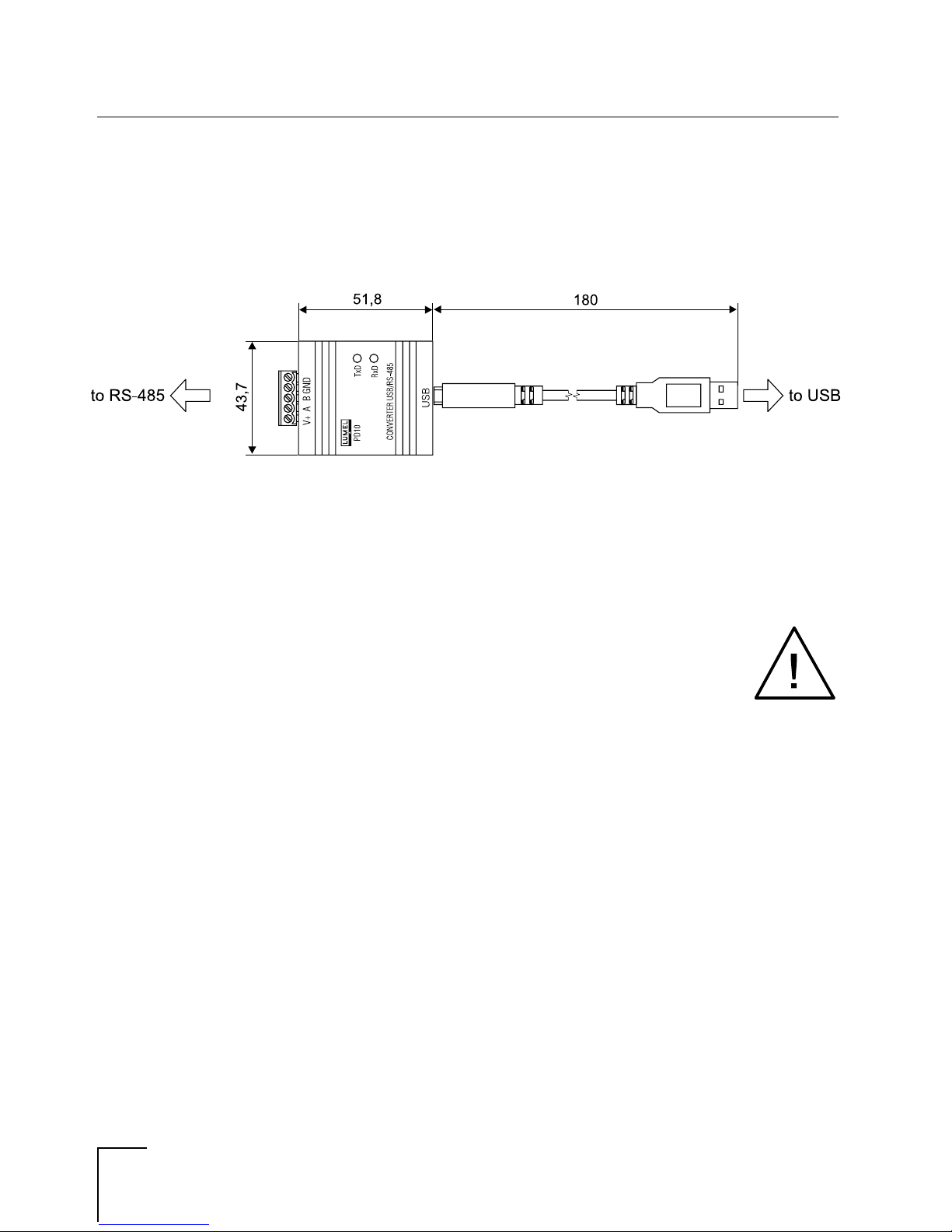

Fig.1 Overall dimensions of the PD10 converter
In the safety service scope, the PD10 converter meets to requirements
of the EN 61010-1 standard.
Observations concerning the operational safety
nAll operations concerning transport, installation, and commissioning
as well as maintenance, must be carried out by qualified, skilled
personnel, and national regulations for the prevention of accidents
must be observed.
nBefore switching converter on, one must check the correctness of
connection to the network.
nDo not connect the converter to the network through an
autotransformer.
nBefore removing the converter housing, one must switch the
supply off and disconnect measuring circuits.
nThe removal of the meter housing during the guarantee contract
period may cause its cancellation.
nThe PD10 converter is destined to be installed and used in
industrial electromagnetic environment conditions.

7
nOne must remember that in the building installation a switch or a
circuit-breaker should be installed. This switch should be located
near the device, easy accessible by the operator, and suitably
marked.
3.2. Description of converter leads
Markings of individual leads are shown on the fig. 2
Fig. 2 External leads of the PD10 converter
External signals must be connected acc. to tables 1 and 2, in which the
assignment of individual PD10 converter leads are described.
There are two diodes on the frontal plate:
Green (RxD) – signals the reception of data via RS-485.
Yellow (TxD) – signals the transmission of data via RS-485.
Nr of the RS-485 pin RS-485 signals
(5) V+ Line +5 V (for teminator)
(4) A Line A
(3) B Line B
(2) GND Line GND
(1) GND Line GND
RS-485 interface leads Table 1

8
3.3. Installation of the COM port for Windows
The PD10 converter makes use of FTDIBUS Driver and FTDIPORT
Driver, licensed by the Future Technology Devices International Ltd
company. This software creates in the system a device of Universal
Serial Bus - The Converter USB-RS485 of PD10 type and connected
to it, the virtual COM port, named USB-RS485 Converter Port Com of
PD10 type.
The controller installation in the Windows system causes the addition
of a successive COM serial port to the list of ports serviced by the
operating system.
3.4. Installation of COM port controllers on the
computer
After connecting the connector to the USB port, the operating system
informs about the appearance of a new device by means of a message
presented on the fig. 4.
The creator to find the new hardware of the Universal Serial Bus . One
must operate acc. to the creator, choosing the installation from the in-
dicated location and giving the path to controllers being in the added
CD.
Table 2
Nr of USB pin (type B) USB signal
1 +5 V d.c.
2 -Data
3 +Data
4 GND
USB interface leads

9
Controllers are compatible with systems: Windows 2000, Windows XP,
Windows Vista, Windows Server 2003 (x86 and x64).
When installing controllers, information about the lack of controller digi-
tal signature can occur. One must ignore this information and further
continue the installation.
Fig. 3 Systemic message about the detection of the PD10 converter
through the System
After the creator closure, the system immediately detects the next de-
vice – USB Serial Port (fig. 4). The creator to find new hardware will be
started again.
Fig. 4 Systemic message about the find of a new device.
After a successful termination of the installation, the system informs
about the installation of the new hardware (fig.5) In the Device Mana-
ger, two new devices appear:
- Converter USB—RS485 of P10 type and Port COM named: Conver-
ter USB-RS485 of PD10 type, acc. the fig. 6.

10
Fig. 5 Systemic message ending the installation of PD10 controllers

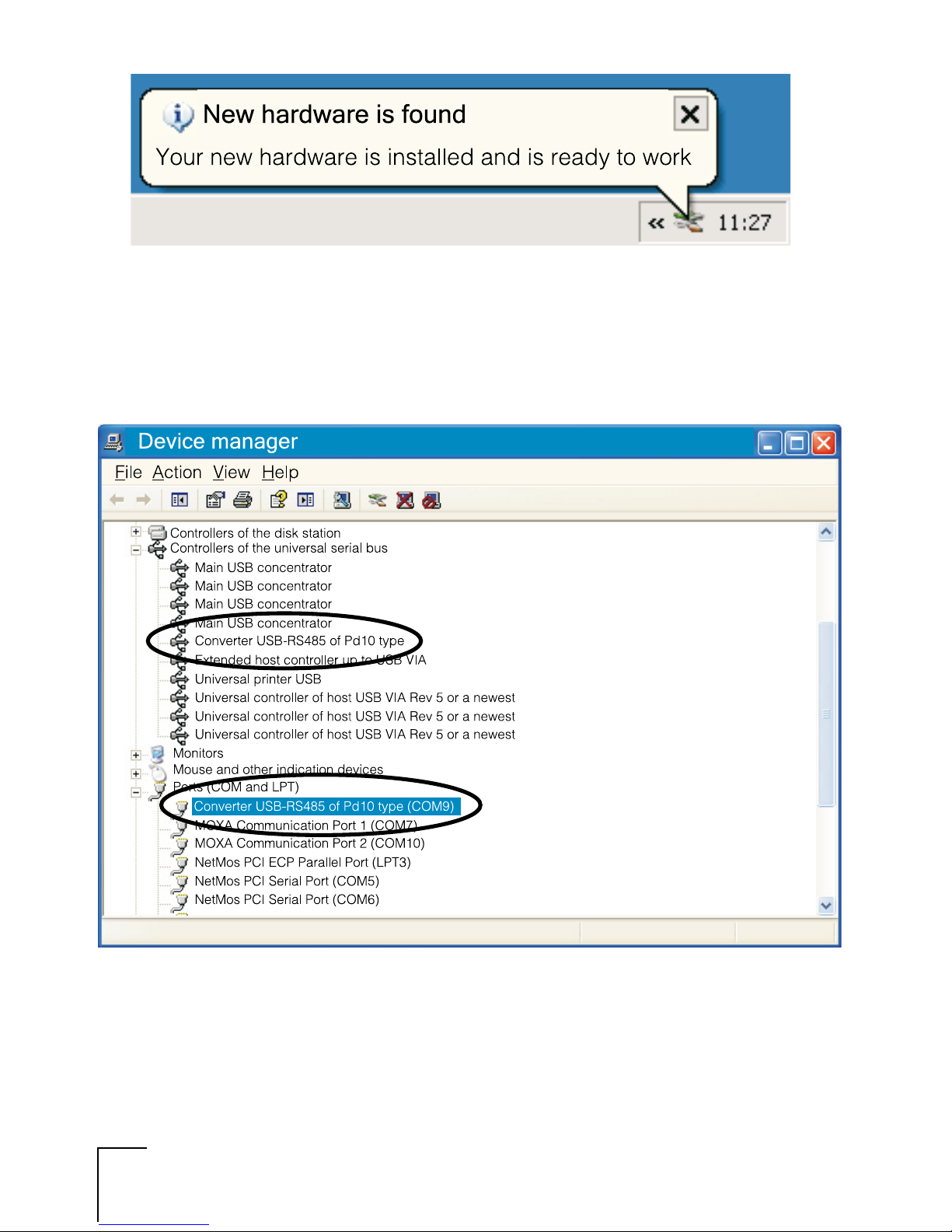

Fig. 6. Correct installation of PD10 in the Win32 system

11
3.5. Example of Lumel Heat and Lumel 3000
configuration to co-operate wit PD10
Lumel Heat and Lumel Energy systems communicate with industrial
devices by means of COM serial ports.
After the installation of additional virtual COM serial ports, one can
appeal to them in systems of Lumel series. Then, one must introduce
or modify supervising appeals to added communication ports in new or
existing applications or system configurations.
4. OPERATION DESCRIPTION
The RS-485 standard enables the data exchange of half duplex type.
That means that they can be in the same time transmitted or received.
PD10 converters can work with a maximal baud rate up to 1 Mb/s depen-
ding on the line length (e.g. 9600 kb/s on lines up to 1000 m long, 1 Mb/s
on lines up to 10 m long). At lines over 800 m, between lines A and B of
the RS-485 interface, one must use terminators (resistors) on ends of the
bus. The terminator value should be adapted to the application.
In the environment with unknown interference
level it is recommended to observe following
principles:
nConnections of communication interface circuits must be
conducted individually by twisted wires in a screen.
nApply the general principle that wires (group of wires)
leading different signals should be led in the possible
farthest distance between them (not less than 50 cm) and
the crossing of such group of wires should be made at right
angle.
nThe device does not fulfil requirements concerning the
electromagnetic compatibility in residential environment

12
5. TECHNICAL DATA
Transmission data
- baud rate up to 1000 kb/s, depending on
the line length
- data flow direction control automatic
- controllers Windows 2000, XP,
Server 2003, Vista,
Server 2008 (x86 and x64).
Converter power consumption 1,5 W
Rated operation conditions:
- supply voltage 5 V d.c., from the USB port
- ambient temperature 0...55°C
- relative humidity < 85%
- working position any
Storage and transport conditions:
- ambient temperature 0...70°C
- relative humidity < 85%
Ensured protection grades
(EN 60529):
- from the housing side IP 40
- from the terminal side IP 20
Dimensions 52 ´44 ´24 mm
Weight 0,1 kg
Electromagnetic compatibility:
- immunity EN 61000-6-2
- emission EN 61000-6-4
Maximal working voltage
in relation to earth: < 50 V

13
6. EXECUTION AND ORDERING CODES
PD10 execution codes Table 3
* The execution code is established by the manufacturer
CONVERTER PD10 - 1 XX X
Kind of execution
katalogue ...........................................................................00
custom-made* .................................................................. XX
Acceptance tests
without extra requirements ......................................................... 8
with an extra quality inspection certificate .................................. 7
other requirements* .................................................................... X
Example of ordering:
PD10 - 1 0 7 code means:
PD10 - USB-RS485 interface converter :
1 - with galvanic insulation
00 - catalogue execution
7 - with an extra quality inspection certificate

14
7. MAINTENANCE AND GUARANTEE
The PD10 converter does not require any periodical maintenance.
In case of some incorrect operations:
1. After the dispatch date and within the period stated in the gua-
rantee card
One should return the instrument to the manufacturer’s Quality
Inspection Dept.
If the instrument has been used in compliance with the instructions,
the manufacturer guarantees to repair it free of charge.
The disassembling of the housing causes the cancellation of the
granted guarantee.
2. After the guarantee period:
One should send the instrument to repair it in an authorized service
workshop.
Our policy is one of continuous improvement and
we reserve the right to make changes in design
and specications of any products as engineering
advances or necessity requires and revise the above
specications without notice.

15

16
SALES PROGRAM
n DIGITAL and BARGRAPH PANEL METERS
n MEASURING TRANSDUCERS
n ANALOG PANEL METERS (DIN INSTRUMENTS)
n DIGITAL CLAMP-ON METERS
n INDUSTRIAL PROCESS and POWER CONTROLLERS
n CHART and PAPERLESS RECORDERS
n LARGE SIZE DISPLAY PANELS
n ELEMENTS OF INTEGRATION SYSTEMS
n ACCESSORIES for MEASURING INSTRUMENTS (SHUNTS)
n MEASURING SYSTEMS (ENERGY, HEAT, CONTROL)
n CUSTOM-MADE PRODUCTS ACCORDING CUSTOMER’S REQUIREMENTS
WE ALSO OFFER OUR SERVICES IN THE PRODUCTION OF:
n ALUMINIUM ALLOY PRESSURE CASTINGS
n PRECISION ENGINEERING and THERMOPLASTICS PARTS
n SUBCONTRACTING of ELECTRONIC DEVICES (SMT)
n PRESSURE CASTINGS and OTHER TOOLS
Lubuskie Zak³ady Aparatów Elektrycznych LUMEL S.A.
ul. Sulechowska 1, 65-022 Zielona Góra, Poland
Tel.: [phone] (exchange)
Fax: [phone]
e-mail:[email protected]
http://www.lumel.com.pl
Export Department:
Tel.: [phone]
Fax: [phone]
e-mail: [email protected]
MEASUREMENT
CONTROL
RECORDING
QUALITY PROCEDURES:
According to ISO 9001 and ISO 14001 international requirements.
All our instruments have CE mark.
For more information, please write to or phone our Export Department
PD10-07.A
