M2TECH HIFACE EVO TWO User manual

M2TECH
HIFACE EVO TWO
UNIVERSAL D-TO-D CONVERTER
USER MANUAL
M2TECH
HIFACE EVO TWO
UNIVERSAL D-TO-D CONVERTER
REV. P r A – 8/2015

HIFACE EVO TWO
UNIVERSAL D-TO-D CONVERTER
REVISION P R A – AUGUST 2015
Copyright © 2015, M2Tech Srl
2
M2Te h
www.m2tech.biz

HIFACE EVO TWO
UNIVERSAL D-TO-D CONVERTER
REVISION P R A – AUGUST 2015
Copyright © 2015, M2Tech Srl
3
M2Te h
www.m2tech.biz
Warning!
Changes or modifications not authorized by the manufacturer can invalidate the
compliance to CE regulations and cause the unit to be no more suitable to use. The
manufacturer refuses every responsibility regarding damages to people or things
due to the use of a unit which has been subject to unauthorized modifications or to
misuse or to malfunction of a unit which has been subject to unauthorized
modifications.
This unit is compliant with the following CE regulations CEI EN 55022 2009 Class B (Radiated Emissions),
CEI EN 55024 1999, CEI EN 55024 A2/2003, CEI EN 55024 IS1/2008 (Radio Frequency Electromagnetic
Fields, 50Hz Magnetic Field Immunity Test and Electrostatic Discharges – ESD).
For a proper operation of this unit, all connections to other equipment in the system must be done
when all equipment are off. Failing to comply with this advice may lead to damage to the hiFace Evo
wo.
The label above, printed on the product case, indicates that the product, when no more usable, can’t be
treated as generic garbage, but must be disposed of at a collection point for recycling of electrical and
electronic equipment, in compliance with the WEEE regulation (Waste of Electrical and Electronic
Equipment).
By making sure that this unit is correctly recycled, you will help preventing potential damages to environment
and human health, which could be caused by a wrong treatment of this product as generic garbage.
Materials’ recycling helps saving natural resources. For more in-depth information about recycling this
product, please contact M2Tech Srl.
WARNING: the information contained in this manual are considered to be reliable and accurate.
M2 ech reserves the right to change or modify the information any time, without prior advice. It’s up
to the customer to ensure that the manual being consulted is the latest version.

HIFACE EVO TWO
UNIVERSAL D-TO-D CONVERTER
REVISION P R A – AUGUST 2015
Copyright © 2015, M2Tech Srl
4
M2Te h
www.m2tech.biz
Dear customer,
Thank you for purchasing HIFACE EVO TWO. You’re the owner of a very high quality D-to-D
converter with a wealth of unique features, conceived to deliver the best performance in
conjunction with your computer and digital audio devices.
HIFACE EVO TWO implements a set of technological and functional solutions, from the low
jitter, high precision crystal oscillators, to the versatile external clock input for higher quality
clocks like those delivered by the EVO CLOCK TWO, to the I
2
S output in PS Audio format, to
the S/PDIF input with sample rate converter for digital audio signals acquisition on the
computer, to the low noise supply which can also use the USB bus 5V.
HIFACE EVO TWO is provided with a wide range of outputs in all the most used formats,
therefore it’s able to interface with virtually every device accepting digital audio signals on
its input. The special optical output for communicating information about the sampling
frequency being selected allows for automatic external clock generator reconfiguration
when used with the EVO CLOCK TWO.
The remote control provided with the HIFACE EVO TWO grants complete access to all its
features, while the LCD display clearly shows all the operation information..
We’re sure that your expectations will be fulfilled by purchasing HIFACE EVO TWO your
system will exhibit an incredible sonic performance, so you can now prepare for a whole
new listening experience!
Nadia Marino, CEO
Please note here your HIFACE EVO TWO serial number and purchase info for future
reference
S/N _______________________ Date of Purchase _________________________
Place of Purchase__________________________
Note: Proof of retail purchase, such as your purchase receipt, will be required in the unlikely event
that any warranty service will be required

HIFACE EVO TWO
UNIVERSAL D-TO-D CONVERTER
REVISION P R A – AUGUST 2015
Copyright © 2015, M2Tech Srl
5
M2Te h
www.m2tech.biz
ABLE OF CON EN S
1. Unpacking and Placing the Unit.......................................................................................7
2. Front Panel ......................................................................................................................9

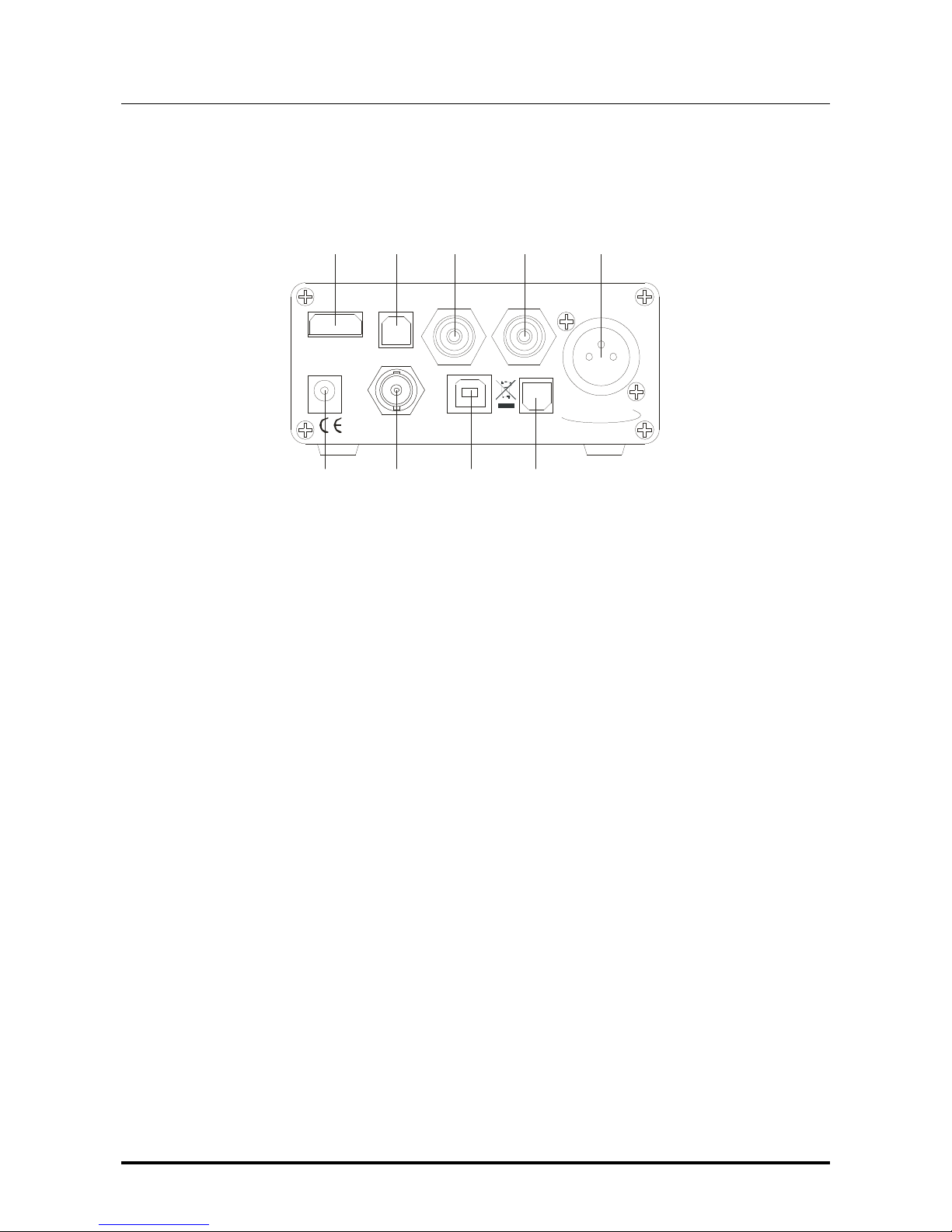

3. Rear Panel.....................................................................................................................11

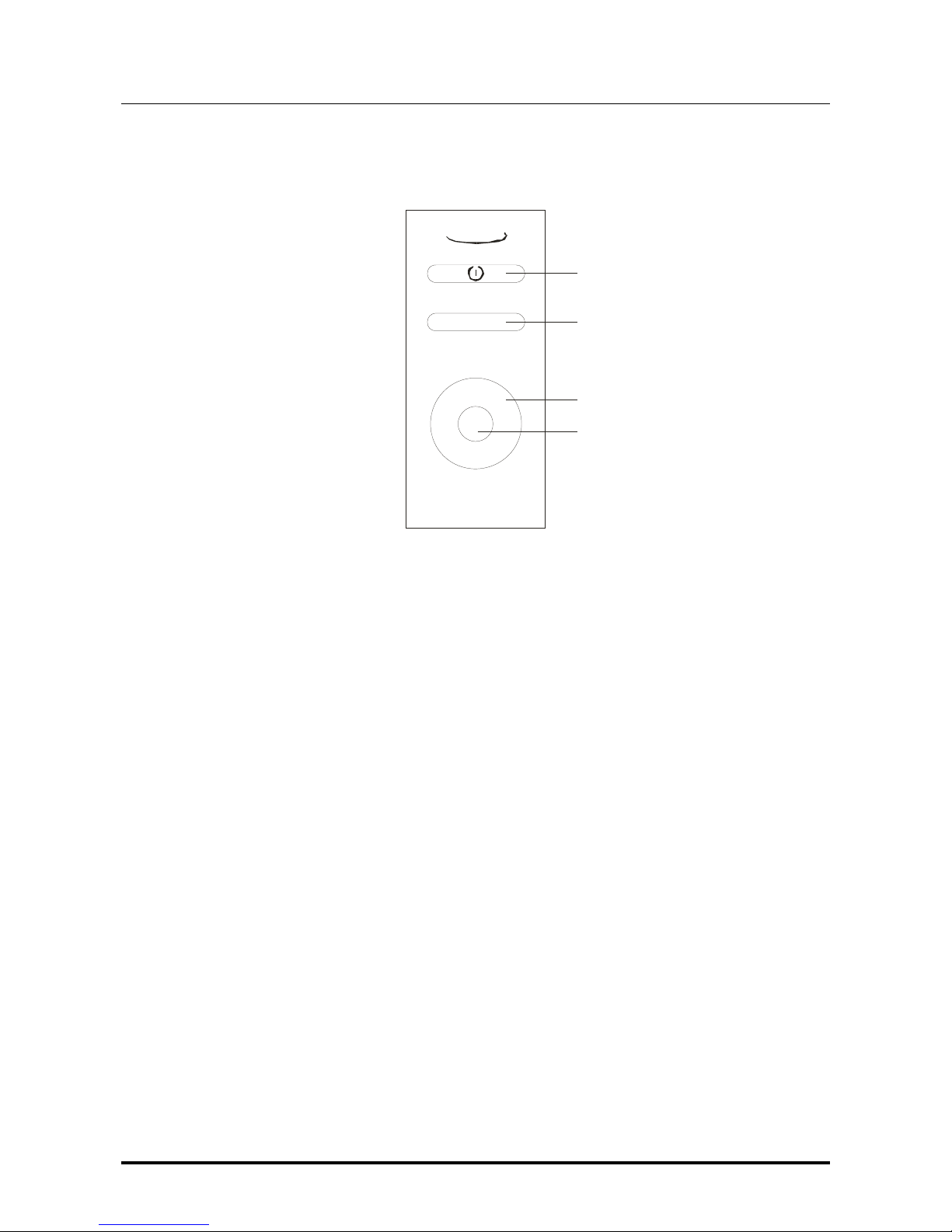

4. remote control................................................................................................................13
5. Connecting and Powering the Unit ................................................................................15
6. Cleaning the Unit ...........................................................................................................17
7. Using the HIFACE EVO TWO........................................................................................19
7.1. Input selection .........................................................................................................19
7.2. HID with the USB input............................................................................................19
7.3. Sampling frequency conversion with the S/PDIF input............................................19
7.4. External clock..........................................................................................................20
7.5. DSD and DXD .........................................................................................................20
7.6. S/PDIF output level .................................................................................................20
8. Configuring the HIFACE EVO TWO...............................................................................21
8.1. External clock (EXT CLK)........................................................................................21
8.2. S/PDIF output level (OUT. LEVEL) .........................................................................21
8.3. Sample rate converter (SRC) ..................................................................................21
8.4. Menu exit (EXIT) .....................................................................................................22
9. Using a Computer as Digital Source..............................................................................23
9.1. Plug’n’Play Operation with Apple OSX....................................................................23
8.1.1. DSD files playback with Mac.............................................................................25
9.2. Plug’n’Play Operation with Linux.............................................................................26
9.2.1. DSD files playback with Linux...........................................................................28
9.3. Using the hiFace Evo Two with Windows................................................................28
9.3.1. Installing the Windows driver ............................................................................29
9.3.2. Windows driver uninstall ...................................................................................36
9.3.3. Windows Driver Panel ......................................................................................41
9.3.4. Using the HIFACE Evo Two as Windows predefined audio device ..................45
9.3.5. Configuring the player FooBar and JRiver Media Center ................................46
9.3.6. Connecting the HIFACE Evo Two to an USB 1.1 port ......................................52
10. Updating the HIFACE EVO TWO ................................................................................53
11. Specifications...............................................................................................................55

HIFACE EVO TWO
UNIVERSAL D-TO-D CONVERTER
REVISION P R A – AUGUST 2015
Copyright © 2015, M2Tech Srl
6
M2Te h
www.m2tech.biz

HIFACE EVO TWO
UNIVERSAL D-TO-D CONVERTER
REVISION P R A – AUGUST 2015
Copyright © 2015, M2Tech Srl
7
M2Te h
www.m2tech.biz
1. Unpacking and Placing the Unit
Lay the box on a table and open it by separating it from the external paperwork and
removing or cutting the adhesive tape seal. The following items are included
• one HIFACE EVO TWO;
• one 9V wall adaptor;
• one remote control.
Should one or more item be missing, please contact your retail dealer. Please note no
clock cable is provided; the user is free to choose her/his favourite.
Remove the HIFACE EVO TWO from the foam enclosure and place it onto a stable base, far
from heat sources. Avoid full sunlight on the unit. Allow for ample room around the unit for
venting.
Avoid smoke, moisture, dirt and liquids from reaching the unit. Please note that any signs
of abuse will void warranty coverage.
Do not place the unit on thick carpets or inside a box or piece of furniture, not even close
to curtains.

HIFACE EVO TWO
UNIVERSAL D-TO-D CONVERTER
REVISION P R A – AUGUST 2015
Copyright © 2015, M2Tech Srl
8
M2Te h
www.m2tech.biz

HIFACE EVO TWO
UNIVERSAL D-TO-D CONVERTER
REVISION P R A – AUGUST 2015
Copyright © 2015, M2Tech Srl
9
M2Te h
www.m2tech.biz

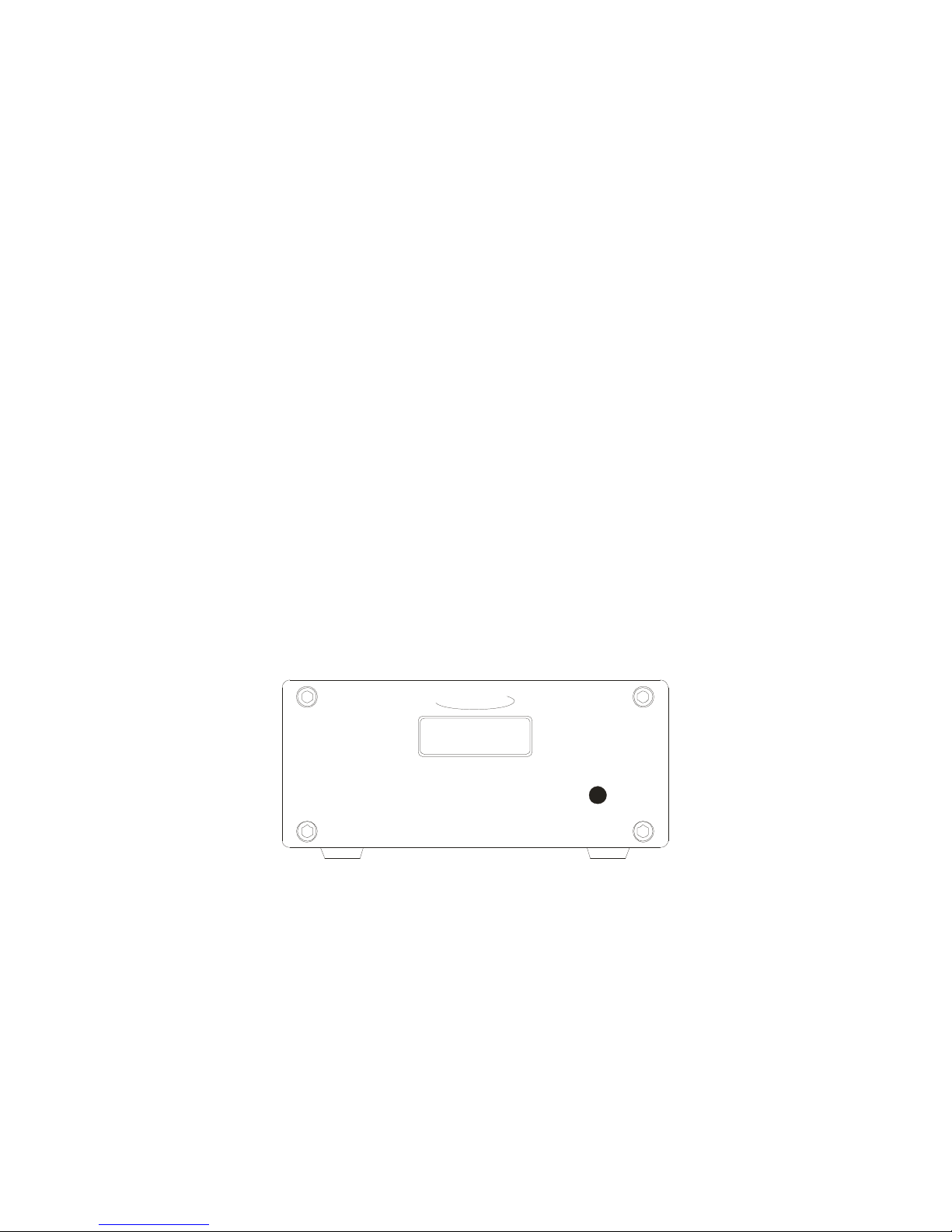

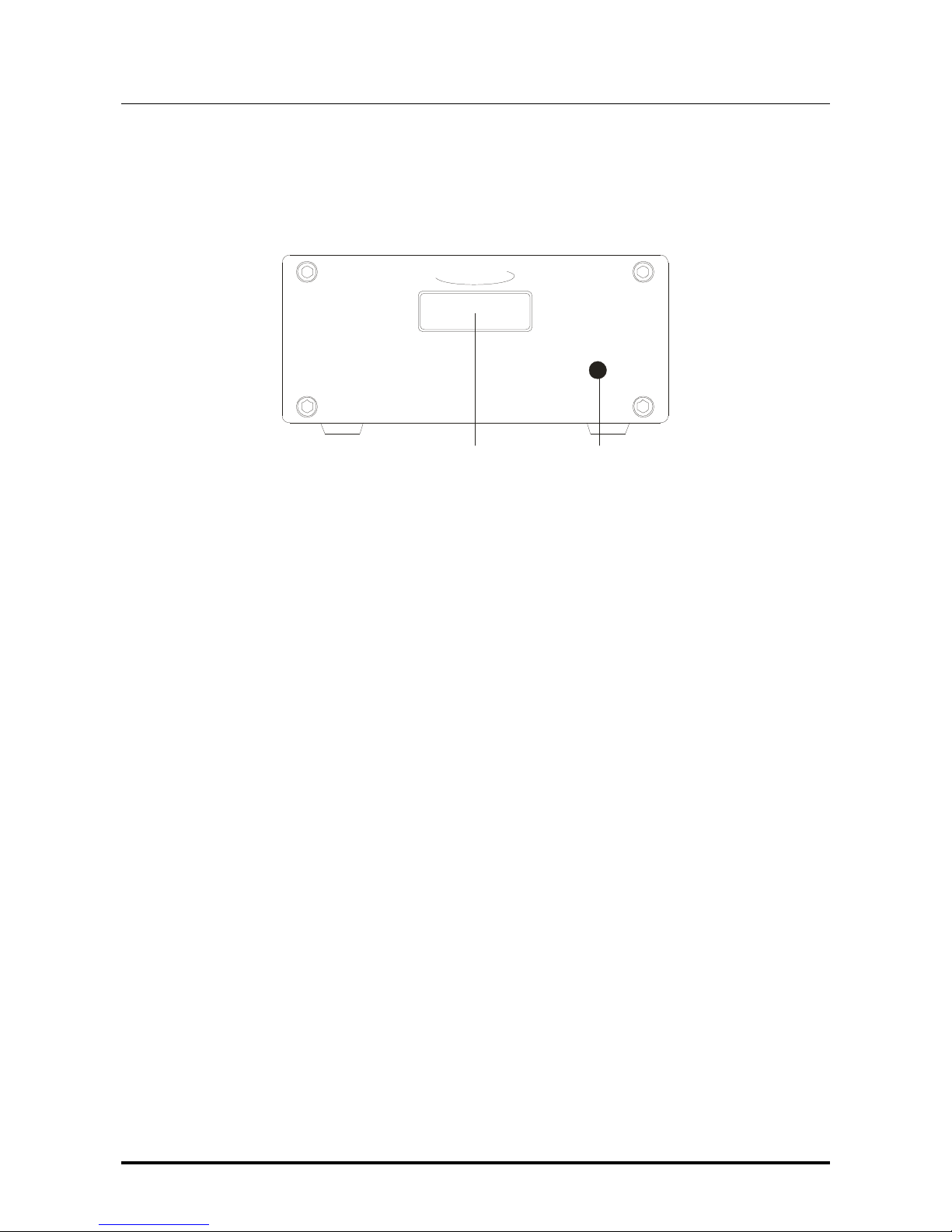

2. Front Panel
M2TECH
HIFACE EVO TWO
UNIVERSAL D-TO-D CONVERTER
1
2
Figure 1
1) Display. It shows the operation information (sampling frequency, selected input, etc.).
Moreover, it shows all active options (See Chap. 7).
2) Remote control IR receiver. Aim the remote at this point to send command to the
device.
NOTE the remote control provided with the HIFACE EVO TWO is the same used for the
JOPLIN and JOPLIN MKII . For this reason, whenever the user owns both units, it may happen
that a command sent to one of them will also affect the other. To avoid interferences, place
the two units apart each other or keep the unused unit off.
