Magigoo Coater User manual

W
User Manual
Starter Kit |Expansion Kit
Coater

Magigoo Coater User Manual
2
Disclaimer
This user manual describes the intended workflow for the Magigoo
Coater.
Please carefully read and understand the contents of this user
manual. Failure to follow instructions set out in the manual may lead
to personal injury, poor results or damage to the Magigoo Coater, 3D
Printer or its peripherals.
To make the most out of the Magigoo Coater, study the manual
carefully and make sure that anyone using the Magigoo Coater
understands the instructions laid out in this user manual.
Thought3D believes that the information in this user manual was
obtained from reliable sources, however, the information is provided
without any warranty, express or implied, regarding its correctness.
Thought3D does not assume any responsibility and expressly
disclaims liability for injury, loss, expense or damage arising out
of or in any way connected with the assembly, handling, use,
maintenance, storage or disposal of the product.
Any illustrative images showcasing 3D printers and other products
that are not produced by Thought3D are used for illustration only.
There is no affiliation between Thought3D and showcased brands.

3
Table of Contents
1Safety
1.1 Important Notices
1.2 Intended Use
1.3 General Safety
1.4 Health and Safety
2Instructions for Use
2.1 Unboxing and Assembly
2.1.1 Unboxing
2.1.2 Attaching the pump
2.1.3 Preparing for first use
2.2 Recommendations for use
2.2.1 Before Coating
2.2.2 Coating
2.2.3 Cleaning the manifold
2.2.4 Cleaning Build Plate from Magigoo
2.3 Adhesive compatibility
3Maintenance
4Warranty
4.1 General
4.2 Exclusions
4.3 Conditions & Limitations
4.4 Lodging Claims
4.5 Applicable law and competent court

Magigoo Coater User Manual4
1

5
Safety
1.1 Important Notices
This user manual contains safety notices and helpful
information.
Warns against situation that may cause injury
or damage if the instructions are not followed.
Provides helpful information to solve problems
or perform a task easily.
1.2 Intended Use
The Magigoo Coater is designed and built for use in FDM/
FFF 3D printing to cover the build plate of a 3D printer with
a thin layer of Magigoo or Magigoo Pro bed adhesives to
increase the reliability of the 3D print, reduce warping
and provide easy release.
General Safety
- The Magigoo Coater is intended to help apply Magigoo
adhesives to the build plate of a 3D printer. Generally
3D printers may generate high temperatures and have
hot moving parts that can cause injury. Use Magigoo
Coater with caution.
- The Magigoo Coater is intended for professional use.
Use only with adhesives produced by Thought3D Ltd.
- Use the Magigoo Coater indoors only.
- Do not use the Magigoo Coater on dusty, dirty or
damaged surfaces.
- Store the product in a safe designated place to avoid
injury.
!

Magigoo Coater User Manual
6
- Change or adjust only approved parts of the product in
accordance with this manual.
- This product is not intended for children.
- If the Magigoo Coater and Magigoo products
are used by persons with reduced mental and/or
physical capabilities, or lack of the knowledge and/
or experience, they must be supervised or have been
given instructions about the use of the product by a
person responsible for their safety.
1.4 Health and Safety
- Do not point the Coater at a person and/or animal.
- The Coater components may have sharp edges –
handle with caution to avoid cuts.
- The Magigoo Coater is a tool to apply Magigoo
Adhesives. Before using Magigoo Adhesives follow
the safety data sheets of adhesives for instructions
including but not limited to personal protective
equipment and follow safety instructions.
- Use only on a 3D printer that is in idle mode.
- Use only on build plate that is at room temperature.
- Store Magigoo Coater away so it will not fall, or risk to
injure someone.

7
2
Instructions for Use

Introduction
234
1
56
7
9
8
11 12
10
13

9
2.1 Unboxing and Assembly
2.1.1 Unboxing

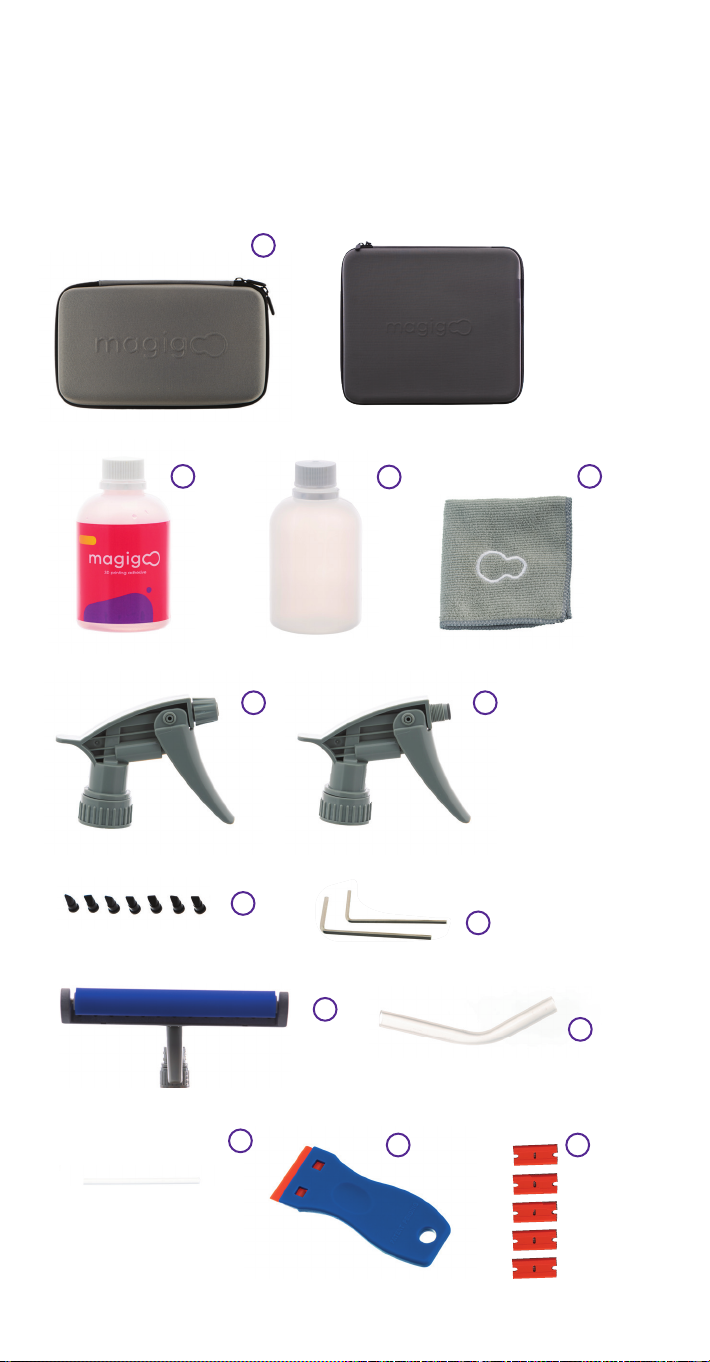

Open the case and inspect that all components are included and
are in good condition. For reference see table below and point 2.1.
Item Qty Starter
Kit
Expansion
Kit
Case 1
Bottle with adhesive 1
Bottle for cleaning 1
Cleaning Cloth 1
Spray Head (nozzle with cap) 1
Pump Head
(nozzle without cap)
1
Spare Valves 7
Allen/Hex Keys
for tightening bolts
2
Applicator
Silicon Rubber Roller
1
Straw for Pump 1
Straw for Spray Head 1
Scraper Handle 1
Plastic Blades for Scraper 5
1
2
3
4
5
6
7
8
9
10
11
12
13

Magigoo Coater User Manual
10
2.1.2 Attaching the pump
2. Insert the pump nose into manifold.
1. Take the pump head without the cap.
Attach the assembled manifold to the pump.
3. Screw on the manifold until it is slightly tightened and the
manifold is perpendicular to the trigger. Do not over tighten to
prevent rupture of the manifold.
4. Attach the short straw to the pump.
Orientation of the straw should be
in the direction of applicator.

11
5. Screw on the assembled system to the Magigoo bottle.

Magigoo Coater User Manual
12

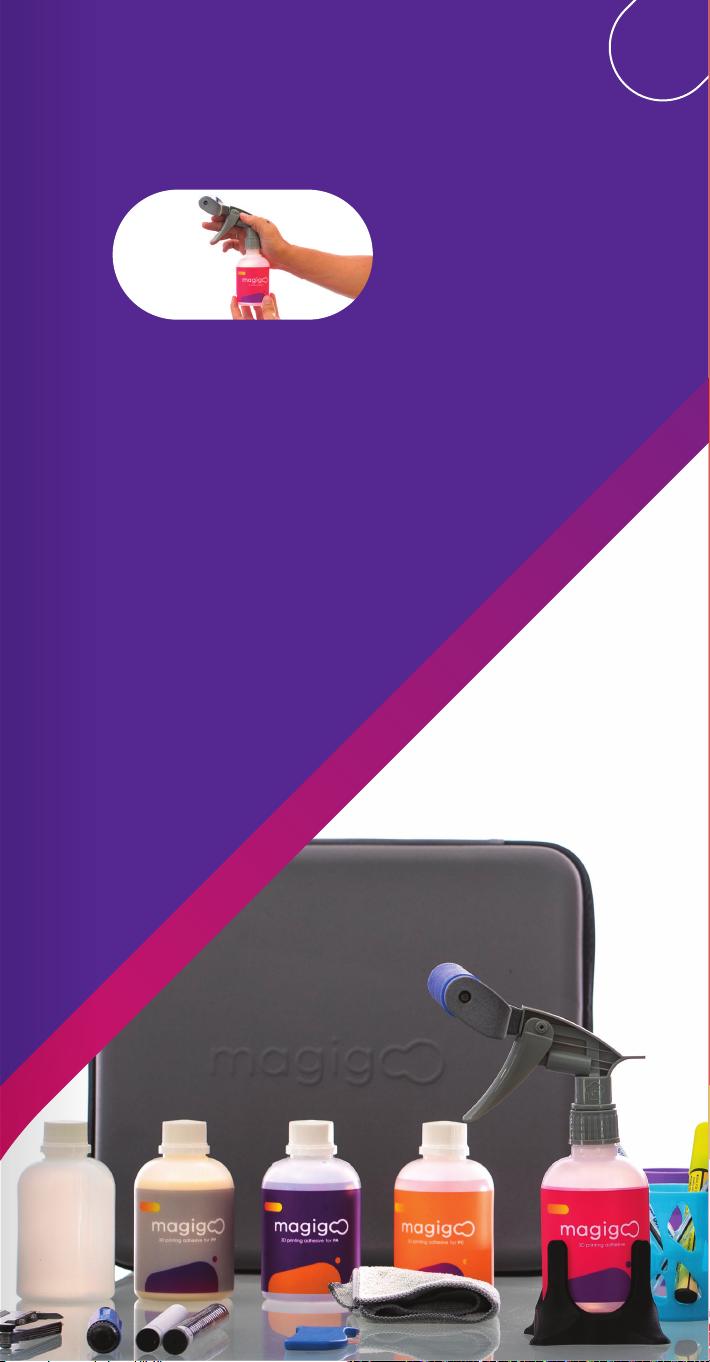

2.1.3 Preparing for first use
Find a surface that can be easily cleaned.
For the first time use, the Coater system needs to be primed by
pumping several times until the adhesive starts coming out of the
valves consistently. After priming wipe the silicone roller with a
slightly damp cloth.
2.2.1 Before Coating
Prepare the build plate area where to apply the adhesive.
- The build plate area has to be thoroughly cleaned.
- The build plate area has to be well levelled.
- Any imperfection on the applied area may decrease the
consistency of the applied coating of adhesive.

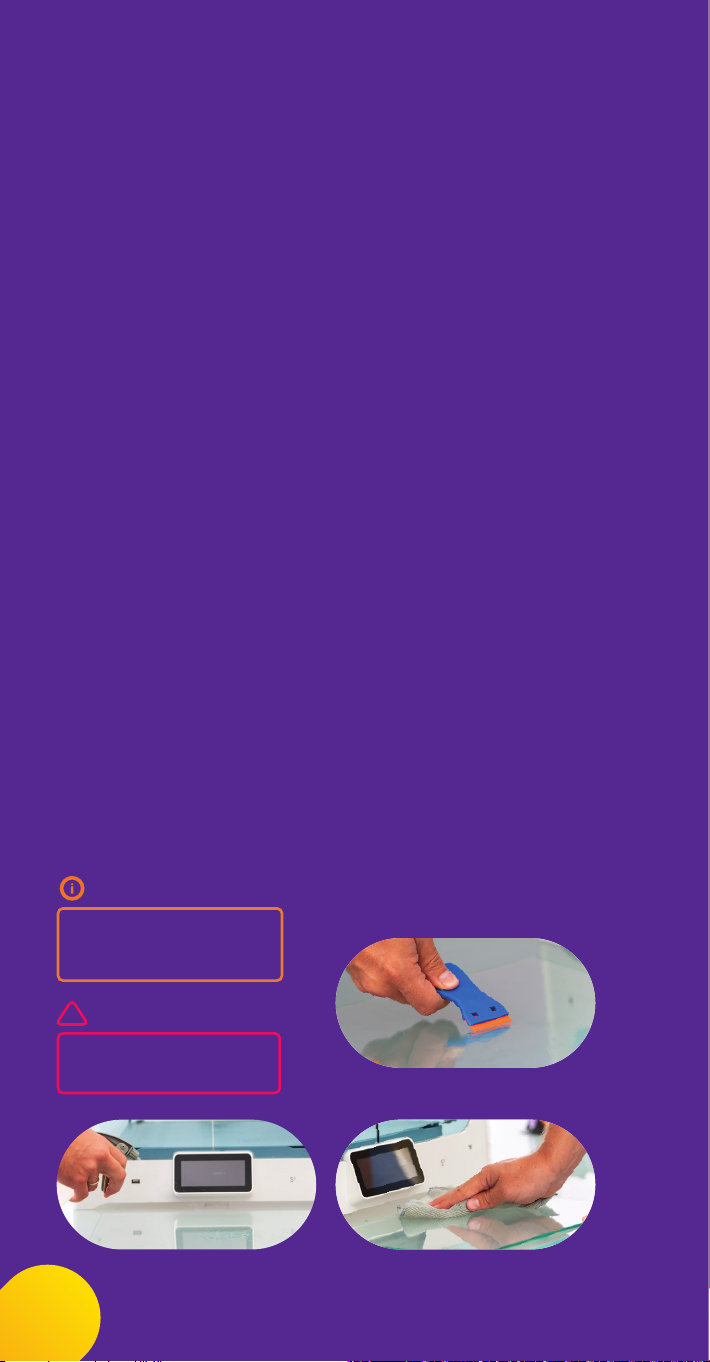

How to clean the build plate:
Fill the provided spare bottle with water and attach spray head.
If possible, remove the bed from the 3D printer for cleaning. Clean
only when 3D printer is not operational and build plate is at room
temperature. If there are solid debris, use plastic scraper to remove.
Spray water on build plate or used Magigoo layer. Clean off with the
cloth.
2.2 Recommendations for use
!
Do not use hot water. Boiling or hot
water may damage the bottle for
water or the applicator system.
The build surface has to be very
clean. Any debris or uneven
surface will disrupt the application
of an even thin coating.

13
2.2.2 Coating
The Magigoo Coater is designed and built for use in FDM/FFF 3D
printing to cover the build plate of a 3D printer with a thin layer
of Magigoo and Magigoo Pro bed adhesives, to ensure reliable 3D
printing, reduce warping and provide easy release.
Before using Magigoo Adhesives, read through the adhesive safety
data sheet for safe use. Check that the Coater valves and the
applicator are clean and dry. If necessary, wipe the applicator and
valves with a damp cloth and/or wipe dry prior to using the Coater. If
the valves are still clogged, clean the manifold channels. See section
3.2.3 for Manifold cleaning instructions.
1. Place the applicator at the far end of the build surface as shown
in the image.
2. Pump the coater once. If the new glue bottle has been attached
and not primed, pump until the glue dots form on the surface/
applicator.
3. Slide across the bed, spreading the Magigoo adhesive. Roll back
and forth to smoothen out the surface.
Avoid using paper towels, as the fabric of the paper may stick to the
applicator roller.
When spreading Magigoo the
silicon roller might slip without
rotating. In this case the Magigoo
adhesive is still being effectively
applied.
How to apply:

Magigoo Coater User Manual
14
4. Wipe clean the valves and applicator with a damp cloth
immediately.
Looking against the light you should see a very thin even coating of
Magigoo.
!
NB! If changing adhesive type in
between the use of the Coater,
the manifold channels have to
be properly cleaned. See how to
clean in point 3.2.3 Cleaning the
Manifold.

Introduction
2.2.3 Cleaning the manifold
When storing the Coater away or when changing the type of
adhesive , the internal channels of manifold need to be cleaned
thoroughly. Clean the manifold in a safe place away from other
people, ideally inside a sink or secondary container.
How to clean manifold:
2.2.4 Cleaning Build Plate
from the Magigoo
1. Remove the adhesive bottle and close with a cap.
2. Place the assembled manifold into a bottle with water.
3. Pump at least 15 times or until the water coming out looks
clean.
Water may spray in different directions.
Refer to 2.2.1. Cleaning the build plate.
!
Do not use hot water. Boiling or hot
water may damage the bottle for
water or the applicator system.
15

Magigoo Coater User Manual
16
2.3 Adhesive compatibility
The Magigoo Coater should be used only with adhesives produced
by Thought3D under the brand Magigoo or other Thought3D
approved adhesives. The Magigoo Coater has been designed
to work with Magigoo and Magigoo Pro 3D printing build plate
adhesives. For more information on how to get the best performance
out of Magigoo adhesive products refer to User Manual for Magigoo
Products (www.magigoo.com/tested-materials) “GETTING THE
MOST OUT OF MAGIGOO PRODUCTS”. For safety, always read the
Safety Data Sheet for each glue type before use.
Table of adhesives and material compatibility and
performance.
Adhesive Material
Magigoo Original Standard Adhesive PLA, ABS, PETG, HIPS,
TPU
Magigoo Pro PP Polypropylene
Magigoo Pro PC Polycarbonate
Magigoo Pro PA Nylon
Surface Original PC PA PP
Regular Glass
Borosilicate
Glass
PEI
For more information about the compatibility of Magigoo adhesives
with different materials, printers and printing surfaces visit our
tested materials database on www.magigoo.com/tested-materials,
or reach out to [email protected].

2.3 Adhesive compatibility
Maintenance
17
3

Maintenance
The Coater is designed to be used on a daily basis. The
components like applicator, valves and pump may lose
original functionality with normal wear and tear.
If applied coating is inconsistent, check if valves need
to be cleaned or replaced. The Coater should still
function well, with 1-2 valves not working properly.
If the Coater is not producing a thin layer when swiped,
check if there is any debris on the surface or if the
applicator has any damage. Removing the debris
from the surface or replacing the applicator may be
necessary.
Clean the valves and applicator after each use. Clean
the manifold when storing away for several days or
more or when changing the type of adhesive.
v
18

19
v
Warranty
4

Magigoo Coater User Manual
20
4.1 General
Thought3D Ltd (the “Manufacturer”) grants a standard commercial
warranty on the Magigoo Coater product (the “Product”), including
all accessories supplied with it except for items which are
consumables.
The warranty is additional to any contractual rights that the
purchaser may have against the person supplying the Product, as
well as any legal or statutory rights that the purchaser may have
against the Manufacturer or any other person.
The warranty period for the Product shall run for twelve (12) months
from the date the Product is first sold and delivered to the purchaser,
as evidenced by the purchaser’s purchase invoice. The commercial
warranty is non-transferrable and thus shall not inure to the benefit
of any subsequent purchasers of the Product following the first sale.
If a part of the Product is repaired or replaced during the warranty
period, the warranty period still remaining for the entire product will
apply to the part so repaired or replaced and shall not extend the
warranty period.
The Manufacturer warrants that the Product is free from any defects
in material, design and workmanship. The warranty is a statement
of services that the Manufacturer shall provide under specified
circumstances. Under such circumstances the Manufacturer shall
offer only those services and accepts liability only to repair or
replace the Product as described herein.
Any warranty claim must first be recognized as justified in
accordance with the terms stipulated herein. If so, the Manufacturer
shall use its best endeavours to rectify the defects free of charge
in accordance with this warranty. If the defect cannot be repaired,
the Manufacturer may replace the broken part or the Product free
of charge by an identical replacement part or product, or, if the
Product is no longer manufactured or is otherwise unavailable, with
a similar replacement product of the same value. In the event repair
or replacement is not possible the Manufacturer may elect to offer
an appropriate refund.
