PORTABLE
SPEAKER SYSTEM
with Decorative Color Changing Lights
and Bluetooth® Wireless Technology
OWNER'S MANUAL
MODEL: MHT825

IMPORTANT SAFETY INSTRUCTION
K
DO NOT OPEN
(CAUTION: TO REDUCE THE RISK OF ELECTRIC SHOCK, DO NOT
REMOVE COVER (OR BACK). NO USER-SERVICEABLE PARTS
INSIDE. REFER SERVICING TO QUALIFIED SERVICE PERSONNEL.
DANGEROUS VOLTAGE:
The lighting flash with arrowhead symbol, within an equilateral
triangle is intended to alert the user to the presence of uninsulated
“dangerous voltage “within the product’s enclosure that may be of
sufficient magnitude to constitute a risk of electric shock to persons.
ATTENTION:
The exclamation point within an equilateral triangle is intended to
alert the user to the presence of important operating and
maintenance (servicing) instructions in the literature accompanying
the appliance.
[0 PREVENT FIRE OR SHOCK HAZARD, DO NOT EXPOSE THIS UNITTO RAIN OR
“This cquipment has been tested and found to comply with the limits for a Class 1 digital devic
pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection
against harmful interforence ina residential installation. This equipment generates, uses and can
radiate radio frequency energy and, if not installed and used in accordance with the instructions,
may cause harmful interference to radio communications. However, there s no guarantce that
interference will not oceurina particular installation. IF this equipment does cause harmful
interference (o radio or elevision reception, which can be determined by twrning the equipment
offand on, the user s encouraged to try to correct the interference by one or more of the following
+ Rearient or elocate the receiving antenna.
+ Increase the separation between the equipment and receiver.
+ Conneet the equipment into an outlet on a circuit different from that to which
the receiver is connected.
+ Consult the dealer or an experienced radio/ TV technician for help.
FCCSTATEMENT:
This deviee complies with part 15 ofthe FCC Rules. Operaion i subject 0 the following two conlions:
(1) This device may notcause harmful inteference, and
2) This device must accept any interferece eceived, includin inerference that may cause undesired
operation. The aniennafs) used fr this ransmittr must b installed o rovide separdton distance of i
Jeast 20 e fom all persons and must not b co-located r operting in conjunction with any ot anienna
ortrnsmite.
FCCWARNING:
Toassure cortinued operaon,follow the atached insllion instructons and use cnly shild cables when convec
10 otherdevies. Chianges or modificatons ot expressly approved by thepary responsiblefor compliance could void
the ser's authorky 0 opea the qipment.

IMPORTANT SAFETY INSTRUCTION
Before using the unit, be sure to read all operating instruction carefully, please note that these are general precautions and
may not pertain to your unit. For example, this unit may not have the capability to be connected to an outdoor antenna.
1. Read these instructions
Allthe safety and operating instructions should be read before te appliance is operated.
2. Keep these instructions
‘The safety and operating instructions should be kept for fture reference.
3. Heed all warnings
Al wamings on the appliance and in the operating instructions should be adhered to
4. Follow alinstructions
Al operation and use instructions should be followed.
5.D0 not use this apparatus near water
“The appliance should ot be used near water; for example, neara bath tub, washbowl, kitchen sink, lnundry tub, in a wet basement, or neara
swimming ool
6. Clean only with dry cloth
“The appliance should be cleaned only as recommended by the manufacturer
7. Do not block any ventilation openings. Installin accordance with the manufacturer’s instructions.
Slots and openings in the cabinet and inthe back or bottom are provided for ventilaton, o ensure reliable operation of the product and to protect it
from overheating. These openings must ot be blocked or covered. The apeings should never be blocked by placing the product on a bed, sofa,
rug, orsimilar surface, This product should neverbe placed near or over radiator or heat source. This product should not be placed i a built-in
insalltion, such as a bookcase or rack unless proper ventlation i provided or the manufacturer'sinsructions have been adhered to.
8. Do not install near any heat sources such as radiators, heat registers,stoves, or other apparatus (including amplifiers) that produce heat.
9.Do not defeat the safety purpose ofthe polarized or grounding-type plug, A polarized plug has two blades with one wider than the other:
Agrounding type plug has two blades and a third grounding prong, The wide or the third prong are provided for your safety. I the
provided plug does not fit into your outkt, consult an electrician for replacement of the obsolete outlet,
10. Product the power cord from being walked on or pinched particulariy at plugs, convenience receptacies, and the point where they exit
from the apparatus.
11, Only use attachments / accessorics specified by the manufacturer:
12. Use only with a cart,stand, tripod, bracket, or table specified by the manufacturer,or sold with the apparatus. When a earti used, use
caution when moving the cartiapparatus combination to avoid injury from tip-over:
An appliance and cart combination should be moved with care. Quick stop, excessive force and uneven surfaces may
cause the appliance and cart combination to overtum.
13. Unplug this apparatus during lightning storms or when unused for long periods of time.
“To protect your procct from a lightning storm, or when it s left unattended and unused for long periods oftime, unplug it from the:
‘wall outlt and disconnect the antenna or cable system. This will prevent damage tothe product due o lightning and powerline surges.
14, Refer al servicing to qualified service personnel. Servicing is required when the apparatus has been damaged in any wa
‘power-supply cord or plug s damaged, iquid has been spiled or objects have falle into the apparatus, the apparatus has been exposed
to rain or moisture, does not operate normaly, or has been dropped.
15. Power source
This product should be operated only from the type of power soure indicated on the marking label. I you are not sure of the type of power
supply to your horme, consult your appliance dealer or ocal power company. For products infended to operate from battery power, o other source,
referto the operation instructons.
16. Power lines
An outside antenna system should not b located in th viciniy of overhead power lines or other electrc ight or powercircuis, or where it can fall
into such power lines or circuits. When instaling an outside antenna system, extreme care should be taken to keep from touching such power lines
or ircuits as contact with themn might b fatl.

17. Overloading
Do not overload wall outlets and extension cords as this can result in a risk of fire or electric shock
18. Object and liquid entry
Never push objects of any kind into the product through openings as they may touch dangerous voltage points or
short out parts that could result in fire or electric shock. Never spill or spray any type of liquid on the product.
19. Outdoor antenna grounding
Ifan outside antenna is connected to the product, be sure the antenna system is grounded so as to provide some
protection against voltage surges and built up static charges. Section 810 of the National Electric Code ANSI/ NFPA
70 provides information with respect to proper grounding of the mast and supporting structure, grounding of the
lead- in wire to an antenna discharge product, size of grounding conductors, location of antenna- discharge product
on to grounding electrodes and requirements for the grounding electrodes.
rERA
iy
DIEGHARGE UNIT
EESETionore20)
Eabinienr e scemonan 1)
B S
R NEERAT B0 Pk
Do not atempt o service this product yourselfas opening or emoving covers may expose you to dangerous voliage or ther hazards, Refer
all servieing (o qualified service personnel,
21. Replacement parts
‘When replacement parts are fequired, b sure the service technician uses replacement pars specified by the manufacturer o those that have:
the same characterstis as the original parts. Unauthorized substtutions may resultinfire or electrc shock or other hazards.
22.Safety check
Upon completion of any service or repairs o this product, ask the service technician to perform safety checks to detemine that the product
is in proper operating condition.
23, Wall or ceiling mounting
“The product should be mounted o.a wall o ceiling only as recommended by the manufacturer.
24, Damage requiring servi
A Unplug this product from the wall outlet and refer srvice to qualified service personnel under the following conditions.
B. Whenthe povwer- supply cord or plug is damaged.
. Ifliquid has been spilled or objects have fallen into the product,
. Ifthe product has been exposed o rain or water
E. Ifthe product does not operate normally by following the operating instructions. Adjustonly those controls thatare covered by the
operating instructions, s an adjustment of other controls may resultin damage and willrequire extensive work by a qualified technician
0 festore the product o its nomal operation.
. Ifthe product has been dropped or the cabinet has been damaged.
G, When the product exhibits distinct change i performance- this indicates need for service.
NOTE: Refer all servicing to qualified service personnel. Servicing s required when the unit has been damaged in any way such as the
following: the power-supply cord or plug has been damaged, iquid has been spilled into unit, the unit has been exposed to rain or
moisture, the unit has been dropped or the unit does not operate normally.

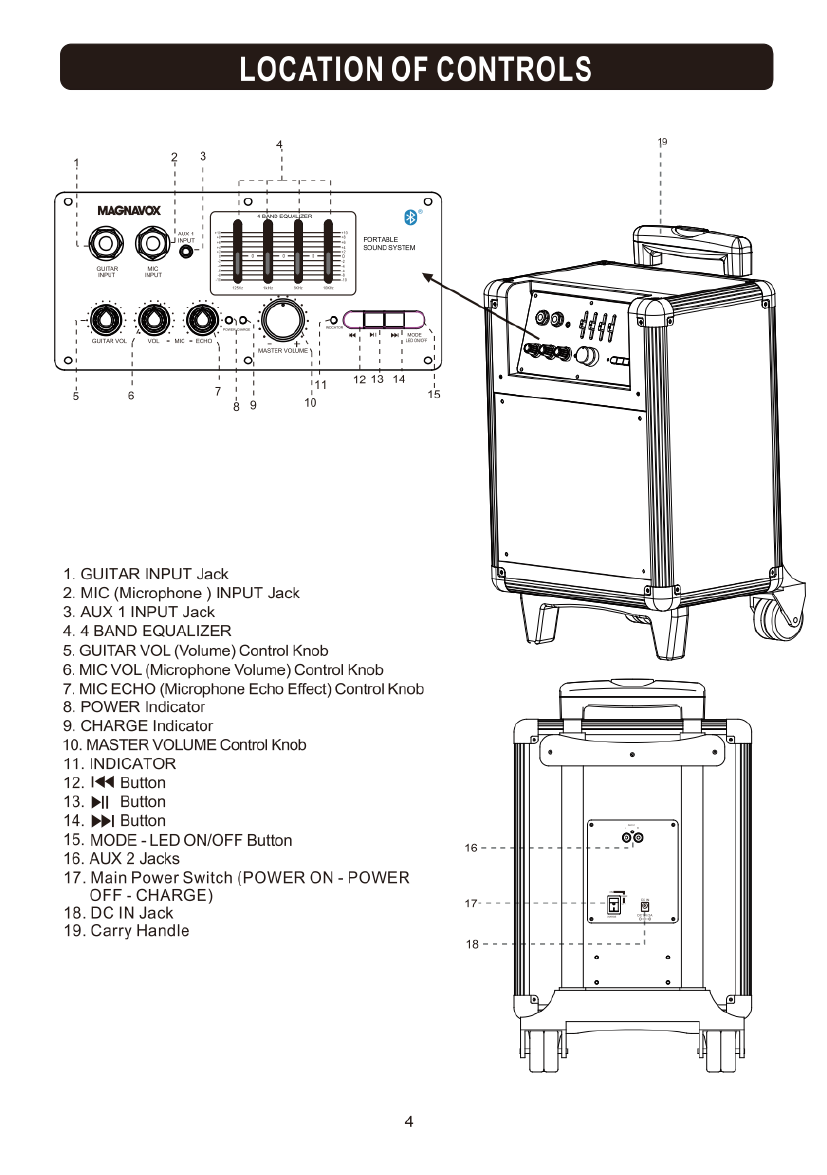

CATION OF CONTR
1. GUITAR INPUT Jack
2. MIC (Microphone ) INPUT Jack
3. AUX 1 INPUT Jack
4.4 BAND EQUALIZER
5. GUITAR VOL (Volume) Control Knob
6. MIC VOL (Microphone Volume) Control Knob
7. MIC ECHO (Microphone Echo Effect) Control Knob
8. POWER Indicator
9. CHARGE Indicator
10. MASTER VOLUME Control Knob
11. INDICATOR
12. 144 Button
13. M| Button
14. pp| Button
15. MODE - LED ON/OFF Button
16. AUX 2 Jacks
17. Main Power Switch (POWER ON - POWER
OFF - CHARGE)
18.DC IN Jack
19. Carry Handle

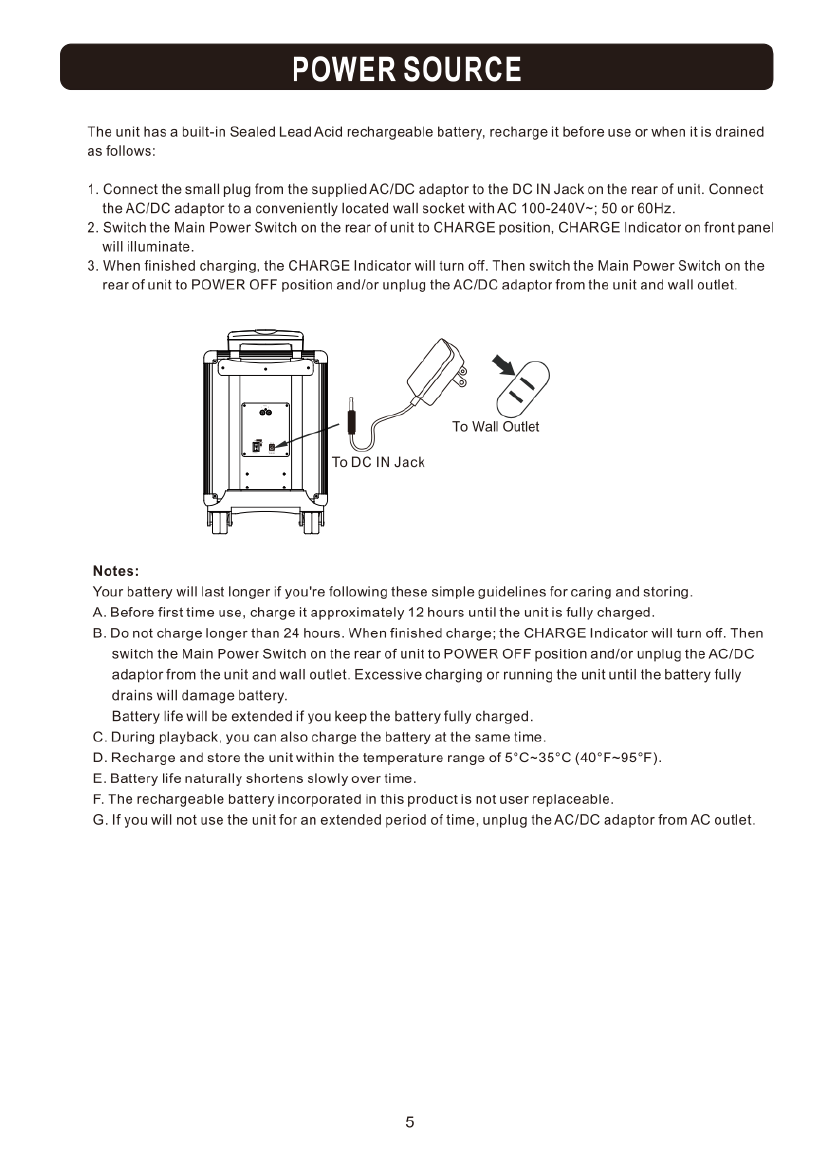

POWER SOURCE
The unit has a built-in Sealed Lead Acid rechargeable battery, recharge it before use or when it is drained
as follows:
1. Connect the small plug from the supplied AC/DC adaptor to the DC IN Jack on the rear of unit. Connect
the AC/DC adaptor to a conveniently located wall socket with AC 100-240V~; 50 or 60Hz
2. Switch the Main Power Switch on the rear of unit to CHARGE position, CHARGE Indicator on front panel
will illuminate
3. When finished charging, the CHARGE Indicator will turn off. Then switch the Main Power Switch on the
rear of unit to POWER OFF position and/or unplug the AC/DC adaptor from the unit and wall outlet.
Ry
To Wall Outlet
To DC IN Jack
Notes:
Your battery will last longer if you're following these simple guidelines for caring and storing
A. Before first time use, charge it approximately 12 hours until the unitis fully charged.
B. Do not charge longer than 24 hours. When finished charge; the CHARGE Indicator will turn off. Then
switch the Main Power Switch on the rear of unit to POWER OFF position and/or unplug the AC/DC
adaptor from the unit and wall outlet. Excessive charging or running the unit until the battery fully
drains will damage battery.
Battery life will be extended if you keep the battery fully charged.
C. During playback, you can also charge the battery at the same time
D. Recharge and store the unit within the temperature range of 5°C~35°C (40°F~95°F).
E. Battery life naturally shortens slowly over time.
F. The rechargeable battery incorporated in this product is not user replaceable.
G. If you will not use the unit for an extended period of time, unplug the AC/DC adaptor from AC outlet.

OPERATIO
GENERAL OPERATION:
1. Recharge the built-in battery or connect the unit to the supplied AC/DC adaptor and wall outlet as
previously instructed
2. Switch the Main Power Switch on the rear of unit to POWER ON position to power on the unit. The
POWER Indicator on front panel will illuminate.
3. Press and release the MODE — LED ON/OFF Button repeatedly to switch to desired playback mode.
The color of the INDICATOR on front panel will change the color with your selection (see list below):
Playback Mode: Color of the INDICATOR on front panel
BT (Bluetooth) Blue
Radio Green
AUX (In) 1 Red
AUX (In) 2 White
4. During playback:
A.Tum the MASTER VOLUME Control Knob on front panel to adjust volume level as desired
B. Slide the control knobs on the 4 BAND EQUALIZER up and down to enhance or reduce specific
audio frequency levels as desired.
C. Press and hold the MODE - LED ON/OFF Button to tum off the Decorative LED Lights. Press and
hold again to tur it back on.
5. When finished listening, switch the Main Power Switch to POWER OFF position to shut off the unit
NOTE:
Ifthe unit is connecting to AC/DC adaptor and AC power, the unit will continually to charging the built-in
battery. When itis fully recharged, the CHARGE Indicator will tur off. Then unplug the AC/DC adaptor
from unit and AC wall outlet.
BT MODE:
BT (Bluetooth) pairing:
First time use or re-pairing the unitto a new BT Device, pair as follows:
1. Power on the unit and enter to BT mode as previously instructed. The color of the INDICATOR on front panel
will tum to Blue and blink.
2. Power on the extenal BT Device and enter to BT searching mode. Start pairing following the on screen
instructions from the external BT Device. When paired, the Blue INDICATOR willstop blinking.
3. When pairing is complete you may now play music with your exteral BT Device.
4. During playback:
A. Press the Pl Bution on the unitto pause, press again to resume nomal playback.
B. Pressthe 4« or P Buttons repeatedly to skip tracks.
Notes:
+ When the extemal BT Device searched the unit, our model number “MHT825" will appear on the display
of external BT Device.
« Ifwhile pairing you are asked for a code please try "0000" or "1234".

Normal operation after pairing:
1. Power on the external BT Device and enter to BT mode.
2. Power on the unit and enter to BT mode as previously instructed. The color of the INDICATOR
on front panel will turn to Blue and blink
3. Waita few seconds until the unit is automatically paired to the external BT Device. The Blue
INDICATOR will stop blinking.
4. When pairing is complete you may now play music with your external BT Device.
FMRADIO:
1. Power on the unit as previously instructed
2. Press the MODE — LED ON/OFF Button repeatedly until the color of the INDICATOR on front
panel turns to Green.
3. Press and hold the 4« or ¥ Buttons to automatically search and play the previous/next
available FM station. Repeat the same procedures until the desired FM station was been
found and play.
4. During playback, press the Pl Button to pause, press again to resume.
Antennas:
This unit has a built-in FM antenna, which provides adequate reception in most areas.
If reception is weak, move the unit to a different location to improve reception.
AUX(In) 1:
Listen music from an external Audio Player such as a MP3 Player, Discman ...etc.
1. Connect one end of the supplied Audio Connection Cable to the Phones/AUX Out/LINE Out Jack
on the external Audio Player.
2. Connect the other end of the cable to the AUX 1 INPUT Jack on front panel as the illustrated below:
e @
N
3. Power on the unit as previously instructed.
4. Press the MODE — LED ON/OFF Button repeatedly until the color of the INDICATOR on front panel
turns to Red.
5. Play the music on the connected Audio Player as usual. (Make sure the volume level of the
connected Audio Player is turned to high level.)
AUX (In) 2:
Listen music from an external Video/Audio Player such as a Television; DVD Player, VCR ...etc.
1. Connect one end of the RCA Connection Cable (Not included) to the Audio Out Jack on the external
Video/Audio Player.

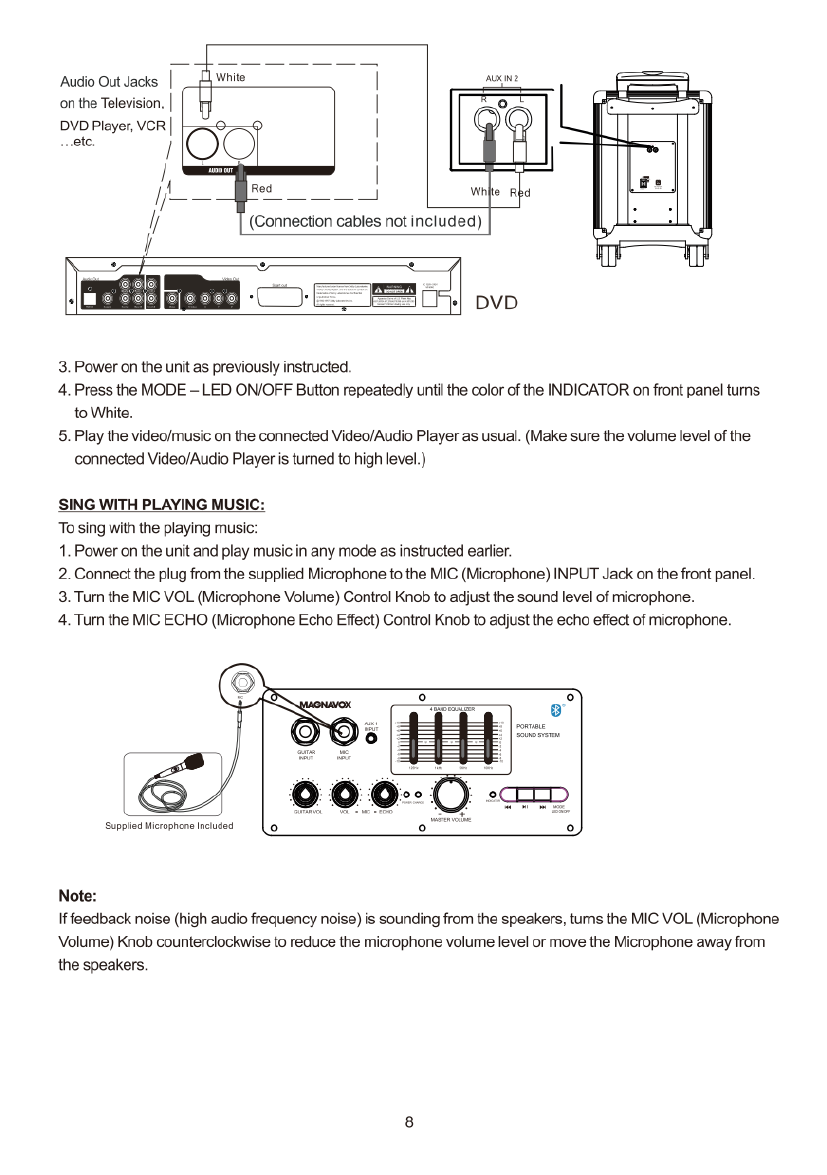

2. Connect the other end of the cable to the AUX 2 Jacks on the rear of unit as the illustrated follows:
7

Audio
Out
Jacks
|
W
e
on the Television, | o L
DVD Player, VCR |
_eto J
o
59
M DVD
3. Power on the unit as previously instructed.
4. Press the MODE — LED ON/OFF Button repeatedy untilthe color of the INDICATOR on front panel tuns.
to White.
5. Play the video/music on the connected Video/Audio Player as usual. (Make sure the volume level of the
connected Video/Audio Playeris tumed to high level.)
SING WITH PLAYING MUSIC:
Tosing with the playing musi
1. Power on the unit and play music in any mode as instructed earfer.
2. Connect the plug from the supplied Microphone to the MIC (Microphone) INPUT Jack on the front panel.
3. Tum the MIC VOL (Microphone Volume) Control Knob to adjust the sound level of microphone.
4. Turm the MIC ECHO (Microphone Echo Effect) Control Knob to adjust the echo effect of microphone.
Suppiled Microphon ncluded
Note:
If feedback noise (high audio frequency noise) is sounding from the speakers, turns the MIC VOL (Microphone
Volume) Knob counterclockwise to reduce the microphone volume level or move the Microphone away from
the speakers.

PLAY ELECTRIC GUITAR WITH PLAYING MUSIC:
To play the Electric Guitar with the playing music:
1. Power on the unit and plays music in any modes as instructed earlier
2. Connect the plug from Electric Guitar (Not included) to the GUITAR INPUT Jack on the front panel.
3. Tum the GUITAR VOL (Volume) Control Knob to adjust the sound level of Electric Guitar.
Electric Gutar (not supples)
CLEANING:
1. To prevent fire or shock hazard, disconnect your unit from the AC wall outiet when cleaning,
2. The finish on your unit may be cleaned with a dust cloth and cared for as other furniture. Use caution when
cleaning and wiping the plastic parts.
3. Mild soap and a damp cloth may be used.
CARRY HANDLE:
Press the button on the handle to release the lock then pull it out or back as the illustrated below:

TROUBLESHOOTING GUIDE
Check the follows before requesting service:
Sound output of the
connected/paired device weak
SYMPTOM POSSIBLE CAUSE POSSIBLE SOULTION
. Switch the Main Power Switch on
Main Power Switch is in
OFF position the rear of unitto POWER ON
No
power
position
- Recharge the built-in battery as page
Built-in rechargable
battery drained 50r connect the supplied AC/DC
adaptor to the unit and AC wall outlet
Volume level is in Rise volume level by turning the
minimum position MASTER VOLUME clockwise
The connected/paired device | Plays the audiolvideo files in the
is not in playback mode connected/paired device as usual
No sound
Rise the volume level of the
connected /paired device
Input source incorrect
Press the MODE - LED ON/OFF
Button repeatedly to set or reset the
playback mode as the connection
Sound distortion
Volume level too high
Reduce the volume level by tuming
the MASTER VOLUME Knob
counterclockwise
Volume level of the connected
Ipaired device too high
Reduce the volume and/or bass level|
of the connected/paired device.
BT not function
The external BT device too far
from the unit
Place the external BT device close to
the unit
The external BT device had
NOT pair to the unit
Pair the external BT device to the unit
aspage6-7
Built-in battery cannot
be recharge
The AC/DC adaptor hadn't
connect to DC IN Jack and
AC wall outlet
Connect the AC/DC adaptor to the
DC IN Jack and AC wall outlet
GENERAL SPECIFICATIONS
Power Source: D 5V, 2A, 0~ or built-in rechargeable DC 12V, 2600mAH
(31.2WH) Sealed Lead Acid battery (Recharge by DC == 15V, 2A,0—6-®
through DC IN Jack)
Radio FM Band Coverage:. s
BT Effective Range:
BT Version:...
Audio Powe
Impedance o
87.5-108MHz
Up to 32 Feetin open area
3.0
20W (RMS)
x 3 ohms, 15W
ACCESSORIES
1x Owner’s Manual
1 xAudio Connection Cable with 3.5mm Stereo Mini Plugs
1xAC/DC adaptor (Input: AC 100-240V~, 50/60Hz,1.5A; Output: DC== 15V, 2A 0——®)
1 x Microphone
SPECIFICATIONS AND ACCESSORIES ARE SUBJECT TO CHANGE WITHOUT NOTICE
10

LIMITED WARRANTY
Craig Electronics Inc. warrants this product to be free from manufacturing defects in
material and workmanship under normal use for a period of 180 days from date of
purchase. If service is required, please return the product to the store where it was
purchased for exchange; or, pack the unit in the original packing material with all
accessories if applicable, a copy of your sales receipt and a Cashier’s check or Money
Order for $15 (to cover shipping and handling costs) payable to Craig Electronics Inc. For
consumers in Canada, please make sure that the cashier check or money order is
redeemable through a U.S. bank. Ship your product freight pre-paid. Your unit will be
repaired, replaced or if the unit can not be repaired or replaced, a refund will be forwarded
to you within four weeks of receipt of your unit. Please ship your unit to:
Craig Electronics Inc.
1160 NW 163 Drive
Miami, FI 33169
This warranty is void if the product has been: a) Used in a commercial application or
rental. b) Damaged through misuse, negligence, or abuse. c) Modified or repaired by
anyone other than an authorized Craig Electronics Inc. service center. d) Damaged
because it is improperly connected to any other equipment.
Note: This warranty does not cover: a) Ordinary adjustments as outlined in the Owner’s
Manual which can be performed by the customer. b) Damage to equipment not properly
connected to the product. ¢) Any cost incurred in shipping the product for repair. d)
Damage to the product not used in the USA.
This warranty is not transferable and only applies to the original purchase. Any implied
warranties, including the warranty of merchantability, are limited in duration to the period
of this expressed warranty and no warranty whether expressed or implied shall apply to
the product thereafter.
Under no circumstance shall Craig Electronics Inc. be liable for any loss or consequential
damage arising out of the use of this product. This warranty gives specific legal rights.
However, you may have other rights which may vary from state to state. Some states do
not allow limitations on implied warranties or exclusion of consequential damage.
Therefore, these restrictions may not apply to you.
This product has been manufactured by and is sold under the responsibility of Craig
Electronics Inc., and Craig Electronics Inc. is the warrantor in relation to this product.
MAGNAVOX and SMART. VERY SMART are registered trademarks of Koninklijke Philips
N.V. and are used under license from Koninklijke Philips N.V.
To Obtain Service on your Product
email:[email protected]
Printed in China MHT825_WC_EOFK1_BOWU
