Magom 330D User manual

www.magomhrc.com
330D
METAL EXCAVATOR
1/14
Read this manual carefully before using the machine and keep it handy for inquiries. For any doubts or questions,
please contact us throught www.magomhrc.com.
1. QUICK GUIDE
2. TRANSMITTER SETUP
3. ELECTRONICS
4. HYDRAULICS
5. ASSEMBLY
6. ATTACHMENTS

3
www.magomhrc.com
2063-XXX
DETAILS 1/14 Scale full metal excavator
SPECS
MAX VOLTAGE 11.1 V
RECOMMENDED BATTERY Lipo 11.1 V
WEIGHT (RTR) About 6 kg
Please note that this product is not a toy and not suitable for youngters under the age of 16. Technical details may be
subject to changes and modifications. All images and designs are property of MAGOM HRC. For any doubts or
questions, please contact us throught www.magomhrc.com.
CAUTION !
This product IS NOT A TOY. NOT SUITABLE FOR PEOPLE UNDER 16.
This is a hobby product and some experience is required.
If you want to touch something without any knowledge, contact with our team before.
Use the product with CARE.
A wrong use will damage the product and warranty.
Some parts of the product can be hot during is running time or later.
Do not touch the moving parts during the running time.
Take care with little parts.
Take care when building, as some parts may have sharp edges.
If you want to use your own transmitter, be sure that the setup is correct. A bad setup will damage
the product.
Use the oil, parts, recommended by our team.
Use protective gloves to manipulate oil.
Use protective glasses to manipulate the product. Some parts are made in metal and can be
dangerous.
Take care when using tools and sharp instruments.
Use high quality rc tools to assemble the product.
Take care with Lipo batteries. Use the correct charge and discharge rate.
Do not discharge Lipo batteries under 3.2 V per cell.
Do not charge Lipo batteries over 4.2 V per cell.
Use a Lipo safe bag to charge Lipo batteries.
If you have any doubts or question about the use of this product, please contact with our team to:
[email protected]
PLEASE READ THIS BEFORE START
DETAILS Scale 1/14 full metal excavator 330D
330D –QUICK GUIDE

4
Please note that this product is not a toy and not suitable for youngters under the age of 16. Technical details may be
subject to changes and modifications. All images and designs are property of MAGOM HRC. For any doubts or
questions, please contact us throught www.magomhrc.com.
www.magomhrc.com

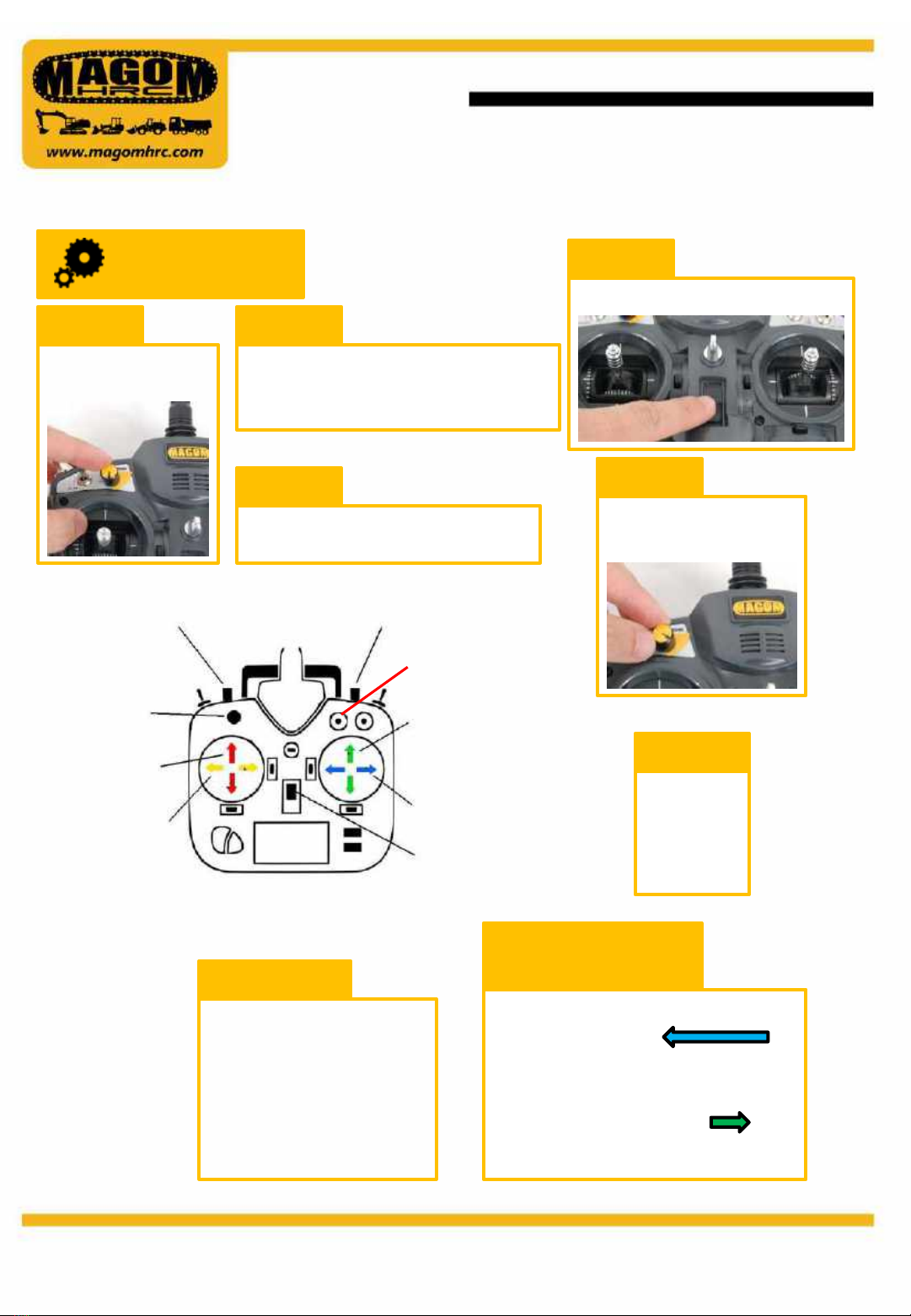

HOW TO START
STEP 2
All switches of the transmitter must be
positioned to the back. If not a “Switch
error” message will appear.
STEP 4
Connect the battery to the model
and wait a song from the ESC.
STEP 6
Now you
can use the
model.
Put the pump rev
dial to its minimum.
STEP 1
STEP 5
Start the pump a little.
Only a little bit!
STEP 3
Turn on the transmitter.
7 (P1) 8 (P2)
6 (P3)
1 (AIL)
2 (ELE)
3 (THR)
4 /5
(RUD) ON/OFF
ID
(mode
N, 1, 2)
1. Bucket (blue)
2. Main arm (green)
3. Middle arm (red)
4. Rotation (yellow) –ID0
5. (Lights) –ID1
6. Pump
7. Left track
8. Right track
MOVEMENTS
330D –QUICK GUIDE
2063-XXX
LIGHTS
(CHANNEL 5 , ID1)
1 x SHORT TOUCH
Back to neutral:
ARM LIGHTS
1 x LONG TOUCH
Back to neutral:
CABIN LIGHTS

5
Please note that this product is not a toy and not suitable for youngters under the age of 16. Technical details may
be subject to changes and modifications. All images and designs are property of MAGOM HRC. For any doubts or
questions, please contact us throught www.magomhrc.com.

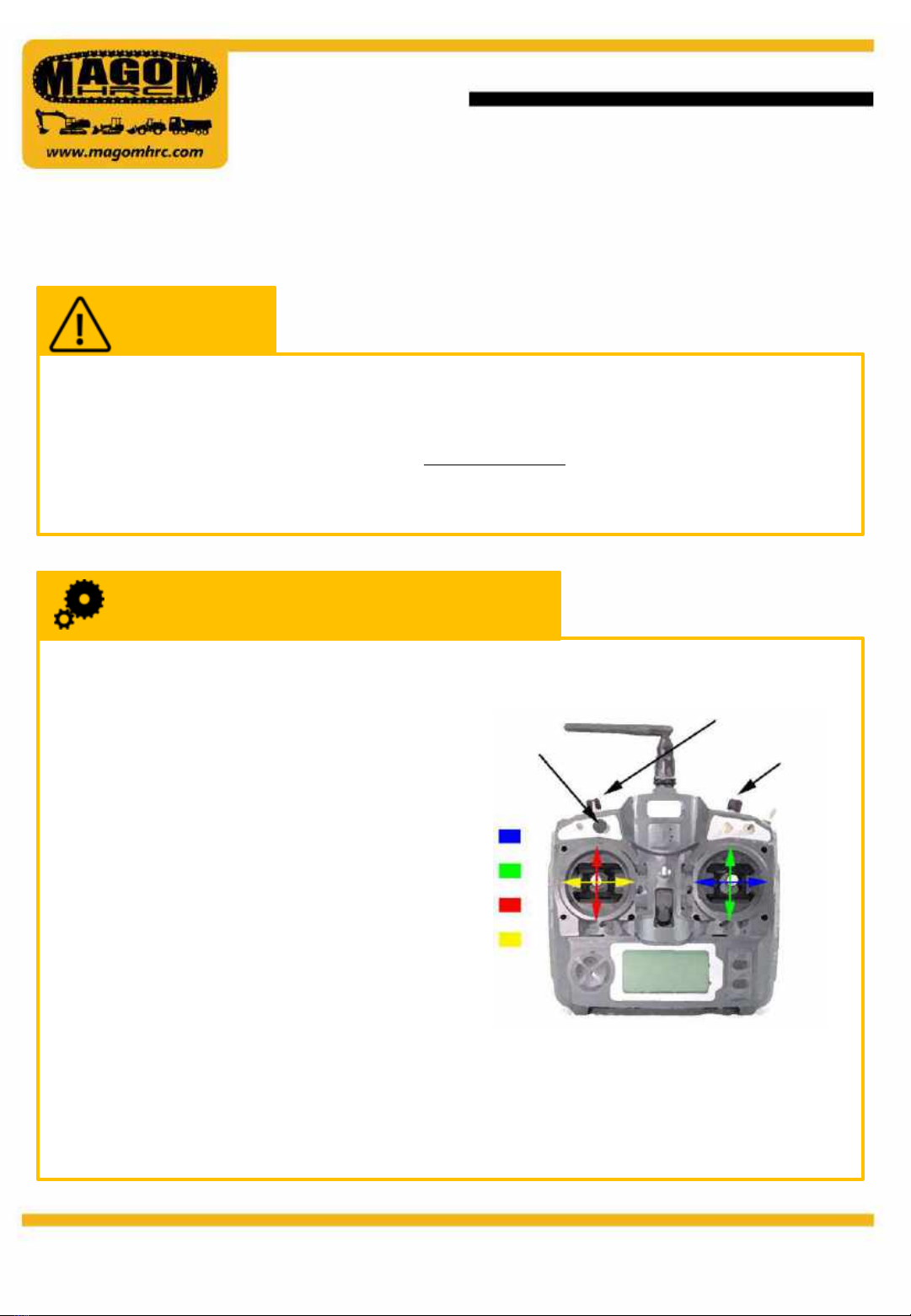

330D - TURNIGY 9X SETUP
www.magomhrc.com
GENERAL SETUP AND CHANNEL MAPPING
CAUTION !
This manual is for full metal
330D excavator .
This manual is for Turnigy 9X transmitter with OPEN TX firmware.
This is a hobby product and some experience is required.
If you want to touch something without any knowledge, contact with our team before.
PLEASE READ THIS BEFORE START
CH 1
CH 2
CH 3
CH 4
CH 6
CH 7
CH 8
To enter general setup:
- Push + (plus) button more than 1 sec.
- Go to the end of page 1 and check you
have Mode 2.
Channel mapping
CH1 Factory (Mode 2)
CH2 Factory (Mode 2)
CH3 Factory (Mode 2)
CH4 Factory (Mode 2)
CH5 NULL
CH6 PIT TRIM
CH7 HOV THR
CH8 HOV PIT
In the next sheet we will explain how to map
the with the knobs.
2063-XXX

6
Please note that this product is not a toy and not suitable for youngters under the age of 16. Technical details may be
subject to changes and modifications. All images and designs are property of MAGOM HRC. For any doubts or
questions, please contact us throught www.magomhrc.com.
www.magomhrc.com
MODEL SETUP
2063-XXX
330D –TURNIGY 9X SETUP
To enter model setup:
-Turn on the transmitter.
-Touch one of the sticks in any direction.
-Hold „MINUS‟ button to enter MODEL SETUP.
-Go to
„MIXER ‟‟ screen using „PLUS‟ and „MINUS‟ buttons.
TIPS:
A. To insert a channel configuration:
1. Place the pointer on the channel line and hold „MENU‟ button. Now you can change values
using „PLUS‟ and „MINUS‟ buttons. Click „EXTI‟ when you finish setting up that channel.
B. To erase a channel configuration:
1. Place the pointer on the channel you want to erase.
2. Select the whole channel by clicking on „MENU‟ button.
3. Hold „EXIT‟ button to erase the channel.
C. To insert the first mixing in a channel:
1. Place the pointer on the channel line you want to insert the first mixing.
2. Select the whole channel by clicking on „MENU‟ button.
3. Hold „DN‟ button to copy the channel.
4. Accept the copy clicking on „MENU‟.
5. Now you can enter the mixing configuration following „A‟ step.
D. To insert following mixings in a channel:
A. Copy the first mixing instead of the channel following step „C‟.
[*********Each line stranting with „+=‟ is a mixing**********]
[*********Use TIPs „C‟ and „D‟ to insert the mixings**********]
•MIXER
CH1 Ail 100 !ID1
CH2 Ele 100 !ID1
CH3 Thr 100 !ID1
CH4 Rud 100
CH5 Ail 100 ID1
CH6 P3 100
[Now select the channel with Menu and select INSERT to add a new mix]
+=Ail +60 |X| ID2
+=Ele +60 |X| ID2
+=Thr +60 |X| ID2
CH7 P1 100 !ID1
+=Ele 100 ID1
CH8 P2 100 !ID1
+=Thr 100 ID1
CH9 P2 100 ID1
CH10 Ail 100 !ID1
+=Ele 100
+=Thr 100
+=Rud 100
•LIMITS
SUBTRIM / EPA / REVERSE

www.magomhrc.com
2063-XXX
330D - ELECTRONICS
CAUTION !
This product IS NOT A TOY. NOT SUITABLE FOR PEOPLE UNDER 16.
This is a hobby product and some experience is required.
If you have any doubts or questions, please contact with our team: [email protected]
PLEASE READ THIS BEFORE START
Please note that this product is not a toy and not suitable for youngters under the age of 16. Technical details may be
subject to changes and modifications. All images and designs are property of MAGOM HRC. For any doubts or
questions, please contact us throught www.magomhrc.com.

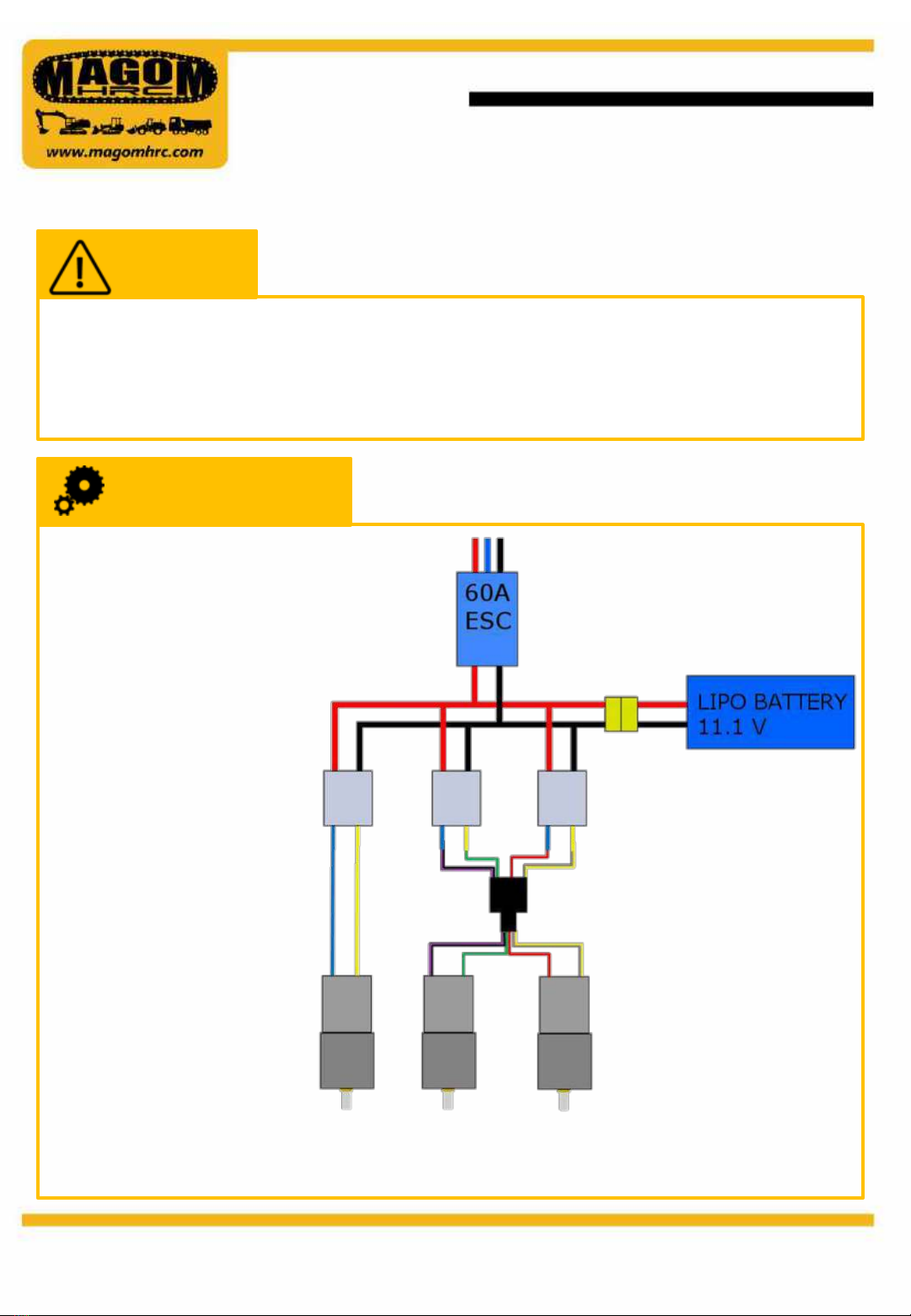

ELECTRONIC SCHEMA
Brushless speed controller
for pump
Use high quality soldering tin. Be
careful with the solder iron.
Forward/Reverse
Brushed speed
controllers
All 4 speed controllers take the main
power from the battery.
RECEIVER CHANNEL MAPPING
CH1 –Bucket servo valve
CH2 –Boom servo valve
CH3 –Arm servo valve
CH4 –Rotating ESC
CH5 –Free
CH6 –Pump ESC
CH7 –Left track ESC
CH8 –Right track ESC
Rotating
geared
motor
Left track
geared
motor
MOTOR 2
Right track
geared
motor
MOTOR 1
CH
4
CH7 CH8
CH6
MOTOR 1
POLE A: YELLOW&GREY
POLE B: RED
MOTOR 2:
POLE A: BLACK/PURPLE
POLE B: GREEN
WIRES‟ COLOURS
Slip ring for rotating system.
With this part you can rotate
your model 360º endless.

8
Please note that this product is not a toy and not suitable for youngters under the age of 16. Technical details may be
subject to changes and modifications. All images and designs are property of MAGOM HRC. For any doubts or
questions, please contact us throught www.magomhrc.com.
www.magomhrc.com
2063-XXX
Connect the hose as shown in the picture. Use our recommended oil.
If you have any doubts about the assembling process, please contact us to: [e-mail]
Filling process. Once you have
connected all the system, you
must to fill the tank and run
one movement. The oil will
go to the cylinder and the
tank will go empty. Fill again
the tank and complete the
other movements. Once all
movements are ok, you must
to close all cylinders and fill
tank to 90%.
With MG-HR7 pump
With MAGOM HRC
standart pump
330D - HYDRAULICS
CAUTION !
This product IS NOT A TOY. NOT SUITABLE FOR PEOPLE UNDER 16.
This is a hobby product and some experience is required.
If you have any doubts or questions, please contact with our team: [email protected]
PLEASE READ THIS BEFORE START
HYDRAULIC SCHEMA

Please note that this product is not a toy and not suitable for youngters under the age of 16. Technical details may be
subject to changes and modifications. All images and designs are property of MAGOM HRC. For any doubts or
questions, please contact us throught www.magomhrc.com.
www.magomhrc.com
RECOMMENDATIONS
Our hydraulic systems must be used with the MAGOM HRC hydraulic oil.
How to fill the hydraulic system
1. Close all hydraulic cylinders.
2. Remove the tank filling screw.
3. Fill the tank completely.
4. Make one hydraulic movement (main arm for example).
5. The oil of the tank will drop.
6. Fill the tank again and make a new movement (or the same movement if you haven‟t completed
it before).
7. Complete the steps 3-6 until all cylinders are moving ok.
8. Close all cylinders.
9. Fill the tank about 80-90%.
10. Close the tank with the filling screw
Valve
1. All servos must be in the middle position to assure that the valve is on the middle and it is closed.
2. If one or more valves are open, the system won‟t work correctly.
3. You can correct it using the TRIM and SUBTRIM function on the transmitter.
Oil
Please don‟t use any other oil type. Oil from third brand can damage o-ring and system.
2063-XXX
330D - HYDRAULICS

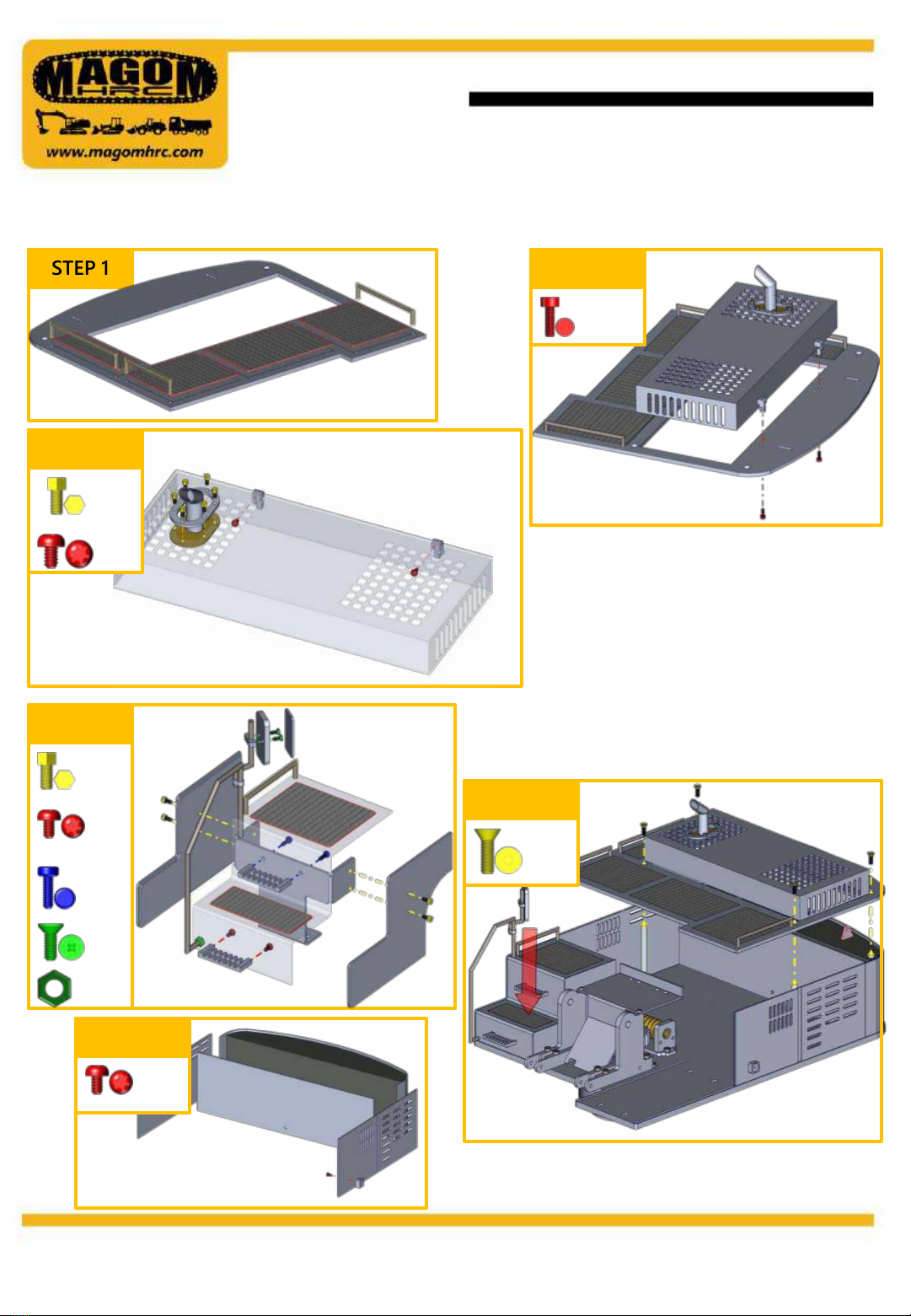

330D - BASE
www.magomhrc.com
2163-040
ASSEMBLY
STEP 1 STEP 2
STEP 3 STEP 4
UNDERCARRIAGE
Please note that this product is not a toy and not suitable for youngters under the age of 16. Technical details may be
subject to changes and modifications. All images and designs are property of MAGOM HRC. For any doubts or
questions, please contact us throught www.magomhrc.com.

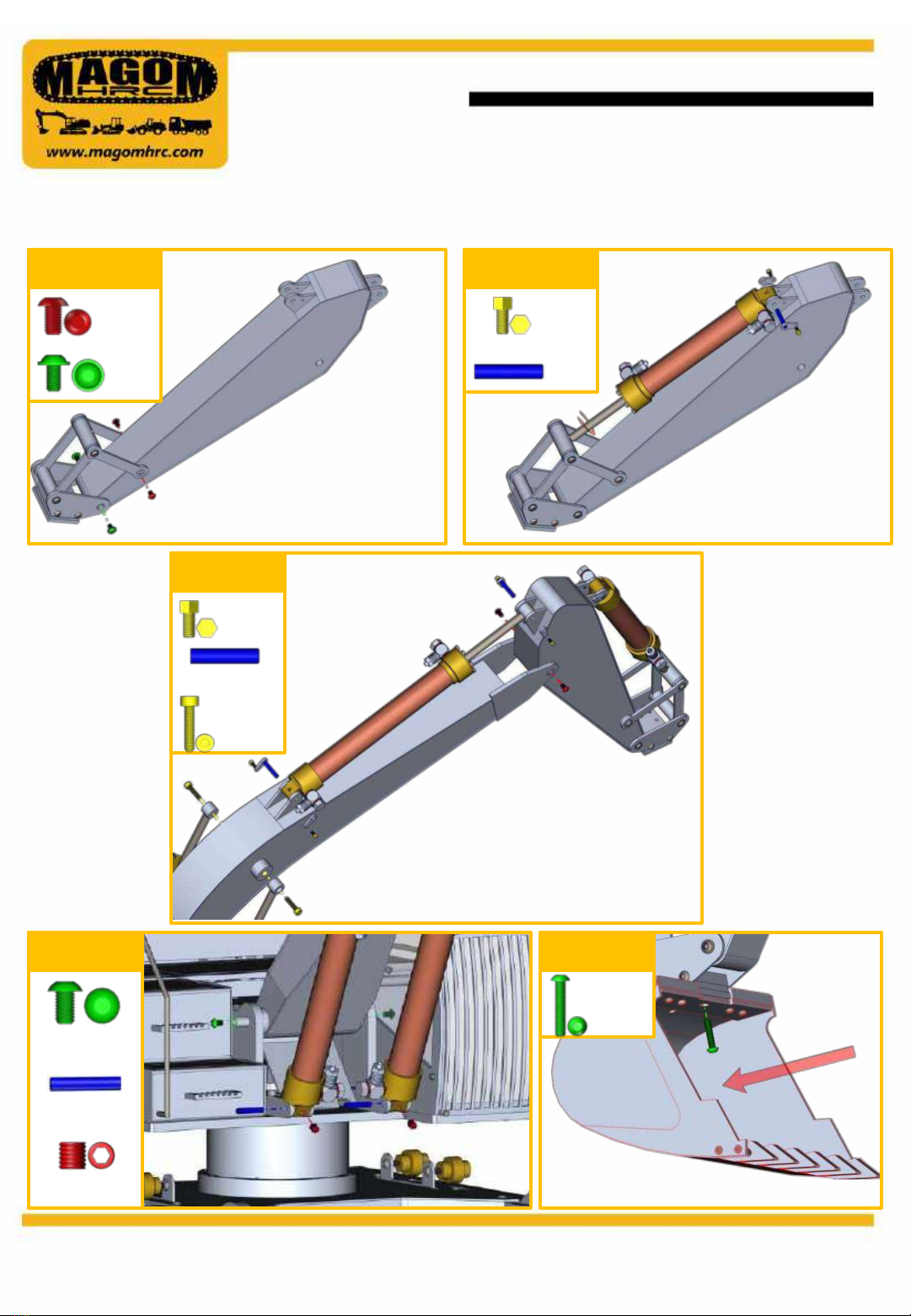

ARM
M3x6
(x3)
M3x14
(x8)
M3x4
(x2)
M3x8
(x2) M3x30
(x2)
M3x5
(x2) D3x16
(x2) M3x3 (x2)

330D - BASE
www.magomhrc.com
2163-040
ASSEMBLY
Please note that this product is not a toy and not suitable for youngters under the age of 16. Technical details may be
subject to changes and modifications. All images and designs are property of MAGOM HRC. For any doubts or
questions, please contact us throught www.magomhrc.com.
VALVE
M3x12
(x2)
PUMP
(brushless)
M4x8
(x2)
PUMP
(HR7)
M4x8
(x3)
COVER
M3x10
(x4)

STEP 1
M3x6
(x2)
M3x5
(x2)
Please note that this product is not a toy and not suitable for youngters under the age of 16. Technical details may be
subject to changes and modifications. All images and designs are property of MAGOM HRC. For any doubts or
questions, please contact us throught www.magomhrc.com.

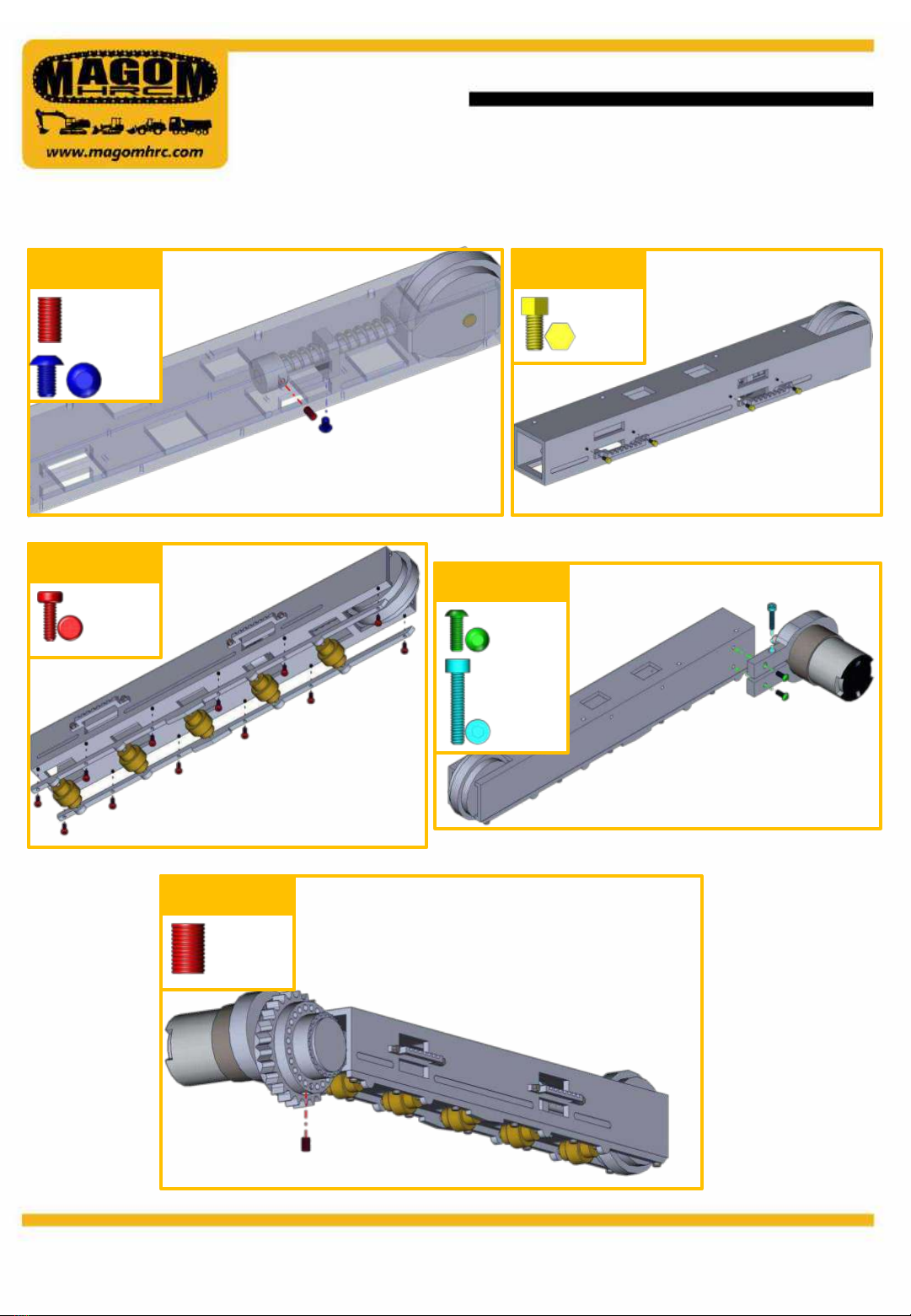

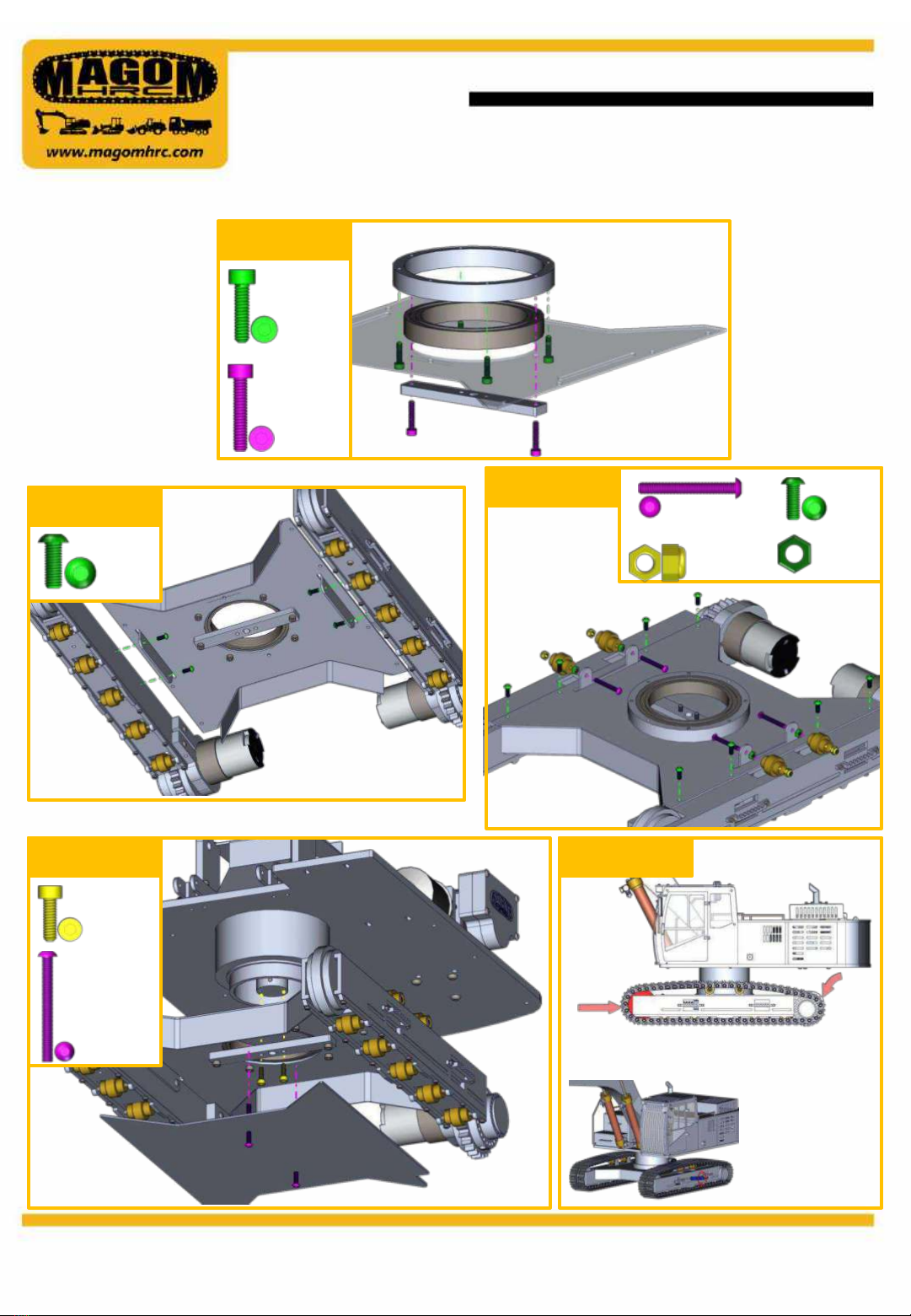

330D - UNDERCARRAIGE
www.magomhrc.com
2163-000
ASSEMBLY
STEP 2
M2x4
(x8)
STEP 3
M2x6
(x24)
STEP 4
M3x8
(x4)
M3x16
(x2)
STEP 5
M4x6
(x2)

Please note that this product is not a toy and not suitable for youngters under the age of 16. Technical details may be
subject to changes and modifications. All images and designs are property of MAGOM HRC. For any doubts or
questions, please contact us throught www.magomhrc.com.
330D - UNDERCARRAIGE
www.magomhrc.com
2163-000
ASSEMBLY
STEP 7
M3x8
(x4)
STEP 8 M3x8
(x8)
M3x25
(x4)
M3 (x4)
M3 (x4)

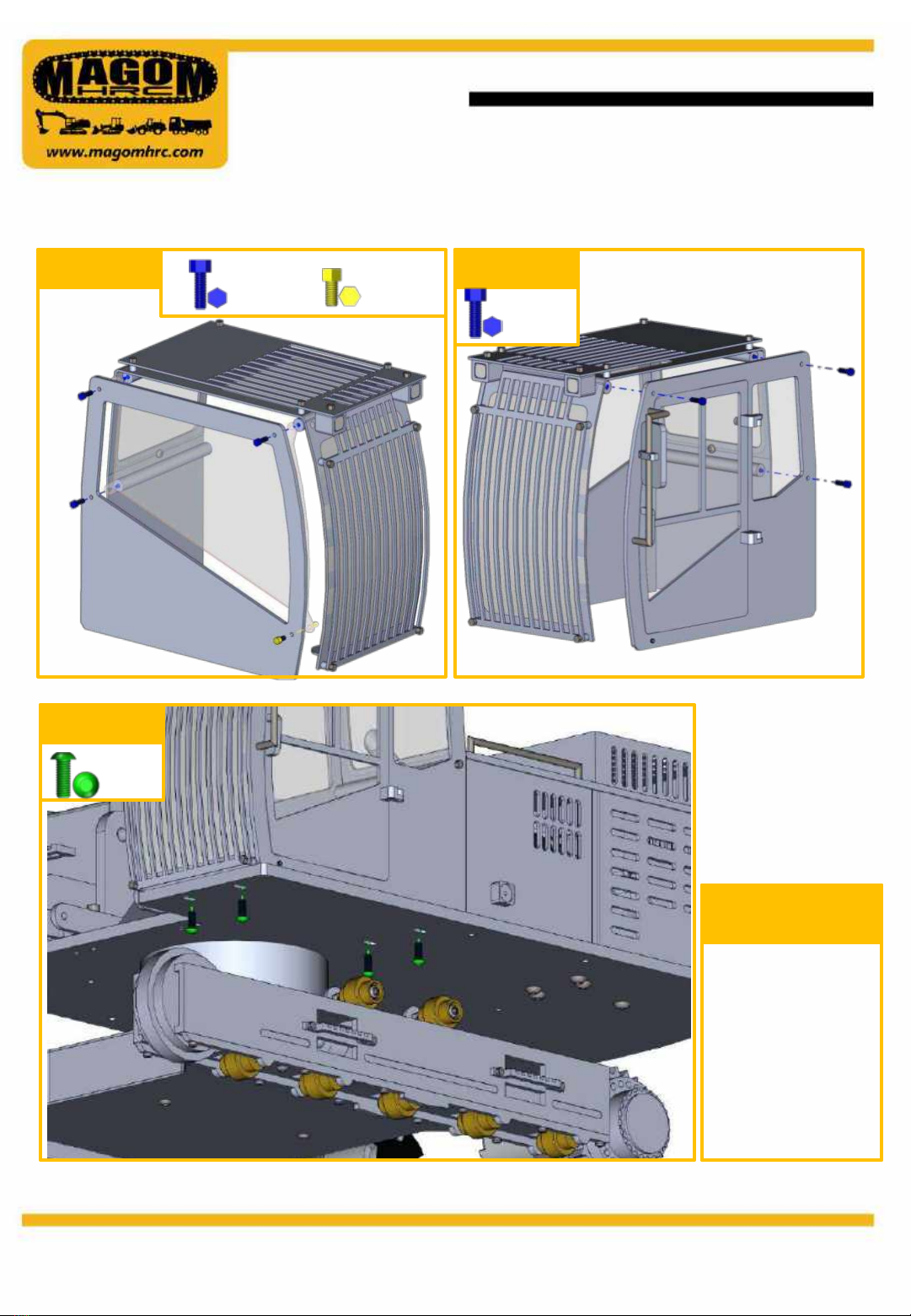

BASE ASSY
M3x8
(x2)
M3x30
(x2)
STEP 6
M3x12
(x4)
M3x16
(x2)
TRACKS
1. Push
driven wheel
2. Insert track in the
sprocket‟s theeth
(Un)tighten tracks
1.5 ALLEN
screwdriver

14
Please note that this product is not a toy and not suitable for youngters under the age of 16. Technical details may be
subject to changes and modifications. All images and designs are property of MAGOM HRC. For any doubts or
questions, please contact us throught www.magomhrc.com.
330D –REAR COVER
www.magomhrc.com
2163-030
ASSEMBLY
STEP 1 STEP 2
M2x6
(x2)
STEP 3
M2x4
(x6)
M2x3
(x2)
STEP 4
M2x4
(x4)
M2x3
(x2)
M2x6
(x2)
M2x4
(x2)
M3
(x1)
STEP 5
M2x3
(x2)
STEP 6
M3x10
(x4)

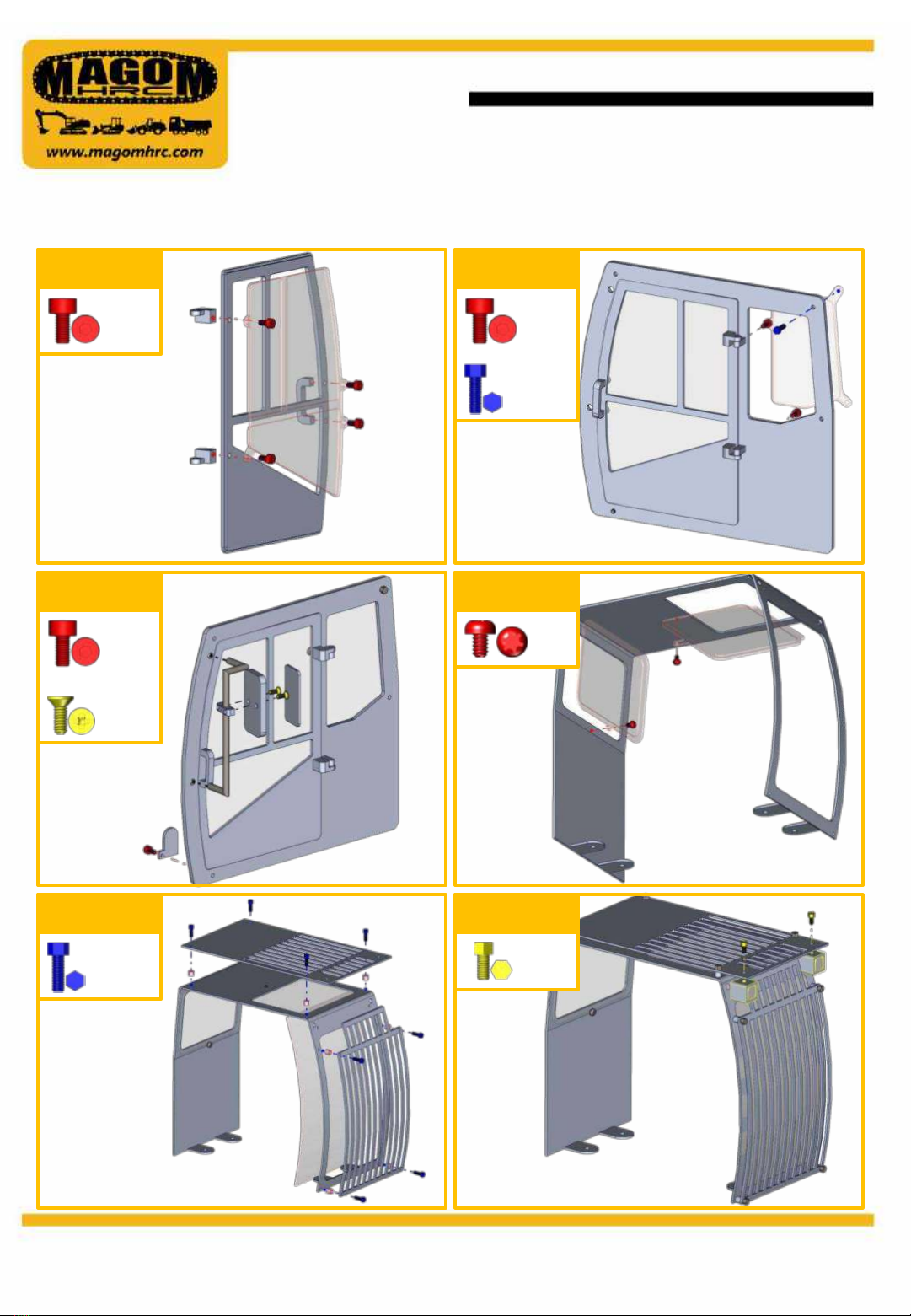

330D - CABIN
www.magomhrc.com
2163-050
ASSEMBLY
STEP 1
M2x4
(x4)
STEP 2
M2x4
(x2)
M2x6
(x1)
STEP 3
M2x4
(x1)
STEP 4
M2x3
(x2)
STEP 5 STEP 6
M2x6
(x8)
M2x4
(x2)
M2x4
(x2)
Please note that this product is not a toy and not suitable for youngters under the age of 16. Technical details may be
subject to changes and modifications. All images and designs are property of MAGOM HRC. For any doubts or
questions, please contact us throught www.magomhrc.com.

330D - CABIN
www.magomhrc.com
2163-050
ASSEMBLY
STEP 7 STEP 8
M2x6
(x1)
BASE
Please note that this product is not a toy and not suitable for youngters under the age of 16. Technical details may be
subject to changes and modifications. All images and designs are property of MAGOM HRC. For any doubts or
questions, please contact us throught www.magomhrc.com.
M2x4
(x2) M2x6
(x1)
M3x8
(x4)
Use double-sided
adhesive tape to
attach the cabin
interior to the
cabin‟s floor.
CABIN INTERIOR

330D -ARM
www.magomhrc.com
2163-080
ASSEMBLY
STEP 1
M3x5
(x2)
M3x6
(x2)
STEP 2
M2x4
(x2)
D3x18
(x1)
STEP 3
M2x4
(x4)
D3x18 (x2)
M3x14
(x2)
STEP 4
M3x5
(x2)
D3x16 (x2)
M3x3 (x2)
Please note that this product is not a toy and not suitable for youngters under the age of 16. Technical details may be
subject to changes and modifications. All images and designs are property of MAGOM HRC. For any doubts or
questions, please contact us throught www.magomhrc.com.
BUCKET
M3x14
(x1)

18
Please note that this product is not a toy and not suitable for youngters under the age of 16. Technical details may be
subject to changes and modifications. All images and designs are property of MAGOM HRC. For any doubts or
questions, please contact us throught www.magomhrc.com.
330D - QUICK COUPLER
www.magomhrc.com
2163-083
SPECS
Changing standard holding system
ASSEMBLY
STEP 1 Remove the screws from
the holder.
STEP 2
M3x4
(x5)
STEP 3
The two screws of
each shaft must be
removed
simultaneously.
Remove the shafts from
the holder.
Separate the tube.
Remove the holder.
Keep the washers.

19
Please note that this product is not a toy and not suitable for youngters under the age of 16. Technical details may be
subject to changes and modifications. All images and designs are property of MAGOM HRC. For any doubts or
questions, please contact us throught www.magomhrc.com.

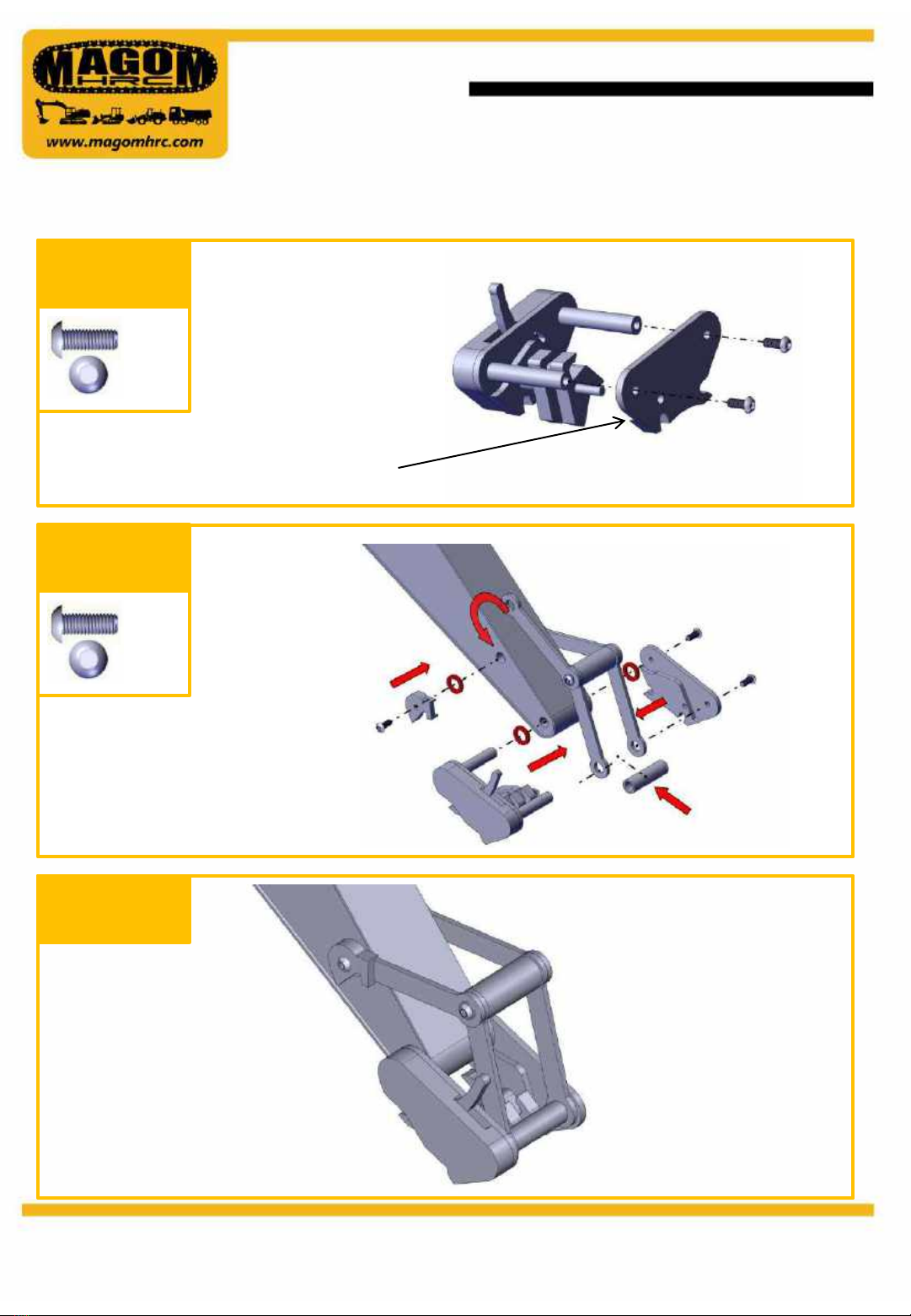

QUICK COUPLER FOR 330D
www.magomhrc.com
STEP 4 Remove the screws from
the coupler.
STEP 5
FINAL VIEW
Separate the slim
side of the quick
coupler.
M3x8
(x2)
M3x8
(x3)
3. Place the tube.
4. Insert the slim side
of the quick coupler.
Install the coupler.
1. Place the waser on
the middle arm and
insert the hook.
2. Insert the coupler‟s
shafts.
2163-083

ATTACHMENTS
HYDRAULICS
ELECTRONICS
www.magomhrc.com
Please note that this product is not a toy and not suitable for youngsters under the age of 16. Technical details may be
subject to changes and modifications. All images and designs are property of MAGOM HRC. For any doubts or
questions, please contact us throught www.magomhrc.com.
