Magom CAT D11 User manual

www.magomhrc.com
CAT D11
HYDRAULIC CONVERSION
1/16
Read this manual carefully before using the machine and keep it handy for inquiries. For any doubts or questions,
please contact us throught www.magomhrc.com.
1. QUICK GUIDE
2. TRANSMITTER SETUP
3. HYDRAULICS
4. ELECTRONICS
5. ATTACHMENTS

2
CAT D11 –QUICK GUIDE
www.magomhrc.com
2005-XXX
DETAILS 1/16 D11 Bruder conversion model
SPECS
MAX VOLTAGE 11.1 V
RECOMMENDED BATTERY Lipo 11.1 V
WEIGHT (RTR) About 5 kg
This product IS NOT A TOY. NOT SUITABLE FOR PEOPLE UNDER 16.
This is a hobby product and some experience is required.
If you want to touch something without any knowledge, contact with our team before.
Use the product with CARE.
A wrong use will damage the product and warranty.
Some parts of the product can be hot during is running time or later.
Do not touch the moving parts during the running time.
Take care with little parts.
Take care when building, as some parts may have sharp edges.
If you want to use your own transmitter, be sure that the setup is correct. A bad setup will damage
the product.
Use the oil, parts, recommended by our team.
Use protective gloves to manipulate oil.
Use protective glasses to manipulate the product. Some parts are made in metal and can be
dangerous.
Take care when using tools and sharp instruments.
Use high quality rc tools to assemble the product.
Take care with Lipo batteries. Use the correct charge and discharge rate.
Do not discharge Lipo batteries under 3.2 V per cell.
Do not charge Lipo batteries over 4.2 V per cell.
Use a Lipo safe bag to charge Lipo batteries.
If you have any doubts or question about the use of this product, please contact with our team to:
[email protected]
Please note that this product is not a toy and not suitable for youngters under the age of 16. Technical details may be
subject to changes and modifications. All images and designs are property of MAGOM HRC. For any doubts or
questions, please contact us throught www.magomhrc.com.
CAUTION !
PLEASE READ THIS BEFORE START
DETAILS Scale 1/16 CAT D11 modified by MAGOM HRC

www.magomhrc.com
HOW TO START
STEP 2
All switches of the transmitter
must be positioned to the back.
If not a “Switch error” message
will appear.
STEP 4
Connect the battery to the
model and wait a song from the
ESC.
STEP 6
Now you can
use the model.
MOVEMENTS
Put the pump rev
dial to its minimum.
STEP 1
STEP 5
Start the pump a little.
Only a little bit!
STEP 3
Turn on the transmitter.
2005-XXX
LIGHTS
(CHANNEL 5 , ID2)
1 x LONG TOUCH
Back to neutral:
CABIN LIGHTS
1 x LONG TOUCH
Back to neutral:
REAR LIGHTS
1 x SHORT TOUCH
Back to neutral:
FRONT LIGHTS
1 x SHORT TOUCH
Back to neutral:
ROTATING LIGHTS
CAT D11 –QUICK GUIDE
1. Blade angle (blue) –ID0
2. Blade up-down (green) –ID0
3. Fordward/Reverse(red)
4. Left/Right(yellow)
5. Lights –ID2
6. Pump
7. Ripper up-down –ID1
8. Ripper angle –ID1
6 (P3)
1/5/8 (AIL)
2/7 (ELE)
3 (THR)
4(RUD)
ON/OFF
ID
(modo
N, 1, 2)
9 (P2)
SOUND
(CHANNEL 9)
1 x TOUCH
Back to neutral:
PULL OUT
1 x TOUCH
Back to neutral:
HORN
Please note that this product is not a toy and not suitable for youngters under the age of 16. Technical details may be
subject to changes and modifications. All images and designs are property of MAGOM HRC. For any doubts or
questions, please contact us throught www.magomhrc.com.

4
Please note that this product is not a toy and not suitable for youngters under the age of 16. Technical details may be
subject to changes and modifications. All images and designs are property of MAGOM HRC. For any doubts or
questions, please contact us throught www.magomhrc.com.
www.magomhrc.com

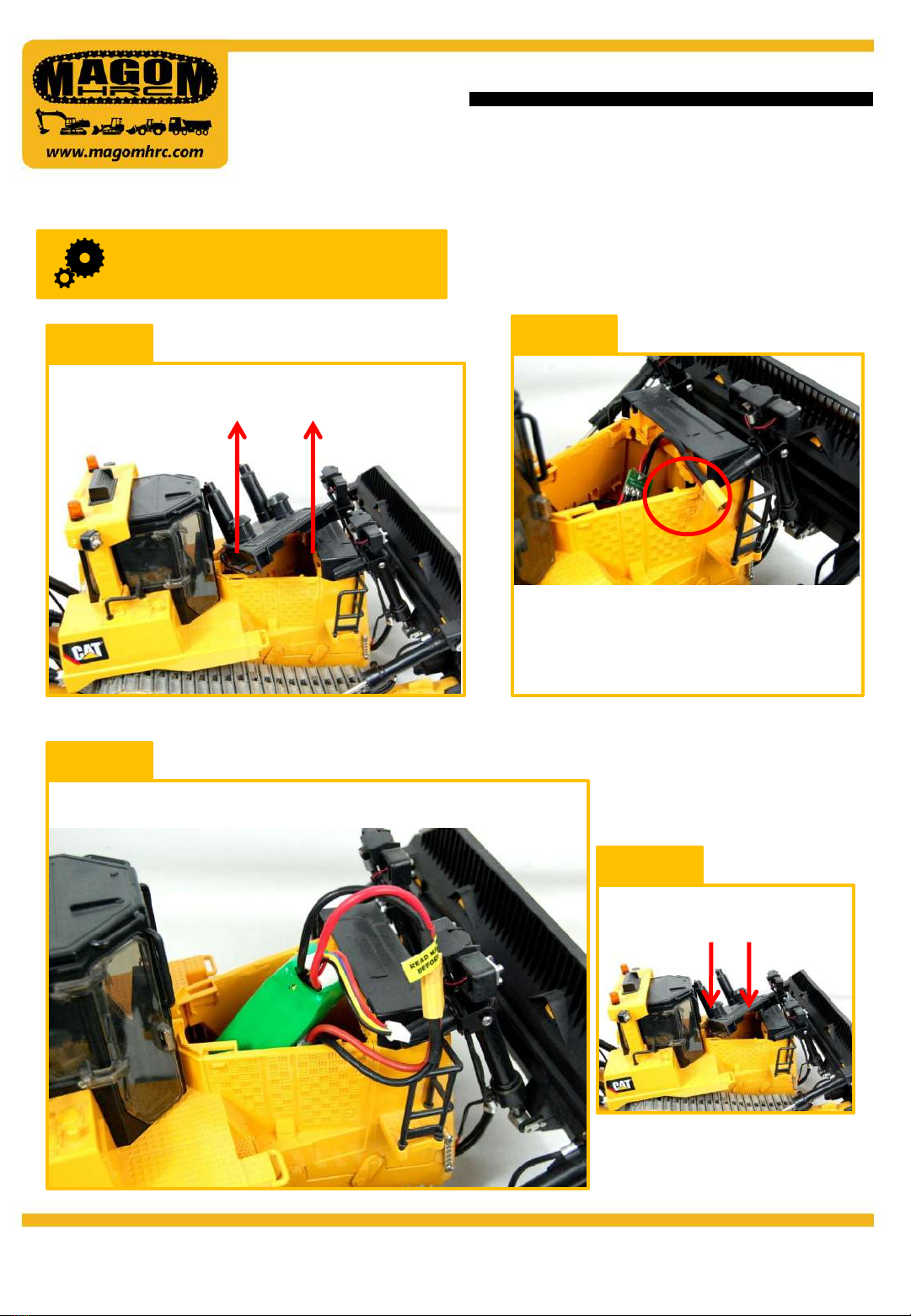

HOW TO CONNECT THE BATTERY
STEP 2
STEP 1
STEP 3
2005-XXX
CAT D11 –QUICK GUIDE
Take off the front cover of the model.
Now you can access the battery
connector.
Connect the battery to the battery connector
and place it inside the front part of the model.
STEP 4
Place the cover again.
Now you can use the model!

Please note that this product is not a toy and not suitable for youngters under the age of 16. Technical details may be
subject to changes and modifications. All images and designs are property of MAGOM HRC. For any doubts or
questions, please contact us throught www.magomhrc.com.
CAT D11 –TURNIGY 9X SETUP
www.magomhrc.com
GENERAL SETUP AND CHANNEL MAPPING
CAUTION !
This manual is for CAT D11 modified by MAGOM HRC .
This manual is for Turnigy 9X transmitter with OPEN TX firmware.
This is a hobby product and some experience is required.
If you want to touch something without any knowledge, contact with our team before.
PLEASE READ THIS BEFORE START
To enter general setup:
- Push +(plus) button more than 1 sec.
- Go to the end of page 1 and check you
have Mode 2.
Channel mapping
CH1 Factory (Mode 2)
CH2 Factory (Mode 2)
CH3 Factory (Mode 2)
CH4 Factory (Mode 2)
CH5 NULL
CH6 PIT TRIM
CH7 HOV THR
CH8 HOV PIT
In the next sheet we will explain how to map
the CH6, CH7 and CH8 with the knobs.
2005-XXX
CH1
CH2
CH3
CH4
CH6
ID
CH8 (ID1)
CH5 (ID2)
CH7 (ID1)
MENU
EXIT
MINUS
UP
PLUS
DN
CH9

6
Please note that this product is not a toy and not suitable for youngters under the age of 16. Technical details may be
subject to changes and modifications. All images and designs are property of MAGOM HRC. For any doubts or
questions, please contact us throught www.magomhrc.com.
www.magomhrc.com
MODEL SETUP To enter model setup:
-Turn on the transmitter.
-Touch one of the sticks in any direction.
-Hold „MINUS‟ button to enter MODEL SETUP.
-Go to „MIXER ‟‟ screen using „PLUS‟ and „MINUS‟ buttons.
2005-XXX
CAT D11 –TURNIGY 9X SETUP
TIPS:
A. To insert a channel configuration:
1. Place the pointer on the channel line and hold „MENU‟ button. Now you can change values
using „PLUS‟ and „MINUS‟ buttons. Click „EXTI‟ when you finish setting up that channel.
B. To erase a channel configuration:
1. Place the pointer on the channel you want to erase.
2. Select the whole channel by clicking on „MENU‟ button.
3. Hold „EXIT‟ button to erase the channel.
C. To insert the first mixing in a channel:
1. Place the pointer on the channel line you want to insert the first mixing.
2. Select the whole channel by clicking on „MENU‟ button.
3. Hold „DN‟ button to copy the channel.
4. Accept the copy clicking on „MENU‟.
5. Now you can enter the mixing configuration following „A‟ step.
D. To insert following mixings in a channel:
A. Copy the first mixing instead of the channel following step „C‟.
•MIXER
CH1 Ail 100 ID0
CH2 Ele 100 ID0
CH3 Thr 125
+=Rud +125
CH4 Rud 125
+=Thr +125
CH5 Ail 100 ID2 LIGHTS
CH6 P3 100 |X|
+=Ail + 50 |X| !ID2
+=Ele + 50 |X|
CH7 Ail 100 ID1
CH8 Ele 100 ID1
CH9 P2 100 SOUND
+=Ail +50 !ID2
+=Ele + 50
+=Thr +50
+=Rud +50
•REVERSE, SUBTRIM AND LIMITS
You can make those changes on the page 6/11 on the model setup menu.
[*********Each line stranting with „+=‟ is a mixing**********]
[*********Use TIPs „C‟ and „D‟ to insert the mixings**********]

7
CAT D11 - HYDRAULICS
www.magomhrc.com
2005-XXX
DETAILS 1/16 Hydraulic kit for D11 Bruder Model
CONTENTS Hydraulic cylinders, Hydraulic pump, Hose, Hydraulic valve,
Hydraulic oil and Y connectors (8)
Please note that this product is not a toy and not suitable for youngters under the age of 16. Technical details may be
subject to changes and modifications. All images and designs are property of MAGOM HRC. For any doubts or
questions, please contact us throught www.magomhrc.com.

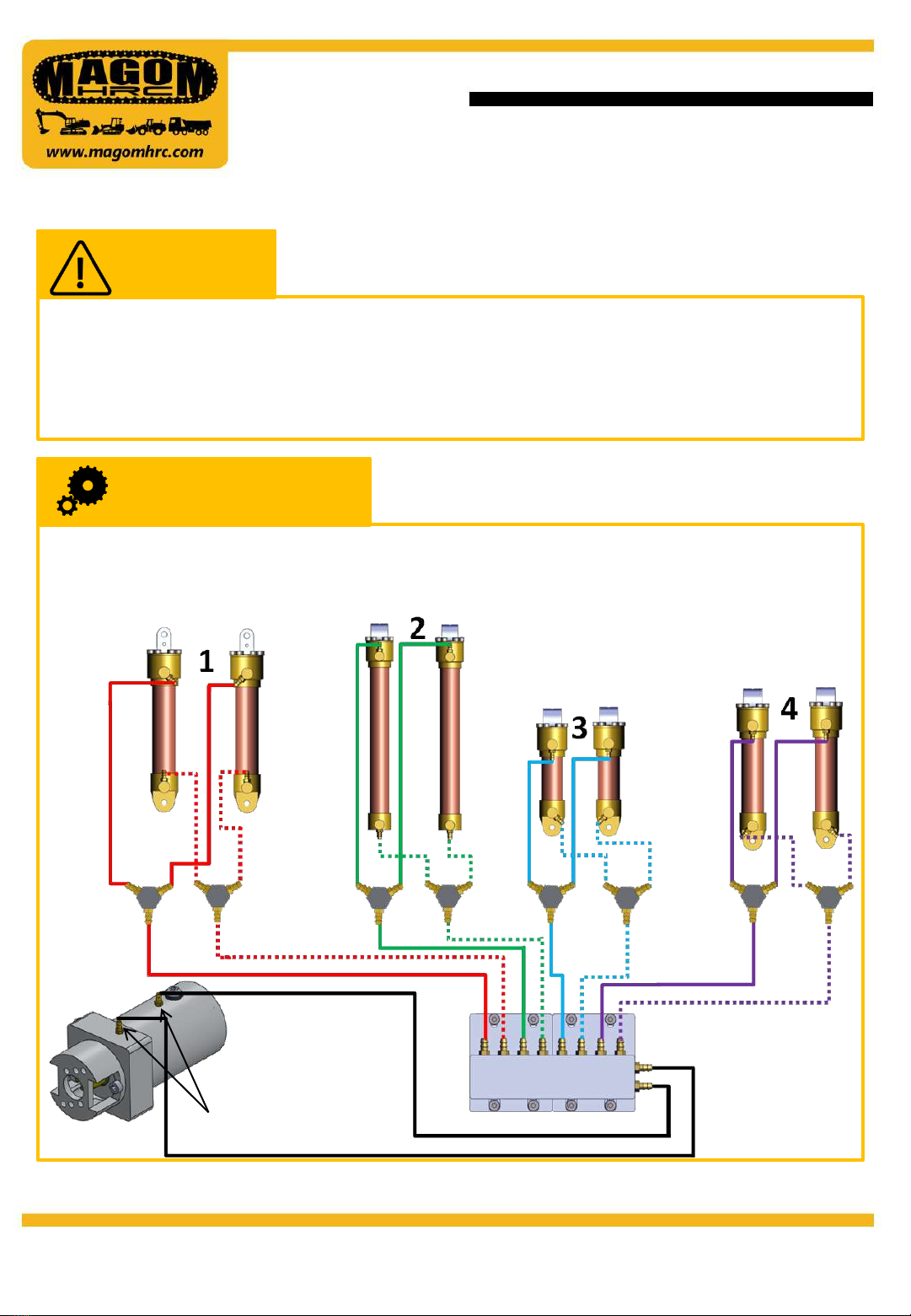

CONNECTING DIAGRAM
Connect the hose as shown in the picture. Use our recommended oil.
If you have any doubts about the assembling process, please contact us to: [e-mail]
Rear
Front
Blade up/down
Blade angle
Ripper up/down
Ripper angle
It is recommended
using a spring to
prevent hose
expansion.
CAUTION !
This product IS NOT A TOY. NOT SUITABLE FOR PEOPLE UNDER 16.
This is a hobby product and some experience is required.
If you have any doubts or questions, please contact with our team: [email protected]
PLEASE READ THIS BEFORE START

Please note that this product is not a toy and not suitable for youngters under the age of 16. Technical details may be
subject to changes and modifications. All images and designs are property of MAGOM HRC. For any doubts or
questions, please contact us throught www.magomhrc.com.
www.magomhrc.com
RECOMMENDATIONS
Our hydraulic systems must be used with the MAGOM HRC hydraulic oil.
How to fill the hydraulic system
1. Close all hydraulic cylinders.
2. Remove the tank filling screw.
3. Fill the tank completely.
4. Make one hydraulic movement (main arm for example).
5. The oil of the tank will drop.
6. Fill the tank again and make a new movement (or the same movement if you haven‟t completed
it before).
7. Complete the steps 3-6 until all cylinders are moving ok.
8. Close all cylinders.
9. Fill the tank about 80-90%.
10. Close the tank with the filling screw
Valve
1. All servos must be in the middle position to assure that the valve is on the middle and it is closed.
2. If one or more valves are open, the system won‟t work correctly.
3. You can correct it using the TRIM and SUBTRIM function on the transmitter.
Oil
Please don‟t use any other oil type. Oil from third brand can damage o-ring and system.
2005-XXX
CAT D11 - HYDRAULICS

9
Please note that this product is not a toy and not suitable for youngters under the age of 16. Technical details may be
subject to changes and modifications. All images and designs are property of MAGOM HRC. For any doubts or
questions, please contact us throught www.magomhrc.com.
CAT D11 - ELECTRONICS
www.magomhrc.com
2005-XXX
ELECTRONIC DIAGRAM
Right trackLeft track
Brushless speed controller (30 or 60A) for
pump. This ESC has an internal BEC so it is
not necessary use an external BEC.
CAUTION !
This product IS NOT A TOY. NOT SUITABLE FOR PEOPLE UNDER 16.
This is a hobby product and some experience is required.
If you have any doubts or questions, please contact with our team: [email protected]
PLEASE READ THIS BEFORE START
Geared
motors
CH3 CH4
CH6
B
ESC
B
ESC
BL
ESC
CH8
CH7
CH2
CH1
Lipo BATTERY
11.1V
CH1
CH2
CH3
CH4
CH6
CH7
CH8

www.magomhrc.com

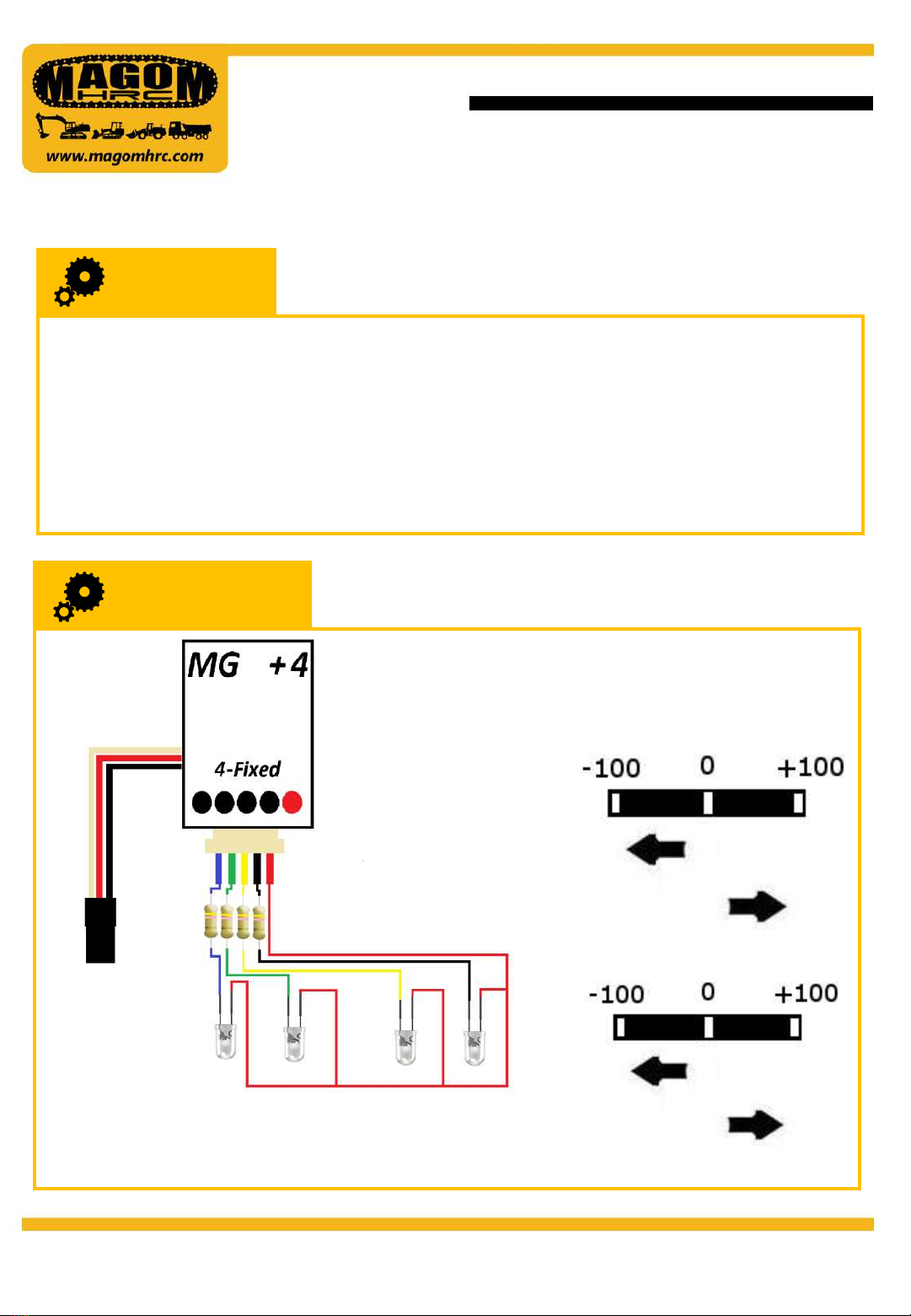

LIGHTS DIAGRAM
CAT D11 - ELECTRONICS
2005-XXX
ROTATING LIGHTS
CABIN LIGHTS
FRONT LIGHTS
REAR LIGHTS
CH5
Please note that this product is not a toy and not suitable for youngters under the age of 16. Technical details may be
subject to changes and modifications. All images and designs are property of MAGOM HRC. For any doubts or
questions, please contact us throught [email protected].

www.magomhrc.com
LIGHTS POSITION
2005-XXX
CABIN LIGHTS
FRONT LIGHTS
REAR LIGHTS
ROTATIN
LIGHTS
CAT D11 - ELECTRONICS
CABIN LIGHTS
Please note that this product is not a toy and not suitable for youngters under the age of 16. Technical details may be
subject to changes and modifications. All images and designs are property of MAGOM HRC. For any doubts or
questions, please contact us throught i[email protected].

ATTACHMENTS
HYDRAULICS
ELECTRONICS
www.magomhrc.com
Please note that this product is not a toy and not suitable for youngsters under the age of 16. Technical details may be
subject to changes and modifications. All images and designs are property of MAGOM HRC. For any doubts or
questions, please contact us throught www.magomhrc.com.

Please note that this product is not a toy and not suitable for youngters under the age of 16. Technical details may be
subject to changes and modifications. All images and designs are property of MAGOM HRC. For any doubts or
questions, please contact us throught www.magomhrc.com.
www.magomhrc.com
503012-302
BRUSHLESS PUMP WITH TANK M3 + motor
SPECS:
•Pressure: Relief valve is setup to 18 bar.
•Running with more than 18 bar can damage hose and system.
•Integrated tank and relief valve.
REQUIRED:
•Hydraulic oil. We recommend MAGOM HRC hydraulic oil (5050-001).
INSTRUCTIONS Oil level.
Motor rotation.
Remove the filling screw,
fill the tank and purge
the system. Once the
system is completely
purged, fill the tank with
the recommended oil
level.
We recommend do not touching
the pressure setting.
EXPLODED VIEW
M3x6
(x4) M3x12
(x4)
M3x3
(x2)

www.magomhrc.com
504030-400
4-WAY VALVE M3 - V2
SPECS
•4-way hydraulic valve (to control FOUR movements).
•Pressure: Up to 30 bars.
REQUIRED:
•4 x micro-servo. We recommend HXT 900 (6003-001).
•Hydraulic oil. We recommend MAGOM HRC hydraulic oil (5050-001).
MICRO SERVO ASSEMBLY
14 mm
Cut the servo horn as
shown in the picture.
STEP 1
Connect 1A-1B to hydraulic cylinder Nr 1.
Connect 2A-2B to hydraulic cylinder Nr 2.
Connect 3A-3B to hydraulic cylinder Nr 3.
Connect 4A-4B to hydraulic cylinder Nr 4.
SCHEMA
Working angle is
about 60º, same as
servo angle.
At the neutral point, the valve is closed.
Please note that this product is not a toy and not suitable for youngters under the age of 16. Technical details may be
subject to changes and modifications. All images and designs are property of MAGOM HRC. For any doubts or
questions, please contact us throught www.magomhrc.com.
STEP 3
1. Mount the horn to the servo without screw.
2. Attach the servo to the valve (If necessary, loosen the valve tabs
before screwing the servo to find the midpoint and then retighten the
valve screws).
3. Servo horn must not press the rotating valve.
1. Connect the servo to the receiver.
2. With the station on and the receiver powered, move the servo to the
neutral position with SUBTRIM / TRIM to position 0.
3. Place the valve rotor in the NEUTRAL POINT (see diagram).
STEP 2

Please note that this product is not a toy and not suitable for youngters under the age of 16. Technical details may be
subject to changes and modifications. All images and designs are property of MAGOM HRC. For any doubts or
questions, please contact us throught www.magomhrc.com.

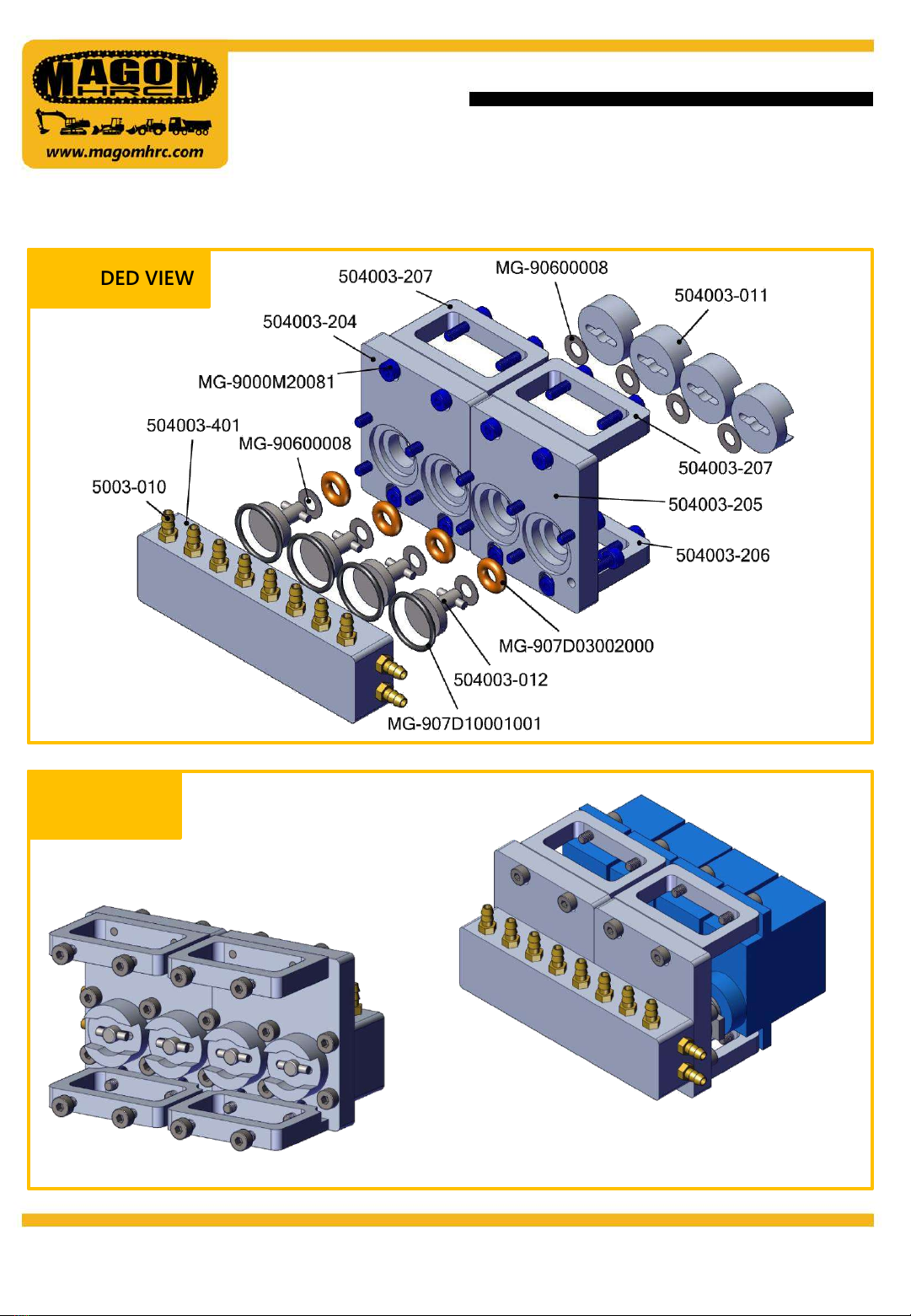

EXPLODED VIEW
www.magomhrc.com
4-WAY VALVE M3 V2
FINAL VIEW
504030-400

Please note that this product is not a toy and not suitable for youngters under the age of 16. Technical details may be
subject to changes and modifications. All images and designs are property of MAGOM HRC. For any doubts or
questions, please contact us throught www.magomhrc.com.
12 MM HYDRAULIC CYLINDER M3
www.magomhrc.com
502012-001
SPECS
•Max Pressure: 25 bar.
•M3 connectors for use with 3mm hose.
INSTRUCTIONS
•We recommend to use MAGOM HRC hydraulic oil (5050-001).
•Clean the cylinder every 30 hours of use.
EXPLODED VIEW

www.magomhrc.com
DETAILS 1/14 Scale full metal excavator
SPECS
VOLTAGE 7.4 V –11.1 V
MAX AMP 30 A

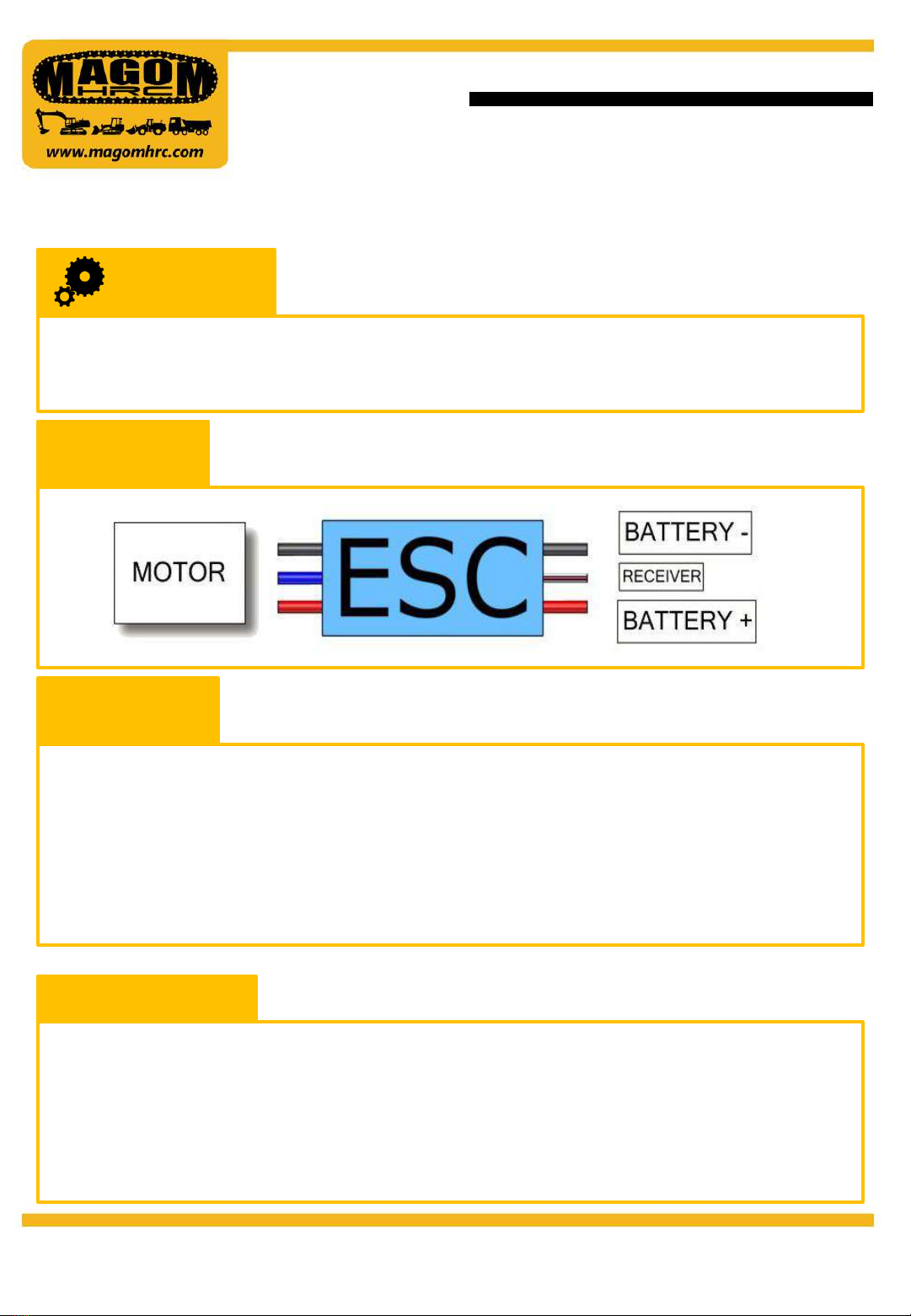

CONNECTIONS
DETAILS ESC for brushless motor
BRUSHLESS ESC - 30A
6005-101
HOW TO START
1. Connect the ESC to an AUX channel which is controlled by a potentiometer (we
recommend CH6) .
2. Set ESC transmitter channel to the lowest position.
3. Connect the battery to the ESC. The ESC doesn‟t have switch,
so it will start as soon as you connect the battery.
3. A little song will start.
4. Once the song has finished, you can now use the ESC.
COMMON PROLEMS
1. ESC give a continuous beep-beep-beep:
The channel is not at the lowest position. Please, set dial/stick to its minimum.
2. Start the ESC with channel at its maximum. The ESC will enter to the programming
mode.
Set the channel to the opposite direction and restart the ESC.
Please note that this product is not a toy and not suitable for youngters under the age of 16. Technical details may be
subject to changes and modifications. All images and designs are property of MAGOM HRC. For any doubts or
questions, please contact us throught www.magomhrc.com.

18
Please note that this product is not a toy and not suitable for youngters under the age of 16. Technical details may be
subject to changes and modifications. All images and designs are property of MAGOM HRC. For any doubts or
questions, please contact us throught [email protected].
BS-18A BRUSHED ESC
www.magomhrc.com
6005-011
SPECS

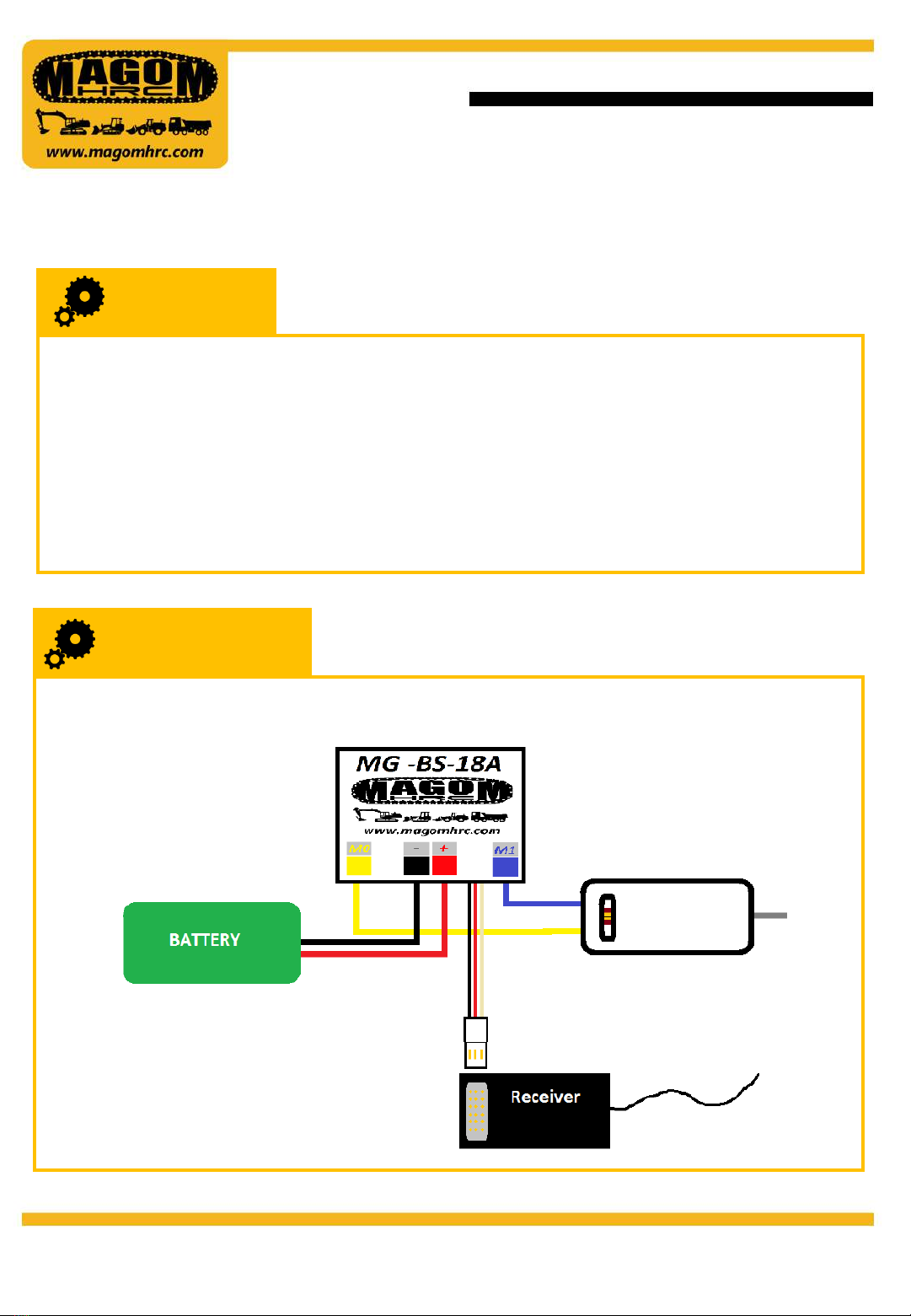

WIRING DIAGRAM
ESC
MOTOR
Voltage input 7.4V - 11.1V (2s –3s Lipo)
Receiver voltage required 5V –5.5V
Rated current 18A
Motor type Brushed
Lipo low battery protection NO
BEC NO
Size 19.5 x 21.5 x 5.8 mm

19
Please note that this product is not a toy and not suitable for youngters under the age of 16. Technical details may
be subject to changes and modifications. All images and designs are property of MAGOM HRC. For any doubts or
questions, please contact us throught [e-mail].
MG LIGHTS MODULE +4
www.magomhrc.com
6001-101
SPECS
DETAILS Module for control lights of machine of truck.
VOLTAGE 4.0 –5.5 V (receiver BEC)
MAX Amp 300mA per output
SIZE 11.1 x 20.0 x 6.8 mm
WIRING DIAGRAM
NEUTRAL POINT 1.5ms
To receiver
You can turn the 4 function lights on
and off separately making the
following movements:
FUNCTIONS 4 fixed output
COMMON POSITIVE
Push to +100
(1 sec) and
return to 0.
Push to -100
(1 sec) and
return to 0 .
Push to +100,
wait (>2.5 sec)
and return to 0.
Push to -100,
wait (>2.5 sec)
and return to 0.
Resistor calculator:
(BEC voltaje - Led voltaje) / led amps.
Example: (5v-3.15v)/0.04A=46.25Ω~47Ω

[e-mail]
MAGOM HRC
MAGOM HRC
[phone]
