Magom LIEBHERR 574 User manual

www.magomhrc.com
L574 with
option parts
WHEEL LOADER
1/16
Read this manual carefully before using the machine and keep it handy for inquiries. For any doubts or questions,
please contact us throught www.magomhrc.com.
1. QUICK GUIDE
2. TRANSMITTER SETUP
3. HYDRAULICS
4. ELECTRONICS
5. ASSEMBLY
6. ATTACHMENTS

Please note that this product is not a toy and not suitable for youngters under the age of 16. Technical details may be
subject to changes and modifications. All images and designs are property of MAGOM HRC. For any doubts or
questions, please contact us throught www.magomhrc.com.
CAUTION !
This product IS NOT A TOY. NOT SUITABLE FOR PEOPLE UNDER 16.
This is a hobby product and some experience is required.
If you want to touch something without any knowledge, contact with our team before.
Use the product with CARE.
A wrong use will damage the product and warranty.
Some parts of the product can be hot during is running time or later.
Do not touch the moving parts during the running time.
Take care with little parts.
Take care when building, as some parts may have sharp edges.
If you want to use your own transmitter, be sure that the setup is correct. A bad setup will damage
the product.
Use the oil, parts, recommended by our team.
Use protective gloves to manipulate oil.
Use protective glasses to manipulate the product. Some parts are made in metal and can be
dangerous.
Take care when using tools and sharp instruments.
Use high quality rc tools to assemble the product.
Take care with Lipo batteries. Use the correct charge and discharge rate.
Do not discharge Lipo batteries under 3.2 V per cell.
Do not charge Lipo batteries over 4.2 V per cell.
Use a Lipo safe bag to charge Lipo batteries.
If you have any doubts or question about the use of this product, please contact with our team to:
[email protected]
PLEASE READ THIS BEFORE START
L574 with option parts - QUICK GUIDE
www.magomhrc.com
2031-XXX
DETAILS 1/16 Scale LIEBHERR 574 full metal wheel loader
SPECS
MAX VOLTAGE 11.1 V
RECOMMENDED BATTERY Lipo 11.1 V
WEIGHT (RTR) About 6 kg
DETAILS Scale 1/16 wheel loader LIEBHERR 574 with option parts

3
Please note that this product is not a toy and not suitable for youngters under the age of 16. Technical details may be
subject to changes and modifications. All images and designs are property of MAGOM HRC. For any doubts or
questions, please contact us throught www.magomhrc.com.
L574 with option parts –QUICK GUIDE
www.magomhrc.com
HOW TO START
STEP 2
All switches of the transmitter must be
positioned to the back. If not a “Switch
error” message will appear.
STEP 4
Connect the battery to the model
and wait a song from the ESC.
STEP 6
Now you
can use the
model.
MOVEMENTS
1. Bucket (blue)
2. Main arm (green)
3. Forward/Reverse (red)
4. Steering (yellow)
5. Lights
6. Pump
7. Sound
8. Free
Put the pump rev
dial to its minimum.
STEP 1
STEP 5
Start the pump a little.
Only a little bit!
STEP 3
Turn on the transmitter.
2031-XXX
SOUND
(CHANNEL 7)
1 x TOUCH
Back to neutral:
PULL OUT
1 x TOUCH
Back to neutral:
HORN
7 (P1) 8 (P2)
6 (P3)
1 (AIL)
2 (ELE)
3 (THR)
4 /5
(RUD) ON/OFF
ID
(modo
N, 1, 2)
BUCKET
(CHANNEL 8)
OPEN / CLOSE
COMBINED
BUCKET
LIGHTS
(CHANNEL 5 , ID1)
1 x SHORT TOUCH
Back to neutral:
POSITION LIGHTS
1 x SHORT TOUCH
Back to neutral:
RATATING LIGHT

4
Please note that this product is not a toy and not suitable for youngters under the age of 16. Technical details may be
subject to changes and modifications. All images and designs are property of MAGOM HRC. For any doubts or
questions, please contact us throught www.magomhrc.com.
www.magomhrc.com

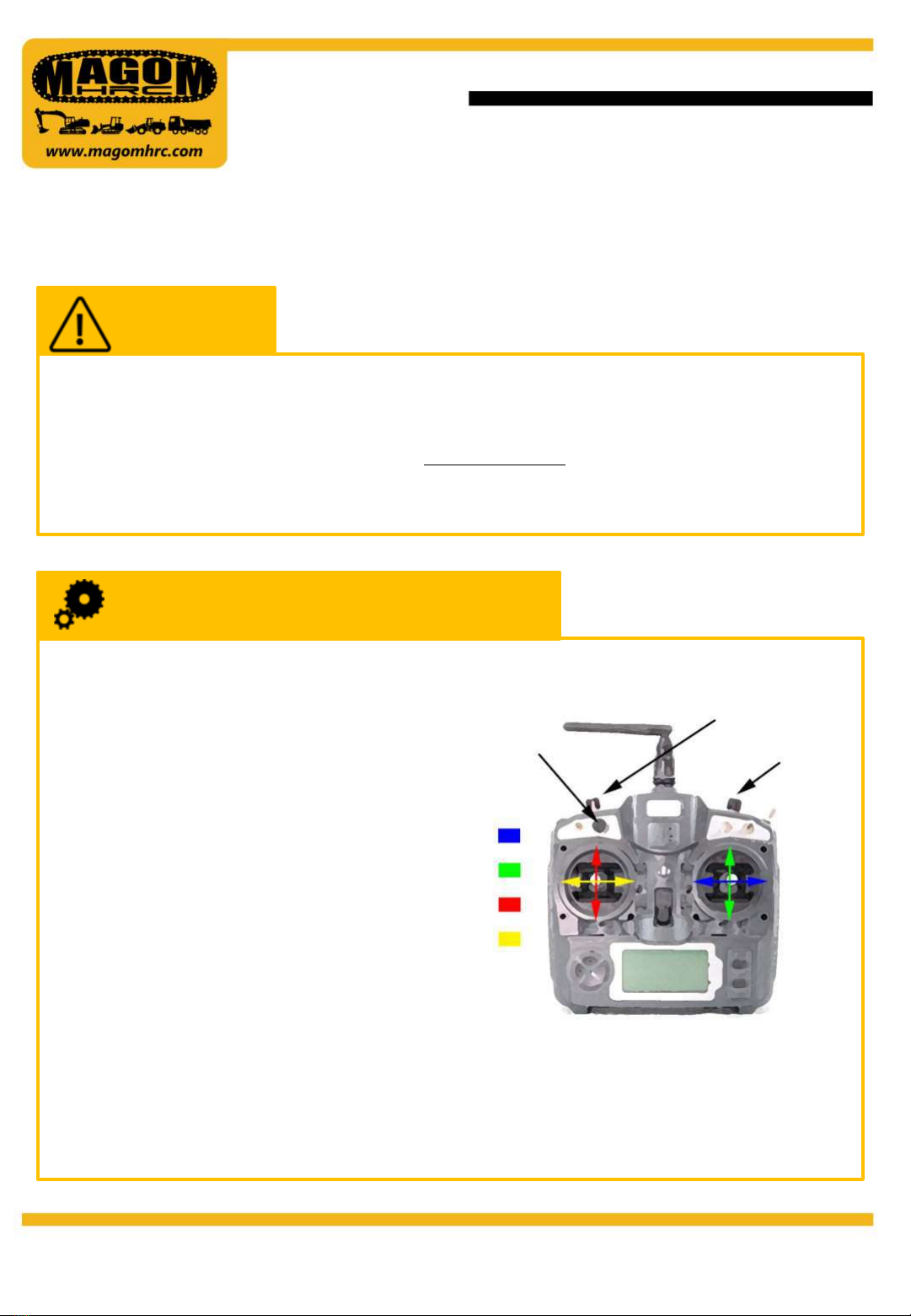

GENERAL SETUP AND CHANNEL MAPPING
CAUTION !
This manual is for L574 wheel loader
with optional parts .
This manual is for Turnigy 9X transmitter with OPEN TX firmware.
This is a hobby product and some experience is required.
If you want to touch something without any knowledge, contact with our team before.
PLEASE READ THIS BEFORE START
CH 1
CH 2
CH 3
CH 4
CH 6
CH 7
CH 8
To enter general setup:
- Push +(plus) button more than 1 sec.
- Go to the end of page 1 and check you
have Mode 2.
Channel mapping
CH1 Factory (Mode 2)
CH2 Factory (Mode 2)
CH3 Factory (Mode 2)
CH4 Factory (Mode 2)
CH5 NULL
CH6 PIT TRIM
CH7 HOV THR
CH8 HOV PIT
In the next sheet we will explain how to map
the with the knobs.
2031-XXX
L574 with option parts –TURNIGY 9X SETUP

5
Please note that this product is not a toy and not suitable for youngters under the age of 16. Technical details may be
subject to changes and modifications. All images and designs are property of MAGOM HRC. For any doubts or
questions, please contact us throught www.magomhrc.com.
www.magomhrc.com
MODEL SETUP
•MIXER
CH1 Ail 100 ID0
CH2 Ele 100 !ID1
CH3 Thr 100 !ID1
CH4 Rud 100 !ID1
CH5 Rud 100 ID1 LIGHTS
CH6 P3 100
[*********Now use TIPs „C‟ and „D‟ to insert the mixings**********]
+=Rud +60 |x| !ID1
+=Ele +60 |x| !ID1
+=Ail +60 |x| !ID1
CH7 [C1] 100 !ID1
+=Ail +100 !ID1
+=Ele +100 !ID1
+=Thr +100 !ID1
+=Rud +100 !ID1
CH8 P2 100 HORN/START
•FLIGHTS MODE:
FM0 Name “NORMAL”
FM1 Name “LIGHTS” ID1
•REVERSE, SUBTRIM AND LIMITS
You can make those changes on the
page 6/11 on the model setup menu.
2031-XXX
L574 with option parts –TURNIGY 9X SETUP
To enter model setup:
-Turn on the transmitter.
-Touch one of the sticks in any direction.
-Hold „MINUS‟ button to enter MODEL SETUP.
-Go to
„MIXER ‟‟ screen using „PLUS‟ and „MINUS‟ buttons.
TIPS:
A. To insert a channel configuration:
1. Place the pointer on the channel line and hold „MENU‟ button. Now you can change values
using „PLUS‟ and „MINUS‟ buttons. Click „EXTI‟ when you finish setting up that channel.
B. To erase a channel configuration:
1. Place the pointer on the channel you want to erase.
2. Select the whole channel by clicking on „MENU‟ button.
3. Hold „EXIT‟ button to erase the channel.
C. To insert the first mixing in a channel:
1. Place the pointer on the channel line you want to insert the first mixing.
2. Select the whole channel by clicking on „MENU‟ button.
3. Hold „DN‟ button to copy the channel.
4. Accept the copy clicking on „MENU‟.
5. Now you can enter the mixing configuration following „A‟ step.
D. To insert following mixings in a channel:
A. Copy the first mixing instead of the channel following step „C‟.
[*********Each line stranting with „+=‟ is a mixing**********]
[*********Use TIPs „C‟ and „D‟ to insert the mixings**********]

Please note that this product is not a toy and not suitable for youngters under the age of 16. Technical details may be
subject to changes and modifications. All images and designs are property of MAGOM HRC. For any doubts or
questions, please contact us throught www.magomhrc.com.
www.magomhrc.com
CAUTION !
This product IS NOT A TOY. NOT SUITABLE FOR PEOPLE UNDER 16.
This is a hobby product and some experience is required.
If you have any doubts or questions, please contact with our team: [e-mail]
PLEASE READ THIS BEFORE START
2031-XXX
RECOMMENDATIONS
Our hydraulic systems must be used with the MAGOM HRC hydraulic oil.
How to fill the hydraulic system
1. Close all hydraulic cylinders.
2. Remove the tank filling screw.
3. Fill the tank completely.
4. Make one hydraulic movement (main arm for example).
5. The oil of the tank will drop.
6. Fill the tank again and make a new movement (or the same movement if you haven‟t completed
it before).
7. Complete the steps 3-6 until all cylinders are moving ok.
8. Close all cylinders.
9. Fill the tank about 80-90%.
10. Close the tank with the filling screw
Valve
1. All servos must be in the middle position to assure that the valve is on the middle and it is closed.
2. If one or more valves are open, the system won‟t work correctly.
3. You can correct it using the TRIM and SUBTRIM function on the transmitter.
Oil
Please don‟t use any other oil type. Oil from third brand can damage o-ring and system.
L574 with option parts - HYDRAULICS

Please note that this product is not a toy and not suitable for youngters under the age of 16. Technical details may be
subject to changes and modifications. All images and designs are property of MAGOM HRC. For any doubts or
questions, please contact us throught www.magomhrc.com.
www.magomhrc.com

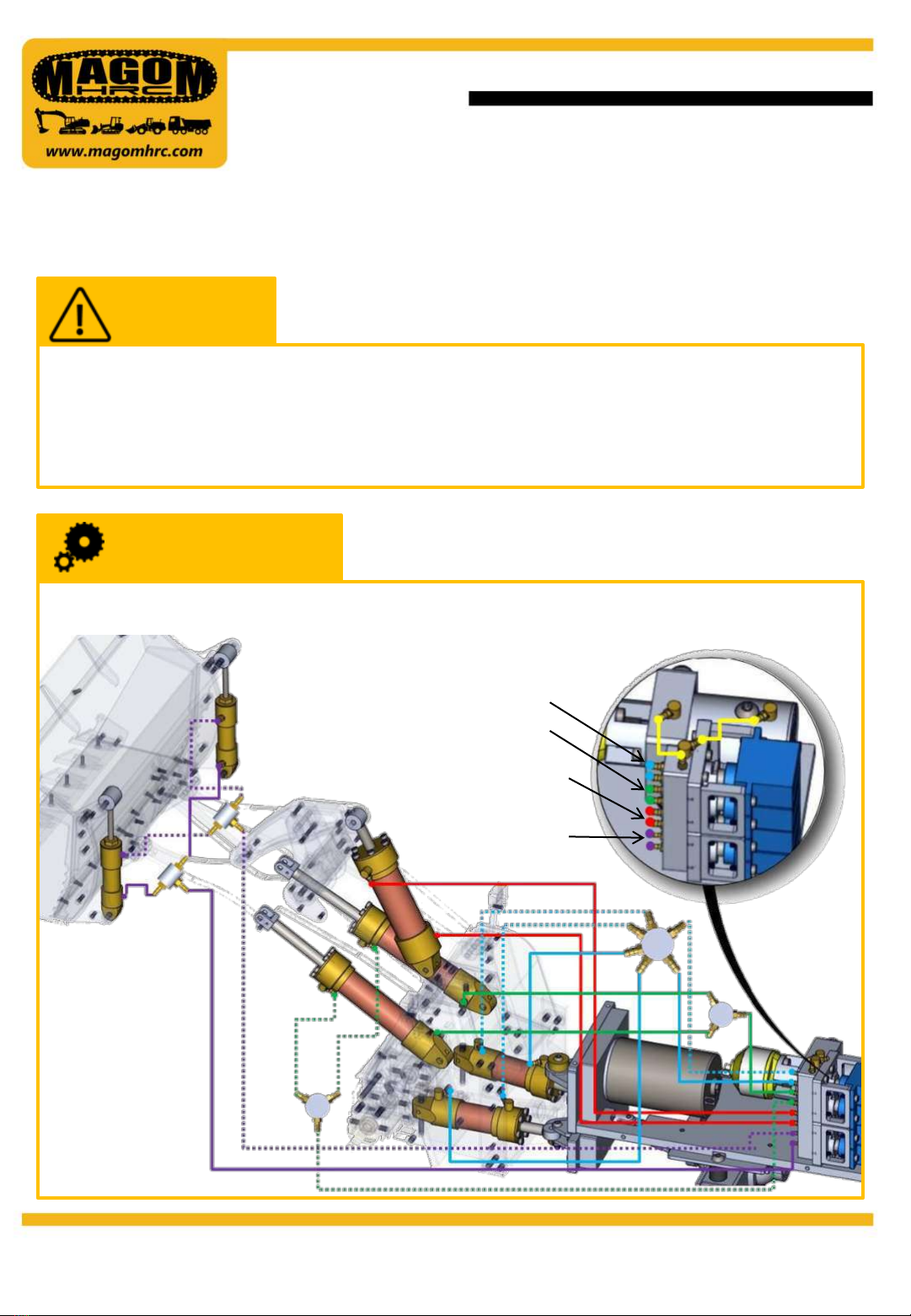

HYDRAULIC SCHEMA
CAUTION !
This product IS NOT A TOY. NOT SUITABLE FOR PEOPLE UNDER 16.
This is a hobby product and some experience is required.
If you have any doubts or questions, please contact with our team: [e-mail]
PLEASE READ THIS BEFORE START
Connect the hose as shown in the picture.
Between valve and pump pressure connector is recommended using a spring to prevent hose
explosion.
CH1(Bucket)
CH4 (Steering)
CH2 (Arm)
2031-XXX
L574 with option parts - HYDRAULICS
CH8
(Combined
Bucket)

Please note that this product is not a toy and not suitable for youngters under the age of 16. Technical details may be
subject to changes and modifications. All images and designs are property of MAGOM HRC. For any doubts or
questions, please contact us throught www.magomhrc.com.
www.magomhrc.com
2031-XXX

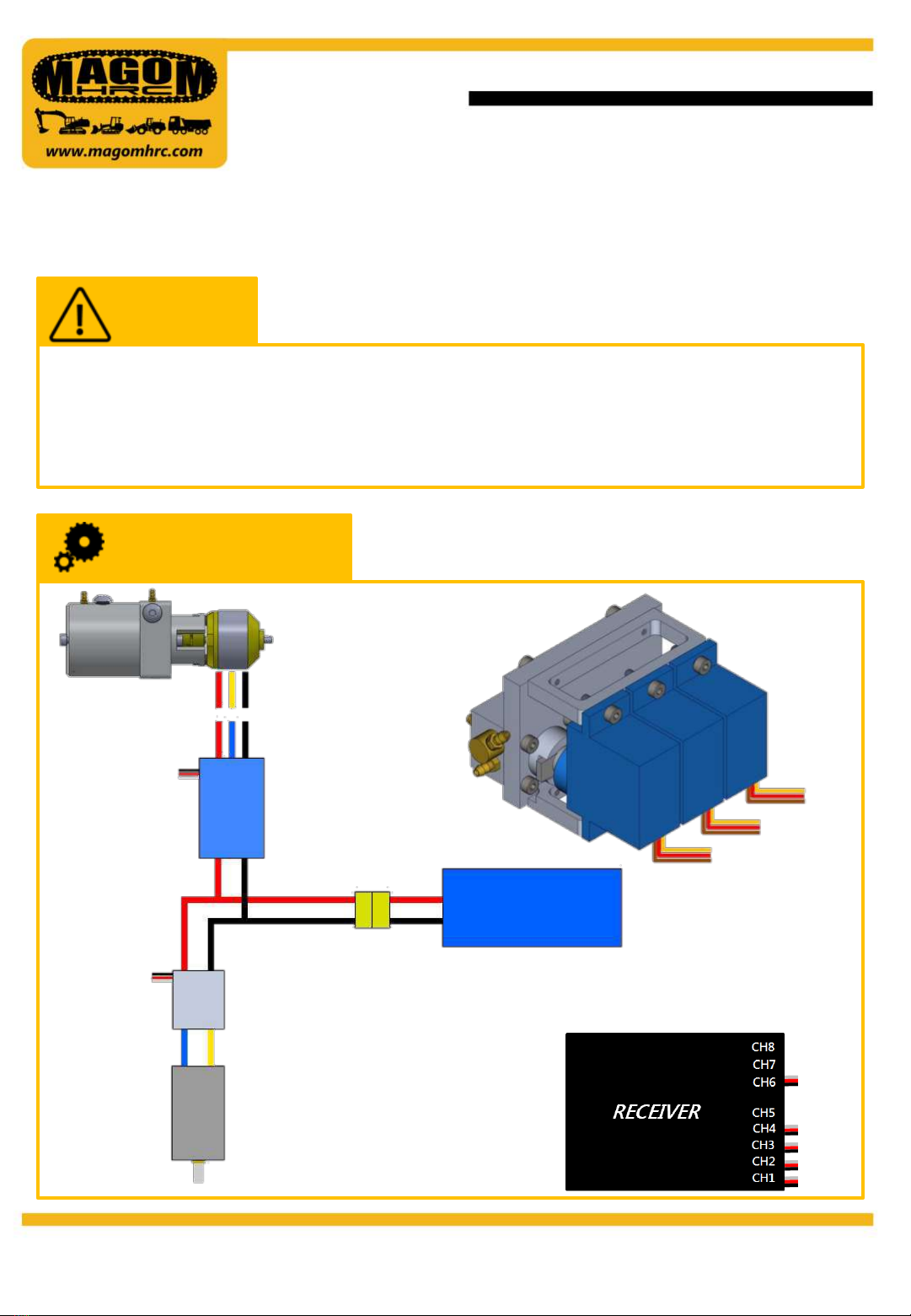

ELECTRONIC SCHEMA
CAUTION !
This product IS NOT A TOY. NOT SUITABLE FOR PEOPLE UNDER 16.
This is a hobby product and some experience is required.
If you have any doubts or questions, please contact with our team: [e-mail]
PLEASE READ THIS BEFORE START
Brushless pump
CH6
We recommend to use
a 11.1V Lipo battery
Transmission
motor
B
ESC
Both Brushless (for pump motor) and
Brushed (for transmission motor)
speed controllers take the power from
the main battery.
BATTERY
L574 with option parts –ELECTRONICS (no sound inluded)
BL
ESC
CH3
CH6
CH1
CH2
CH3
CH4
CH2
CH4
CH1

Please note that this product is not a toy and not suitable for youngters under the age of 16. Technical details may be
subject to changes and modifications. All images and designs are property of MAGOM HRC. For any doubts or
questions, please contact us throught www.magomhrc.com.
www.magomhrc.com

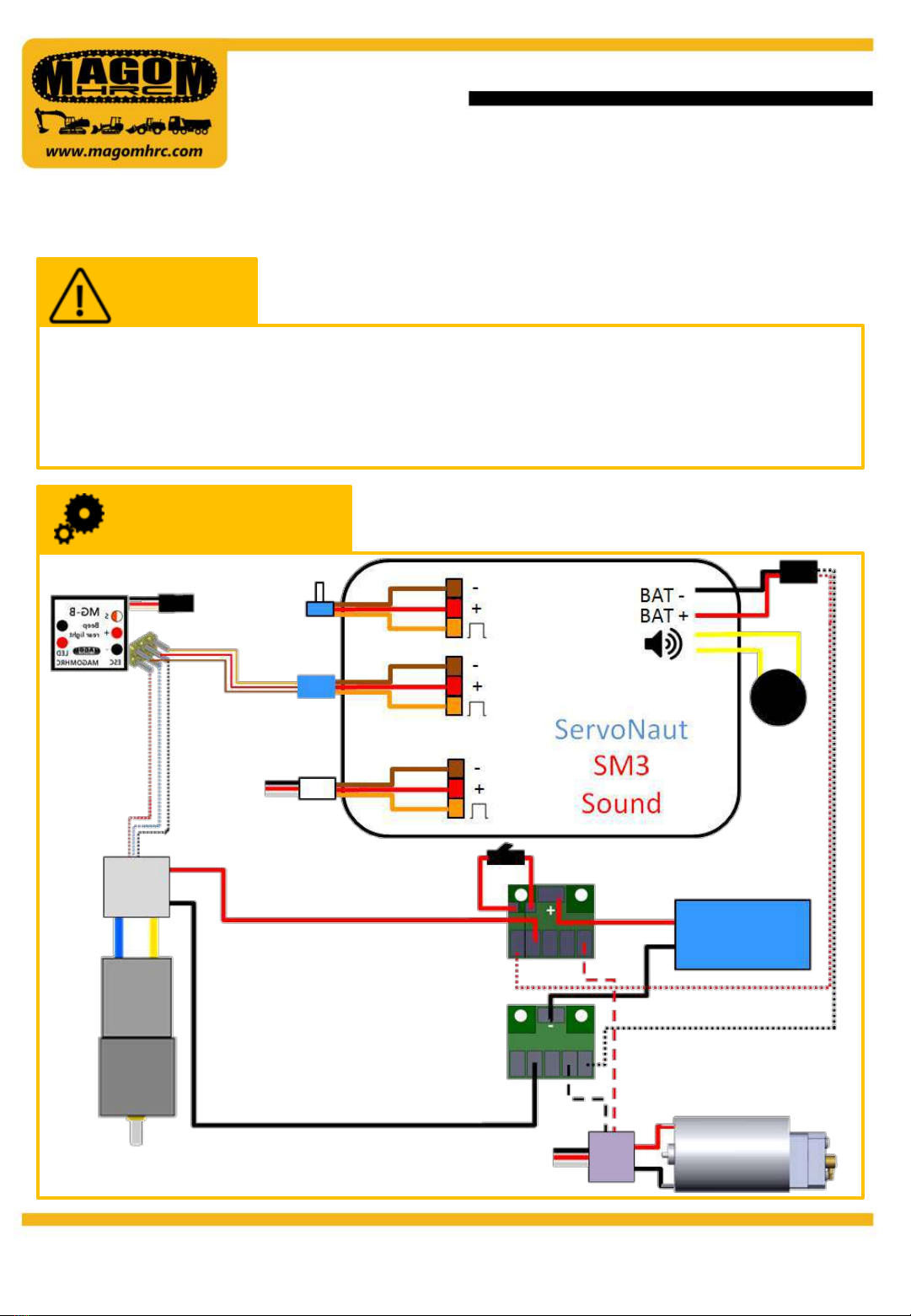

ELECTRONIC SCHEMA
CAUTION !
This product IS NOT A TOY. NOT SUITABLE FOR PEOPLE UNDER 16.
This is a hobby product and some experience is required.
If you have any doubts or questions, please contact with our team: [e-mail]
PLEASE READ THIS BEFORE START
Brushless pump
CH6
We recommend to use
a 11.1V Lipo battery
Transmission
motor
B
ESC
Both Brushless (for pump motor)
and Brushed (for transmission
motor) speed controllers take the
power from the main battery.
BATTERY
BL
ESC
CH3
CH6
CH1
CH2
CH3
CH4
2031-XXX
L574 with option parts –ELECTRONICS (if sound ot included)
CH2
CH4
CH1
CH8
CH8

Please note that this product is not a toy and not suitable for youngters under the age of 16. Technical details may be
subject to changes and modifications. All images and designs are property of MAGOM HRC. For any doubts or
questions, please contact us throught www.magomhrc.com.
www.magomhrc.com
ELECTRONIC SCHEMA
CAUTION !
This product IS NOT A TOY. NOT SUITABLE FOR PEOPLE UNDER 16.
This is a hobby product and some experience is required.
If you have any doubts or questions, please contact with our team: [e-mail]
PLEASE READ THIS BEFORE START
Brushless pump
CH7
We recommend to use a 11.1V
4000 mah Lipo battery
Transmission
motor
B
ESC
BATTERY
CH3
2031-XXX
L574 with option parts –ELECTRONICS (if sound included)
CH6
PCB
front
PCB
back
SOUND MODULE

POSITION
FRONT LIGHTS
ROTATING
LIGHT
Please note that this product is not a toy and not suitable for youngters under the age of 16. Technical details may be
subject to changes and modifications. All images and designs are property of MAGOM HRC. For any doubts or
questions, please contact us throught www.magomhrc.com.
www.magomhrc.com
2031-XXX

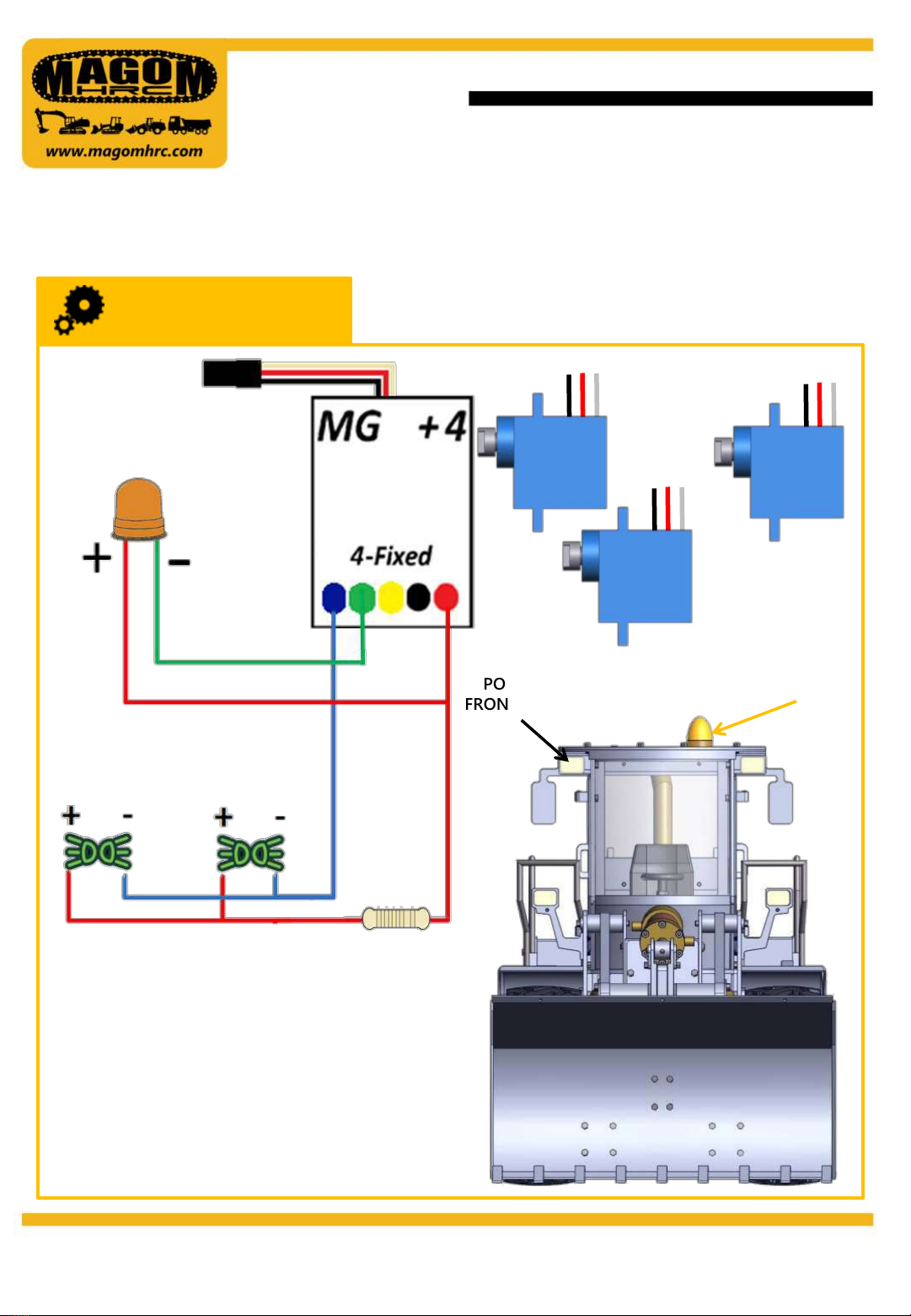

ELECTRONIC SCHEMA
L574 with option parts –ELECTRONICS
CH5
ROTATING LIGHT
FRONT LIGHTS
CH4
CH1 CH2
LIGHTNING

12
www.magomhrc.com
STEP 1
FINAL VIEW
STEP 3
MODIFICATIONS: Use a Dremel to cut out the following parts.
LIEBHERR 574 UPPER REAR PART from BRUDER
Please note that this product is not a toy and not suitable for youngsters under the age of 16. Technical details may be
subject to changes and modifications. All images and designs are property of MAGOM HRC. For any doubts or
questions, please contact us throught www.magomhrc.com.
2031-XXX
STEP 2
BRUDER MODEL
BEFORE MODIFICATIONS
Paper
template

13
www.magomhrc.com

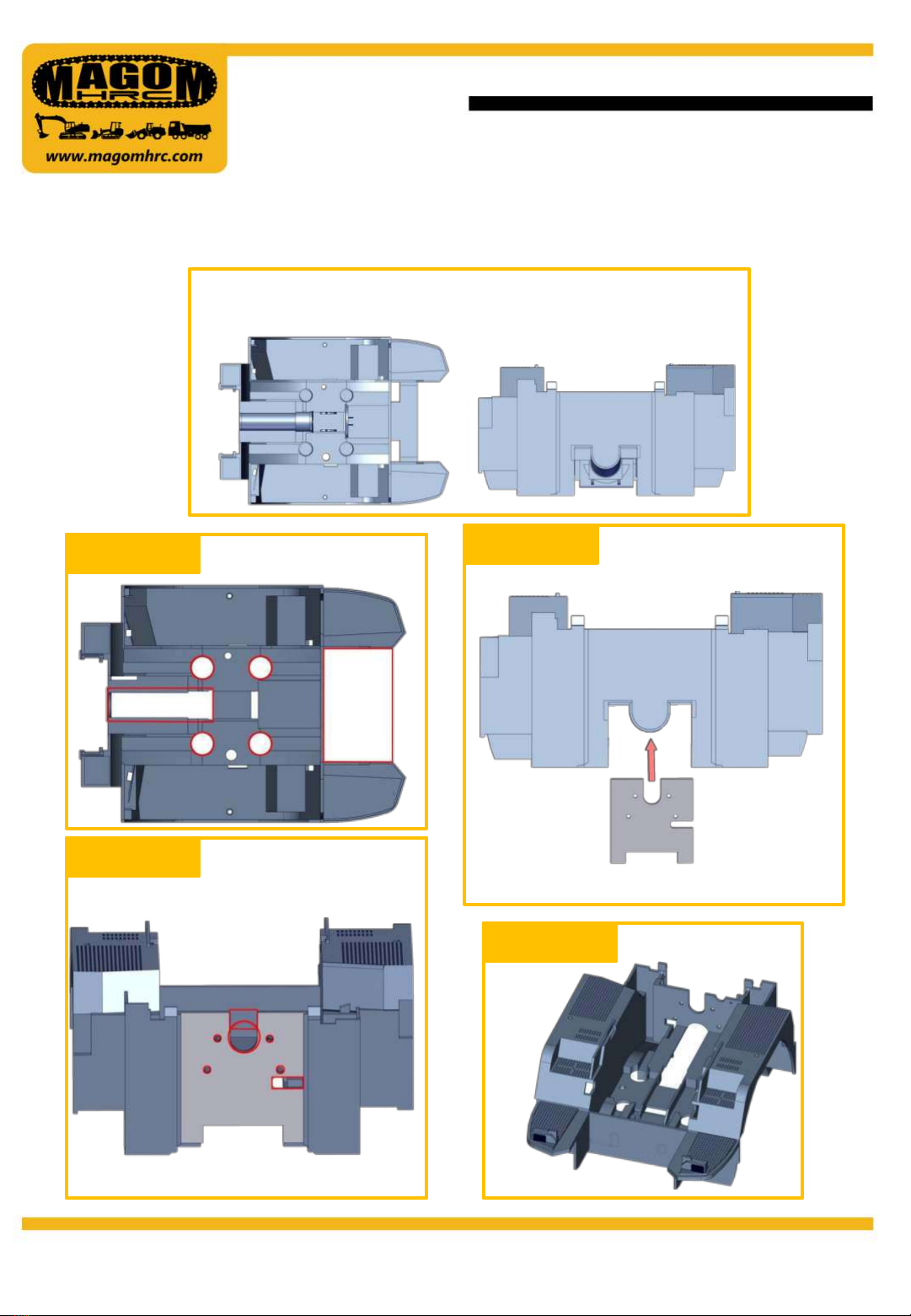

L574 with option parts - UPPER REAR PART
STEP 1
STEP 2
DISASSEMBLY
STEP 3
2031-XXX
Please note that this product is not a toy and not suitable for youngsters under the age of 16. Technical details may be
subject to changes and modifications. All images and designs are property of MAGOM HRC. For any doubts or
questions, please contact us throught www.magomhrc.com.

14
www.magomhrc.com
STEP 2
Please note that this product is not a toy and not suitable for youngsters under the age of 16. Technical details may be
subject to changes and modifications. All images and designs are property of MAGOM HRC. For any doubts or
questions, please contact us throught www.magomhrc.com.
FINAL VIEW
ASSEMBLY
STEP 1
STEP 3
STEP 4
L574 wtih option parts - UPPER REAR PART
2031-XXX

15
www.magomhrc.com
STEP 2
STEP 3
M3x3
M4x6
STEP 4
M3x5
(x4)
M2x5
(x6)
STEP 5
M2x5
(x6)
STEP 7
M3x5
(x4)
STEP 6
STEP 1
STEP 8
M3x3
Please note that this product is not a toy and not suitable for youngsters under the age of 16. Technical details may
be subject to changes and modifications. All images and designs are property of MAGOM HRC. For any doubts or
questions, please contact us throught www.magomhrc.com.

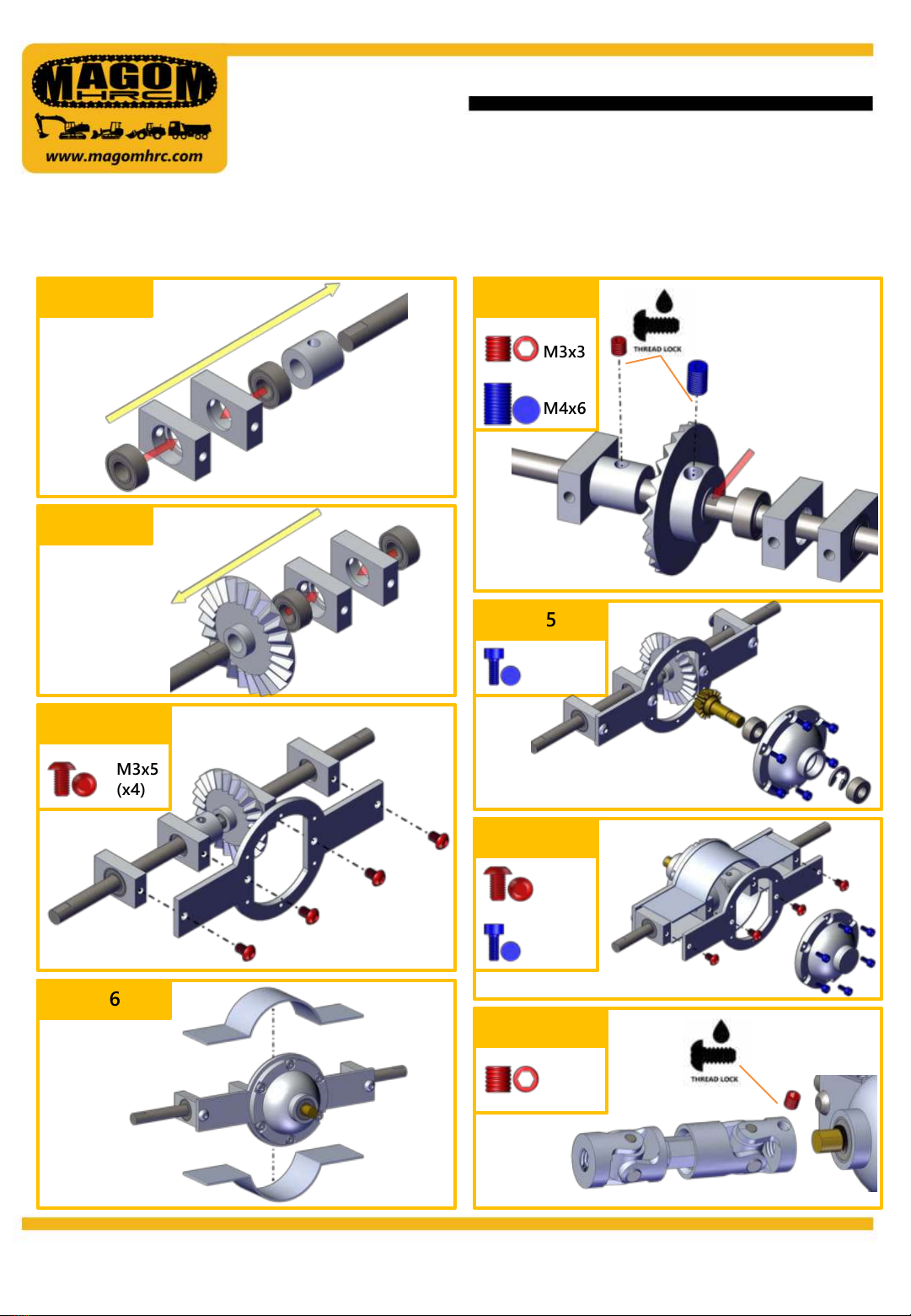

ASSEMBLY
L574 with option parts –FRONT DIFFERENTIAL
2031-XXX

16
www.magomhrc.com
STEP 2
STEP 3
M3x3
M4x6
M3x5
(x4)
STEP 1
STEP 5
M2x5
(x6)
STEP 6
STEP 7
M2x5
(x6)
M3x5
(x4)
STEP 4
STEP 8
M3x3
Please note that this product is not a toy and not suitable for youngsters under the age of 16. Technical details may
be subject to changes and modifications. All images and designs are property of MAGOM HRC. For any doubts or
questions, please contact us throught www.magomhrc.com.
ASSEMBLY
L574 with option parts –REAR DIFFERENTIAL
2031-XXX

17
Please note that this product is not a toy and not suitable for youngsters under the age of 16. Technical details may be
subject to changes and modifications. All images and designs are property of MAGOM HRC. For any doubts or
questions, please contact us throught www.magomhrc.com.
www.magomhrc.com
SPECS
ASSEMBLY
STEP 1
STEP 3
STEP 2
Ball bearing
5x10x4
2.5x8
Insertion direction.
1. 31Z/10Z
2. 37Z/10Z
Ball bearing
5x10x4
3. 49Z
Use grease between
gears.
Use grease between
gears.
M3x25
(x2)
M3x8
(x2)
Use the blue screws to
attach the geared box
to the motor.
Close the geared box
thourgh the red screws.
4. 13Z
L574 with option parts –REAR
Rear bottom part used in our full metal L574.
*Z : NUMBER OF TEETH
M3x8
(x4)
STEP 4
M3x16
(x4)
2031-XXX

18
www.magomhrc.com
STEP 5 STEP 6
ASSEMBLY
Please note that this product is not a toy and not suitable for youngsters under the age of 16. Technical details may be
subject to changes and modifications. All images and designs are property of MAGOM HRC. For any doubts or
questions, please contact us throught www.magomhrc.com.
M3x3
(x2)
Make sure the srub is
placed on the flat face
of the gear.
Attach both ends of
the cardan, one to the
rear diff gear and the
other to the geared
box gear.

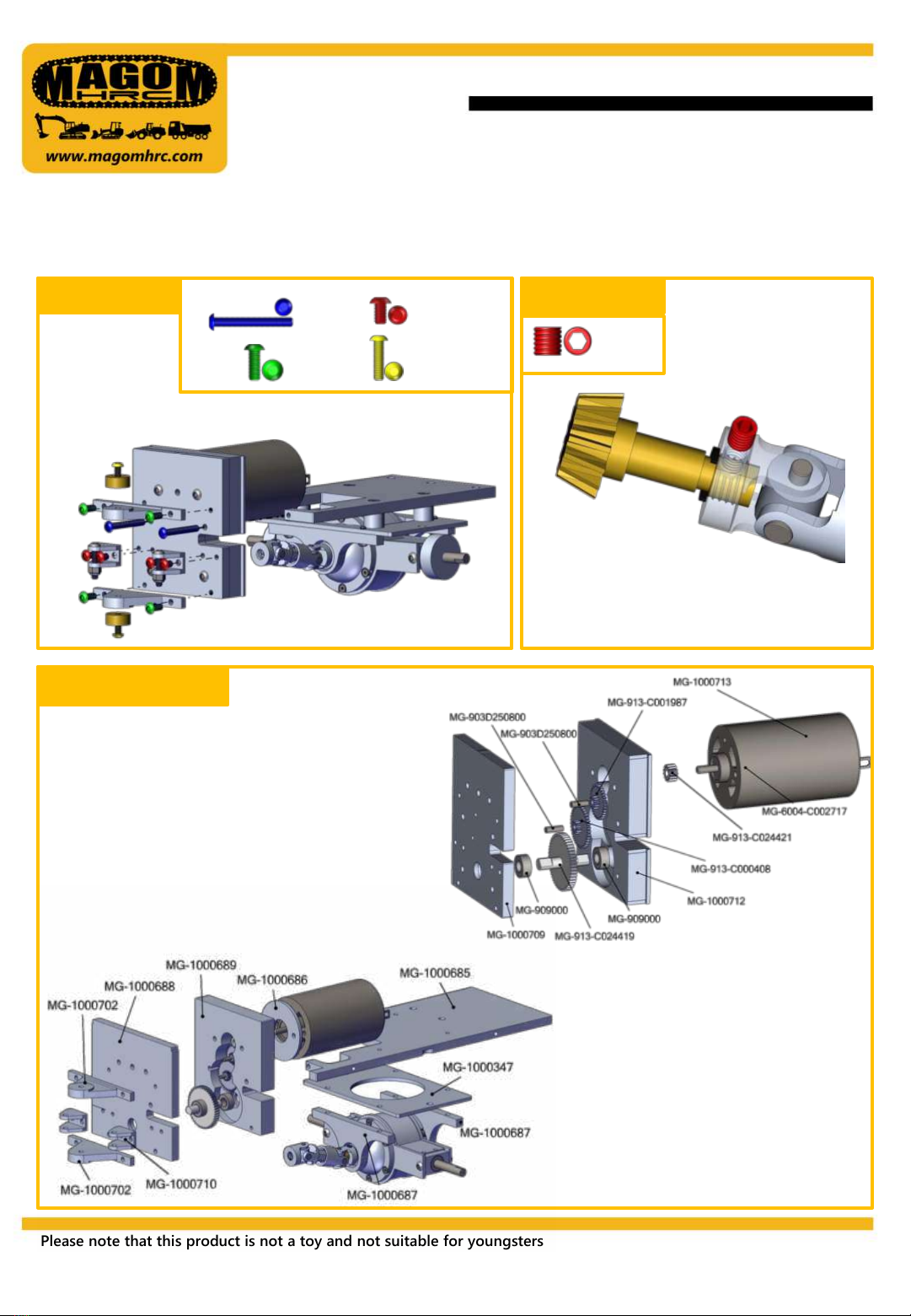

EXPLODED VIEW
M3x8
(x2)
M3x5
(x4)
M3x25
(x2)
M3x10
(x2)
L574 with option parts –REAR
2031-XXX

19
www.magomhrc.com
STEP 1
M3x5
(x6)
M2x4
(x6)
3x16
STEP 3
M3x8
(x4)
M3x5
(x4)
M2x4
(x4)
M2x4
(x4)
Please note that this product is not a toy and not suitable for youngsters under the age of 16. Technical details may be
subject to changes and modifications. All images and designs are property of MAGOM HRC. For any doubts or
questions, please contact us throught www.magomhrc.com.
ASSEMBLY
Repeat this
step for
both sides
of the front
part.
STEP 2
M3x5
(x16)
M2x4
(x2)
M3x25
(x4)
Repeat this step for both
sides of the front part.
M3 (x2)
STEP 4
EXPLODED VIEW
M3(x2)
L574 with option parts –FRONT
2031-XXX

20
www.magomhrc.com
ASSEMBLY
L574 with option parts - METAL ARM
STEP 1
M2x4
(x4)
M2x4
(x2)
M2x6
(x2)
3x16
(x2)
Please note that this product is not a toy and not suitable for youngsters under the age of 16. Technical details may be
subject to changes and modifications. All images and designs are property of MAGOM HRC. For any doubts or
questions, please contact us throught www.magomhrc.com.
FINAL
POSITION
Make sure the
square bar makes
the arme stay as
in the image.
STEP 3 M2x4
(x8)
M3x10
(x2)
STEP 2
3x16 (x1)
M2x4
(x2)
2031-XXX
