Magom 973D V2 User manual

www.magomhrc.com
973D –V2
TRACK LOADER
1/14
Read this manual carefully before using the machine and keep it handy for inquiries. For any doubts or questions,
please contact us throught www.magomhrc.com.
1. QUICK GUIDE
2. TRANSMITTER SETUP
3. ELECTRONICS
4. HYDRAULICS
5. ASSEMBLY
6. ATTACHMENTS

2
www.magomhrc.com
DETAILS 1/14 Scale full metal excavator
SPECS
MAX VOLTAGE 7.4V
RECOMMENDED BATTERY Lipo 7.4V
WEIGHT (RTR) About 8 kg
Please note that this product is not a toy and not suitable for youngters under the age of 16. Technical details may be
subject to changes and modifications. All images and designs are property of MAGOM HRC. For any doubts or
questions, please contact us throught www.magomhrc.com.
CAUTION !
This product IS NOT A TOY. NOT SUITABLE FOR PEOPLE UNDER 16.
This is a hobby product and some experience is required.
If you want to touch something without any knowledge, contact with our team before.
Use the product with CARE.
A wrong use will damage the product and warranty.
Some parts of the product can be hot during is running time or later.
Do not touch the moving parts during the running time.
Take care with little parts.
Take care when building, as some parts may have sharp edges.
If you want to use your own transmitter, be sure that the setup is correct. A bad setup will damage
the product.
Use the oil, parts, recommended by our team.
Use protective gloves to manipulate oil.
Use protective glasses to manipulate the product. Some parts are made in metal and can be
dangerous.
Take care when using tools and sharp instruments.
Use high quality rc tools to assemble the product.
Take care with Lipo batteries. Use the correct charge and discharge rate.
Do not discharge Lipo batteries under 3.2 V per cell.
Do not charge Lipo batteries over 4.2 V per cell.
Use a Lipo safe bag to charge Lipo batteries.
If you have any doubts or question about the use of this product, please contact with our team to:
[email protected]
PLEASE READ THIS BEFORE START
DETAILS Scale 1/16 full metal excavator 973D
973D V2 –QUICK GUIDE
2062-XXX

3
Please note that this product is not a toy and not suitable for youngters under the age of 16. Technical details may be
subject to changes and modifications. All images and designs are property of MAGOM HRC. For any doubts or
questions, please contact us throught www.magomhrc.com.
www.magomhrc.com

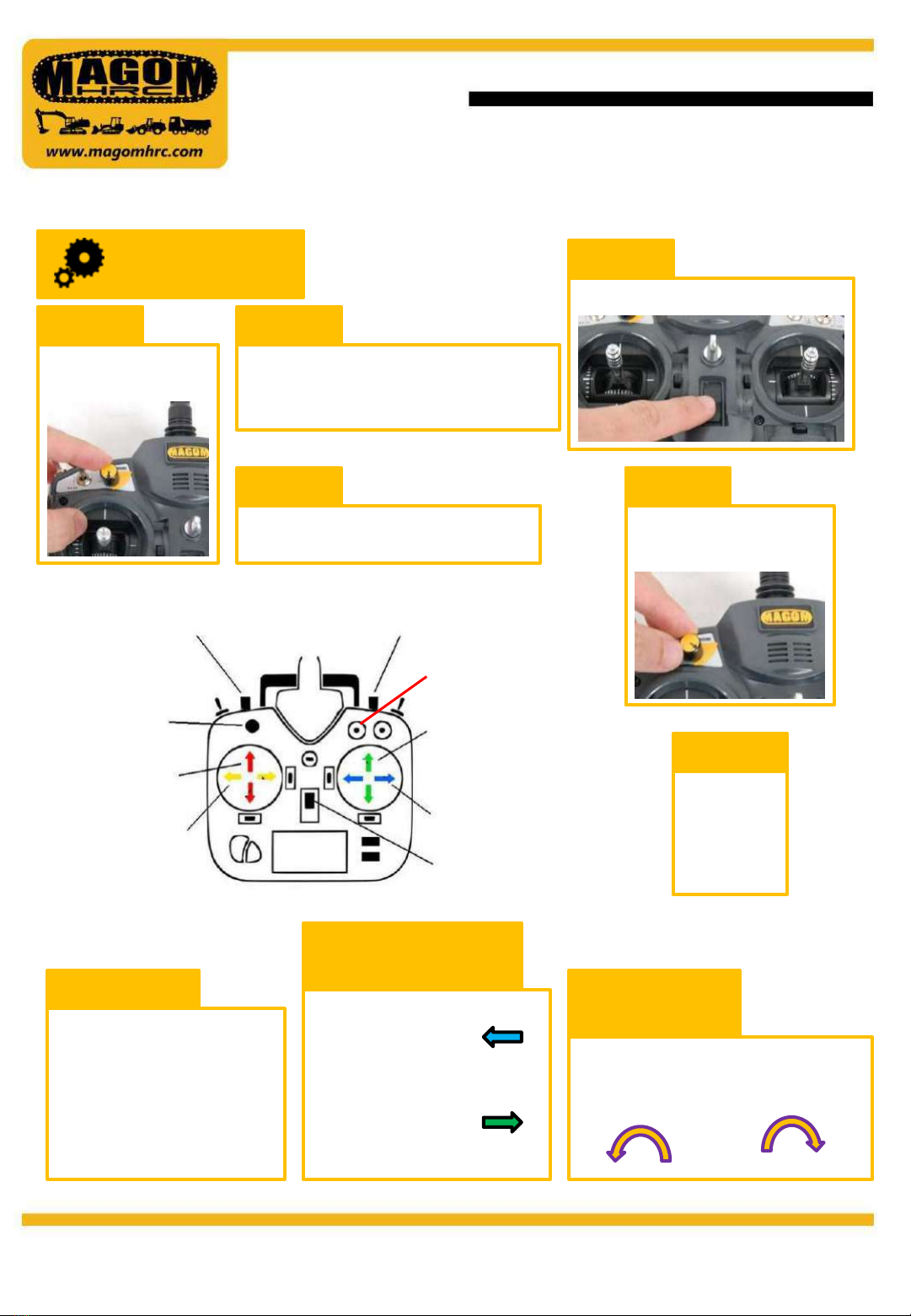

HOW TO START
STEP 2
All switches of the transmitter must be
positioned to the back. If not a “Switch
error” message will appear.
STEP 4
Connect the battery to the model
and wait a song from the ESC.
STEP 6
Now you
can use the
model.
Put the pump rev
dial to its minimum.
STEP 1
STEP 5
Start the pump a little.
Only a little bit!
STEP 3
Turn on the transmitter.
LIGHTS
(CHANNEL 5 , ID1)
1 x SHORT TOUCH
Back to neutral:
FRONT CABIN
LIGHTS
1 x SHORT TOUCH
Back to neutral:
REAR CABIN LIGHTS
7 (P1) Free
6 (P3)
1/5 (AIL)
2 (ELE)
3 (THR)
4
(RUD) ON/OFF
ID
(mode
N, 1, 2)
973D V2 –QUICK GUIDE
2062-XXX
MOVEMENTS
1. Bucket (blue) –ID0/2
2. Main arm (yellow) –ID0/2
3. Left track (red) –ID0/2
4. Right track (green) –ID0/2
5. Lights –ID1
6. Pump
7. Sound (START/HORN)
8. Free
SOUND
(CHANNEL 7)
1 x TOUCH
Back to neutral:
PULL OUT
1 x TOUCH
Back to neutral:
HORN

4
Please note that this product is not a toy and not suitable for youngters under the age of 16. Technical details may
be subject to changes and modifications. All images and designs are property of MAGOM HRC. For any doubts or
questions, please contact us throught www.magomhrc.com.
www.magomhrc.com
GENERAL SETUP AND CHANNEL MAPPING
CAUTION !
This manual is for full metal
973D excavator .
This manual is for Turnigy 9X transmitter with OPEN TX firmware.
This is a hobby product and some experience is required.
If you want to touch something without any knowledge, contact with our team before.
PLEASE READ THIS BEFORE START
CH 1
CH 2
CH 3
CH 4
CH 6
CH 7
CH 8
To enter general setup:
- Push +(plus) button more than 1 sec.
- Go to the end of page 1 and check you
have Mode 2.
Channel mapping
CH1 Factory (Mode 2)
CH2 Factory (Mode 2)
CH3 Factory (Mode 2)
CH4 Factory (Mode 2)
CH5 NULL
CH6 PIT TRIM
CH7 HOV THR
CH8 HOV PIT
In the next sheet we will explain how to map
the with the knobs.
973D - TURNIGY 9X - SETUP
2062-XXX

5
Please note that this product is not a toy and not suitable for youngters under the age of 16. Technical details may be
subject to changes and modifications. All images and designs are property of MAGOM HRC. For any doubts or
questions, please contact us throught www.magomhrc.com.
www.magomhrc.com
MODEL SETUP
973D –TURNIGY 9X - SETUP
2062-XXX
•REVERSE, SUBTRIM AND LIMITS: You can make these changes on page 6/11 inside MODEL SETUP.
To enter model setup:
-Turn on the transmitter.
-Touch one of the sticks in any direction.
-Hold „MINUS‟ button to enter MODEL SETUP.
-Go to
„MIXER ‟‟ screen using „PLUS‟ and „MINUS‟ buttons.
TIPS:
A. To insert a channel configuration:
1. Place the pointer on the channel line and hold „MENU‟ button. Now you can change values
using „PLUS‟ and „MINUS‟ buttons. Click „EXTI‟ when you finish setting up that channel.
B. To erase a channel configuration:
1. Place the pointer on the channel you want to erase.
2. Select the whole channel by clicking on „MENU‟ button.
3. Hold „EXIT‟ button to erase the channel.
C. To insert the first mixing in a channel:
1. Place the pointer on the channel line you want to insert the first mixing.
2. Select the whole channel by clicking on „MENU‟ button.
3. Hold „DN‟ button to copy the channel.
4. Accept the copy clicking on „MENU‟.
5. Now you can enter the mixing configuration following „A‟ step.
D. To insert following mixings in a channel:
A. Copy the first mixing instead of the channel following step „C‟.
[*********Each line stranting with „+=‟ is a mixing**********]
[*********Use TIPs „C‟ and „D‟ to insert the mixings**********]
•MIXER
CH1 Ail 100 !ID1
CH2 Ele 100 !ID1
CH3 Thr 100 !ID1
+=Rud +- 100 !ID1
CH4 Rud 100 !ID1
+=Thr +- 100 !ID1
CH5 Ail 100 ID1 LIGHTS
CH6 P3 100
+=Ail +80 |x| !ID1
+=Ele +80 |x| !ID1
CH7 P2 100 SOUND (start/horn)
CH8 Ail +50 |x| !ID1 SOUND (movements)
+=Ele +50 |x| !ID1
+=Thr +50 |x| !ID1
+=Rud +50 |x| !ID1

www.magomhrc.com
2062-XXX
973D - ELECTRONICS
Please note that this product is not a toy and not suitable for youngters under the age of 16. Technical details may be
subject to changes and modifications. All images and designs are property of MAGOM HRC. For any doubts or
questions, please contact us throught www.magomhrc.com.
ELECTRONIC SCHEMA
CAUTION !
This product IS NOT A TOY. NOT SUITABLE FOR PEOPLE UNDER 16.
This is a hobby product and some experience is required.
If you have any doubts or questions, please contact with our team: [email protected]
PLEASE READ THIS BEFORE START
All speed controllers are powered
from the main battery.
Left track Right track
Pump with brushless motor
CH6
CH4
CH1 CH2
Bucket
cylinders
Arm
cylinders
Valve
Servos Motores
We recommend to use a
7.4V, 5000mah Lipo
battery.

www.magomhrc.com
2062-XXX
973D - ELECTRONICS
Please note that this product is not a toy and not suitable for youngters under the age of 16. Technical details may be
subject to changes and modifications. All images and designs are property of MAGOM HRC. For any doubts or
questions, please contact us throught www.magomhrc.com.

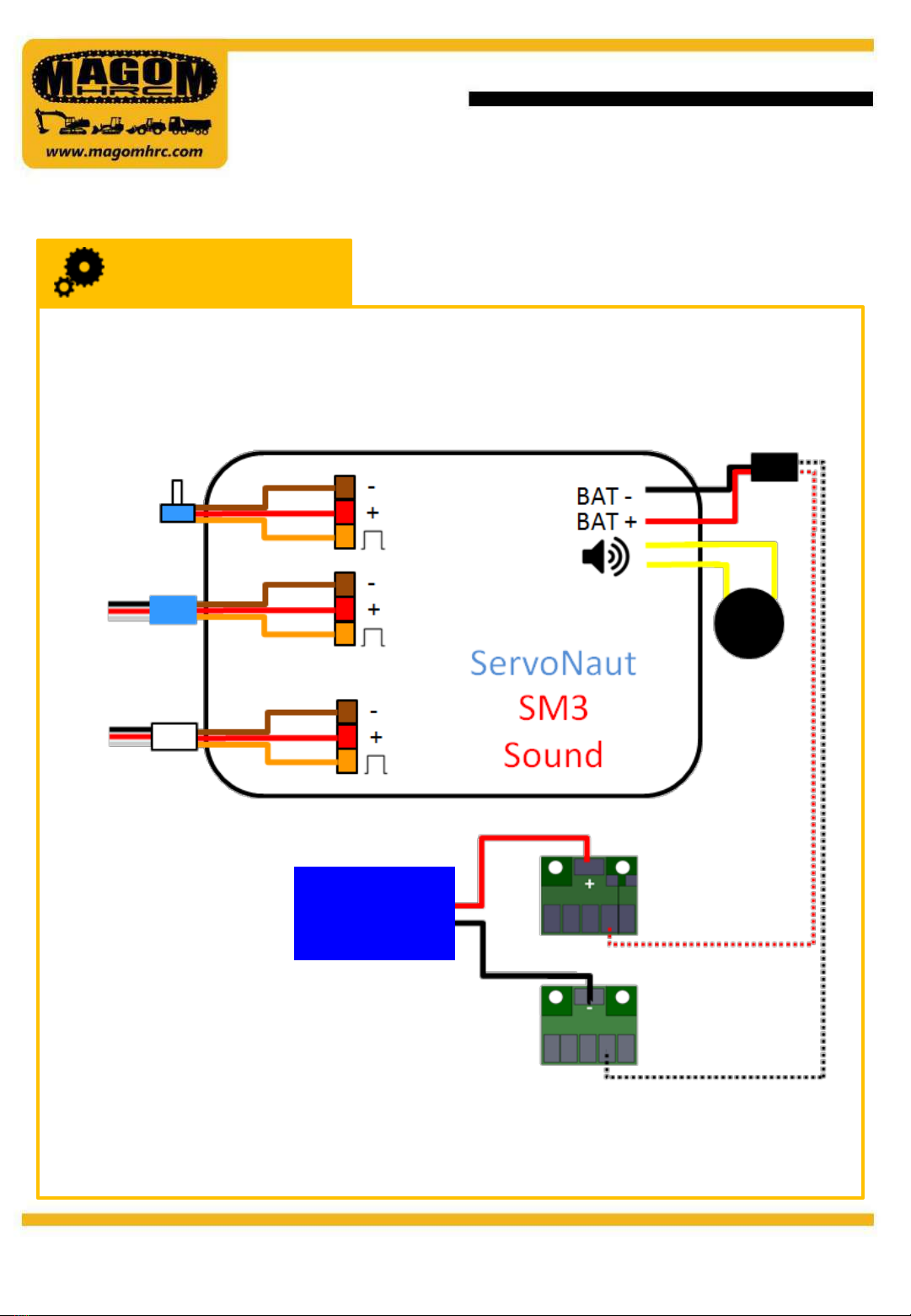

SOUND MODULE
SCHEMA SOUND
LIPO
BATTERY
CH7
CH8
SPEAKER

Please note that this product is not a toy and not suitable for youngters under the age of 16. Technical details may be
subject to changes and modifications. All images and designs are property of MAGOM HRC. For any doubts or
questions, please contact us throught www.magomhrc.com.
www.magomhrc.com
LIGHTS POSITION
LIGHTNING
2062-XXX
973D - ELECTRONICS
FRONT
CABIN LIGHTS
REAR
CABIN LIGHTS
ELECTRONIC SCHEMA
CH5
FRONT
CABIN LIGHTS REAR
CABIN LIGHTS

www.magomhrc.com
2062-XXX
973D V2 - HYDRAULICS
Please note that this product is not a toy and not suitable for youngters under the age of 16. Technical details may be
subject to changes and modifications. All images and designs are property of MAGOM HRC. For any doubts or
questions, please contact us throught www.magomhrc.com.
CAUTION !
This product IS NOT A TOY. NOT SUITABLE FOR PEOPLE UNDER 16.
This is a hobby product and some experience is required.
If you have any doubts or questions, please contact with our team: [email protected]
PLEASE READ THIS BEFORE START
RECOMMENDATIONS
Our hydraulic systems must be used with the MAGOM HRC hydraulic oil.
How to fill the hydraulic system
1. Close all hydraulic cylinders.
2. Remove the tank filling screw.
3. Fill the tank completely.
4. Make one hydraulic movement (main arm for example).
5. The oil of the tank will drop.
6. Fill the tank again and make a new movement (or the same movement if you haven‟t completed
it before).
7. Complete the steps 3-6 until all cylinders are moving ok.
8. Close all cylinders.
9. Fill the tank about 80-90%.
10. Close the tank with the filling screw
Valve
1. All servos must be in the middle position to assure that the valve is on the middle and it is closed.
2. If one or more valves are open, the system won‟t work correctly.
3. You can correct it using the TRIM and SUBTRIM function on the transmitter.
Oil
Please don‟t use any other oil type. Oil from third brand can damage o-ring and system.

Please note that this product is not a toy and not suitable for youngters under the age of 16. Technical details may be
subject to changes and modifications. All images and designs are property of MAGOM HRC. For any doubts or
questions, please contact us throught www.magomhrc.com.
www.magomhrc.com
973D V2 - HYDRAULICS
2062-XXX
HYDRAULIC SCHEMA
Connect the hose as shown in the picture.
Between valve and pump pressure connector is recommended using a spring to prevent hose
explosion.
CH1
(Bucket)
CH2
(Arm)

STEP 4
M2x4
(x4)
www.magomhrc.com
2062-XXX
973D V2 - MODEL ASSEMBLY
Please note that this product is not a toy and not suitable for youngsters under the age of 16. Technical details may be
subject to changes and modifications. All images and designs are property of MAGOM HRC. For any doubts or
questions, please contact us throught www.magomhrc.com.

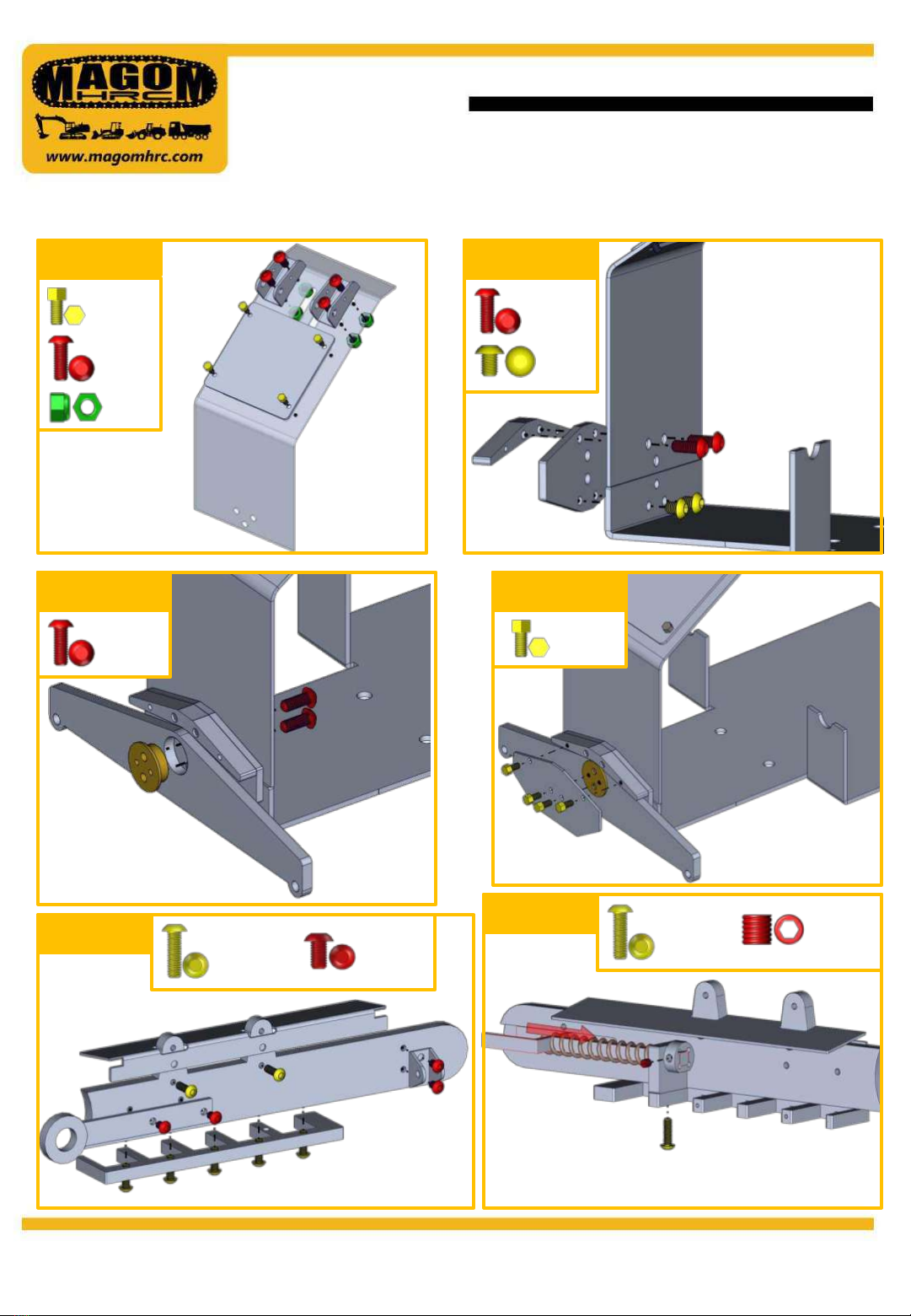

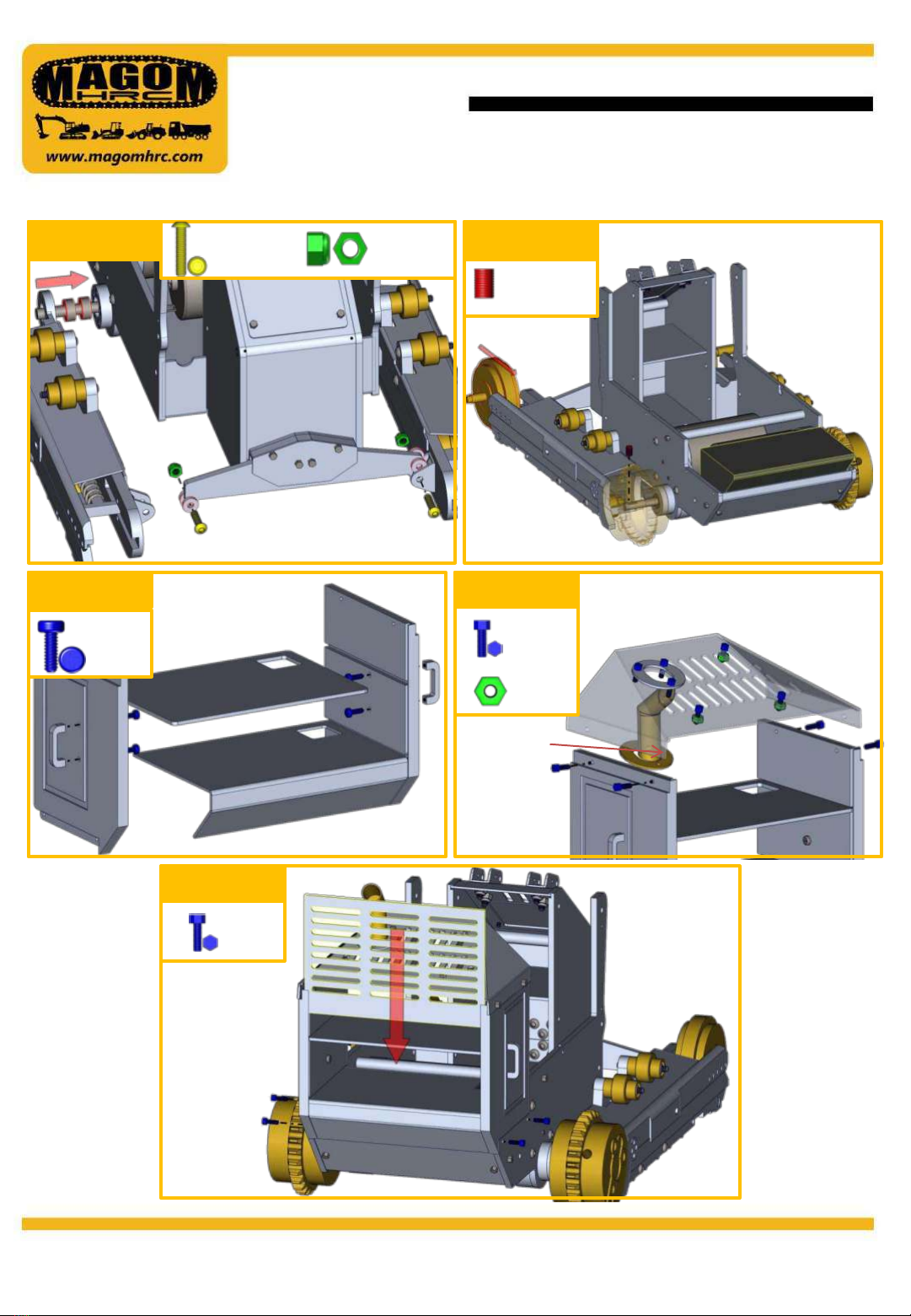

STEP 1
M2x4
(x4)
M3x8
(x4)
M3
(x4)
STEP 3
M3x8
(x2)
STEP 2
M3x8
(x2)
M3x4
(x2)
STEP 5 M3x10
(x7)
Repeat this step for
both sides.
M3x5
(x4)
STEP 6 M3x10
(x1)
M3x3
(x1)
Repeat this step for
both sides.

www.magomhrc.com
2062-XXX
973D V2 - MODEL ASSEMBLY

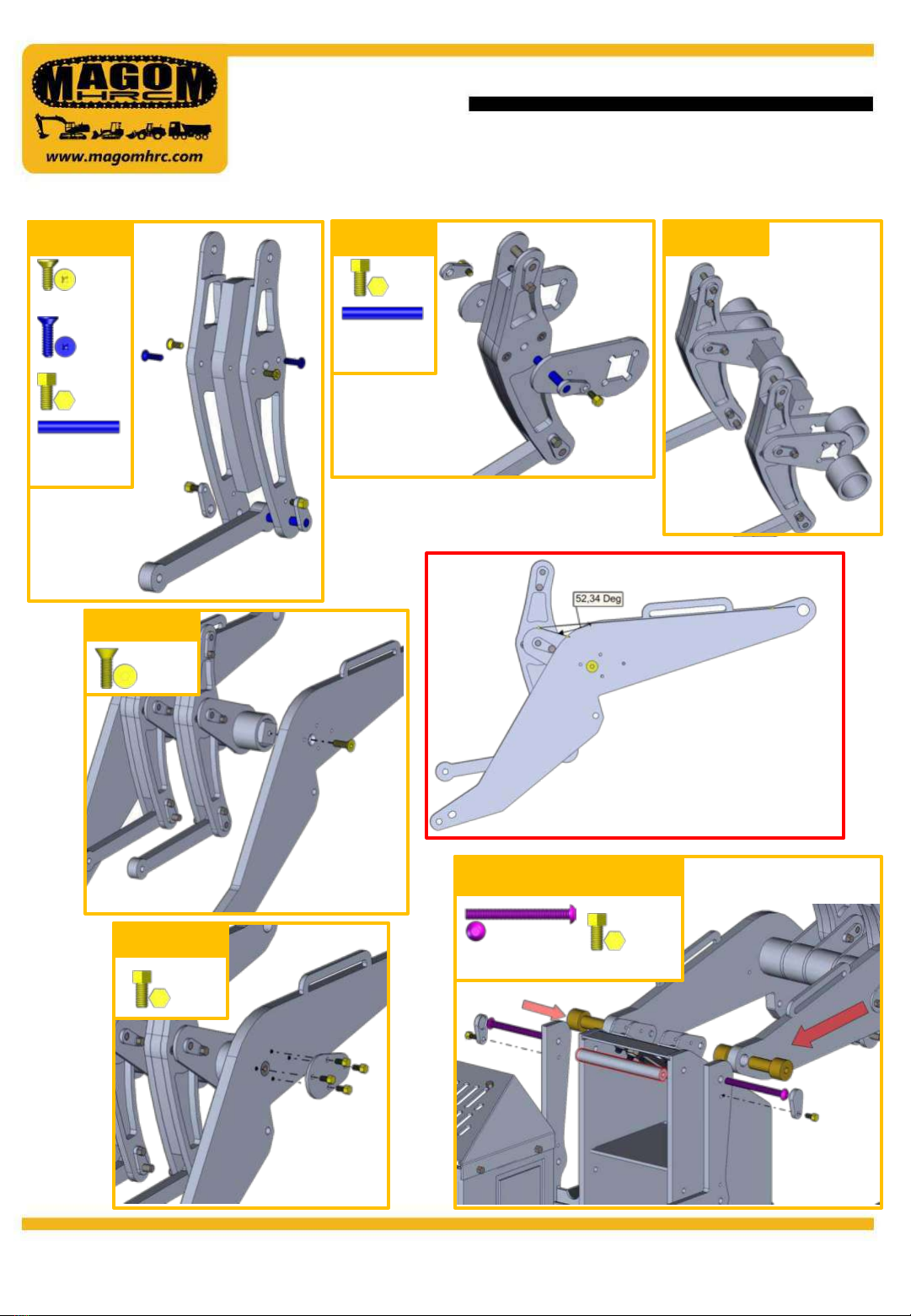

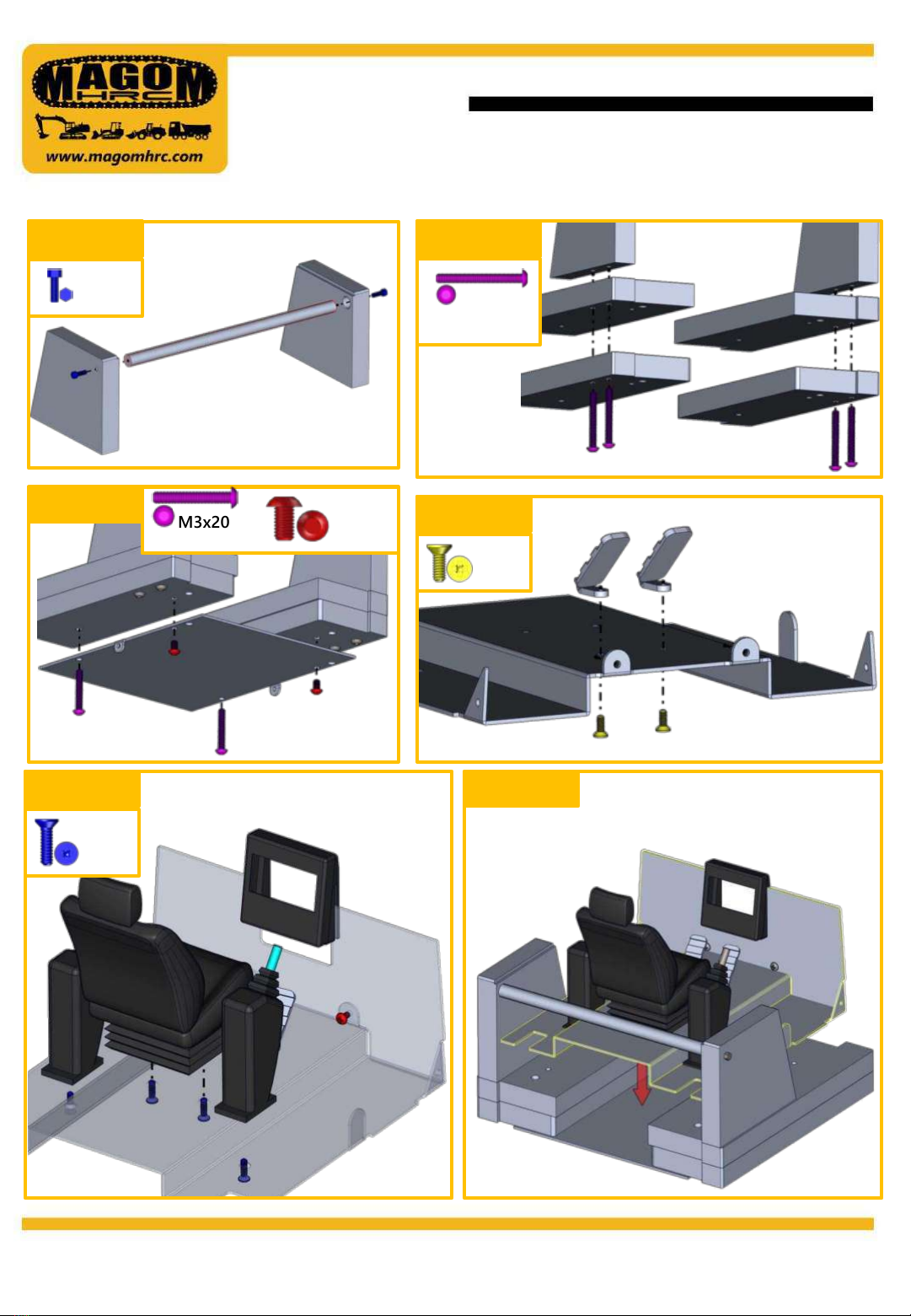

STEP 7
M3x25
(x2)
M3x10
(x2)
D3x20.5
(x5)
Repeat this
step for
both sides. M3 (x2)
STEP 8
1. 31 TEETH
2. 37 TEETH
LEFT
RIGHT
M3x20 (x2)
STEP 9
M3x8
(x1) M2x5 (x5)
STEP 10
M2x4
(x4)
M2x6
(x2)
Please note that this product is not a toy and not suitable for youngsters under the age of 16. Technical details may be
subject to changes and modifications. All images and designs are property of MAGOM HRC. For any doubts or
questions, please contact us throught www.magomhrc.com.
STEP 11
M2x6
(x2)

www.magomhrc.com
STEP 14
M2x6
(x4)
Use the the M2x6 screws with the
nuts if you want to assemble a
speaker.
M2x6
(x10)
M2
(x3)
STEP 15
Welding
2062-XXX
973D V2 - MODEL ASSEMBLY
STEP 12 M3x14
(x2)
M3 brake
(x4) STEP 13
M4x6
(x1)
M2x6
(x4)
STEP 16
Please note that this product is not a toy and not suitable for youngsters under the age of 16. Technical details may be
subject to changes and modifications. All images and designs are property of MAGOM HRC. For any doubts or
questions, please contact us throught www.magomhrc.com.

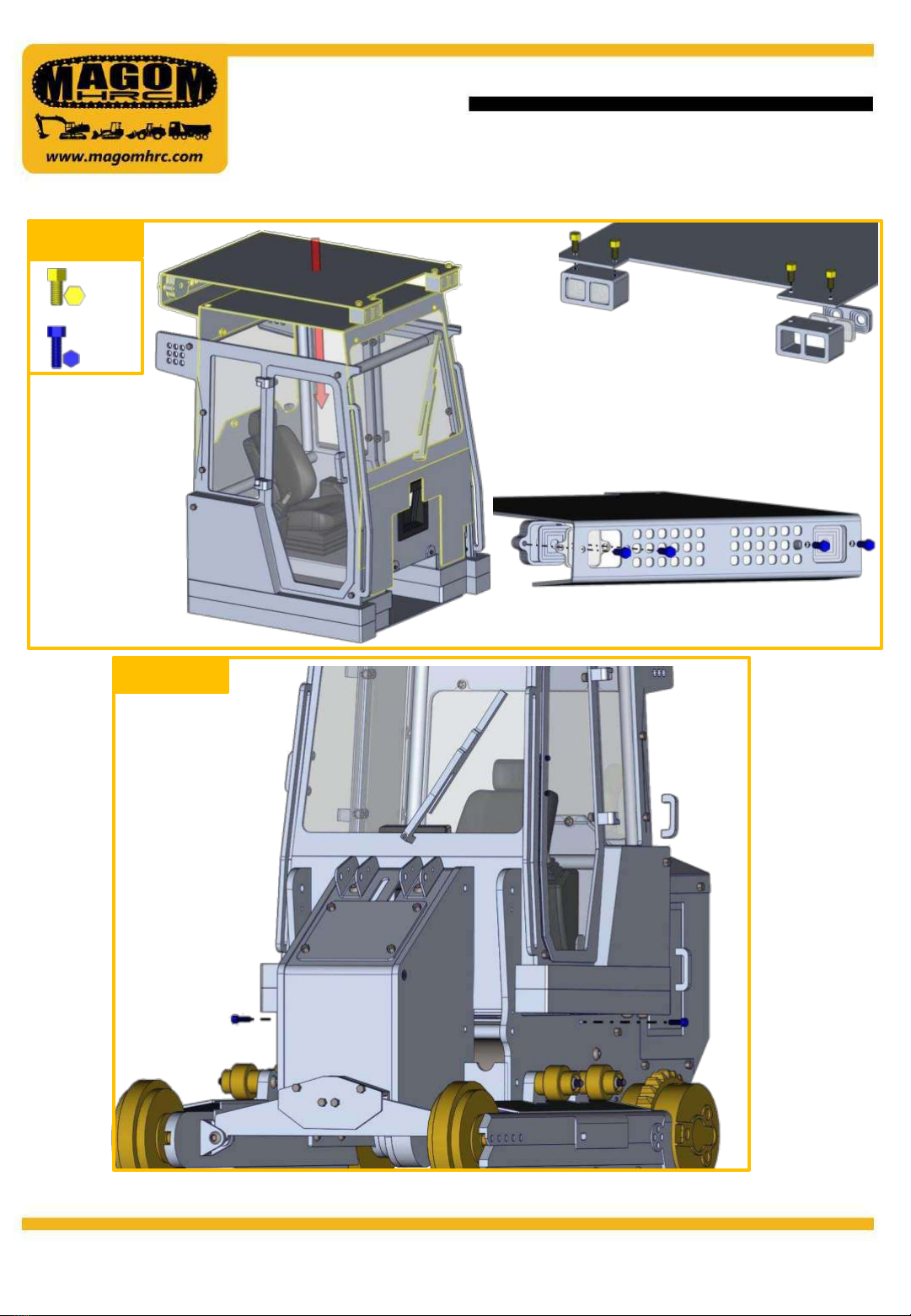

STEP 19 M3x20
(x2)
www.magomhrc.com
2062-XXX
973D V2 - MODEL ASSEMBLY
M2x6
(x2)
STEP 17 STEP 18
M3x25
(x4)
M3x5
(x2) STEP 20
M2x4
(x2)
Please note that this product is not a toy and not suitable for youngsters under the age of 16. Technical details may be
subject to changes and modifications. All images and designs are property of MAGOM HRC. For any doubts or
questions, please contact us throught www.magomhrc.com.
STEP 21
M2x6
(x4)
STEP 22

www.magomhrc.com
2062-XXX
973D V2 - MODEL ASSEMBLY
STEP 23 M2x4
(x4)
STEP 24 M2x4
(x2)
STEP 25 M2x4
(x2)
STEP 26 M2x6
(x4)
STEP 27 M2x4
(x2) STEP 28 M2x5
(x1)
M2x3
(x6)
Please note that this product is not a toy and not suitable for youngsters under the age of 16. Technical details may be
subject to changes and modifications. All images and designs are property of MAGOM HRC. For any doubts or
questions, please contact us throught www.magomhrc.com.

www.magomhrc.com
2062-XXX
973D V2 - MODEL ASSEMBLY
STEP 29
STEP 30
M2x4
(x4)
M2x6
(x4)
Please note that this product is not a toy and not suitable for youngsters under the age of 16. Technical details may be
subject to changes and modifications. All images and designs are property of MAGOM HRC. For any doubts or
questions, please contact us throught www.magomhrc.com.

www.magomhrc.com
STEP 36
M3x30
(x2)
M2x4
(x2)
2062-XXX
973D V2 - MODEL ASSEMBLY
STEP 31
M2x4
(x2)
M2x6
(x2)
M2x4
(x2)
D3x18 (x1)
Mount two
rocker.
STEP 32
M2x4
(x2)
D3x18 (x1)
STEP 33
STEP 34
M3x10
(x2)
Make sure to position
the square so the arm
ends as in the image
STEP 35
M2x4
(x4)
Please note that this product is not a toy and not suitable for youngsters under the age of 16. Technical details may be
subject to changes and modifications. All images and designs are property of MAGOM HRC. For any doubts or
questions, please contact us throught www.magomhrc.com.

18
www.magomhrc.com
Please note that this product is not a toy and not suitable for youngsters under the age of 16. Technical details may be
subject to changes and modifications. All images and designs are property of MAGOM HRC. For any doubts or
questions, please contact us throught www.magomhrc.com.
M2x4
(x4)
STEP 36
M2x6
(x12)
STEP 37
M2x4
(x16)
STEP 38 M2x4
(x4)
3x14
(x4)
2062-XXX
973D V2 - MODEL ASSEMBLY

19
www.magomhrc.com
2192-000
973D V2 –COMBINED BUCKET
Please note that this product is not a toy and not suitable for youngsters under the age of 16. Technical details may be
subject to changes and modifications. All images and designs are property of MAGOM HRC. For any doubts or
questions, please contact us throught www.magomhrc.com.
M2x4
(x16)
STEP 1
STEP 2
M2x4
(x4)
M2x4
(x9)
STEP 3
M2x6
(x16)
STEP 4
OPTION (NOT INCLUDED AS DEFAULT)
M2x4
(x2)
STEP 5
M2x6
(x2)

20
www.magomhrc.com

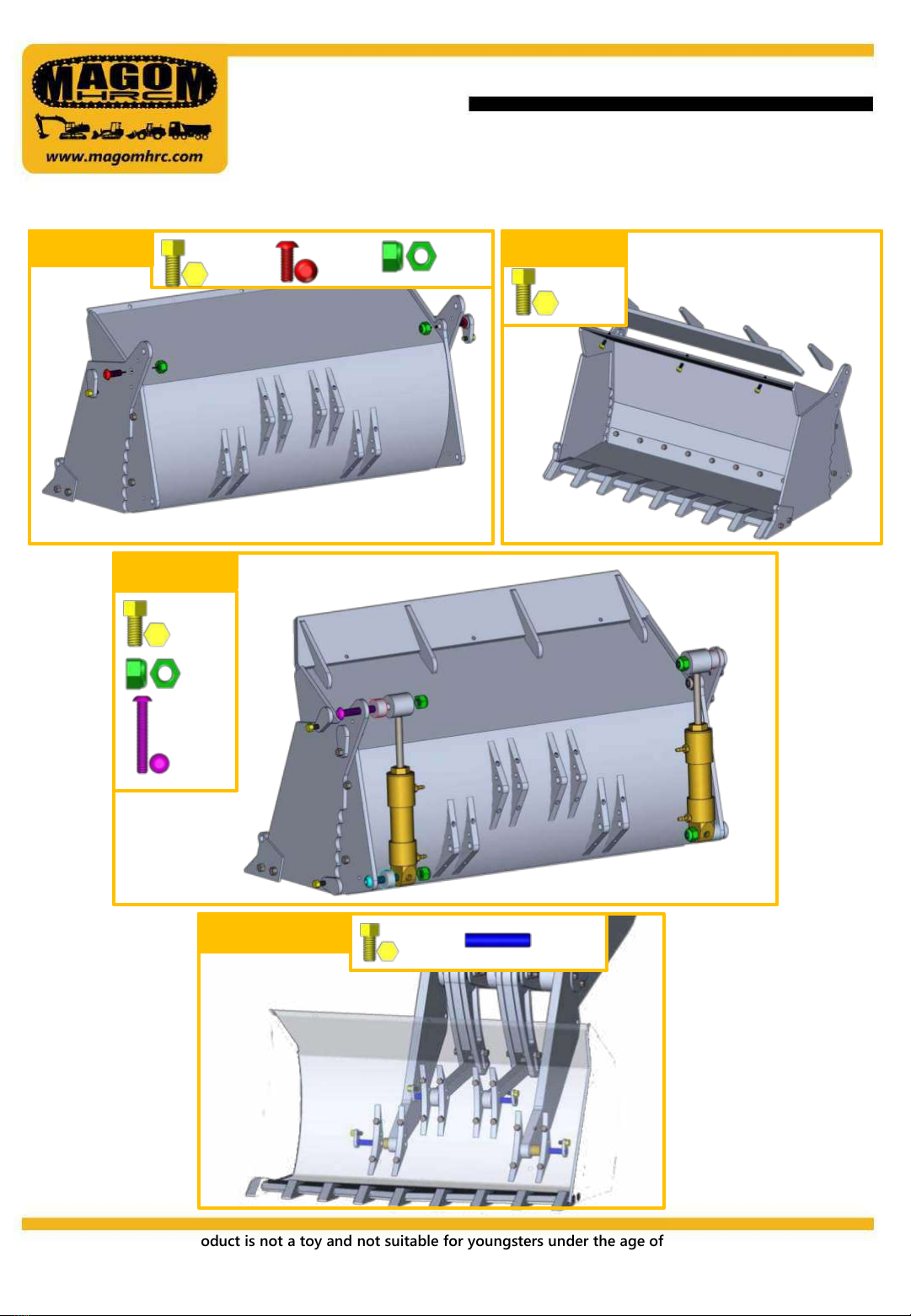

2192-000
973D V2 –COMBINED BUCKET
Please note that this product is not a toy and not suitable for youngsters under the age of 16. Technical details may be
subject to changes and modifications. All images and designs are property of MAGOM HRC. For any doubts or
questions, please contact us throught www.magomhrc.com.
M2x4
(x2)
STEP 6 M3x8
(x2)
M3
(x2)
M2x4
(x2)
STEP 7
STEP 8
M2x4
(x2)
M3
(x2)
M3x20
(x2)
STEP 9 M2x4
(x4)
3x14
(x4)
