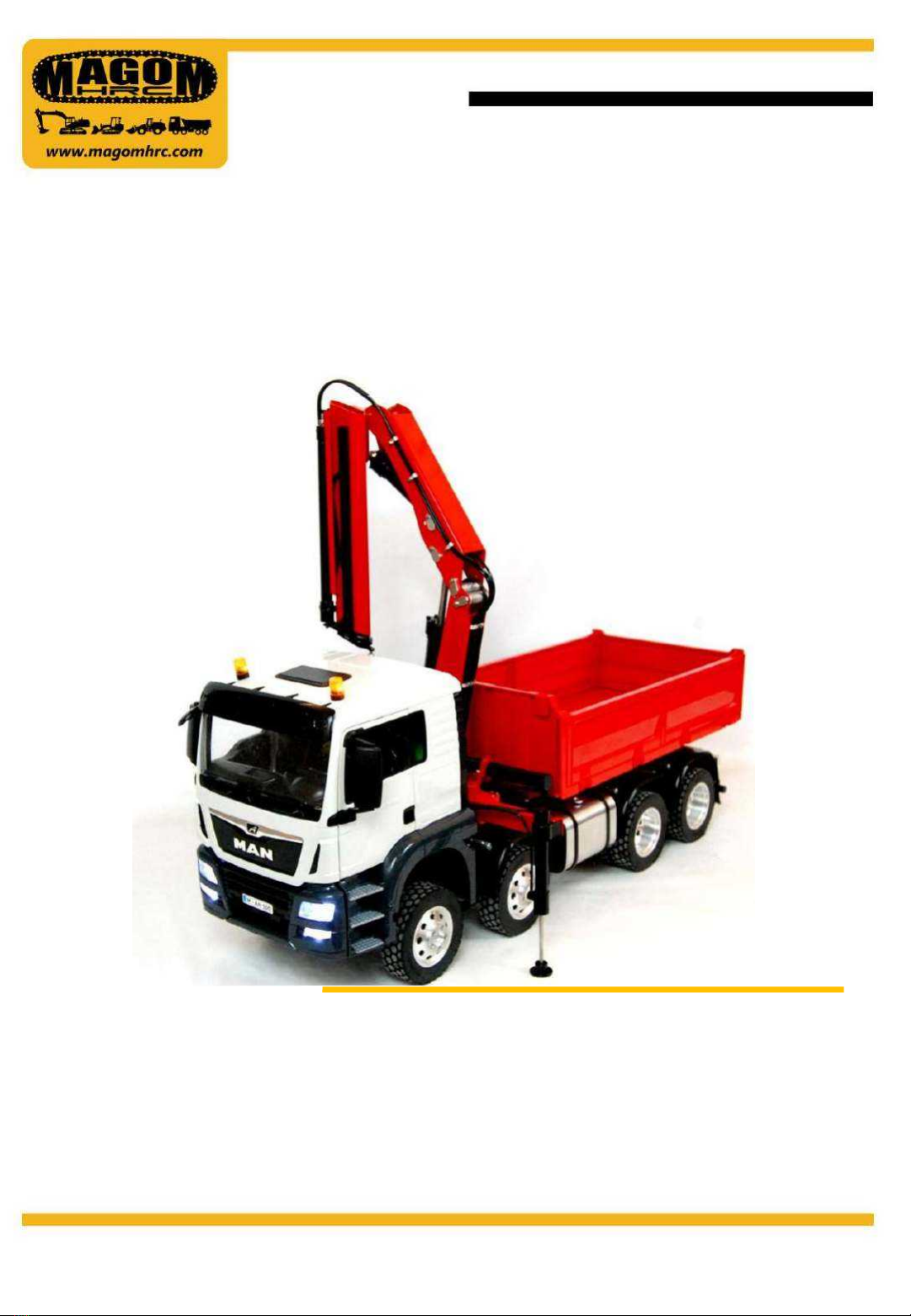

Magom MAN TGS User manual

www.magomhrc.com
MAN TGS
CRANE TRUCK
1/16
Read this manual carefully before using the machine and keep it handy for inquiries. For any doubts or questions,
please contact us throught www.magomhrc.com.
1. QUICK GUIDE
2. TRANSMITTER SETUP
3. HYDRAULICS
4. ELECTRONICS
5. ASSEMBLY
6. ATTACHMENTS

3
Please note that this product is not a toy and not suitable for youngters under the age of 16. Technical details may be
subject to changes and modifications. All images and designs are property of MAGOM HRC. For any doubts or
questions, please contact us throught www.magomhrc.com.
CRANE TRUCK –QUICK GUIDE
www.magomhrc.com
DETAILS 1/16 Scale Mercedes 8x8 Truck with tipper
SPECS
MAX VOLTAGE 11.1 V
RECOMMENDED BATTERY Lipo 11.1 V 1800 Mah
WEIGHT (RTR) About 5 kg
CAUTION !
This product IS NOT A TOY. NOT SUITABLE FOR PEOPLE UNDER 16.
This is a hobby product and some experience is required.
If you want to touch something without any knowledge, contact with our team before.
Use the product with CARE.
A wrong use will damage the product and warranty.
Some parts of the product can be hot during is running time or later.
Do not touch the moving parts during the running time.
Take care with little parts.
Take care when building, as some parts may have sharp edges.
If you want to use your own transmitter, be sure that the setup is correct. A bad setup will damage
the product.
Use the oil, parts, recommended by our team.
Use protective gloves to manipulate oil.
Use protective glasses to manipulate the product. Some parts are made in metal and can be
dangerous.
Take care when using tools and sharp instruments.
Use high quality rc tools to assemble the product.
Take care with Lipo batteries. Use the correct charge and discharge rate.
Do not discharge Lipo batteries under 3.2 V per cell.
Do not charge Lipo batteries over 4.2 V per cell.
Use a Lipo safe bag to charge Lipo batteries.
If you have any doubts or question about the use of this product, please contact with our team to:
[email protected]
PLEASE READ THIS BEFORE START
DETAILS Scale 1/16 8x8 SD truck with 2-extension crane
306083-XXX

4
www.magomhrc.com
TRUCK MOVEMENTS
ID0
1. Steering (blue)
2. Tipper (green)
3. Traction (red)
4. Lights (yellow)
5. Pump
6. Sound
Please note that this product is not a toy and not suitable for youngters under the age of 16. Technical details may be
subject to changes and modifications. All images and designs are property of MAGOM HRC. For any doubts or
questions, please contact us throught www.magomhrc.com.
7 (P1) 6/9
(P2)
5 (P3)
1 (AIL)
2/10
(ELE)
3/11
(THR)
4/8
(RUD) ON/OFF
ID
(mode
0, 1, 2)
STEP 3
All switches of the transmitter must be
positioned to the back. If not a “Switch
error” message will appear.
STEP 1
Connect the battery
to the model.
STEP 7
Now you can use
the model.
Put the pump rev
dial to its minimum.
STEP 4 STEP 6
Start the pump a little.
Only a little bit!
STEP 5
Turn on the transmitter.
CRANE MOVEMENTS
ID1
1. Crane‟s 4th-5th section
7. Horizontal leg‟s
extension
8.Crane‟s rotation
9. Legs up/down
10.Crane‟s 2nd section
11.Crane‟s 1st section

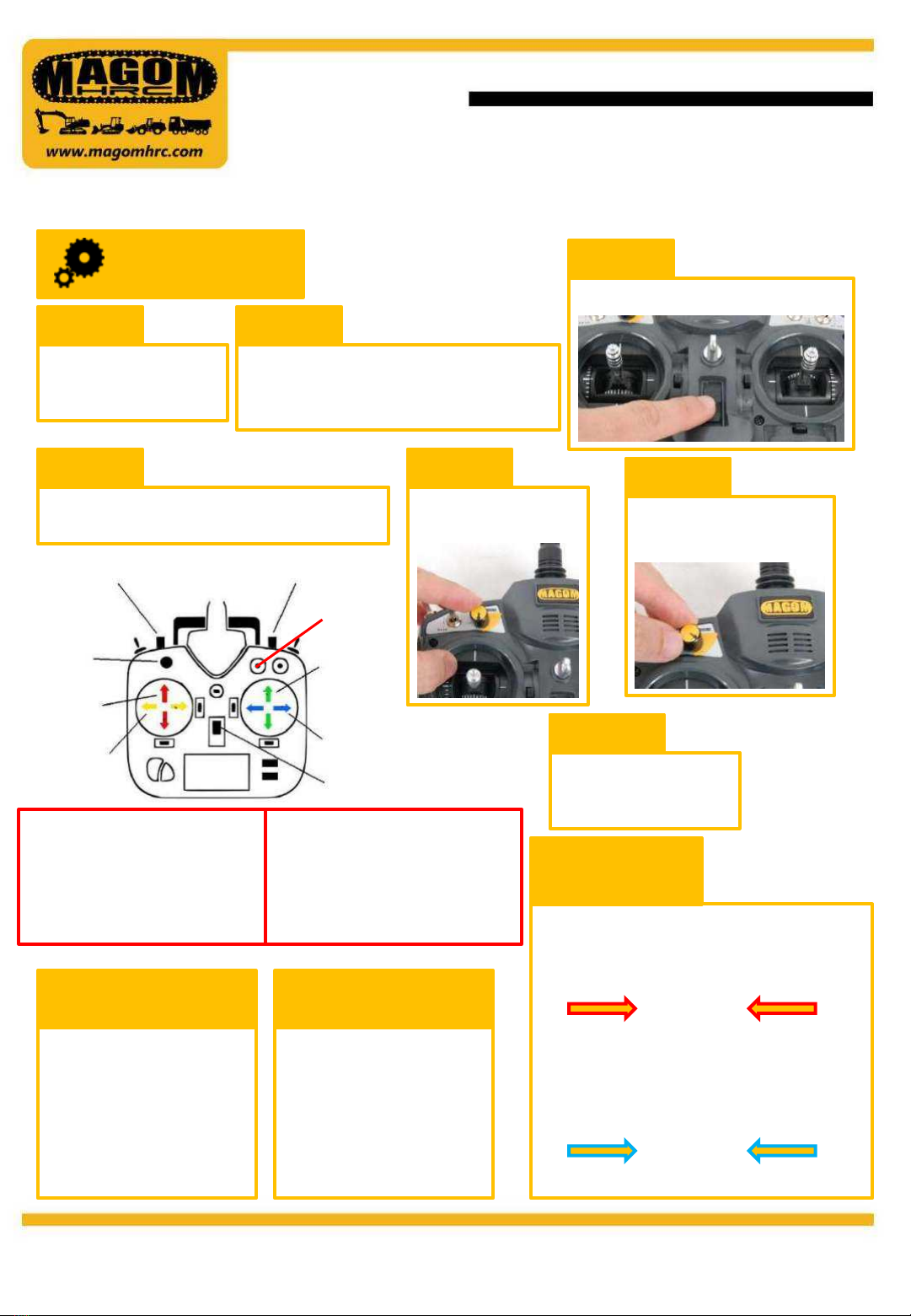

HOW TO START
CRANE TRUCK –QUICK GUIDE
LIGHTS
(CHANNEL 4)
1 x SHORT TOUCH
Back to neutral:
BLINKING LIGHTS
1 x SHORT TOUCH
Back to neutral:
POSITION LIGHTS
1 x LONG TOUCH
Back to neutral:
LONG LIGHTS
1 x LONG TOUCH
Back to neutral:
ROTATING LIGHTS
306083-XXX
STEP 2
Switch on the model before starting the
transmitter and wait a song from the ESC.
TRUCK (ID0) CRANE (ID1)
mode change:
1. Hold RUD in right
position for a second:
rotating lights switch on.
2. Change to ID1
CRANE (ID1) TRUCK (ID0)
mode change:
1. Change to ID0
2. Hold RUD in right
position for a second:
rotating lights switch off.

5
Please note that this product is not a toy and not suitable for youngters under the age of 16. Technical details may be
subject to changes and modifications. All images and designs are property of MAGOM HRC. For any doubts or
questions, please contact us throught www.magomhrc.com.
www.magomhrc.com
GENERAL SETUP AND CHANNEL MAPPING
CAUTION !
This manual is for 8x8 SD truck with 2-extension crane.
This manual is for
Turnigy 9X transmitter with OPEN TX firmware.
To use with the crane, this trasnmitter includes a 12-channel module.
This is a hobby product and some experience is required.
If you want to touch something without any knowledge, contact with our team before.
PLEASE READ THIS BEFORE START
CH 1
CH 2
CH 3
CH 4
CH 6
CH 7
CH 8
To enter general setup:
- Push + (plus) button more than 1 sec.
- Go to the end of page 1 and check you
have Mode 2.
Channel mapping
CH1 Factory (Mode 2)
CH2 Factory (Mode 2)
CH3 Factory (Mode 2)
CH4 Factory (Mode 2)
CH5 NULL
CH6 PIT TRIM
CH7 HOV THR
CH8 HOV PIT
In the next sheet we will explain how to map
the with the knobs.
TURNIGY 9X TRANSMITTER
Up: ID0
Neutro:ID1
Down: ID2
CRANE TRUCK –TRANSMITTER SETUP
306083-XXX

6
Please note that this product is not a toy and not suitable for youngters under the age of 16. Technical details may be
subject to changes and modifications. All images and designs are property of MAGOM HRC. For any doubts or
questions, please contact us throught www.magomhrc.com.
www.magomhrc.com
MODEL SETUP
•MIXER
CH1 Ail 100
CH2 Ele - 100 ID0
CH3 Thr 100
CH4 Rud 100 ID0
CH5 P3 100
[*********Now use TIPs „C‟ and „D‟ to insert the mixings**********]
+=Ele 90 |x| ID0
CH6 P2 100 ID0
CH7 P1 100 ID1
CH8 Rud 100 ID1
CH9 P2 100 ID1
CH10 Ele 100 ID1
CH11
CH12
•LIMITS (You can make these changes on „
SERVOS ‟ (page 6/11) in MODEL SETUP.
SUBTRIM / EPA / REVERSE
TURNIGY 9X TRANSMITTER
CRANE TRUCK –TRANSMITTER SETUP
306083-XXX
To enter model setup:
-Turn on the transmitter.
-Touch one of the sticks in any direction.
-Hold „MINUS‟ button to enter MODEL SETUP.
-Go to
„MIXER ‟‟ screen using „PLUS‟ and „MINUS‟ buttons.
TIPS:
A. To insert a channel configuration:
1. Place the pointer on the channel line and hold „MENU‟ button. Now you can change values
using „PLUS‟ and „MINUS‟ buttons. Click „EXTI‟ when you finish setting up that channel.
B. To erase a channel configuration:
1. Place the pointer on the channel you want to erase.
2. Select the whole channel by clicking on „MENU‟ button.
3. Hold „EXIT‟ button to erase the channel.
C. To insert the first mixing in a channel:
1. Place the pointer on the channel line you want to insert the first mixing.
2. Select the whole channel by clicking on „MENU‟ button.
3. Hold „DN‟ button to copy the channel.
4. Accept the copy clicking on „MENU‟.
5. Now you can enter the mixing configuration following „A‟ step.
D. To insert following mixings in a channel:
A. Copy the first mixing instead of the channel following step „C‟.

Please note that this product is not a toy and not suitable for youngters under the age of 16. Technical details may be
subject to changes and modifications. All images and designs are property of MAGOM HRC. For any doubts or
questions, please contact us throught www.magomhrc.com.
www.magomhrc.com
RECOMMENDATIONS
Our hydraulic systems must be used with the MAGOM HRC hydraulic oil.
How to fill the hydraulic system
1. Close all hydraulic cylinders.
2. Remove the tank filling screw.
3. Fill the tank completely.
4. Make one hydraulic movement (main arm for example).
5. The oil of the tank will drop.
6. Fill the tank again and make a new movement (or the same movement if you haven‟t completed
it before).
7. Complete the steps 3-6 until all cylinders are moving ok.
8. Close all cylinders.
9. Fill the tank about 80-90%.
10. Close the tank with the filling screw
Valve
1. All servos must be in the middle position to assure that the valve is on the middle and it is closed.
2. If one or more valves are open, the system won‟t work correctly.
3. You can correct it using the TRIM and SUBTRIM function on the transmitter.
Oil
Please don‟t use any other oil type. Oil from third brand can damage o-ring and system.
CRANE TRUCK - HYDRAULICS
SPECS
Max lift wieght 2 kg
Pump pressure 17bars
306083-XXX

Please note that this product is not a toy and not suitable for youngters under the age of 16. Technical details may be
subject to changes and modifications. All images and designs are property of MAGOM HRC. For any doubts or
questions, please contact us throught www.magomhrc.com.
www.magomhrc.com
HYDRAULIC SCHEMA
CRANE TRUCK - HYDRAULICS
306083-XXX

www.magomhrc.com
CAUTION !
This product IS NOT A TOY. NOT SUITABLE FOR PEOPLE UNDER 16.
This is a hobby product and some experience is required.
If you have any doubts or questions, please contact with our team: [e-mail]
PLEASE READ THIS BEFORE START
Please note that this product is not a toy and not suitable for youngters under the age of 16. Technical details may be
subject to changes and modifications. All images and designs are property of MAGOM HRC. For any doubts or
questions, please contact us throught www.magomhrc.com.
ELECTRONIC SCHEMA
CH6
CRANE TRUCK –ELECTRONICS
Pump with BRUSHED motor
CH9
CH7
CH10
CH11
CH8
CH1 (through the channel
multiplier)
CH7
306083-XXX
Lipo BATTERY
11.1V 1800mah
BS18
ESC
BS18
ESC BEC

LEFT REAR LIGHTS
CH4
CH3
RIGHT REAR LIGHTS
LEFT
FRONT
LIGHTS
RIGHT
FRONT
LIGHTS
Brushless
ESC
www.magomhrc.com
BLINKING
(left)
BLINKING
(right)
POSITION
LONG
REVERSE

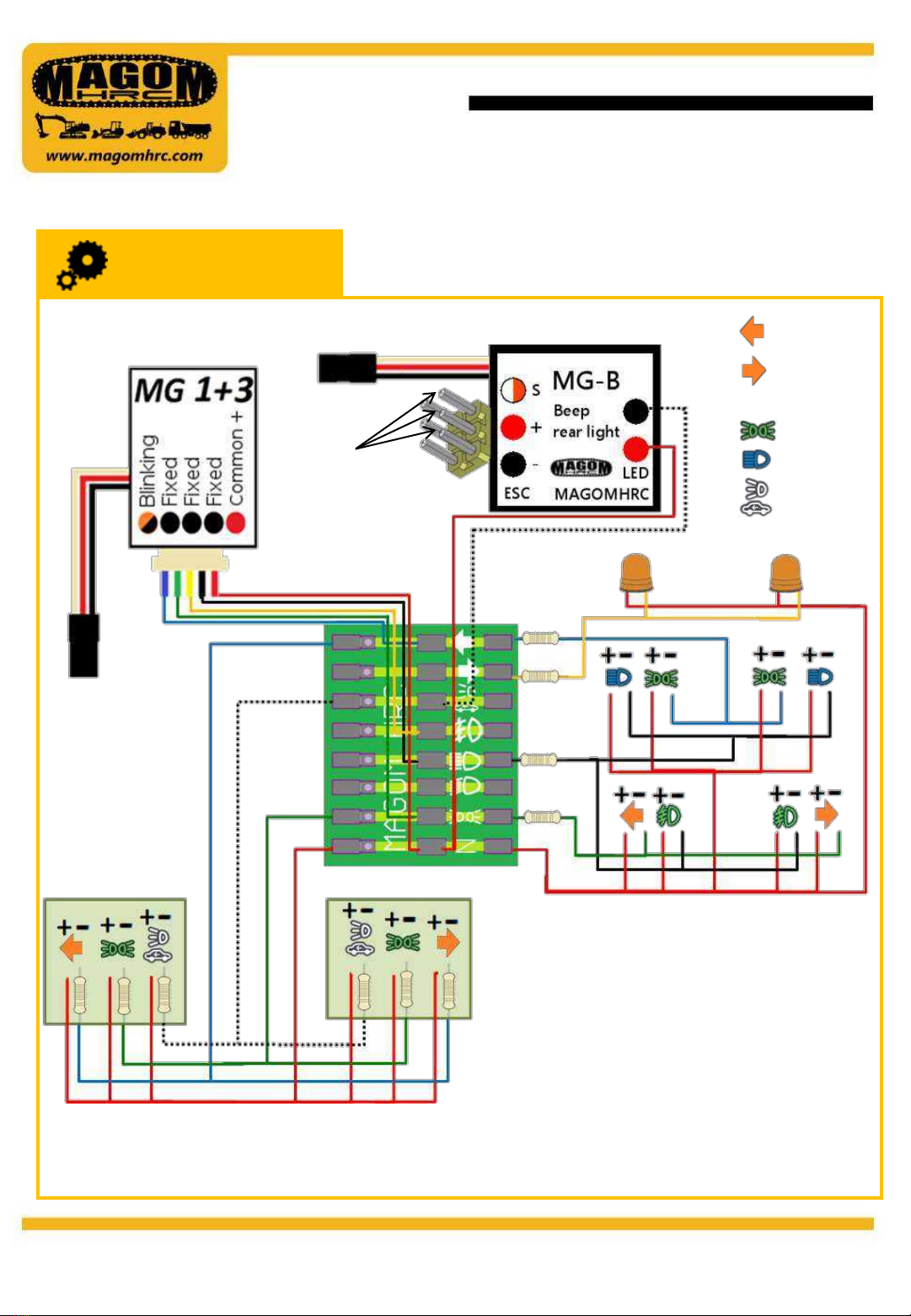

LIGHTING DIAGRAM
Please note that this product is not a toy and not suitable for youngters under the age of 16. Technical details may be
subject to changes and modifications. All images and designs are property of MAGOM HRC. For any doubts or
questions, please contact us throught i[email protected].
LIGHTNING
ROTATING
LIGHTS
CRANE TRUCK –ELECTRONICS
306083-XXX

Please note that this product is not a toy and not suitable for youngters under the age of 16. Technical details may be
subject to changes and modifications. All images and designs are property of MAGOM HRC. For any doubts or
questions, please contact us throught i[email protected].
BLINKING
LIGHTS POSITION
LIGHTS
REVERSING
LIHGTS
BLINKING
LIGHTS
POSITION
LIGHTS
REVERSING
LIHGTS
BLINKING LIGHTS BLINKING LIGHTS
LONG LIGHTS LONG LIGHTS
LONG LIGHTS LONG LIGHTS
POSITION LIGHTS
POSITION LIGHTS
ROTATIN
LIGHTS
LIGHTS POSITION
www.magomhrc.com
CRANE TRUCK –ELECTRONICS
306083-XXX

www.magomhrc.com
Please note that this product is not a toy and not suitable for youngters under the age of 16. Technical details may be
subject to changes and modifications. All images and designs are property of MAGOM HRC. For any doubts or
questions, please contact us throught www.magomhrc.com.

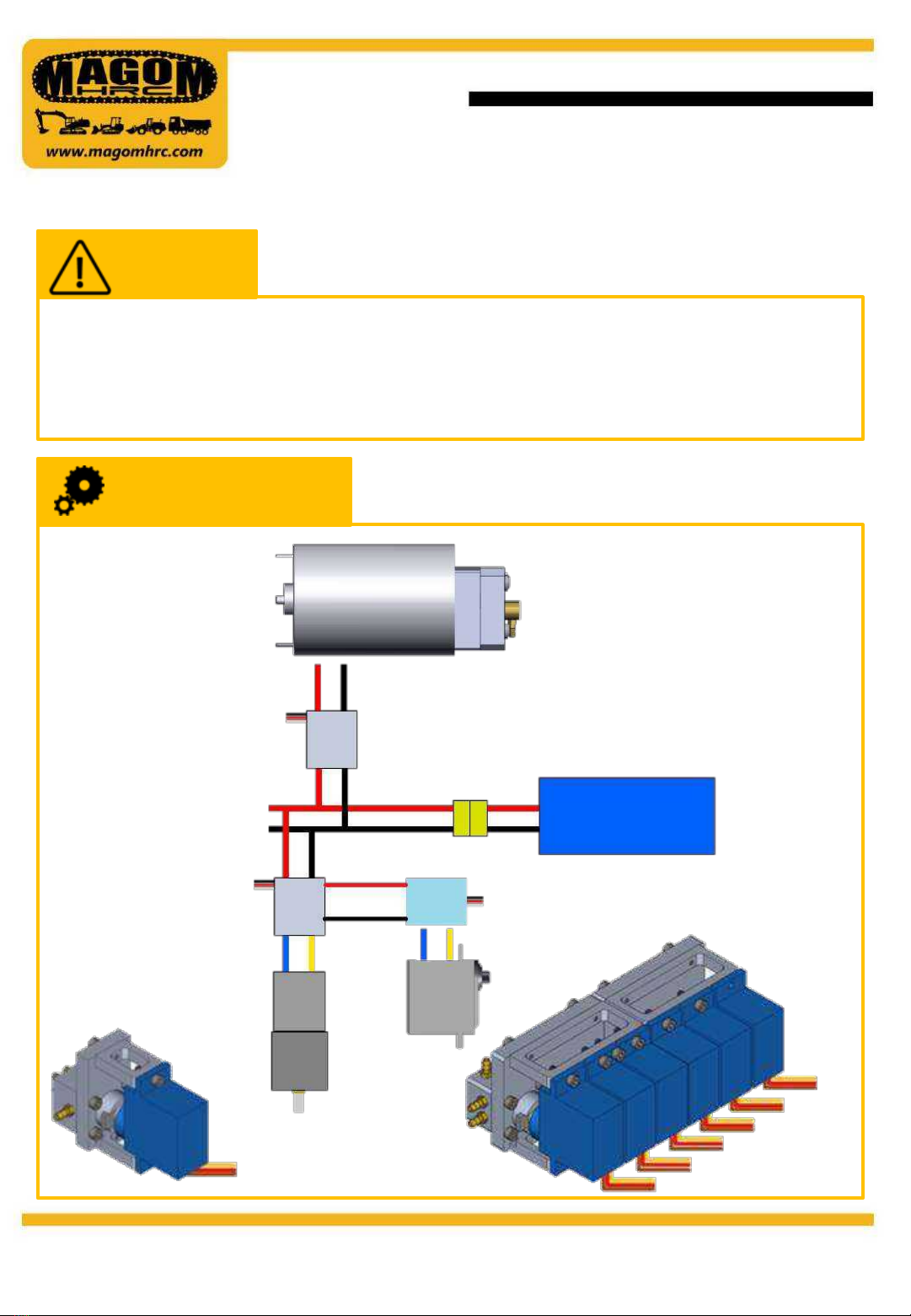

ELECTRONIC SCHEMA
CAUTION !
This product IS NOT A TOY. NOT SUITABLE FOR PEOPLE UNDER 16.
This is a hobby product and some experience is required.
If you have any doubts or questions, please contact with our team: [e-mail]
PLEASE READ THIS BEFORE START
Pump with
brushed motor
CH3
We recommend to use a 11.1V
1800mah Lipo battery.
Lipo
BATTERY
ESC
ESC
BEC
CH2
CH1
FREE
CHANNEL
Receiver
Servo for
stering
Brushless
motor
(traction)
Switch
ON/OFF
PCB
Back
PCB
Front
Volume
Potentiometer
Speaker
LIGHTNING + SOUND
CRANE TRUCK –ELECTRONICS
30608X-XXX

www.magomhrc.com
Please note that this product is not a toy and not suitable for youngters under the age of 16. Technical details may be
subject to changes and modifications. All images and designs are property of MAGOM HRC. For any doubts or
questions, please contact us throught www.magomhrc.com.
LIPO BATTERY
11.1V
BATTERY
BATTERY

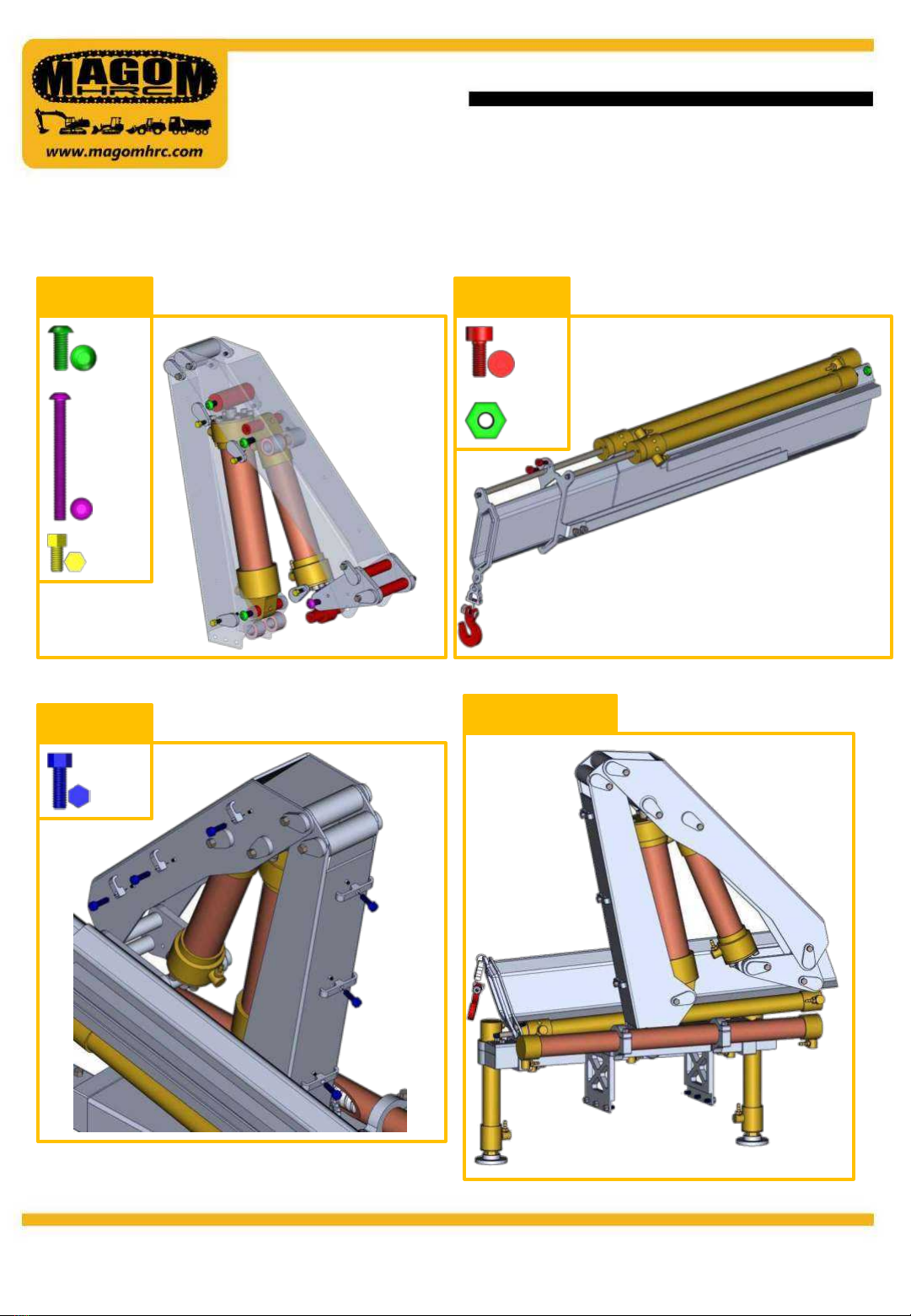

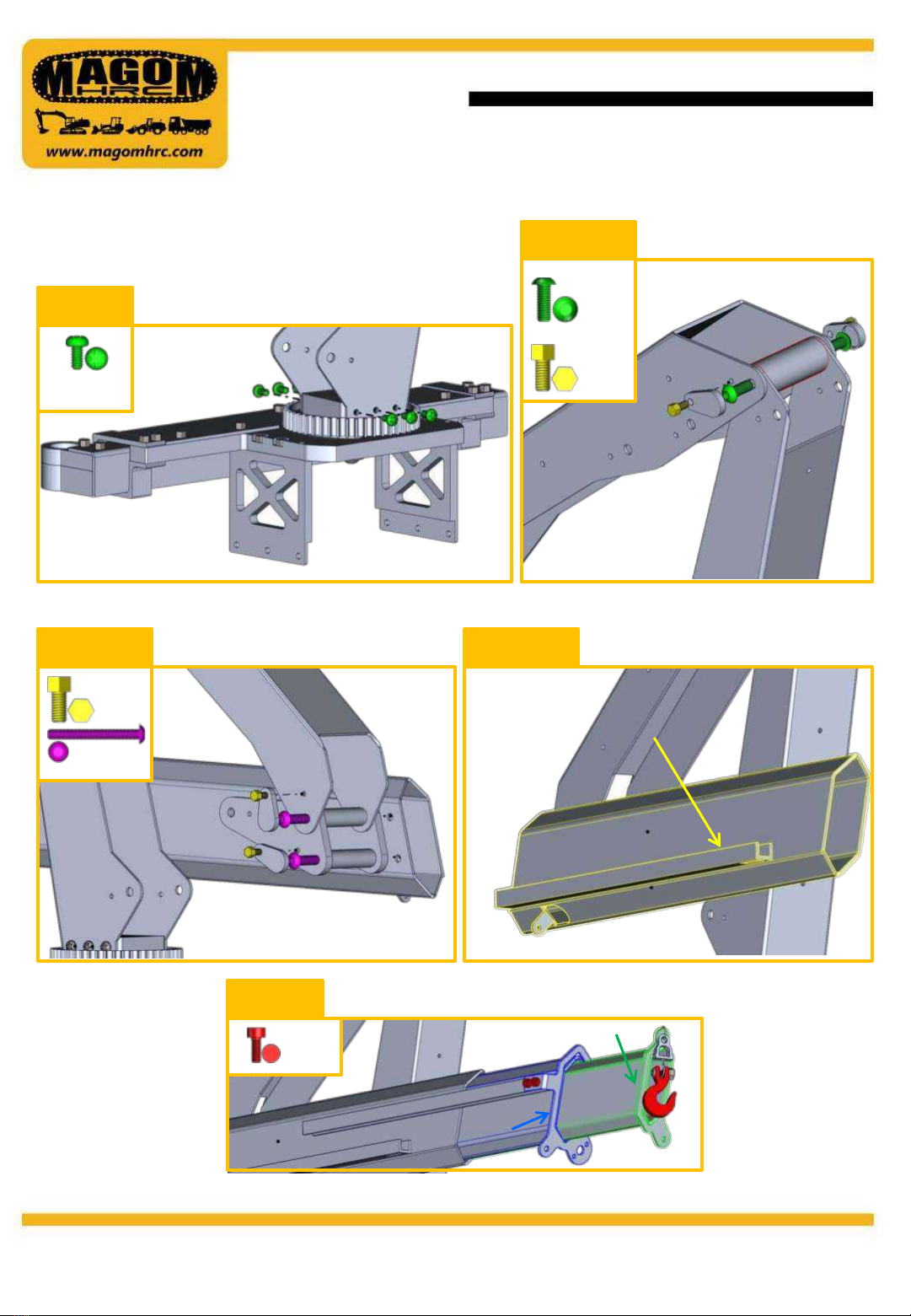

2-EXTENSION CRANE

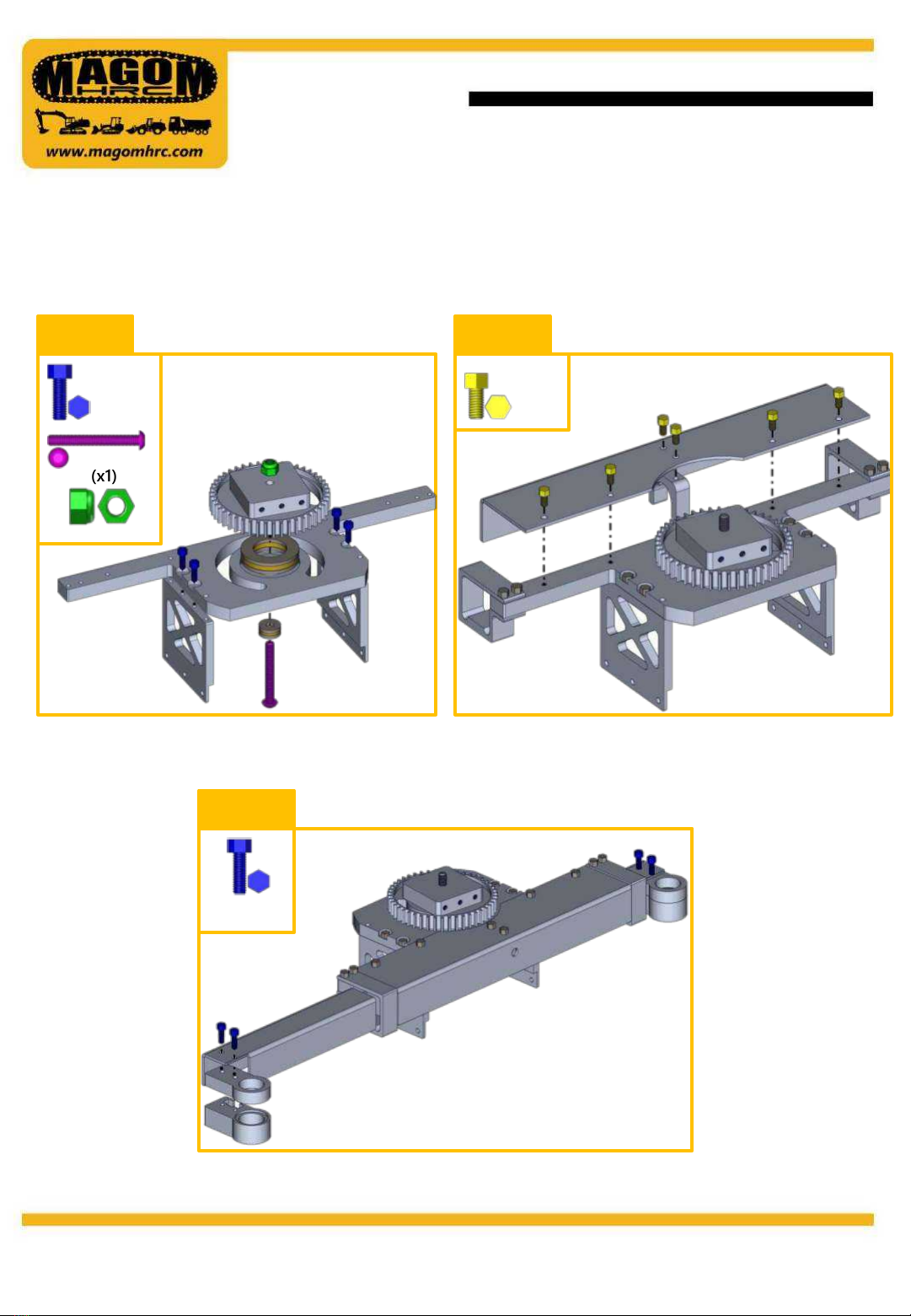

METAL STRUCTURE - ASSEMBLING
STEP 2
M2x4
(x6)
STEP 3
M2x6 (x4)
STEP 1
M2x6
(x4)
M3x25
(x1)
M3 (x1)
306083-XXX

www.magomhrc.com
Please note that this product is not a toy and not suitable for youngters under the age of 16. Technical details may be
subject to changes and modifications. All images and designs are property of MAGOM HRC. For any doubts or
questions, please contact us throught www.magomhrc.com.
2-EXTENSION CRANE
METAL STRUCTURE - ASSEMBLING
STEP 4
M2x4 (x6)
STEP 5
M3x8
(x2)
M2x4
(x2)
M2x4
(x2)
STEP 6
M3x35
(x1)
M2x5
(x2)
STEP 8
STEP 7
WELDING
WELDING
WELDING
306083-XXX

www.magomhrc.com
Please note that this product is not a toy and not suitable for youngters under the age of 16. Technical details may be
subject to changes and modifications. All images and designs are property of MAGOM HRC. For any doubts or
questions, please contact us throught www.magomhrc.com.
2-EXTENSION CRANE
HYDRAULICS- ASSEMBLING
STEP 5
M2x6
(x4)
M2x12
(x2)
STEP 1
M2x6
(x4)
M3
(x2)
STEP 3
M2x4
(x4)
STEP 4
M3x3
(x1)
STEP 2
M2x4
(x6)
306083-XXX

www.magomhrc.com
Please note that this product is not a toy and not suitable for youngters under the age of 16. Technical details may be
subject to changes and modifications. All images and designs are property of MAGOM HRC. For any doubts or
questions, please contact us throught www.magomhrc.com.
LIPO BATTERY
11.1V
BATTERY
BATTERY
2-EXTENSION CRANE
HYDRAULICS- ASSEMBLING
FINAL VIEW
STEP 7
M2x5
(x2)
M2
(x1)
STEP 6
M3x8
(x3)
M3x33
(x1)
M2x4
(x4)
STEP 8
M2x6
(x6)
306083-XXX

www.magomhrc.com

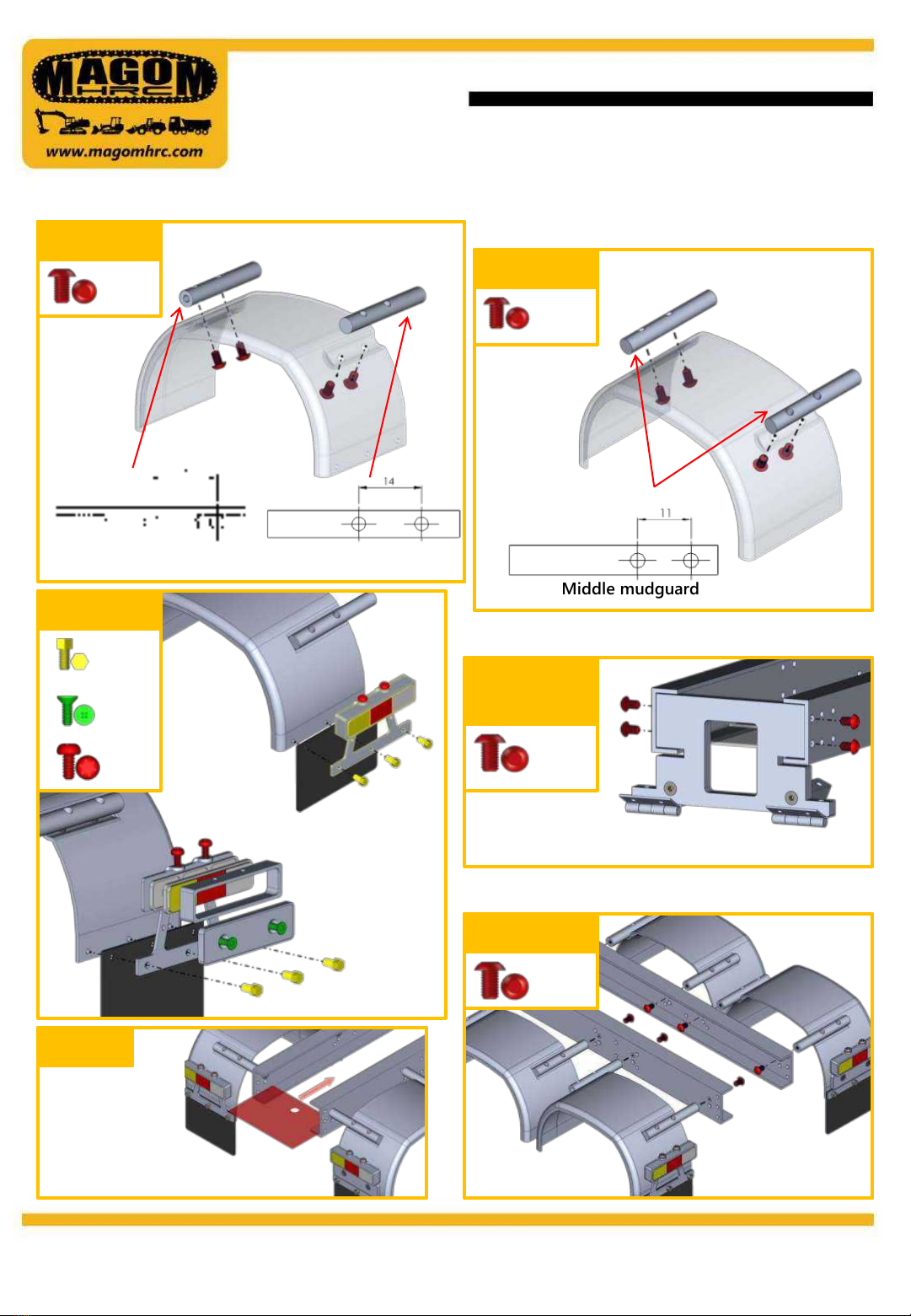

TRUCK ASSEMBLY
M2x4
(x6)
STEP 3
M2x4
(x2)
M2x4
(x4)
Rear mudguards
STEP 1
M3x5
(x8)
Mount both rear mudguards.
STEP 2
M3x5
(x8)
Middle mudguard
Mount both middle mudguards.
M3x5
(x4)
STEP 4
MAN TGS
Install both
chassis on the
cabin‟s support.
STEP 5
M3x5
(x8)
STEP 6
Insert the plastic plate in the
mounted structure.
Please note that this product is not a toy and not suitable for youngsters under the age of 16. Technical details may be
subject to changes and modifications. All images and designs are property of MAGOM HRC. For any doubts or
questions, please contact us throught www.magomhrc.com.
306083-XXX

www.magomhrc.com
Assemble the chassis rear support.
STEP 7
M3x5
(x4)
M3x16
(x2)
Mount the chassis rear support
On the structure.

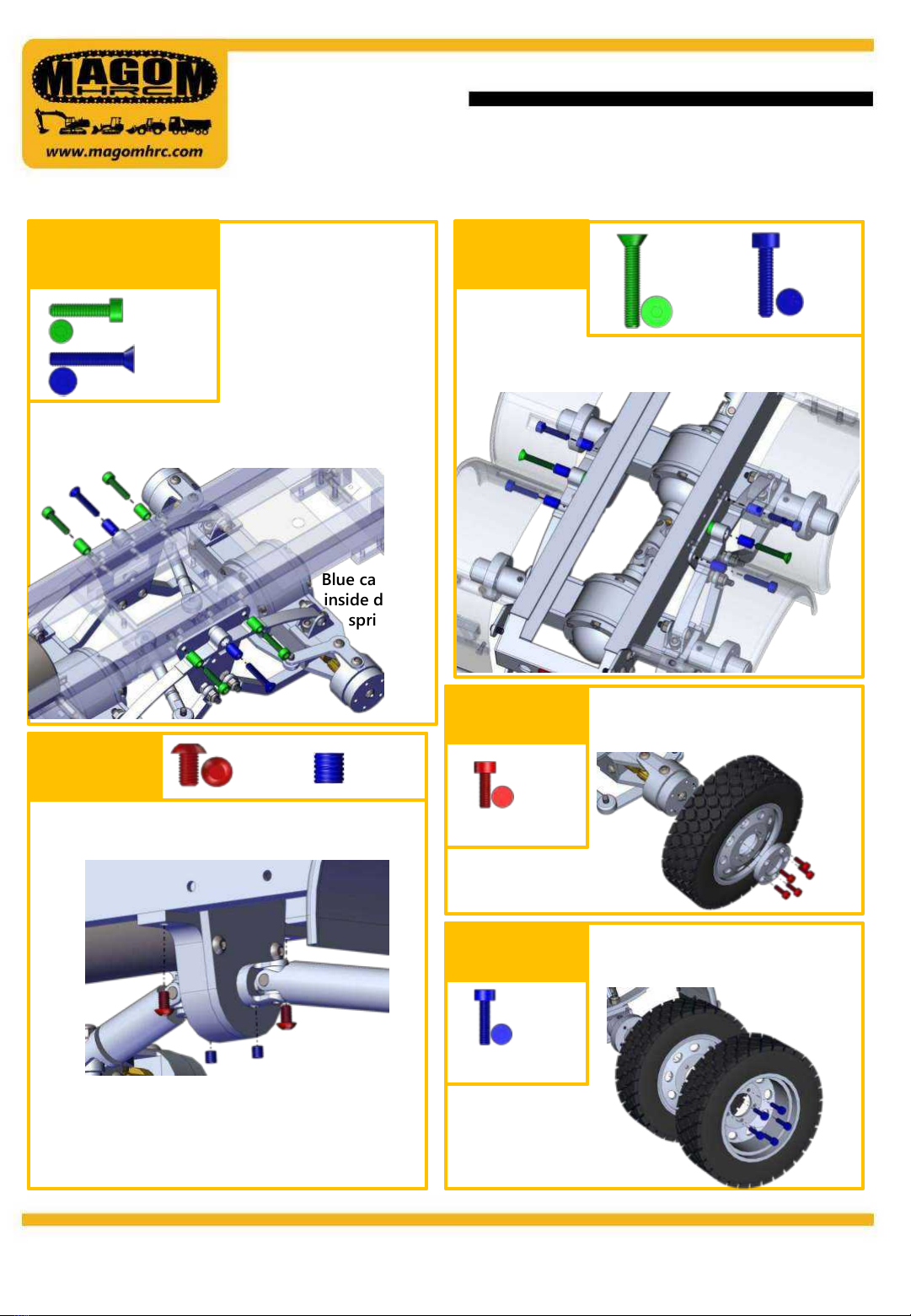

STEP 8
M3x5
(x4)
M2x4
(x4)
STEP 9
FINAL VIEW
TRUCK ASSEMBLY
Please note that this product is not a toy and not suitable for youngsters under the age of 16. Technical details may be
subject to changes and modifications. All images and designs are property of MAGOM HRC. For any doubts or
questions, please contact us throught www.magomhrc.com.
306083-XXX

19
Please note that this product is not a toy and not suitable for youngsters under the age of 16. Technical details may be
subject to changes and modifications. All images and designs are property of MAGOM HRC. For any doubts or
questions, please contact us throught www.magomhrc.com.
www.magomhrc.com
STEP 8
M3x5
(x4)
STEP 10
Install the geared box under
the chasis.
Install both front an rear cardans on the shaft
of the geared box.
Make sure that the set screws are placed on
the shaft plane.
M3x3
(x2)
STEP 9
M3x16
(x2)
Install the rear double differential on
the mounted structure.
M3x14
(x4)
Install front double axle
on the mounted
structure.
Use the screws of the
suspension system`s
holders. Discard the nuts
securing the screws.
The screws must screw the axles together with
the chassis (3 bottom holes) and the servo‟s
support.
M3x14
(x4)
M3x16
(x2)
Blue cap goes
inside de leaf
spring.
STEP 11
M2x6
(x10)
5 each wheel
Install the four front
wheels.
STEP 12
M2x8
(x20)
5 each wheel
Install the four rear
wheels.
TRUCK ASSEMBLY
306083-XXX

20
Please note that this product is not a toy and not suitable for youngsters under the age of 16. Technical details may be
subject to changes and modifications. All images and designs are property of MAGOM HRC. For any doubts or
questions, please contact us throught www.magomhrc.com.
www.magomhrc.com
STEP 13 Attach the pieces that hold the
tipper.
M3x5
(x2)
STEP 15
M3x8
(x2)
Install the tank.
STEP 16
M3x5
(x2)
STEP 14
M3x8
(x2)
Attach the cylinder
holders to the chassis.
M3x12
(x4)
CRANE TRUCK - HYDRAULICS
SERVO
ASSEMBLY
M3x8
(x4)
M3x10
(x4)
M3x5
(x4)
M3x10
(x4)
CABIN
ASSEMBLY
306083-XXX
