Magom VOLVO A60H User manual

www.magomhrc.com
VOLVO A60H
HYDRAULIC CONVERSION
Read this manual carefully before using the machine and keep it handy for inquiries. For any doubts or questions,
please contact us throught www.magomhrc.com.
1. QUICK GUIDE
2. TRANSMITTER SETUP
3. ELECTRONICS
4. HYDRAULICS
5. ASSEMBLY
6. ATTACHMENTS

2
Please note that this product is not a toy and not suitable for youngters under the age of 16. Technical details may be
subject to changes and modifications. All images and designs are property of MAGOM HRC. For any doubts or
questions, please contact us throught www.magomhrc.com.
VOLVO A60H - QUICK GUIDE
www.magomhrc.com
2008-XXX
DETAILS 1/16 Scale Mercedes 8x8 Truck with tipper
SPECS
MAX VOLTAGE 7.4 V
RECOMMENDED BATTERY Lipo 7.4V
WEIGHT (RTR) About 3.5 kg
CAUTION !
This product IS NOT A TOY. NOT SUITABLE FOR PEOPLE UNDER 16.
This is a hobby product and some experience is required.
If you want to touch something without any knowledge, contact with our team before.
Use the product with CARE.
A wrong use will damage the product and warranty.
Some parts of the product can be hot during is running time or later.
Do not touch the moving parts during the running time.
Take care with little parts.
Take care when building, as some parts may have sharp edges.
If you want to use your own transmitter, be sure that the setup is correct. A bad setup will damage
the product.
Use the oil, parts, recommended by our team.
Use protective gloves to manipulate oil.
Use protective glasses to manipulate the product. Some parts are made in metal and can be
dangerous.
Take care when using tools and sharp instruments.
Use high quality rc tools to assemble the product.
Take care with Lipo batteries. Use the correct charge and discharge rate.
Do not discharge Lipo batteries under 3.2 V per cell.
Do not charge Lipo batteries over 4.2 V per cell.
Use a Lipo safe bag to charge Lipo batteries.
If you have any doubts or question about the use of this product, please contact with our team to:
[email protected]
PLEASE READ THIS BEFORE START
DETAILS Scale 1/16 6x6 VOLVO A60H

3
www.magomhrc.com
ASSEMBLY
Please note that this product is not a toy and not suitable for youngsters under the age of 16. Technical details may be
subject to changes and modifications. All images and designs are property of MAGOM HRC. For any doubts or
questions, please contact us throught www.magomhrc.com.

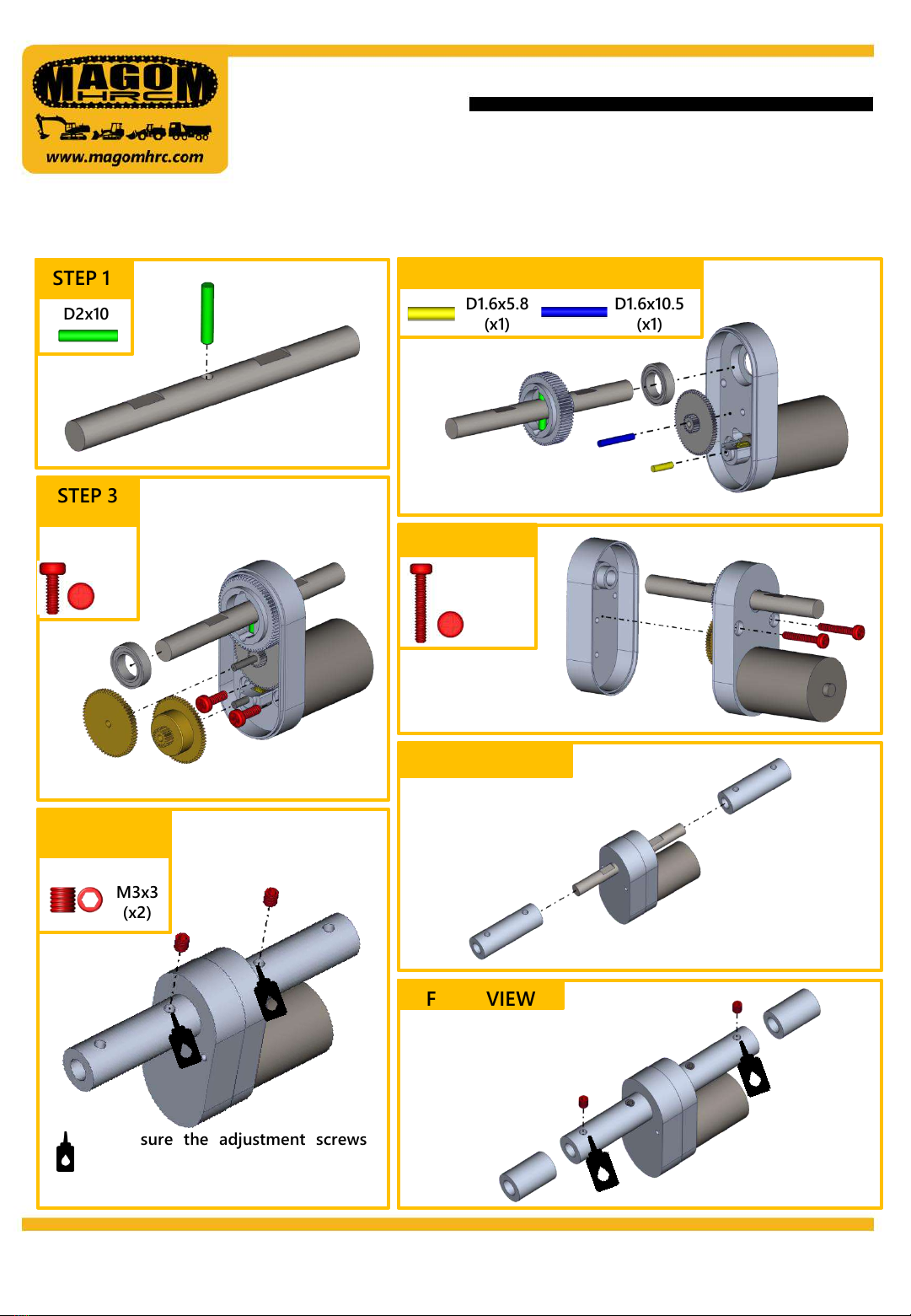

FRONT SERVO DIFFERENTIAL –VOLVO A60H
2020-00X
Make sure the adjustment screws
are in the shaft gap.
Use thread lock
STEP 1
D2x10
STEP 2
D1.6x5.8
(x1)
STEP 3
M2x6
(x2)
STEP 6
M3x3
(x2)
D1.6x10.5
(x1)
FINAL VIEW
STEP 4
M2x12
(x2)
STEP 5

4
www.magomhrc.com
EMSAMBLAJE
Please note that this product is not a toy and not suitable for youngsters under the age of 16. Technical details may be
subject to changes and modifications. All images and designs are property of MAGOM HRC. For any doubts or
questions, please contact us throught www.magomhrc.com.
MIDDLE SERVO DIFFERENTIAL –VOLVO A60H
2020-00X
Make sure
the
adjustment
screws are in
the shaft gap.
Use thread
lock
STEP 1
D2x10
STEP 2
D1.6x5.8
(x1)
STEP 3
M2x6
(x2)
STEP 6
M3x3
(x2)
D1.6x10.5
(x1)
FINAL VIEW
STEP 4
M2x12
(x2)
STEP 5
STEP 7
STEP 8
M3x5
(x2)
M3x3
(x2)

5
www.magomhrc.com
ASSEMBLY
Please note that this product is not a toy and not suitable for youngsters under the age of 16. Technical details may be
subject to changes and modifications. All images and designs are property of MAGOM HRC. For any doubts or
questions, please contact us throught www.magomhrc.com.
VOLVO A60H –QUICK GUIDE
2008-XXX
STEP 2
STEP 3 STEP 4
STEP 5
STEP 2STEP 1

www.magomhrc.com
HOW TO START
MOVEMENTS
1. Steering (blue)
2. Pump-tipper (green)
3. Forward/Reverse (red)
4. Lights (yellow) –ID1
5. Sound
6. Pump
7. Free
8. Free
STEP 1
Turn on the transmitter.
STEP 2
Connect the battery to the truck and put it inside the cab.
LIGHTS –ID1
(CHANNEL 4)
1 x SHORT TOUCH
back to neutral:
POSITION LIGHTS
1 x SHORT TOUCH
back to neutral:
ROTATION LIGHT
1 x LONG TOUCH
back to neutral:
FOG LIGHTS
SOUND
(CHANNEL 5)
1 x TOUCH
back to neutral:
PULLING OUT
1 x TOUCH
back to neutral:
HORN
VOLVO A60H- QUICK GUIDE
2008-XXX
(P1) 5 (P2)
6 (P3)
1 (AIL)
2 (ELE)
3 (THR)
4 (RUD)
ON/OFF
Please note that this product is not a toy and not suitable for youngters under the age of 16. Technical details may be
subject to changes and modifications. All images and designs are property of MAGOM HRC. For any doubts or
questions, please contact us throught www.magomhrc.com.
1 x LONG TOUCH
back to neutral:
LONG LIGHTS
ID (mode
0,1,2)

7
Please note that this product is not a toy and not suitable for youngters under the age of 16. Technical details may be
subject to changes and modifications. All images and designs are property of MAGOM HRC. For any doubts or
questions, please contact us throught www.magomhrc.com.

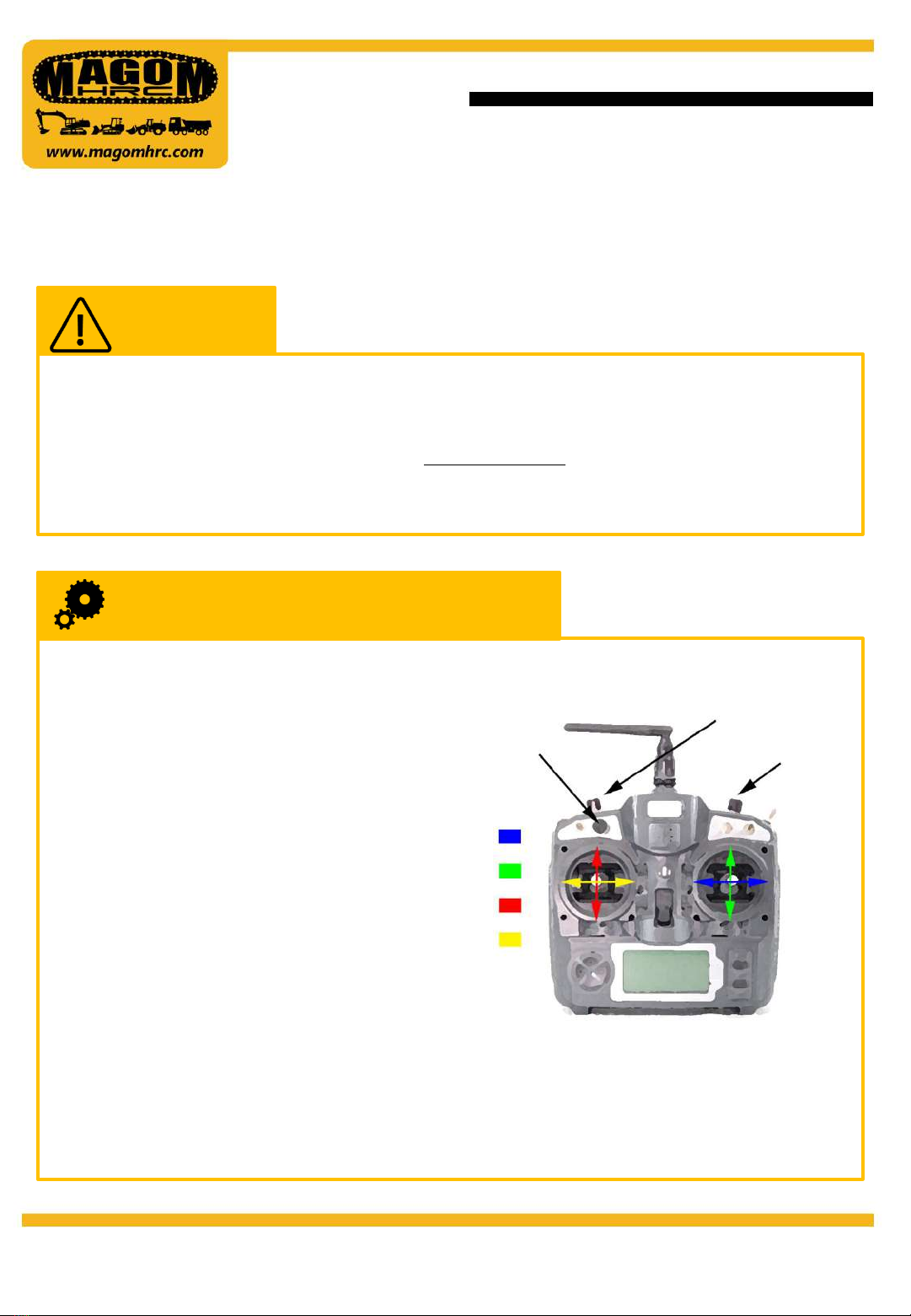

VOLVO A60H –TURNIGY 9X SETUP
www.magomhrc.com
GENERAL SETUP AND CHANNEL MAPPING
CAUTION !
This manual is for the VOLVO A60H hydraulic conversion.
This manual is for Turnigy 9X transmitter with OPEN TX firmware.
This is a hobby product and some experience is required.
If you want to touch something without any knowledge, contact with our team before.
PLEASE READ THIS BEFORE START
CH 1
CH 2
CH 3
CH 4
CH 6
CH 7
CH 5
To enter general setup:
- Push + (plus) button more than 1 sec.
- Go to the end of page 1 and check you
have Mode 2.
Channel mapping
CH1 Factory (Mode 2)
CH2 Factory (Mode 2)
CH3 Factory (Mode 2)
CH4 Factory (Mode 2)
CH5 NULL
CH6 PIT TRIM
CH7 HOV THR
CH8 HOV PIT
In the next sheet we will explain how to map
the with the knobs.
2008-XXX

8
Please note that this product is not a toy and not suitable for youngters under the age of 16. Technical details may be
subject to changes and modifications. All images and designs are property of MAGOM HRC. For any doubts or
questions, please contact us throught www.magomhrc.com.
www.magomhrc.com
MODEL SETUP
2008-XXX
To enter model setup:
-Turn on the transmitter.
-Touch one of the sticks in any direction.
-Hold ‘MINUS’ button to enter MODEL SETUP.
-Go to ‘MIXER ’’ screen using ‘PLUS’ and ‘MINUS’ buttons.
TIPS:
A. To insert a channel configuration:
1. Place the pointer on the channel line and hold ‘MENU’ button. Now you can change values
using ‘PLUS’ and ‘MINUS’ buttons. Click ‘EXTI’ when you finish setting up that channel.
B. To erase a channel configuration:
1. Place the pointer on the channel you want to erase.
2. Select the whole channel by clicking on ‘MENU’ button.
3. Hold ‘EXIT’ button to erase the channel.
C. To insert the first mixing in a channel:
1. Place the pointer on the channel line you want to insert the first mixing.
2. Select the whole channel by clicking on ‘MENU’ button.
3. Hold ‘DN’ button to copy the channel.
4. Accept the copy clicking on ‘MENU’.
5. Now you can enter the mixing configuration following ‘A’ step.
D. To insert following mixings in a channel:
A. Copy the first mixing instead of the channel following step ‘C’.
•MIXER
CH1 Ail 100
CH2 Ele 100
CH3 Thr 100
CH4 Rud 100 ID1 LIGTHS
CH5 P2 100 SOUND
CH6 P3 0
[Now select the channel with Menu and select INSERT to add a new mix]
+=Ail 100 |X|
+=Ele 100 |X|
CH7 [C1]
+=Ail |X|
+=Ele |X|
+=Thr |X|
•LIMITS
SUBTRIM / EPA / REVERSE
VOLVO A60H –TURNIGY 9X SETUP

TIPPER
STEERING
Please note that this product is not a toy and not suitable for youngters under the age of 16. Technical details may be
subject to changes and modifications. All images and designs are property of MAGOM HRC. For any doubts or
questions, please contact us throught www.magomhrc.com.

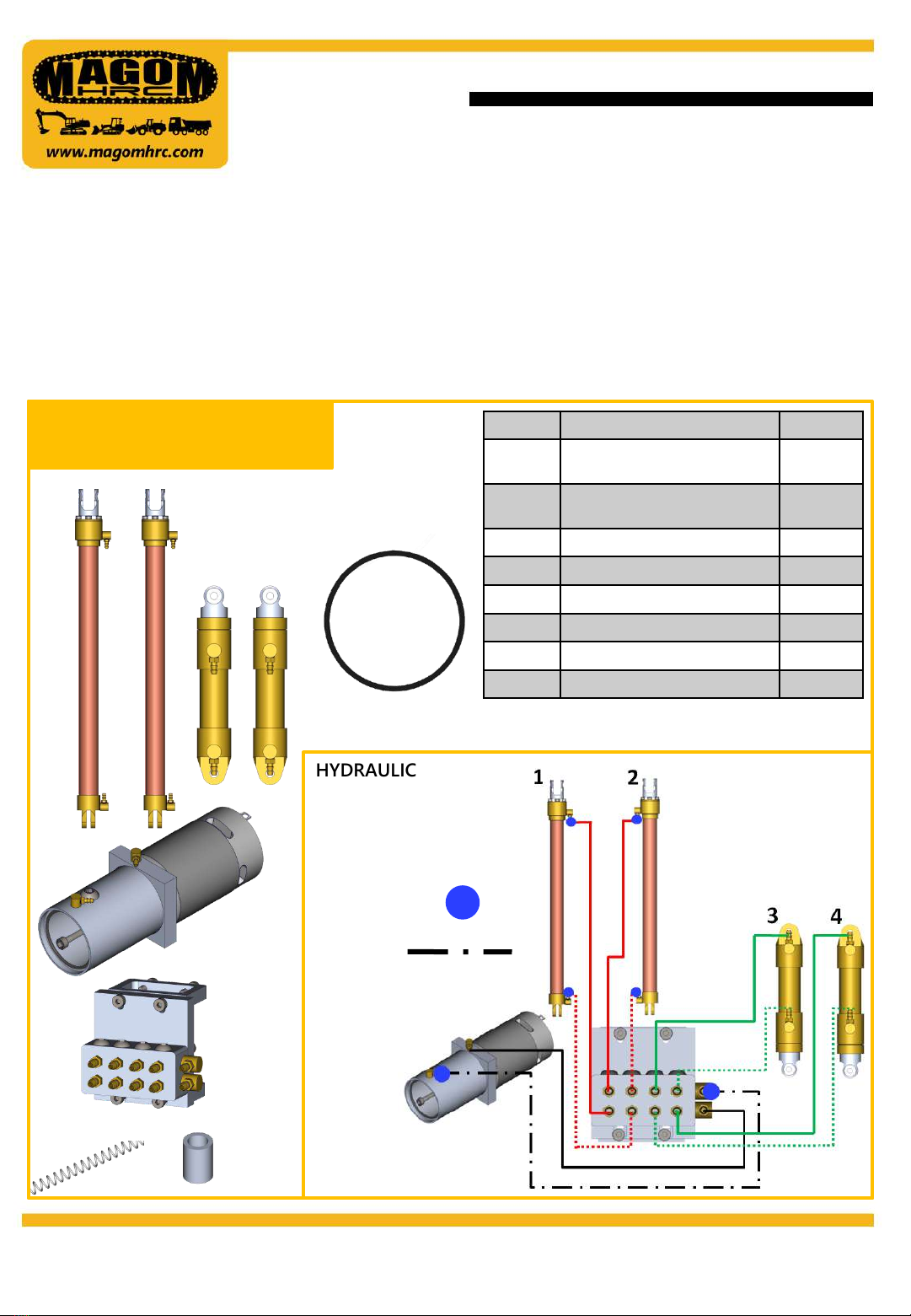

KIT CONTENTS AND
HYDRAULIC SCHEMA
www.magomhrc.com
501208-001
HYDRAULIC KIT FOR VOLVO A60H
INSTRUCTIONS
•Use MAGOM HRC hydraulic oil.
•Do not fill the tank completely once the cylinders have been filled.
•Use our recommended brushless ESC and motor.
REQUIRED:
•2x Micro-servos (6003-001).
•Brushed ESC (6005-004).

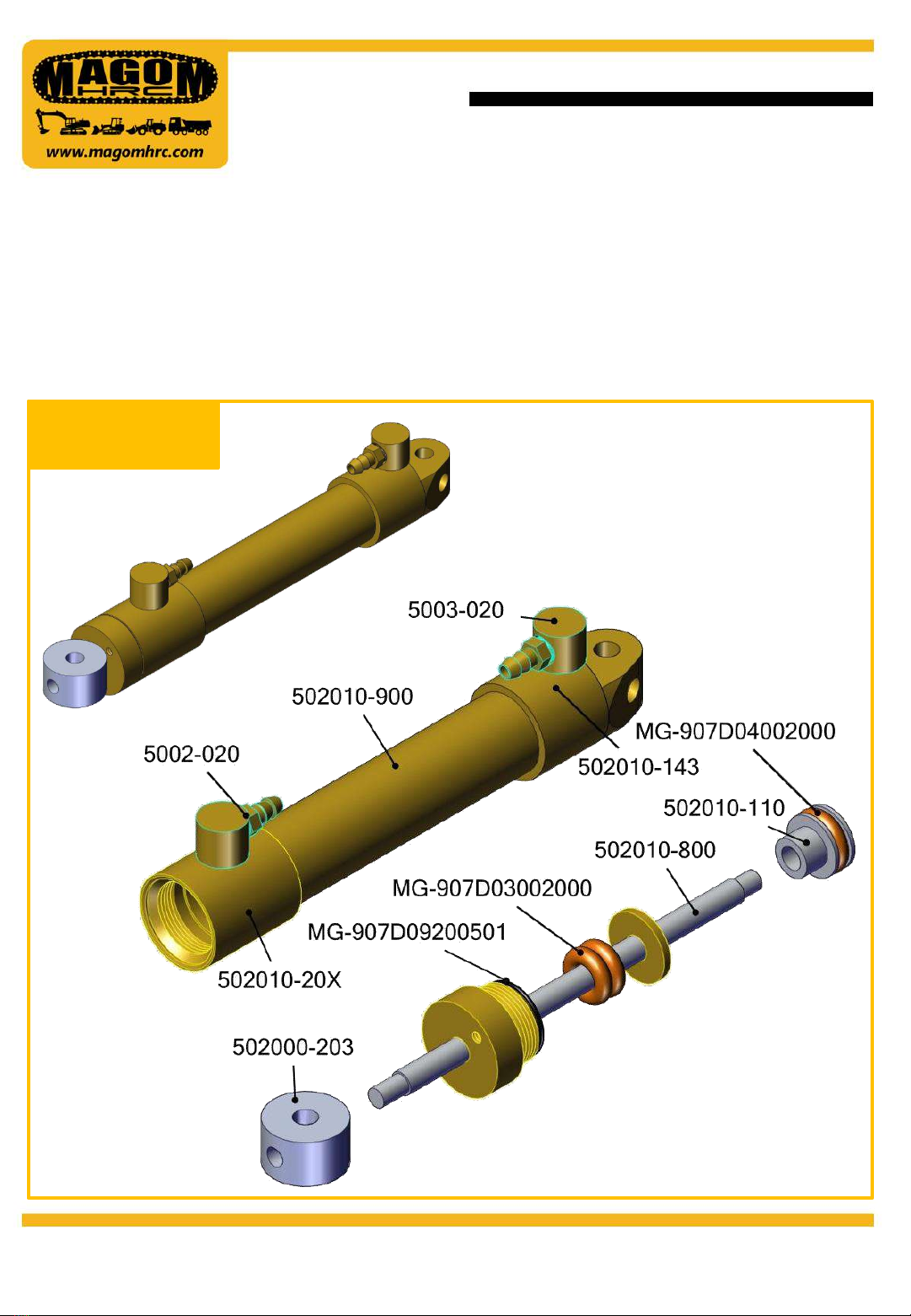

PART
REF
QTY
1,2
502099-311 (TYPE 1 )
D = 12mm ; A/B = 188.5/332.5
2
3,4
502099-312 (TYPE 1)
D = 10mm ; A/B = 55.7/78
2
5
5003-001
3m
6
503003-302
1
7
504099-309
1
8
MG-910001
1
9
5003-040
6
10
5050-001
250 ml
5
6
7
HYDRAULIC SCHEMA
1 2
3 4
SPRING
Locking sleeve
8 9

Please note that this product is not a toy and not suitable for youngters under the age of 16. Technical details may be
subject to changes and modifications. All images and designs are property of MAGOM HRC. For any doubts or
questions, please contact us throught www.magomhrc.com.
ASSEMBLY
www.magomhrc.com

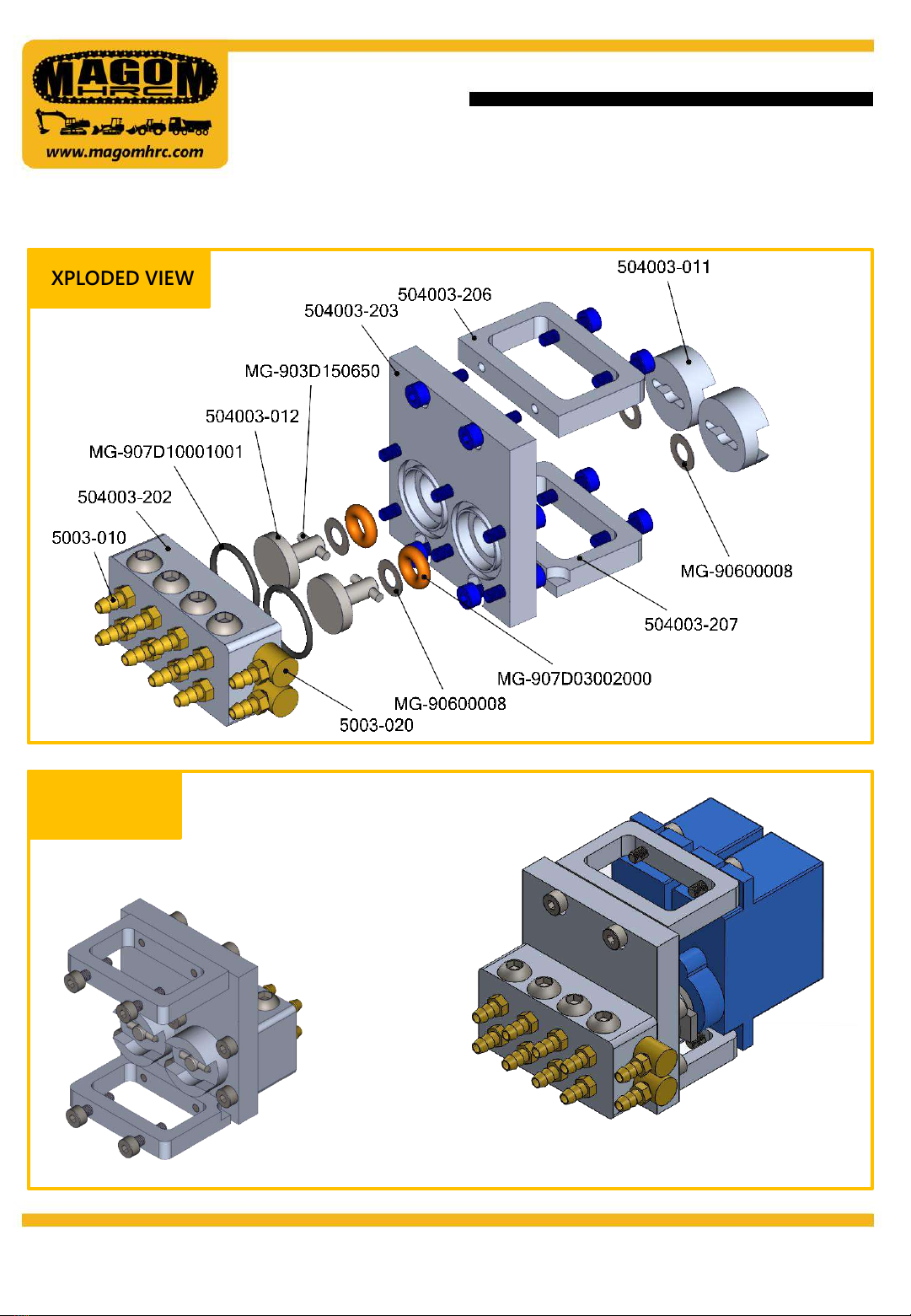

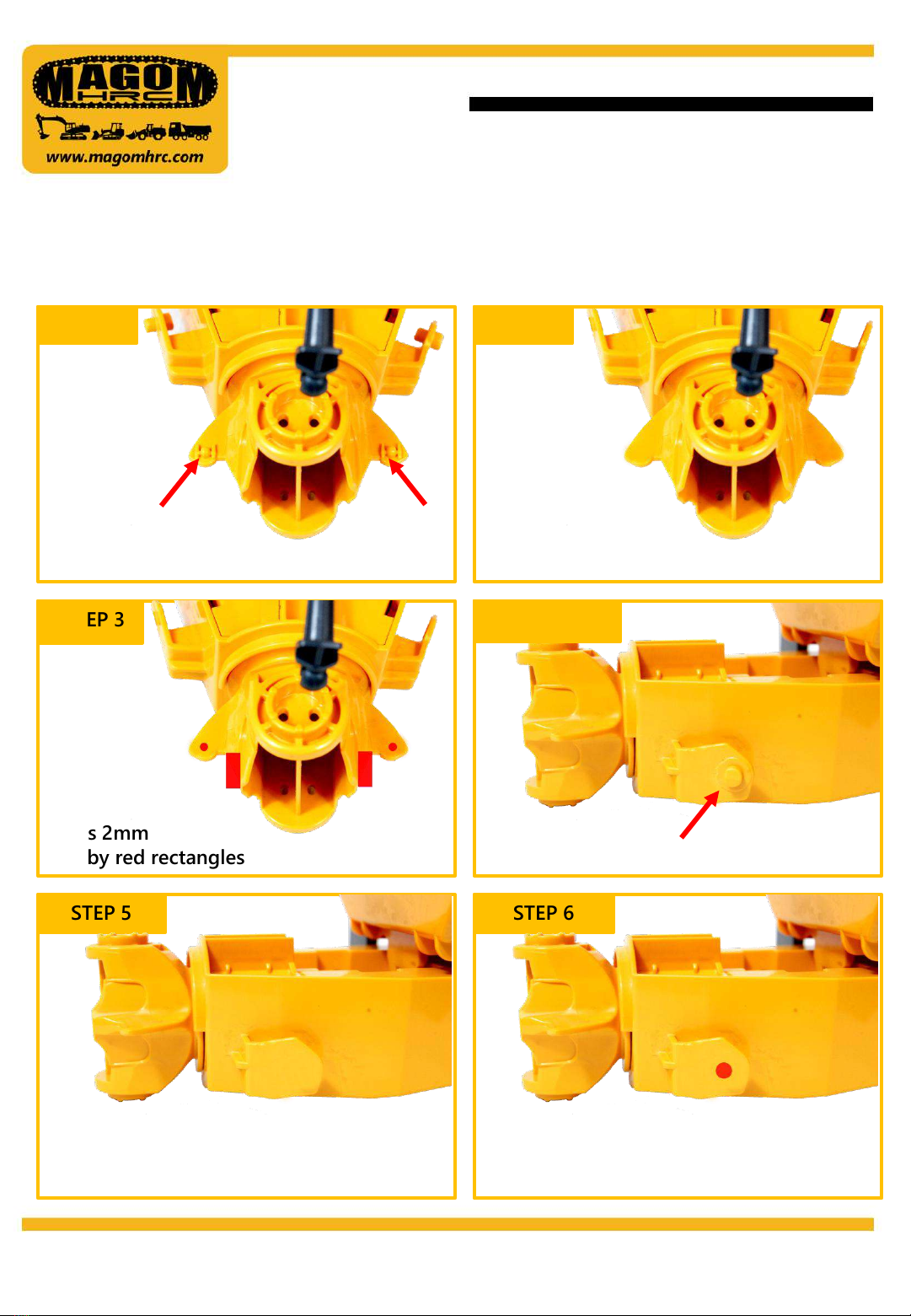

HYDRAULIC KIT FOR VOLVO A60H
501208-001
M3x5
(x4)
M3x4
(x5)
M3x6
(x2)
M3x8
(x2)
M3x14
(x2)
TO TRUCK

11
www.magomhrc.com
ASSEMBLY
Please note that this product is not a toy and not suitable for youngsters under the age of 16. Technical details may be
subject to changes and modifications. All images and designs are property of MAGOM HRC. For any doubts or
questions, please contact us throught www.magomhrc.com.
HYDRAULIC KIT FOR VOLVO A60H
501208-001
STEP 3 STEP 4
STEP 5 STEP 6
STEP 2STEP 1
Drills 2mm
Cut by red rectangles
Drills 3mm (both sides)
FILE FILE
FILE (both sides)

www.magomhrc.com
Please note that this product is not a toy and not suitable for youngters under the age of 16. Technical details may be
subject to changes and modifications. All images and designs are property of MAGOM HRC. For any doubts or
questions, please contact us throught www.magomhrc.com.
RECOMMENDATIONS

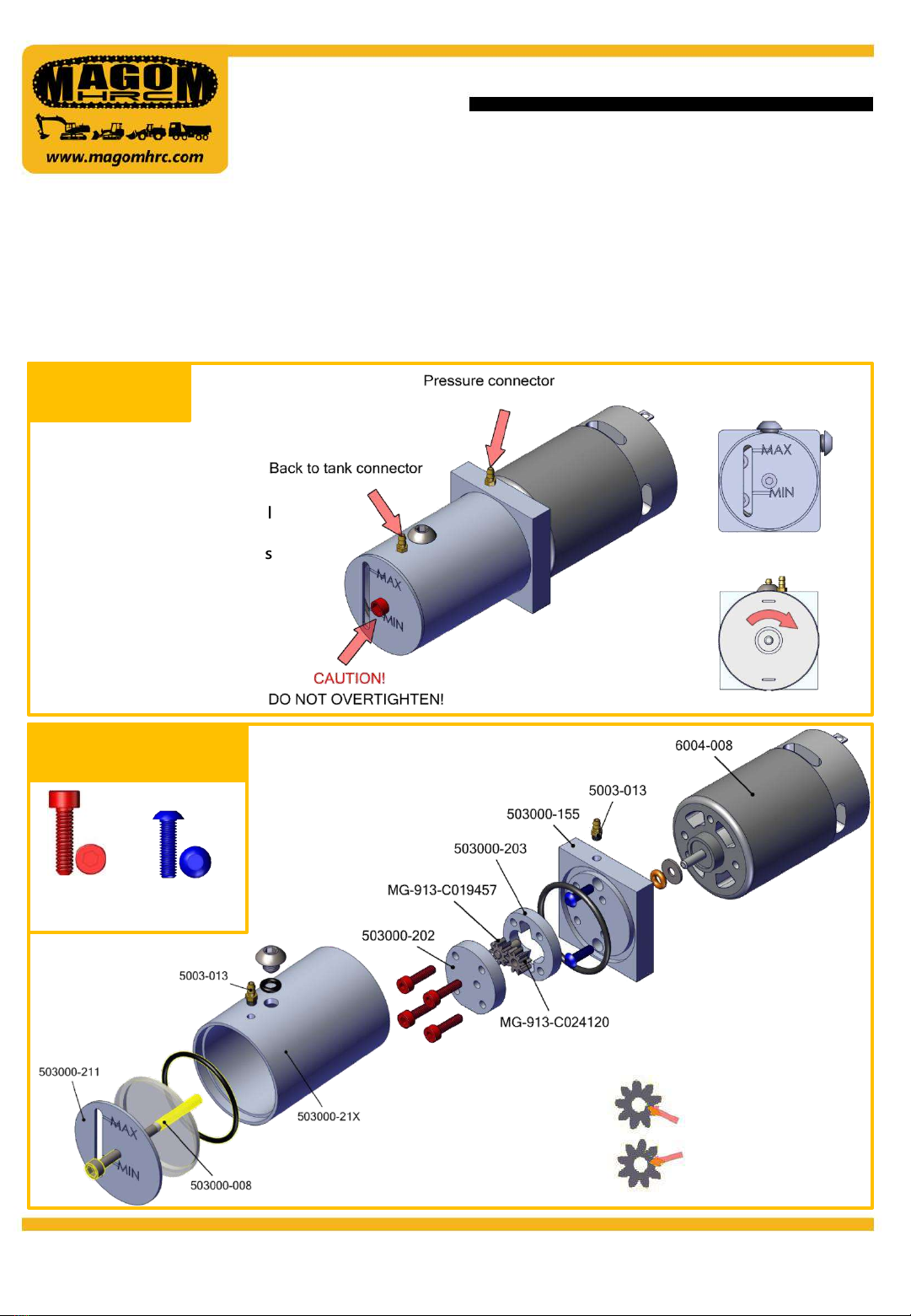

Our hydraulic systems must be used with the MAGOM HRC hydraulic oil.
How to fill the hydraulic system
1. Close all hydraulic cylinders.
2. Remove the tank filling screw.
3. Fill the tank completely.
4. Make one hydraulic movement (main arm for example).
5. The oil of the tank will drop.
6. Fill the tank again and make a new movement (or the same movement if you haven’t completed
it before).
7. Complete the steps 3-6 until all cylinders are moving ok.
8. Close all cylinders.
9. Fill the tank about 80-90%.
10. Close the tank with the filling screw
Valve
1. All servos must be in the middle position to assure that the valve is on the middle and it is closed.
2. If one or more valves are open, the system won’t work correctly.
3. You can correct it using the TRIM and SUBTRIM function on the transmitter.
Oil
Please don’t use any other oil type. Oil from third brand can damage o-ring and system.
HYDRAULIC KIT FOR VOLVO A60H
501208-001

www.magomhrc.com
Please note that this product is not a toy and not suitable for youngters under the age of 16. Technical details may be
subject to changes and modifications. All images and designs are property of MAGOM HRC. For any doubts or
questions, please contact us throught www.magomhrc.com.

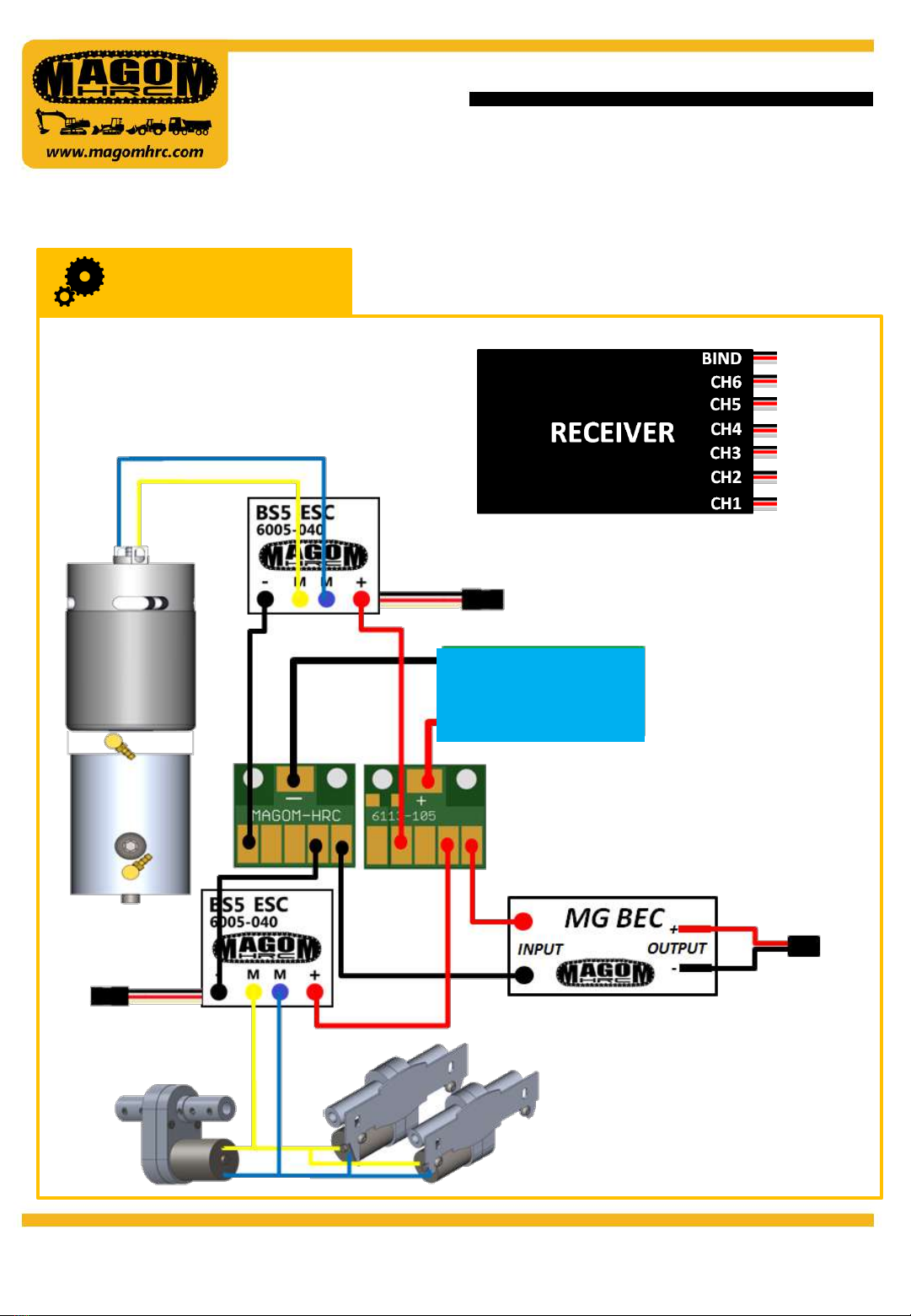

ELECTRONIC SCHEMA
VOLVO A60H - ELECTRONICS
TIPPER
STEERING
TRACTION
2008-XXX
LIGHTS
SOUND
PUMP
BIND
BIND
CH6
CH3 (if no
sound)
Reversing
module (if
sound)
LIPO
7.4V

CH 4
CH 3
Traction
BS5 ESC
UPPER FRONT
LIGHTS
BOTTOM FRONT
LIGHTS
REAR
LIGHTS

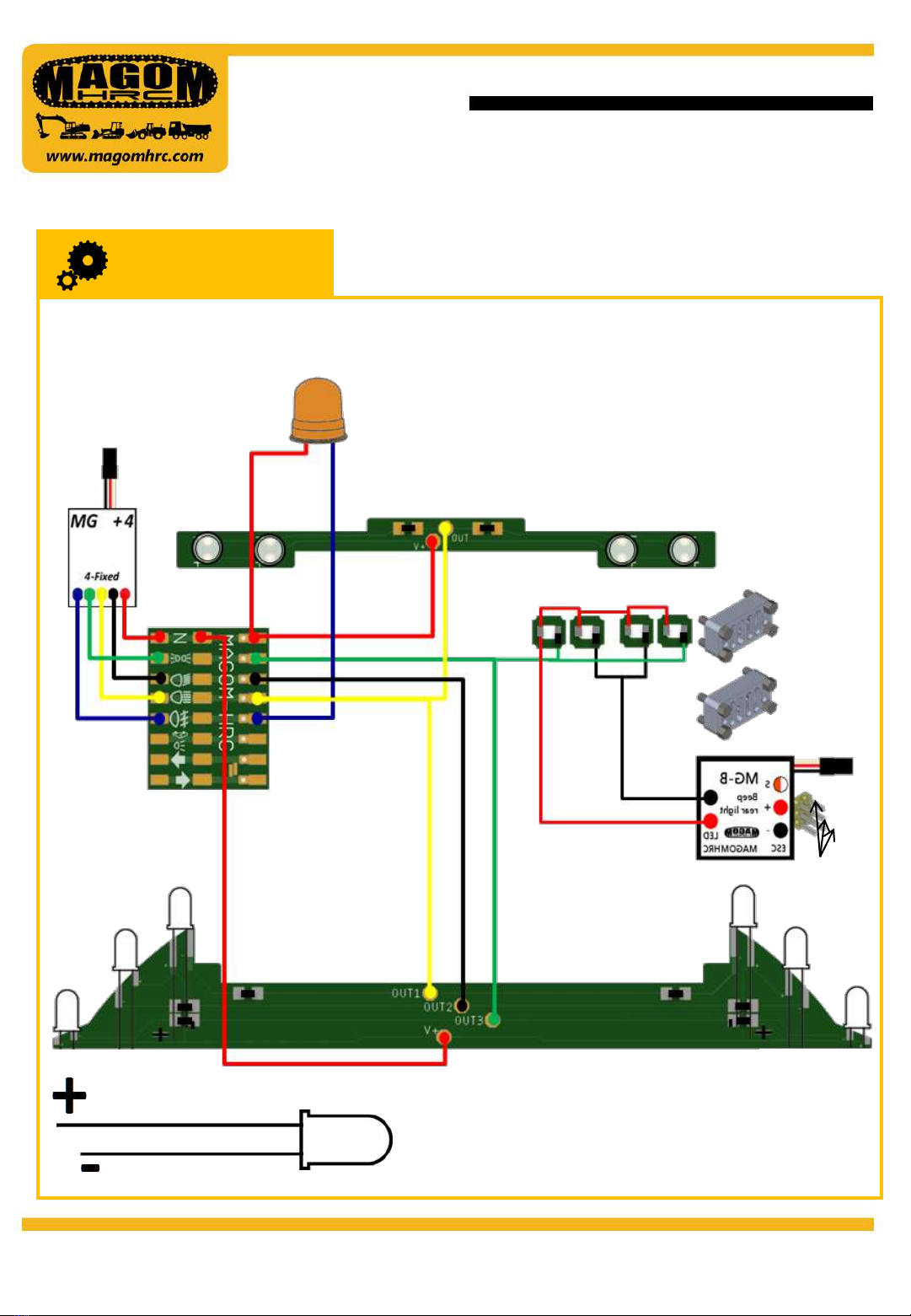

VOLVO A60H - ELECTRONICS LIGHTNING
www.magomhrc.com
2008-XXX
LIGHTING DIAGRAM
Please note that this product is not a toy and not suitable for youngters under the age of 16. Technical details may be
subject to changes and modifications. All images and designs are property of MAGOM HRC. For any doubts or
questions, please contact us throught i[email protected].
Long leg: positive
Short leg: negative

CH3
Speaker
CH5
BATTERY
www.magomhrc.com
3050XX-XXX

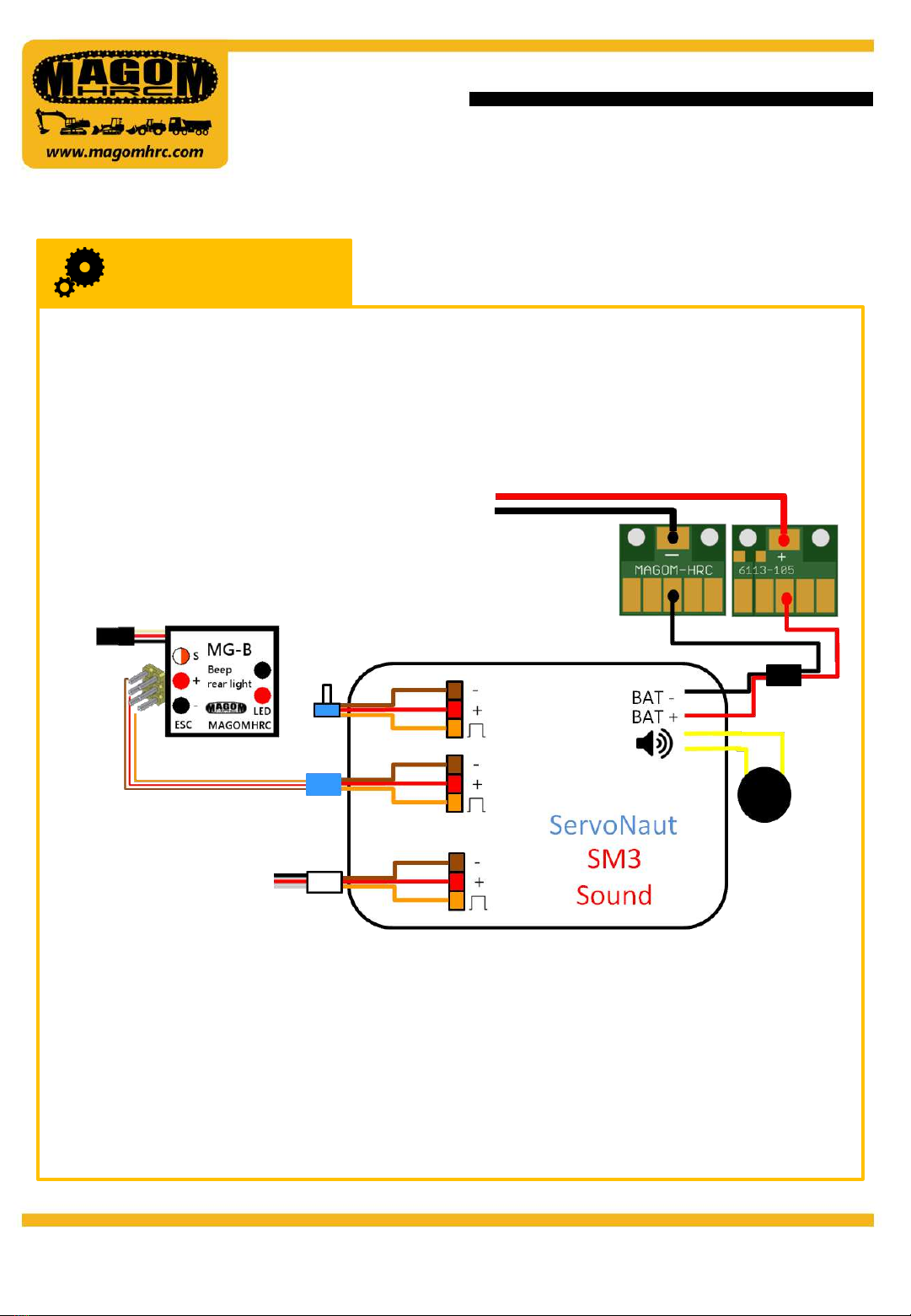

VOLVO A60H - ELECTRONICS + SOUND
Please note that this product is not a toy and not suitable for youngters under the age of 16. Technical details may be
subject to changes and modifications. All images and designs are property of MAGOM HRC. For any doubts or
questions, please contact us throught www.magomhrc.com.
ELECTRONIC SCHEMA
LIPO BATTERY
11.1V
BATTERY
BATTERY
Volume
Potentiometer

ATTACHMENTS
HYDRAULICS
ELECTRONICS
www.magomhrc.com
Please note that this product is not a toy and not suitable for youngsters under the age of 16. Technical details may be
subject to changes and modifications. All images and designs are property of MAGOM HRC. For any doubts or
questions, please contact us throught www.magomhrc.com.

Please note that this product is not a toy and not suitable for youngters under the age of 16. Technical details may be
subject to changes and modifications. All images and designs are property of MAGOM HRC. For any doubts or
questions, please contact us throught www.magomhrc.com.
www.magomhrc.com
503011-302
HYDRAULIC BRUSHED PUMP WITH TANK
SPECS:
•Max pressure: 25 bar.
•Recommended working pressure: 5-14 bar.
•Voltage: 11.1V.
REQUIRED:
•Hydraulic oil. We recommend MAGOM HRC oil (5050-001).
Motor gear 3.14 mm
MG-913-C024120
Idle gear 3.05 mm
MG-913-C019457
INSTRUCTIONS
Motor rotation
Remove the filling screw, fill
the tank and purge the
system. Once the system is
completely purged, fill the
tank with the recommended
oil level.
Oil level
EXPLODED VIEW
M3x12
(x4)
M3x10
(x2)

www.magomhrc.com
504099-309
2-WAY VALVE M3 V2 –VOLVO A60H
Connect 1A-1B to hydraulic cylinder Nr 1.
Connect 2A-2B to hydraulic cylinder Nr 2.
Connect 3A-3B to hydraulic cylinder Nr 3.
Connect 4A-4B to hydraulic cylinder Nr 4.
SCHEMA
SPECS
•2-way hydraulic valve (to control TWO movements).
•Pressure: Up to 30 bars.
•Recommended working pressure: 5-18 bars.
REQUIRED:
•2 x micro-servo. We recommend HXT 900 (6003-001).
•Hydraulic oil. We recommend MAGOM HRC hydraulic oil (5050-001).
MICRO SERVO ASSEMBLY
14 mm
Cut the servo horn as
shown in the picture.
STEP 1
Total length must be 14 mm.
Working angle is
about 60º, same as
servo angle.
At the neutral point, the valve is closed.
Please note that this product is not a toy and not suitable for youngters under the age of 16. Technical details may be
subject to changes and modifications. All images and designs are property of MAGOM HRC. For any doubts or
questions, please contact us throught www.magomhrc.com.
STEP 3
1. Mount the horn to the servo without screw.
2. Attach the servo to the valve (If necessary, loosen the valve tabs
before screwing the servo to find the midpoint and then retighten the
valve screws).
3. Servo horn must not press the rotating valve.
1. Connect the servo to the receiver.
2. With the station on and the receiver powered, move the servo to the
neutral position with SUBTRIM / TRIM to position 0.
3. Place the valve rotor in the NEUTRAL POINT (see diagram).
STEP 2

Please note that this product is not a toy and not suitable for youngters under the age of 16. Technical details may be
subject to changes and modifications. All images and designs are property of MAGOM HRC. For any doubts or
questions, please contact us throught www.magomhrc.com.
EXPLODED VIEW
www.magomhrc.com
FINAL VIEW
504099-309
2-WAY VALVE M3 V2 –VOLVO A60H

Please note that this product is not a toy and not suitable for youngters under the age of 16. Technical details may be
subject to changes and modifications. All images and designs are property of MAGOM HRC. For any doubts or
questions, please contact us throught www.magomhrc.com.
10 MM HYDRAULIC CYLINDER FOR 3MM HOSE
www.magomhrc.com
SPECS
•Max Pressure: 20 bar.
•M3 connectors to use with 3mm hose.
INSTRUCTIONS
•We recommend to use MAGOM HRC hydraulic oil (5050-001).
•Clean the cylinder every 30 hours of use.
EXPLODED VIEW
502010-001
