Operating Instructions
EK / EKK 43
”Powerful Combination“
EK 43
EKK 43

LADENMÜHLEN | SHOP GRINDER
Dear Customer,
with the “EK 43” or “EKK 43“ you have purchased a grinder in the well-
known MAHLKÖNIG quality.
Our over 80 years of experience in the production and development of
grinders have helped us to develop a new product in the MAHLKÖNIG
company.
As usual, this product guarantees top-quality by grinding of all types of
coffee, spices and grains.
Before putting the device into service, please read these operating in-
structions including the safety instructions carefully and observe them
at all times. Also instruct your personnel accordingly.
Enclosed you will find many useful tips that will make it easier for you
to use the grinder. Keep these operating instructions in a safe, easily ac-
cessible location. In case of any unclear points or additionally required
information, please contact your local dealer or us directly as the manu-
facturer.
MAHLKÖNIG GmbH & Co. KG
2

LADENMÜHLEN | SHOP GRINDER
7. Operating Faults 9
8. Grind Adjustment Calibration 11
9. Cleaning the Grinder 11
9.1 Cleaning with GRINDZ™ Grinder Cleaner 12
9.2 Cleaning the Grinder Casing 12
9.3 Cleaning the Grinding Mechanism 12
10. Maintenance and Repair 13
10.1 Grinding Disc Replacement 13
11. Spare Parts 14
12. Wiring Diagrams 14
13. Certificates 16
14. Warranty Conditions 17
Table of Contents
1. Safety 4
1.1 Symbols 4
1.2 Safety Instructions 4
1.3 Purpose of Use 5
1.4 User Requirements 5
2. Technical Data 5
3. Description 6
4. Safety Devices 7
5. Setting Up and Basic Adjustment 7
5.1 Setting-up area 7
5.2 Installation 7
6. Operation 8
6.1 How to use the grinder 8
6.2 What can be ground? 9
3

LADENMÜHLEN | SHOP GRINDER
Never operate the grinder in moist or, even worse, in wet sur-
roundings.
Never put your fingers or objects into the rotating grinding mech-
anism underneath the hopper.
Always pull the power supply plug out of the outlet before carry-
ing out any maintenance or cleaning work on the device.
Never put the device into service with a defective power supply
cable. Check the device regularly for any signs of damage on the
power supply cable, plug, finger protector, etc.
Any repairs that may be required are only allowed to be carried
out by experts. Please contact an authorised customer service
centre, your local dealer or us directly as the manufacturer.
Do not exceed the permissible maximum operating period of 40
minutes. Afterwards, allow the motor to cool down for approx.
30–40 minutes.
When unpacking the device, please check to determine whether
the power supply voltage (volts) corresponds to the device volt-
age on the rating plate.
Children do not recognise the risks that may arise when handling
electrical devices; therefore never leave children alone with elec-
trical devices without proper supervision.
1. Safety
Please read and observe the following operat-
ing instructions carefully. Non-observance can
result in damage to the device as well as in
health-threatening risks for the user.
1.1 Symbols
The following two symbols are used in this manual of operating
instructions:
Safety instruction:
In case of non-observance, extreme risk of acci-
dents exists.
General instruction:
In case of non-observance, the device can be-
come damaged or optimum operation not be
guaranteed.
1.2 Safety Instructions
Never use the grinding mechanism to grind other products or ob-
jects. Ground material is never allowed to be filled into the hop-
per.
Do not carry out any modifications or changes on the grinder. In
case of non-observance, the manufacturer shall be liable for re-
sulting damage in no case whatsoever. 4

LADENMÜHLEN | SHOP GRINDER
2. Technical Data
Description EK43, EL43, EM43,
EG43, EP43, EKK43,
EGL43, EGM43, EKM43,
EML43, EPP43
Voltage/Frequenzy 230V / 50Hz
115V / 60Hz
RPM
@ 50 Hz 1480 rpm.
@ 60 Hz 1740 rpm.
Sound emission
Idle operation 60 dB
Operation 87 dB
Pre-fuse 16 A-slow
Overload circuit breaker
230V 7A T
115V 12A T
Permissible max. operating
time of the grinder 40 minutes
Dimensions in mm
EK 43 B 230, T 410, H 770
EKK 43 B 230, T 590, H 770
Net-weight
EK 43 24 kg
EKK 43 28 kg
Hopper capacity
EK 43 1500 g
EKK 43 2 x 1500 g
(Please ask the manufacturer or dealer for technical data on other voltages and frequencies.)
Never immerse the device in water and do not
operate it with wet hands.
1.3 Purpose of Use
You can only use the grinder you have purchased to grind the
goods for which the grinder has been designed. Please make sure
that only clean and whole coffee beans are ground. Never use the
grinder to grind any other products or objects.
Example:
You can use the EGM 43 combination
grinder (with different grinders) to
grind grain on one side and poppy
seeds on the other.
1.4 User requirements
No special requirements are specified for the users of this device.
It is, however, assumed that this manual of operating instruc-
tions has been carefully read and understood and that all instruc-
tions provided in this manual will be observed. In addition, work-
ing with the device on a safety-conscious basis is also expected.
5

LADENMÜHLEN | SHOP GRINDER
3. Description
The main components and operating elements are shown in the
figure.
Pos. 1 Hopper
Pos. 2 Adapter with hopper slider
Pos. 3 Grind adjustment
Pos. 4 Bag holder
Pos. 5 Bag holder handle
Pos. 6 Reset button
Pos. 7 ON switch “I”, green
Pos. 8 OFF switch “0”, red
Pos. 9 Base
Pos. 10 Residue tray
1
3
4
9
10
2
5
6
7
8
6

LADENMÜHLEN | SHOP GRINDER
5. Setting-up and Basic Adjustment
A grinding test run is carried out on each grinder in the manufac-
turer‘s factory. This is why you may find ground material residue
in the grinding mechanism!
5.1 Setting-up Area
Place the grinder on a level surface free from vibration.
Never operate the grinder in moist, or even
worse, in wet surroundings.
5.2 Installation
You have received your grinder in operating condition. Now you
only need to connect it to a power supply system. Proceed as fol-
lows:
Protect your device with a separate pre-fuse
(not included in the scope of supplies) according
to the information provided in „Technical data“
under 2.
Make sure that the pre-fuse is not overloaded
by other consuming devices (e.g. fan-forced
heaters, deep freezers).
4. Safety Devices
Thermal overload circuit breaker
The motor of the grinder is protected by an overload circuit
breaker, which interrupts the electric circuit of the motor when
the device is subjected to electric overloading. To be able to re-
start the grinder, the reset button on the side of the casing must
be pressed.
The user has no influence whatsoever on this
operation. In case of repeated tripping of the cir-
cuit breaker, an expert must be consulted since
this could cause damage to the motor winding.
Motor protector (winding shield)
The grinder is protected against thermal overloading by a motor
protector (thermostat, inserted in the winding). Whenever the
winding of the motor heats up to an impermissible level, the mo-
tor protector interrupts the electric circuit of the motor.
Following a cool-off phase (approx. 1 hr.), the motor protector is
switched on again automatically and the grinder can be re-start-
ed.
7

LADENMÜHLEN | SHOP GRINDER
Determine whether the mains voltage and fre-
quency correspond to the information on the
rating plate.
Insert the plug into the available grounded outlet.
6. Operation
6.1 How to use the grinder
1. By moving the rotary knob (pos.3), set the required grind de-
gree (to the left for coarse grind, to the right for finer grind).
2. Only fill whole coffee beans (unground material) into the
hopper (pos.1). Close the hopper.
3. Press the handle of the bag holder down (pos.5) and push the
completely opened bag, which has been smoothed along the
folds, over the spout. Let go of the handle and the bag is held
firmly in position.

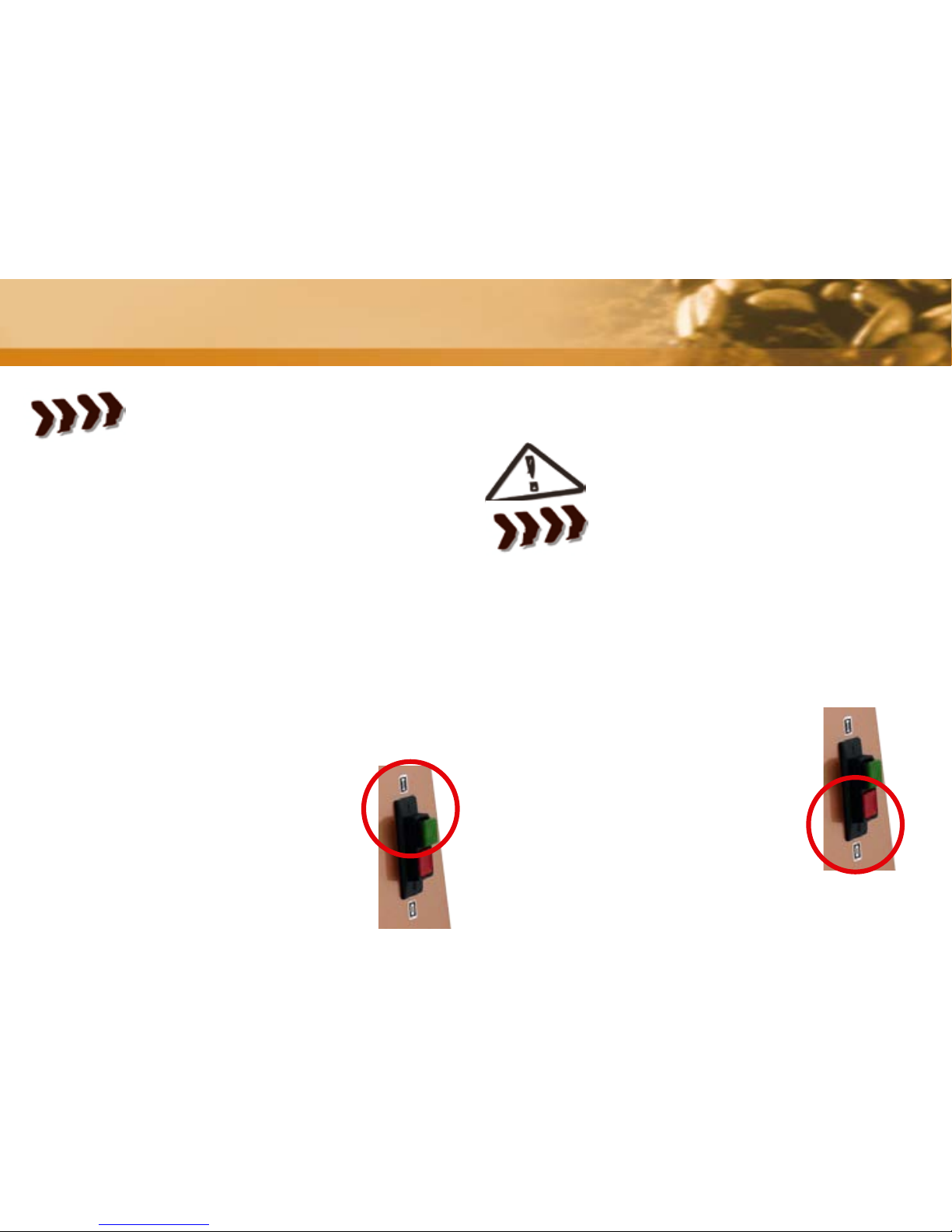

4. Now you can switch on the grinder (pos.7).
Knock the base of the bag a number of times whilst grinding. This
allows the maximum capacity of the bag to be used.
In the case of the combination grinder, by turn-
ing the combined On / Off - selection switch you
can select the grinder you wish to use.
You can only grind on the side of the grinder
casing side you have selected. You cannot grind
on both sides at the same time.
5. Once all material has been ground, hold the bottom of the
bag gently in one hand. Use the other hand to press the han-
dle of the bag holder and allow it to knock against the spout
2 – 3 times. This removes any ground particles which may
still be attached to the inside of the spout
6. Now switch off the grinder (pos. 8)
7. Remove the filled bag from the spout. The grinding process is
terminated. Close the main hopper slider.
8

LADENMÜHLEN | SHOP GRINDER
6.2 What can be ground?
Grinder products which can be ground
EK 43 Coffee
EL 43 Linseed
EM 43 Poppy seed
EG 43 Grain
EP 43 Spices
EKK 43 Coffee / Coffee
EGL 43 Grain / Linseed
EGM 43 Grain / Poppy seed
EKM 43 Coffee / Poppy seed
EML 43 Poppy seed / Linseed
EPP 43 Spices / Spices
Defect
The grinder hums
but does not grind.
7. Operating faults
Cause
The spout is
clogged.
Grinding is set too
fine.
A foreign object
is in the grinding
mechanism.
Remedy
Set grinding fineness to
„coarse“ and trigger the
grinding process. The grind-
er will then grind itself free.
Afterwards, return the set-
ting to the desired grinding
fineness.
Turn the grinding fine-
ness setting to the right,
to „coarse“, and trigger the
grinding process. The grind-
er will then grind itself free.
Afterwards, return the set-
ting to the desired grinding
fineness.
Clean the grinding mecha-
nism as described and re-
move the foreign object.
Observe the safety instruc-
tions!
9

LADENMÜHLEN | SHOP GRINDER
Defect
The grinder does
not start.
Defect
Grinder rotates but
without grinding..
In case of other malfunctions or continued faults, please contact your
dealer or your authorised customer service centre.
Cause
The power supply
plug is not inser-
ted.
The overload cir-
cuit breaker has
been tripped.
The motor protec-
tor was tripped.
The pre-fuse was
tripped.
Cause
Carrier breakage.
Incorrect sense of
rotation.
Remedy
Insert the plug into the out-
let.
Check to determine wheth-
er the reset button of the
circuit breaker has jumped
out. Press the reset button
in again if appropriate. In
case of repeated tripping of
the circuit breaker, contact
your authorised customer
service centre or dealer.
Give the grinder a cooling-
off break of approx. 1 hr.
Check the pre-fuse. Restore
the pre-fuse to its initial
state or replace it. Deter-
mine whether other con-
suming devices are also
connected to this fuse.
Remedy
Remove the grinder casing
cover, take out the broken
pieces of the driver, insert a
new driver and then install
the grinder casing cover
again.
Have the polarity checked
by specialised personnel.
10

LADENMÜHLEN | SHOP GRINDER
8. Grind Adjustment Calibration
The grinder has been precisely adjusted by the manufacturer.
However, if the ground material is no longer fine enough after a
longer period, the grinder must then be re-adjusted according to
the following procedure:
1. Turn the rotary knob to position 1 ”fine”. Loosen the two
threaded pins by approx. 1 rotation using the 3 mm hexagon
spanner enclosed in delivery. The two threaded pins are posi-
tioned in the drilled holes of the rotary knob.
2. Now switch on the grinder.
3. Using a screwdriver or coin, carefully turn the large adjust-
ment screw with the slot to the right until you hear a rat-
tling noise (grinding disc are touching). Turn the adjustment
screw back by approx. 10 degrees and the rattling sound
should stop.
4. If you grind some beans now, you should get fine grains (in
the case of coffee). If the coffee beans have been ground
too fine, the discs can stick together. The grinder would be
blocked.
It is important that the rattling sound cannot be
heard in the finest grinding position. Otherwise
the service life of the grinding discs is reduced
considerably!
5. If the adjustment you have made does not come up to your
expectations you can adjust the grind degree as described
above.
9. Cleaning the Grinder
Always pull the power supply plug out of the
outlet before carrying out any maintenance or
cleaning work on the device!
Observe the safety instructions under 1.2!
Do not let any foreign objects fall into the
grinding mechanism!!
11

LADENMÜHLEN | SHOP GRINDER
11
13
12
9
10
9.1 Cleaning with GRINDZ™ Grinder Cleaner
We recommend cleaning your shop grinder once a month with
our GRINDZ™ Grinder Cleaner.
Simply take the recommended dose of 70 - 80g for shop grind-
ers and drop it into the empty grinder hopper. You can also use
the cap of the jar for dosing. A full cap will yield between 35 - 40
grams.
Adjust the machine setting to medium and operate like standard
grinding procedure. Once complete, we recommend passing
twice as much original material through to purge any residue.
9.2 Cleaning the grinder casing
Clean the casing of your grinder every now and then with com-
mercially available mild cleaning agents. In addition, you should
also clean the hopper from time to time.
Do not let any foreign objects fall into the grind-
ing mechanism!!
9.3 Cleaning the grinding mechanism
Pull out the power supply plug !
1. Rotate the rotary knob (11) to „coarse“.
2. Unscrew the two screws (13) on the grinder casing cover (12)
and then remove this cover.
3. Take the carrier (10) out of the slot of the pre-breaker.
4. Pull the pre-breaker (9) off the motor shaft. Use a screw driv-
er. 12

LADENMÜHLEN | SHOP GRINDER
5. Clean the grinding mechanism with a fine brush and remove
any foreign objects.
6 Before pushing the pre-breaker (9) back onto the shaft again,
lubricate the shaft with non-corrosive, resin-free and food-
stuff- compatible grease (e.g. Vaseline).
7. After you have pushed the pre-breaker onto the shaft, line up
the two slots so that you can then easily re-insert carrier (10).
The rounded side of the driver must point to-
wards the motor.
8. Clean the contact surfaces of the grinder casing and grinder
casing cover (12) carefully in order to remove any form of soil-
ing.
During re-assembly, no ground material should
stick to the surfaces where the grinder casing
and the cover touch.
9. Screw down the cover (12) tightly with the two screws (13)
while changing the side several times.
11. Rotate the rotary knob to the desired grind degree. The grind-
er is now ready for operation again.
Poppy seed grinders shall be cleaned once a week!
10. Maintenance and Repair
Always pull the power supply plug out of the
outlet before carrying out any maintenance or
cleaning work on the device!
Check the device regularly for any signs of dam-
age on the power supply cable, plug, finger pro-
tector, etc.
Any repairs that may be required are only al-
lowed to be carried out by authorised experts.
Please contact an authorised customer service
centre or your local dealer.
10.1 Grinding Disc Replacement
If the grinding performance decreases and the ground products
are hot and irregular, you should change the grinding discs.
1. Take the grinder apart as described under “9” and remove the
grinding discs from the grinder casing and the pre-breaker
using a screwdriver.
2. Clean the surfaces of the new grinding discs thoroughly and
screw them in position tightly and evenly.
3. Close the grinder casing again as described under “9” and set
the grind degree again as described under “8”. 13

LADENMÜHLEN | SHOP GRINDER
11. Spare Parts
Spare parts are usually ordered from your customer service cen-
tre or your local dealer. To ensure quick, correct processing of your
order, the following information is absolutely required:
1. Type designation and serial number of the grinder
(on the rating plate on the rear side of the grinder).
2. Color of the grinder
12. Wiring Diagram EK 43 115V 60Hz
14

LADENMÜHLEN | SHOP GRINDER

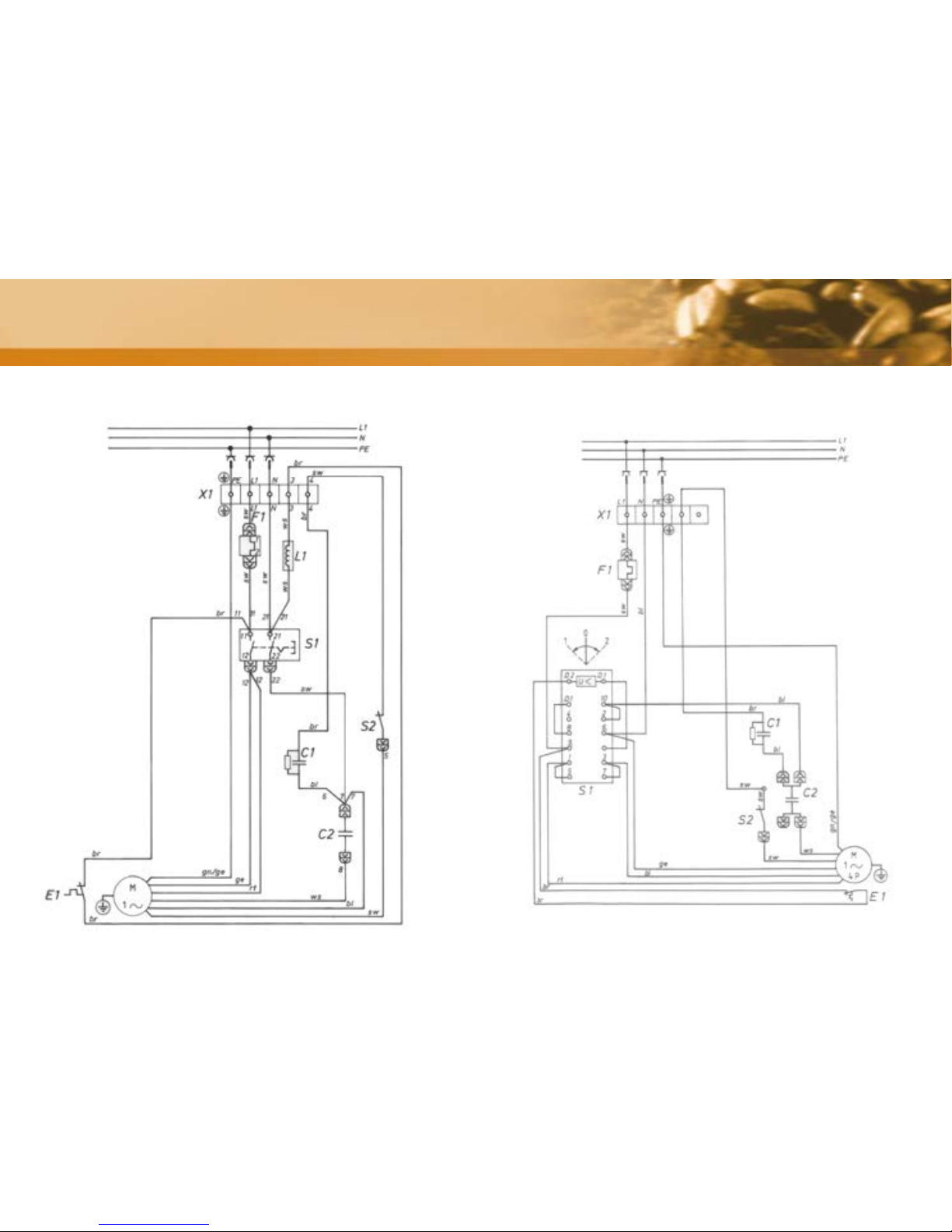

Wiring Diagram EK 43 230V 50Hz Wiring Diagram EKK 43 115V 60Hz
15

LADENMÜHLEN | SHOP GRINDER
13. Certificate
EC Declaration of Conformity
The manufacturer: MAHLKÖNIG GmbH & Co. KG
Tilsiter Straße 142
D - 22047 Hamburg
Tel.: [phone] - 0
Fax: [phone] - 1
hereby declares that the below mentioned product:
product type: device for food processing
machine description: Coffee grinder
machine typ: EKK43 / EGL43 / EGM43 / EKM43 / EPP43 / EML43
is in compliance with the following directives and regulations:
• The provisions of the Machinery Directive 2006/42/EG
• The Low Voltage Directive 73/23/EWG
• The EC Electromagnetic Compatibility Directive 2004/108/EG
• The Directive on the restriction of use of certain
hazardous substances in electrical and electronic equipment 2011/65/EU
• The EU chemicals regulation (REACH – Regulation) (EG) Nr. 1907/2006
Supplements in Europe:
Regulation 1935/2004 Requirements for materials and
the objects with Food comes into
contact
Documentation Agent: Sven Erdmann
Address of the proxy documentation: See the address of the manufacturer
Done in Hamburg on: 01.08.2013
Function of subscriber: General Manager
Name of signatory: Philipp Baumberger
Signature
MAHLKÖNIG GmbH & Co. KG, Amtsgericht Hamburg HR A 85 074; Persönlich haftende Gesellschafterin:
Beteiligungsgesellschaft MAHLKÖNIG mbH, Eingetragen Amtsgericht Hamburg HR B 45 324,
Geschäftsführer: Nils Erichsen, Philipp Baumberger, Jochen Christoph
Dresdner Bank AG (BLZ 200 800 00) Kto. 383 780 400, Postbank Hamburg (BLZ 200 100 20) Kto. 253 89-203,
Commerzbank AG (BLZ 200 400 00) Kto. 21 10 294, Ust. Id. Nr.: DE 118 37 22 65
Wiring Diagram EKK 43 230V 50Hz
16

LADENMÜHLEN | SHOP GRINDER
EC Declaration of Conformity
The manufacturer: MAHLKÖNIG GmbH & Co. KG
Tilsiter Straße 142
D - 22047 Hamburg
Tel.: [phone] - 0
Fax: [phone] - 1
hereby declares that the below mentioned product:
product type: device for food processing
machine description: Coffee grinder
machine typ: EK43 / EL43 / EM43 / EG43 / EP43
is in compliance with the following directives and regulations:
• The provisions of the Machinery Directive 2006/42/EG
• The Low Voltage Directive 73/23/EWG
• The EC Electromagnetic Compatibility Directive 2004/108/EG
• The Directive on the restriction of use of certain
hazardous substances in electrical and electronic equipment 2011/65/EU
• The EU chemicals regulation (REACH – Regulation) (EG) Nr. 1907/2006
Supplements in Europe:
Regulation 1935/2004 Requirements for materials and
the objects with Food comes into
contact
Documentation Agent: Sven Erdmann
Address of the proxy documentation: See the address of the manufacturer
Done in Hamburg on: 01.08.2013
Function of subscriber: General Manager
Name of signatory: Philipp Baumberger
Signature
MAHLKÖNIG GmbH & Co. KG, Amtsgericht Hamburg HR A 85 074; Persönlich haftende Gesellschafterin:
Beteiligungsgesellschaft MAHLKÖNIG mbH, Eingetragen Amtsgericht Hamburg HR B 45 324,
Geschäftsführer: Nils Erichsen, Philipp Baumberger, Jochen Christoph
Dresdner Bank AG (BLZ 200 800 00) Kto. 383 780 400, Postbank Hamburg (BLZ 200 100 20) Kto. 253 89-203,
Commerzbank AG (BLZ 200 400 00) Kto. 21 10 294, Ust. Id. Nr.: DE 118 37 22 65
14. Warranty Conditions
1. The warranty period is 1 year from the date of purchase.
2. The warranty covers all damages that can be attributed to
inferior materials or defective workmanship. Corresponding
grinders will be repaired or replaced free-of-charge, with the
exception of transport or freight charges. Transport is the re-
sponsibility of the customer. Therefore, avoid damages with
all returns by correct packing.
3. The grinder may only be opened for cleaning purposes in ac-
cordance with the Operating Instructions.
4. This warranty does not cover damages which have occurred
through: Improper usage, improper maintenance, lack of
servicing, usage for purposes other than those intended, in-
correct installation, incorrect voltage, breakage, natural wear
or for reasons beyond our sphere of influence.
5. In order to maintain the warranty, only original spare parts
and accessory parts may be used.
6. Observe in addition our General Delivery Conditions in their
respective current version.
7. The manufacturer is in no way liable for consecutive or sec-
ondary damages.
8. The warranty does not cover costs emerging from repairs
conducted by non-authorized personnel. 17

LADENMÜHLEN | SHOP GRINDER
Notes:
18

LADENMÜHLEN | SHOP GRINDER
Notes:
19

LADENMÜHLEN | SHOP GRINDER
The professional art of grinding
since 1924
MAHLKÖNIG GmbH & Co. KG
Tilsiter Straße 142
D- 22047 Hamburg, Germany
Tel.: +49 (0)40 / 69 69 40-0
Fax: +49 (0)40 / 69 39 721
offi[e-mail] ; www.mahlkoenig.de
August 2013
Subject to change without prior notice!!
