MAKFRY MDFE-300S User manual

USER MANUAL
WWW.MAKFRY.COM
MDFE-300S / MDFE-300D
OPEN FRYER

CONTENTS
1- GENERAL INFORMATION
2- PRODUCT INTRODUCTION
3- TECHNICAL SPECIFICATIONS
4- TRANSPORTATION AND STORAGE CONDITIONS
5- UNPACKING THE PACKAGE
6- PRE-INSTALLATION INFORMATION
7- INSTALLATION AND USAGE
7.1- ELECTRICAL CONNECTION OF MDFE 300S DEVICE
7.2- ELECTRICAL CONNECTION OF MDFE 300D DEVICE
7.3- DEVICE ACCESSORIES
8- DIGITAL CONTROL PANEL INTRODUCTION AND USAGE
9- INITIAL START-UP AND PUMP SYSTEM CLEANING
10-AUTOMATIC FILTRATION
11-CHANGING THE PAPER FILTER
12-ELECTRICAL DIAGRAM
13-WARRANTY CERTIFICATE AND TERMS

DEAR USER,
AS MAKFRY FAMILY, WE THANK YOU FOR CHOOSING OUR DEVICE AND FOR YOUR TRUST IN OUR
COMPANY. WE IMPORTANTLY REMEMBER YOU TO READ THE INSTRUCTIONS AND INFORMATION IN
THE USER MANUAL CAREFULLY AND HAVE YOUR USERS READ IT IN ORDER TO GET THE PRODUCT
SUITABLE FOR YOUR EXPECTATIONS AND TO USE IT FOR A LONG-TERM.
THE INFORMATION REGARDING THE INSTALLATION, USAGE AND MAINTENANCE OF THE PRODUCT
YOU HAVE PURCHASED IS INCLUDED IN THE USER'S MANUAL.
PLEASE READ THE USER MANUAL CAREFULLY BEFORE INSTALLING YOUR DEVICE. THE CONNECTION
NETWORK MUST BE PREPARED BY AUTHORIZED PERSONNEL IN ACCORDANCE WITH THE LEGAL
REGULATIONS. IF THE MAINS VOLTAGE TO THE ELECTRICAL CONNECTION OF YOUR DEVICE IS NOT IN
SUITABLE CONDITIONS, THE VOLTAGE OVER THE DEVICE'S CAPACITY WILL CAUSE FAILURE AND
YOUR DEVICE WILL BE OUT OF THE SCOPE OF WARRANTY.

1- GENERAL INFORMATION
THIS USER'S MANUAL CONTAINS INFORMATION ABOUT MAKFRY MDFE-300S / MDFE-300D
INSTRUCTIONS FOR USE, REQUIREMENTS AND COVERAGE OF WARRANTY.
CAREFULLY READ ALL INSTRUCTIONS AND WARNINGS IN THE USER'S MANUAL. THIS USER'S
MANUAL CONTAINS IMPORTANT INFORMATION ABOUT THE SAFE INSTALLATION, USE AND
MAINTENANCE OF YOUR PRODUCT.
THE MANUFACTURER CANNOT BE RESPONSIBLE FOR DAMAGES TO HUMAN, ENVIRONMENT OR
OTHER MATERIALS ARISING FROM PRINTING OR TRANSLATION OF THE USER'S MANUAL.
INCIDENTAL DAMAGE TO YOUR PRODUCT, NEGLIGENCE, DAMAGE DUE TO FAILURE TO FOLLOW
INSTRUCTIONS AND REGULATIONS OR WRONG CONNECTIONS AND UNAUTHORIZED INTERFERENCE
TO THE PRODUCT SHALL EXCEED THE PRODUCT WARRANTY PROCESS.
KEEP THIS USER MANUAL IN AN EASY ACCESS PLACE FOR USE IF NEEDED.

2- PRODUCT INTRODUCTION
MAKFRY MDFE-300S / MDFE-300D OPEN FRYERS ARE DESIGNED TO BE USED IN INDUSTRIAL
KITCHENS AND IT IS RECOMMENDED FOR USE BY PROFESSIONAL USERS.
3- TECHNICAL SPECIFICATIONS
PRODUCT:
MDFE 300S
DIMENSIONS
WIDTH:450 MM - DEPTH:750 MM –HEIGHT: 960 MM
ENERGY
380-400 V 13,5 kW 50-60HZ
WEIGHT
101 KG (GROSS)
TANK CAPACITY
30 LITER
OIL CAPACITY
18 LITER
COOKING CAPACITY
1 KG IN 2,5 MINUTES / 24 KG IN HOUR
PRODUCT:
MDFE 300D
DIMENSIONS
WIDTH :900 MM - DEPTH :750 MM –HEIGHT :960 MM
ENERGY
380-400 V 13,5X2 kW 50-60HZ
WEIGHT
153 KG (GROSS)
TANK CAPACITY
30X2 LITER
OIL CAPACITY
18X2 LITER
COOKING CAPACITY
1X2 KG IN 2,5 MINUTES / 24X2 KG IN HOUR

4- TRANSPORTATION AND STORAGE CONDITIONS
THE PRODUCT IS SPECIALLY PACKED AND SHIPPED IN A FORM. CARRY THE PRODUCT WITH THE
FORKLIFT FEET INSTALLED UNDER THE PALLET. IF THE TRANSPORT DISTANCE IS FAR, IT MUST BE
MOVED SLOWLY AND SUPPORTED BY AN ADDITIONAL PERSON TO AVOID LOSS OF BALANCE. DO
NOT KNOW OR DROP THE PRODUCT WHEN CARRYING IT. IF THE PRODUCT IS TO BE STORED
WITHOUT USING, IT SHOULD BE STORED WITHOUT OPENING ITS PACKAGING AND CASE. IF THE
PRODUCT IS TO BE USED AND STORED AGAIN, IT MUST BE PROTECTED BY CLEANING AND
PACKAGING
5- UNPACKING THE PACKAGE
CHECK THAT THE PRODUCT IS NOT DAMAGED DURING SHIPPING. CHECK THAT THE PARTS OF THE
PRODUCT ARRIVES COMPLETELY.
PARTS IN CONTACT WITH FOOD ARE MADE OF STAINLESS STEEL. PLASTIC PARTS IN CONTACT WITH
FOOD ARE MANUFACTURED ACCORDING TO FOOD REGULATIONS. ALL PLASTIC PARTS ARE MARKED
WITH THE MATERIAL SYMBOL.
DISPOSE THE PACKAGING MATERIALS OF THE PRODUCT AFTER INSTALLATION ACCORDING TO THE
SAFETY AND ENVIRONMENTAL CONDITIONS AND ACCORDING TO THE REGULATIONS OF THE
COUNTRY YOU ARE IN. TAKE THE RECYCLABLE MATERIAL (FOIL, CARTON, STYROFOAM, ETC.) INTO
THE RELEVANT RECYCLING BOXES. WHEN DISPOSAL OF ANY ELECTRICAL EQUIPMENT, MAKE IT
UNUSABLE BY CUTTING THE CABLE.

6- PRE-INSTALLATION INFORMATION
INSTALLATION MUST BE DONE BY AN AUTHORIZED TECHNICIAN ACCORDING TO THE INSTRUCTIONS
AND REGULATIONS. OUR COMPANY CANNOT BE LIABLE FOR ANY DAMAGES DUE TO INCORRECT
INSTALLATION.
IF THE PRODUCT FAILS, TURN OFF THE PRODUCT. ONLY A SERVICE AUTHORIZED BY THE
MANUFACTURER MUST PROVIDE THE PRODUCT.
FAULTS MUST BE REPLACED WITH ORIGINAL SPARE PARTS. THE PARTS LIST IS ALSO STATED IN THE
BOOKLET.
THE FLOOR ON THE PRODUCT MUST BE FLAT. NECESSARY PRECAUTIONS MUST BE TAKEN AGAINST
THE RISKS OF THE PRODUCT TO TURNOVER.
THE PRODUCT MUST BE CONNECTED TO THE MAIN NETWORK BY AN AUTHORIZED ELECTRICAL
TECHNICIAN ONLY IN ACCORDANCE WITH THE LAW AND REGULATIONS. MAKE SURE THAT THE
POWER FROM THE MAIN NETWORK WILL MATCH THE POWER OF THE PRODUCT. MAKE THE
GROUND CONNECTION OF THE PRODUCT ACCORDING TO THE STANDARDS AND SAFETY RULES.
GROUNDING OF THE PRODUCT MUST BE CONNECTED TO THE EARTH LINE ON THE NEAREST PANEL
OF THE ELECTRICAL INSTALLATION. THE PRODUCT ELECTRICAL CONNECTION, MAIN FUSE AND
LEAKAGE FUSE MUST COMPLY WITH THE APPLICABLE REGULATIONS AND RULES.

7- INSTALLATION AND USAGE
7.1-ELECTRICAL CONNECTION OF MDFE 300S DEVICE
THE ELECTRICAL CONNECTION OF YOUR MACHINE SHOULD BE MADE BY AN AUTHORIZED
PERSONNEL. THE POWER VALUES AND CONNECTION DIAGRAM ON THE DEVICE SHOULD BE
CONSIDERED DURING CONNECTION. THE MACHINE CONSUMES
A TOTAL OF 13.5 KW OF ENERGY, WITH 3X4.5 KW. THE DEVICE
IS SHIPPED WITH THREE-PHASE CABLE FROM THE FACTORY.
ANY INCORRECT APPLICATION, SUCH AS TAKING NEUTRAL
FROM THE EARTH LINE, WILL CAUSE THE DEVICE TO BE
OUTSIDE OF THE WARRANTY COVERAGE AND MALFUNCTION.
THE CONNECTION DIAGRAM IS AS FOLLOWS:
WARNING: INCORRECT CONNECTION WILL RESULT IN DEVICE
FAILURE AND EXCLUSION FROM WARRANTY COVERAGE.
*IF USING A PLUG/OUTLET, MAKE SURE IT IS AT LEAST 32 AMPS.
*ALWAYS BRIDGE THE PHASE WITH A PORCELAIN TERMINAL.
*IF YOU ARE CONFUSED, ALWAYS SEEK TECHNICAL SUPPORT
BEFORE MAKING CONNECTIONS.

7.2-ELECTRICAL CONNECTION OF MDFE 300D DEVICE
THE ELECTRICAL CONNECTION OF YOUR MACHINE SHOULD BE MADE BY AN AUTHORIZED
PERSONNEL. THE POWER VALUES AND CONNECTION DIAGRAM ON THE DEVICE SHOULD BE
CONSIDERED DURING CONNECTION. THE MACHINE CONSUMES
A TOTAL OF 13.5 KW OF ENERGY, WITH 3X4.5 KW. THE DEVICE
IS SHIPPED WITH THREE-PHASE CABLE FROM THE FACTORY.
ANY INCORRECT APPLICATION, SUCH AS TAKING NEUTRAL
FROM THE EARTH LINE, WILL CAUSE THE DEVICE TO BE
OUTSIDE OF THE WARRANTY COVERAGE AND MALFUNCTION.
THE CONNECTION DIAGRAM IS AS FOLLOWS:
WARNING: INCORRECT CONNECTION WILL RESULT IN DEVICE
FAILURE AND EXCLUSION FROM WARRANTY COVERAGE.
*IF USING A PLUG/OUTLET, MAKE SURE IT IS AT LEAST 32 AMPS.
*ALWAYS BRIDGE THE PHASE WITH A PORCELAIN TERMINAL.
*IF YOU ARE CONFUSED, ALWAYS SEEK TECHNICAL SUPPORT
BEFORE MAKING CONNECTIONS.

7.3-DEVICE ACCESSORIES
THE ACCESSORY LIST FOR THE DEVICE IS AS FOLLOWS
FACTORY SETTINGS OF THE PROGRAMS
FACTORY SETTINGS ON THE DIGITAL PANEL
STANDBY
NO TIME –160 °C
PROGRAM 1
5 MIN. –180 °C
PROGRAM 2
6 MIN.–180 °C
PROGRAM 3
7 MIN.–180 °C
PROGRAM 4
8 MIN. –180 °C
PROGRAM 5
9 MIN. –180 °C
PROGRAM 6
9 MIN. –180 °C
DEVICE ACCESSORY LIST
MDFE 300 S
MDFE 300 D
BASKET
2 PIECES
4 PIECES
PAPER FILTER
25+1 PIECES (1 FILTER
ASSEMBLED IN EACH)
25+1 PIECES (1 FILTER ASSEMBLED
IN EACH)
PAPER FILTER HOOK
2 PIECES
2 PIECES
CLEANING BRUSH - CURVED
1 PIECE
1 PIECE
CLEANING BRUSH - STRAIGHT
1 PIECE
1 PIECE
USER MANUAL & WARRANTY CARD
1 PIECE
1 PIECE
FILTER REPLACEMENT PIPE REMOVAL
KEY
1 PIECE
1 PIECE
WARNING: BE SURE TO REMOVE THE ACCESSORIES FROM INSIDE THE MACHINE BEFORE THE FIRST
COOKING.

8- DIGITAL CONTROL PANEL INTRODUCTION AND USAGE
1- ON-OFF / POWER SWITCH
THIS SWITCH IS USED TO TURN YOUR DEVICE ON AND OFF WHEN IT IS PLUGGED INTO THE
POWER OUTLET.
2- DIGITAL DISPLAY PANEL: THIS IS THE DIGITAL DISPLAY WHERE YOU CAN SEE THE SETTINGS
OF THE FRYER, SUCH AS COOKING TIME AND PROGRAMMING.

3- COOK BUTTON: TO USE THE FRYER IN COOK MODE, YOU FIRST NEED TO TURN OFF IDLE
MODE AND SELECT THE DESIRED COOKING PROGRAM (1-6). PRESS THE COOK BUTTON
ONCE TO START COOKING IN THE SELECTED PROGRAM.
NOTE: PRESSING AND HOLDING THE COOK BUTTON ENTERS THE PROGRAMMING MODE
FOR ACCESSING THE SETTINGS PAGES.
4- STANDBY BUTTON: THIS BUTTON PUTS THE FRYER IN STANDBY MODE.
5- LEFT BUTTON: THIS BUTTON IS USED TO SET THE COOKING TIME FOR THE LEFT BASKET.
6- RIGHT BUTTON: THIS BUTTON IS USED TO SET THE COOKING TIME FOR THE RIGHT BASKET.
7- PUMP BUTTON: THIS BUTTON IS USED TO SWITCH TO THE PUMP PROGRAM..
8- BUTTON “1”: THIS BUTTON REPRESENTS PROGRAM 1 AND DISPLAYS THE TEMPERATURE
AND COOKING TIME VALUES ASSIGNED TO IT..
9- BUTTON “2”: THIS BUTTON REPRESENTS PROGRAM 2 AND DISPLAYS THE TEMPERATURE
AND COOKING TIME VALUES ASSIGNED TO IT.
10-BUTTON “3”: THIS BUTTON REPRESENTS PROGRAM 3 AND DISPLAYS THE TEMPERATURE
AND COOKING TIME VALUES ASSIGNED TO IT.
11-BUTTON “4”: THIS BUTTON REPRESENTS PROGRAM 4 AND DISPLAYS THE TEMPERATURE
AND COOKING TIME VALUES ASSIGNED TO IT.
12-BUTTON “5”: THIS BUTTON REPRESENTS PROGRAM 5 AND DISPLAYS THE TEMPERATURE
AND COOKING TIME VALUES ASSIGNED TO IT.
13-BUTTON “6”: THIS BUTTON REPRESENTS PROGRAM 6 AND DISPLAYS THE TEMPERATURE
AND COOKING TIME VALUES ASSIGNED TO IT.
14-CANCEL BUTTON: THIS BUTTON IS USED TO CANCEL AN OPERATION OR TO TURN OFF THE
ALARM SOUND.

15-UP BUTTON: THIS BUTTON IS USED TO INCREASE THE DIGIT VALUE ON THE PARAMETER
CHANGE SCREEN WHEN THE CURSOR IS ON IT.
16-ENTER BUTTON: THIS BUTTON IS USED TO SAVE THE PARAMETER VALUES AND RETURN TO
THE MAIN SCREEN WHEN ON THE PARAMETER CHANGE SCREEN.
17-DOWN BUTTON: THIS BUTTON IS USED TO DECREASE THE DIGIT VALUE ON THE
PARAMETER CHANGE SCREEN WHEN THE CURSOR IS ON IT.

9- INITIAL START-UP AND PUMP SYSTEM CLEANING
BEFORE ADDING OIL TO YOUR FRYER, WHICH YOU HAVE CONNECTED TO ELECTRICITY AND IS READY
TO OPERATE, IT IS NECESSARY TO TEST IT WITH WATER AND MAKE SURE THAT THE PUMPED WATER
IS CIRCULATING FOR HYGIENE PURPOSES, ESPECIALLY IF THE WATER HAS BEEN BOILED. TO DO THIS,
FOLLOW THE STEPS BELOW IN ORDER:
1- CLOSE THE EMPTYING AND PUMP VALVES LOCATED ON THE FRONT COVER.
2- FILL THE COOKING POT WITH WATER UP TO THE OIL LEVEL LINE (2 FINGERS ABOVE THE
RESISTORS). YOU CAN ALSO ADD A SMALL AMOUNT OF SOAP IF YOU WISH.
3- TURN ON THE SELECTOR SWITCH ON THE CONTROL PANEL. PRESS THE COOK BUTTON.
4- AFTER THE CONTROL PANEL IS TURNED ON, PRESS THE STANDBY BUTTON. YOUR WATER WILL
START TO HEAT UP.
5- WHEN THE WATER IS HEATED AND BOILING, YOU SHOULD SEE 100°C ±2 ON THE DIGITAL PANEL.

6- PRESS THE COOK BUTTON AGAIN.
7- OPEN THE EMPTYING VALVE LOCATED ON THE FRONT COVER AND LET THE WATER DRAIN
COMPLETELY FROM THE POT. DURING THIS PROCESS, YOU CAN CLEAN THE RESISTOR GAPS WITH
AUXILIARY BRUSHES.
8- AFTER THE DRAINING PROCESS IS COMPLETED, CLOSE THE EMPTYING VALVE AND OPEN THE
PUMP VALVE.
9- PRESS THE PUMP BUTTON.
10- PRESS THE ENTER BUTTON. YOUR PUMP WILL START TO PUMP THE WATER FROM THE OIL
DRAINING CONTAINER TO THE COOKING POT.
11- WHEN AIR BUBBLES BEGIN TO RISE FROM THE PUMP TO THE COOKING POT, PRESS THE ENTER
BUTTON AGAIN.
12- CLOSE THE PUMP VALVE.
13- REMOVE THE OIL DRAINING CONTAINER AND EMPTY ANY REMAINING WATER. DRY IT
THOROUGHLY. (OIL AND WATER MUST NOT MIX.)
14- PLACE ANOTHER BUCKET INSTEAD OF THE OIL DRAINING CONTAINER AND DISCHARGE THE
WATER IN THE COOKING POT.
15- DRY AND RINSE THE COOKING POT THOROUGHLY. (OIL AND WATER MUST NOT MIX.)
16- TURN OFF THE MAIN SWITCH.
17- REPEAT ALL STEPS TWICE IN ORDER.

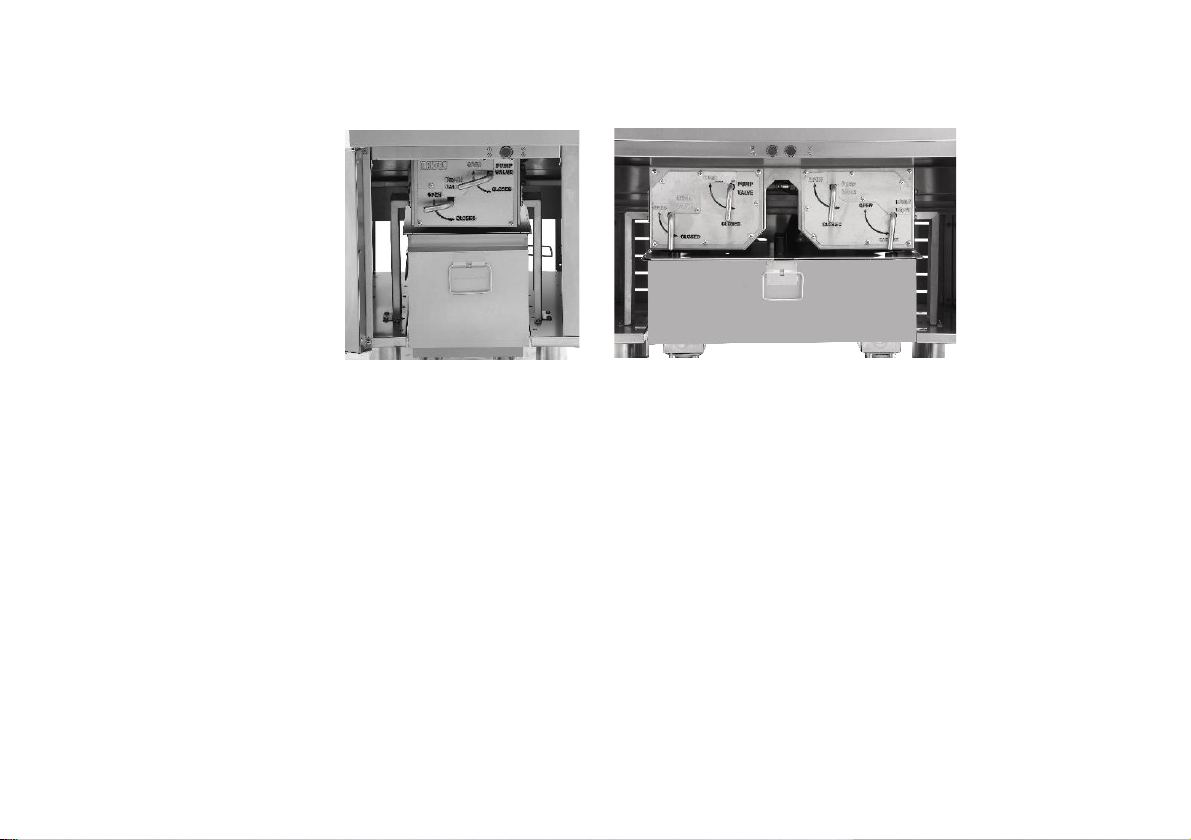

10-AUTOMATIC FILTRATION
BE SURE TO HAVE A FILTER PAPER INSTALLED IN YOUR FRYER BEFORE STARTING THE
FILTRATION PROCESS. FOLLOW THE STEPS BELOW FOR THE FILTRATION PROCESS:
1- TURN THE DRAIN VALVE OF YOUR FRYER FROM THE CLOSED POSITION TO THE OPEN
POSITION..
2- THE LIQUID OIL IN THE COOKING TANK WILL BE EMPTIED INTO THE OIL TANK. CLEAN THE
RESIDUE AROUND THE TANK WITH A BRUSH DURING THE OIL EMPTYING.

3- AFTER EMPTYING THE OIL, CLEAN THE RESIDUE AT THE BOTTOM OF THE TANK WITH
THE CLEANING KIT.
4- TURN ON THE SWITCH AND PRESS THE PUMP BUTTON.
5- AFTER THE DIGITAL SCREEN TURNS ON, TURN THE DRAIN VALVE TO THE CLOSED
POSITION AND THE PUMP VALVE TO THE OPEN POSITION.
6- PRESS ENTER AND WAIT FOR THE COOKING TANK TO FILL WITH LIQUID OIL.
7- ONCE THE COOKING TANK IS FILLED WITH LIQUID OIL, PRESS CANCEL AND CLOSE THE
PUMP VALVE.
8- TURN THE SELECTOR SWITCH FROM "PUMP" POSITION TO "OFF" POSITION. IF THE
LIQUID OIL LEVEL IS BELOW THE LINE IN THE TANK, ADD LIQUID OIL TO THE TANK.

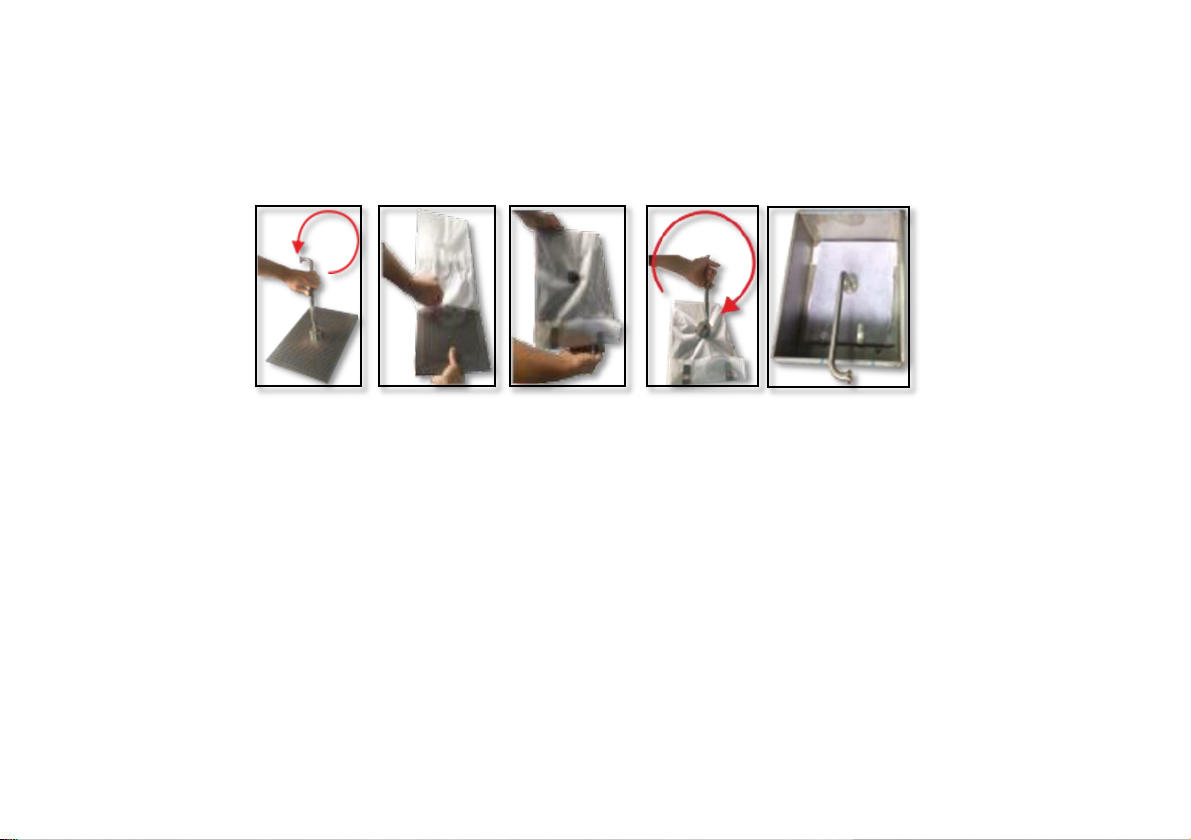

11-CHANGING THE PAPER FILTER
HERE IS THE ENGLISH TRANSLATION OF THE INSTRUCTIONS FOR CHANGING THE PAPER
FILTER IN THE DEEP FRYER:
1- DISCONNECT THE TUBE FROM THE RECORD KEY.
2- PULL OUT THE EMPTYING TANK WHERE THE FILTER PLATE IS LOCATED.
3- REMOVE THE FILTER PLATE FROM THE EMPTYING TANK BY LIFTING THE COVER OF THE
OIL EMPTYING TANK.
4- TURN THE FILTER PIPE COUNTERCLOCKWISE TO SEPARATE IT FROM THE FILTER PLATE.
5- PLACE THE FILTER PLATE INSIDE THE PAPER FILTER WITH THE HOLE PART FACING
UPWARDS.
6- FOLD THE EXCESS PART OF THE PAPER FILTER AND FIX IT WITH PAPER FILTER CLIPS.
7- TURN THE FILTER PIPE CLOCKWISE TO REATTACH IT.
8- PLACE THE FILTER PLATE WITH THE PAPER FILTER ATTACHED BACK INTO THE EMPTYING
TANK.
9- ATTACH THE COVER OF THE OIL EMPTYING TANK.
10-PUT THE OIL TANK BACK INTO THE MACHINE.

12-ELECTRICAL DIAGRAM

13-WARRANTY CERTIFICATE AND TERMS
AS MAKFRY FAMILY, THANK YOU FOR CHOOSING OUR PRODUCTS. WARRANTY DOCUMENT MUST BE KEPT
DURING THE WARRANTY PROCESS. IF THE DOCUMENT IS LOST, A SECOND DOCUMENT WILL NOT BE GIVEN TO
THE CUSTOMER AND THIS DOCUMENT MUST BE SHOWED WHEN THE CUSTOMER REQUIRES WARRANTY
REPAIR. OTHERWISE, REPAIR IS CHARGED. IF THE WARRANTY DOCUMENT IS UNCLEAR, MAKFRY MAY ALSO
REQUEST A CERTIFICATE OF PURCHASE.
1- THE WARRANTY PROCESS STARTS FROM DELIVERY DATE TO THE CONSUMER AND IS 2 YEARS. DIGITAL
PANEL IS 1 YEAR, RESISTANCES ARE 6 MONTHS.
2- IF THE GOODS FAILS WITHIN THE WARRANTY PERIOD, THE PERIOD IN REPAIR IS ADDED TO THE
WARRANTY PERIOD. THE REPAIR TIME OF THE GOODS IS A MAXIMUM 30 BUSINESS DAYS.
3- MAINTENANCE AND REPAIR MUST BE DONE BY AUTHORIZED BY MAKFRY. OTHER INTERVENTIONS,
THE GOODS WILL BE OUT OF THE SCOPE OF WARRANTY.
4- IF DEFECTIVE MATERIAL AND/OR WORKMANSHIP CAUSES FAILURE DURING THE WARRANTY PERIOD,
MAKFRY WILL MAKE THE NECESSARY ARRANGEMENTS AT ITS OWN EXPENSE, AND ITS ANY DAMAGES
UNDER THE SCOPE OF THE WARRANTY.
5- WARRANTY DOES NOT COVER CONSEQUENTIAL DAMAGES, INCLUDING LOSS OF BUSINESS OR
INFORMATION, AND DOES NOT APPLY TO THE FOLLOWING CASES:
• IF THE GOODS IS USED AGAINST THE METHODS OR CONDITIONS STATED IN THE PROMOTION AND
USER'S GUIDE OR APPENDIX,
• IF IT IS DETERMINED THAT THE GOODS WAS PREVIOUSLY REPAIRED OR OPENED BY NON-
AUTHORIZED PERSONS AND/OR REPAIR WORKSHOPS,
• IF THE GOOD IS USED WITH UNAPPROPRIATE VOLTAGE OR WITH FAULTY ELECTRICAL INSTALLATION
WITHOUT THE KNOWLEDGE OF AUTHORIZED SERVICES DETERMINED BY MAKFRY.
