INSTRUCTION MANUAL
MANUAL DE INSTRUCCIONES
Cordless Dust Blower
Sopladora Inalámbrica
XSA01
ADSA01
IMPORTANT: Read Before Using.
IMPORTANTE: Lea antes de usar.

2ENGLISH
ENGLISH (Original instructions)
SPECIFICATIONS
Model: XSA01 / ADSA01
Air speed (average) *2 *3 163 m/s (364 MPH)
Air speed (max.) *2 *3 200 m/s (447 MPH)
Maximum air volume *1 *2 1.1 m3/min (39 cu.ft./min)
Maximum blowing force *1 *2 4: Max 2.8 N (0.63 lbf)
3: High 2.3 N (0.52 lbf)
2: Medium 1.7 N (0.38 lbf)
1: Low 1.1 N (0.25 lbf)
Continuous use *1 *2 4: Max 15 min
3: High 20 min
2: Medium 30 min
1: Low 55 min
Maximum air pressure *2 *3 29.7 kPa (4.3 PSI)
Dimensions (L x W x H) *1 *2 179 mm x 92 mm x 297 mm (7″ x 3-5/8″ x 11-3/4″)
Rated voltage D.C. 18 V
Net weight 1.2 - 1.7 kg (2.6 - 3.7 lbs)
*1 Without nozzles
*2 With battery model BL1860B
*3 With nozzle 7
• Due to our continuing program of research and development, the specications herein are subject to change
without notice.
• Specications may di󰀨er from country to country.
• The weight may di󰀨er depending on the attachment(s), including the battery cartridge. The lightest and heavi-
est combinations, according to EPTA-Procedure 01/2014, are shown in the table.
Applicable battery cartridge and charger
Battery cartridge BL1815N / BL1820B / BL1830B / BL1840B / BL1850B / BL1860B
Charger DC18RC / DC18RD / DC18RE / DC18SD / DC18SE / DC18SF /
DC18SH / DC18WC
• Some of the battery cartridges and chargers listed above may not be available depending on your region of
residence.
WARNING: Only use the battery cartridges and chargers listed above. Use of any other battery cartridges
and chargers may cause injury and/or re.

3ENGLISH

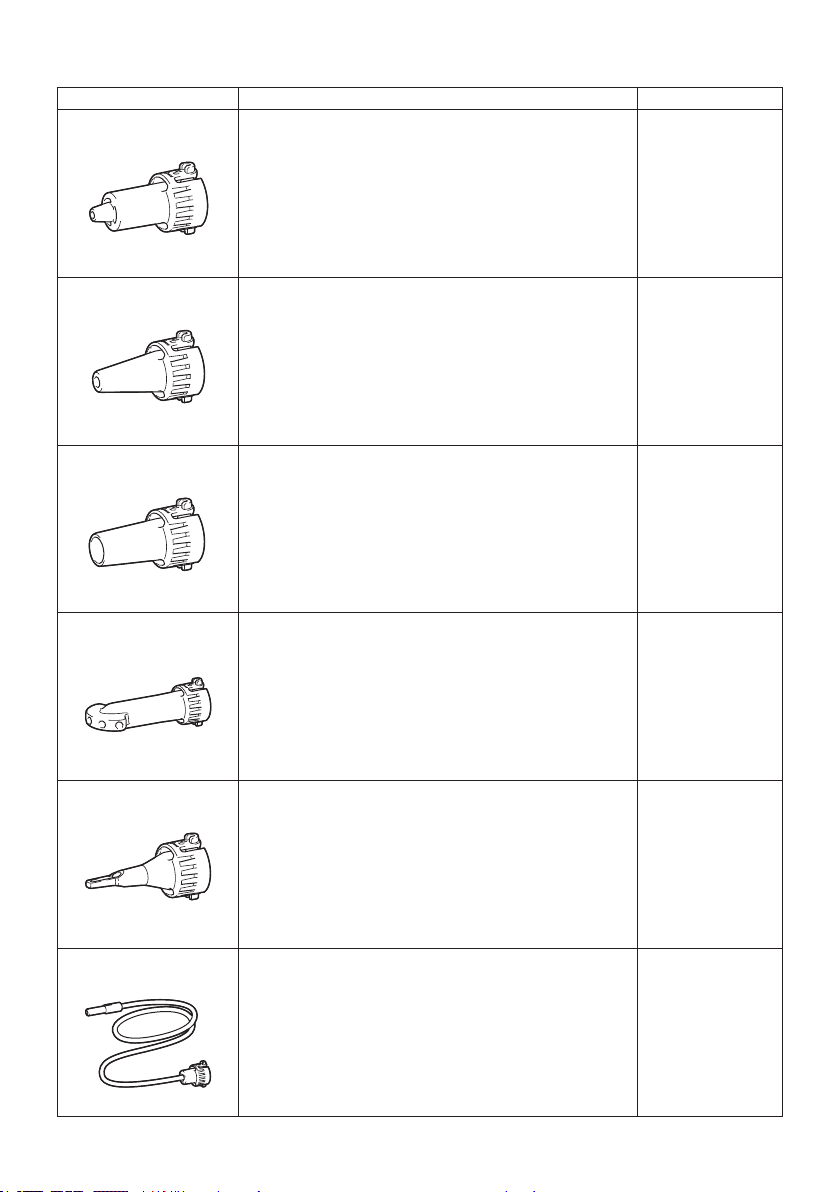

Applicable nozzles and attachments
Optional accessories
Nozzles and attachments Applications and purposes Diameters
Nozzle 3 Blowing air into conned spaces, corners, and spaces by the walls to
dust o󰀨.
ø3.0 mm (ø1/8″)
Nozzle 7 Dusting o󰀨 lters. ø7.0 mm (ø9/32″)
Nozzle 13 Using as blower
Cleaning work surfaces and blowing dust in general.
Anchor hole cleaning with optional long nozzles.
Functioning as a joint between long nozzles and blower outlet of the tool.
Using as inator
Inating large inatable pools or air mattresses.
Using as deator
Deating large inatable pools or air mattresses.
Functioning as a joint between air vent hose complete and rubber
attachments.
ø13 mm (ø1/2″)
Wide range nozzle Blowing air over dirt and liquid on desktop and wide-open area.
Blowing range: 120° with 5 holes
ø6.0 mm (ø1/4″)
* As a single hole
diameter
Pinch valve nozzle Inating/deating beach toys, pillows, and similar plastic inatables.
* Deating operation can be carried out with optional air vent hose
complete.
ø7.0 mm (ø9/32″)
Flexible nozzle 6 Blowing dust out of any hard-to-reach spots, PCs and similar devices. ø6.0 mm x 800 mm
(ø1/4″ x 31-1/2″)

4ENGLISH

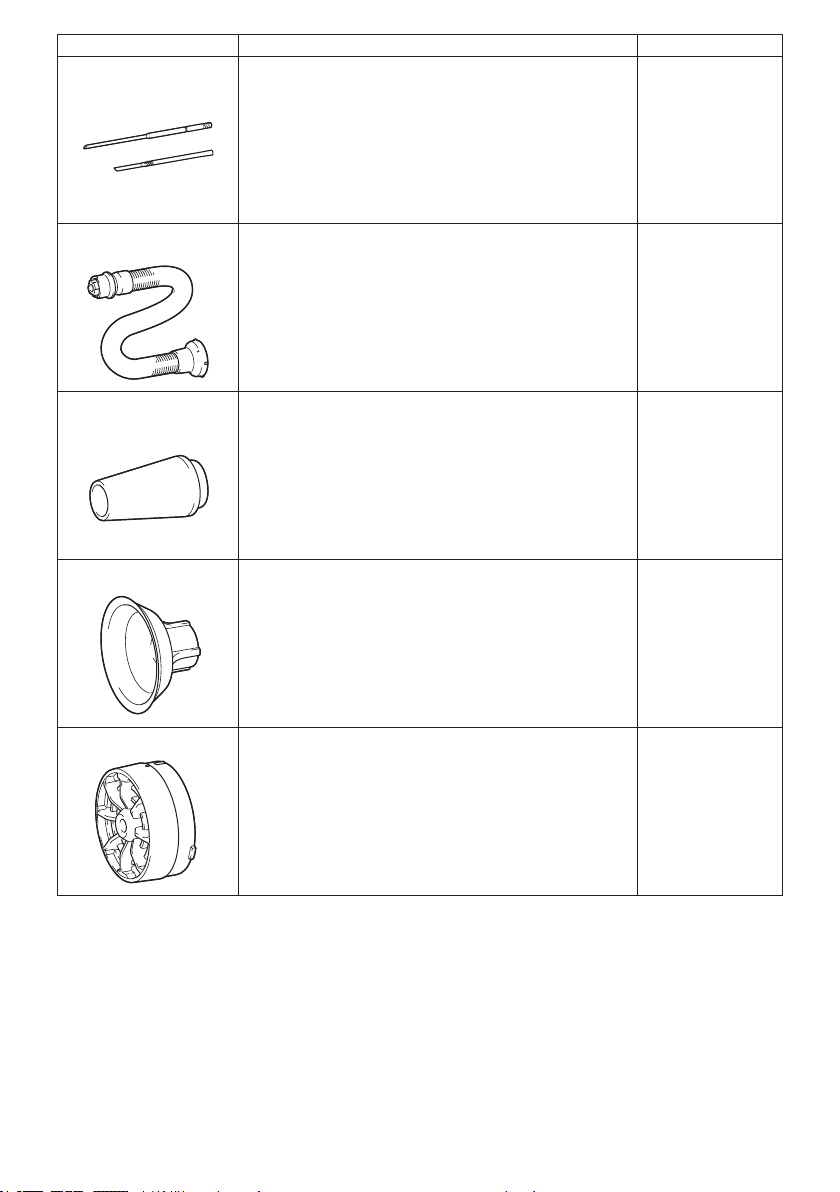

Nozzles and attachments Applications and purposes Diameters
Long nozzles set A set of nozzles suitable for blowing dust out of anchor holes and narrow
spots. Nozzle lengths can be changed by attaching and detaching two
nozzle heads.
* Long nozzles can be installed using nozzle 13 as a joint.
ø8.0 mm (ø5/16″)
Air vent hose complete Deating inatable items with appropriate nozzles in operation. -
Rubber attachment 20 - 30 Nozzle head suitable for deating air mattress, raft, boat, and pool.
* This attachment requires to be installed with the air vent hose complete
and nozzle 13 together.
ø20 - 30 mm (ø13/16
- 1-3/16″)
* Measured as outer
diameter.
Rubber attachment 65 Attachment suitable for packaging your clothes by compressing air out
of them.
* This attachment requires to be installed with the air vent hose complete
and nozzle 13 together.
ø65 mm (ø2-9/16″)
Filter C Attachment designed to reduce dust intake into the motor under dusty
working conditions.
-

5ENGLISH
SAFETY WARNINGS
General power tool safety warnings
WARNING Read all safety warnings, instructions,
illustrations and specications provided with this
power tool. Failure to follow all instructions listed below
may result in electric shock, re and/or serious injury.
Save all warnings and instruc-
tions for future reference.
The term "power tool" in the warnings refers to your
mains-operated (corded) power tool or battery-operated
(cordless) power tool.
Work area safety
1. Keep work area clean and well lit. Cluttered or
dark areas invite accidents.
2. Do not operate power tools in explosive atmo-
spheres, such as in the presence of ammable
liquids, gases or dust. Power tools create sparks
which may ignite the dust or fumes.
3. Keep children and bystanders away while
operating a power tool. Distractions can cause
you to lose control.
Electrical safety
1. Power tool plugs must match the outlet. Never
modify the plug in any way. Do not use any
adapter plugs with earthed (grounded) power
tools. Unmodied plugs and matching outlets will
reduce risk of electric shock.
2. Avoid body contact with earthed or grounded
surfaces, such as pipes, radiators, ranges and
refrigerators. There is an increased risk of elec-
tric shock if your body is earthed or grounded.
3. Do not expose power tools to rain or wet con-
ditions. Water entering a power tool will increase
the risk of electric shock.
4. Do not abuse the cord. Never use the cord for
carrying, pulling or unplugging the power tool.
Keep cord away from heat, oil, sharp edges
or moving parts. Damaged or entangled cords
increase the risk of electric shock.
5. When operating a power tool outdoors, use an
extension cord suitable for outdoor use. Use of
a cord suitable for outdoor use reduces the risk of
electric shock.
6. If operating a power tool in a damp location is
unavoidable, use a ground fault circuit inter-
rupter (GFCI) protected supply. Use of a GFCI
reduces the risk of electric shock.
7.
Power tools can produce electromagnetic elds
(EMF) that are not harmful to the user. However,
users of pacemakers and other similar medical
devices should contact the maker of their device and/
or doctor for advice before operating this power tool.
Personal safety
1. Stay alert, watch what you are doing and use
common sense when operating a power tool.
Do not use a power tool while you are tired or
under the inuence of drugs, alcohol or med-
ication. A moment of inattention while operating
power tools may result in serious personal injury.
2. Use personal protective equipment. Always
wear eye protection. Protective equipment such
as a dust mask, non-skid safety shoes, hard hat or
hearing protection used for appropriate conditions
will reduce personal injuries.
3. Prevent unintentional starting. Ensure the
switch is in the o󰀨-position before connecting
to power source and/or battery pack, picking
up or carrying the tool. Carrying power tools with
your nger on the switch or energising power tools
that have the switch on invites accidents.
4. Remove any adjusting key or wrench before
turning the power tool on. A wrench or a key left
attached to a rotating part of the power tool may
result in personal injury.
5. Do not overreach. Keep proper footing and
balance at all times. This enables better control
of the power tool in unexpected situations.
6. Dress properly. Do not wear loose clothing or
jewellery. Keep your hair and clothing away
from moving parts. Loose clothes, jewellery or
long hair can be caught in moving parts.
7. If devices are provided for the connection of
dust extraction and collection facilities, ensure
these are connected and properly used. Use of
dust collection can reduce dust-related hazards.
8. Do not let familiarity gained from frequent use
of tools allow you to become complacent and
ignore tool safety principles. A careless action
can cause severe injury within a fraction of a
second.
9.
Always wear protective goggles to protect your
eyes from injury when using power tools. The
goggles must comply with ANSI Z87.1 in the USA.
It is an employer's responsibility to enforce the
use of appropriate safety protective equipment
by the tool operators and by other persons in
the immediate working area.
Power tool use and care
1. Do not force the power tool. Use the correct
power tool for your application. The correct
power tool will do the job better and safer at the
rate for which it was designed.
2. Do not use the power tool if the switch does
not turn it on and o󰀨. Any power tool that cannot
be controlled with the switch is dangerous and
must be repaired.
3. Disconnect the plug from the power source
and/or remove the battery pack, if detachable,
from the power tool before making any adjust-
ments, changing accessories, or storing power
tools. Such preventive safety measures reduce
the risk of starting the power tool accidentally.
4. Store idle power tools out of the reach of chil-
dren and do not allow persons unfamiliar with
the power tool or these instructions to operate
the power tool. Power tools are dangerous in the
hands of untrained users.
5. Maintain power tools and accessories. Check
for misalignment or binding of moving parts,
breakage of parts and any other condition that
may a󰀨ect the power tool’s operation. If dam-
aged, have the power tool repaired before use.
Many accidents are caused by poorly maintained
power tools.

6ENGLISH
6. Keep cutting tools sharp and clean. Properly
maintained cutting tools with sharp cutting edges
are less likely to bind and are easier to control.
7. Use the power tool, accessories and tool bits
etc. in accordance with these instructions, tak-
ing into account the working conditions and
the work to be performed. Use of the power tool
for operations di󰀨erent from those intended could
result in a hazardous situation.
8. Keep handles and grasping surfaces dry,
clean and free from oil and grease. Slippery
handles and grasping surfaces do not allow for
safe handling and control of the tool in unexpected
situations.
9. When using the tool, do not wear cloth work
gloves which may be entangled. The entangle-
ment of cloth work gloves in the moving parts may
result in personal injury.
Battery tool use and care
1. Recharge only with the charger specied by
the manufacturer. A charger that is suitable for
one type of battery pack may create a risk of re
when used with another battery pack.
2. Use power tools only with specically desig-
nated battery packs. Use of any other battery
packs may create a risk of injury and re.
3. When battery pack is not in use, keep it away
from other metal objects, like paper clips,
coins, keys, nails, screws or other small metal
objects, that can make a connection from one
terminal to another. Shorting the battery termi-
nals together may cause burns or a re.
4. Under abusive conditions, liquid may be
ejected from the battery; avoid contact. If con-
tact accidentally occurs, ush with water. If
liquid contacts eyes, additionally seek medical
help. Liquid ejected from the battery may cause
irritation or burns.
5. Do not use a battery pack or tool that is dam-
aged or modied. Damaged or modied batteries
may exhibit unpredictable behaviour resulting in
re, explosion or risk of injury.
6. Do not expose a battery pack or tool to re or
excessive temperature. Exposure to re or tem-
perature above 130 °C may cause explosion.
7. Follow all charging instructions and do not
charge the battery pack or tool outside the
temperature range specied in the instruc-
tions. Charging improperly or at temperatures
outside the specied range may damage the
battery and increase the risk of re.
Service
1. Have your power tool serviced by a qualied
repair person using only identical replacement
parts. This will ensure that the safety of the power
tool is maintained.
2. Never service damaged battery packs. Service
of battery packs should only be performed by the
manufacturer or authorized service providers.
3. Follow instruction for lubricating and chang-
ing accessories.
4. Do not modify or attempt to repair the appli-
ance or the battery pack except as indicated in
the instructions for use and care.
IMPORTANT
SAFETY
INSTRUCTIONS
When using an electrical appliance,
basic precautions should always be fol-
lowed, including the following:
READ ALL
INSTRUCTIONS
BEFORE USING
THIS APPLIANCE.
WARNING - To
reduce the risk of
re, electric shock,
or injury:
1. Do not leave appliance when battery
tted. Remove battery from appli-
ance when not in use and before
servicing.
2. Do not expose to rain. Store
indoors.
3. Do not allow to be used as a toy.
Close attention is necessary when
used by or near children.
4. Use only as described in this man-
ual. Use only manufacturer's recom-
mended attachments.
5. Do not use with damaged battery.
If appliance is not working as it
should, has been dropped, dam-
aged, left outdoors, or dropped into
water, return it to a service center.
6. Do not handle appliance with wet
hands.
7. Do not put any object into open-
ings. Do not use with any opening
blocked; keep free of dust, lint, hair,
and anything that may reduce air
ow.

7ENGLISH
8. Keep hair, loose clothing, ngers,
and all parts of body away from
openings and moving parts.
9. Turn o󰀨 all controls before removing
the battery cartridge.
10. Use extra care when cleaning on
stairs.
11. Do not use to pick up ammable or
combustible liquids, such as gaso-
line, or use in areas where they may
be present.
12. Recharge only with the charger
specied by the manufacturer. A
charger that is suitable for one type of
battery pack may create a risk of re
when used with another battery pack.
SAVE THESE
INSTRUCTIONS.
This appliance is intended for both
household use and commercial use.
Cordless Dust Blower
Safety Instructions
Preparation
1. Do not wear loose clothing or jewellery that
can be drawn into the air inlet. Keep long hair
away from the air inlets.
2. Always use protective goggles, a cap and
mask when using the dust blower. Ordinary eye
or sun glasses are NOT safety glasses.
3. To prevent dust irritation the wearing of a face
mask is recommended.
Operation in general
1. Switch o󰀨 the dust blower and remove the bat-
tery cartridge and make sure that all moving
parts have come to a complete stop
• whenever you leave the dust blower.
• whenever you switch from inating to
deating operation, and vice versa.
• before checking, cleaning or working on
the dust blower.
• if the dust blower starts to vibrate
abnormally.
2. Operate the dust blower only in daylight or in
good articial light.
3. Do not overreach and keep proper balance and
footing at all times.
4. Keep all cooling air inlets clear of debris.
5. Operate the dust blower in a recommended
position and on a rm surface.
6. Do not use the tool with wet hands.
7. Do not point the outlet of the nozzle and
attachment to yourself or others. Objects may
be blown away and cause an injury.
8. Do not use the tool to spray chemicals. Your
lungs may be damaged by inhaling toxic fumes.
9. Do not operate the dust blower at high places.
10. Never block suction inlet and/or blower outlet.
• Be careful not to block suction inlet or
blower outlet with dust or dirt when oper-
ating in dusty area.
• Do not use nozzles other than the nozzles
provided by Makita.
11. If the dust blower strikes any foreign objects
or should start making any unusual noise
or vibration, immediately switch o󰀨 the dust
blower to stop it. Remove the battery car-
tridge from the dust blower and inspect the
dust blower for damage before restarting and
operating the dust blower. If the dust blower
is damaged, ask Makita Authorized Service
Centers for repair.
12. Do not insert ngers or other objects into
suction inlet or blower outlet.
13. Prevent unintentional starting. Ensure the
switch is in the o󰀨-position before inserting
battery cartridge, picking up or carrying the
dust blower. Carrying the dust blower with
your nger on the switch or energizing the
dust blower that has the switch on invites
accidents.
14. Avoid operating the dust blower for a long time
in low temperature environment.
15. Do not use the tool beyond the maximum out-
put pressure of the tool. Using the tool at output
pressure greater than the maximum output pres-
sure of the tool may burst the object or the tool.
Blowing operation
1. Never blow debris in the direction of
bystanders.
2. Never point the nozzle at anyone in the vicinity
when using the dust blower.
3. Never blow dangerous materials, such as
nails, fragments of glass, or blades.
4. Do not operate the dust blower near ammable
materials.
Inating/Deating operation
1. When inating objects, connect a nozzle or
attachment to the air inlet securely. Otherwise,
the object, nozzle, or attachment may be dam-
aged and you may be injured.
2. Release air pressure slowly. When removing
a nozzle or attachment after inating objects,
hold the object, nozzle and attachment rmly.
They may bounce due to exhaust air and cause an
injury.
3. Do not inate object beyond the maximum
pressure of the object. Otherwise, the tool or
object may be damaged and you may be injured.
4. Inate the objects intended to be inated by
the manufacturer only, such as beach toys or
air mattress. Inating other objects may damage
them and cause an injury.

8ENGLISH
5. When inating objects, check the status of the
tool and object, and be sure that there is no air
leak from the object.
6. Always be careful not to over-inate objects
during operation. It otherwise may burst the
objects, possibly causing damage to the tool and
personal injury.
7. After inating objects, check the air pressure
using a reliable and calibrated measuring
equipment.
8. Never leave the tool unattended when the
nozzle or attachment is attached to the object
or during operation.
9. Do not use the tool as a vacuum cleaner.
Performing dust collection may damage the tool.
10. Do not use the tool as a breathing device.
11. Use only standard accessories provided
by Makita. The use of any other accessories
or attachments might present a risk of injury to
persons.
Maintenance and storage
1. Keep all nuts, bolts and screws tight to be sure
the dust blower is in safe working condition.
2. If the parts are worn or damaged, replace them
with parts provided by Makita.
3. Store the dust blower in a dry place out of the
reach of children.
4. When you stop the dust blower for inspection,
servicing, storage, or changing accessory,
switch o󰀨 the dust blower and make sure that
all moving parts come to a complete stop, and
remove the battery cartridge. Cool down the
dust blower before making any work on the
dust blower. Maintain the dust blower with
care and keep it clean.
5. When carrying the tool, do not hold or pull a
nozzle or attachment. The tool may be damaged
and cause an injury.
6. Always cool down the dust blower before
storing.
7. Do not disassemble the tool.
Service
1. Have your power tool serviced by a qualied
repair person using only identical replacement
parts. This will ensure that the safety of the power
tool is maintained.
2. Never service damaged battery packs. Service
of battery packs should only be performed by the
manufacturer or authorized service providers.
SAVE THESE
INSTRUCTIONS.
WARNING: DO NOT let comfort or familiarity
with product (gained from repeated use) replace
strict adherence to safety rules for the subject
product.
MISUSE or failure to follow the safety rules stated
in this instruction manual may cause serious
personal injury.
Symbols
The followings show the symbols used for tool.
volts
direct current
Important safety instructions for
battery cartridge
1. Before using battery cartridge, read all instruc-
tions and cautionary markings on (1) battery
charger, (2) battery, and (3) product using
battery.
2. Do not disassemble or tamper with the battery
cartridge. It may result in a re, excessive heat,
or explosion.
3. If operating time has become excessively
shorter, stop operating immediately. It may
result in a risk of overheating, possible burns
and even an explosion.
4. If electrolyte gets into your eyes, rinse them
out with clear water and seek medical atten-
tion right away. It may result in loss of your
eyesight.
5. Do not short the battery cartridge:
(1) Do not touch the terminals with any con-
ductive material.
(2) Avoid storing battery cartridge in a con-
tainer with other metal objects such as
nails, coins, etc.
(3) Do not expose battery cartridge to water
or rain.
A battery short can cause a large current
ow, overheating, possible burns and even a
breakdown.
6. Do not store and use the tool and battery car-
tridge in locations where the temperature may
reach or exceed 50 °C (122 °F).
7. Do not incinerate the battery cartridge even if
it is severely damaged or is completely worn
out. The battery cartridge can explode in a re.
8. Do not nail, cut, crush, throw, drop the battery
cartridge, or hit against a hard object to the
battery cartridge. Such conduct may result in a
re, excessive heat, or explosion.
9. Do not use a damaged battery.
10. The contained lithium-ion batteries are subject
to the Dangerous Goods Legislation require-
ments.
For commercial transports e.g. by third parties,
forwarding agents, special requirement on pack-
aging and labeling must be observed.
For preparation of the item being shipped, consult-
ing an expert for hazardous material is required.
Please also observe possibly more detailed
national regulations.
Tape or mask o󰀨 open contacts and pack up the
battery in such a manner that it cannot move
around in the packaging.

9ENGLISH
11. When disposing the battery cartridge, remove
it from the tool and dispose of it in a safe
place. Follow your local regulations relating to
disposal of battery.
12. Use the batteries only with the products
specied by Makita. Installing the batteries to
non-compliant products may result in a re, exces-
sive heat, explosion, or leak of electrolyte.
13. If the tool is not used for a long period of time,
the battery must be removed from the tool.
14. During and after use, the battery cartridge may
take on heat which can cause burns or low
temperature burns. Pay attention to the han-
dling of hot battery cartridges.
15. Do not touch the terminal of the tool imme-
diately after use as it may get hot enough to
cause burns.
16. Do not allow chips, dust, or soil stuck into the
terminals, holes, and grooves of the battery
cartridge. It may cause heating, catching re,
burst and malfunction of the tool or battery car-
tridge, resulting in burns or personal injury.
17. Unless the tool supports the use near
high-voltage electrical power lines, do not use
the battery cartridge near high-voltage electri-
cal power lines. It may result in a malfunction or
breakdown of the tool or battery cartridge.
18. Keep the battery away from children.
SAVE THESE INSTRUCTIONS.
CAUTION: Only use genuine Makita batteries.
Use of non-genuine Makita batteries, or batteries that
have been altered, may result in the battery bursting
causing res, personal injury and damage. It will
also void the Makita warranty for the Makita tool and
charger.
Tips for maintaining maximum
battery life
1. Charge the battery cartridge before completely
discharged. Always stop tool operation and
charge the battery cartridge when you notice
less tool power.
2. Never recharge a fully charged battery car-
tridge. Overcharging shortens the battery
service life.
3. Charge the battery cartridge with room tem-
perature at 10 °C - 40 °C (50 °F - 104 °F). Let
a hot battery cartridge cool down before
charging it.
4. When not using the battery cartridge, remove
it from the tool or the charger.
5. Charge the battery cartridge if you do not use
it for a long period (more than six months).
ASSEMBLY
CAUTION: Always be sure that the tool is
switched o󰀨 and the battery cartridge is removed
before carrying out any work on the tool.
Installing nozzle
Align the guide projections on a nozzle with the locking
notches on the lock sleeve of the tool, then push the
nozzle rmly into the lock sleeve until it locks in place
with a click. Having installed the nozzle, try pulling it
back to ensure it is securely held in place.
1
1
2
2
3
Fig.1
► 1. Guide projections 2. Locking notches 3. Lock
sleeve
NOTICE: Make sure that the nozzle has been
correctly attached to the tool so the guide pro-
jections on the nozzle neatly t into the locking
notches on the lock sleeve.
Removing nozzle
Hold the nozzle end and rotate it in a direction indicated
by the arrows on the nozzle end to release the lock. Pull
the nozzle apart from the lock sleeve after it becomes
unlocked.
2
1
Fig.2
► 1. Nozzle end 2. Lock sleeve

10 ENGLISH

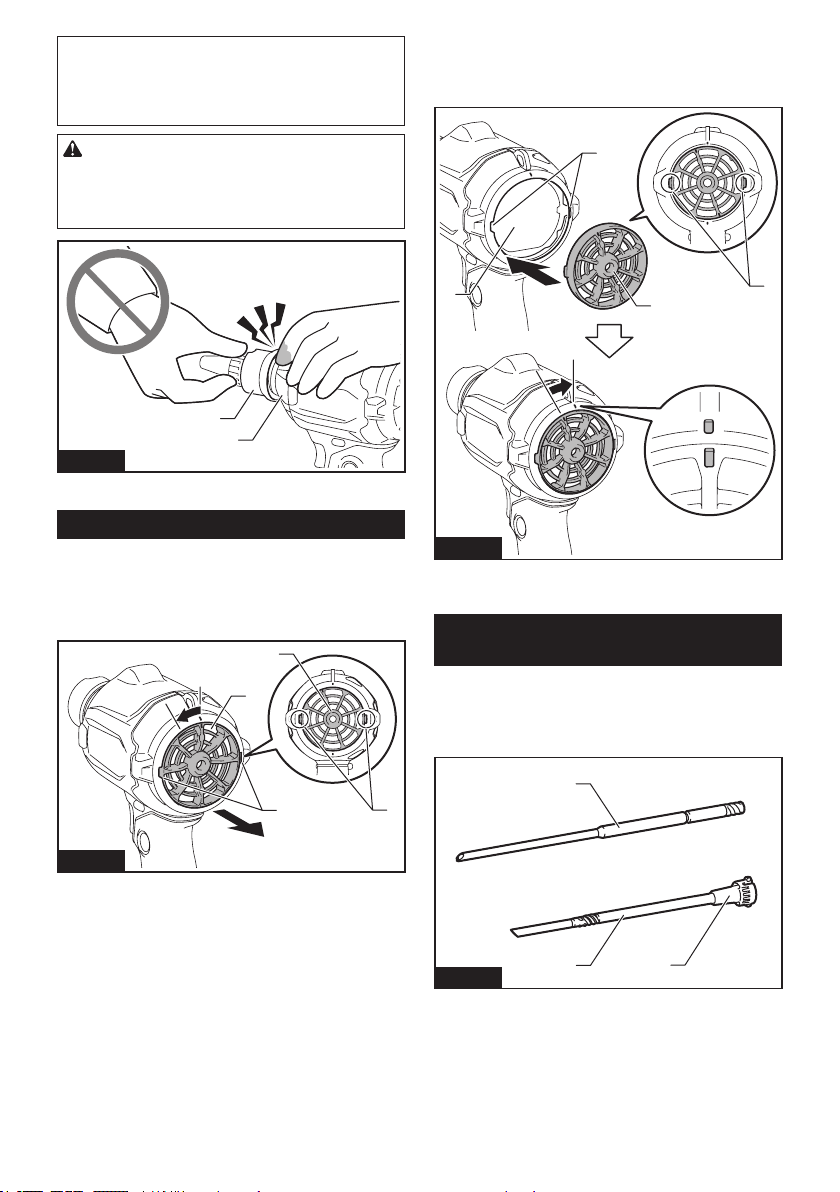

NOTICE: Adhered dirt and dust on the surface
will possibly make it hard to remove the nozzle
from the tool. In such a case, slide and hold the
lock sleeve towards the motor housing rst, and
then turn the nozzle end to release the lock.
CAUTION: Be careful not to pinch your hands
between the rear end of the lock sleeve and motor
housing while removing the nozzle. The lock
sleeve slides back towards the motor housing when
the nozzle is released from the lock.
1
2
Fig.3
► 1. Lock sleeve 2. Motor housing
Removing and installing dust cap
1. Turn the dust cap on the suction inlet at the rear of
the housing counterclockwise to take the dust cap out
of the housing. Two locking tabs on the dust cap can be
disengaged by aligning them with the guide grooves on
the housing.
1
2
3
4
Fig.4
► 1. Dust cap 2. Locking tabs 3. Suction inlet 4. Guide
grooves
2. Reassemble the dust cap onto the suction inlet,
aligning the two locking tabs on the dust cap with the
guide grooves on the housing. Then turn the dust cap
clockwise to secure it in place.
2
4
31
Fig.5
► 1. Dust cap 2. Locking tabs 3. Suction inlet 4. Guide
grooves
Installing and removing long
nozzles
Optional accessory
A set of long nozzles helps clean dust out of small holes
and narrow spots. Nozzle lengths can be arranged
according to your requirements.
1
2
3
Fig.6
► 1. Nozzle 13 2. Long nozzle R 3. Long nozzle F

11 ENGLISH
1. Insert the long nozzle R through the air hole of the
nozzle 13 from back to front. Pass it though until the
nozzle 13 secures in place at the rear end of the long
nozzle R.
12
Fig.7
► 1. Nozzle 13 2. Long nozzle R
2. Place the long nozzle F over the front end of the
long nozzle R. Hand screw the long nozzle F until it is
tightened securely.
12
Fig.8
► 1. Long nozzle F 2. Long nozzle R
3. Align the guide projections on the nozzle 13 with the lock-
ing notches on the lock sleeve of the tool, then push the nozzle
13 rmly into the lock sleeve until it locks in place with a click.
12
3
4
5
6
Fig.9
► 1. Guide projection 2. Locking notch 3. Lock sleeve
4. Nozzle 13 5. Long nozzle R 6. Long nozzle F
NOTE: Use the long nozzle R only to have a shorter
operating range. Use both the long nozzle R and F to
allow a wider operating range.
4. To remove the long nozzles, detach the nozzle 13
from the lock sleeve of the tool, and then disassemble
the long nozzles.
Installing and removing deating
nozzles and attachments
Optional accessory
NOTICE: Always be sure to install and uninstall
deating nozzles and attachments only while the
air vent hose complete is disconnected from the
tool. Handling the air vent hose complete assembled
into the tool may cause the tool to stand unstable
resulting in it falling over.
1. Align the guide projections on the pinch valve nozzle
with the locking notches on the lock sleeve of the air vent
hose complete, then push the pinch valve nozzle rmly into
the lock sleeve until it locks in place with a click.
2
1
3
4
5
Fig.10
► 1. Pinch valve nozzle 2. Guide projections
3. Locking notches 4. Lock sleeve 5. Air vent hose
complete

12 ENGLISH
Optional rubber attachments
Optional rubber attachments require to be placed over
the nozzle. Be careful not to attach rubber attachments
directly to the air vent hose complete.
i Align the guide projections on the nozzle 13 with
the locking notches on the lock sleeve of the air vent
hose complete, then push the nozzle rmly into the lock
sleeve until it locks in place with a click.
ii Place a rubber attachment over the nozzle head
by pushing and hand screwing it in place.
1 1
2
3
Fig.11
► 1. Rubber attachments 2. Nozzle 13 3. Air vent hose
complete
NOTICE: Make sure that the nozzle has been
correctly attached to the air vent hose complete
so the guide projections on the nozzle neatly t
into the locking notches on the lock sleeve.
2. Turn the dust cap on the suction inlet at the rear of
the housing counterclockwise to take the dust cap out
of the housing. Two locking tabs on the dust cap can be
disengaged by aligning them with the guide grooves on
the housing.
1
2
3
4
Fig.12
► 1. Dust cap 2. Locking tabs 3. Suction inlet 4. Guide
grooves
3. Attach the end of the air vent hose complete to
the suction inlet, aligning the two locking tabs on the
air vent hose complete with the guide grooves on the
housing. Then hold and turn the rear cu󰀨s of the air vent
hose complete clockwise to secure it in place.
1
4
5
3
2
Fig.13
► 1. Air vent hose complete 2. Rear cu󰀨s 3. Suction
inlet 4. Locking tabs 5. Guide grooves
4. To remove the deating nozzle and attachments,
follow the installation steps in reverse.
NOTICE: Always hold and turn the rear cu󰀨s of
the air vent hose complete to install and uninstall
the air vent hose complete in place.
Installing optional lter
Optional accessory
An optional high performance lter (Filter C) is available
for restricting dust intake into the motor under dusty
working conditions.
1.
Turn the dust cap on the suction inlet at the rear of
the housing counterclockwise to take the dust cap out of the
housing. Two locking tabs on the dust cap can be disengaged
by aligning them with the guide grooves on the housing.
1
2
3
4
Fig.14
►
1. Dust cap 2. Locking tabs 3. Suction inlet 4. Guide grooves

13 ENGLISH

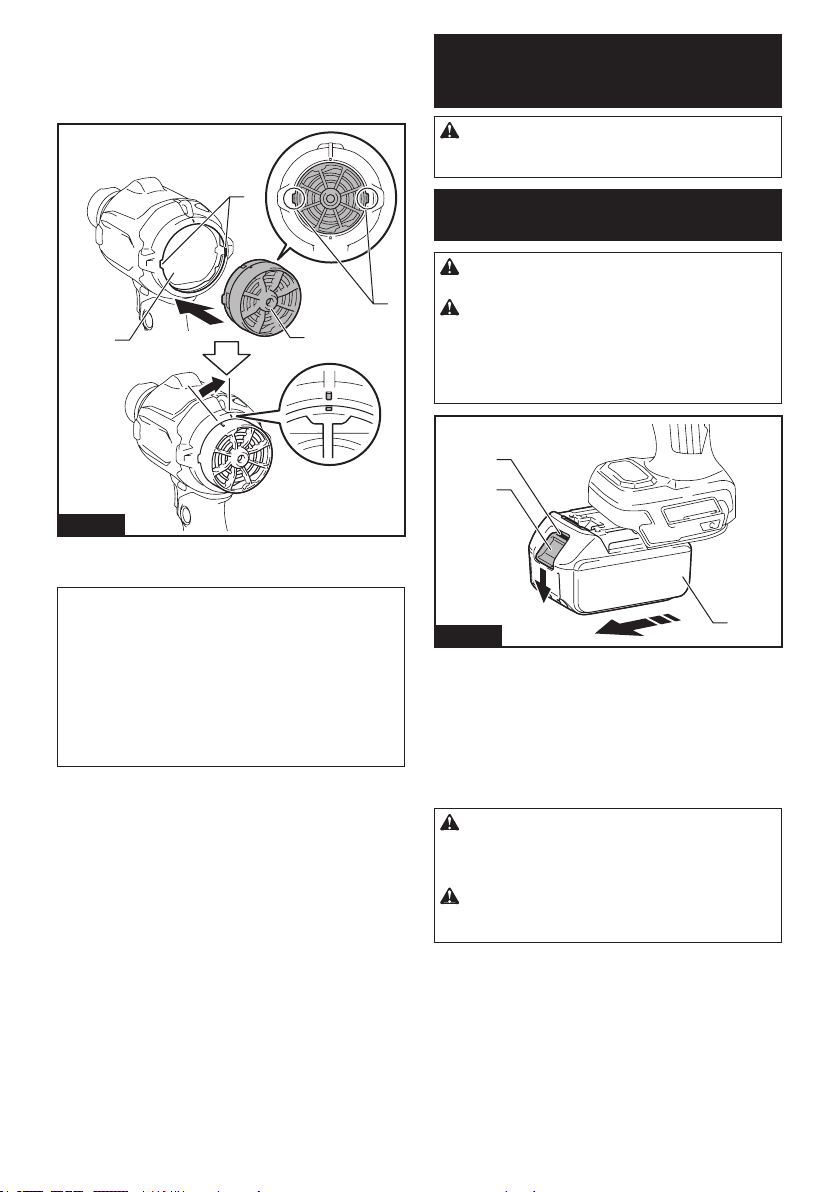

2. Replace an optional high performance lter on
the suction inlet, aligning the two locking tabs on the
optional lter with the guide grooves on the housing.
Then turn the optional lter clockwise to secure it in
place.
2
4
31
Fig.15
► 1. Optional high performance lter 2. Locking tabs
3. Suction inlet 4. Guide grooves
NOTICE: An optional high performance lter
(Filter C) can be reused many times by cleaning it
out. Clean dust o󰀨 the lter regularly as a clogged
lter may block the airow and cause less e󰀩-
cient operation. Occasionally wash the lter in
water, rinse and dry thoroughly in the shade
before use.
NOTICE: Do not wipe, rub or scratch an optional
high performance lter (Filter C) hardly. Be sure
to shake or blow dust o󰀨 the lter with care.
FUNCTIONAL
DESCRIPTION
CAUTION: Always be sure that the tool is
switched o󰀨 and the battery cartridge is removed
before adjusting or checking function on the tool.
Installing or removing battery
cartridge
CAUTION: Always switch o󰀨 the tool before
installing or removing of the battery cartridge.
CAUTION: Hold the tool and the battery car-
tridge rmly when installing or removing battery
cartridge. Failure to hold the tool and the battery
cartridge rmly may cause them to slip o󰀨 your hands
and result in damage to the tool and battery cartridge
and a personal injury.
1
2
3
Fig.16
► 1. Red indicator 2. Button 3. Battery cartridge
To remove the battery cartridge, slide it from the tool
while sliding the button on the front of the cartridge.
To install the battery cartridge, align the tongue on the
battery cartridge with the groove in the housing and slip
it into place. Insert it all the way until it locks in place
with a little click. If you can see the red indicator as
shown in the gure, it is not locked completely.
CAUTION: Always install the battery cartridge
fully until the red indicator cannot be seen. If not,
it may accidentally fall out of the tool, causing injury to
you or someone around you.
CAUTION: Do not install the battery cartridge
forcibly. If the cartridge does not slide in easily, it is
not being inserted correctly.

14 ENGLISH
Indicating the remaining battery
capacity
Only for battery cartridges with the indicator
1
2
Fig.17
► 1. Indicator lamps 2. Check button
Press the check button on the battery cartridge to indi-
cate the remaining battery capacity. The indicator lamps
light up for a few seconds.
Indicator lamps Remaining
capacity
Lighted O󰀨 Blinking
75% to 100%
50% to 75%
25% to 50%
0% to 25%
Charge the
battery.
The battery
may have
malfunctioned.
NOTE: Depending on the conditions of use and the
ambient temperature, the indication may di󰀨er slightly
from the actual capacity.
NOTE: The rst (far left) indicator lamp will blink when
the battery protection system works.
Tool / battery protection system
The tool is equipped with a tool/battery protection sys-
tem. This system automatically cuts o󰀨 power to the
motor to extend tool and battery life. The tool will auto-
matically stop during operation if the tool or battery is
placed under one of the following conditions:
Overload protection
When the tool/battery is operated in a manner that
causes it to draw an abnormally high current, the tool
stops automatically. In this situation, turn the tool o󰀨
and stop the application that caused the tool to become
overloaded. Then turn the tool on to restart.
Overheat protection
When the tool/battery is overheated, the tool stops
automatically. In this situation, let the tool cool down
before turning the tool on again.
Overdischarge protection
When the battery becomes low on power during use,
the lamp will blink to alert you. Then the tool automati-
cally stops, with the lamp remaining lit for approximately
10 seconds, shortly after the battery power becomes
too low to operate during continuing use. In such cases,
remove the battery from the tool and charge the battery.
Protections against other causes
Protection system is also designed for other causes
that could damage the tool and allows the tool to stop
automatically. Take all the following steps to clear the
causes, when the tool has been brought to a temporary
halt or stop in operation.
1. Turn the tool o󰀨, and then turn it on again to
restart.
2. Charge the battery(ies) or replace it/them with
recharged battery(ies).
3. Let the tool and battery(ies) cool down.
If no improvement can be found by restoring protection
system, then contact your local Makita Service Center.
Switch action
CAUTION: Before installing the battery car-
tridge into the tool, always check to see that the
switch trigger actuates properly and returns to
the "OFF" position when released.
CAUTION: Switch can be locked in "ON"
position for ease of operator comfort during
extended use. Apply caution while locking tool in
"ON" position.
CAUTION: Do not install the battery cartridge
with the lock-on button engaged.
CAUTION: When not operating the tool,
depress the trigger-lock button from the side on
which a locking mark ( ) is indicated to lock the
switch trigger in the "OFF" position.

15 ENGLISH
Trigger-lock button
To prevent the switch trigger from being accidentally
pulled, the trigger-lock button is provided. To start the
tool, depress the trigger-lock button from the side on
which an unlocking mark ( ) is indicated. To lock the
tool, depress the trigger-lock button from the side on
which a locking mark ( ) is indicated.
Make sure to set the trigger-lock button back in a lock-
ing position after each use.
1
2
1
2
34
Fig.18
► 1. Switch trigger 2. Trigger-lock button 3. Unlocking
mark 4. Locking mark
NOTICE: Do not pull the switch trigger hard
without releasing the trigger-lock button. This can
cause switch breakage.
Switch trigger
Air volume can be controlled by squeezing the switch
trigger. Air volume is grown by increasing pressure on
the switch trigger. Release the switch trigger to stop.
1
Fig.19
► 1. Switch trigger
Lock button
For continuous operation, push in the lock button while
pulling the switch trigger and then release the switch
trigger. To cancel the locked-on operation, pull the
switch trigger fully, then release it.
1
2
Fig.20
► 1. Switch trigger 2. Lock button
Adjusting air volume
Air volume can be changed in four modes, that is, 4
(Max), 3 (High), 2 (Medium) and 1 (Low), depending on
the application and workload.
Press the air volume adjustment button to switch mode
in the following sequence. The mode changes every
time you press the button.
1
2
3
4
5
Fig.21
► 1. Low air volume 2. Medium air volume 3. High air
volume 4. Max air volume 5. Air volume adjustment
button
Air volume settings table
Air volume mode Maximum air volume
4: Max 1.1 m3/min (39 cu.ft./min)
3: High 1.0 m3/min (35 cu.ft./min)
2: Medium 0.8 m3/min (28 cu.ft./min)
1: Low 0.6 m3/min (21 cu.ft./min)
* Maximum air volumes are measured without
nozzles.

16 ENGLISH
NOTE: Air volume mode can be changed before
turning the tool on.
NOTE: The tool restarts operation in the air volume
mode that was last used.
Lighting up the lamp
CAUTION: Do not look in the light or see the
source of light directly.
To turn the lamp on, perform one of the following steps.
• Press the air volume adjustment button to light the
lamp up. The lamp remains lit for approximately 10
seconds.
• Pull the switch trigger to light the lamp up. The
lamp keeps on lighting while the switch trigger is
being pulled. The lamp goes out approximately 10
seconds after stopping operation.
NOTE: When the remaining battery capacity gets low,
the lamp starts blinking. The timing, at which the lamp
starts blinking depends on the temperature at work
place and the battery cartridge conditions.
2
1
3
Fig.22
► 1. Air volume adjustment button 2. Switch trigger
3. Lamp
Hanging hole
CAUTION: Before hanging the tool, always
make sure that the hanging hole is not damaged.
CAUTION: Use the hanging/mounting parts
for their intended purposes only. Using for unin-
tended purpose may cause accident or personal
injury.
CAUTION: Withstanding load rated for your
tools racks and holders needs to be learned
beforehand. Do not place the tool if it exceeds the
withstanding load on the racks and holders.
CAUTION: Be sure that the hanging hole is
securely hooked before releasing your hold.
Use the hanging hole at the top rear of the housing to
hang the tool on a hook of racks and holders.
1
2
Fig.23
► 1. Hanging hole 2. Hook
Installing hook
Optional accessory
WARNING: Use the hanging/mounting parts
for their intended purposes only, e.g., hanging the
tool on a tool belt between jobs or work intervals.
WARNING: Be careful not to overload the
hook as too much force or irregular overburden
may cause damages to the tool resulting in per-
sonal injury.
CAUTION: When installing the hook, always
secure it with the screw rmly. If not, the hook
may come o󰀨 from the tool and result in the personal
injury.
CAUTION: Make sure to hang the tool
securely before releasing your hold. Insu󰀩cient
or unbalanced hooking may cause falling o󰀨 and you
may be injured.
1
2
3
3
1
2
Fig.24
► 1. Groove 2. Hook 3. Screw
The hook is convenient for temporarily hanging the tool.
This can be installed on either side of the tool. To install
the hook, insert it into a groove in the tool housing on
either side and then secure it with a screw. To remove,
loosen the screw and then take it out.

17 ENGLISH
OPERATION
CAUTION: Do not point the nozzle at anyone
nearby during operation.
NOTICE: Do not block suction inlet and/or
blower outlet during operation.
Blowing in general use
Recommended nozzles
— Nozzle 13
Clean your work surfaces and oors by blowing o󰀨 dust,
dirt, debris, scrap or waste in general.
Direct the nozzle towards surfaces at an appropriate
distance and swing it around to blow o󰀨 entirely.
Fig.25
CAUTION: Never blow debris in the direction
of bystanders or pets.
CAUTION: Use personal protective equip-
ment such as a dust mask and eye protection.
NOTICE: Remove blockages on surfaces away
before blowing operation.
Blowing in conned spaces
Recommended nozzles
— Nozzle 3
Blow into conned spots, corners, and spaces by the
walls to dust o󰀨.
Point the nozzle straight at spaces at a reasonable distance
and squeeze the switch trigger to control blowing air volume.
Fig.26
Fig.27
CAUTION: Keep the nozzle away a reasonable
distance from blowing spots to avoid blowing up
dust into the air.
CAUTION: Use personal protective equip-
ment such as a dust mask and eye protection.
NOTICE: Avoid blocking the air vent holes
around the blower outlet. It otherwise may cause
sudden noise and vibrations and could possibly a󰀨ect
the tool performance.
1
2
Fig.28
► 1. Air vent holes 2. Blower outlet
Dusting air lter
Recommended nozzles
— Nozzle 7
Dust lter surfaces by blowing air through one side of
the lter to the other.
Direct the nozzle on lter surfaces within a short distance and
swing it from side to side to blow dust away from surfaces.
Fig.29

18 ENGLISH
CAUTION: Use personal protective equip-
ment such as a dust mask and eye protection.
NOTE: Point the nozzle at an angle according to the
outlines of the lter so the adhered dust can be easily
removed.
Blowing wide and open area
Recommended nozzles
— Wide range nozzle
Blow air over dirt and liquid on wide-open surfaces such
as desktop and oor, using the ve-hole nozzle with 120
degree range of blowing.
Direct the nozzle over a large area within a certain
distance and swing it back and forth and from side to
side to blow widely.
Fig.30
CAUTION: Use personal protective equip-
ment such as a dust mask and eye protection.
Inating plastic inatables
Recommended nozzles
— Pinch valve nozzle
— Nozzle 13
Inatable air volume with fully charged battery
cartridge BL1860B without recharging it
Air volume mode
Inatable air
volume
(With pinch valve
nozzle)
Number of ø61
cm (ø24″) plastic
beach balls equiv-
alent in air volume
(With pinch valve
nozzle)
4: Max 13.0 m3(459 cu.ft.) 110
3: High 13.4 m3(473 cu.ft.) 115
2: Medium 15.6 m3(551 cu.ft.) 130
1: Low 22.8 m3(805 cu.ft.) 190
NOTE: The maximum output air pressure of this tool
is 20.2 kPa (2.9 PSI).
(With nozzle 13)
Inate beach toys, pillows, and similar small plastic
inatables with pinch valve nozzle.
Inate garden pools, air mattresses, and similar large
plastic inatables with nozzle 13.
Insert the nozzle into an air inlet on an inatable item
and pull the switch trigger to start inating.
Slowly release the switch trigger to reduce air volume
as the inatable item comes close to fully inated.
Remove the nozzle from the air inlet after stopping the
air ow and then close the air inlet.
Fig.31
Fig.32
CAUTION: Always be careful not to over-in-
ate inatables during operation. It otherwise may
burst the inatables, possibly causing damage to the
tool and personal injury.
CAUTION: Never leave the tool unattended
while the nozzle is attached to inatables or
during operation.
CAUTION: Be aware that heated air stream
may ow through the air vent hole at bottleneck
of the pinch valve nozzle due to air circulation.
NOTE: Make sure to insert the pinch valve nozzle
fully through the air inlet so the nozzle head serves to
open the ap valve inside the air inlet.
NOTE: For an inatable item with a small air inlet
opening, insert the narrow tip of the pinch valve noz-
zle in the air inlet until the bottleneck of the nozzle
head touches the rim of the air inlet.
NOTE: For an inatable item with a large air inlet
opening, insert the pinch valve nozzle head fully into
the air inlet to open the ap valve inside the air inlet.

19 ENGLISH
11
2
3
4
5
4
Fig.33
► 1. Flap valve 2. Small air inlet opening 3. Large air
inlet opening 4. Bottleneck 5. Air vent hole
NOTE: If an air inlet on an inatable item is relatively
smaller than the pinch valve nozzle head, squeeze
and enlarge the air inlet by hand and then twist and
hold the nozzle head into the air inlet.
Blowing in holes and narrow spots
Optional accessory
Recommended nozzles
— Long nozzles set
Clean dust out of small holes and narrow spots. Nozzle
lengths can be arranged according to your requirements.
Assemble the long nozzle R and F together to allow a longer
operating range, for instance, cleaning anchor holes at your feet.
Fig.34
Use the long nozzle R only to have a shorter operating
range, for instance, cleaning spots on the wall.
Fig.35
CAUTION: Use personal protective equip-
ment such as a dust mask and eye protection.
Blowing in narrow spaces
Optional accessory
Recommended nozzles
— Flexible nozzle 6
Blow dust out of any hard-to-reach spots. Highly e󰀨ec-
tive for engine cleaning, in-car dust removal, computer
case dust blowing.
Point the nozzle at an angle within touching distance,
and blow back and forth to clean out lingering dust.
Change angles of the nozzle as you blow o󰀨 to help
blow out some of the tougher pieces of debris and dust.
Fig.36
CAUTION: Use personal protective equip-
ment such as a dust mask and eye protection.
NOTICE: Avoid blocking the air vent holes
around the exible hose end. It otherwise may
cause sudden noise and vibrations and could possi-
bly a󰀨ect the tool performance.
1
Fig.37
► 1. Air vent holes

20 ENGLISH
Deating plastic inatables
Optional accessory
NOTICE: An exhaust air stream ows through
the blower outlet of the tool. Do not vent exhaust
air into a wall, ceiling, or concealed space of
building.
NOTICE: Avoid deating inatable items in wet
and dusty conditions since water, dust, and sim-
ilar external substances on surfaces may reach
into the motor causing damages to the tool. Dry
and clean inatables o󰀨 thoroughly before per-
forming deating operation.
NOTICE: Never leave the tool unattended while
deating inatables. Running the motor contin-
uously after deation is completed may cause
overheating.
Recommended nozzles and attachments
— Air vent hose complete
— Pinch valve nozzle
— Rubber attachment 20 - 30
— Rubber attachment 65
Deate inatable items with proper nozzles according to
your preferences and applications.
1. Place a nozzle or rubber attachment onto the air
vent hose complete.
2. Replace the dust cap on the suction inlet of the
tool with the air vent hose complete.
3. Insert the nozzle into the air valve or place the
attachment over the air valve on inatable items, and
pull the switch trigger to start deating.
4. Slowly release the switch trigger to reduce suc-
tion volume as an inatable item comes close to fully
deated.
5. Remove the nozzle or attachment from the air
valve after stopping the air ow and then close the air
valve.
With pinch valve nozzle
Fig.38
With rubber attachment 20 - 30
Fig.39
With rubber attachment 65
Fig.40
MAINTENANCE
CAUTION: Always be sure that the tool is
switched o󰀨 and the battery cartridge is removed
before attempting to perform inspection or
maintenance.
To maintain product SAFETY and RELIABILITY,
repairs, any other maintenance or adjustment should
be performed by Makita Authorized or Factory Service
Centers, always using Makita replacement parts.
NOTICE: Never use gasoline, benzine, thinner,
alcohol or the like. Discoloration, deformation or
cracks may result.
Cleaning
Cleaning body
Clean the body of your tool with a dry cloth or cloth
dampened in soapy water at regular intervals.
Cleaning nozzles
Clear clogs or dust that block the openings of nozzles
before and after each use.
