Makita 433ODWA User manual

Cordless Jig Saw
Length
of stroke
26 mm
(1 “1
MODEL 433ODWA
MODEL 4330D2
Strokes Overall Net
Max. cutting capacities
Wood Mild steel Aluminum per minute length weight
280
mm 2.6 kg
(1 1”) (5.7 Ibs)
2,800
135 mm 10 mm 20 mm
(5-5116”) (318”)
(1 3/16“)
INSTRUCTION MANUAL
SPEC I Fl CAT1 0 N S
* Manufacturer reserves the right to change specifications without notice.
Note: Specifications may differ from country to country.
WARNING: For your personal safety, READ and UNDERSTAND before using.
SAVE THESE INSTRUCTIONS FOR FUTURE REFERENCE.

GENERAL SAFETY RULES
(For All Battery Operated Tools)
WARNING! Read and understand all instructions. Failure
tofollow
all instructions listed below, may result in electric
shock, fire and/or serious personal injury.
SAVE THESE INSTRUCTIONS
Work Area
Keepyour work area clean and well lit. Cluttered benchesand dark areas invite
accidents.
Do not operate power tools in explosive atmospheres, such as in the presence
of flammable liquids, gases, or dust. Powertools create sparks which may ignite
the dust or fumes.
Keep bystanders, children, and visitors away while operating a power tool.
Distractions can cause you to loose control.
Electrical Safety
A batteryoperatedtool with integralbatteriesora separate batterypack must
be recharged only with the specified charger for the battery.
A charger that
may be suitable for one type of battery may create a risk of fire when used with
another battery.
Use battery operated tool only with specifically designated battery pack. Use
of any other batteries may create
a risk of fire.
Personal Safety
*Stay alert, watch what you are doing, and use common sense when operating
a power tool.
Do not usetoolwhile tired or under the influence of drugs, alcohol,
or medication.
A moment of inattention while operating power tools may result
in serious personal injury.
Dress properly. Do not wear loose clothing orjewelry. Contain long hair. Keep
your hair, clothing, and gloves away from moving parts. Loose clothes, jewelry,
or long hair can be caught in moving parts.
Avoid accidental starting. Be sure switchis in the locked or off position before
insertingbattery pack. Carryingtools with your finger onthe switch or inserting
the battery pack into
a tool with the switch on invites accidents.
Remove adjusting keys or switches before turning the tool on. A wrench or
a keythat is left attached to a rotating part of the tool may result in personalinjury.
Do not overreach. Keep properfooting and balance at all times. Proper footing
and balance enable better control of the tool in unexpected situations.
Usesafety equipment. Always wear eye protection. Dust mask, non-skidsafety
shoes, hard hat,
or hearing protection must be used for appropriate conditions.
2

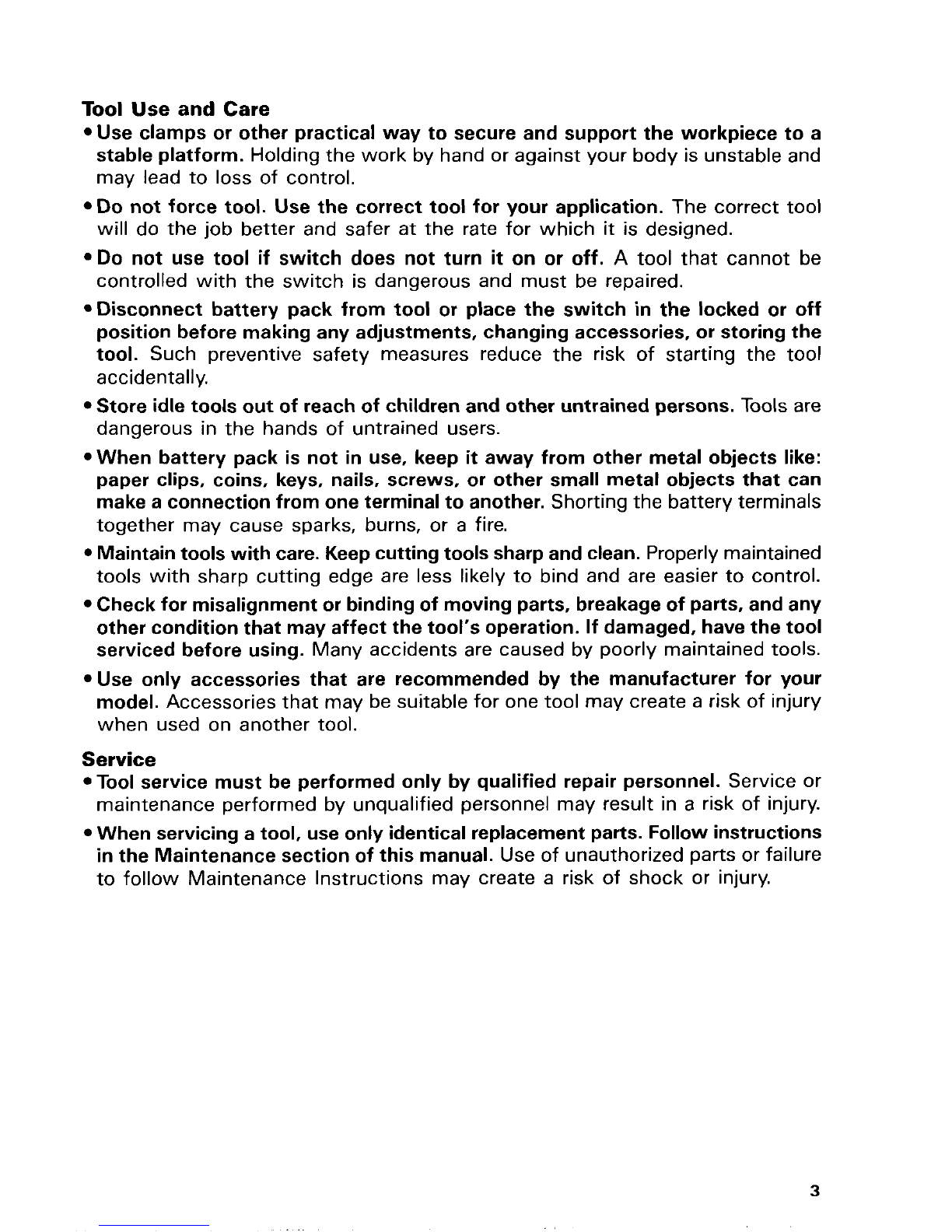

Tool Use and Care
Use clamps or other practical way to secure and support the workpiece to a
stable platform. Holdingthe work by hand or against your body is unstable and
may lead to
loss of control.
Do not force tool. Use the correct tool for your application. The correct tool
will do the job better and safer at the rate for which it is designed.
*Do not use tool if switch does not turn it on or off. A tool that cannot be
controlled with the switch is dangerous and must be repaired.
*Disconnect battery pack from tool or place the switch
in the locked or off
position before making any adjustments, changing accessories, or storing the
tool. Such preventive safety measures reduce the risk of starting the tool
accidenta
I I y.
Store idle tools out of reachof children and other untrained persons. Tools are
dangerous in the hands of untrained users.
When battery pack is not in use, keep it away from other metal objects like:
paper clips, coins, keys, nails, screws, or other small metal objects that can
make aconnectionfrom one terminal toanother. Shortingthe batteryterminals
together may cause sparks, burns, or a fire.
Maintaintools with care. Keepcuttingtools sharpand clean. Properlymaintained
tools with sharp cutting edge are less likely to bind and are easier to control.
Check for misalignment or bindingof moving parts, breakageof parts, and any
other condition that may affect the tool's operation. If damaged, have the tool
serviced before using. Many accidents are caused by poorly maintained tools.
Use only accessories that are recommended by the manufacturer for your
model. Accessories that may be suitablefor one tool may create
a risk of injury
when used on another tool.
Service
Tool service must be performed only by qualified repair personnel. Service or
maintenance performed by unqualified personnel may result in a risk of injury.
When servicing atool, use only identical replacement parts. Follow instructions
in the Maintenance section of this manual. Use of unauthorized parts or failure
to follow Maintenance Instructions may create a risk
of shock or injury.
3

Specific Safety Rules
1. Holdtool by insulated gripping surfaces when performing anoperation where
the cutting tool may contact hidden wiring. Contact with
a "live" wire will
also make exposed metal parts
of the tool "live" and shock the operator.
2. Be aware that this tool is always in an operating condition because it does
not have to be plugged into an electrical outlet.
3. Avoid cutting nails. Inspect for and remove all nailsfrom the workpiece be-
fore operation.
4. Do not cut hollow pipe.
5. Do not cut oversize workpiece.
6. Checkfor the proper clearancebeneath the workpiece before cutting so that
7. Hold the tool firmly.
8. Checktheblade isnot contactingthe workpiece beforetheswitch isturned
9. Keep hands away from moving parts.
the blade
will not strike the floor, workbench, etc.
on.
IO. When cuttingthrough walls, floors or wherever "live" electrical wires may
be encountered,
DO NOT TOUCH ANY METAL PARTS OF THE TOOL!
Holdthe tool only
by the plastic handle to prevent electric shock if you cut
through a "live" wire.
11. Do not leave the tool running. Operate the tool only when hand-held.
12. Always switchoff and wait for the blade tocome toa complete stopbefore
13. Do not touch the blade or the workpiece immediately after operation; they
removing the blade from the workpiece.
may be extremely hot and could burn your skin.
SAVE THESE INSTRUCTIONS.
4

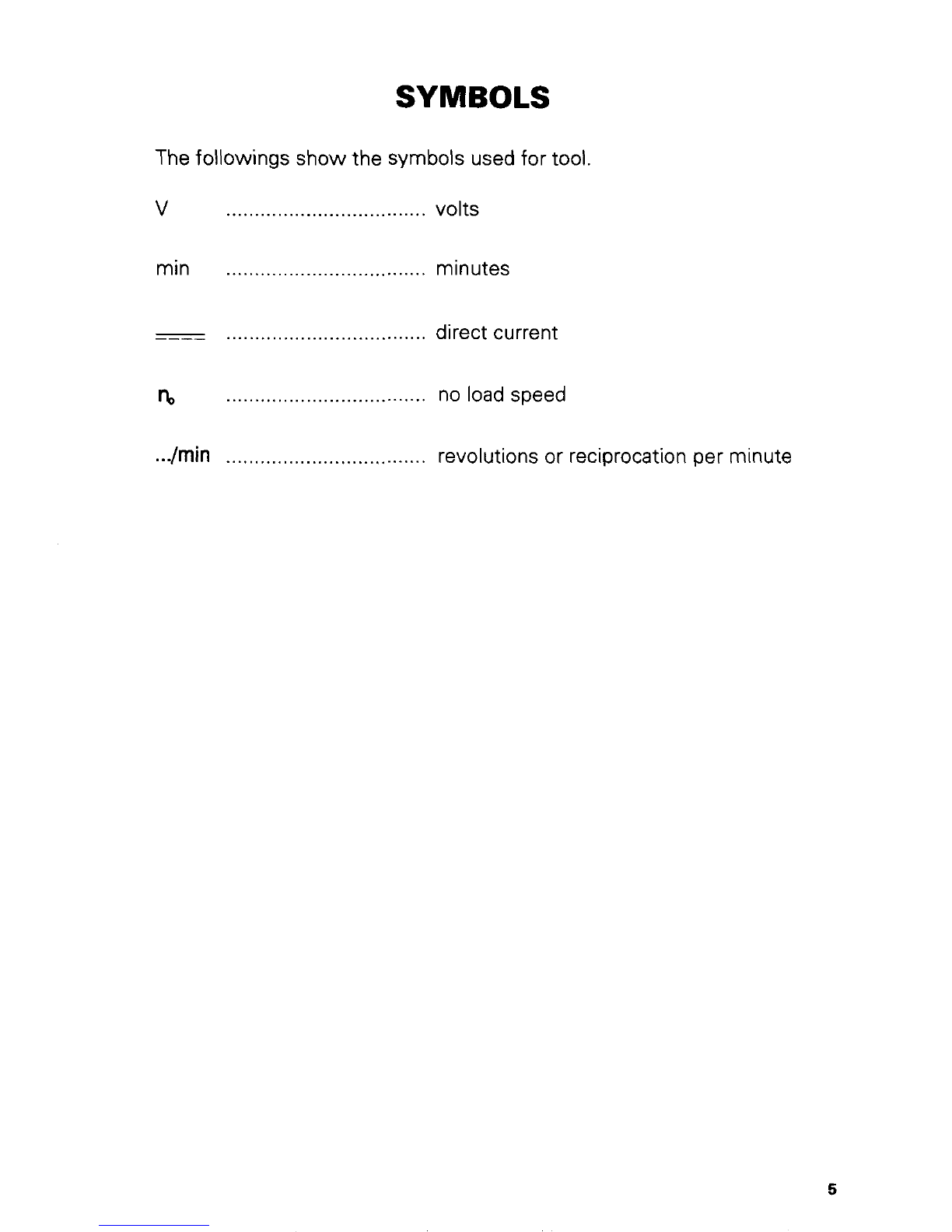

SYMBOLS
The followings show the symbols used for tool.
v ................................... volts
min
................................... minutes
- ................................... direct current
n, ................................... no load speed
... /min
...................................
revolutions or reciprocation per minute
5

IMPORTANT SAFETY INSTRUCTIONS
Length of Cord (Feet)
25 50 100
AWG Size of Cord
18 18 18
FOR CHARGER &
BATTERY CARTRIDGE
150
16
6

ADDITIONAL SAFETY RULES
FOR CHARGER
& BATTERY CARTRIDGE
1. Do not charge Battery Cartridge when temperature is BELOW 10°C (5OOF)
2. Do not attempt touse a step-uptransformer, an enginegenerator or DC power
3. Do not allow anything to cover or clog the charger vents.
4. Always cover the battery terminals with the battery cover when the battery
5. A battery short can cause a large current flow, overheating, possible burns
or ABOVE 4OoC (104OF).
receptacle.
cartridge is not used.
and even a breakdown.
(1 1 Do not touch the terminals with any conductive material.
(2) Avoid storingbatterycartridge in a container withother metalobjectssuch
(3) Do not expose battery cartridge to water or rain.
ture may reach or exceed 5OoC (122OF).
completely worn out. The battery cartridge can explode
in a fire.
as nails, coins, etc.
6. Do not store the tool and Battery Cartridge in locations where the tempera-
7. Do not incinerate the Battery Cartridge even if it is severely damaged or is
SAVE THESE INSTRUCTIONS.
7

Installingor removingthe saw blade
CAUTION:
Always be sure that the tool is switched off and battery removed before installing or
removingthe blade.
To install the blade, loosen the screw on
the blade holder.
With the blade teeth facing forward, insert
the blade into the blade holder as far as it
will go. Make sure that the back edge
of
the blade fits properly in the groove of the
roller. Then firmly tighten the screw to
secure the blade.
CAUTION:
Always secure the blade firmly. Insufficientsecuring of the blade may cause blade break-
age or serious injury.
Always clean out the blade holder before installingthe blade. Chips or foreign matter on
the blade holder may cause insufficientsecuringof the blade.
Use a lubricant or cutting oil betweenthe blade and rollerwhen cutting ironor composi-
tion board, etc. Failureto do
so will shortenthe service lifeof your blade and roller or lead
to potentiallydangerous blade breakage.
8

Installingthe universalshank jig saw blade
CAUTIO N :
Always be sure that the tool is switched off and battery removed before installing or
removing the blade.
If the universal blade clamp is used,
you
can use blades of other makes which have
a universal shank like the one shown in
the figure, with
a blade width of 6.35 mm
(1 /4" 1.
Straight line cutting action
0
Insert the blade into the blade holder as far
as
it will go. Make sure that the end of the
blade shank reaches the bottom of the
inner slit and tighten the bolt securely with
the hex wrench.
For cutting mildsteel, stainlesssteel and plastics.
For clean cuts inwood and plywood.
Selectingthe cuttingaction
This tool can be operated with an orbital or
a straight line cuttingaction. To change the
cutting action, just turn the lever to the
desired cutting action position. Referto the
table below to help determine the appro-
priate cutting action.
1 Medium Orbit cutting action
II
Position 1 Cuttingaction I Applications I
For cuttingwood and plywood.
For fast cuttingin aluminum and mild steel.
I I 1 Small orbit cuttingaction I For cutting mildsteel, aluminum and hardwood. I
1 111 I Large orbit cuttingaction 1 For fast cutting in wood and plywood. I
9

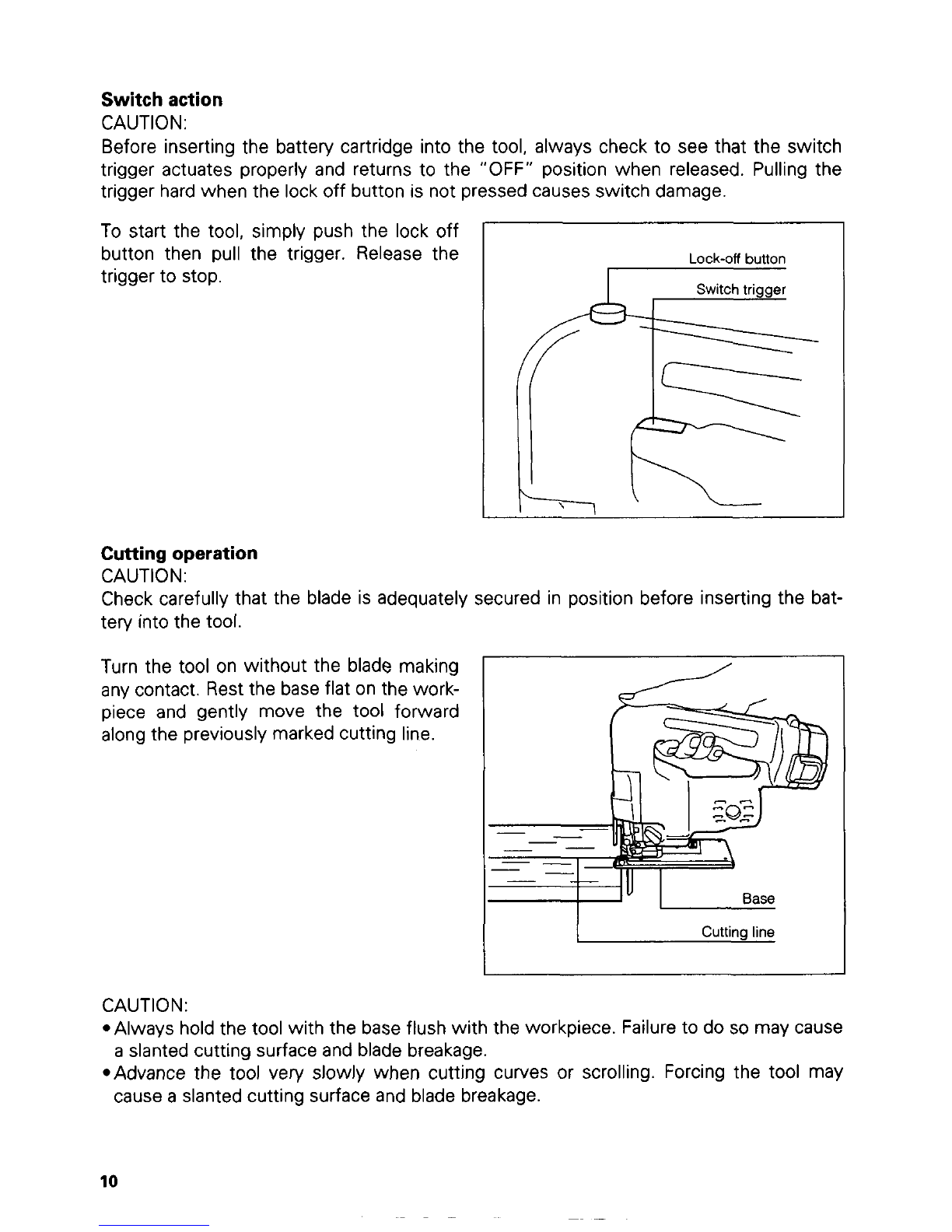

Switch action
CAUTION:
Before inserting the battery cartridge into the tool, always check to see that the switch
trigger actuates properly and returns to the "OFF" position when released. Pulling the
trigger hardwhen the lock off button is not pressed causes switch damage.
To start the tool, simply push the lock off
button then pull the trigger. Release the
Lock-off button
I
Switchtrigger
I,-
- -------
// I-------
-------
Cutting operation
CAUTION:
Check carefully that the blade is adequately secured in position before inserting the bat-
tery into the tool.
Turn the tool on without the blade making
any contact. Rest the base flat on the work-
piece and gently move the tool forward
alongthe previously marked cutting line.
I /
Cuttingline
CAUTION:
*Always holdthe tool withthe baseflush with the workpiece. Failure to do
so may cause
*Advance the tool very slowly when cutting curves or scrolling. Forcing the tool may
a slanted cuttingsurfaceand bladebreakage.
cause
a slantedcuttingsurface and bladebreakage.
10

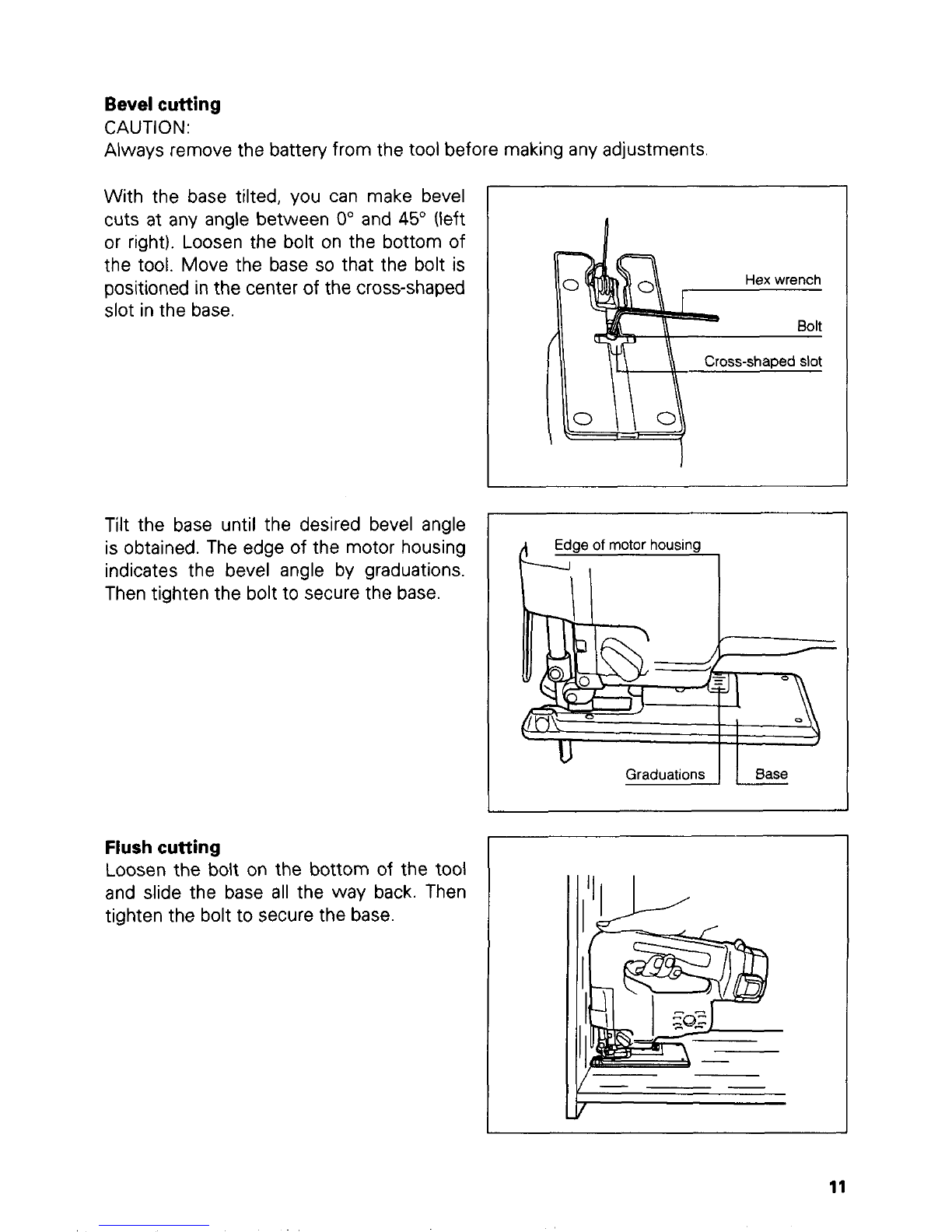

Bevel cutting
CAUTION:
Always removethe batteryfrom the tool before making any adjustments
With the base tilted, you can make bevel
cuts at any angle between
0" and 45" (left
or right). Loosen the bolt on the bottom
of
the tool. Move the base so that the bolt is
positioned inthe center of the cross-shaped
slot inthe base.
Tilt the base until the desired bevel angle
is obtained. The edge
of the motor housing
indicates the bevel angle by graduations.
Then tighten the bolt to secure the base.
Flushcutting
Loosen the bolt on the bottom of the tool
and slide the base all the way back. Then
tighten the bolt to secure the base.
Cross-shaped slot
Edge of motor housing
rl I
11

cutouts
Cutouts can be made with either of two methodsA or B.
A) Boring a starting hole: For internal cut-
outs without lead-in cut from an edge,
pre-drill
a starting hole more than
12 mm (15/32") in diameter. Insert the
blade into this hole and hold the tool
firmly against the workpiece to start
your cut.
=/
Starting hole
B) Plunge cutting:You need not bore a starting hole or make a lead-in cut if you carefully
do as follows.
1) Tilt the tool up on the front edge of the base, with the blade point positionedjust
above the workpiecesurface.
2) Apply firm pressure to the tool
so
that the front edge of the base will
not move when you switch on the
tool and gently lower the back end
of
the tool slowly.
3)
As the blade slices into the work-
piece, slowly lower the base of the
tool down onto the workpiece sur-
face.
4) Completethe cut in the normal man-
ner.
Finishing edges
To trim edges or make slight dimensional
adjustments, runthe blade lightly along the
cut edges.
12

Metalcutting
Always use a suitablecoolant (cuttingoil) when cutting metal. Failure to do so will cause
significant
blade wear. The underside of the workpiece can be greased instead of using a
coolant.
Anti-splinteringdevice
To reduce the potential for workpiece sur-
face splintering, the anti-splintering device
can be used.Fit it intothe base from below
so that it surrounds the sides of the blade.
Plastic baseplate (optionalaccessory)
Use the plastic base plate when cutting
decorativeveneers, plastics,etc. It protects
sensitiveor delicatesurfaces from damage.
To replace the base plate, removethe four
screwswith the hex wrench.
Guiderule (ripfence; optionalaccessory)
When cutting widths of under 150 mm
(5-29/32") repeatedly, use of the guide rule
will assure fast, clean, straight cuts.
To
install it, loosenthe bolt on the front of the
base.
Slip in the guide rule and secure the
bolt.
Anti-sprintering device
L
13

Circular guide (optionalaccessory)
Use of the circular guide insures clean,
smooth cutting of circles under
200 mm
(7-7/8") in radius. Insertthe pinthrough the
center hole and secure
it with the threaded
knob. Move the base of the tool fully for-
ward. Then install the circular guide on the
base in the same manner, as the guide rule
(ripfence).
Vacuum head(optionalaccessory)
The vacuum head is recommendedto per-
form clean cutting operations. Install the
plasticcover on the tool by fitting
it into the
notchesinthe tool.
To attach the vacuum head on the tool,
insert the hook
of the vacuum head into
the hole inthe base. The vacuum head can
be installed on either left or right side of
the base. Then connect
a Makita vacuum
cleaner to the vacuum head.
Fit into notches
@ Base
L
.
\
Plastic cover
Hex wrench
Plastic cover
-
I
- Hose of vacuum head
14

MAINTENANCE
CAUTION:
Always be sure that the tool is switched off and the battery cartridge is removedbefore
attempting to perform inspection or maintenance.
Replacingcarbon brushes
Remove and check the carbon brushes
regularly.Replacewhen they wear downto
the limit mark. Keep the carbon brushes
clean and free to slip in the holders. Both
carbon brushes should be replaced at
the same time. Use only identical carbon
brushes.
Use
a screwdriver to remove the brush
holder caps. Take out the worn carbon
brushes, insert the new ones and secure
the brush holder caps.
/ Limit mark
To maintainproduct SAFETY and RELIABILITY, repairs, maintenanceor adjustment should
be performed by Makita Authorized or Factory Service Centers, always using Makita
replacement parts.
Recycling the Battery
The only way to dispose of a Makita battery is
to recycle it. The
law prohibits any other
method
of disposal.
I
@
N i-Cd
To recycle the battery:
1. Remove the battery from the tool.
2. a). Take the battery to your nearest Makita Factory Service Center
or
b). Take the battery to your nearest Makita Authorized Service Center or
Distributor that has been designated as a Makita battery recycling location.
Callyour nearest Makita Service Center or Distributor to determine the location
that provides Makita battery recycling. See your local Yellow Pages under
"Tools-Electric' !
15

ACCESSORIES
CAUTION:
These accessories or attachments are recommended for use with your Makita tool specified inthis
manual. The use of any other accessories or attachments might present
a risk of injury to persons.
The accessoriesor attachments should be used only inthe proper and intended manner.
An exception: Universalshank jig saw bladeswith athickness
of 1 mm - 1.25mm(1E.2" - 3/64")
and a length of 58mm
- 82 mm(2-9/32" - 3-7/32").
Blade type
Plastic baseplate
Part No. 415537-8
Part No, Teeth per Effectivecutting
inch blade length
Hex wrench 3
Part No.783201-2
Blade
type
r
Part No. Teeth per Effectivecutting
inch blade length
Circular guide assembly
Part No. 123030-5
No. 8-24
No. 8-25
No. 8-26
Vacuum head
Part No. 19241 8-0
792475-4 32 50 mm(2")
792476-2 9 75 mm(3")
7924774 9
70 mm(2-3/4")
Anti-splintering device
Part No.415524-7
NO.8-13
NO.8-14
No.8-15
Plastic cover
Part No.415525-5
792465-7 8 80 mm(3-1/8")
792466-5 18 50 mm(2")
792467-3 12 50 mm (2")
Guide rule
Part No.164113-2
Hose 19-2.5
Part No.192108-5
I No. 51 I 792428-3 I 24 I 65" (2-1/2') I
80 mm (3-1/8")
80 mm (3-1/8")
I No. 8-18 I 792470-4 I 14 I 45 mm 11.3/4") I
I I I - I-''
No. 8-19 I 792471-2 I 12 I 65 mm(2-1/2")
I No. 8-21 I 7924724 I 12 I 75 mm(3") I
I No. 6-22 I 792473-8 1 24 1 50 mm(2") I
I No. 8-23 1792474-6 I 14 I 50mm(2") I
No. 8-27 17924784 I 24 I 50" 12")
I No. B-16 I 792468-1 I 6 I 80 mm(3-1/8") I
I No. BR-13 I 792727-3 I 9 I 64 mm12-1/2") I
I No. 8-17 I 792469-9 I 6 1 70 mm(2-3/4") I
I No. 8-16L I 792726-5 I 6 I 150mm(5-7/8")
(Note)
Refer
to the next page for "Application" of each blade.
16

Wood & plywood
-
No 51
4 - 60 mm thick 4 - 60 mm thick
I No' 58 I l5/32"-2-3/8") I l5/32"-2-3/8'l I -
Plastics Aluminum Mild Steel Feature
15
- 3 mm thick 1 - 6 mm thick 1
- 3 mm thick Also ideal for cutting
11/16,
- 1/8"1 13/64'' - 1/4"l 13/64" - 1B"l stainlesssteel
I - I Forfastcutting.
No,
No'
No,
NO,
I No, 59
I 4-30 mm thick I 4-30 mm thick
15/32''
- 1-1B"l 15/32'' - 1-1/87 I -
- - For fast finish work.
3
- 30 mm thick
(l/8"
- 1-1/8")
5 - 60 mm thick
f13/64"
- 2-3/8"1 l13/64" -2-3/8"ls
4
- 60 mm thick
15/32'' - 2-3/8")
2 - 30 mm thick
15/64'' - 1-1/8") l5/64"- 1-1/8") materials.
3
- 50 mm thick
f1/8' - 2")
5
- 60 mm thick
- - For fast finish work.
- - For roughing-inwork.
4 - 60 mm thick
15/32'' - 2-3/8")
2 - 30 mm thick
-
Idealfor cutting inthin
-
I - I For fast finish work.
No,
For fast finish work,
1-1-1 eweciallv in Dlvwood
I NoB-10 I 3-60mmthick I 3-60mmthickS
IlB" - 2-3/8") f1/8"
- 2-3/8')
- Cuts on downstroke.
-
3 - 30 mm thick 3 - 30 mm thick
(l/8"
- 1-1/8"1 OB" - 1-1/8") Splinter-freeon finish side.
-
No. 6-22
-
No. 6-23
-
No. 6-24
3
- 30 mm thick I 3 - 30 mm thick I
I N'. I l1/8" - 1-1/8") l1/8" - 1-1/8") -I-
1.5 - 3 mm thick 1 - 6 mm thick 1 - 3 mm thick Also ideal for cutting
11/16'' - 1/8") 13/64'' - 1/4") 13/64'' - lB") stainlesssteel.
3
- 6 mm thick 3 - 10 mm thick 3
- 6 mm thick Also ideal for cutting
l1/8"
- 1/4") ll/8' - 3D"l IlB" - 1/4"l stainlesssteel.
1
- 3 mm thick
13/64''
- 1/8"I 11/64'' - 1/8"l 11/64'' - 5/64"] stainlesssteel
0.5
- 3 mm thick 0.5 - 2 mm thick Also idealfor cutting
Idealfor cutting inthin
I materials
No. 6-27
I No, I 5-60 mmthick I 5-60mmthick I -
l13/64" - 2-3/8") l13/64" - 2-3/8")
1.5 - 3 mm thick 1 - 6 mm thick
- 11/16mm - 1/8,sl 13/64,m - 1/4mml 'l~&m~$?~ Idealfor scrollcutting.
I - I For fast cutting
No
No
I No,8-17 I 5-60mmthick I 5-60mmthick I - I -
l13/64" - 2-3/8") l13/64" - 2-3/8'l
5 - 60 mm thick - - - Splinter-freecuts in wood,
requiringno sanding
5
- 110 mm thick 5- 110 mm thick - - Idealfor cuttingthick
l13/64"-4-5/16"l 03/64"-4-5/16"] materials
(13/64"
- 2-3/8")
I Idealfor scroll cutting.
I No, B-18 I 2-30 mm thick I 2-30 mm thick
15/64,, - 1-1/8,,1 15/64,,- 1-1/8,,1 S I - I - I Idealfor scroll cutting.
For finish work, especially
IlB" - 2-1/8")
ll/8' - 3/87 1-1 in plastics.
I 3 - 55 mm thick I 3 - 10 mm thick
I No. 6-21 I -
rNo
I 3 - 55 mm thick I 3- 55 mm thick I 3 - 30 mnithick I 3 - 10 mm thick I Idealfor cuttingthick
(1B"
- 2-1/8") (1/8" - 2-1/8") (1/8" - 1-1/87 IlB" - 3/8"1 materials
17

Nov.-19-'98 US
CORDLESS JIG SAW
Model 43300
9
\
55
58
Note: The switch and other part configurations
may differ from country to country.
18

MODEL 43300 Nov-19-'98 US
__
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
41
48
49
50
51
52
53
54
55
56
$:D DESCRIPTIDN I;:, G2D DESCRIPTION
1
1
1
1
2
1
1
1
1
1
1
1
1
1
1
3
1
1
1
1
1
1
1
1
1
MACHINE
11
~
ii b
15
16
17
18
19
20
51
;I; 81
91
1
1
1
2
1
1
26
27
28
29
30
31
1
1
2
1
1
1
Switch Button
compress,on Spmg 4
Housing Set iWlh Item 511
Tapping
Screw 4x18
Tapping
Screw 4x30
Pan
Head Screw M4x25
Switch
Switch
Lever
Battery Holder
Holder
Gear
Housing Cover Complete
Tapping
Screw 4x18
Pi" 4
Compression Spring 4
Holder
Stop Ring E-3
Slider
Countersunk Head Screw M4x10
Thrust Plate
Retainer Complete
Name Plate
Rod
Hex Socket Screw M6x8
Slide Plate
Packing
Retaining Ring S-8
Needle Bearing 601
Hex Socket Head Bolt M4x16
Crank Complete
Flat Washer
26
Flat Washer 6
57 1
58 I 1
59 I 1
Balance Plate
Pin
6
Balance Plate
1 Flat Washer 6
Flat Washer 6
Pin 6
Push Plate
Flat Washer 26
Needle Bearing 810
P,"
5
Helical Gear 51
Needle Bearing 810
Flat Washer
8
Pln 8
Tapping Screw ST 4x8
Motor Bracket
Countersunk
Head Screw M4x10
OC
Motor IWith Spur Gear1
Housing Set IWithItem 31
Lever 17
Compresslo" Spring
4
Steel Ball 4
Stop Ring IEXTl E-5
Base
Clamp Plate
Base Plate
Hex Socket Head Bolt M4x16
Hex Socket CS Head Bolt M5x8
Safety Wire
1 Flat Washer 5
Note The switch and orher Part specifications may differ from country to country
19

I 1
MAKKA LIMNED ONE YEAR WARRANTY
Warranty Policy
Every Makita tool is thoroughly inspected and tested before leaving the factory. It is warranted to
be free of defects from workmanship and materials for the period of ONE YEAR from the date of
original purchase. Should any trouble develop during this one-year period return the COMPLETE
tool, freight prepaid, toone of Makita’s Factory or Authorized ServiceCeders. If inspection shows
the trouble
is caused by defective workmanship or material, Makita will repair (or at our option,
replace) without charge.
This Warranty does not apply where:
repairs have been made or attempted by others:
repairs are required because of normal wear and tear:
The tool has been abused, misused or improperly maintained ;
alterationshave been made tothe tool.
IN NO EVENT SHALL MAKITA BE LIABLE FOR ANY INDIRECT, INCIDENTAL OR CON-
SEQUENTIALDAMAGES FROM THE SALEOR USE OFTHE PRODUCT. THIS DISCLAIMER
APPLIESBOTH DURING AND AFTER THE TERM
OF THIS WARRANTY.
MAKITA DISCLAIMS LIABILITY FOR ANY IMPLIED WARRANTIES, INCLUDING IMPLIED
WARRANTIES OF “MERCHANTABILITY” AND “FITNESS FOR A SPECIFIC PURPOSE,”
AFTER THE ONE-YEARTERM OFTHISWARRANTY.
This Warranty gives you specific legal rights, and you may also have other rights which vary from
state to state. Some states do not allow the exclusion or Limitation of incidental or consequential
damages,
so the above Limitation or exclusion may not apply to you. Some states do not allow
limitation
on how long an implied warranty lasts, so the above limitationmay not apply to you.
MCW 1/99
Makita Corporation of America
2650 Buford Hwy., Buford, GA 30518
884234-063
PRINTED IN USA
1999-01 -4D
