Makita DHS680 User manual

INSTRUCTION MANUAL
Cordless Circular Saw
DHS680
ENGLISH: Original instructions
Read before use.

2ENGLISH
SPECIFICATIONS
Model DHS680
Blade diameter 165 mm
Max. cutting depth at 0° 57 mm
at 45° 41 mm
at 50° 37 mm
No load speed 5,000 min-1
Overall length 350 mm
Net weight 3.0 - 3.3 kg
Rated voltage D.C. 18 V
• Due to our continuing program of research and development, the specications herein are subject to change without notice.
• Specications may di󰀨er from country to country.
• The weight may di󰀨er depending on the attachment(s), including the battery cartridge. The lightest and heavi-
est combination, according to EPTA-Procedure 01/2014, are shown in the table.
Applicable battery cartridge and charger
Battery cartridge BL1815N / BL1820 / BL1820B / BL1830 / BL1830B / BL1840 /
BL1840B / BL1850 / BL1850B / BL1860B
Charger DC18RC / DC18RD / DC18RE / DC18SD / DC18SE / DC18SF
• Some of the battery cartridges and chargers listed above may not be available depending on your region of residence.
WARNING: Only use the battery cartridges and chargers listed above. Use of any other battery cartridges
and chargers may cause injury and/or re.
Symbols
The following show the symbols used for the equipment. Be
sure that you understand their meaning before use.
Read instruction manual.
Wear safety glasses.
Ni-MH
Li-ion
Only for EU countries
Do not dispose of electric equipment or
battery pack together with household waste
material!
In observance of the European Directives,
on Waste Electric and Electronic
Equipment and Batteries and Accumulators
and Waste Batteries and Accumulators
and their implementation in accordance
with national laws, electric equipment and
batteries and battery pack(s) that have
reached the end of their life must be col-
lected separately and returned to an envi-
ronmentally compatible recycling facility.
Intended use
The tool is intended for performing lengthways and
crossways straight cuts and mitre cuts with angles in
wood while in rm contact with the workpiece. With
appropriate Makita genuine saw blades, other materials
can also be sawed.
Noise
The typical A-weighted noise level determined accord-
ing to EN62841:
Sound pressure level (LpA) : 94 dB (A)
Sound power level (LWA) : 105 dB (A)
Uncertainty (K) : 3 dB (A)
NOTE:
The declared noise emission value(s) has been
measured in accordance with a standard test method and
may be used for comparing one tool with another.
NOTE: The declared noise emission value(s) may also be
used in a preliminary assessment of exposure.
WARNING: Wear ear protection.
WARNING: The noise emission during actual
use of the power tool can di󰀨er from the declared
value(s) depending on the ways in which the
tool is used especially what kind of workpiece is
processed.
WARNING: Be sure to identify safety mea-
sures to protect the operator that are based on an
estimation of exposure in the actual conditions of
use (taking account of all parts of the operating
cycle such as the times when the tool is switched
o󰀨 and when it is running idle in addition to the
trigger time).
Vibration
The vibration total value (tri-axial vector sum) deter-
mined according to EN62841:
Work mode : cutting wood
Vibration emission (ah,W) : 2.5 m/s2or less
Uncertainty (K) : 1.5 m/s2
NOTE: The declared vibration total value(s) has been
measured in accordance with a standard test method
and may be used for comparing one tool with another.
NOTE: The declared vibration total value(s) may also
be used in a preliminary assessment of exposure.

3ENGLISH
WARNING: The vibration emission during actual
use of the power tool can di󰀨er from the declared val-
ue(s) depending on the ways in which the tool is used
especially what kind of workpiece is processed.
WARNING: Be sure to identify safety measures
to protect the operator that are based on an estimation
of exposure in the actual conditions of use (taking
account of all parts of the operating cycle such as the
times when the tool is switched o󰀨 and when it is run-
ning idle in addition to the trigger time).
EC Declaration of Conformity
For European countries only
The EC declaration of conformity is included as Annex A
to this instruction manual.
General power tool safety warnings
WARNING: Read all safety warnings, instruc-
tions, illustrations and specications provided with this
power tool. Failure to follow all instructions listed below
may result in electric shock, re and/or serious injury.
Save all warnings and instruc-
tions for future reference.
The term "power tool" in the warnings refers to your mains-operated
(corded) power tool or battery-operated (cordless) power tool.
Work area safety
1. Keep work area clean and well lit. Cluttered or
dark areas invite accidents.
2. Do not operate power tools in explosive atmo-
spheres, such as in the presence of ammable
liquids, gases or dust. Power tools create sparks
which may ignite the dust or fumes.
3. Keep children and bystanders away while
operating a power tool. Distractions can cause
you to lose control.
Electrical safety
1.
Power tool plugs must match the outlet. Never modify the
plug in any way. Do not use any adapter plugs with earthed
(grounded) power tools. Unmodied plugs and matching
outlets will reduce risk of electric shock.
2. Avoid body contact with earthed or grounded
surfaces, such as pipes, radiators, ranges and
refrigerators. There is an increased risk of elec-
tric shock if your body is earthed or grounded.
3. Do not expose power tools to rain or wet con-
ditions. Water entering a power tool will increase
the risk of electric shock.
4. Do not abuse the cord. Never use the cord for
carrying, pulling or unplugging the power tool.
Keep cord away from heat, oil, sharp edges
or moving parts. Damaged or entangled cords
increase the risk of electric shock.
5.
When operating a power tool outdoors, use an exten-
sion cord suitable for outdoor use. Use of a cord suit-
able for outdoor use reduces the risk of electric shock.
6. If operating a power tool in a damp location
is unavoidable, use a residual current device
(RCD) protected supply. Use of an RCD reduces
the risk of electric shock.
7.
Power tools can produce electromagnetic elds
(EMF) that are not harmful to the user. However,
users of pacemakers and other similar medical devices
should contact the maker of their device and/or doctor
for advice before operating this power tool.
Personal safety
1. Stay alert, watch what you are doing and use
common sense when operating a power tool.
Do not use a power tool while you are tired or
under the inuence of drugs, alcohol or med-
ication. A moment of inattention while operating
power tools may result in serious personal injury.
2. Use personal protective equipment. Always
wear eye protection. Protective equipment such
as a dust mask, non-skid safety shoes, hard hat or
hearing protection used for appropriate conditions
will reduce personal injuries.
3.
Prevent unintentional starting. Ensure the switch is in
the o󰀨-position before connecting to power source and/
or battery pack, picking up or carrying the tool. Carrying
power tools with your nger on the switch or energising power
tools that have the switch on invites accidents.
4. Remove any adjusting key or wrench before turning the
power tool on. A wrench or a key left attached to a rotating
part of the power tool may result in personal injury.
5. Do not overreach. Keep proper footing and
balance at all times. This enables better control
of the power tool in unexpected situations.
6. Dress properly. Do not wear loose clothing or
jewellery. Keep your hair and clothing away
from moving parts. Loose clothes, jewellery or
long hair can be caught in moving parts.
7. If devices are provided for the connection of
dust extraction and collection facilities, ensure
these are connected and properly used. Use of
dust collection can reduce dust-related hazards.
8.
Do not let familiarity gained from frequent use of
tools allow you to become complacent and ignore
tool safety principles. A careless action can cause
severe injury within a fraction of a second.
9. Always wear protective goggles to protect your eyes
from injury when using power tools. The goggles must
comply with ANSI Z87.1 in the USA, EN 166 in Europe,
or AS/NZS 1336 in Australia/New Zealand. In Australia/
New Zealand, it is legally required to wear a face shield
to protect your face, too.
It is an employer's responsibility to enforce
the use of appropriate safety protective equip-
ments by the tool operators and by other per-
sons in the immediate working area.

4ENGLISH
Power tool use and care
1. Do not force the power tool. Use the correct
power tool for your application. The correct
power tool will do the job better and safer at the
rate for which it was designed.
2. Do not use the power tool if the switch does
not turn it on and o󰀨. Any power tool that cannot
be controlled with the switch is dangerous and
must be repaired.
3. Disconnect the plug from the power source
and/or remove the battery pack, if detachable,
from the power tool before making any adjust-
ments, changing accessories, or storing power
tools. Such preventive safety measures reduce
the risk of starting the power tool accidentally.
4. Store idle power tools out of the reach of chil-
dren and do not allow persons unfamiliar with
the power tool or these instructions to operate
the power tool. Power tools are dangerous in the
hands of untrained users.
5. Maintain power tools and accessories. Check
for misalignment or binding of moving parts,
breakage of parts and any other condition that
may a󰀨ect the power tool’s operation. If dam-
aged, have the power tool repaired before use.
Many accidents are caused by poorly maintained
power tools.
6. Keep cutting tools sharp and clean. Properly
maintained cutting tools with sharp cutting edges
are less likely to bind and are easier to control.
7. Use the power tool, accessories and tool bits
etc. in accordance with these instructions, tak-
ing into account the working conditions and
the work to be performed. Use of the power tool
for operations di󰀨erent from those intended could
result in a hazardous situation.
8. Keep handles and grasping surfaces dry,
clean and free from oil and grease. Slippery
handles and grasping surfaces do not allow for
safe handling and control of the tool in unexpected
situations.
9. When using the tool, do not wear cloth work
gloves which may be entangled. The entangle-
ment of cloth work gloves in the moving parts may
result in personal injury.
Battery tool use and care
1. Recharge only with the charger specied by
the manufacturer. A charger that is suitable for
one type of battery pack may create a risk of re
when used with another battery pack.
2. Use power tools only with specically desig-
nated battery packs. Use of any other battery
packs may create a risk of injury and re.
3. When battery pack is not in use, keep it away
from other metal objects, like paper clips,
coins, keys, nails, screws or other small metal
objects, that can make a connection from one
terminal to another. Shorting the battery termi-
nals together may cause burns or a re.
4. Under abusive conditions, liquid may be
ejected from the battery; avoid contact. If con-
tact accidentally occurs, ush with water. If
liquid contacts eyes, additionally seek medical
help. Liquid ejected from the battery may cause
irritation or burns.
5. Do not use a battery pack or tool that is dam-
aged or modied. Damaged or modied batteries
may exhibit unpredictable behaviour resulting in
re, explosion or risk of injury.
6. Do not expose a battery pack or tool to re or
excessive temperature. Exposure to re or tem-
perature above 130 °C may cause explosion.
7. Follow all charging instructions and do not
charge the battery pack or tool outside the
temperature range specied in the instruc-
tions. Charging improperly or at temperatures
outside the specied range may damage the
battery and increase the risk of re.
Service
1. Have your power tool serviced by a qualied
repair person using only identical replacement
parts. This will ensure that the safety of the power
tool is maintained.
2. Never service damaged battery packs. Service
of battery packs should only be performed by the
manufacturer or authorized service providers.
3. Follow instruction for lubricating and chang-
ing accessories.
Cordless circular saw safety warnings
Cutting procedures
1. DANGER:
Keep hands away from cutting area
and the blade. Keep your second hand on auxiliary
handle, or motor housing. If both hands are holding
the saw, they cannot be cut by the blade.
2. Do not reach underneath the workpiece. The guard
cannot protect you from the blade below the workpiece.
3. Adjust the cutting depth to the thickness of
the workpiece. Less than a full tooth of the blade
teeth should be visible below the workpiece.
4. Never hold the workpiece in your hands or
across your leg while cutting. Secure the
workpiece to a stable platform. It is important to
support the work properly to minimise body expo-
sure, blade binding, or loss of control.
5. Hold the power tool by insulated gripping
surfaces, when performing an operation where
the cutting tool may contact hidden wiring.
Contact with a “live” wire will also make exposed
metal parts of the power tool “live” and could give
the operator an electric shock.
6. When ripping, always use a rip fence or
straight edge guide. This improves the accuracy
of cut and reduces the chance of blade binding.

5ENGLISH
7.
Always use blades with correct size and shape
(diamond versus round) of arbour holes. Blades that
do not match the mounting hardware of the saw will run
o󰀨-centre, causing loss of control.
8. Never use damaged or incorrect blade wash-
ers or bolt. The blade washers and bolt were
specially designed for your saw, for optimum
performance and safety of operation.
Kickback causes and related warnings
— kickback is a sudden reaction to a pinched,
jammed or misaligned saw blade, causing an
uncontrolled saw to lift up and out of the workpiece
toward the operator;
—
when the blade is pinched or jammed tightly by the kerf
closing down, the blade stalls and the motor reaction
drives the unit rapidly back toward the operator;
— if the blade becomes twisted or misaligned in the cut,
the teeth at the back edge of the blade can dig into the
top surface of the wood causing the blade to climb out
of the kerf and jump back toward the operator.
Kickback is the result of saw misuse and/or incorrect
operating procedures or conditions and can be avoided
by taking proper precautions as given below.
1. Maintain a rm grip with both hands on the
saw and position your arms to resist kickback
forces. Position your body to either side of the
blade, but not in line with the blade. Kickback
could cause the saw to jump backwards, but
kickback forces can be controlled by the operator,
if proper precautions are taken.
2. When blade is binding, or when interrupting a
cut for any reason, release the trigger and hold
the saw motionless in the material until the
blade comes to a complete stop. Never attempt
to remove the saw from the work or pull the
saw backward while the blade is in motion
or kickback may occur. Investigate and take
corrective actions to eliminate the cause of blade
binding.
3. When restarting a saw in the workpiece, centre
the saw blade in the kerf so that the saw teeth
are not engaged into the material. If a saw blade
binds, it may walk up or kickback from the work-
piece as the saw is restarted.

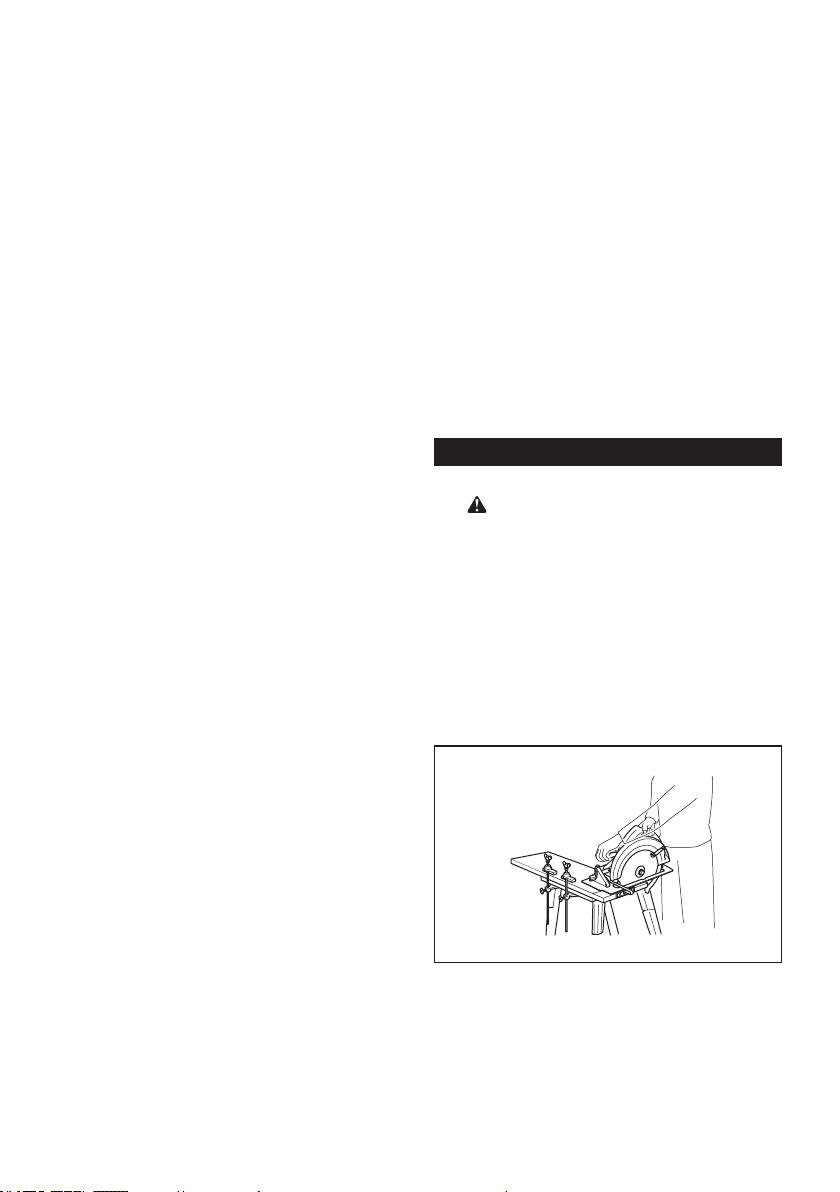

4. Support large panels to minimise the risk of
blade pinching and kickback. Large panels tend
to sag under their own weight. Supports must be
placed under the panel on both sides, near the line
of cut and near the edge of the panel.
5. Do not use dull or damaged blades.
Unsharpened or improperly set blades produce
narrow kerf causing excessive friction, blade
binding and kickback.
6. Blade depth and bevel adjusting locking levers
must be tight and secure before making the
cut. If blade adjustment shifts while cutting, it may
cause binding and kickback.
7. Use extra caution when sawing into existing
walls or other blind areas. The protruding blade
may cut objects that can cause kickback.
8. ALWAYS hold the tool rmly with both hands.
NEVER place your hand, leg or any part of your
body under the tool base or behind the saw,
especially when making cross-cuts. If kickback
occurs, the saw could easily jump backwards over
your hand, leading to serious personal injury.
9. Never force the saw. Push the saw forward at a
speed so that the blade cuts without slowing.
Forcing the saw can cause uneven cuts, loss of
accuracy, and possible kickback.
Lower guard function
1. Check the lower guard for proper closing
before each use. Do not operate the saw if the
lower guard does not move freely and close
instantly. Never clamp or tie the lower guard
into the open position. If the saw is accidentally
dropped, the lower guard may be bent. Raise the
lower guard with the retracting handle and make
sure it moves freely and does not touch the blade
or any other part, in all angles and depths of cut.
2.
Check the operation of the lower guard spring. If
the guard and the spring are not operating prop-
erly, they must be serviced before use. Lower guard
may operate sluggishly due to damaged parts, gummy
deposits, or a build-up of debris.

6ENGLISH
3. The lower guard may be retracted manually
only for special cuts such as “plunge cuts”
and “compound cuts”. Raise the lower guard
by the retracting handle and as soon as the
blade enters the material, the lower guard
must be released. For all other sawing, the lower
guard should operate automatically.
4. Always observe that the lower guard is cover-
ing the blade before placing the saw down on
bench or oor. An unprotected, coasting blade
will cause the saw to walk backwards, cutting
whatever is in its path. Be aware of the time it
takes for the blade to stop after switch is released.
5. To check lower guard, open lower guard by
hand, then release and watch guard closure.
Also check to see that retracting handle does
not touch tool housing. Leaving blade exposed
is VERY DANGEROUS and can lead to serious
personal injury.
Additional safety warnings
1. Use extra caution when cutting damp wood,
pressure treated lumber, or wood containing
knots. Maintain smooth advancement of tool with-
out decrease in blade speed to avoid overheating
the blade tips.
2. Do not attempt to remove cut material when
blade is moving. Wait until blade stops before
grasping cut material. Blades coast after turn o󰀨.
3. Avoid cutting nails. Inspect for and remove all
nails from lumber before cutting.
4. Place the wider portion of the saw base on
that part of the workpiece which is solidly
supported, not on the section that will fall o󰀨
when the cut is made. If the workpiece is short
or small, clamp it down. DO NOT TRY TO HOLD
SHORT PIECES BY HAND!
5. Before setting the tool down after completing a
cut, be sure that the guard has closed and the
blade has come to a complete stop.
6. Never attempt to saw with the circular saw
held upside down in a vise. This is extremely
dangerous and can lead to serious accidents.
7. Some material contains chemicals which may be
toxic. Take caution to prevent dust inhalation and
skin contact. Follow material supplier safety data.
8. Do not stop the blades by lateral pressure on
the saw blade.
9. Do not use any abrasive wheels.
10. Only use the saw blade with the diameter that
is marked on the tool or specied in the man-
ual. Use of an incorrectly sized blade may a󰀨ect
the proper guarding of the blade or guard opera-
tion which could result in serious personal injury.
11.
Keep blade sharp and clean. Gum and wood pitch
hardened on blades slows saw and increases potential
for kickback. Keep blade clean by rst removing it from
tool, then cleaning it with gum and pitch remover, hot
water or kerosene. Never use gasoline.
12. Wear a dust mask and hearing protection when
use the tool.
13. Always use the saw blade intended for cutting
the material that you are going to cut.
14. Only use the saw blades that are marked with
a speed equal or higher than the speed marked
on the tool.
15. (For European countries only)
Always use the blade which conforms to
EN847-1.
SAVE THESE INSTRUCTIONS.
WARNING: DO NOT let comfort or familiarity
with product (gained from repeated use) replace
strict adherence to safety rules for the subject
product. MISUSE or failure to follow the safety
rules stated in this instruction manual may cause
serious personal injury.
Important safety instructions for
battery cartridge
1. Before using battery cartridge, read all instructions
and cautionary markings on (1) battery charger, (2)
battery, and (3) product using battery.
2. Do not disassemble battery cartridge.
3. If operating time has become excessively
shorter, stop operating immediately. It may
result in a risk of overheating, possible burns
and even an explosion.
4.
If electrolyte gets into your eyes, rinse them out
with clear water and seek medical attention right
away. It may result in loss of your eyesight.

7ENGLISH
5. Do not short the battery cartridge:
(1) Do not touch the terminals with any con-
ductive material.
(2) Avoid storing battery cartridge in a con-
tainer with other metal objects such as
nails, coins, etc.
(3) Do not expose battery cartridge to water
or rain.
A battery short can cause a large current
ow, overheating, possible burns and even a
breakdown.
6. Do not store the tool and battery cartridge in
locations where the temperature may reach or
exceed 50 °C (122 °F).
7. Do not incinerate the battery cartridge even if
it is severely damaged or is completely worn
out. The battery cartridge can explode in a re.
8. Be careful not to drop or strike battery.
9. Do not use a damaged battery.
10. The contained lithium-ion batteries are subject
to the Dangerous Goods Legislation require-
ments.
For commercial transports e.g. by third parties,
forwarding agents, special requirement on pack-
aging and labeling must be observed.
For preparation of the item being shipped, consult-
ing an expert for hazardous material is required.
Please also observe possibly more detailed
national regulations.
Tape or mask o󰀨 open contacts and pack up the
battery in such a manner that it cannot move
around in the packaging.
11. Follow your local regulations relating to dis-
posal of battery.
12. Use the batteries only with the products
specied by Makita. Installing the batteries to
non-compliant products may result in a re, exces-
sive heat, explosion, or leak of electrolyte.
SAVE THESE INSTRUCTIONS.
CAUTION: Only use genuine Makita batteries.
Use of non-genuine Makita batteries, or batteries that
have been altered, may result in the battery bursting
causing res, personal injury and damage. It will
also void the Makita warranty for the Makita tool and
charger.
Tips for maintaining maximum
battery life
1. Charge the battery cartridge before completely
discharged. Always stop tool operation and
charge the battery cartridge when you notice
less tool power.
2. Never recharge a fully charged battery car-
tridge. Overcharging shortens the battery
service life.
3. Charge the battery cartridge with room tem-
perature at 10 °C - 40 °C (50 °F - 104 °F). Let
a hot battery cartridge cool down before
charging it.
4. Charge the battery cartridge if you do not use
it for a long period (more than six months).
FUNCTIONAL
DESCRIPTION
CAUTION:
• Always be sure that the tool is switched o󰀨 and
the battery cartridge is removed before adjust-
ing or checking function on the tool.
Installing or removing battery
cartridge
1
2
3
► 1. Button 2. Red indicator 3. Battery cartridge
CAUTION:
• Always switch o󰀨 the tool before installing or
removing of the battery cartridge.
• Hold the tool and the battery cartridge rmly
when installing or removing battery car-
tridge. Failure to hold the tool and the battery
cartridge rmly may cause them to slip o󰀨 your
hands and result in damage to the tool and
battery cartridge and a personal injury.
To remove the battery cartridge, slide it from the tool
while sliding the button on the front of the cartridge.
To install the battery cartridge, align the tongue on the
battery cartridge with the groove in the housing and slip
it into place. Insert it all the way until it locks in place
with a little click. If you can see the red indicator on the
upper side of the button, it is not locked completely.
CAUTION:
• Always install the battery cartridge fully until the
red indicator cannot be seen. If not, it may acci-
dentally fall out of the tool, causing injury to you
or someone around you.
• Do not install the battery cartridge forcibly. If the
cartridge does not slide in easily, it is not being
inserted correctly.
NOTE:
• When the battery cartridge is not removed eas-
ily, push it from the opposite side of the button
and slide it.

8ENGLISH
Indicating the remaining battery
capacity
Only for battery cartridges with the indicator
1
2
► 1. Indicator lamps 2. Check button
Press the check button on the battery cartridge to indi-
cate the remaining battery capacity. The indicator lamps
light up for a few seconds.
Indicator lamps Remaining
capacity
Lighted O󰀨 Blinking
75% to 100%
50% to 75%
25% to 50%
0% to 25%
Charge the
battery.
The battery
may have
malfunctioned.
NOTE: Depending on the conditions of use and the
ambient temperature, the indication may di󰀨er slightly
from the actual capacity.
Switch action
CAUTION:
• Before installing the battery cartridge into the
tool, always check to see that the switch trigger
actuates properly and returns to the "OFF"
position when released.
• Do not pull the switch trigger hard without press-
ing the lock-o󰀨 lever. This can cause switch
breakage.
1
2
► 1. Switch trigger 2. Lock-o󰀨 lever
To prevent the switch trigger from being accidentally
pulled, a lock-o󰀨 lever is provided. To start the tool,
press the lock-o󰀨 lever and pull the switch trigger.
Release the switch trigger to stop.
WARNING:
• For your safety, this tool is equipped with
lock-o󰀨 lever which prevents the tool from
unintended starting. NEVER use the tool if it
runs when you simply pull the switch trigger
without pressing the lock-o󰀨 lever. Return tool
to a MAKITA service center for proper repairs
BEFORE further usage.
• NEVER tape down or defeat purpose and func-
tion of lock-o󰀨 lever.
Indicating remaining battery
capacity
Country specic
1
► 1. Battery indicator

9ENGLISH
When you turn the tool on, the battery indicator shows
the remaining battery capacity.
The remaining battery capacity is shown as the follow-
ing table.
Battery indicator status
Remaining battery capacity
50% - 100%
20% - 50%
0% - 20%
Charge the battery
On Off Blinking
Automatic speed change function
1
► 1. Mode indicator
Mode indicator status Operation mode
High speed mode
High torque mode
This tool has "high speed mode" and "high torque
mode". It automatically changes operation mode
depending on the work load. When mode indicator
lights up during operation, the tool is in high torque
mode.
Tool / battery protection system
The tool is equipped with a tool/battery protection sys-
tem. This system automatically cuts o󰀨 power to the
motor to extend tool and battery life.
The tool will automatically stop during operation if the
tool or battery are placed under one of the following
conditions. In some conditions, the indicator lights up.
Overload protection
When the tool is operated in a manner that causes it to
draw an abnormally high current, the tool automatically
stops without any indications. In this situation, turn the
tool o󰀨 and stop the application that caused the tool to
become overloaded. Then turn the tool on to restart.
Overheat protection for tool
When the tool is overheated, the tool stops automati-
cally and the battery indicator shows following state. In
this situation, let the tool cool before turning the tool on
again.
Battery indicator
Tool is overheated
On Off Blinking
Releasing protection lock
When the protection system works repeatedly, the tool
is locked and the battery indicator shows the following
state.
Battery indicator On Off Blinking
Protection lock works
In this situation, the tool does not start even if turning
the tool o󰀨 and on. To release the protection lock,
remove the battery, set it to the battery charger and wait
until the charging nishes.
Adjusting depth of cut
CAUTION:
• After adjusting the depth of cut, always tighten
the lever securely.
4
1
2
► 1. Lever 2. Depth guide
Loosen the lever on the side of the rear handle and
move the base up or down. At the desired depth of cut,
secure the base by tightening the lever.
For cleaner, safer cuts, set cut depth so that no more
than one blade tooth projects below workpiece. Using
proper cut depth helps to reduce potential for danger-
ous KICKBACKS which can cause personal injury.

10 ENGLISH
Bevel cutting
1
► 1. Front lever
Loosen the front lever. Set for the desired angle (0° -
50°) by tilting accordingly, then tighten the front lever
securely.
1
0-45
0-50
► 1. Stopper
Use the 45° stopper when you do precise 45° angle
cutting. Turn the stopper counterclockwise fully for
bevel cut (0° - 45°) and turn it clockwise for 0° - 50°
bevel cuts.
Sighting
312
► 1. Cutting line (0°position) 2. Cutting line (45°posi-
tion) 3. Screw
For straight cuts, align the 0° position on the front of
the base with your cutting line. For 45° bevel cuts, align
the 45° position with it. The position of the top guide is
adjustable.
Lighting the lamp
CAUTION:
• Do not look in the lamp or see the source of
lamp directly.
1
► 1. Lamp
Only to turn on the lamp, pull the switch trigger without
pressing the lock-o󰀨 lever. To turn on the lamp and run the
tool, press the lock-o󰀨 lever and pull the switch trigger with
pressing the lock-o󰀨 lever. The lamp keeps on lighting while
the switch trigger is being pulled. The lamp goes out 10 -15
seconds after releasing the trigger.
NOTE:
• Use a dry cloth to wipe the dirt o󰀨 the lens of
lamp. Be careful not to scratch the lens of lamp,
or it may lower the illumination.
•
Do not use gasoline, thinner or the like to clean the lens
of lamp. Using such substances will damage the lens.
Hook
CAUTION:
• Always remove the battery when hanging the
tool with the hook.
• Never hook the tool at high location or on poten-
tially unstable surface.
1
2
3
► 1. Hook 2. Close 3. Open
The hook is convenient for hanging the tool temporarily.
To use the hook, simply turn it until it snaps into the
open position.
When not in use, always turn the hook until it snaps into
the closed position.

11 ENGLISH
ASSEMBLY
CAUTION:
• Always be sure that the tool is switched o󰀨 and
the battery cartridge is removed before carrying
out any work on the tool.
Removing or installing saw blade
CAUTION:
• Be sure the blade is installed with teeth pointing
up at the front of the tool.
• Use only the Makita wrench to install or remove
the blade.
1
2
4
3
► 1. Hex wrench 2. Shaft lock 3. Tighten 4. Loosen
To remove the blade, press the shaft lock so that the
blade cannot revolve and use the wrench to loosen the
hex bolt clockwise. Then remove the hex bolt, outer
ange and blade.
1
2
4
3
► 1. Inner ange 2. Saw blade 3. Outer ange 4. Hex
bolt
To install the blade, follow the removal procedure in
reverse. BE SURE TO TIGHTEN THE HEX BOLT
COUNTERCLOCKWISE SECURELY.
When changing blade, make sure to also clean the
upper and lower blade guards of accumulated sawdust
as discussed in the Maintenance section. Such e󰀨orts
do not replace the need to check lower guard operation
before each use.
For tool with the inner ange for
other than 15.88 mm hole-diameter
saw blade
CAUTION:
• Make sure that the protrusion "a" on the
inner ange that is positioned outside
ts into the saw blade hole "a" perfectly.
Mounting the blade on the wrong side can result
in the dangerous vibration.
12
3
4
5
► 1. Mounting shaft 2. Inner ange 3. Saw blade
4. Outer ange 5. Hex bolt
The inner ange has a certain diameter protrusion on
one side of it and a di󰀨erent diameter protrusion on the
other side. Choose a correct side on which protrusion
ts into the saw blade hole perfectly.
Next, mount the inner ange onto the mounting shaft
so that the correct side of protrusion on the inner ange
faces outward and then place saw blade and outer
ange.
BE SURE TO TIGHTEN THE HEX BOLT
COUNTERCLOCKWISE SECURELY.
For tool with the inner ange for a
15.88 mm hole-diameter saw blade
(country specic)
12
3
4
5
► 1. Mounting shaft 2. Inner ange 3. Saw blade
4. Outer ange 5. Hex bolt

12 ENGLISH
12
3
4
5
6
15.88
15.88
15.88
► 1. Mounting shaft 2. Inner ange 3. Saw blade
4. Outer ange 5. Hex bolt 6. Ring
Mount the inner ange with its recessed side facing
outward onto the mounting shaft and then place saw
blade (with the ring attached if needed), outer ange
and hex bolt.
BE SURE TO TIGHTEN THE HEX BOLT
COUNTERCLOCKWISE SECURELY.
WARNING:
• Before mounting the blade onto the spin-
dle, always be sure that the correct ring for
the blade's arbor hole you intend to use is
installed between the inner and the outer
anges. Use of the incorrect arbor hole ring
may result in the improper mounting of the blade
causing blade movement and severe vibration
resulting in possible loss of control during oper-
ation and in serious personal injury.
Hex wrench storage
1
► 1. Hex wrench
When not in use, store the hex wrench as shown in the
gure to keep it from being lost.
Connecting a vacuum cleaner
(Optional accessory in some countries)
1
2
3
► 1. Dust nozzle 2. Screw 3. Lever
1
2
► 1. Vacuum cleaner 2. Hose
When you wish to perform clean cutting operation,
connect a Makita vacuum cleaner to your tool.
Install the dust nozzle on the tool using the screw. Then
connect a hose of the vacuum cleaner to the dust noz-
zle as shown in the gure.
For tool without dust nozzle provided as a standard
equipment, replace the lever xed on the lower guard to
the one supplied with the dust nozzle (optional acces-
sory) at the same time when installing the dust nozzle.
Otherwise you will not be able to make a cut because
the lower guard movement is hindered by the dust
nozzle.
OPERATION
CAUTION:
• Wear dust mask when performing cutting
operation.
• Be sure to move the tool forward in a straight
line gently. Forcing or twisting the tool will result
in overheating the motor and dangerous kick-
back, possibly causing severe injury.
• Always use a front grip and rear handle and
rmly hold the tool by both front grip and rear
handle during operations.

13 ENGLISH
Hold the tool rmly. The tool is provided with both a front
grip and rear handle. Use both to best grasp the tool. If
both hands are holding saw, they cannot be cut by the
blade. Set the base on the workpiece to be cut without
the blade making any contact. Then turn the tool on and
wait until the blade attains full speed. Now simply move
the tool forward over the workpiece surface, keeping
it at and advancing smoothly until the sawing is com-
pleted.
To get clean cuts, keep your sawing line straight and
your speed of advance uniform. If the cut fails to prop-
erly follow your intended cut line, do not attempt to turn
or force the tool back to the cut line. Doing so may bind
the blade and lead to dangerous kickback and possible
serious injury. Release switch, wait for blade to stop
and then withdraw tool. Realign tool on new cut line,
and start cut again. Attempt to avoid positioning which
exposes operator to chips and wood dust being ejected
from saw. Use eye protection to help avoid injury.
Rip fence (Guide rule) (optional
accessory)
1
2
► 1. Clamping screw 2. Rip fence (Guide rule)
The handy rip fence allows you to do extra-accurate
straight cuts. Simply slide the rip fence up snugly
against the side of the workpiece and secure it in posi-
tion with the clamping screw on the front of the base. It
also makes repeated cuts of uniform width possible.
MAINTENANCE
CAUTION:
• Always be sure that the tool is switched o󰀨 and
the battery cartridge is removed before carrying
out any work on the tool.
• Clean out the upper and lower guards to
ensure there is no accumulated sawdust
which may impede the operation of the lower
guarding system. A dirty guarding system may
limit the proper operation which could result in
serious personal injury. The most e󰀨ective way
to accomplish this cleaning is with compressed
air. If the dust is being blown out of the
guards be sure the proper eye and breathing
protection is used.
• Never use gasoline, benzine, thinner, alcohol
or the like. Discoloration, deformation or cracks
may result.
Adjusting for accuracy of 0° and 45°
cut (vertical and 45° cut)
1
2
► 1. Adjusting screw for 45° 2. Adjusting screw for 0°
1
0 45
► 1. Triangular rule
This adjustment has been made at the factory. But if
it is o󰀨, adjust the adjusting screws with a hex wrench
while inspecting 0° or 45° the blade with the base using
a triangular rule or square rule, etc. Use the 45° stopper
for adjusting 45° angle.

14 ENGLISH
Adjusting bevel guide
1
2
3
► 1. Bevel guide 2. Screw 3. Guide
The bevel guide has been factory adjusted. But if it is
o󰀨, you can adjust it as the following procedure.
To adjust the bevel guide, loosen the two screws. Align
the 0° line on the bevel guide with the guide on the base
when the base is set to 0° angle.
To maintain product SAFETY and RELIABILITY, repairs,
any other maintenance or adjustment should be per-
formed by Makita Authorized Service Centers, always
using Makita replacement parts.
OPTIONAL
ACCESSORIES
CAUTION:
• These accessories or attachments are recom-
mended for use with your Makita tool specied
in this manual. The use of any other accessories
or attachments might present a risk of injury to
persons. Only use accessory or attachment for
its stated purpose.
If you need any assistance for more details regard-
ing these accessories, ask your local Makita Service
Center.
• Saw blades
• Rip fence (Guide rule)
• Guide rail
• Guide rail adapter
• Rule bar
• Dust nozzle
• Hex wrench
• Makita genuine battery and charger
NOTE:
• Some items in the list may be included in the
tool package as standard accessories. They
may di󰀨er from country to country.

15

www.makita.com
Makita Europe N.V.
Makita Corporation
3-11-8, Sumiyoshi-cho,
Anjo, Aichi 446-8502 Japa
n
Jan-Baptist Vinkstraat 2,
3070 Kortenberg, Belgium
885374E224
EN
20190228
