Makita 6710D User manual

Cordless Screwdriver
Wood screws Machine screws
MODEL 6710D
MODEL 6710DW
With Fast Charger
weight
speed length
Nuts
INSTRUCTION MANUAL
5 1 mm x 50 mm
11.4' x2'l
I
SPECIFICATIONS
6 mm 6 mm
220
195 mm 1 1 kg
f 114") (1/4")
Rimin 17-518")
12.4 lhsl
Model67100
Battery Cartridge 7000 Model OC7100 Fast charger
72V
Dimensions
iL x W x H)
A.C only DC 145 mm x 80 mm x 61 mm 0 7 kg
50 Hr 60 Hr 72V (5 314" x 3 1/8" x 2 318") I1 5 lhsl
1 Hr
Net
1 weight

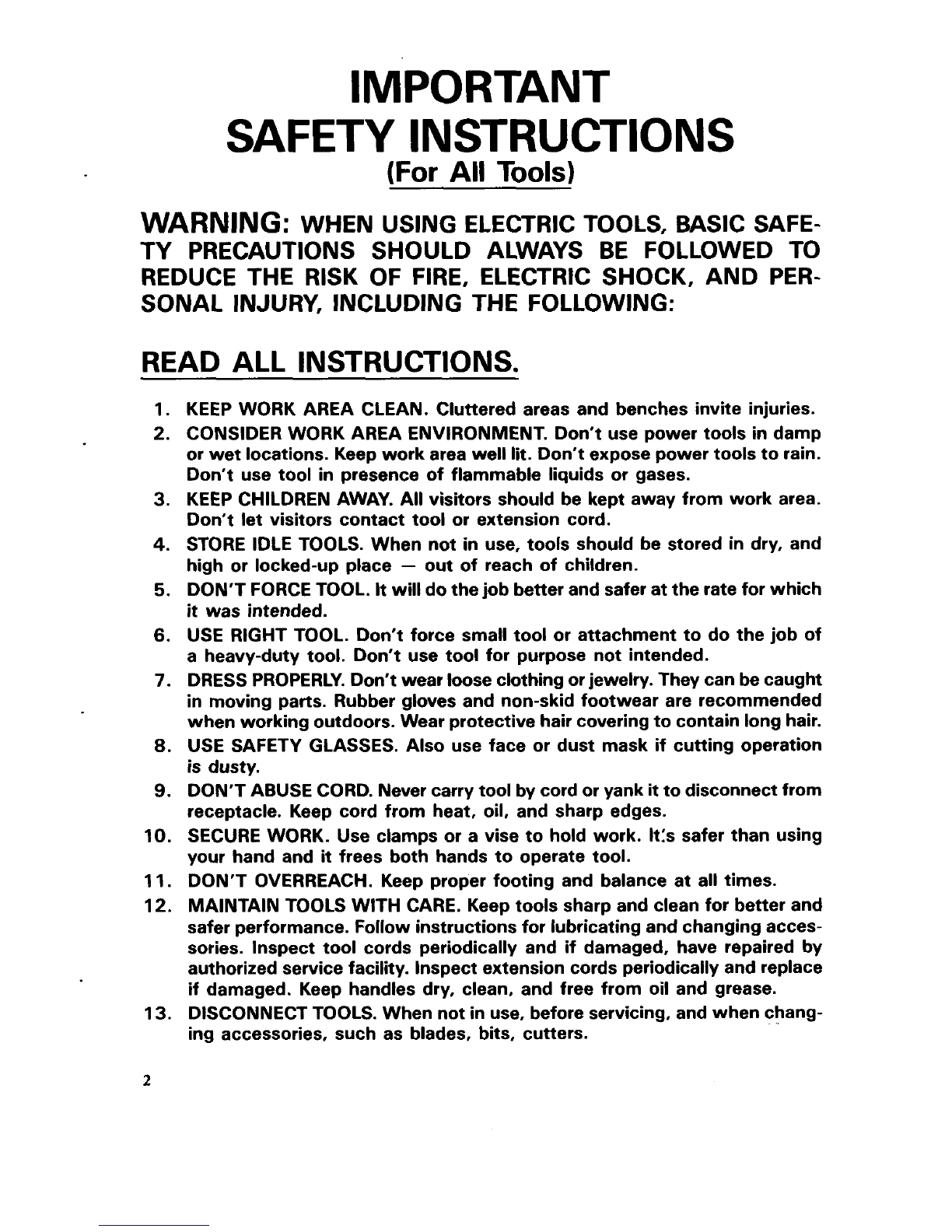

IMPORTANT
SAFETY INSTRUCTIONS
(For All Tools)
WARNING:
WHEN USING ELECTRIC TOOLS, BASIC SAFE-
REDUCE THE RISK OF FIRE, ELECTRIC SHOCK, AND PER-
TY PRECAUTIONS SHOULD ALWAYS BE FOLLOWED TO
SONAL INJURY, INCLUDING THE FOLLOWING:
READ ALL INSTRUCTIONS.
1.
2.
3.
4.
5.
6.
7.
8.
9.
IO.
11.
12.
13.
2
KEEP WORK AREA CLEAN. Cluttered areas and benches invite injuries.
CONSIDER WORK AREA ENVIRONMENT. Don't use power tools
in damp
or wet locations. Keepwork area well
lit. Don't exposepower tools torain.
Don't use tool
in presence of flammable liquids or gases.
KEEP CHILDRENAWAY. All visitors should be kept away from work area.
Don't let visitors contact tool or extension cord.
STORE IDLE TOOLS. When not
in use, tools should be stored in dry, and
high or locked-up place
- out of reach of children.
DON'T FORCETOOL.
It willdothejob betterand safer attheratefor which
it was intended.
USE RIGHT TOOL. Don't force small tool or attachment to do the job of
a heavy-duty tool. Don't use tool for purpose not intended.
DRESS PROPERLY. Don't wear looseclothingorjewelry. They can becaught
in moving parts. Rubber gloves and non-skidfootwear are recommended
whenworking outdoors. Wear protective hair coveringtocontainlonghair.
USE SAFETY GLASSES. Also use face or dust mask if cutting operation
is dusty.
DON'T ABUSE CORD. Never carrytool
by cordor yank it todisconnect from
receptacle. Keep cord from heat, oil, and sharp edges.
SECURE WORK. Use clamps or a vise to hold work. It:s safer than using
your hand and
it frees both hands to operate tool.
DON'T OVERREACH. Keep proper footing and balance at all times.
MAINTAIN TOOLS WITH CARE. Keeptools sharp and clean for better and
safer performance. Followinstructionsfor lubricating andchangingacces-
sories. Inspect tool cords periodically and if damaged, have repaired by
authorized service facility. Inspectextension cords periodically and replace
if damaged. Keep handles dry, clean, and free from oil and grease.
DISCONNECTTOOLS. When not
in use, beforeservicing, and whenchang-
ing accessories, such as blades, bits, cutters.

14.
15.
16.
17.
18.
19.
20.
REMOVEADJUSTING KEYS AND WRENCHES. Form habitof checkingto
see that keys and adjusting wrenches are removed from tool before turn-
ing
it on.
AVOID UNINTENTIONALSTARTING. Don't carry plugged-in tool
with finger
on switch. Be sure switch is OFF when plugging
in.
OUTDOOR USEEXTENSIONCORDS. Whentoolisusedoutdoors, useonly
extension cords intended for use outdoors and
so marked.
STAY ALERT. Watch what you are doing, use common sense. Don't oper-
ate tool when you are tired.
CHECK DAMAGEDPARTS. Before further use of the tool, a guard or other
part that is damaged should be carefully checkedto determinethat
it will
operate properly and perform its intended function. Check for alignment
of movingparts, binding of movingparts, breakageof parts, mounting, and
any other conditions that may affect its operation. A guard or other part
that is damaged should be properly repaired or replaced by an authorized
servicecenter unlessotherwise indicatedelsewhere
in this instruction manu-
al. Have defective switches replaced by authorized service center. Don't
use tool
if switch does not turn it on and off.
GUARDAGAINST ELECTRIC SHOCK. Preventbodycontactwithgrounded
surfaces. For example; pipes, radiators, ranges, refrigerator enclosures.
REPLACEMENT PARTS. When servicing, use only identical replacement
parts.
VOLTAGE WARNING: Before connectingthe tooltoa power source (receptacle,
outlet, etc.) be sure the voltage supplied is the same as that specified on the
nameplateof the tool. A power source withvoltage greater than that specified
for the tool can result
in SERIOUSINJURY tothe user - as well as damage to
the tool. If in doubt, DO NOT PLUG INTHE TOOL. Using a power source with
voltage less than the nameplate rating is harmful to the motor.
3

IMPORTANT SAFETY INSTRUCTIONS
Length of Cord (Feet)
AWG Size
of Cord
I. SAVE THESE INSTRUCTIONS - This manual
25 50
100 150
18 18
18 16
contains important safety and operating instructions for battery charger.
2. Before usingbattery charger, read all instructionsand cautionary markings
on
(1) battery charger, (2) battery, and (3) product using battery.
3. CAUTION - To reduce risk of injury, charge only MAKITA Battery 7000.
Other types of .batteries may burst causing personal injury and damage.
4. Do not expose charger to rain or snow.
5. Use of an attachment not recommended or sold by the battery charger
manufacturer mayresult ina risk of fire, electric shock, or injurytopersons.
6. To reduce risk of damage toelectric plugand cord, pullby plug rather than
cord when disconnecting charger.
7. Makesure cord is located so that it will not be stepped on, tripped over, or
otherwise subjected to damage or stress.
8. An extension cord should not be used unless absolutely necessary. Use of
improper extension cord could result
in a risk of fire and electric shock. If
extension cord must be used, make sure:
a. That pinsonplugof extension cord are the same number, size, and shape
b. That extension cordisproperly wiredand ingood electrical condition; and
c. That wire size is at least as large as the one specified
in the table below.
TABLE
1
RECOMMENDED MINIMUM AWG SIZE FOR
EXTENSION CORDS FOR BATTERY CHARGERS
as those of plug on charger;
4

ADDITIONAL SAFETY RULES
FOR CHARGER & BATTERY CARTRIDGE
1. Do not charge Battery Cartridge when temperature is BELOW 10°C (SOOF)
or ABOVE 4OoC (104OF).
2.
Donotattempttouseastep-up transformer, an enginegenerator or DC power
3. Do not allow anything to cover or clog the charger vents.
4. Always cover the batteryterminals withthe battery cover when the battery
5. A battery short can cause a large current flow, overheating, possible burns
receptacle.
cartridge
is not used.
and even a breakdown.
(1) Do not touch the terminals with any conductive material.
(2) Avoid storing battery cartridge ina container with other metalobjects such
(3) Do not expose battery cartridge to water or rain.
ture may reach or exceed 5OoC
(122OF).
completely worn out. The battery cartridge can explode in a fire.
as nails, coins, etc.
6. Do not store the tool and Battery Cartridge in locations where the tempera-
7. Do not incinerate the Battery Cartridge even if it is severely damaged or is
ADDITIONAL SAFETY RULES
FOR CORDLESS SCREWDRIVER AND DRILL
1. Be aware that this tool is always in an operating condition, because it does
2. Always be sure you have a firm footing.
3. Hold the tool firmly.
4. Keep hands away from rotating parts.
5. When drilling intowalls, floors or wherever "live" electrical wires may be en-
countered, DO NOT TOUCH ANY METAL PARTS
OF THE TOOL!
Holdthe toolonly by the plastic handle or plastic tool bodytopreventelectric
shock if you drill into a "live" wire.
not have to be plugged into an electrical outlet.
Be sure no one is below when using the tool
in high locations.
6. Do not leave the tool running. Operate the tool only when hand-held.
7. Do not touch the drill bit or the workpiece immediately after operation, they
may be extremely hot and could burn your skin.
SAVE THESE INSTRUCTIONS.
5

Installingor removingbattery cartridge
0 Always switchoff the tool beforeinsertion
0 To remove the battery cartridge, pullout
the
set plate on the tool and grasp both
sides of the cartridge while withdrawing
it from the barrel.
.To insert the battery cartridge, align the
tongue on the battery cartridgewith the
groove in the housing and slip
it into
place. Snap the
set plate back intoplace.
Be sure to close the set platefully before
usingthe tool.
or removalof the batterycartridge.
0 Do not use force when insertingthe battery cartridge.
If the cartridgedoes notslide ineasily,
it is not being insertedcorrectly.
Charging
Plug the fast charger into your power
source. Insert the battery cartridge
so that
the plus and minus terminals on the bat-
tery cartridge are on the same sides
as their
respective markings on the fast charger. In-
sert the cartridgefully intothe port
so that
it rests on the charger portfloor.
The charging light will come on and charg-
ingwill begin. Ifthe charginglight does not
come on, press the reset button.
If the
charging light goes out within
10 seconds even after pressingthe reset button a coupleof
times, the battery cartridge
is dead. (CAUTION : Wait for more than 5 seconds after the
charging light goes out to press the reset buttonagain.) Replace
it with a new one. When
the charging light goes out after about one hour, you may remove the fully charged
batterycartridge.After charging, unplugthe charger from the power source.
CAUTION
:
0 Your new battery cartridge is notcharged. You will need to charge it beforeuse.
0 If you try to charge a cartridge from a just-operatedtool, sometimesthe charging light
will not come on. If this occurs,
let the cartridge cool off for a while. Then re-insert
it and try tocharge it once more.
0 When you charge a new battery cartridgeor a batterycartridgewhich has notbeen used
for
a long period, it may not accept a full charge. This is a normal condition and does
not indicate
a problem. You can recharge the battery cartridgefully after discharging
it almost completely a couple of times.
0 If you wish tochargetwo battery cartridges, allow 15 minutesbetweenchargingson the
fast charger.
6

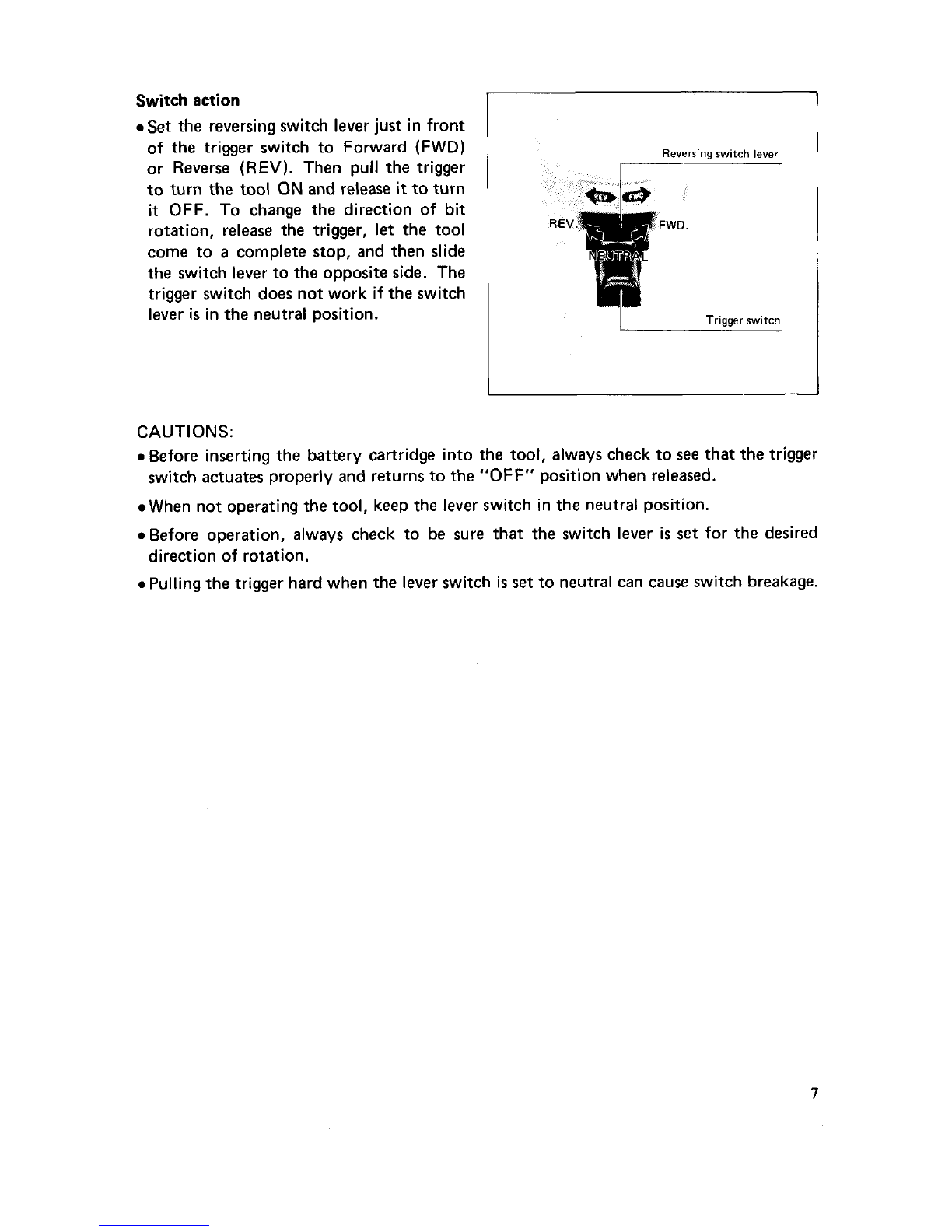

Switch action I
Trigger switch
I
0 Set the reversingswitch lever just in front
of the trigger switch to Forward (FWD)
or Reverse
(REV). Then pull the trigger
to turn the tool ON and release
it toturn
it OFF. To change the direction of bit
rotation, release the trigger,
let the tool
come to
a complete stop, and then slide
the switch lever tothe oppositeside. The
trigger switch does notwork if the switch
lever
is inthe neutralposition.
Reversing switch lever
I
CAUTIONS:
0 Before insertingthe battery cartridge into the tool, always check to see that the trigger
When not operatingthe tool, keep the lever switch inthe neutralposition.
0 Before operation, always check to be sure that the switch lever is set for the desired
0 Pullingthe trigger hardwhen the lever switch is set to neutralcan cause switchbreakage.
switchactuates properlyand returnstothe
"OFF" positionwhen released.
direction of rotation.
7

Fasteningtorque adjustment I
0 The fasteningtorque may be adjusted by
turning the adjustment ring to align the
notched line on the ring with
a number
on the indicator label. However, the
clearance between the ring and the cap
is 2.5 mm (1/8") maximumafter one full
turn, and the ring should not be forced
beyondthis point.
0 Turning the adjustment ring in the arrow
direction obtains
a higher torque (HI
side); turning in the opposite direction
gives a lowertorque (LOW side).
Fasteningtorque
adjustment ring
Bit
.Aligning the notched line with the number 4 on the indicator label provides the right
torque for setting
a 4 mm (1/8") screw. Aligning to the 5 and 6 is suitable to drive a
5 mm (3/16") and 6 mm (1/4") screw, respectively.
0 If the adjust ring will not turn easily, switch the tool on and wait for the clutch to cut
inbeforemakingthe torque adjustment.
.To back out (remove)an already driven screw, use
a little moretorque than you used to
drivethe screw initially.
.Switch off
as soon as the clutch cuts in. Continuous unnecessary clutchingwill loosen
the adjust ringand make
it impossibletoobtain the desiredtorque.
-
Grip
.The grip
mended. shown on the right
is recom-
8

Hole
0The hole on the heel of the tool is a con-
venient way to carry
it by a cord, hook
or other means.
Drillchuck (Accessory)
0 To install a drill chuck, remove the insert
bit by
a strongjerk, then a drill chuck can
be replaced with the insert bitby
a sharp
push
of the hand.
.To install the drill bit, place it in the
chuck
as far as it will go. Tighten the
chuck collar
by hand. Place the chuck
key in each of three holes, and tighten
clockwise.
0 To remove the drill bit, placethe chuck key intothe chuck hole and turncounterclock-
wise.
CAUTIONS:
0 Be sure that the battery cartridge has been removedfrom the tool.
Always set the Forward-Reverseswitch lever to NEUTRAL when installing, removing
or adjustingbits or accessories.
9

Screwdriving
Matchyour bittoyour screw.
Item I Rominal Diameter (mm)
Phillips bits
Select your screws
meter with the chart
Bit No. Wood Screw
onandthenominalright. dia- )- 2.1 - 2.7 13/32'' - 118")
No. 2
3.1 - 4.8 (1/8" - 3/16')
No.3 1 5.1 (3/16")
Slotted bits
Select
a slotted bit to matchthe slot on the screw heads. Ifthe bit is too small for the
screw slot, the bitand/or screw head may be damaged.

MAINTENANCE
CAUTION:
Always be sure that the
tool is switched off and the battery cartridge is removedbefore
attempting to perform inspectionor maintenance.
To maintain product SAFETY and RELlABlLITY, repairs,maintenance and adjustment
should be performed by Makita Authorized or Factory Service Centers, always using
Makita replacementparts.
11

ACC ESSO R I ES
#3
CAUTION:
These accessories or attachments are recommended for use with your Makita tool specified in this
manual. The use of any other accessories or attachments might present a risk of injury to persons.
The accessories
or attachments should beused only in theproperand intended manner.
784215-0A
-
0 Charger 12V for cer
Model DC
71 12
Part No. 113109-0
0 Battery cartridge 7000
Part
No. 632002-4
0 Battery cover
Part
No. 414938-7
0 Drill chuck S10
Drillchuck attach-
ment set
1 (Part No. 191448-8)
*Chuck key Si0
Part NO.763419-1
J
Bits
Phillips
Slotted
Square drill
bit
0 Fast charger
ModelDC7100
Part
No. 113086-6
0 Tool holster
Part
No. 823033-3D
Size Part No.
784606-0A
I-
-
Has storage space
for extra
bits.
0 Keyless drill chuck
Part
No. 192077-0
12

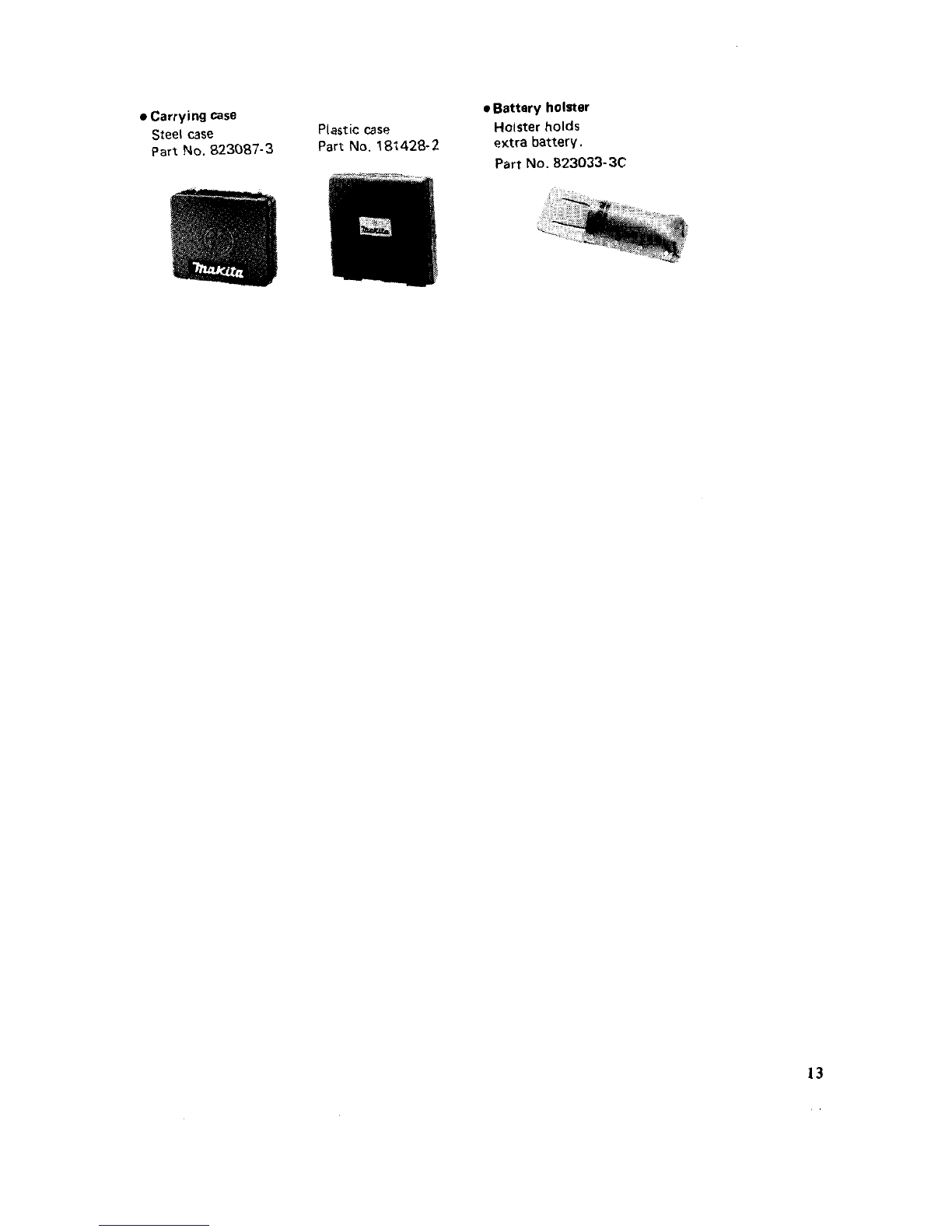

0 Battery holster
Carrying case
Steel case
part
N~, 823087-3
Plastic case Holster holds
extra battery.
Part No. 181428-2
Part No. 823033-3C
13

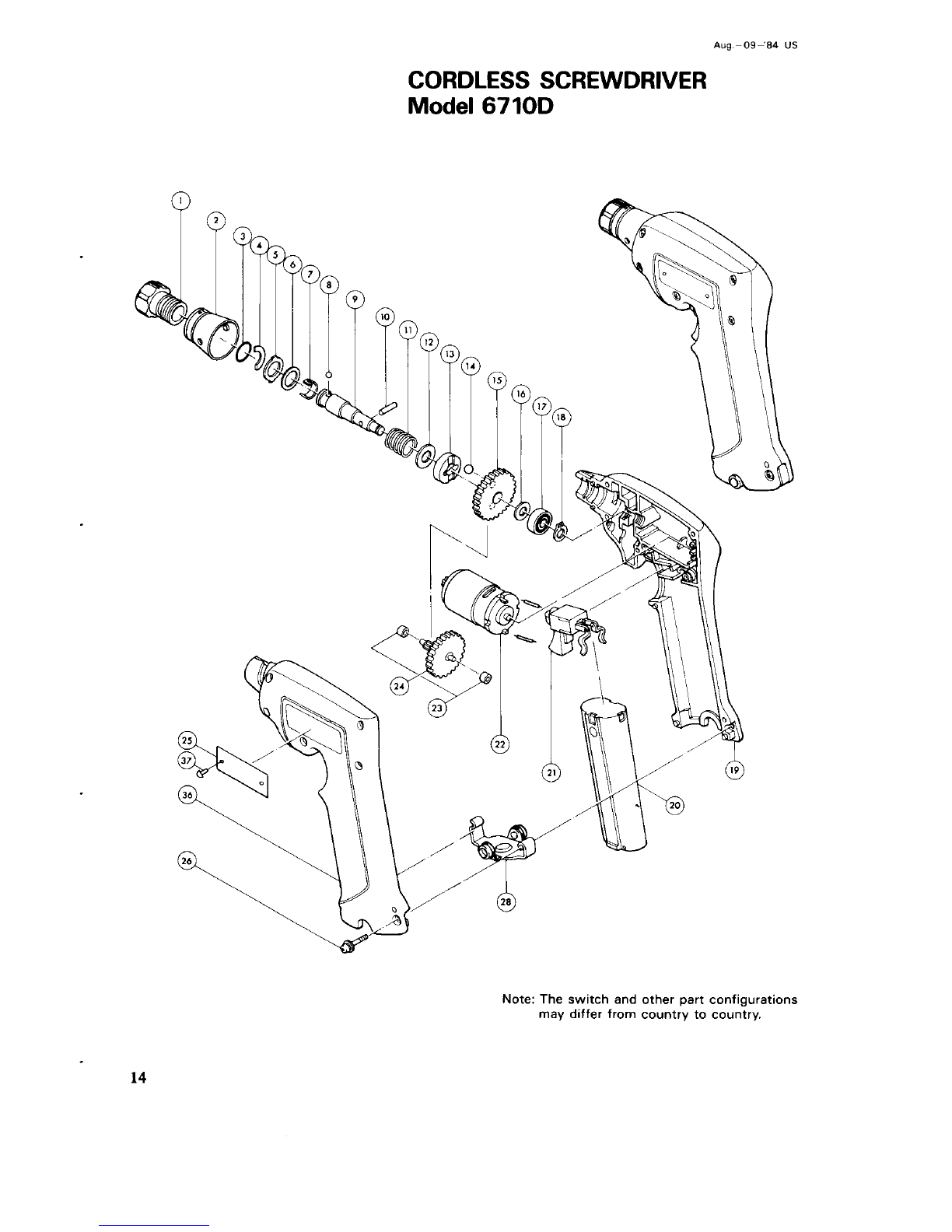

Aug -09-'84 US
CORDLESS SCREWDRIVER
Model 67100
Note: The switch and other part configurations
may differ from country to country.
14

MODEL 67101D
’EM $&, DESCRIPTION
Aug -0944 US
‘i\M & DESCRIPTION
MACHINE
~
1
2
3
4
5
6
7
6
3
10
11
12
13
14
15
-
1
1
1
1
1
1
1
1
1
1
I
1
1
2
1
-
Torque Adlust Ring 20
0 Ring 16
Guide
Plate
Lock Washer 14
F Washer 14
Leal sprang
Sled Ball 3 5
Spindle
P,n 4
Compression Spring 14
T Washer 10
Clutch Cam
Steel Ball 6 4
Spur Gear
86
Cap
MACHINE
16
17
18
19
20
21
22
23
24
25
26
28
36
37
-
1
1
I
1
1
1
1
2
1
1
7
1
1
2
-
F Washer 8
Ball Bearing 60BLLB
Retaining Ring S-6
Housing Set 1WNh Item 361
Battery 7000
Switch
Motor
Gear 9-04
Name Plate
P H Screw M4x22 IWiIh Washer)
Set Plate
Housing Set IWith Item 131
Rivet 0-5
Plane Bearing 3
Note The switch and other part specifications may differ from country to country
15

MAKITA LIMITED ONE YEAR WARRANTY
Warranty Policy
Every Makita tool is thoroughly inspected and tested before leaving the factory. It is warranted to
be free of defects from workmanship and materials for the period of ONE YEAR from the date of
original purchase. Should any trouble develop during this one-year period, return the COMPLETE
tool, freight prepaid, to one of Makita’s Factory or Authorized ServiceCenters. If inspection
shows
the trouble is caused by defective workmanship or material, Makita will repair (or at our option,
replace) without charge.
This Warranty does not apply where:
repairs have been made or attempted by others:
repairs are required because of normal wear and tear:
The tool has been abused, misused or improperly maintained;
alterationshave been made to the tool.
IN NO EVENT SHALL MAKITA BE LIABLE FOR ANY INDIRtCT. INCIDFNTAL OK CON-
SEOUENTIAL DAMAGFS FROM THE SALE OR USE OFTHE PRODUCT. THIS DISCLAIMER
APPLIES
BOTH DURING AND AFTER THE TERM OF THIS WARRANTY
MAKITA DISCLAIMSLIABILITY
FOR ANY IMPLIED WARRANTIES, INCLUDING IMPLIED
WARRANTIES OF “MERCHANTABILITY” AND “FITNESS FOR
A SPECIFIC PURPOSE,”
AFTER THE ONE-YEAR TERM
OF THISWARRANTY.
This Warranty gives you specific legal rights, and you may also have other rights which vary from
state to state. Some states do not allow the exclusion or Limitation of incidental or consequential
damages,
so the above limitation or exclusion may not apply to you. Same states do not allow
limitation on how long an implied warranty lasts,
so the above limitation may not apply to you.
I
Makita Corporation
3-11 -8, Sumiyoshi-cho,
Anjo, Aichi
446 Japan
883548D067
PRINTED IN JAPAN
1992 - 4 - N
