Makita 6830 User manual

MODEL 6830
Variable Speed I Reversing
No load speed
(RPM)
0 - 4,700
Drywall screw size
04
x 25 ~ 41 mm
(5132’’ x 1” ~ 1.518”)
INSTRUCTION MANUAL
Overall length Net weight
342
mm (13-7/16”)
1.9 kg (4.2 Ibs)
7
SPEC IF I CAT1 0 N S
* Manufacturer reserves the right to change specifications without notice.
* Note: Specifications may differ from country to country.
WARNING: For your personal safety, READ and UNDERSTAND before using.
SAVE THESE INSTRUCTIONS
FOR FUTURE REFERENCE.

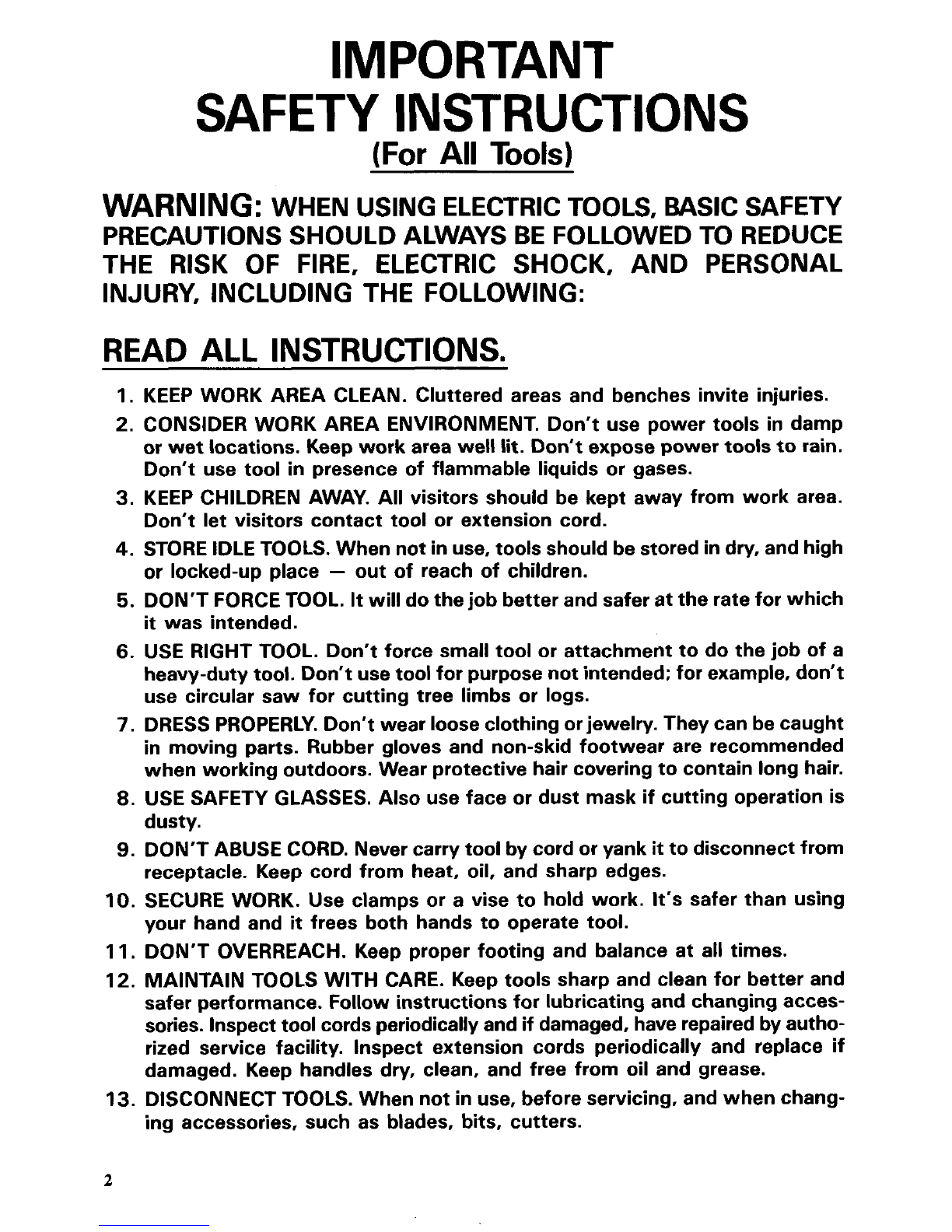

I M PORTANT
SAFETY INSTRUCTIONS
(For All Tools)
WARNING: WHEN USING ELECTRICTOOLS, BASIC SAFETY
PRECAUTIONSSHOULD ALWAYS BE FOLLOWED TO REDUCE
THE RISK OF FIRE, ELECTRIC SHOCK, AND PERSONAL
INJURY, INCLUDING THE FOLLOWING:
READ ALL INSTRUCTIONS.
1. KEEP WORK AREA CLEAN. Cluttered areas and benches invite injuries.
2. CONSIDER WORK AREA ENVIRONMENT. Don't use power tools in damp
or wet locations. Keepwork area well
lit. Don't expose power tools to rain.
Don't use tool
in presence of flammable liquids or gases.
3. KEEP CHILDREN AWAY. All visitors should be kept away from work area.
Don't let visitors contact tool or extension cord.
4. STORE IDLETOOLS. When not in use, tools should bestored in dry, andhigh
or locked-up place
- out of reach of children.
5. DON'T FORCE TOOL. It will do thejob betterand safer atthe ratefor which
it was intended.
6. USE RIGHT TOOL. Don't force small tool or attachment to do the job of a
heavy-dutytool. Don't usetoolfor purpose notintended; for example, don't
use circular saw for cutting tree limbs or logs.
7. DRESS PROPERLY. Don't wear loose clothing orjewelry. They can becaught
in moving parts. Rubber gloves and non-skid footwear are recommended
when working outdoors. Wear protective hair covering tocontain long hair.
8. USE SAFETY GLASSES. Also use face or dust mask if cutting operation is
dusty.
9. DON'T ABUSE CORD. Never carry tool bycordor yank it todisconnect from
receptacle. Keep cord from heat, oil, and sharp edges.
IO. SECURE WORK. Use clamps or a vise to hold work. It's safer than using
your hand and
it frees both hands to operate tool.
11. DON'T OVERREACH. Keep proper footing and balance at all times.
12. MAINTAIN TOOLS WITH CARE. Keep tools sharp and clean for better and
safer performance. Follow instructionsfor lubricatingand changing acces-
sories. Inspect toolcords periodicallyand if damaged, have repairedbyautho-
rized service facility. Inspect extension cords periodically and replace if
damaged. Keep handles dry, clean, and free from oil and grease.
13. DISCONNECTTOOLS. When not in use, beforeservicing, and when chang-
ing accessories, such as blades, bits, cutters.
2

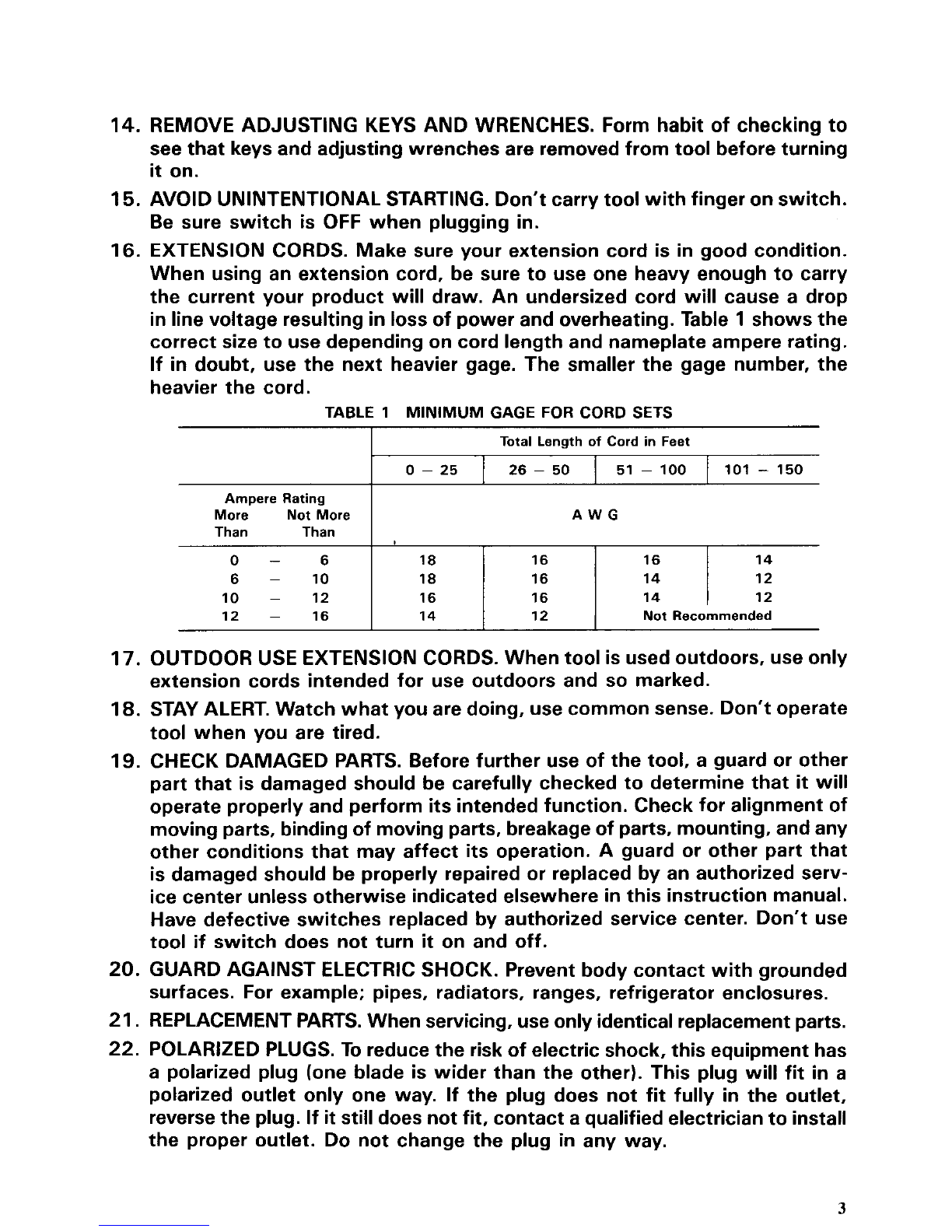

14. REMOVE ADJUSTING KEYS AND WRENCHES. Form habit of checking to
see that keys and adjusting wrenches are removed from tool before turning
it on.
15. AVOID UNINTENTIONALSTARTING. Don't carry tool with finger onswitch.
Be sure switch is OFF when plugging in.
16. EXTENSION CORDS. Make sure your extension cord is in good condition.
When using an extension cord, be sure to use one heavy enough
to carry
the current your product will draw. An undersized cord will cause a drop
inlinevoltage resulting
in loss of power and overheating. Table 1 showsthe
correct size to use depending on cord lengthand nameplate ampere rating.
If
in doubt, use the next heavier gage. The smaller the gage number, the
heavier the cord.
TABLE 1 MINIMUM GAGE FOR CORD SETS
Ampere Rating
More Not More
Than Than
I
Total Length of Cord in Feet
0 - 25 26 - 50 51 - 100 101 - 150
AWG
0- 6
6 - 10
10
- 12
12
- 16
18 16 14
16 16 14 12
14 12 Not Recommended
18 16 :t 1 12
17. OUTDOOR USE EXTENSIONCORDS. When tool is usedoutdoors, use only
extension cords intended for use outdoors and
so marked.
18. STAY ALERT. Watch what you are doing, use common sense. Don't operate
tool when you are tired.
19. CHECK DAMAGED PARTS. Before further use of the tool, a guard or other
part that is damaged should be carefully checked to determine that
it will
operate properly and perform itsintended function. Check for alignment of
moving parts, bindingof moving parts, breakageof parts, mounting, andany
other conditions that may affect its operation. A guard or other part that
is damaged should be properly repaired or replaced by an authorized serv-
ice center unless otherwise indicated elsewhere
in this instruction manual.
Have defective switches replaced by authorized service center. Don't use
tool
if switch does not turn it on and off.
20. GUARD AGAINST ELECTRIC SHOCK. Prevent body contact with grounded
surfaces. For example; pipes, radiators, ranges, refrigerator enclosures.
21. REPLACEMENT PARTS. When servicing, useonly identicalreplacementparts.
22. POLARIZEDPLUGS. To reduce the risk of electric shock, this equipment has
a polarized plug (one blade is wider than the other). This plug will
fit in a
polarized outlet only one way. If the plug does not fit fully
in the outlet,
reversethe plug.
If it stilldoes notfit, contact aqualifiedelectriciantoinstall
the proper outlet. Do not change the plug
in any way.
3

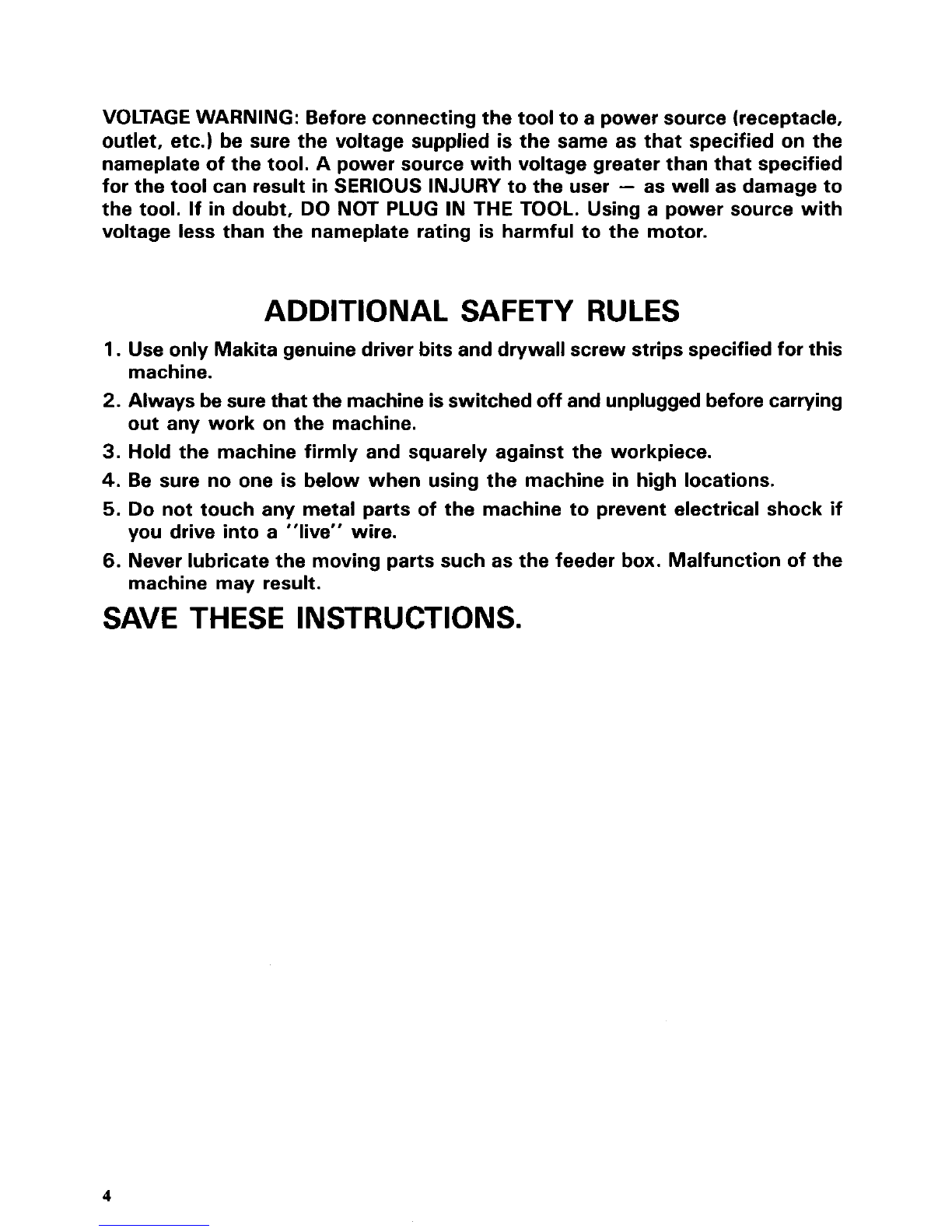

VOLTAGE WARNING: Before connecting the tooltoa power source (receptacle,
outlet, etc.) be sure the voltage supplied is the same as that specified on the
nameplate of the tool.
A power source with voltage greater than that specified
for the tool can result
in SERIOUS INJURY tothe user - as well as damage to
the tool.
If in doubt, DO NOT PLUG IN THE TOOL. Using a power source with
voltage less than the nameplate rating is harmful to the motor.
ADDITIONAL SAFETY RULES
1. Use only Makita genuine driver bits and drywallscrew strips specified for this
2. Always besure that the machine isswitched off and unpluggedbefore carrying
3. Hold the machine firmly and squarely against the workpiece.
4. Be sure no one is below when using the machine in high locations.
5. Do not touch any metal parts of the machine to prevent electrical shock if
6. Never lubricate the moving parts such as the feeder box. Malfunctionof the
machine.
out any work on the machine.
you drive into a "live" wire.
machine may result.
SAVE THESE INSTRUCTIONS.
4

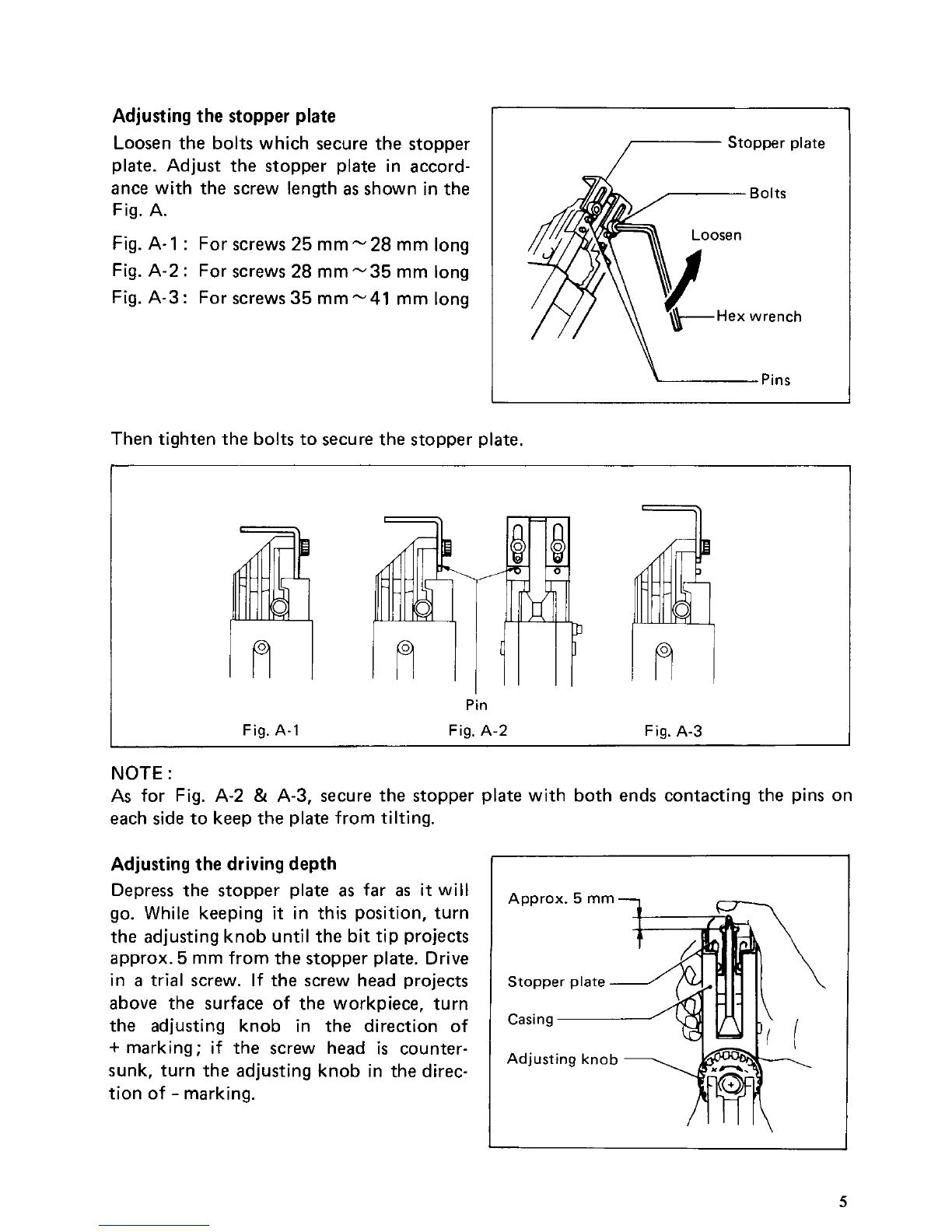

Adjusting the stopper plate r
Loosen the bolts which secure the stopper
plate. Adjust the stopper plate in accord-
ance with the screw length
as shown inthe
Fig. A.
Fig. A-
1 : For screws 25 mm - 28 mmlong
Fig. A-2
: For screws 28 mm - 35 mm long
Fig.A-3
: For screws 35mm -41 mmlong
r-- Stopper
Then tighten the bolts tosecure the stopper plate.
Fig. A-1
Pin
Fig.
A-2
Fig. A-3
NOTE :
As for Fig. A-2 & A-3, secure the stopper plate with both ends contacting the pins on
each side tokeep the plate from tilting.
Adjusting the drivingdepth
Depress the stopper plate
as far as it will
go. While keeping
it in this position, turn
the adjusting knobuntilthe bittip projects
approx.
5 mm from the stopper plate. Drive
in
a trial screw. If the screw head projects
above the surface
of the workpiece, turn
the adjusting knob in the direction of
+ marking; if the screw head is counter-
sunk, turn the adjusting knob in the direc-
tion of
- marking.
Approx. 5 mm
5

Installingthe screw strip
Insert the screw strip through the screw guide. Then insert
it through the feeder box until
the first screw reaches the position nextto the drivingposition.
,- Feeder box
~ Screw strip
Removingthe screw strip
To remove the screw strip, just pull it out
inthe direction of the arrow.
Carry hook
The carry hook
is convenient for hooking
the machine to your belt. Itcan be instal-
led on either side of the machine. To re-
move
it, pull it out in the direction of the
arrow while raising. To install
it, push it
down until it seats against the machine
with
a little click.
- Driving position
Hook
6

Switching ON and OFF
CAUTION :
Before plugging in the machine, always check to see that the switch trigger actuates pro-
perly and returns tothe
"OFF" positionwhen released.
To switch on, press the trigger. To switch
off, release the trigger.
Switch trigger
\LocTton
I
Continuousrunning
Press the trigger and
at the same time push the lock button. To stop this lock position,
press the trigger and release
it.
Variable trigger speed control
The speed varies from
0 to maximum, depending on the pressure applied to the trigger.
The morethe trigger
is pressed, the faster the machine runs.
Reversing switch
IMPORTANT:
Only reverse the direction
of rotationwhen the motor stops completely.
To change the direction
of rotation:
Position
FWD : right hand rotation.
Position
REV : left hand rotation.
Reversing switch

Drivingoperation I I
Switch on the machine by pressing the
trigger and
at the same time pushing the
lock button. Hold the machine squarely
against the workpiece and apply forward
pressure to the machine. The screw will be
automatically carried into the driving posi-
tion and driven intotheworkpiece.
I
IMPORTANT:
.Do notfire the machinewithout screws. This will damage the workpiece.
0 If the feeder box becomes sluggish in operation,spray a car wax (spary type wax) on its
slidingsurfaces. Never lubricate it.
Installing or removingthe bit
Loosen the boltwhich secures the casing. Pull out the casing in the direction of thearrow.
Press
the dust cover toward the plane bearing and pull out the bit. If the dust cover can-
not be movedtothe plane bearing, try
it again after turning the bitslightly.
To install the bit, insert
it into the socket while turning it slightly. After installing,always
make sure
that the bit is securely held in place bytryingtopull it out.
A
/-Casing
Plane bearing
-,
8

MAINTENANCE
CAUTION :
Always be sure that the machine is switched off and unplugged before carrying out any
work on the machine.
Replacement of carbon brushes
Replace carbon brushes when they are worn down to the limit mark. Both identical
carbon brushesshould be replaced
at the same time.
/ Limit mark
To maintain products safety and reliability, repairs, maintenance or adjustment should
be carried out by Makita AuthorizedService Center.
9

June-02-'94 US
AUTO FEED SCREWDRIVER
Model 6830
Note: The switch and other part configurations
may differ from country to country.
10

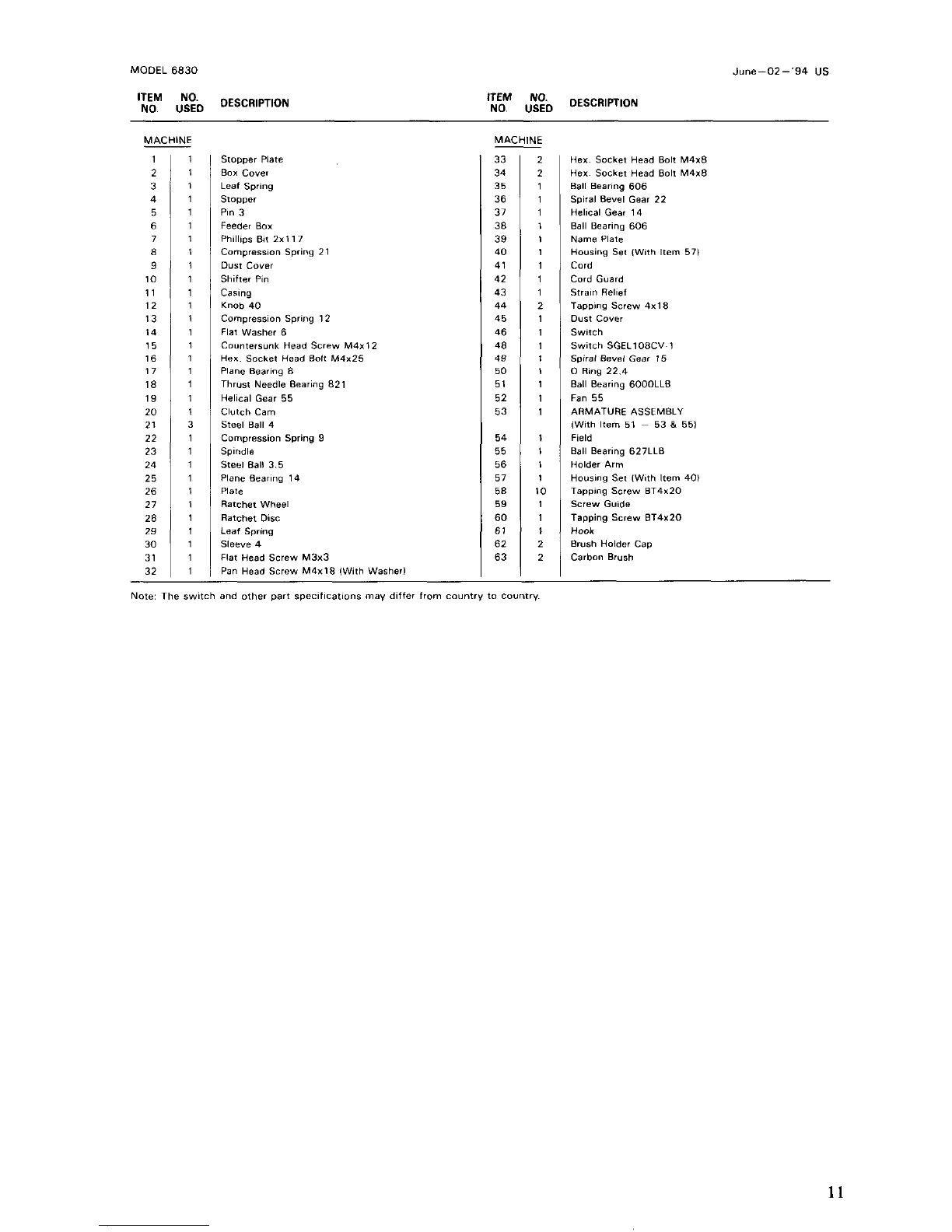

MODEL 6830
""0" $ED DESCRIPTION
MACHINE
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
June-02-'94
US
$tD DESCRIPTION
1 Stopper Plate
1 BOX cover
1 Leal Spmg
1 stopper
1
P," 3
1 Feeder Box
1
1 Dust Cover
1 Shifter Pin
1 Knob 40
1 Compression Spring 12
1 Flat Washer
6
1 Countersunk Head Screw M4x12
1 Hex Socket Head
Bolt M4x25
1
Plane Bearing 8
1 Thrust Needle Bearing 821
1 Helical Gear 55
1 Clutch Cam
3 Steel Ball 4
1 Spindle
1
Steel Ball 3 5
1
Plane Bearing 14
1
Plale
1 Ratchet Wheel
1 Ratchet Disc
1 Leaf
Spnng
1 Sleeve 4
1 Flat Head Screw M3x3
1
Phillips Bit 2x11 7
1 Compresslo" Spring 21
1 Casmg
1 Compresslo" sprmg
9
Pan Head Screw M4x18 WthWashed
MACHINE
-
33
34
35
36
37
38
39
40
41
42
43
44
45
46
48
49
50
51
52
53
54
55
56
57
58
59
60
61
62
63
-
2
2
1
1
1
1
1
1
1
1
1
2
1
1
1
1
1
1
1
1
1
1
1
1
10
1
1
1
2
2
-
Hex Socket Head Bolt M4x8
Hex Socket Head Bolt M4x8
Ball Bearing
606
Spiral Bevel Gear 22
Helical
Gear 14
Ball Bearing
606
Name Plate
Housing Set (With Item 571
Cord
Cord Guard
Strain Relief
Tapping
Screw 4x18
oust Cover
Switch
Switch SGELlOBCV
1
Spiral Bevel Gear 15
0 Ring 22 4
Ball Bearing 6OOOLLB
Fan 55
ARMATURE ASSEMBLY
(With
llem 51 ~ 53 & 551
Field
Ball Bearing 627LL8
Holder Arm
Housing
Set (With Item 401
Tapping
Screw BT4x20
Screw Guide
Tapping
Screw BT4x20
Hook
Brush Holder Cap
Carbon Brush
Note The switch and other part SpeCifiCationS
may differ from country to country
11

MAKfIALIMITED ONE YEAR WARRANTY
Warranty Policy
Every Makita tool is thoroughly inspected and tested before leavingthe factory. It is warranted to
be free of defects from workmanship and materials for the period of ONE YEAR from the date of
original purchase. Should any trouble develop during this one-year period, return the COMPLETE
tool, freight prepaid, to one of Makita’s Factory or Authorized ServiceCenters. If inspection shows
the trouble is caused by defective workmanship or material, Makita will repair (or at our option,
replace) without charge.
ThisWarranty does not apply where:
repairs have been made or attemptedby others:
repairs are required because of normal wear and tear:
The tool has been abused, misused or improperly maintained;
alterations have been made to the tool.
IN NO EVENT SHALL MAKITA BE LIABLE FOR ANY INDIRECT, INCIDENTALOR CON-
SEQUENTIAL DAMAGES FROM THE SALEOR USE OFTHE PRODUCT.THIS DISCLAIMER
I APPLIES BOTH DURING AND AFTER THE TERM OFTHIS WARRANTY.
MAKITA DISCLAIMS LIABILITY FOR ANY IMPLIED WARRANTIES, INCLUDING IMPLIED
WARRANTIES OF “MERCHANTABILITY” AND “FITNESS FOR A SPECIFIC PURPOSE,
AFTER THE ONE-YEAR TERM OF THISWARRANTY.
This Warranty gives you specific legal rights, and you may also have other rights which vary from
state
to state. Some states do not allow the exclusion or limitation of incidental or consequential
damages,
so the above limitation or exclusion may not apply to you. Some states do not allow
itation may not apply
to you.
0.
Makita Corporation
3-11 -8, Sumiyoshi-cho,
Anjo, Aichi
446 Japan
883879A064
PRINTED IN JAPAN
1995 - 3 - N
