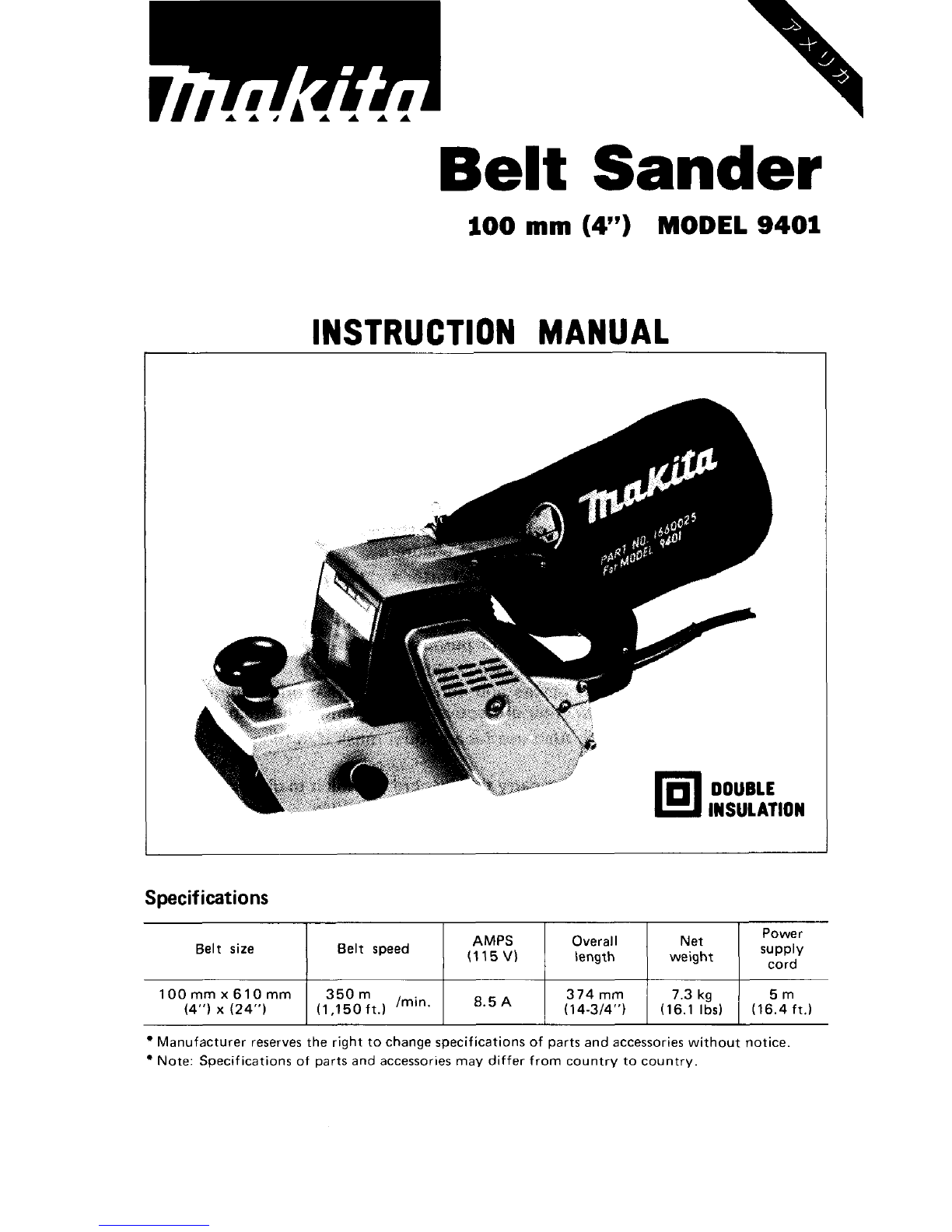

Makita 9401 User manual

Belt
Sander
Belt
size
I00
mm
(4")
MODEL
9401
Power
Belt
speed
1
(115V)
I
length
1
w!egtht
1
':E?,,
AMPS Overall
INSTRUCTION MANUAL
Specifications
100mmx610mm 350m 374
mm
7.3 kg
(4")
x
(24")
I
(1,150ft.)
lmin'
I I
(14-3/4")
1
(16.1
Ibs)
1
(12Jft.)
Manufacturer reserves the right tochange specifications of parts and accessories without notice
Note:
Specifications
of
parts and accessories may differ from country
to
country.

IMPORTANT
SAFETY INSTRUCTIONS
(For
All Tools)
WARNING:
WHEN USINGELECTRIC TOOLS, BASICSAFETY
PRECAUTIONSSHOULDALWAYS BE FOLLOWEDTO REDUCE
THE RISK OF FIRE, ELECTRIC SHOCK, AND PERSONAL
INJURY, INCLUDING THE FOLLOWING:
READ ALL INSTRUCTIONS.
1.
2.
3.
4.
5.
6.
7.
8.
9.
IO.
11.
12.
13.
2
KEEP WORK AREA CLEAN. Cluttered areas and benches invite injuries.
CONSIDER WORK AREA ENVIRONMENT. Don't use power tools in damp
or wet locations. Keep work area well
lit.
Don't expose power tools torain.
Don't use tool
in
presence of flammable liquids or gases.
KEEP CHILDREN AWAY. All visitors should be kept away from work area.
Don't let visitors contact tool or extension cord.
STORE IDLETOOLS. When not
in
use, tools should be stored indry, and high
or locked-up place
-
out of reach of children.
DON'T FORCETOOL.
It
willdo thejob better and safer atthe ratefor which
it
was intended.
USE RIGHT TOOL. Don't force small tool or attachment to do thejob of a
heavy-duty tool. Don't use tool for purpose not intended.
DRESS PROPERLY. Don't wear looseclothing orjewelry. They canbe caught
in moving parts. Rubber gloves and non-skid footwear are recommended
when workingoutdoors. Wear protective hair covering tocontain long hair.
USE SAFETY GLASSES. Also use face or dust mask
if
cuttingoperation is
dusty.
DON'T ABUSECORD. Never carry tool by cord or yank
it
todisconnect from
receptacle. Keep cord from heat, oil, and sharp edges.
SECURE WORK. Use clamps or a vise to hold work. It's safer than using
your hand and
it
frees both hands to operate tool.
DON'T OVERREACH. Keep proper footing and balance at all times.
MAINTAIN TOOLS WITH CARE. Keep tools sharp and clean for better and
safer performance. Follow instructions for lubricating and changing acces-
sories. Inspecttoolcords periodically and
if
damaged, haverepaired
by
autho-
rized service facility. Inspect extension cords periodically and replace
if
damaged. Keep handles dry, clean, and free from oil and grease.
DISCONNECTTOOLS. When not
in
use, before servicing, and when chang-
ing accessories, such as blades, bits, cutters.

14.
REMOVE
ADJUSTING
KEYS
AND
WRENCHES.
Form habit
of
checking
to
see that keysand adjusting wrenches are removed fromtoolbeforeturning
it
on.

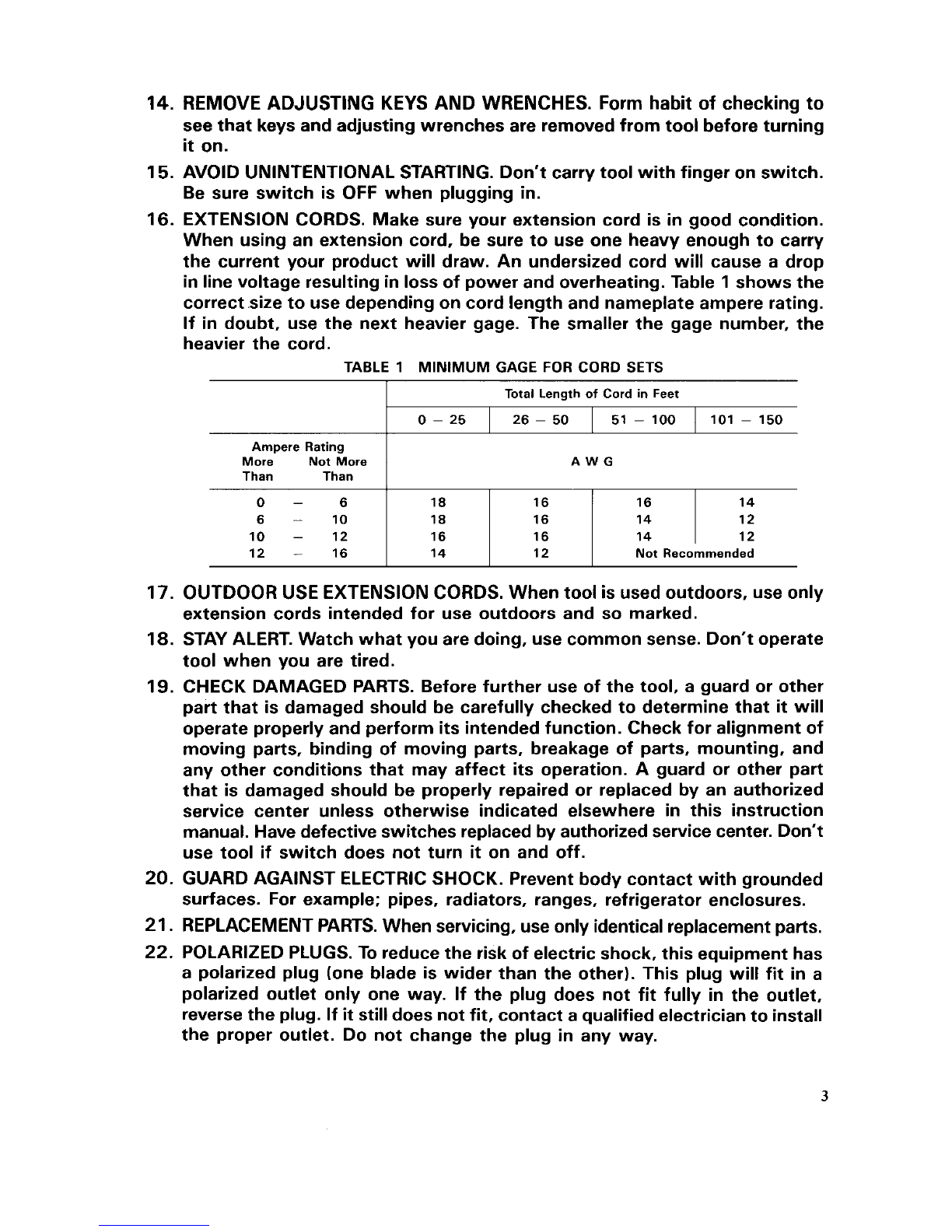

15. AVOID UNINTENTIONALSTARTING. Don't carry tool withfinger on switch.
Be sure switch is
OFF
when plugging in.
16.
EXTENSIONCORDS. Make sure your extension cord is
in
good condition.
When using an extension cord, be sure to use one heavy enough to carry
the current your product will draw. An undersized cord will cause a drop
inline voltage resultingin
loss
of
power and overheating. Table 1 shows the
correct.sizetouse depending oncordlengthand nameplateampere rating.
If
in doubt, use the next heavier gage. The smaller the gage number, the
heavier the cord.
TABLE
1
MINIMUM
GAGE
FOR
CORD
SETS
0
-
25 26
-
50 51
-
100 101
-
150
Ampere Rating
More Not More
Than Than
0-
6
6
-
10
10
-
12
12
-
16
AWG
18 16 14
16 16 14 12
14 12
Not Recommended
18 16
;:
1
12
17. OUTDOORUSE EXTENSIONCORDS. When tool is used outdoors, use only
extension cords intended for use outdoors and
so
marked.
18.
STAY ALERT. Watch what you are doing, use common sense. Don't operate
tool when you are tired.
19.
CHECK DAMAGED PARTS. Before further use of the tool, a guard or other
part that is damaged should be carefully checked to determine that
it
will
operate properly and perform its intendedfunction. Check for alignment of
moving parts, binding
of
moving parts, breakage of parts, mounting, and
any other conditions that may affect its operation. A guard or other part
that is damaged should be properly repaired or replaced by an authorized
service center unless otherwise indicated elsewhere in this instruction
manual.Havedefective switches replaced
by
authorizedservice center. Don't
use tool
if
switch does not turn
it
on and off.
20.
GUARDAGAINST ELECTRIC SHOCK. Prevent body contact with grounded
surfaces. For example; pipes, radiators, ranges, refrigerator enclosures.
21.
REPLACEMENTPARTS.When servicing, useonly identical replacementparts.
22. POLARIZEDPLUGS. To reduce the risk of electric shock, thisequipment has
a polarized plug (one blade is wider than the other). This plug will
fit in
a
polarized outlet only one way.
If
the plug does not fit fully in the outlet,
reversethe plug. If
it
stilldoes not
fit,
contact aqualified electrician toinstall
the proper outlet. Do not change the plug in any way.
3

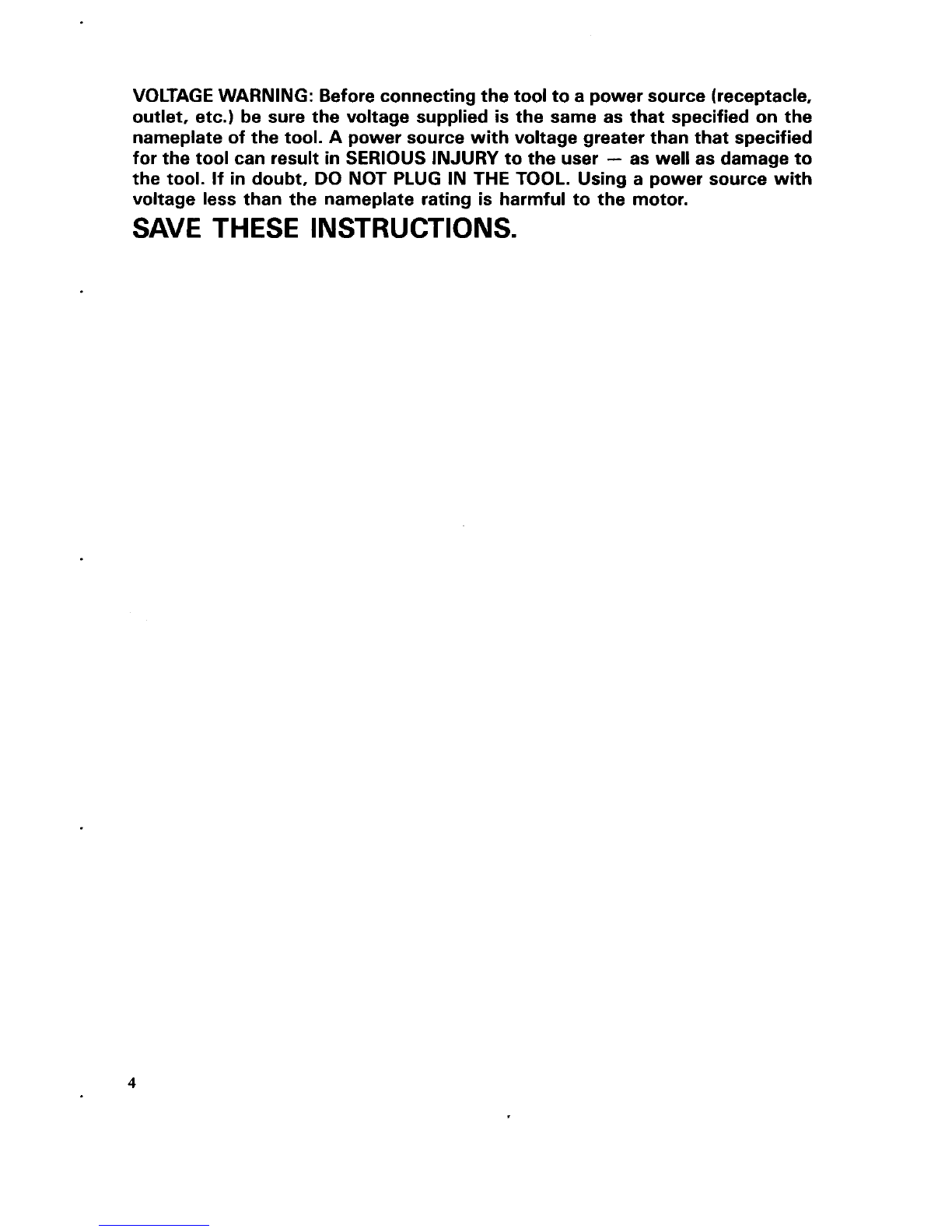

VOLTAGE WARNING:
Beforeconnecting thetool toa power source (receptacle,
outlet, etc.) be sure the voltage supplied is the same as that specified on the
nameplate
of
the tool.
A
power source withvoltage greater than that specified
for the tool can result
in
SERIOUS INJURY
tothe user
-
as well as damage to
the tool.
If
in
doubt,
DO
NOT PLUG IN THE TOOL.
Using a power source
with
voltage less than the nameplate rating is harmful to the motor.
SAVE THESE INSTRUCTIONS.
4

How
to
use
1.
Switch action
To
start the tool, simply pull the trigger.
Release
the trigger tostop. For continuous
operation without having to keep your
finger on the trigger, just pull the trigger
and then push inthe lock buttonwith your
thumb.
To
stop the tool from lock posi-
tion, just pull the trigger again and release
it.
2.
Mounting belt
With the tool unplugged and the lever
pulled out
all
the way, slip the belt over
the rollers with the arrow direction on the
belt the same
as
that of tool revolution(or
belt life
is
shortened).
3.
Belt adjustment
Flip sander over on
its
back and use the
adjustment knob to obtain equal tension of
belt over the front and back rollers. Then
plug in sander and switch
it
on, using the
adjustment knob to center the belt
as
it
runs over the rollers. Failure to adjust belt
properly over rollers can result in frayed
belt edges.
5

0
Replacingcarbon brushes
Remove and check the carbon brushes
regularly. Replace when they wear down
to the limit mark. Keep the carbon
brushes clean and free to slip in the
holders. Both carbon brushes should be
replaced
at
the same time. Use only iden-
tical
carbon brushes.
/
Limit mark
Optional
accessories
CAUTION: The accessories specified
in
this manual
are
recommended for use with your Makita
Belt Sander.
The
use
of
any other accessory might be hazardous.
0
Abrasive
belts
Belt
type
and
use
AA
-
For wood. iron and steel
Grit
I
Part No.
I
Use
I
,”,:”,”,’,”,
742322-9
Coarse
Medium
5
0
Carbon
plate
*Steel plate
0
Step
Part
No.
423029-3 Part No. 342328-3 Part No. 342332-2
CAUTION
:
Install the steel plate
so
that THE EDGE
OF
THE STEEL PLATE WILL NOT
PROTRUDE FROM THE EDGE OF THE FRAME
ON
THE SIDE WITH THE
BELT INSTALLING LEVER.
IF
THE PLATE
IS
ALLOWED TO PROTRUDE. IT MAY CAUSE INJURY.
6

lOOmm(4")
BELT
SANDER
Model
9401
Note: The switch, noise suppressor, plug and other part
configurations may differ from country to country.
7

MACHINE
39
40
41
42
43
44
45
46
47
48
49
50
51
52
631
541
55
562
57
581
59
60
61
62
63
641
65
665
67
681
69
70
71
72
73
Dust Collector
Bracket
P.
H.
Screw
M5xlB
[With Washer)
Fan
74
P.
H.
Screw
M5x12
[With Washer)
Dust Collector
Cower
P.
H.
Screw
M5x25
(WithWasher1
P.
H.
Screw
M5x28
(WithWerharl
Ball
Bearing 6200LLB
Fan
90
ARMATURE ASSEMBLY
IAsambledltems9,
10. 11, 13& 141
H.
Bolt
M5x45
[With Warharl
Insulation Washer
Ball
Bearing 62WLLB
Rubbor Pin
4
Baffle Plats
FIELDASSEMBLY
(WithGarter Spring
x
21
Rivet
0-5
Name Plate
Brush Holder Cap
Carbon Brush
Motor
Housing
[With Brush Holder
x
2
&
S.
Screw
M5x8
x
21
V-Pulley
6-24L
Dust
Bag
CORD ASSEMBLY
(Assembled Cord. Plug
&
Cord Guard1
Cord Guard
Strain Relief
P.
H.
Screw
M4x18
lWith Warharl
Slwvt,
6
P.
H.
Screw
M5x16
[With Washed
Switch
Screw
MBx72
separator
~ P.
H.
Screw
M4x30
lWlth Warharl
1
1
1
1
1
1
1
3
1
1
1
1
1
4
1
1
6
1
1
1
1
1
1
1
A.R.
1
1
1
2
I
;
1
F.Washer
8
ComprsuionSpring
9
MACHINE
11
31
41
51
61
91
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
261
27
28
29
30
31
32
34
24
72
82
1
1
2
1
1
1
1
1
2
1
2
2
1
1
1
5
1
1
2
1
1
1
1
Knob
55
Retaining
Ring
S-12
Tension
Roller
Arm
Cup Washer
12
Tension
Roller
(WithPlane Bearing
12
&
Swngs
Shwtl
CupWasher
12
Tension
Roller
Shaft
P.
H.
Screw
M5x18
[With Washer)
B.H
cover
Driving
Roller
Balance
Plate
CupWaiher
12
Key
4
P.
H.
Screw
M4xlO
[With Washed
Strap Washer
Cork
Rubbar Plats
Leaf Spring
Torsion Spring
18
EdgsSlider
C.
H.
krew
M5x18
SupOort
Pin
Needle Bearing
E10
Heliul
Gear
10
Ball
Bearing
62WLLB
Ruwr
Pin
4
Gear
Cover
P.
H.
Screw
M5xl8
[With Washer)
V-Pulley
6-55.7
Poly V-Balt
6-355
Helical Gear
42
T. Washer
12
Retaining Ring
S-12
Belt
cow,
P.
H.
Screw
M5x40
[With Washer)
Sled
Plate
1
ACCESSORIES
4W
I
1
I
Abrasive
Bell
38
37
I
;
I
HandleCover
Note: The Switch, noisesuppreuor. plug
and
other
part
IPsCifiCatiOns
may
differ from
country
to
Muntrv.
Frame
(With
Plane
Bearing
12
&
Swonge Sheet1
8

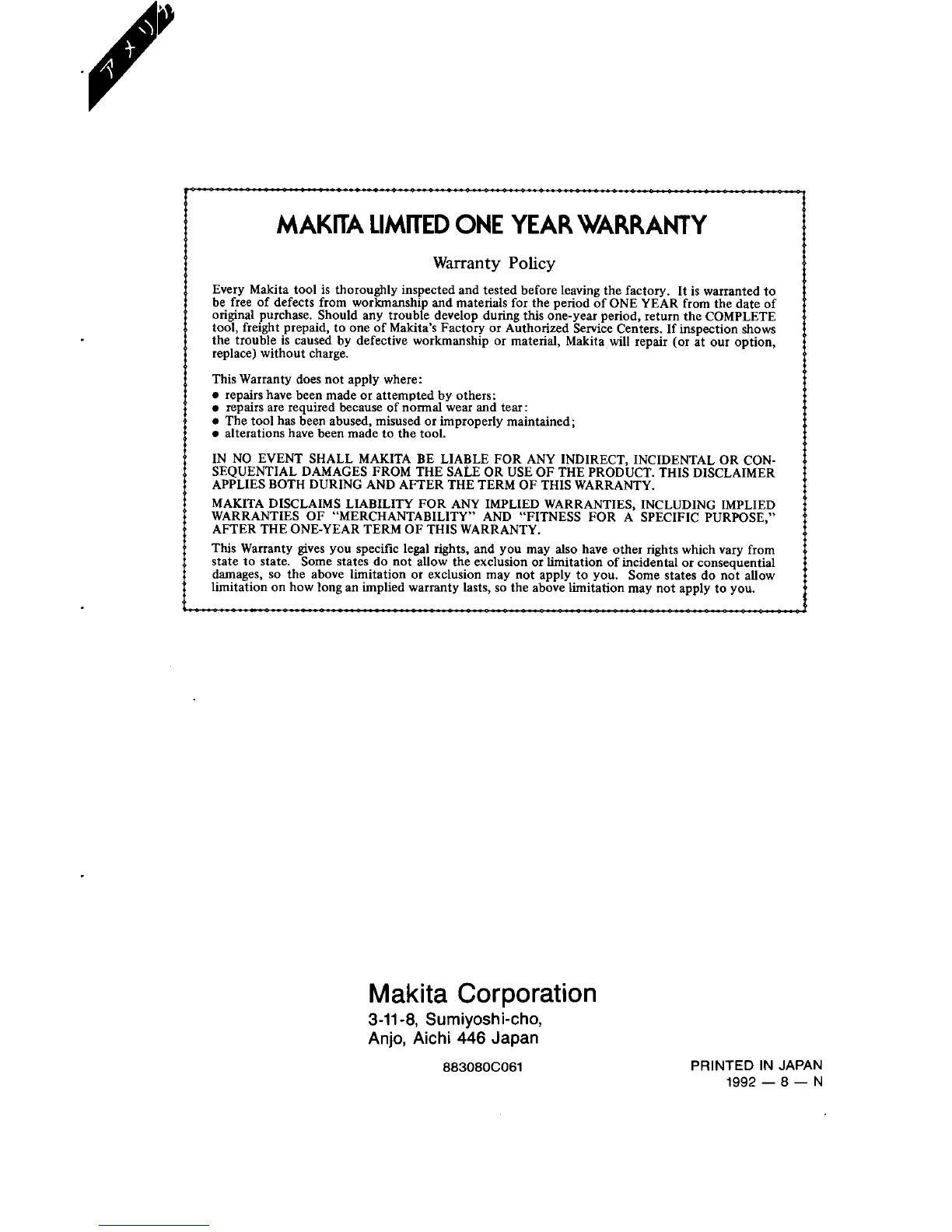

MAKlTA
LIMITEDONE
YEAR WARRANTY
Warranty Policy
Every Makita tool is thoroughly inspected and tested before leavingthe factory. It is warranted to
be free of defects from workmanship and materials for the period of ONE YEAR from the date of
original purchase. Should any trouble develop during this one-year period, return the COMPLETE
tool, freight prepaid, to one of Makita’s Factory or Authorized ServiceCenters. If inspection shows
the trouble is caused by defective workmanship or material, Makita
will
repair (or at our option,
replace) without charge.
This Warranty does not apply where:
repairs have been made or attempted by others:
repairs are required because of
normal
wear and tear:
Thetool has been abused, misused orimproperly maintained;
alterationshave been made to the tool.
IN NO EVENT SHALL MAKITA BE LIABLE FOR ANY INDIRECT, INCIDENTALOR CON-
SEQUENTIAL DAMAGES FROM THE SALE OR USE OFTHE PRODUCT. THIS DISCLAIMER
APPLIESBOTH DURING AND AFTER THE TERM OFTHIS WARRANTY.
MAKITA DISCLAIMS LIABILITY FOR ANY IMPLIED WARRANTIES, INCLUDING IMPLIED
WARRANTIES OF “MERCHANTABILITY” AND “FITNESS FOR A SPECIFIC PURPOSE,”
AFTER THEONE-YEARTERM OFTHISWARRANTY.
This Warranty gives you specific legal rights, and you may also have other rights which vary from
state to state. Some states do not allow the exclusion or limitation of incidentalor consequential
damages,
so
the above limitation or exclusion may not apply to you. Some states do not allow
limitation
on
how long an implied warranty lasts,
so
the above limitation may not apply to you.
Makita Corporation
3-11
-8,
Sumiyoshi-cho,
Anjo,
Aichi
446
Japan
8830800061
PRINTED IN JAPAN
1992
-
8
-
N
Other manuals for 9401
4
Table of contents
Other Makita Sander manuals

Makita
Makita DBO180 User manual

Makita
Makita 90350 User manual

Makita
Makita BO6050 Manual

Makita
Makita PO5000C User manual

Makita
Makita 9046J User manual

Makita
Makita BO5041J User manual

Makita
Makita BO4900V Manual

Makita
Makita SL 7000 User manual

Makita
Makita BO4900V User manual

Makita
Makita 9031 User manual

Makita
Makita DBO380 User manual

Makita
Makita M9203B User manual

Makita
Makita BO4565 User manual

Makita
Makita BO4900 User manual

Makita
Makita 9237CB User manual

Makita
Makita BO6030 Quick start guide

Makita
Makita DSL800 User manual

Makita
Makita 9741 User manual

Makita
Makita 9403 User manual

Makita
Makita PV301DZJ User manual
