INSTRUCTION MANUAL
Random Orbit Sander
BO6050
ENGLISH: Original instructions
DOUBLE INSULATION
Read before use.

2ENGLISH
SPECIFICATIONS
Model: BO6050
Pad diameter 150 mm
Abrasive disc diameter 150 mm
Orbits per minute (min-1)1,600-6,800
Overall length 330 mm
Net weight 2.6 kg
Safety class /II
• Duetoourcontinuingprogramofresearchanddevelopment,thespecicationshereinaresubjecttochange
without notice.
• Specicationsmaydifferfromcountrytocountry.
• WeightaccordingtoEPTA-Procedure01/2003
Symbols
The following show the symbols used for the equip-
ment. Be sure that you understand their meaning before
use.
Read instruction manual.
DOUBLE INSULATION
Only for EU countries
Do not dispose of electric equipment
together with household waste material! In
observance of the European Directive, on
WasteElectricandElectronicEquipment
and its implementation in accordance with
national law, electric equipment that have
reached the end of their life must be col-
lected separately and returned to an envi-
ronmentally compatible recycling facility.
Intended use
The tool is intended for the sanding of large surface of
wood, plastic and metal materials as well as painted
surfaces.
Power supply
The tool should be connected only to a power supply of
the same voltage as indicated on the nameplate, and
can only be operated on single-phase AC supply. They
are double-insulated and can, therefore, also be used
from sockets without earth wire.
Noise
The typical A-weighted noise level determined accord-
ing to EN60745:
Sound pressure level (LpA) : 82 dB(A)
Sound power level (LWA) : 93 dB (A)
Uncertainty (K) : 3 dB(A)
WARNING: Wear ear protection.
Vibration
The vibration total value (tri-axial vector sum) deter-
mined according to EN60745:
Workmode:sandingmetalplate
Vibration emission (ah) : 5.0 m/s2
Uncertainty (K) : 1.5 m/s2
Workmode:polishing
Vibration emission (ah, AG) : 3.0 m/s2
Uncertainty (K) : 1.5 m/s2
NOTE: The declared vibration emission value has
been measured in accordance with the standard test
method and may be used for comparing one tool with
another.
NOTE: The declared vibration emission value
may also be used in a preliminary assessment of
exposure.
WARNING: The vibration emission during actual
use of the power tool can differ from the declared
emission value depending on the ways in which the
tool is used.
WARNING: Be sure to identify safety measures
to protect the operator that are based on an estima-
tion of exposure in the actual conditions of use (taking
account of all parts of the operating cycle such as
the times when the tool is switched off and when it is
running idle in addition to the trigger time).
EC Declaration of Conformity
For European countries only
Makita declares that the following Machine(s):
Designation of Machine: Random Orbit Sander
Model No./ Type: BO6050
Conforms to the following European Directives:
2006/42/EC
They are manufactured in accordance with the following
standard or standardized documents: EN60745
Thetechnicalleinaccordancewith2006/42/ECis
available from:
Makita, Jan-Baptist Vinkstraat 2, 3070, Belgium
30.3.2015

3ENGLISH
Yasushi Fukaya
Director
Makita, Jan-Baptist Vinkstraat 2, 3070, Belgium
General power tool safety warnings
WARNING: Read all safety warnings and
all instructions. Failure to follow the warnings and
instructionsmayresultinelectricshock,reand/or
seriousinjury.
Save all warnings and instruc-
tions for future reference.
The term "power tool" in the warnings refers to your
mains-operated (corded) power tool or battery-operated
(cordless) power tool.
Work area safety
1. Keep work area clean and well lit. Cluttered or
dark areas invite accidents.
2. Do not operate power tools in explosive atmo-
spheres, such as in the presence of ammable
liquids, gases or dust. Power tools create sparks
which may ignite the dust or fumes.
3. Keep children and bystanders away while
operating a power tool. Distractions can cause
you to lose control.
Electrical Safety
1. Power tool plugs must match the outlet. Never
modify the plug in any way. Do not use any
adapter plugs with earthed (grounded) power
tools. Unmodiedplugsandmatchingoutletswill
reduce risk of electric shock.
2. Avoid body contact with earthed or grounded
surfaces such as pipes, radiators, ranges and
refrigerators. There is an increased risk of elec-
tric shock if your body is earthed or grounded.
3. Do not expose power tools to rain or wet con-
ditions.Waterenteringapowertoolwillincrease
the risk of electric shock.
4. Do not abuse the cord. Never use the cord for
carrying, pulling or unplugging the power tool.
Keep cord away from heat, oil, sharp edges
or moving parts. Damaged or entangled cords
increase the risk of electric shock.
5. When operating a power tool outdoors, use an
extension cord suitable for outdoor use. Use of
a cord suitable for outdoor use reduces the risk of
electric shock.
6. If operating a power tool in a damp location
is unavoidable, use a residual current device
(RCD) protected supply. Use of an RCD reduces
the risk of electric shock.
7. Use of power supply via an RCD with a rated
residual current of 30 mA or less is always
recommended.
Personal Safety
1. Stay alert, watch what you are doing and use
common sense when operating a power tool.
Do not use a power tool while you are tired or
under the inuence of drugs, alcohol or med-
ication. A moment of inattention while operating
powertoolsmayresultinseriouspersonalinjury.
2. Use personal protective equipment. Always
wear eye protection. Protective equipment such
as dust mask, non-skid safety shoes, hard hat, or
hearing protection used for appropriate conditions
willreducepersonalinjuries.
3. Prevent unintentional starting. Ensure the
switch is in the off-position before connecting
to power source and/or battery pack, picking
up or carrying the tool. Carrying power tools with
yourngerontheswitchorenergisingpowertools
that have the switch on invites accidents.
4. Remove any adjusting key or wrench before
turning the power tool on. A wrench or a key left
attached to a rotating part of the power tool may
resultinpersonalinjury.
5. Do not overreach. Keep proper footing and
balance at all times. This enables better control
of the power tool in unexpected situations.
6. Dress properly. Do not wear loose clothing or
jewellery. Keep your hair, clothing, and gloves
away from moving parts.Looseclothes,jewel-
lery or long hair can be caught in moving parts.
7. If devices are provided for the connection of
dust extraction and collection facilities, ensure
these are connected and properly used. Use of
dust collection can reduce dust-related hazards.
Power tool use and care
1. Do not force the power tool. Use the correct
power tool for your application. The correct
powertoolwilldothejobbetterandsaferatthe
rate for which it was designed.
2. Do not use the power tool if the switch does
not turn it on and off. Any power tool that cannot
be controlled with the switch is dangerous and
must be repaired.
3. Disconnect the plug from the power source
and/or the battery pack from the power tool
before making any adjustments, changing
accessories, or storing power tools. Such pre-
ventive safety measures reduce the risk of starting
the power tool accidentally.
4. Store idle power tools out of the reach of chil-
dren and do not allow persons unfamiliar with
the power tool or these instructions to operate
the power tool. Power tools are dangerous in the
hands of untrained users.
5. Maintain power tools. Check for misalignment
or binding of moving parts, breakage of parts
and any other condition that may affect the
power tool’s operation. If damaged, have the
power tool repaired before use. Many accidents
are caused by poorly maintained power tools.
6. Keep cutting tools sharp and clean. Properly
maintained cutting tools with sharp cutting edges
are less likely to bind and are easier to control.
7. Use the power tool, accessories and tool bits
etc. in accordance with these instructions, tak-
ing into account the working conditions and
the work to be performed. Use of the power tool
for operations different from those intended could
result in a hazardous situation.
Service
1. Have your power tool serviced by a qualied
repair person using only identical replacement
parts. This will ensure that the safety of the power

4ENGLISH
tool is maintained.
2. Follow instruction for lubricating and chang-
ing accessories.
3. Keep handles dry, clean and free from oil and
grease.
Sander safety warnings
1. Always use safety glasses or goggles.
Ordinary eye or sun glasses are NOT safety
glasses.
2. Hold the tool rmly.
3. Do not leave the tool running. Operate the tool
only when hand-held.
4. This tool has not been waterproofed, so do not
use water on the workpiece surface.
5. Ventilate your work area adequately when you
perform sanding operations.
6. Some material contains chemicals which may
be toxic. Take caution to prevent dust inhala-
tion and skin contact. Follow material supplier
safety data.
7. Use of this tool to sand some products, paints
and wood could expose user to dust contain-
ing hazardous substances. Use appropriate
respiratory protection.
8. Be sure that there are no cracks or breakage
on the pad before use. Cracks or breakage
may cause a personal injury.
SAVE THESE INSTRUCTIONS.
WARNING: DO NOT let comfort or familiarity
with product (gained from repeated use) replace
strict adherence to safety rules for the subject
product. MISUSE or failure to follow the safety
rules stated in this instruction manual may cause
serious personal injury.
FUNCTIONAL
DESCRIPTION
CAUTION: Always be sure that the tool is
switched off and unplugged before adjusting or
checking function on the tool.
Switch action
CAUTION: Before plugging in the tool, always
check to see that the slide switch actuates prop-
erly and returns to the "OFF" position when the
rear of the slide switch is depressed.
CAUTION: When locking tool in "ON" position
apply caution and maintain rm grasp on tool.

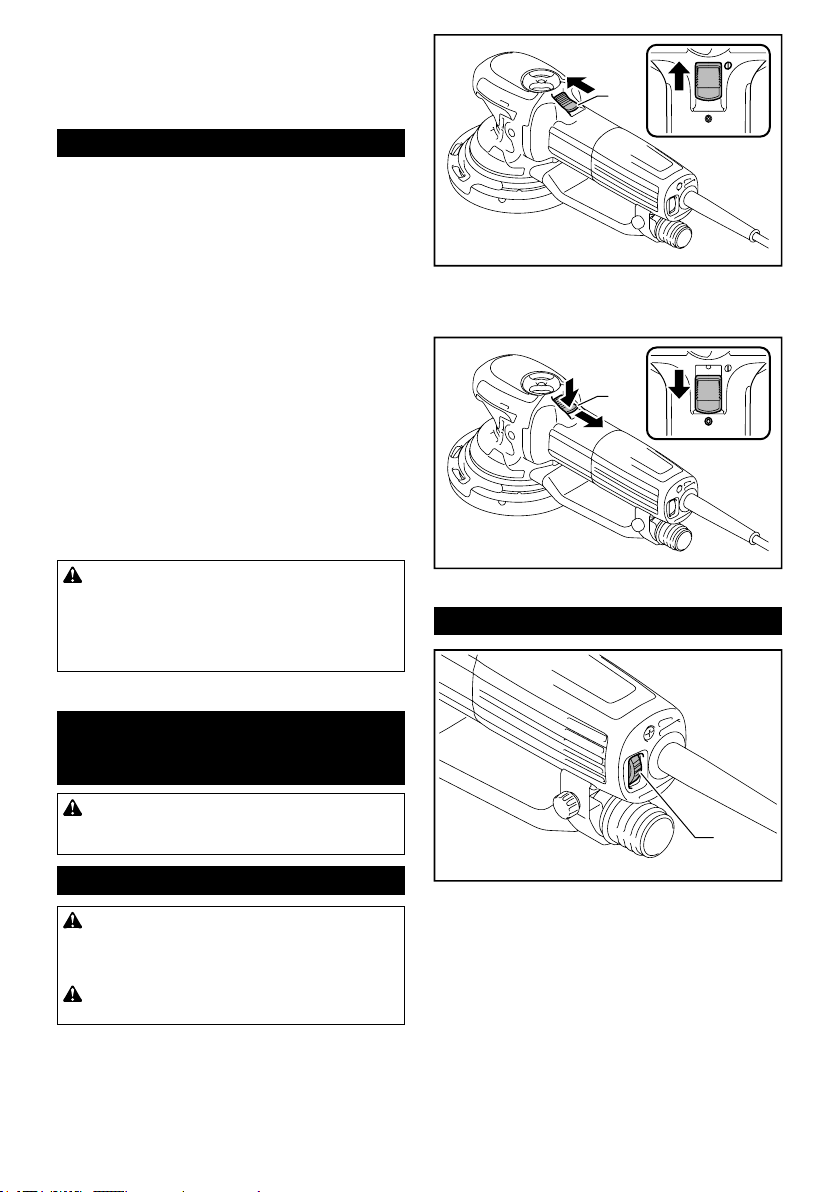

To start the tool, slide the slide switch toward the "I
(ON)" position. For continuous operation, press the
front of the slide switch to lock it.
1
1. Slide switch
To stop the tool, press the rear of the slide switch, then
slide it toward the "O (OFF)" position.
1
1. Slide switch
Speed adjusting dial
1
1.Speedadjustingdial
The rotating speed can be changed by turning the
speedadjustingdialtoagivennumbersettingfrom1to
5. Higher speed is obtained when the dial is turned in
the direction of number 5. And lower speed is obtained
when it is turned in the direction of number 1.
Refer to the table for the relationship between the num-
ber settings on the dial and the approximate rotating
speed.

5ENGLISH
Number Orbits per min. Pad rotating
speed per minute
in random orbit
with forced rota-
tion mode
11,600 140
22,900 260
34,200 370
45,500 490
56,800 600
NOTICE: If the tool is operated continuously at low
speeds for a long time, the motor will get overloaded,
resulting in tool malfunction.
NOTICE:Thespeedadjustingdialcanbeturned
only as far as 5 and back to 1. Do not force it past 5
or1,orthespeedadjustingfunctionmaynolonger
work.
Electronic function
The tools equipped with electronic function are easy to
operate because of the following features.
Constant speed control
Possibletogetnenish,becausetherotatingspeedis
kept constant even under the loaded condition.
Soft start feature
Soft start because of suppressed starting shock.
Selecting the action mode
Use the change knob to change the rotation mode.
NOTICE: Always turn the knob fully. If the knob is in
the middle position, you can not turn on the tool.
NOTE: You can not change the action mode when the
tool is switched on.
Random orbit with forced rotation
mode
1
1. Change knob
Random orbit with forced rotation mode is orbital action
with forced rotation of the pad for rough sanding and
polishing.
Rotate the change knob counterclockwise for random
orbit with forced rotation mode.
Random orbit mode
1
1. Change knob
Random orbit mode is orbital action with free rotation of
thepadfornesanding.
Rotate the change knob clockwise for random orbit
mode.
Typical applications for sanding and
polishing
Sanding
Material Use Mode selection Speed
control
setting
Pad
Random
orbit
with
forced
rotation
Random
Paintwork Sanding -1 - 3 Soft
Repairs
(scratches,
rust spots)
2 - 3 Hard
Rough
paint
stripping
-4 - 5 Soft
Plastics Soft
plastics
(PVC/
ABS)
1 - 3 Super
soft/
Soft
Hard
plastics
(FRP)
-1 - 3 Soft/
Hard
Woods
Softwood -1 - 3 Super
soft/
Soft
Hardwood 3 - 5 Soft
Veneers -1 - 2 Super
Soft

6ENGLISH
Material Use Mode selection Speed
control
setting
Pad
Random
orbit
with
forced
rotation
Random
Metals Non-
ferrous
metal
(alumi-
num,
copper)
1 - 3 Soft
Steel -3 - 5 Soft/
Hard
Steel,
rust
removal
-4 - 5 Super
Soft
Hard
metal
(stain-
less
steel)
-4 - 5 Soft
Polishing
Use Mode
selection
Speed con-
trol setting
Pad
Applying wax Random orbit
with forced
rotation
2 - 4 Sponge pad
Removing
wax
Random orbit
with forced
rotation
4 - 5 Felt pad
Polishing Random orbit
with forced
rotation
4 - 5 Woolpad
The above information is intended only as a guide. In
each case, the most appropriate sanding disc grain
should be determined by preliminary trials.

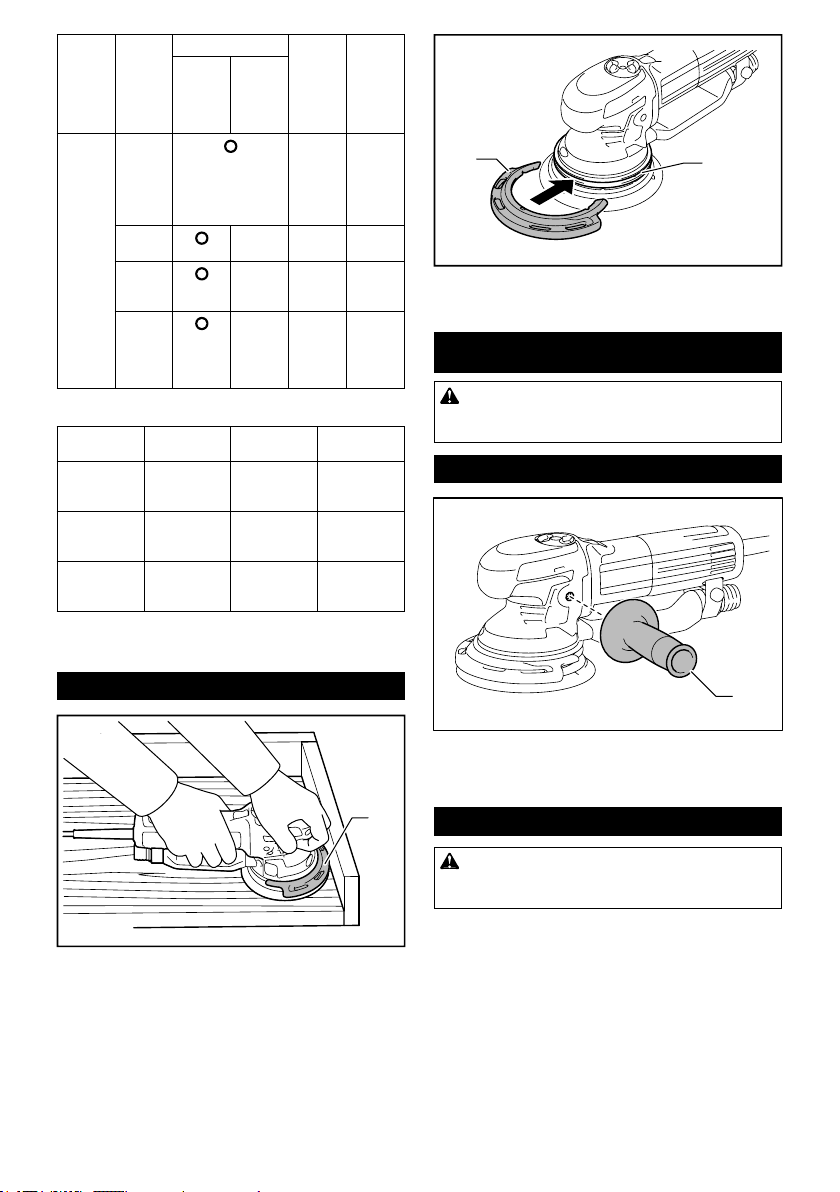

Protector
1
1. Protector
The protector prevents the pad, the tool housing and
the wall from being damaged when working near a wall.
Always use the protector when working.
To install the protector, align the tongue of the protector
with the groove, and push in the protector.
To remove the protector, pull the protector forward.
12
1. Protector 2. Groove
ASSEMBLY
CAUTION: Always be sure that the tool is
switched off and unplugged before carrying out
any work on the tool.
Installing side grip
1
1. Side grip
Screw the side grip on the tool securely.
The side grip can be installed on either side of the tool.
Installing or removing abrasive disc
CAUTION: Always use hook-and-loop system
abrasive discs. Never use pressure-sensitive
abrasive discs.

7ENGLISH
1
1. Abrasive disc
To install the abrasive disc or the hook-and-loop type
pad(optionalaccessory),rstremovealldirtandfor-
eign matter from the pad.
Then attach the abrasive disc to the pad, using the
hook-and-loop system of the abrasive disc and the pad.
Be careful to align the holes in the abrasive disc with
those in the pad.
Toremovethediscfromthepad,justpullupfromits
edge.

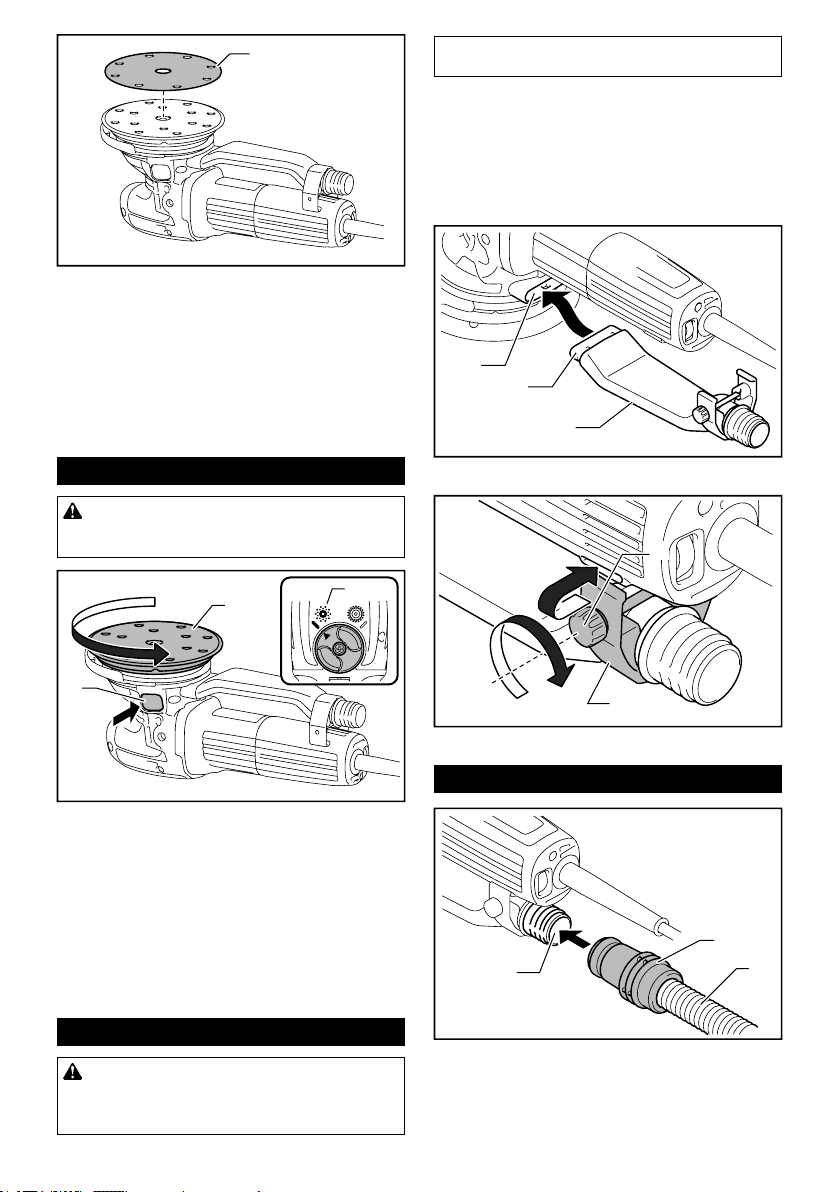

Changing pad
CAUTION: Make sure the new pad is installed
securely. Otherwise the pad may come off from the
toolandcausepersonalinjury.
2
1
3
1. Random orbit with forced rotation mode 2. Shaft
lock button 3. Pad
Makita offers an extensive range of optional super soft,
soft and hard pads.
To change the pad, perform as follows:
1. Use the change knob and change the mode into
random orbit with forced rotation mode.
2. Press and hold the shaft lock button, and remove
the pad by turning the pad counterclockwise.
3. Keep holding the shaft lock button, and install a
newpadbyturningthepadclockwisermly.
Dust nozzle
CAUTION: Make sure the bolt is securely
tightened after installing the dust nozzle.
Otherwise the dust nozzle may fall and cause per-
sonalinjury.
NOTICE: Do not carry the tool by the dust noz-
zle. Otherwise the tool may be damaged.
You can remove the dust nozzle in accordance with the
operation.
To remove the dust nozzle, loosen the bolt, slightly open
the holder part, and remove the dust nozzle.
To install the dust nozzle, insert the mouth of the dust
nozzle into the dust outlet of the housing, align the
tongue of the holder part with the groove of the housing,
and tighten the bolt.
2
1
3
1. Dust nozzle 2. Dust outlet 3. Mouth
1
2
1. Holder part 2. Bolt
Dust collection (optional accessory)
1
32
1. Front cuffs 24 2. Hose 3. Dust outlet
If a Makita hose is used, you can connect the front cuffs
24 to the dust outlet directly.

8ENGLISH
OPERATION
CAUTION: Only use Makita genuine abrasive
discs and pads for sander (optional accessories).
CAUTION: Never switch on the tool when it
is in contact with the workpiece, it may cause an
injury to operator.
CAUTION: Make sure the work material is
secured and not unstable. Falling object may
cause personal injury.
CAUTION: Hold the tool rmly with one hand
on the switch handle and the other hand on the
front grip (or side handle) when performing the
tool.
NOTICE: Be careful not to press down the shaft
lock button. It may shorten tool life.
NOTICE: Never force the tool. Excessive pressure
maydecreasethesanding/polishingefciency,dam-
age the abrasive disc / pad or shorten tool life.
Sanding operation
NOTICE: Never run the tool without the abrasive
disc. You may seriously damage the pad.
Holdthetoolrmly.Turnthetoolonandwaituntilit
attains full speed. Then gently place the tool on the
workpiecesurface.Keepthepadushwiththework-
piece and apply slight pressure on the tool.
Polishing operation
Optional accessory
NOTICE: Continuous operation at high speed
may damage work surface.
1. Applying wax
Use the sponge pad. Apply wax to the sponge pad or
work surface. Run the tool at low speed to smooth out
wax.
NOTE: First, wax a not conspicuous portion of the
work surface to make sure that the tool will not
scratch the surface or result in uneven waxing.
2. Removing wax
Use the felt pad. Run the tool to remove wax.
3. Polishing
Apply the wool pad gently to the work surface.
MAINTENANCE
CAUTION: Always be sure that the tool is
switched off and unplugged before attempting to
perform inspection or maintenance.
NOTICE: Never use gasoline, benzine, thinner,
alcohol or the like. Discoloration, deformation or
cracks may result.
To maintain product SAFETY and RELIABILITY,
repairs,anyothermaintenanceoradjustmentshould
be performed by Makita Authorized or Factory Service
Centers, always using Makita replacement parts.
OPTIONAL
ACCESSORIES
CAUTION: These accessories or attachments
are recommended for use with your Makita tool
specied in this manual. The use of any other
accessories or attachments might present a risk of
injurytopersons.Onlyuseaccessoryorattachment
for its stated purpose.
If you need any assistance for more details regard-
ing these accessories, ask your local Makita Service
Center.
• Hook-and-looptypeabrasivediscs(withpre-
punched holes)
• Hook-and-looptypespongepad

9ENGLISH
• Hook-and-looptypefeltpad
• Hook-and-looptypewoolpad
• Pad150(Supersoft,Soft,Hard)
• Pad130(Polishing)
• Sidegrip
NOTE: Some items in the list may be included in the
tool package as standard accessories. They may
differ from country to country.

10

11

www.makita.com
Makita
Jan-Baptist Vinkstraat 2, 3070, Belgium
Makita Corporation Anjo, Aichi, Japan
885445-227
EN
20150629
