Makita BO4555 User manual

GB Finishing Sander Instruction manual
ZHCN
砂光机 使用说明书
ID Mesin Ampelas Halus Petunjuk penggunaan
Máy Chà Nhám Rung Cầm Tay Hoạt
Động Bằng Động CơĐiện
VI Tài liệu hướng dẫn
TH เครื่องขัดกระดาษทราย คูมือการใชงาน
BO4555
BO4556
BO4557
BO4558

2
1008302 2008299
3008293 4008297
5008296 6008301
7003742 8003743
1
2
3
4
5
6
7
8
9
10
11
12

3
9003744 10 003745
11 009094 12 009095
13 009092 14 009093
15 008294
13
14
15
16
17
18 17

4
ENGLISH
Explanation of general view
SPECIFICATIONS
• Due to our continuing program of research and development, the specifications herein are subject to change without
notice.
• Specifications may differ from country to country.
• Weight according to EPTA-Procedure 01/2014
END201-7
Symbols
The following show the symbols used for the equipment.
Be sure that you understand their meaning before use.
.... Read instruction manual.
.............. DOUBLE INSULATION
................. Only for EU countries
Do not dispose of electric equipment
together with household waste material!
In observance of the European Directive,
on Waste Electric and Electronic
Equipment and its implementation in
accordance with national law, electric
equipment that have reached the end of
their life must be collected separately and
returned to an environmentally
compatible recycling facility.
ENE052-1
Intended use
The tool is intended for the sanding of large surface of
wood, plastic and metal materials as well as painted
surfaces.
ENF002-1
Power supply
The tool should be connected only to a power supply of
the same voltage as indicated on the nameplate, and can
only be operated on single-phase AC supply. They are
double-insulated in accordance with European Standard
and can, therefore, also be used from sockets without
earth wire.
GEA012-2
General power tool safety
warnings
WARNING: Read all safety warnings, instructions,
illustrations and specifications provided with this
power tool. Failure to follow all instructions listed below
may result in electric shock, fire and/or serious injury.
Save all warnings and
instructions for future reference.
The term “power tool” in the warnings refers to your
mains-operated (corded) power tool or battery-operated
(cordless) power tool.
Work area safety
1. Keep work area clean and well lit. Cluttered or dark
areas invite accidents.
2. Do not operate power tools in explosive
atmospheres, such as in the presence of
flammable liquids, gases or dust. Power tools
create sparks which may ignite the dust or fumes.
3. Keep children and bystanders away while
operating a power tool. Distractions can cause you
to lose control.
Electrical Safety
1. Power tool plugs must match the outlet. Never
modify the plug in any way. Do not use any
adapter plugs with earthed (grounded) power
tools. Unmodified plugs and matching outlets will
reduce risk of electric shock.
2. Avoid body contact with earthed or grounded
surfaces, such as pipes, radiators, ranges and
refrigerators. There is an increased risk of electric
shock if your body is earthed or grounded.
1. Switch
2. Punch plate
3. Sandpaper
4. Guide
5. Velcro sandpaper
6. Base
7. Dust bag
8. Groove
9. Front fixing cardboard
10. Front side of paper dust bag
11. Claws
12. Upper part
13. Notch
14. Guide
15. Holding tab
16. Dust box
17. Dust nozzle
18. Latch
Model BO4555 BO4556 BO4558 BO4557
Pad size 112 mm x 102 mm
Orbits per minute (min-1) 14,000
Dimensions (L x W x H) 131 mm x 112 mm x 142 mm 131 mm x 112 mm x 141 mm 131 mm x 112 mm x 137 mm
Net weight 1.1 kg 1.2 kg 1.0 kg
Safety class /II

5
3. Do not expose power tools to rain or wet
conditions. Water entering a power tool will increase
the risk of electric shock.
4. Do not abuse the cord. Never use the cord for
carrying, pulling or unplugging the power tool.
Keep cord away from heat, oil, sharp edges or
moving parts. Damaged or entangled cords increase
the risk of electric shock.
5. When operating a power tool outdoors, use an
extension cord suitable for outdoor use. Use of a
cord suitable for outdoor use reduces the risk of
electric shock.
6. If operating a power tool in a damp location is
unavoidable, use a residual current device (RCD)
protected supply. Use of an RCD reduces the risk of
electric shock.
7. Use of power supply via an RCD with a rated
residual current of 30 mA or less is always
recommended.
8. Power tools can produce electromagnetic fields
(EMF) that are not harmful to the user.
However, users of pacemakers and other similar
medical devices should contact the maker of their
device and/or doctor for advice before operating this
power tool.
9. Do not touch the power plug with wet hands.
10. If the cord is damaged, have it replaced by the
manufacturer or his agent in order to avoid a
safety hazard.
Personal Safety
1. Stay alert, watch what you are doing and use
common sense when operating a power tool.
Do not use a power tool while you are tired or
under the influence of drugs, alcohol or
medication. A moment of inattention while operating
power tools may result in serious personal injury.
2. Use personal protective equipment. Always wear
eye protection. Protective equipment such as a dust
mask, non-skid safety shoes, hard hat or hearing
protection used for appropriate conditions will reduce
personal injuries.
3. Prevent unintentional starting. Ensure the switch
is in the off-position before connecting to power
source and/or battery pack, picking up or carrying
the tool. Carrying power tools with your finger on the
switch or energising power tools that have the switch
on invites accidents.
4. Remove any adjusting key or wrench before
turning the power tool on. A wrench or a key left
attached to a rotating part of the power tool may result
in personal injury.
5. Do not overreach. Keep proper footing and
balance at all times. This enables better control of
the power tool in unexpected situations.
6. Dress properly. Do not wear loose clothing or
jewellery. Keep your hair and clothing away from
moving parts. Loose clothes, jewellery or long hair
can be caught in moving parts.
7. If devices are provided for the connection of dust
extraction and collection facilities, ensure these
are connected and properly used. Use of dust
collection can reduce dust-related hazards.
8. Do not let familiarity gained from frequent use of
tools allow you to become complacent and ignore
tool safety principles. A careless action can cause
severe injury within a fraction of a second.
9. Always wear protective goggles to protect your
eyes from injury when using power tools.
The goggles must comply with ANSI Z87.1 in the
USA, EN 166 in Europe, or AS/NZS 1336 in
Australia/New Zealand. In Australia/New Zealand,
it is legally required to wear a face shield to
protect your face, too.
It is an employer's responsibility to enforce the
use of appropriate safety protective equipments
by the tool operators and by other persons in the
immediate working area.
Power tool use and care
1. Do not force the power tool. Use the correct power
tool for your application. The correct power tool will
do the job better and safer at the rate for which it was
designed.
2. Do not use the power tool if the switch does not
turn it on and off. Any power tool that cannot be
controlled with the switch is dangerous and must be
repaired.
3. Disconnect the plug from the power source and/or
remove the battery pack, if detachable, from the
power tool before making any adjustments,
changing accessories, or storing power tools.
Such preventive safety measures reduce the risk of
starting the power tool accidentally.
4. Store idle power tools out of the reach of children
and do not allow persons unfamiliar with the
power tool or these instructions to operate the
power tool. Power tools are dangerous in the hands
of untrained users.
5. Maintain power tools and accessories. Check for
misalignment or binding of moving parts,
breakage of parts and any other condition that
may affect the power tool’s operation. If damaged,
have the power tool repaired before use.
Many accidents are caused by poorly maintained
power tools.
6. Keep cutting tools sharp and clean. Properly
maintained cutting tools with sharp cutting edges are
less likely to bind and are easier to control.

6
7. Use the power tool, accessories and tool bits etc.
in accordance with these instructions, taking into
account the working conditions and the work to
be performed. Use of the power tool for operations
different from those intended could result in a
hazardous situation.
8. Keep handles and grasping surfaces dry, clean
and free from oil and grease. Slippery handles and
grasping surfaces do not allow for safe handling and
control of the tool in unexpected situations.
9. When using the tool, do not wear cloth work
gloves which may be entangled. The entanglement
of cloth work gloves in the moving parts may result in
personal injury.
Service
1. Have your power tool serviced by a qualified
repair person using only identical replacement
parts. This will ensure that the safety of the power tool
is maintained.
2. Follow instruction for lubricating and changing
accessories.
GEB021-4
SANDER SAFETY WARNINGS
1. Always use safety glasses or goggles. Ordinary
eye or sun glasses are NOT safety glasses.
2. Hold the tool firmly.
3. Do not leave the tool running. Operate the tool
only when hand-held.
4. This tool has not been waterproofed, so do not
use water on the workpiece surface.
5. Ventilate your work area adequately when you
perform sanding operations.
6. Some material contains chemicals which may be
toxic. Take caution to prevent dust inhalation and
skin contact. Follow material supplier safety data.
7. Use of this tool to sand some products, paints and
wood could expose user to dust containing
hazardous substances. Use appropriate
respiratory protection.
8. Be sure that there are no cracks or breakage on
the pad before use. Cracks or breakage may cause
a personal injury.
SAVE THESE INSTRUCTIONS.
WARNING:
DO NOT let comfort or familiarity with product (gained
from repeated use) replace strict adherence to safety
rules for the subject product. MISUSE or failure to
follow the safety rules stated in this instruction
manual may cause serious personal injury.
FUNCTIONAL DESCRIPTION
CAUTION:
• Always be sure that the tool is switched off and
unplugged before adjusting or checking function on the
tool.

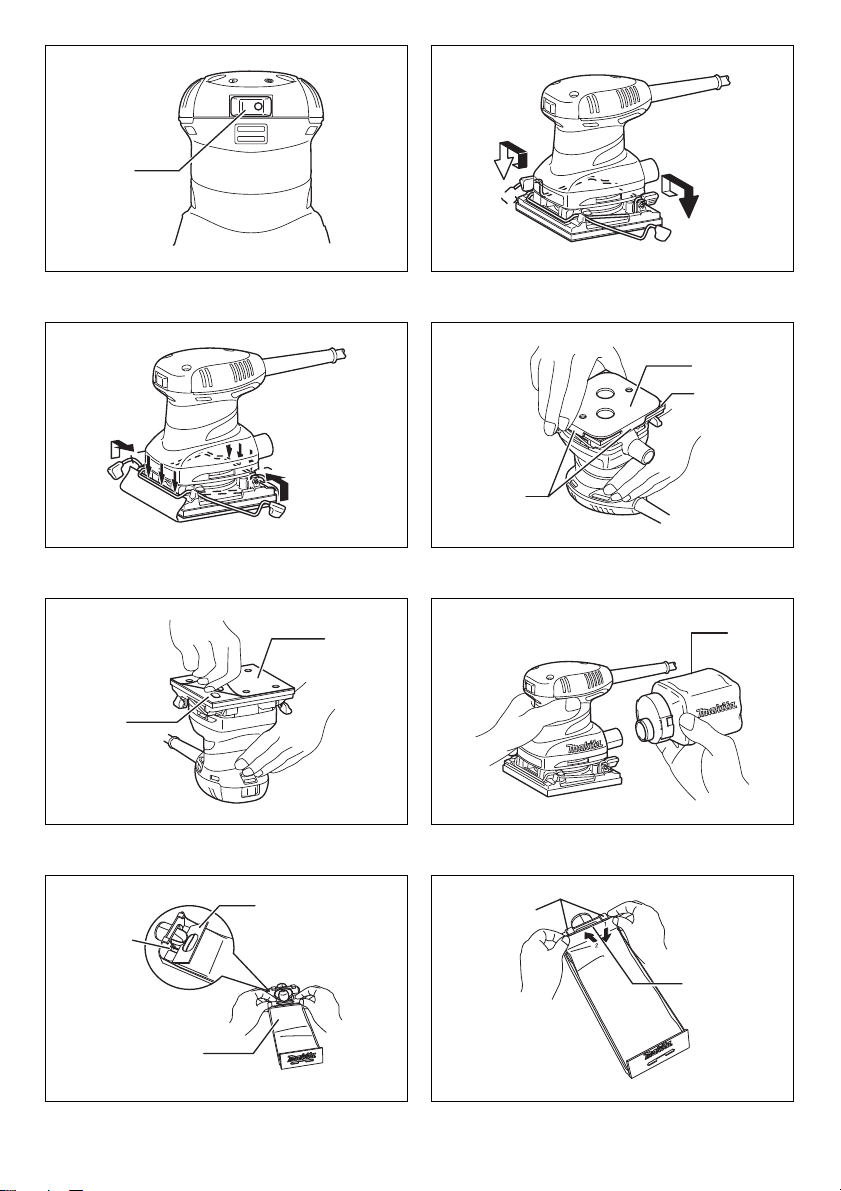

Switch action (Fig. 1)
CAUTION:
• Before plugging in the tool, always check to see that
the tool is switched off.
To start the tool, press the "I" side of the switch. To stop
the tool, press the "O" side of the switch.
ASSEMBLY
CAUTION:
• Always be sure that the tool is switched off and
unplugged before carrying out any work on the tool.
Installing or removing abrasive paper
Open the paper clamp by raising on the lever to release
from the locking port and then Insert the paper end into
the clamping part, aligning the paper edges even and
parallel with the sides of the base. (Bending the paper
beforehand makes attachment easier). Once the paper is
in place, return the lever to its original position. (Fig. 2 &
Fig. 3)
Repeat the same process for the other end of the base,
maintaining the proper paper tension.
After inserting the paper, make sure the clamping part
hold it securely. Otherwise the paper will be loose and
subject to slippage, resulting in uneven sanding operation.
When using the dust bag, make holes in the abrasive
paper using the punch plate as follows (Fig. 4):
1. Set the tool upside down.
2. Place the punch plate over the abrasive paper so that
the bent sides of the punch plate are flush with the
paper edges.
3. Press the punch plate to make holes in the abrasive
paper.
CAUTION:
• Be sure to remove the punch plate before operating the
tool.
Model BO4555 only (Fig. 5)
NOTE:
• Use Makita hook-and-loop sandpaper with this sander.
1. Set the tool upside down so that the pad is on top.
2. Position the sandpaper to fit the shape of the base. Be
sure to align the holes on the sandpaper with the holes
on the pad (the dust will be sucked into these holes; it
is therefore important to leave them open).
3. Press the paper firmly over the pad.
To remove the sandpaper:
1. Set the tool upside down so that the sandpaper is on
top.
2. Grasping one corner of the sandpaper, peel it from the
pad.
NOTE:
• If the sandpaper is in good condition, save it for further
use.
Dust bag (accessory) (Fig. 6)
The use of the dust bag makes sanding operations clean
and dust collection easy. To attach the dust bag, fit the
bag's entry port onto the dust spout on the tool. Make sure
that the hole in the bag's entry port is just over the pimple-
like protrusion on the dust spout.

7
For the best results, empty the dust bag when it becomes
approximately half full, tapping it lightly to remove as
much dust as possible.
Installing paper dust bag (accessory)
Place the paper dust bag on the paper dust bag holder
with its front side upward. Insert the front fixing cardboard
of the paper dust bag into the groove of the paper dust
bag holder. (Fig. 7)
Then press the upper part of the front fixing cardboard in
arrow direction to hook it onto the claws. (Fig. 8)
Insert the notch of the paper dust bag into the guide of the
paper dust bag holder. Then install the paper dust bag
holder set on the tool. (Fig. 9 & Fig. 10)
Installing paper filter bag
Make sure that the logo on the cardboard lip and the logo
on the dust box are on the same side, then install the
paper filter bag by fitting the cardbord lip in the groove of
each holding tab. (Fig. 11)
Make sure that the logo on the cardboard lip and the logo
on the dust nozzle are on the same side, then install the
dust nozzle on the dust box. (Fig. 12)
Removing dust box and paper filter bag.
Remove the dust nozzle by pushing the two latches. (Fig.
13)
Remove the paper filter bag first by pinching the logo side
of its cardboard lip, then by pulling the cardboard lip
downwards to move it out of the holding tab of the dust
box. (Fig. 14)
OPERATION
Sanding operation (Fig. 15)
CAUTION:
• Never run the tool without the abrasive paper. You may
seriously damage the pad.
• Never force the tool. Excessive pressure may decrease
the sanding efficiency, damage the abrasive paper and/
or shorten tool life.
Hold the tool firmly. Turn the tool on and wait until it attains
full speed. Then gently place the tool on the workpiece
surface. A finishing sander is generally used to remove
only a small amount of material at a time. Since the quality
of the surface is more important than the amount of stock
removed, do not bear down on the tool. Keep the base
flush with the workpiece at all times.
MAINTENANCE
CAUTION:
• Always be sure that the tool is switched off and
unplugged before attempting to perform inspection or
maintenance.
• Never use gasoline, benzine, thinner, alcohol or the
like. Discoloration, deformation or cracks may result.
To maintain product SAFETY and RELIABILITY, repairs,
carbon brush inspection and replacement, any other
maintenance or adjustment should be performed by
Makita Authorized Service Centers, always using Makita
replacement parts.
OPTIONAL ACCESSORIES
CAUTION:
• These accessories or attachments are recommended
for use with your Makita tool specified in this manual.
The use of any other accessories or attachments might
present a risk of injury to persons. Only use accessory
or attachment for its stated purpose.
If you need any assistance for more details regarding
these accessories, ask your local Makita Service Center.
• Abrasive paper (without pre-punched holes)
• Paper dust bag
• Paper dust bag holder
• Punch plate
•Dustbag
•Dustbox
• Paper filter bag
NOTE:
• Some items in the list may be included in the tool
package as standard accessories. They may differ from
country to country.

8
中文简体
一般外观说明
规格
•由于持续的研发计划，生产者保留变更规格不另行通知之权利。
•规格可能因销往国家之不同而异。
•重量符合 EPTA-Procedure 01/2014
END201-7
符号
以下显示本设备使用的符号。在使用工具之
前请务必理解其含义。
...阅读使用说明书。
.............双重绝缘
...............仅限于欧盟国家
请勿将电气设备与家庭普通废弃
物一同丢弃！请务必遵守欧洲关
于废弃电子电气设备的指令，根
据各国法律法规执行。达到使用
寿命的电气设备必须分类回收至
符合环境保护规定的再循环机
构。
ENE052-1
用途
本工具用于木材、塑料、金属及涂漆表面大
面积的砂磨操作。
ENF002-1
电源
本工具只可连接电压与铭牌所示电压相同的
电源，且仅可使用单相交流电源。本工具根
据欧洲标准达到双重绝缘，因此也可用于不
带接地线的插座。
GEA012-2
电动工具一般安全警告
警告：请通读本电动工具附带的所有安全
警告、说明、插图和规格。若不遵循下列说
明，则可能导致触电、起火和／或严重的人
身伤害。
请保留所有的警告和说明事
项，以备日后参考。
警告中所说的 “电动工具 ”指用电源（接线
式）或电池（充电式）驱动的电动工具。
工作区域安全事项
1. 保持工作区域清洁，照明情况良好。混乱
或黑暗的工作区域容易导致意外情况发
生。
2. 请勿在易爆环境，如有可燃性液体、气体
或粉尘的环境下操作电动工具。电动工具
产生的火花可能会引燃粉尘或气体。
1. 开关
2. 打孔板
3. 砂纸
4. 导板
5. Velcro 砂纸
6. 基座
7. 集尘袋
8. 凹槽
9. 前固定纸板
10. 纸集尘袋的正面
11. 卡爪
12. 上部
13. 槽口
14. 导板
15. 把手
16. 集尘箱
17. 集尘口
18. 锁扣
型号 BO4555 BO4556 BO4558 BO4557
垫片尺寸 112 mm × 102 mm
每分钟回转数（/min）14,000
尺寸（长 × 宽× 高） 131 mm × 112 mm ×
142 mm
131 mm × 112 mm ×
141 mm
131 mm × 112 mm ×
137 mm
净重 1.1 kg 1.2 kg 1.0 kg
安全等级 /II

9
3. 操作电动工具时请让儿童和旁观者远离。
操作时的分心会使您无法正常控制工具。
电气安全事项
1. 电动工具的插头必须与插座相匹配。切勿
以任何方式对插头进行改装。请勿将任何
适配器插头用于接地的电动工具。未经改
装的插头和相匹配的插座可降低触电的危
险。
2. 请避免与接地的表面如管子、散热器、炉
灶以及冰箱等进行身体接触。如果您的身
体接地，将会增加触电的危险。
3. 请勿将电动工具暴露在雨水或潮湿的环境
中。水进入电动工具将增加触电的危险。
4. 请勿滥用导线。切勿用导线拖拽工具或拔
下电动工具的插头。避免使导线受热、沾
染油脂，碰到尖锐的边缘或移动的部件。
破损或缠绕的导线会增加触电的危险。
5. 在室外操作电动工具时，请使用户外专用
的延长线。使用户外专用的导线可降低触
电的危险。
6. 如果必须要在潮湿的场所操作电动工具
时，请使用带剩余电流装置（RCD）保护
功能的电源。使用 RCD 可降低触电的危
险。
7. 始终建议通过额定剩余电流为 30 mA 或以
下的 RCD 来使用电源。
8. 电动工具会产生对用户无害的电磁场
（EMF）。
但是，起搏器和其他类似医疗设备的用户
应在操作本电动工具前咨询其设备的制造
商和／或医生寻求建议。
9. 请勿用湿手触摸电源插头。
10.如果导线破损，则由制造商或其代理商更
换以避免安全隐患。
人身安全注意事项
1. 操作电动工具时请保持警惕，注意您的操
作，并运用常识。
请勿在疲惫或麻醉品、酒精或其他药物作
用影响下操作电动工具。在操作电动工具
期间分心可能会导致严重的人身伤害。
2. 请使用个人劳防用品。请务必佩带安全眼
镜。正确使用防尘面罩、防滑安全鞋、硬
质帽子或耳罩等劳防用品可减少人身伤害
的危险。
3. 防止意外启动。在连接至电源和／或电池
组，拿起或搬运工具之前，请确保开关处
于关闭位置。搬运工具时手指放在开关上
或者在开关打开的情况下给工具通电会导
致意外情况发生。
4. 在启动工具之前请取下所有的调节钥匙或
扳手。如果工具的旋转部件上留有扳手或
调节钥匙，则可能会导致人身伤害。
5. 操作时手不要伸得太长。操作时请双脚站
稳，始终保持平衡。这样可在意外情况下
较好地控制工具。
6. 着装适当。不要穿宽松衣服或佩戴饰品。
让你的头发和衣服远离运动部件。宽松衣
服、佩饰或长发可能会卷入移动的部件。
7. 如果提供了与除尘和集尘设备连接用的装
置，请确保将其正确连接和使用。使用集
尘设备可减少与粉尘有关的意外事件。
8. 不要因为频繁使用工具而产生的熟悉感而
掉以轻心，忽视工具的安全准则。某个粗
心的动作可能在瞬间导致严重的伤害。
9. 务必佩戴护目镜以保护眼睛免受使用电动
工具时造成的伤害。
护目镜必须符合美国 ANSI Z87.1、欧洲
EN 166 或澳大利亚／新西兰 AS/NZS
1336 标准。在澳大利亚／新西兰，法律
要求佩戴面罩保护脸部。
雇主有责任监督工具操作者和其他近工作
区域人员佩戴合适的安全防护设备。
电动工具的使用和保养
1. 不要强力按压电动工具。根据用途使用正
确的电动工具。使用工具时不可超出其设
计额定值，这样才能更好、更安全地完成
作业。
2. 如果工具的开关无法使工具开启和关闭，
则请勿使用该工具。无法通过开关控制的
电动工具非常危险，必须进行维修。
3. 在进行任何调节、更换附件或贮存电动工
具之前，必须从电源上拔掉插头和／或卸
下电池组（如可拆卸）。这种防护性的安
全措施可降低电动工具意外启动的风险。
4. 将闲置的电动工具存放于儿童无法触及之
处，并且不得让任何不熟悉工具或这些说
明事项的人员操作工具。电动工具在未经
训练的用户手中是危险的。

10
5. 维护电动工具及其附件。检查运动部件是
否调整到位或卡住，检查零件破损情况和
影响电动工具运行的其他状况。如有损
坏，应在使用前修理好电动工具。
许多事故是由维护不良的电动工具引发
的。
6. 保持切割工具的锋利和清洁。保养良好，
具有锋利切边的切割工具不易粘连，并且
易于控制。
7. 按照这些说明事项，根据作业条件和作业
特点来使用电动工具、附件和钻头等。将
电动工具用于除了这些设计用途以外的操
作时将导致意外情况发生。
8. 保持把手和抓握表面干燥、清洁，无油污
和润滑脂。湿滑的把手和抓握表面无法在
意外情况下安全处理和控制工具。
9. 使用本工具时，请勿佩戴可能会缠结的布
质工作手套。布质工作手套卷入移动部件
可能会造成人身伤害。
维修服务
1. 请将您的电动工具交由有资格的专业维修
人员处理，仅可使用与原部件相同的更换
部件。这样可确保工具的安全性。
2. 根据说明进行润滑和更换附件。
GEB021-4
砂光机使用安全警告
1. 请使用安全眼镜或护目镜。普通眼镜或太
阳眼镜并非安全眼镜。
2. 请牢握本工具。
3. 运行中的工具不可离手放置。只可在手握
工具的情况下操作工具。
4. 本工具不防水，因此请保持工件表面干
燥。
5. 进行砂磨操作时，请对工作区进行足够的
通风。
6. 某些材料含有有毒化学物质。小心不要吸
入粉尘，并避免皮肤接触。遵循材料供应
商的安全提示。
7. 使用本工具打磨某些产品、油漆和木材
时，使用者会接触到含有有毒物质的粉
尘。请采取正确的呼吸保护措施。
8. 使用前请确认垫片上没有裂缝或破裂。裂
缝或破裂会导致人身伤害。
请保留此说明书。
警告：
请勿为图方便或因对产品足够熟悉（由于重
复使用而获得的经验）而不严格遵循相关产
品安全规则。使用不当或不遵循使用说明书
中的安全规则会导致严重的人身伤害。
功能描述
小心：
•在调节或检查工具功能之前，请务必关闭
工具电源开关并拔下电源插头。
开关操作（图 1）
小心：
•插上工具电源插头之前，请务必确认工具
已关闭。
要启动工具，请按开关的 “I” 侧。要将工具停
止，请按开关的 “O” 侧。
装配
小心：
•对工具进行任何装配操作前，请务必确认
工具已关闭且已拔下电源插头。
安装或拆卸研磨纸
通过抬起夹杆打开研磨纸架，将研磨纸从锁
闭端口中释放出来，然后将研磨纸端插入夹
持部件，与此同时使研磨纸的边缘与基座的
侧面齐平。（事先将研磨纸弯曲可方便安
装）。研磨纸就位后，使夹杆返回原位。
（图 2及图 3）
对基座的另一端重复相同的操作，保持合适
的研磨纸张力。
插入研磨纸之后，确保夹持部件将研磨纸夹
紧牢固。否则研磨纸将松脱并出现滑移，进
而导致砂光操作不均匀。
当使用集尘袋时，请按照以下方式（图 4）使
用打孔板对研磨纸打孔：
1. 将工具颠倒放置。
2. 将打孔板置于研磨纸上方，使打孔板的弯
曲侧与研磨纸边缘齐平。
3. 按压打孔板，在研磨纸上打孔。
小心：
•操作工具前务必取下打孔板。
仅限 BO4555 型号（图 5）
注：
•对此砂光机使用 Makita（牧田）魔术贴搭
扣类型研磨纸。
1. 颠倒放置工具，使垫盘位于顶部。
2. 放置研磨纸使其基座形状贴合。请务必将
研磨纸上的孔与垫盘上的孔对齐（灰尘会
被吸入这些孔内；因此必须注意保持其畅
通）。
3. 将研磨纸牢牢压在垫盘上。
