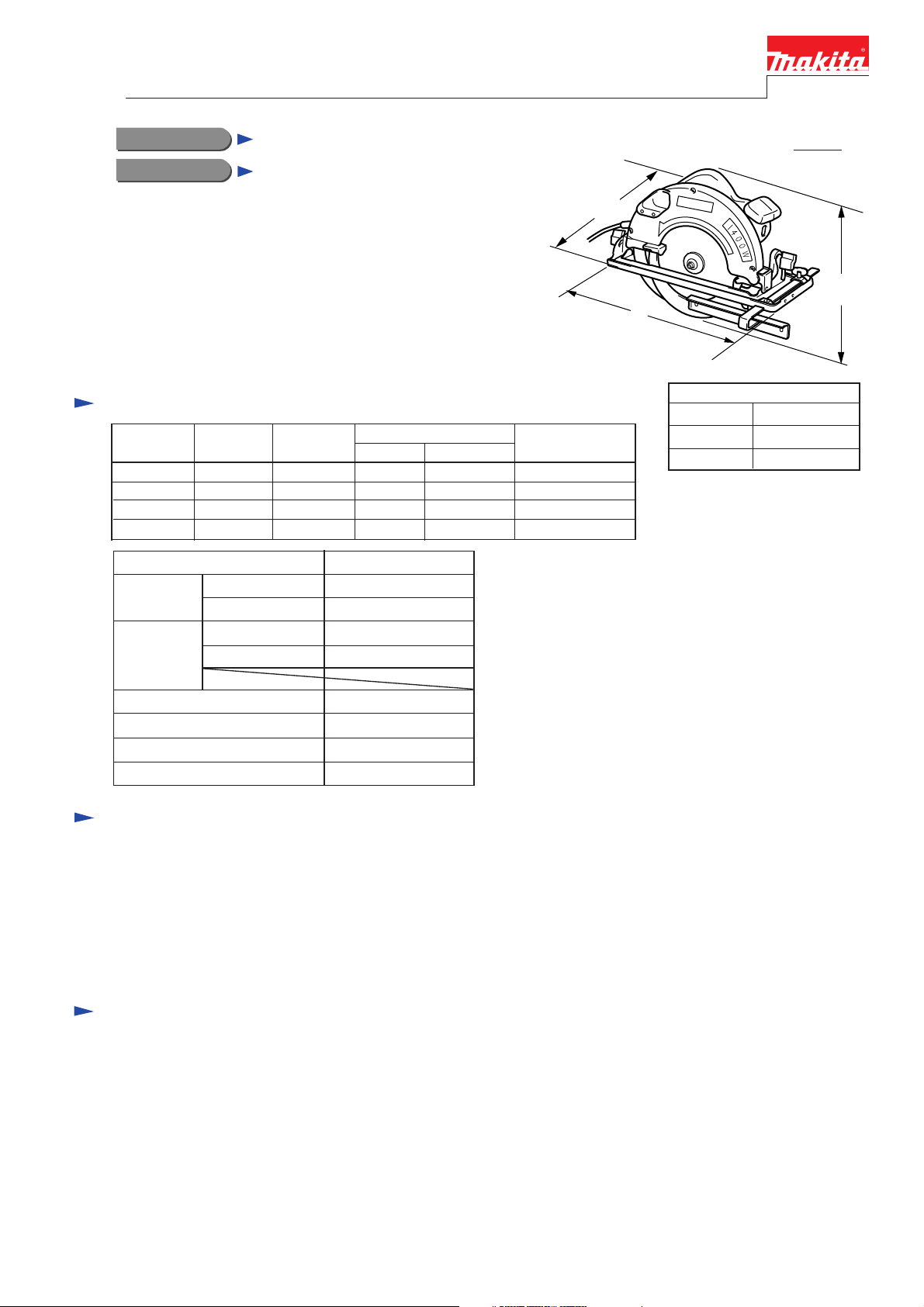

Makita 5705R Manual

Specifications
Standard equipment
CONCEPTION AND MAIN APPLICATIONS
Models No.
Description
PRODUCT
P 1 / 5
Optional accessories
Dimensions : mm ( " )
Width (W)
Height (H)
Length (L)
253mm (10")
356mm (14")
Model 5705R has been developed from Model 5703R as the best-
graded machine for professional's hard use. (mainly for European
countries) ; features anti-burn powerful 1,400W motor and perfect
constructions against grease leakage while having the benefits of
Model 5703R
5705R, 5705RK
Model 5705RK comes with Plastic Carrying Case.
Circular Saw 190mm (7-1/2")
250mm (9-7/8")
* Tipped Saw Blade 190mm-12T.............................................................................. 1 pc.
* Rip fence (Guide rule)............................................................................................ 1 pc.
* Hex wrench............................................................................................................. 1 pc.
* Joint set (for connecting to Makita vacuum cleaners)............................................ 1 set
* Assorted tipped saw blades,
* Inner flange 40 (for blades of arbor diameter 20mm [3/4"] ),
* Joint set (for connecting to Makita vacuum cleaners),
* Guide rail and Guide rail adapter (for accurate cutting of long work pieces)
L
W
H
Continuous Rating (W)
Voltage (V) Current (A) Cycle (Hz) Input Output Max. Output(W)
110 13 50/60 1,400 600 1,750
2,200
2,200
2,200
220 6.7 50/60 1,400 600
230 6.4 50/60 1,400 600
240 6.1 50/60 1,400 600
TECHNICAL INFORMATION
No load speed : rpm.= min.-1
Size of blade
Max.cutting
capacities
: mm (")
Net weight : Kg (lbs.)
Cord length : m (ft)
Diameter : mm (")
Arbor : mm (")
at 90 °
at 45 °
Protection from electric shock
Lock off button
4,800
190 (7-1/2")
30 (1-3/16")
66 (2-5/8")
46 (1-13/16")
by double insulation
5.2 (11.5)
2.5 (8.2)
Yes
< Note > The standard equipment for the tool shown may differ from country to country.

Repair
P 2 / 5
< 1 > Lubrication
Apply 15 g of MAKITA grease K No.1 in gear housing
< 2 > Separating base from the motor section
( 1 ) After pulling base down to the minimum cutting depth, disassemble blade case cover by taking off 3 pcs. of
tapping screws CT 4x20 as illustrated in Fig.1 for easy disassembling in the next process.
First of all, detach the saw blade for safety repair.
Blade case cover
Fig.1
( 2 ) Disassemble tension spring 4, retaining ring S-40 and safety cover as illustrated in Fig. 1A.
( 3 ) Base and the motor section is fixed with pin 10 and cap square neck bolt M8x98 as illustrated in Fig. 2.
Take off ring spring 12 from lever 54, and disassemble lever 54 together with hex nut M8
from cap square neck bolt M8x98 as illustrated in Fig.2A. Then, cap square neck bolt M8x98 can be
separated from the base section. Thus, the motor section has been made free from depth guide.
Tapping screws
CT 4x20 Pull base down to the minimum
cutting depth.
Tension
spring 4 Retaining ring S-40
Safety cover
Fig.1A
Base
Motor
section
Lever 54
Cap square
neck bolt M8x98
Hex nut M8
Pin 10
Fig. 2
Handle L
Handle R
Depth guide
Depth guide
Ring spring 12
Cap square
neck bolt M8x98
Hex nut M8
Handle L
Handle R
Top view of Mod.5705R Pipe 9
Fig.2A
< Note > Take same step, when disassembling and assembling switch section.

Repair
P 3 / 5
( 4 ) Further pull the base down, and pull out riving knife holder together with riving knife along
the flat surface of the bearing box as illustrated in Fig. 3.
And then, separate base from the motor section after taking off pin 10 which is joining base and motor section.
Riving knife
Riving knife holder
Fig. 3
* Link
Pin 10
< Note 1 >
* Link is an integral part of base.
< Note 2 >
Do not forget to join link and riving
knife holder as illustrated in Fig.1A,
when assembling.
< 3 > Disassembling gear section
( 1 ) Take off 2 pcs. of countersunk head screws M5x16. Then the gear section can be separated from blade case.
See Fig. 4. And set the gear section on the turn base of arbor press and press a round bar set on the spindle down
with arbor press as illustrated in Fig. 4A. Then, spindle can be separated from the gear section. See Fig. 4B.
Countersunk head
screws M5x16
Gear section
Fig. 4
Round bar
Max. 11mm
Minimum. 14mm
Spindle
60mm
Bearing box
Press
Fig. 4A
Ball bearing 6002DDW
Bearing box
Spindle
Helical gear 41
Ball bearing 608
Fig. 4B
Turn base of arbor press
Press

Repair
P 4 / 5
( 2 ) Disassembling and assembling bearing box
Bearing box can be disassembled as illustrated in Fig. 5.
< Note > Do not forget to mount flat washer 22, when assembling.
Bearing box
O ring 44
Ball bearing
6002DDW
Flat washer 22
Bearing retainer 19-34
Fig. 5
< 4 > Assembling tension spring 4
Assemble tension spring 4 as illustrated in Fig. 6 and Fig. 6A.
Correct assembling
to blade case
Wrong assembling
to blade case
* Hook portion will be
easily broken.
Correct assembling
to safety cover
Wrong assembling
to safety cover
* The tension spring 4 interfere with
movement of the safety cover.
Fig. 6
Fig. 6A
< 5 >Disassembling and assembling switch section
Take off ring spring 12 from lever 54, and disassemble lever 54 together with hex nut M8
from cap square neck bolt M8x98 as illustrated in Fig.7. And take off 5 pcs. of tapping screws 5x25.
Then, handle L can be separated from handle R in order to disassemble the switch section as illustrated in Fig. 7A.
Depth guide
Ring spring 12
Cap square
neck bolt M8x98
Hex nut M8
Handle L
Handle R
Pipe 9
Lever 54
Fig.7
Switch lever Tapping
screws 5x25
Tapping
screws 5x25
Handle L
Handle R
Lock off button
Compression
spring 4
Switch
Fig. 7A
After assembling lock off button to handle R, mount switch lever. Then, the switch section can be assembled.

Circuit diagram
Wiring diagram
P 5 / 5
45
3
2
1
Noise
suppressor
Switch
Field
Power supply cord
45
13
2
Fix lead wires of power supply cord
with lead holder.
Noise suppressor
