Makita DHS680 Manual

Description
PRODUCT
P 1/ 18
DHS680
165mm (6-1/2") Cordless Circular Saw
TCT saw blade
Hex wrench 5
Rip fence (for some countries only)
Dust nozzle (for European countries only)
Plastic carrying case*4
Battery*4
CONCEPT AND MAIN APPLICATIONS
Standard equipment
Optional accessories
Fast charger DC18RC
Charger DC18SD
Charger DC24SC
Automotive charger DC18SE
Guide rail adapter
Various TCT saw blade
Rip fences
Dust nozzle
Battery
Specification DHS680
Model
Blade size: mm (")
Electric brake
Max cutting capacities:
mm (")
Diameter
Hole diameter
at 45°
No load speed: minˉ¹ = rpm
Cell
Voltage: V
Capacity: Ah
Li-ion
18
1.5, 2.0, 3.0, 4.0, 5.0
Energy capacity: W 27, 36, 54, 72, 90
Weight according to
EPTA-Procedure 01/2003 : kg (lbs)
*3: With TCT saw blade
3.1 (6.8)*2
3.3 (7.3)*1
Yes
Soft start Yes
LED Job light
All countries except North America: 20 (13/16)
North America: 15.88 (5/8)
41 (1-5/8)
at 50° 37 (1-7/16)
at 0° 57 (2-1/4)
5,000
165 (6-1/2)
Max output (W) 680
Specification
Charging time (approx.): min 15, 24, 22, 36, 45
with DC18RC
TECHNICAL INFORMATION
Note: The standard equipment may vary by country or model variation.
Charger*4
Battery cover
*4 Plastic carrying case, Battery and charger are not supplied with “Z” model
L
H
Models No.
*1 With battery BL1830/ BL1840/ BL1850
*2 With battery BL1815N/ BL1820
Dimensions: mm (")
Width (W)
Height (H)
Length (L) 350 (13-3/4)*1
336 (13-1/4)*2
170 (6-11/16)
238 (9-3/8)
Yes
Four port multi charger DC18SF
Two port multi fast charger DC18RD
Battery BL1815N
Battery BL1820
Battery BL1830
Battery BL1840
Battery BL1850
W
Electronic current limiter
for overload protection Yes
*3
OFFICIAL USE
for ASC & Sales Shop
Model DHS680 is a 165mm (6-1/2”) Cordless circular saw powered by
18V Li-ion battery.
Its main features are:
• High-efficiency Brushless motor to provide compact and lightweight
design and high power.
• Lightweight design achieved by using durable but light magnesium die-cast
for base, blade case and safety cover
• Automatic speed control: automatically changes the cutting speed
according to load conditions.
Note: 1.3Ah Li-ion battery of BL1815 cannot be used for this model.

P 2/ 18
Repair
[1] NECESSARY REPAIRING TOOLS
CAUTION: Repair the machine in accordance with “Instruction manual” or “Safety instructions”.
Code No. Description Use for
1R207
1R003 Retaining ring pliers ST-2N
1R032 Bearing setting plate 8.2
1R041 Vise plate
45° Set square
1R208 90° Set square
1R232 Pipe 30
1R269 Bearing extractor
1R282 Round bar for Arbor 8-50
Retaining ring S & R pliers1R291
Wrench for bearing retainer1R316
194385-5 Clamp set
removing/assembling Retaining ring S-34
disassembling Spindle from Helical gear 50
fixing Rotor and Bearing box
adjusting Saw blade angle to 45° bevel
adjusting Saw blade angle to 90° bevel
holding Bearing box when removing Spindle from Helical gear 50
removing Ball bearing
disassembling Spindle from Helical gear 50
removing/assembling Retaining ring S-12
removing/assembling Bearing retainer 19-29
holding Shoulder pin 6-7

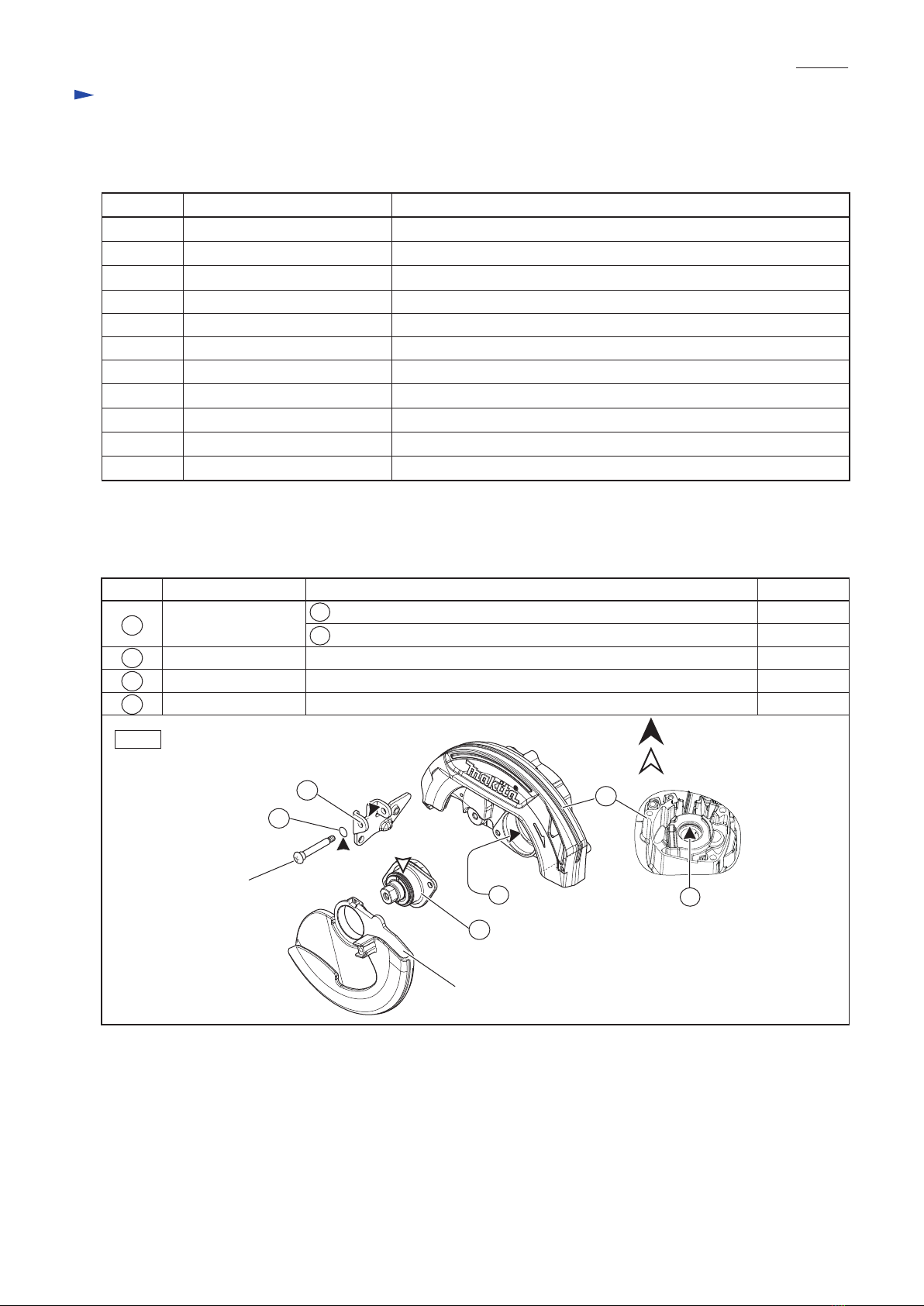

[2] LUBRICATION
Apply Makita grease FA No.2 to the following portions designated with the black triangle, and apply lubricant oil
VG100 to the following portions designated with the white triangle to protect parts and product from unusual abrasion.
Fig. 1
Item No. Description Amount
6g approx.
a little
a little
a little
a little
Gear room where Helical gear 50 engages Armature’s gear
O ring 24
Safety cover
Angular guide
O ring 9
Blade case complete
Baring box Drum portion where Safety cover touches
Surface where pivot portion of Blade case touches
Whole potion
[View from Motor housing side]
Portion to lubricate
24
41
58
60
24
41
a
b
ab
60
M5 +Truss head screw
58
Makita grease FA No.2
Makita lubricating oil VG100

P 3/ 18
Repair

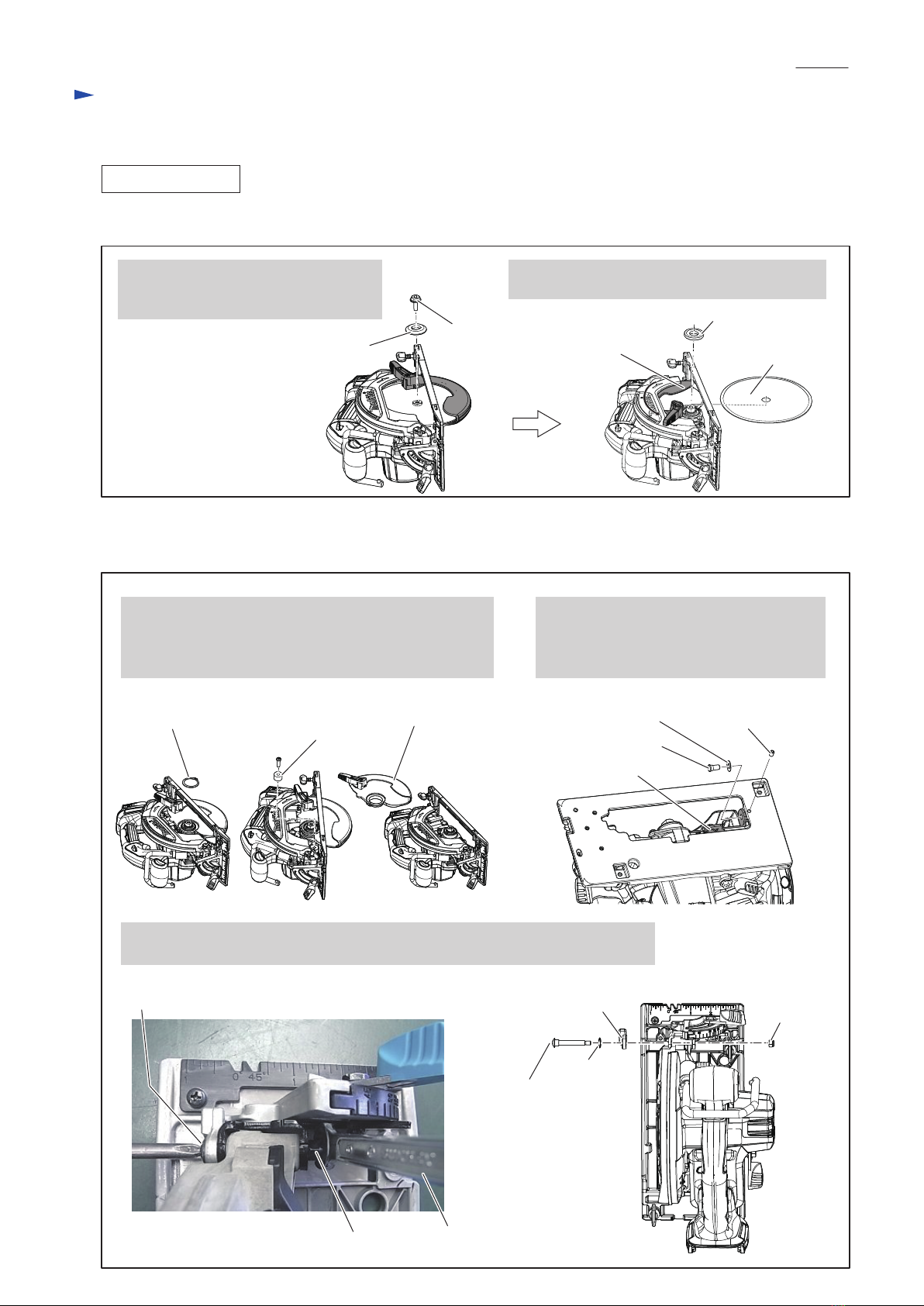

[3] DISASSEMBLY/ASSEMBLY
[3] -1. Base
DISASSEMBLING
(1) Set the cutting depth of the machine to maximum, and remove saw blade as drawn in Fig. 2.
(2) disassemble Base section as drawn in Fig. 3.
1. Locking Spindle with Shaft lock lever,
remove Hex flange head bolt and
Outer flange.
2. Opening Safety cover fully, remove Saw blade.
and Inner flange.
Hex flange
head bolt
Outer flange Safety cover
1. Remove Retaining ring S-34 with 1R003, then remove
Rubber sleeve 6 and M6x20 Pan head screw.
And then, disassemble Safety cover by releasing linkage
of Torsion spring 4 from Safety cover.
2. Remove M5x8 Hex socket head set screw.
Then, remove 6-7 Shoulder pin and Flat
washer 7 from Base to free Depth guide
from Base.
3. Remove M5 +Truss head screw while locking M5x8 Hex lock nut with Wrench 8.
And then, remove Stopper and O ring 9 from Base section.
Inner flange
Saw blade
M5x8 Hex socket
head set screw
Flat washer 7
6-7 Shoulder pin
Depth guide
Wrench 8
Stopper
M5-8 Hex lock nut
M5 +Truss
head screw M5-8 Hex
lock nut
M5 + Truss
head screw
Fig. 2
Fig. 3
Retaining ring S-34 Safety cover
Rubber sleeve 6
O ring 9

P 4/ 18
Repair
[3] DISASSEMBLY/ASSEMBLY
[3] -1. Base (cont.)
DISASSEMBLING
(1) Separate Base section from the machine. (Fig. 4)
(2) Disassemble Angular guide section as drawn in Fig. 5.
(3) Disassemble Base section as drawn in Fig. 6.
3. Remove M5x8 Hex socket
head set screw which functions
as a stopper for 6-7 Shoulder pin.
4. Remove 6-7 Shoulder pin.
1. Remove Stop ring E-8. 2. Remove M6x20 Hex bolt, Lever 45 and Flat washer 6.
5. Remove Angular guide.
Fig. 4
Fig. 5
Fig. 6
Base section
6-7 Shoulder pin
Top guide Bevel guide
Compression
spring 6
M5x20
Thumb screw
M5x8 Hex socket
head set screw
M4x6 Hex socket
head set screw
Note in Disassemble:
Be careful not to lose four M5x8 Hex socket head
set screws used for the following:
* stopping 6-7 Shoulder pin of
Depth guide. (See the top right in Fig. 3.)
* stopping 6-7 Shoulder pin of Angular guide.
(See the bottom left in Fig. 5.)
* (a) adjusting 45° bevel
* (b) adjusting 90° bevel
(a) (b)
M5x8 Pan
head screw
Stop ring E-8
M5x8 Hex socket
head set screw
Angular guide
M6x20 Hex bolt
Lever 45
Flat washer 6

P 5/ 18
Repair

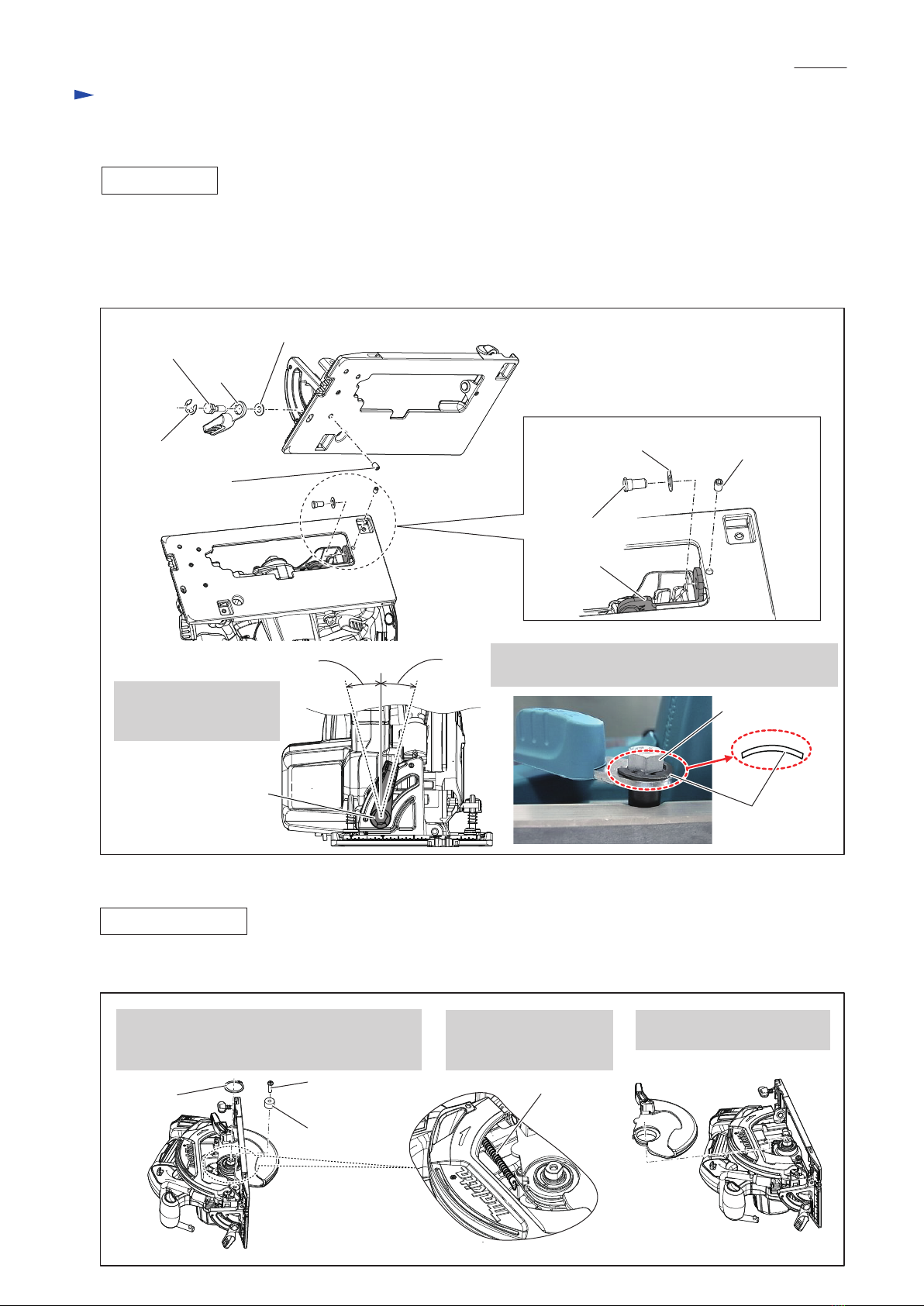

[3] -2. Depth guide
ASSEMBLING
(1) Assemble the removed component parts to the new Base by reversing the disassembly procedure.
(Refer to Figs. 6, 5and 3.)
Note in Assembling:
Do not forget to assemble Flat washers 6 and 7, and assemble Lever 45 to Angular guide section as drawn in Fig. 7.
Fig. 7
Fig. 8
Lever 45
Flat washer 6
M5x8 Hex socket
head set screw
M5x8 Hex socket
head set screw
Flat washer 7
6-7 Shoulder pin
Depth guide
15° 15°
DISASSEMBLING
1.Remove Retaining ring S-34 with 1R003.
Then, remove Rubber sleeve 6 and M6x20
Pan head screw.
2. Release the linkage of
Tension spring 4 from
Safety cover.
3. Remove Safety cover from
the machine.
Tension spring 4
(1) First, disassemble Safety cover for easy disassembling of Depth guide section. (See Fig. 8.)
Rubber sleeve 6
Retaining
ring S-34
M6x20 Pan
head screw
M6x20 Hex bolt
E-8 Bow stop ring
Fix the adjusted Lever 45
with E-8 Bow stop ring
as shown to right.
Lever 45
E-8 Bow stop ring
Be sure to mount E-8 Bow stop ring as shown below
for securely engaging Lever 45 with M6x20 Hex bolt.
M6 x20 Hex bolt
[3] DISASSEMBLY/ASSEMBLY
[3] -1. Base (cont.)

Repair
[3] DISASSEMBLY/ASSEMBLY
[3] -2. Depth guide (cont.)
DISASSEMBLING
(2) Disassemble Depth guide section as drawn in Fig. 9.
E-8 Bow stop ring
E-8 Bow stop ring
Slotted screwdriver
1. Loosen M6 Hex nut
with Lever 45.
Lever 45
Flat washer 6
M6 Hex nut M6 Hex nut
Lever 45
2. Remove Stop ring E-8 with a slotted
screwdriver by turning the driver.
3. Remove M6 Hex nut, Lever 45
and Flat washer 6 from M6x90
Cap square neck bolt.
5. Pull off M6x90 Cap square neck bolt
from Pipe 6 on the machine.
6. Pull off Pipe 6 from the machine.
Note: Be careful not to lose two Flat washers 6
mounted on both sides of Depth guide.
7. Remove Depth guide from the machine.
M6x90 Cap
square neck bolt
M5x8 Hex
socket head
set screw
Flat washer 7
6-7 Shoulder pin
4. Loosen M5x8 Hex socket head set screw
Then, remove Shoulder pin and Flat washer 7
to be free Depth guide from Base.
M6x90
Cap square
neck bolt
Flat washer 6 Pipe 6
Depth guide
Pipe 6
P 6/ 18
Fig. 9

Repair
Depth guide
(1) Assemble Depth guide to Base as drawn in Fig. 10.
1. Sandwitch Depth guide between Flat washers 6,
and set them to Blade case.
3. Assemble Pipe 6 over M6x90
Cap square neck bolt through
Motor housing.
5. Tighten M6 Hex nut to
M6x90 Cap square neck bolt
with Lever 45.
7. After inserting 6-7 Shoulder pin through Flat washer 6,
pass 6-7 Shoulder pin through the holes of Depth guide
and Base. And then, fix 6-7 Shoulder pin with M5x8
Hex socket head set screw.
4. Mount Flat washer 6 on M6x90
Cap square neck bolt
Depth guide
P 7/ 18
Flat washer 6
Flat washer 6
M6x90 Cap square
neck bolt Motor housing
2. Pass M6x90 Cap square neck bolt to Motor housing
through Blade case, two Flat washers 6 and Depth guide.
Flat washer 6
Pipe 6
M6 Hex nut
Lever 45
6-7 Shoulder pin
Flat washer 6
M5x8 Hex socket head set screw
Fig. 10
[3] DISASSEMBLY/ASSEMBLY
[3] -2. Depth guide (cont.)
ASSEMBLING
6. Align the hole of Depth guide to that of
Base so as to pass 6-7 Shoulder pin
through the holes.

Repair
DISASSEMBLING
(2) Adjust the locked position of Lever 45 so that it always leans toward base plate from 0 - 30°
when the machine is adjusted to the required cutting depth. (Fig. 11)
P 8/ 18
Fig. 11
0 -30°
Lever 45
E-8 Bow
stop ring
Be sure to mount E-8 Bow stop ring as shown below
for securely engaging Lever 45 with M6x20 Hex bolt.
M6 Hex nut
1. Remove Stop ring E-8 with a slotted
screwdriver, then separate M6 Hex nut,
Lever 45 and Flat washer 6 from
M6x90 Cap square neck bolt.
2. Remove seven 4x18 Tapping
screws and one M5x40 Pan
head screw to separate
Handle R complete.
3. Remove three M5x40 Pan
head screw. to separate
Motor housing.
E-8 Bow
stop ring
M6 Hex nut
Lever 45
Flat washer 6
[3] -3. Rotor
M5x40
Pan head
screw
4x18 Tapping
screw (7 pcs.)
M5x40 Pan
head screw
(3 pcs.)
(1) Remove Motor housing from Blade case section, and disassemble Rotor as drawn in Fig. 12.
Note: Rotor can be disassembled without removing Safety cover, Pipe 6 and M6x90 Cap square neck bolt.
Fig. 12
4. Remove Baffle plate from Motor housing. 5. Grip Ball bearing 609LLB by hand and pull it out
together with Rotor from Motor housing.
Ball bearing
609LLB
Baffle plate Rotor
[3] DISASSEMBLY/ASSEMBLY
[3] -2. Depth guide (cont.)
ASSEMBLING
Motor
housing

Repair
[3] DISASSEMBLY/ASSEMBLY
[3] -3. Rotor (cont.)
DISASSEMBLING
P 9/ 18
(1A) If Ball bearing 609LLB remains in Blade case, it is difficult to pull off Rotor from Motor housing by hand.
Use a vise as drawn in Fig. 12A.
(2) Ball bearings 609LLB and 626DDW can be removed with 1R269.
Fig. 12A
Ball bearing
609LLB
After removing Baffle plate, clamp the flats of Rotor in vise and pull out Motor housing.
Caution for Handling of Rotor
When handling or storing multiple Rotors, be sure to keep a proper distance between Rotors as shown in Fig. 13R
Because Rotor is a strong magnet, failure to follow this instruction could result in:
Finger injury caused by pinching between Rotors pulling each other
Magnetic loss of Rotors or damage on the magnet portion of Rotor. (Fig. 13F)
Fig. 13R Fig. 13F
* Magnetic loss of Rotors
* Damage on the magnet portion
of Rotor
The Rotors has to be put, keeping so enough
distance, that they are out of their magnetic
forces each other.
flats of Rotor
Motor housing
Rotor
Motor housing

Repair
ASSEMBLING
ASSEMBLING
P 10/ 18
Assemble Rotor by reversing the disassembly procedure.
Note: Be careful not to pinch your fingers between Rotor and Stator complete. (Refer to Fig. 12.)
Fig. 14
Disassemble Safety cover as drawn in Fig. 8.
DISASSEMBLING

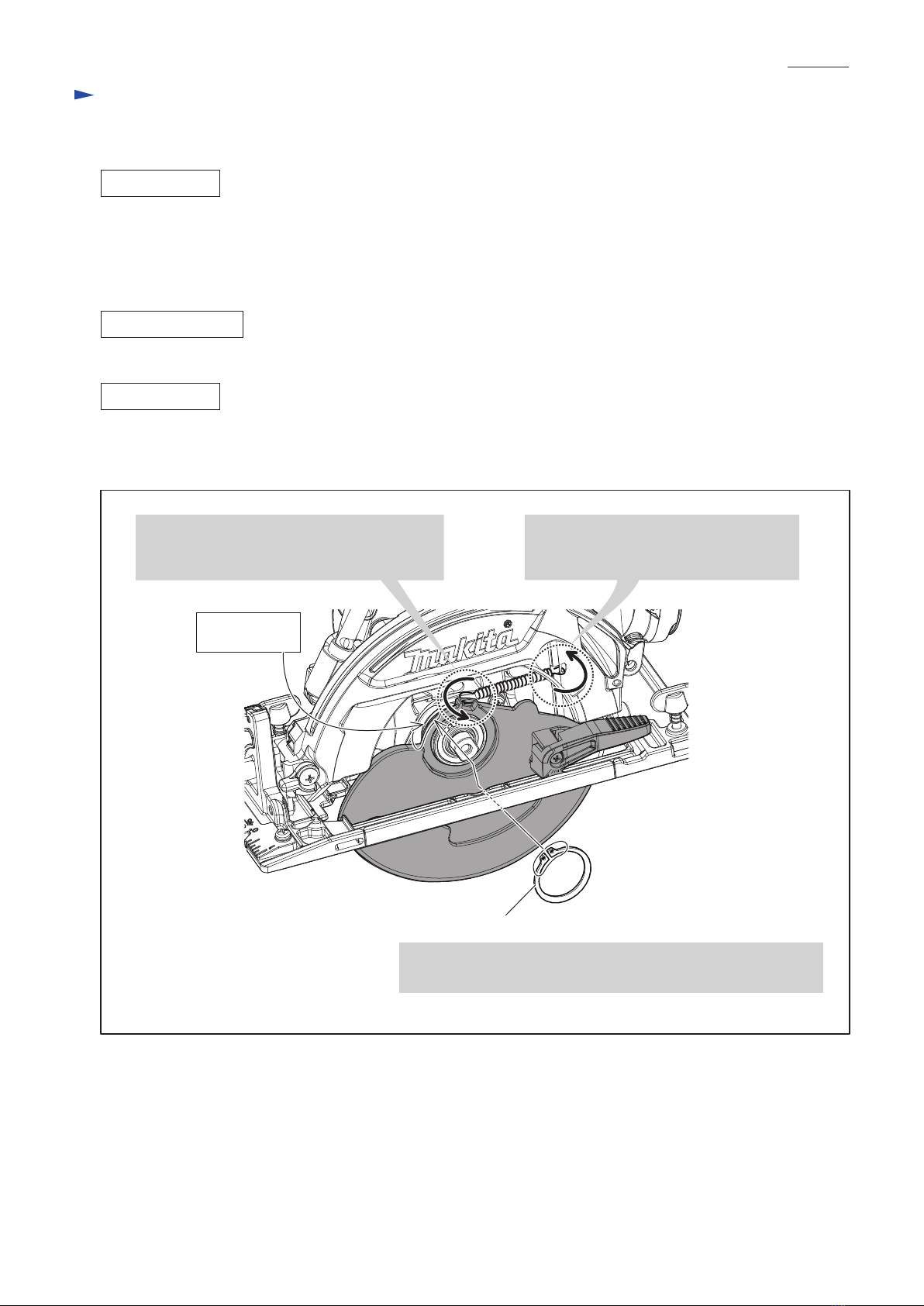

[3] -4. Safety cover
(1) Set Safety cover to the drum portion of Bearing box.
(2) Tension spring 4 has to be connected to Safety cover and Blade case, and assemble Retaining ring S-34. (Fig. 14)
Area of Bow
formed portion
1. Hook one end of Tension spring 4 through
the hole of Safety cover from Motor housing
side to Blade side.
2. Hook the other end of Tension spring 4
through the hole of Blade case from
Blade side to Motor housing side.
Retaining ring S-34
3. Using 1R003, Set Retaining ring S-34 in place with 1R003.
Note: Bring the opening within the area of bow formed portion.
[3] DISASSEMBLY/ASSEMBLY
[3] -3. Rotor (cont.)

Repair
[3] DISASSEMBLY/ASSEMBLY
[3] -5. Gear section
P 11/ 18
Fig. 15
(1) Disassemble Safety cover as drawn in Fig. 8.
(2) Remove Bearing box section from Blade case, then disassemble Gear section as drawn in Fig. 15.
DISASSEMBLING
1. Remove two M5x16 Pan head screws,
then disassemble Bearing box from
Blade case.
2. Remove Ball bearing
606ZZ with 1R269.
3. Remove Retaining ring S-12
with 1R291.
4. Fix Bearing box in Vise as shown below. Then, fit the pins of 1R316 to the notches of Bearing retainer 19-29
and remove the retainer by turning 1R316 counterclockwise.
Ball bearing 606ZZ
Bearing box
Retaining
ring S-12
M5x16 Pan head
screw (2 pcs.)
Bearing retainer 19-29
Bearing
retainer 19-29
1R316
Helical gear 50
5. Put Bearing box onto 1R232. then,
put 1R032 onto Helical gear 50
and give shock with Arbor press.
6. Applying 1R282 onto Spindle, push 1R282 with Arbor press.
Spindle is removed from Helical gear 50, and Sleeve 12 is separated.
Then, remove Ball bearing 6001DDW from Spindle with 1R269.
1R232
Notch
1R032
1R282
Spindle
Sleeve 12
Helical gear 50
Ball bearing
6001DDW
Assemble Gear section by reversing the disassembly procedure. (Refer to Fig. 15.)
ASSEMBLING

Repair
P 12/ 18
Fig. 16
Fig. 17
Adjust and assemble Top guide as drawn in Fig. 16.
1. Adjust 0° notch line of Top guide so that it comes to
0.5 mm line of the base metal of the saw blade.
2. Tighten Top guide with M5x8 Pan head screw
while keeping it in the adjusted position.
0.5 mm
Line of the base metal of
the saw blade
ASSEMBLING
ASSEMBLING
Lock off lever
Lock off lever
Compression spring 4
Note: Compression spring 4 for Lock off lever is the same
as that for Switch lever.
Assemble Lock off lever and Switch lever
to Handle L as shown below.
Switch lever
Switch lever
[3] -7. Lock off lever, Switch lever
M5x8 Pan head screw
the base metal of the saw blade
Tip portion
of Saw blade
0° notch line of Top guide
Handle L
[3] DISASSEMBLY/ASSEMBLY
[3] -6. Top guide
Insert Compression spring 4 over the boss
on the back of Lock off lever until it stops.
Insert Compression spring 4 over the boss
on the back of Switch lever until it stops.

Repair
[3] DISASSEMBLY/ASSEMBLY
[3] -9 Adjustment of Bevel angle of Base to Saw blade
P 13/ 18
Fig. 18
Fig. 19
Caution:
It is necessary to attach saw blade to adjust the angle of Saw blade to Base.
Therefore, DO NOT ATTACH BATTERY to avoid unexpected start of the machine.
(1) Set the cutting depth of the machine to maximum with the bevel angle adjusted to 90°, then attach Saw blade.
(2) Adjust Bevel angle of Base to Saw Blade (90°) as drawn in Fig. 18.
(3) Adjust Bevel angle of Base to Saw Blade (45°) as drawn in Fig. 19.
M4x6
Hex socket
head screw
90°
1R208
1R207
Stopper
Blade case
complete
1. Turn Stopper in a direction designated
with the arrow until it touches Blade case.
Pointer on
Angular guide
45°
1. Open Safety cover fully, then apply 1R208 to
the base metal of the saw blade as drawn below.
Then, adjust for 90° accuracy by turning
M5x8 Hex socket set screw with Hex wrench 2.5.
“ 0° mark ” of
Bevel guide
2. Adjust the position of Bevel guide while aligning
its “ 0° mark ” to the pointer on Angular guide.
And then, tighten Bevel guide with two M4x6
Hex socket head screws.
Hex wrench 2.5
M5x8 Hex socket head set screw
Hex wrench 2.5
2. Open Safety cover fully, then apply 1R207 to
the base metal of the saw blade as drawn below.
Then, adjust for 45° accuracy by turning
M5x8 Hex socket set screw with Hex wrench 2.5.
M5x8
Hex socket
head screw

Repair
P 14/ 18

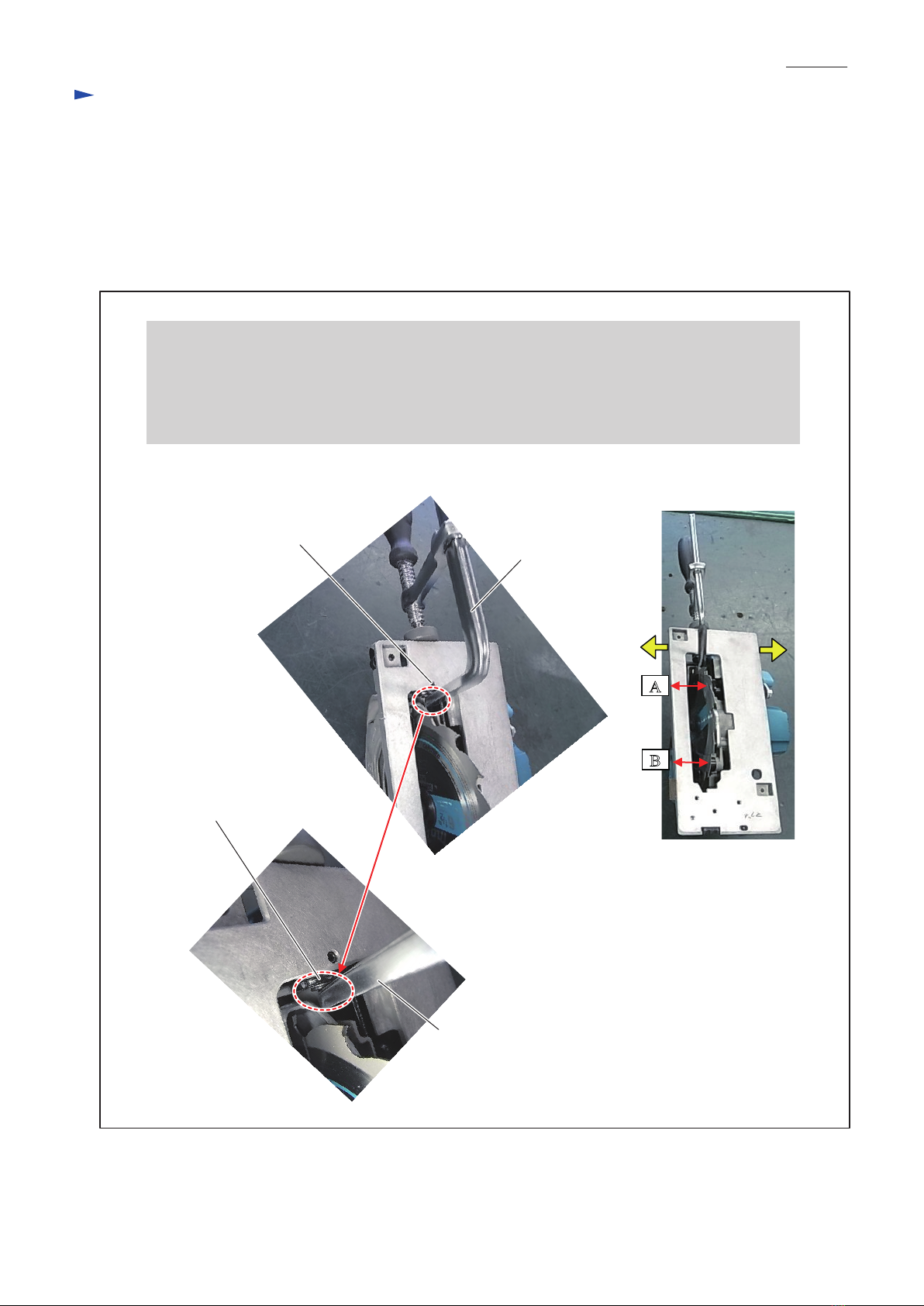

Fig. 20
(1) Remove batteries from the machine.
(2) Set the cutting depth of the machine to maximum, and attach Saw blade.
(3) Adjust parallel position of Base to Saw Blade as drawn in Fig. 20.
Note: Tighten both Lever 45 for bevel setting and Lever 45 for depth setting fully before adjusting.
1. Hold 6-7 Shoulder pin with Clamp set (194385-5) so as not to move.
2. Loosen M5x8 Hex socket set screw a little with Hex wrench 2.5.
3. Open Safety cover fully.
4. Move the depth guide side of Base in the direction of Large arrows until the distance A is equal to B.
Note: Be sure to measure the distance from the edge of the base to the base metal of the saw blade.
5. After the adjustment is finished, tighten M5x8 Hex socket set screw firmly with Hex wrench 2.5.
Clamp set
(for holding 6-7 Shoulder pin)
M5x8 Hex socket
head set screw Clamp set
(194385-5)
Clamp set
(194385-5)
A
B
[3] DISASSEMBLY/ASSEMBLY
[3] -10 Adjustment of Base to Saw Blade

P 15/ 18
Fig. D-1
Fig. D-2
Wiring diagram
Circuit diagram
Color index of lead wires' sheath
Black
WhiteRed
OrangeBlue
Yellow
Stator Terminal
Tape
Tape
Polyolefin
tube
Polyolefin
tube
Connector
Lead wires
(26AWG*)
Green
Flag terminal with lock
(#250, t=0.8mm)
Switch
LED
Switch unit
Micro
switch
Band
Wiring of Motor housing Wiring to Terminal Wiring to Switch
Stator
Route Lead wires of Stator
through this groove of
Motor housing to Handle set.
Motor housing
Wire connecting portions
Connect Plate type Non-Insulated
terminals to Switch as shown below.
Connect Flag terminal so that
the wire connecting portions
face the center of Terminal.
Plate type
Non-Insulated
terminal
Lead wires
(22AWG*)
Lead wires
(14AWG*)
Straight
terminal
with lock
(#187, t=0.8mm)
Lead wires
(14AWG*) Controller

P 16/ 18
Wiring diagram
Connector
Put these Lead wires into any of
these Lead wire holders.
Rib D
Rib E
Rib F
Rib G
Route Lead wires of Connector
between Ribs F and G.
Tighten Lead wires between Connector and the ends
of Ribs D and E.
Put Lead wires of Switch into
any of these Lead wire holders.
Rib B Rib C Rib A Boss A
Boss C
Boss B
Micro switch
Switch
LED light circuit
Route Lead wires of
Micro switch between
Boss B and Boss C.
Fig. D-3
Route Lead wires connected with
Connector into this groove.
Route Lead wires of Connector
between Ribs D and E.
Put Lead wires of
LED light circuit
into this Lead wire
holder.
Route Lead wires of
LED light circuit
into this groove.
Route Lead wires of Stator
between Ribs B and C.
Route Lead wires of Stator
between Boss A and Rib A.

2. After removing the battery from the machine,
pull Switch trigger and hold it at “ON position”
with tape or the like.
P 17/ 18
Repair
Note in Repairing
Whenever you find any trouble in your machine, first, refer to this list to check the machine for solution.
(1) Use the full charged battery that has a star mark. (Fig. T-1)
(2) When Housing is disassembled, check the conditions of the electrical parts
(Connectors, Lead wires, Switches, etc.), Rotor, Stator, Gear section, etc.
(3) Do the running test 10 times in every work mode.
[4] TROUBLE SHOOT
Star mark
Fig. T-1
Fig. T-2
Test for recognizing the trouble on FET (Field effect transistor) in Controller
Trouble on Controller can be checked with Tester as follows.
3. Attach Black tester bar to the plus pole,
Red tester bar to minus pole of Terminal.
And, check the figure in the tester.
Note: Be careful not to attach the bars in reverse.
1. Set Digital tester (1R402) in the diode mode
( mark on the tester).
4. There is no fault on FET of Controller
if the tester indicates within 0.79V - 0.81V.
If it indicates 0V or 0.4V approx.,
Controller is broken. Replace it with a new one.

P 18/18
Repair
[4] TROUBLE SHOOT
Symptom Cause Corrective action

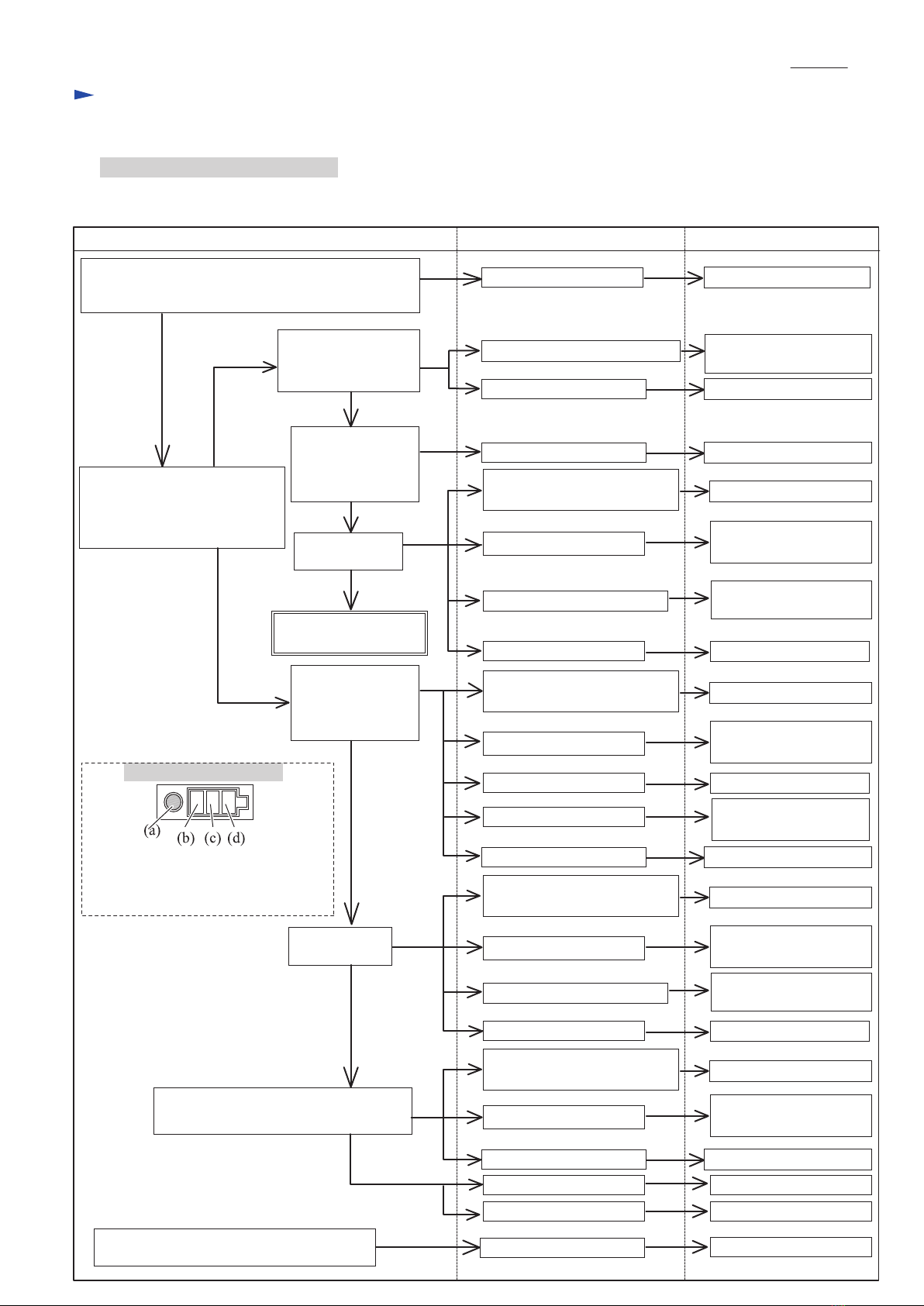

Check List for Trouble Shooting 1
Check the items from top of the following list. (Description of the item is referred to Circuit diagram in Fig. D-1.
After corrective action, return to the start of Trouble shooting and re-check again.
When you test with Digital tester (1R402),
the proper value is obtained. (Refer to the next page.)
In case the tester is not ready, go to “Yes”
Yes
Yes
Lamp (a) is ON.
See “Lamps on the
Handle set”.
Yes
Yes
Yes
No
No
Lamps on the Handle set
LED Job light
is ON.
The machine does not
have any trouble.
LED Job light
is ON.
Unusual behavior occurs during work./
Rotor is rubbed Stator complete.
Motor runs when the machine
is switched on.
Try 10 times. In case of running
inconstantly, go to “No”.
If your problem cannot be solved although
its corrective action has been carried out.
Yes
Yes
Yes
No
No
No
No
No
All of Lamps (b), (c),
(d) are ON.
See “Lamps on the
Handle set”.
No
All of Lamps (b), (c),
(d) are ON.
See “Lamps on the
Handle set”.
Replace Stator complete.
Replace Stator complete.
Controller is broken.
Controller is broken.
Controller is broken.
Controller is broken.
Replace Stator complete.
Replace Stator complete.
Replace Stator complete.
Controller is broken.
Replace Stator complete.
Replace Rotor.
Check the condition of
engagement of Gears, Rotor.
Mechanical problem happens.
Connectors are in incomplete
connection. Connect them firmly.
Connectors are in incomplete
connection. Connect them firmly.
Connectors are in incomplete
connection. Connect them firmly.
Lead wires are broken. Check Lead wires,
or replace it.
Lead wires are broken. Check Lead wires,
or replace it.
Connectors are in incomplete
connection. Connect them firmly.
Lead wires are broken. Check Lead wires,
or replace it.
Replace LED light
circuit.
LED Light circuit is broken
Lead wires are broken. Check Lead wires,
or replace it.
Replace LED light
circuit.
LED Light circuit is broken
Rotor is broken.
Stator is broken.
Switch is broken. Replace Switch.
Switch is broken. Replace Switch.
Replace Stator complete.
Switch is broken. Replace Switch.
Terminals are broken. Check Terminal,
or replace it.
(a): Mode lamp (green)
If Green lamp is ON, the machine is
automatically set to High Torque mode.
(b),(c), (d): Lamp of Power remaining
Controller is broken.
