Makita JR3030T User manual

Recipro Saw
MODEL JR3030
Variable Speed
MODEL JR3030T
Variable Speed
INSTRUCTION MANUAL
[_ DOUgLE
INSULATION
SPECIFICATIONS
Model Length of stroke Strokes per minute __ Overall length
JR3030 I438 mm (17-1/4"1
28 mm (1-3/32") 0 -- 2,600
JR3030T 460 mm (18-118")
*Manufacturer reserves the right to change specifications without notic_
Note: Specifications may differ from country to country.
WARNING: For your personal safety, READ and UNDERSTAND before using.
SAVE THESE INSTRUCTIONS FOR FUTURE REFERENCE.
lNet weight
3.5 kg 17,7 Ibs)

GENERALSAFETY RULES
(For All Tools)
WARNING! Read and understand all instructions. Failure
to follow all instructions listed below, may result in electric
shock, fire and/or serious personal injury.
SAVE THESE INSTRUCTIONS
READ ALL INSTRUCTIONS.
WORK AREA
1. Keep your work area clean and well lit. Cluttered benches and dark areas invite
accidents.
2, Do not operate power tools in explosive atmospheres, such as in the presence
of flammable liquids, gases, or dust. Power tools create sparks which may
ignite the dust or fumes.
3. Keep bystanders, children, and visitors away while operating a power tool.
Distractions can cause you to lose control.
ELECTRICAL SAFETY
4. Double Insulated tools are equipped with a polarized plug (one blade is wider
than the other.) This plug will fit in a polarized outlet only one way. If the
plug does not fit fully in the outlet, reverse the plug. If it still does not fit,
contact a qualified electrician to install a polarized outlet. Do not change
the plug in any way. Double insulation [] eliminates the need for the three
wire grounded power cord and grounded power supply system.
5. Avoid body contact with grounded surfaces such as pipes, radiators, ranges
and refrigerators. There is an increased risk of electric shock if your body is
grounded.
6. Don't expose power tools to rain or wet conditions. Water entering a power
tool will increase the risk of electric shock.
7. Do not abuse the cord. Never use the cord to carry the tools or pull the plug
from an outlet. Keep cord away from heat, oil, sharp edges or moving parts.
Replace damaged cords immediately. Damaged cords increase the risk of
electric shock.
8. When operating a power tool outside, use an outdoor extension cord marked
"W-A'" or "W." These cords are rated for outdoor use and reduce the risk
of electric shock,
PERSONAL SAFETY
9. Stay alert, watch what you are doing and use common sense when operating
a power tool. Do not use tool while tired or under the influence of drugs,
alcohol, or medication. A moment of inattention while operating power tools
may result in serious personal injury.
10. Dress properly. Do not wear loose clothing or jewelry. Contain long hair. Keep
your hair, clothing, and gloves away from moving parts. Loose clothes, jewelry
or long hair can be caught in moving parts.
2

11. Avoid accidental starting. Be sure switch is off before plugging in. Carrying
tools with your finger on the switch or plugging in tools that have the switch
on invites accidents.
12. Remove adjusting keys or switches before turning the tool on. A wrench or
a key that is left attached to a rotating part of the tool may result in personal
injury.
13. Do not overreach. Keep proper footing and balance at all times. Proper footing
and balance enables better control of the tool in unexpected situations.
14. Use safety equipment. Always wear eye protection. Dust mask, non-skid
safety shoes, hard hat, or hearing protection must be used for appropriate
conditions.
TOOL USE AND CARE
15. Use clamps or other practical way to secure and support the workpiece to
a stable platform. Holding the work by hand or against your body is unstable
and may lead to loss of control.
16. Do not force tool. Use the correct tool for your application, The correct tool
will do the job better and safer at the rate for which it is designed.
1"/. Do not use tool if switch does not turn it on or off. Any tool that cannot
be controlled with the switch is dangerous and must be repaired.
18. Disconnect the plug from the power source before making any adjustments,
changing accessories, or storing the tool. Such preventive safety measures
reduce the risk of starting the tool accidentally.
lg. Store idle tools out of reach of children and other untrained persons. Tools
are dangerous in the hands of untrained users.
20. Maintain tools with care. Keep cutting tools sharp and clean. Properly
maintained tools, with sharp cutting edges are less likely to bind and are easier
to control.
21. Check for misalignmsnt or binding of moving parts, breakage of parts, and
any other condition that may affect the tools operation. If damaged, have
the tool serviced before using. Many accidents are caused by poorly main-
tained tools.
22. Use only accessories that are recommended by the manufacturer for your
model. Accessories that may be suitable for one tool, may become hazardous
when used on another tool.
SERVICE
23. Tool service must be performed only by qualified repair personnel. Service
or maintenance performed by unqualified personnel could result in a risk of
injury.
24. When servicing a tool, use only identical replacement parts. Follow instruc-
tions in the Maintenance section of this manual. Use of unauthorized parts
or failure to follow Maintenance Instructions may create a risk of electric shock
or injury.

Specific Safety Rules
1. Hold tool by insulated gdpping surfaces when performing an operation where
the cutting tool may contact hidden wiring or its own cord. Contact with
a"live" wire will also make exposed metal parts of the tool "live" and shock
the operator.
2. Avoid cutting nails. Inspect workplace for any nails and remove them before
operation.
3. Do not cut oversize workpiece.
4. Check for the proper clearance beyond the workpiece before cutting so that
the blade will not strike the floor, workbench, etc.
5, Hold the tool firmly.
6, Make sure the blade is not contacting the workplace before the switch is
turned on.
7. Keep hands away from moving parts.
8. Do not leave the tool running. Operate the tool only when hand-held.
9. Always switch off and wait for the blade to come to a complete stop before
removing the blade from the workpiece,
10. Do not touch the blade or the workpiece immediately after operation; they
may be extremely hot and could burn your skin,
SAVE THESE INSTRUCTIONS.
4

SYMBOLS
The followings show the symbols used for tool.
V
A
Hz
kg
h
rain
S
................................. volts
................................. amperes
................................. herts
................................. kilograms
................................. hours
................................. minutes
................................. seconds
................................. alternating current
.... ................................. direct current
n, ................................. no load speed
................................. alternating or direct current
................................. Class II Construction
L_ ................................. splash-proof construction
_l _ ................................. watertight construction
..Jmin ................................ revolutions or reciprocation per minute
[_ ................................. number of blow

FUNCTIONAL DESCRIPTION
Ad]. ng =11oo
When the blade loses its cutting efficiency
in one place along its cutting edge, reposi-
tion the shoe to unitize a shaqo, unused
portion of its cutting edge. This will help to
lengthen the life of the blade. To reposition
the shoe, loosen the lever and slide the
shoe forward or back to the desired posi-
tion. Then tighten the lever to firmly secure
the shoe.
Loos_tt
Shoe
Switch action
CAUTION:
Beforeplugginginthe tool,alwayscheckto see that theswitch triggeractuatesproperly
and returnsto the "OFF" position when released.
To start the tool, simply pull the trigger.
Tool speed is increased by increasing pres-
sure on the trigger. Release the trigger to
stop. For continuous operation, pull the trig-
ger and then push in the lock button. To
stop the tool from locked position, pull the
trigger fully, then release it.
Lockbutton
Switch trigger
i

ASSEMBLY
Installing or removing the saw blade
CAUTION:
•Always be sure that the tool is switched off and unplugged before installing or removing
the blade.
oAIways clean out all chips or foreign matter adhering to the blade, blade clamp and/or
slider. Failure to do so may cause insufficient tightening of the blade, resulting in a seri-
ous injury.
For JR3030
To install the blade, loosen the screw on
the blade clamp with the hex wrench 4 pro-
vided. Insert the blade between the blade
clamp and the slider so that the pin on the
slider fits into the hole in the blade shank. If
the pin cannot easily fit into the hole,
remove the hex wrench from the screw
and then try again. After the pin fits proper-
ly into the hole, tighten the screw securely
while making sure that the blade cannot be
extracted even though you try to pull it out.
CAUTION:
If you tighten the screw without the pin on
the slider fitting properly in the hole in the
blade shank, the pin or the blade shank wig
be damaged. This may cause the blade to
be ejected unexpectedly during operation.
This can be extremely dangerous.
Blade H_S
To install the blade, loosen the screw on the blade clamp with the hex wrench 4.

ForJR30301"
To installthe blade,pushthe pushbuttoninthe directionofthe arrowandinserttheblade
between the bladeclampandthe slideras faras it willgo.Then releasethe pushbutton
andmake surethatthebladecannotbeextractedeventhoughyou trytopullitout.
CAUTION:
If you releasethe pushbuttonwithout insertingthebladedeep enough,the blademay be
ejected unexpectedlyduringoperation.Thiscanbe extremelydangerous.
To remove the blade, push the push button in the direction of the arrow and pull out the
blade.
Bade Pushbutton
$

OPERATION
Press the shoe firmly against the work-
piece. Do not allow the tool to bounce.
Bringthe bladeinto light contactwith the
workpiece.First,make a pilotgroove,using
a slowerspeed.Thenusea faster speedto
continuecutting.
CAUTION:
•Always use a suitable coolant (cutting oil) when cutting metal. Failure to do so wil{ cause
premature blade wear.
•Always wear gloves to protect your hands from hot flying chips when cutting metal.
•Always press the shoe firmly against the workpiece during operation. If the shoe is held
away from the workpiece during operation, strong vibration and/of twisting will be pro-
duoed, causing the blade to snap dangerously.
•Be sure to always wear suitable eye protection which conforms with current national
standard_

MAINTENANCE
CAUTION:
Always be surethat the toolisswitchedoff andunpluggedbefore attemptingto perform
inspection or maintenance.
Replacing carbon brushes
Remove and check the carbon brushes
regularly. Replace when they wear down to
the limit mark. Keep the carbon brushes
clean and free to slip in the holders. Both
carbon brushes should be replaced at the
same time. Use only identical carbon
brushes.
Urnitmark
Use a screwdriver to remove the brush
holder caps. Take out the worn carbon
brushes,insert the new ones and secure
the brushholdercaps.
Brush holder cap Screwdriver
To maintain product SAFETY and RELIABILITY, repairs, any other maintenance or adjust-
ment should be performed by Makita Authorized or Facto_ Service Centers, always using
Makita replacement parts.
10

ACCESSORIES
CAUTION:
These accessories or attachments are recommended for use with your Makita tool specified in this
manual The useof anyother accessoriesor attachmentsmightpresenta riskof injuryto persons.
These accessories or attachments should be used only in the proper and intended manner,
NOTE: The accessories listed in this manual are available at the extra cost from your Makita distri-
butor or Makita Factory Service Center. Service Centers are listed on the warranty card packed with
your tool.
Qty Teeth O,*wa0 Tooth
Saw Blad_ Pwt # I_r Pkg Per inch Length Specifi.ttom
Wood Cutting Bladls 723018-A_5 5 6 6" High Carbon Steel
Ream Ground
723018-A-2 2S 6" (0.049")
High Carbon Steel
723018-B-5 5 6 12" Fleam Ground
723018-B-1 1 6 12" {0.049")
72301S-C-5 5 6 6" Milled (0.031 ")
•High Alloy Steel
723018-D-5 5 10 6" High Alloy Steel
723018-D-2 210 6" Milled (0.031 ")
723018-E-5
723018-P-5
H_h Carbon Steel
6" Ream Ground
(0.049")
High Atloy Steet
6" M/V Alternate
[0.041 "')
High Speed Steel
Metal Cutting Blades 723019_-5 5 14 4"" Mitled/Raker Set
723019-G-2 2 14 4" (0.031'*)
For rapid cutting of
metal Bnd fiberglass, High Speed Steel
Made of high speed 723019-A-5 S 14 6" Milled/Raker Se_
steel. 723019-A-2 2 14 6" (0.031 "(
723019-B-5 5 18 4" High Speed Steel
Milisd/Raker Set
,•723019-B-2 2 18 4" (0.031 '*)
High S_ed Steel
_J_ % 723019-H-5 a 18 4" Milled/Wavy Set
(0.049")
High Speed Steel
723019_-5 5 18 6" Milled/Re ker Set
723019_-2 2 18 6" (0.031")
723019-K-5 a 24 4- High SOeed Steel
723019-K-2 2 24 4" Milled/Waw Set
(0.031 ")
24
24
36
723019-D-5
723019-D-2
723019J-5
6" High SPeed Steel
6" Milled/Wavy Set
(0,031 ")
High Soeed Steel
4" Milled/Wavy Set
(0.031 ")
Apldi.tion
Cuts hall free wood
rough in work.
Cuts nail free wood
-- rough in work.
Cuts composition
materials - resists
nall damage.
Cuts coml;)Osdion I_
plywood -- resist_
nell damage.
Cuts circles and
contours in nail free
wood, compo|dionl.
Cutsplaster, metal
lath, plasterboard,
For cutting metal
over 1/8" thick,
For cutting metal
over 1/8" thick.
For cutting metal
over 3164" thick.
For scroll cuts in
metal 3/64" thick
and over.
For cutting metal
over 3/64" thick.
For cutting metal
less than 3/64" thick.
For cutting metal
less than 3/64" thick.
For cutting metal
less than 1/32" thick.
Note; All illustrations shown are general representations for blades in that category.
Actual design of blades may vary slightly.
11

ACCESSORIES continued-
Saw Ehdm
Bi-metM Blades
Combination of high
spud stui tleth
welded to a shatter.
proof, flexible backed
blade. Ultra-long life
blade,
Part#
723017-E-5
723017-E-2
723017-F-5
723017-A-5
723017-A-2
723017-G-5
723017-B-5
723017-B-2
723017-H-5
723017-H-2
723017_'_" 5
723017-C-2
723017-K-5
723017J-5
7230174-2
723017-D-5
723017-D-2
Oty Teeth Owlrllll Tooth
PwPkg Perll_h Llmgth : SIHclflcltiOml
10
10
14
t4
14
18
18
10
18
18
24
24
24
24
6-
6,* Bi-metsl Milled (0.050")
B_,metal
12" milled (0,050")
6,,
B,,
d,,
Bi-metal
Milled (0.031 ")
Bi-metjl
Milled {0.03_ ")
6" Bi-rnetal
6" Milled (0.031 ")
4" ai-metal
4" Milled (0.031 ")
6" Bi-matal
6" Milled (0.031 ")
ai-mat81
3-1/2" Milled (0.031")
4" Bi-metal
4" Milled (0.031 "|
6" Bi-metal
6" Milled (0.031 ")
AppliCation
Cuts nail embedded
wood -roughing in
work.
Cuts nail embedded
wood -- roughing in
work.
CUts nail embedded
wood _ nonferrous
metals.
Cuts metal 1/8" thick
and over,
Cuts metal 1/8" thick
and over.
Cuts metal 3/64"
thick and over.
Cuts metal 3/64"
thick and o_r,
Scroll cuts in metals
_r 3164" thick, fiber-
glm. compositions.
Cuts metal less than
3/64" thick.
Cuts metal lesslhan
3/64" thick.
3 Piece Variety Pack
Wood and Metal Cutting
includes 1 each: 723018-A
723018-D
723019-C
Thispackisavailableunder
PartNo, 723016-3-A
3 Piece Variety Pack
Ultra Long Life Bi-metal
includes 1 each: 723017-E
723017-B
723017-C
This packisavailableunder
PartNo. 723016-3-B
•PIl_tic "rootc_=m • He]( Wrench 4 (For Model Jl_030)
Part No. 783202-0
Accommodated tool with 6" blade.
12

RECIPRO SAW
Model JR3030
Feb--18 ,99 US
65
68_ 70
Note: The switch and other part configurations
may differ from country to country.
13

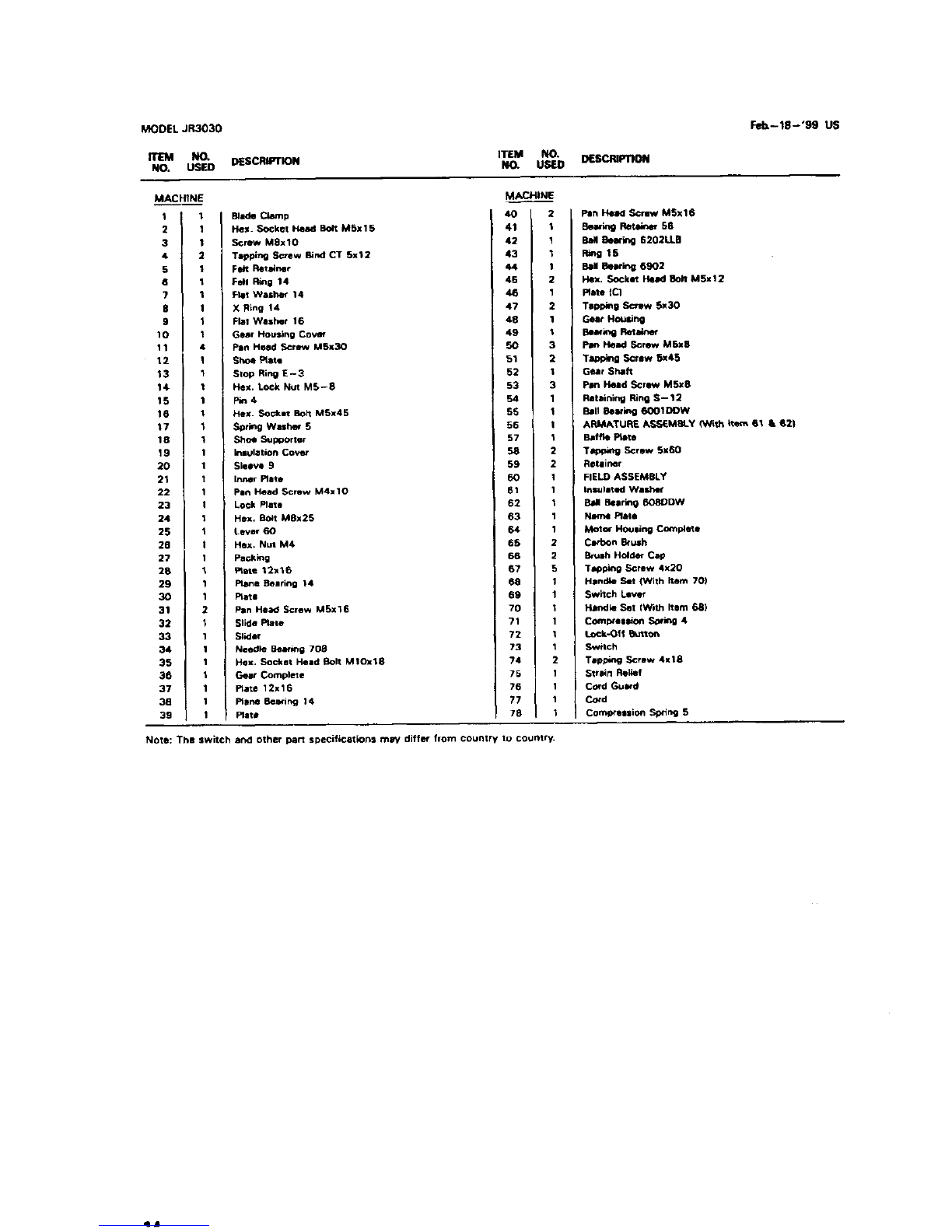

MODEL JR3030
ITEM NO_
NO. USED DESCRIPTION ITEM NO. DESCRIPTION
N_ USED
Feb.-18-'99 US
MACHINE
1
2
3
5
6
?
8
9
10
11
12
13
14
lS
16
17
18
19
2O
21
22
23
14
25
28
27
28 4, ,
29
31
32
33
35
36
37
38
39
made C4amp
Hex. Socket Head BO_ M5x15
Screw MSxl0
Twppin9 Scxew Bind CT 5xl2
Felt Retorter
Fell Ring 14
Fta_ Wuhe_ 14
X R_ng 14
Flal Wesher 16
Gear Housing Cover
Pan Head Screw MSx30
Shoe F_Btt
Stop Rirtg E- 3
Flex. Lock Nut MS-8
Pm4
He_. Sock_ Bore MSx45
S_ing Washer S
Shoe Sups)or tes
Irmuletlofl Cov_r
Sleeve 9
Inner Pl8te
Pan Head Scrww M4xlO
Lock Plate
Hex. Bo_t MSx25
Lever 60
Hex, Nut M4
Packing
P_a_ 12_16
Piene Bearing t4
Plate
Pan He_ Screw MSx16
Slide Plate
Slider
Needle Bering 708
Hex. Socket Head Bolt MtOx_8
Gee;' Complete
Prate 12x16
Plane 8ee¢ing 14
Plef:e
MACHINE
2
I
I
I
!
2
I
2
I
_0
52
_3
_4
S6
_6
57
58
59
_0
52
83
54
65
56
67
68
69
70
71
72
73
74
75
76
77
78
•n Head Screw MSx16
Bear;n9 Botain_ 56
BaNBear_O 6202LLB
RmglS
BallBearing 6902
Hex. Socket _ Bolt MSx12
Plate ICI
Tapping Screw 5x30
Gear Hot_n 0
Be_k_g RetBiner
p_ HUrl Screw MSx8
T_IOG Screw 5x4S
Gear Shah
Pan Head Screw MSx8
RItRioing Rin0 S- 12
Bsll8e_ing 60OIDOW
ARMATURE ASS_M_L.Y (W_th It_ (_I &621
Emff1_Pixie
T_ng Screw SX60
Ro_ine_
FIELD ASS£MBLY
Insumted Washer
B_ar_n0 608Dew
Nm Pl_e
Motor Houling Complete
C_t)on B_ush
Brush Holder Cap
"r_g Screw 4x20
Hend_eSet (Wi'_hItem 70)
Switch Lover
H_mdleSet _V_h Itlm 68)
Compression S_mg 4
t_c_.k-O1_Sutton
Swath
T_qop*ngScrew 4x18
Siren Relief
CO_I Gu_d
Cord
compression Spnns 5
Note: The switch and other par_ specifications m_Y differ from country to country.

MAKITA LIMrI ) ONE YEARWARRANTY
Warranty Policy
Ev©ry Makilatoolb thoroughly"ms_sctedand t_tedbeforele_ thefactow.Iti_w_mt ed to
be fxceofdefectsfTom workmlp L_dmaterialsforthepe,r_odofONE YEAR fromthedateof
o_Inal _Me. _ould an},trouble,d_elop dad_ th=_m_-y_ pe_od,_tusn.t_eO_MPLETE
cool fn_t pn_p.id, to one of Mskita sFL-_P/or Autho"_. Se_e _tcrL Ifmsp_tion shpws
the trouble b csmed by dcfcc_e wodmumship or matcr_l, Makiu win _*_it (or at our optton,
repine) without cktrl_.
This Warranty do_ not apply whez_:
• zq_sJxshave bee_ made orattempted by others:
• r_,pairszrz requim_dbocsus_ of _ormad wezr and tcax:
• The tool hasbeen zbused, misusedor improperly maintained;
•attexatiomhave beenmadeto th© tool.
IN NO EVENT SHALL MAKITA BE LIABLE FOR ANY INDIRECT, INCIDENTAL OR CON-
SEQUENTIAL DAMAGES FROM THE SALE OR USE OF THE PRODUCT. THIS DISCLAIMER
APPLIES BOTH DURING AND AFTER THE TERM OF THIS WARRANTY.
MAKITA DISCLAIMS LIABILITY FOR ANY IMPLIED WARRANTIES. INCLUDING IMPLIED
WARRANTIES OF "MERCHANTABILITY" AND "FITNESS FOR A SPECIFIC PURPOSE."
AFTER THE ONE-Y EAR TERM OF THIS WARRANTY.
This Warnmty IiVn you sped_ l©pl r_ts. and you may also have other rights whlclt vary from
state m state. Some stat_ do not allow the exclation or ]_mi_tion of incidental or conscque.ntial
dm'aaBes, so the above limitation or exchudon may not apply to you. Som_ stste_ do not allow
limitation on how |ong an imp;i_d warnmty _so the above lL-altatio, may not apply _you.
Makita Corporationof America
2650 BufordHwy.,Btdord,GA 30518
884230- 061 PRINTED IN USA
