INSTRUCTION MANUAL
MANUEL D'INSTRUCTION
MANUAL DE INSTRUCCIONES
Slide Compound Miter Saw
Scie à Onglet Radiale
Sierra de Inglete Telescópica
LS1017
LS1017L
IMPORTANT: Read Before Using.
IMPORTANT : Lire avant usage.
IMPORTANTE: Lea antes de usar.
DOUBLE INSULATION
DOUBLE ISOLATION
DOBLE AISLAMIENTO

2ENGLISH
ENGLISH (Original instructions)
SPECIFICATIONS
Model LS1017 / LS1017L
Blade diameter 255 mm (10")
Hole diameter 15.88 mm (5/8")
Max. kerf thickness of the saw blade 3.2 mm (1/8")
Max. miter angle Right 60° Left 47°
Max. bevel angle Right 5° Left 45°
No load speed (RPM) 4,200/min
Laser Type (LS1017L only) Wavelength 650 nm, Maximum output < 1mW (Laser Class II)
Dimensions (L x W x H) 825 mm x 536 mm x 581 mm (32-1/2" x 21-1/8" x 22-7/8")
Net weight 21.0 kg (46.2 lbs)
• Duetoourcontinuingprogramofresearchanddevelopment,thespecicationshereinaresubjecttochange
without notice.
• Specicationsmaydifferfromcountrytocountry.
• Weight according to EPTA-Procedure 01/2014
Max. Cutting capacities (H x W)
Miter angle Bevel angle
45° (left) 0°
0° 50 mm x 305 mm (2" x 12") 91 mm x 305 mm (3-5/8" x 12")
45° 50 mm x 215 mm (2" x 8-1/2")
91 mm x 215 mm (3-5/8" x 8-1/2")
60° (right) - 91 mm x 150 mm (3-5/8" x 5-7/8")
SAFETY WARNINGS
General power tool safety warnings
WARNING: Read all safety warnings, instruc-
tions, illustrations and specications provided
with this power tool. Failure to follow all instructions
listedbelowmayresultinelectricshock,reand/or
seriousinjury.
Save all warnings and instruc-
tions for future reference.
The term "power tool" in the warnings refers to your
mains-operated (corded) power tool or BATTERY-
operated (cordless) power tool.
Work area safety
1. Keep work area clean and well lit. Cluttered or
dark areas invite accidents.
2. Do not operate power tools in explosive atmo-
spheres, such as in the presence of ammable
liquids, gases or dust. Power tools create sparks
which may ignite the dust or fumes.
3. Keep children and bystanders away while
operating a power tool. Distractions can cause
you to lose control.
Electrical Safety
1. Power tool plugs must match the outlet. Never
modify the plug in any way. Do not use any
adapter plugs with earthed (grounded) power
tools.Unmodiedplugsandmatchingoutletswill
reduce risk of electric shock.
2. Avoid body contact with earthed or grounded
surfaces, such as pipes, radiators, ranges and
refrigerators. There is an increased risk of elec-
tric shock if your body is earthed or grounded.
3. Do not expose power tools to rain or wet con-
ditions. Water entering a power tool will increase
the risk of electric shock.
4. Do not abuse the cord. Never use the cord for
carrying, pulling or unplugging the power tool.
Keep cord away from heat, oil, sharp edges
or moving parts. Damaged or entangled cords
increase the risk of electric shock.
5.
When operating a power tool outdoors, use an
extension cord suitable for outdoor use. Use of a cord
suitable for outdoor use reduces the risk of electric shock.
6. If operating a power tool in a damp location is
unavoidable, use a Residual Current Device
(RCD) protected supply. Use of an RCD reduces
the risk of electric shock.
7.
Power tools can produce electromagnetic elds
(EMF) that are not harmful to the user. However,
users of pacemakers and other similar medical
devices should contact the maker of their device and/
or doctor for advice before operating this power tool.

3ENGLISH
8. Do not touch the power plug with wet hands.
9. If the cord is damaged, have it replaced by the
manufacturer or his agent in order to avoid a
safety hazard.
Personal Safety
1. Stay alert, watch what you are doing and use
common sense when operating a power tool.
Do not use a power tool while you are tired or
under the inuence of drugs, alcohol or med-
ication. A moment of inattention while operating
powertoolsmayresultinseriouspersonalinjury.
2. Use personal protective equipment. Always
wear eye protection. Protective equipment such
as dust mask, non-skid safety shoes, hard hat, or
hearing protection used for appropriate conditions
willreducepersonalinjuries.
3. Prevent unintentional starting. Ensure the
switch is in the off-position before connecting
to power source and/or BATTERY pack, pick-
ing up or carrying the tool. Carrying power tools
withyourngerontheswitchorenergisingpower
tools that have the switch on invites accidents.
4. Remove any adjusting key or wrench before
turning the power tool on. A wrench or a key left
attached to a rotating part of the power tool may
resultinpersonalinjury.
5. Do not overreach. Keep proper footing and
balance at all times. This enables better control
of the power tool in unexpected situations.
6. Dress properly. Do not wear loose clothing or
jewellery. Keep your hair, clothing and gloves
away from moving parts.Looseclothes,jewel-
lery or long hair can be caught in moving parts.
7. If devices are provided for the connection of
dust extraction and collection facilities, ensure
these are connected and properly used. Use of
dust collection can reduce dust-related hazards.
8.
Do not let familiarity gained from frequent use
of tools allow you to become complacent and
ignore tool safety principles. A careless action can
causesevereinjurywithinafractionofasecond.
9. Always wear protective goggles to protect your
eyes from injury when using power tools. The
goggles must comply with ANSI Z87.1 in the USA.
It is an employer's responsibility to enforce the
use of appropriate safety protective equipment
by the tool operators and by other persons in
the immediate working area.
Power tool use and care
1. Do not force the power tool. Use the correct
power tool for your application. The correct
powertoolwilldothejobbetterandsaferatthe
rate for which it was designed.
2. Do not use the power tool if the switch does
not turn it on and off. Any power tool that cannot
be controlled with the switch is dangerous and
must be repaired.
3. Disconnect the plug from the power source
and/or remove the BATTERY pack, if detach-
able, from the power tool before making any
adjustments, changing accessories, or stor-
ing power tools. Such preventive safety mea-
sures reduce the risk of starting the power tool
accidentally.
4. Store idle power tools out of the reach of chil-
dren and do not allow persons unfamiliar with
the power tool or these instructions to operate
the power tool. Power tools are dangerous in the
hands of untrained users.
5. Maintain power tools and accessories. Check
for misalignment or binding of moving parts,
breakage of parts and any other condition that
may affect the power tool’s operation. If dam-
aged, have the power tool repaired before use.
Many accidents are caused by poorly maintained
power tools.
6. Keep cutting tools sharp and clean. Properly
maintained cutting tools with sharp cutting edges
are less likely to bind and are easier to control.
7. Use the power tool, accessories and tool bits
etc. in accordance with these instructions, tak-
ing into account the working conditions and
the work to be performed. Use of the power tool
for operations different from those intended could
result in a hazardous situation.
8. Keep handles and grasping surfaces dry,
clean and free from oil and grease. Slippery
handles and grasping surfaces do not allow for
safe handling and control of the tool in unexpected
situations.
9. When using the tool, do not wear cloth work
gloves which may be entangled. The entangle-
ment of cloth work gloves in the moving parts may
resultinpersonalinjury.
Service
1. Have your power tool serviced by a qualied
repair person using only identical replacement
parts. This will ensure that the safety of the power
tool is maintained.
2. Follow instruction for lubricating and chang-
ing accessories.
To reduce the risk of electric shock, this equipment has
a polarized plug (one blade is wider than the other).
Thisplugwilltinapolarizedoutletonlyoneway.Ifthe
plugdoesnottfullyintheoutlet,reversetheplug.Ifit
stilldoesnott,contactaqualiedelectriciantoinstall
the proper outlet. Do not change the plug in any way.
VOLTAGE WARNING: Before connecting the tool to a
power source (receptacle, outlet, etc.) be sure the volt-
agesuppliedisthesameasthatspeciedonthename-
plate of the tool. A power source with voltage greater
thanthatspeciedforthetoolcanresultinSERIOUS
INJURY to the user- as well as damage to the tool. If in
doubt, DO NOT PLUG IN THE TOOL. Using a power
source with voltage less than the nameplate rating is
harmful to the motor.
USE PROPER EXTENSION CORD. Make sure your
extension cord is in good condition. When using an
extension cord, be sure to use one heavy enough to
carry the current your product will draw. An undersized
cord will cause a drop in line voltage resulting in loss of
power and overheating. Table 1 shows the correct size
to use depending on cord length and nameplate ampere
rating. If in doubt, use the next heavier gage. The
smaller the gage number, the heavier the cord.

4ENGLISH
Table 1: Minimum gage for cord
Ampere Rating Volts Total length of cord in feet
120V 25 ft. 50 ft. 100 ft. 150 ft.
220V - 240V 50 ft. 100 ft. 200 ft. 300 ft.
More Than Not More Than AWG
0 A 6 A –18 16 16 14
6 A 10 A 18 16 14 12
10 A 12 A 16 16 14 12
12 A 16 A 14 12 Not Recommended
Safety instructions for mitre saws
1. Mitre saws are intended to cut wood or wood-
like products, they cannot be used with abra-
sive cut-off wheels for cutting ferrous material
such as bars, rods, studs, etc. Abrasive dust
causes moving parts such as the lower guard to
jam.Sparksfromabrasivecuttingwillburnthe
lower guard, the kerf insert and other plastic parts.
2. Use clamps to support the workpiece when-
ever possible. If supporting the workpiece
by hand, you must always keep your hand at
least 100 mm from either side of the saw blade.
Do not use this saw to cut pieces that are too
small to be securely clamped or held by hand.
If your hand is placed too close to the saw blade,
thereisanincreasedriskofinjuryfromblade
contact.
3. The workpiece must be stationary and
clamped or held against both the fence and the
table. Do not feed the workpiece into the blade
or cut "freehand" in any way. Unrestrained
or moving workpieces could be thrown at high
speeds,causinginjury.
4. Push the saw through the workpiece. Do not
pull the saw through the workpiece. To make
a cut, raise the saw head and pull it out over
the workpiece without cutting, start the motor,
press the saw head down and push the saw
through the workpiece. Cutting on the pull stroke
is likely to cause the saw blade to climb on top
of the workpiece and violently throw the blade
assembly towards the operator.
5.
Never cross your hand over the intended line of
cutting either in front or behind the saw blade.
Supporting the workpiece "cross handed" i.e.
holding the workpiece to the right of the saw blade
with your left hand or vice versa is very dangerous.
6. Do not reach behind the fence with either hand
closer than 100 mm from either side of the saw
blade, to remove wood scraps, or for any other
reason while the blade is spinning. The proxim-
ity of the spinning saw blade to your hand may not
beobviousandyoumaybeseriouslyinjured.
7. Inspect your workpiece before cutting. If the
workpiece is bowed or warped, clamp it with
the outside bowed face toward the fence.
Always make certain that there is no gap
between the workpiece, fence and table along
the line of the cut. Bent or warped workpieces
can twist or shift and may cause binding on the
spinning saw blade while cutting. There should be
nonailsorforeignobjectsintheworkpiece.
8. Do not use the saw until the table is clear of all
tools, wood scraps, etc., except for the work-
piece. Small debris or loose pieces of wood or
otherobjectsthatcontacttherevolvingbladecan
be thrown with high speed.
9.
Cut only one workpiece at a time. Stacked multiple
workpieces cannot be adequately clamped or braced
and may bind on the blade or shift during cutting.
10. Ensure the mitre saw is mounted or placed on
a level, rm work surface before use. A level
andrmworksurfacereducestheriskofthemitre
saw becoming unstable.
11.
Plan your work. Every time you change the bevel
or mitre angle setting, make sure the adjustable
fence is set correctly to support the workpiece
and will not interfere with the blade or the guard-
ing system. Without turning the tool "ON" and with
no workpiece on the table, move the saw blade
through a complete simulated cut to assure there will
be no interference or danger of cutting the fence.
12. Provide adequate support such as table exten-
sions, saw horses, etc. for a workpiece that is
wider or longer than the table top. Workpieces
longer or wider than the mitre saw table can tip
if not securely supported. If the cut-off piece or
workpiece tips, it can lift the lower guard or be
thrown by the spinning blade.
13. Do not use another person as a substitute for
a table extension or as additional support.
Unstable support for the workpiece can cause the
blade to bind or the workpiece to shift during the
cutting operation pulling you and the helper into
the spinning blade.
14. The cut-off piece must not be jammed or
pressed by any means against the spinning
saw blade.Ifconned,i.e.usinglengthstops,the
cut-off piece could get wedged against the blade
and thrown violently.

5ENGLISH
15. Always use a clamp or a xture designed to
properly support round material such as rods
or tubing. Rods have a tendency to roll while
being cut, causing the blade to "bite" and pull the
work with your hand into the blade.
16. Let the blade reach full speed before contact-
ing the workpiece. This will reduce the risk of the
workpiece being thrown.
17. If the workpiece or blade becomes jammed,
turn the mitre saw off. Wait for all moving
parts to stop and disconnect the plug from
the power source and/or remove the battery
pack. Then work to free the jammed material.
Continuedsawingwithajammedworkpiececould
cause loss of control or damage to the mitre saw.
18.
After nishing the cut, release the switch, hold
the saw head down and wait for the blade to stop
before removing the cut-off piece. Reaching with
your hand near the coasting blade is dangerous.
19. Hold the handle rmly when making an incom-
plete cut or when releasing the switch before
the saw head is completely in the down posi-
tion. The braking action of the saw may cause
the saw head to be suddenly pulled downward,
causingariskofinjury.
20. Only use the saw blade with the diameter that
is marked on the tool or specied in the man-
ual. Use of an incorrectly sized blade may affect
the proper guarding of the blade or guard opera-
tionwhichcouldresultinseriouspersonalinjury.
21. Only use the saw blades that are marked with
a speed equal or higher than the speed marked
on the tool.
22. Always select the correct saw blade for the
material to be cut. Do not use the saw blade to
cut materials other than those specied.
23.
The saw can cut wood, aluminum or similar
materials, when using a saw blade appropriate for
the material. Do not use the saw to cut the other
material, including magnesium, steel and iron.
Additional instructions
1. Intended use
The tool is intended for accurate straight and
miter cutting in wood. With appropriate saw
blades, aluminum can also be sawed.
2. Make workshop kid proof with padlocks.
3. Never stand on the tool.Seriousinjurycould
occur if the tool is tipped or if the cutting tool is
unintentionally contacted.
4. Never leave the tool running unattended. Turn
the power off. Do not leave tool until it comes
to a complete stop.
5. Do not operate saw without guards in place.
Check blade guard for proper closing before
each use. Do not operate saw if blade guard
does not move freely and close instantly.
Never clamp or tie the blade guard into the
open position.
6. Keep hands out of path of saw blade. Avoid
contact with any coasting blade. It can still
cause severe injury.
7. To reduce the risk of injury, return carriage
to the full rear position after each crosscut
operation.
8. Always secure all moving portions before
carrying the tool.
9. Stopper pin which locks the cutter head down
is for carrying and storage purposes only and
not for any cutting operations.
10. Check the blade carefully for cracks or dam-
age before operation. Replace cracked or dam-
aged blade immediately. Gum and wood pitch
hardened on blades slows saw and increases
potential for kickback. Keep blade clean by
rst removing it from tool, then cleaning it with
gum and pitch remover, hot water or kerosene.
Never use gasoline to clean blade.
11. While making a slide cut, KICKBACK can
occur. KICKBACK occurs when the blade
binds in the workpiece during a cutting oper-
ation and the saw blade is driven rapidly
towards the operator. Loss of control and seri-
ous personal injury can result. If blade begins
to bind during a cutting operation, do not con-
tinue to cut and release switch immediately.
12. Use only anges specied for this tool.
13. Be careful not to damage the arbor, anges
(especially the installing surface) or bolt.
Damage to these parts could result in blade
breakage.
14. Make sure that the turn base is properly
secured so it will not move during operation.
Use the holes in the base to fasten the saw to a
stable work platform or bench. NEVER use tool
where operator positioning would be awkward.
15. Make sure the shaft lock is released before the
switch is turned on.
16. Be sure that the blade does not contact the
turn base in the lowest position.
17. Hold the handle rmly. Be aware that the saw
moves up or down slightly during start-up and
stopping.
18. Make sure the blade is not contacting the
workpiece before the switch is turned on.
19. Before using the tool on an actual workpiece,
let it run for a while. Watch for vibration or
wobbling that could indicate poor installation
or a poorly balanced blade.
20. Stop operation immediately if you notice any-
thing abnormal.
21. Do not attempt to lock the trigger in the "ON"
position.
22. Always use accessories recommended in this
manual. Use of improper accessories such as
abrasive wheels may cause an injury.
23. Some material contains chemicals which may
be toxic. Take caution to prevent dust inhala-
tion and skin contact. Follow material supplier
safety data.
Additional safety rules for the laser
1.
LASER RADIATION DO NOT STARE INTO BEAM.
2. AVOID EXPOSURE - LASER RADIATION IS
EMITTED FROM APERTURE.
3. USE OF CONTROLS OR ADJUSTMENTS
OR PERFORMANCE OF PROCEDURES
OTHER THAN THOSE SPECIFIED HEREIN
MAY RESULT IN HAZARDOUS RADIATION
EXPOSURE.

6ENGLISH
CAUTION /PRECAUCIÓN
LASER RADIATION DO NOT STARE IN TO BEAM
Maximum Output
<1mW, Wavelength : 650 nm
CLASS LASER PRODUCT
RADIACIÓN LÁSER NO DIRIJA LA
VISTA HACIA EL RAYO LÁSER
COMPLIES WITH 21CFR 1040.10 AND
1040.11
AVOID EXPOSURE – LASER RADIATIONS
IS EMITTED FROM THIS APERTURE
CONFORME A 21CFR 1040.10 ET 1040.11
EVITEZ L'EXPOSITION - UN
RAYONNEMENT LASER EST EMISPAR
CETTE OUVERTURE.

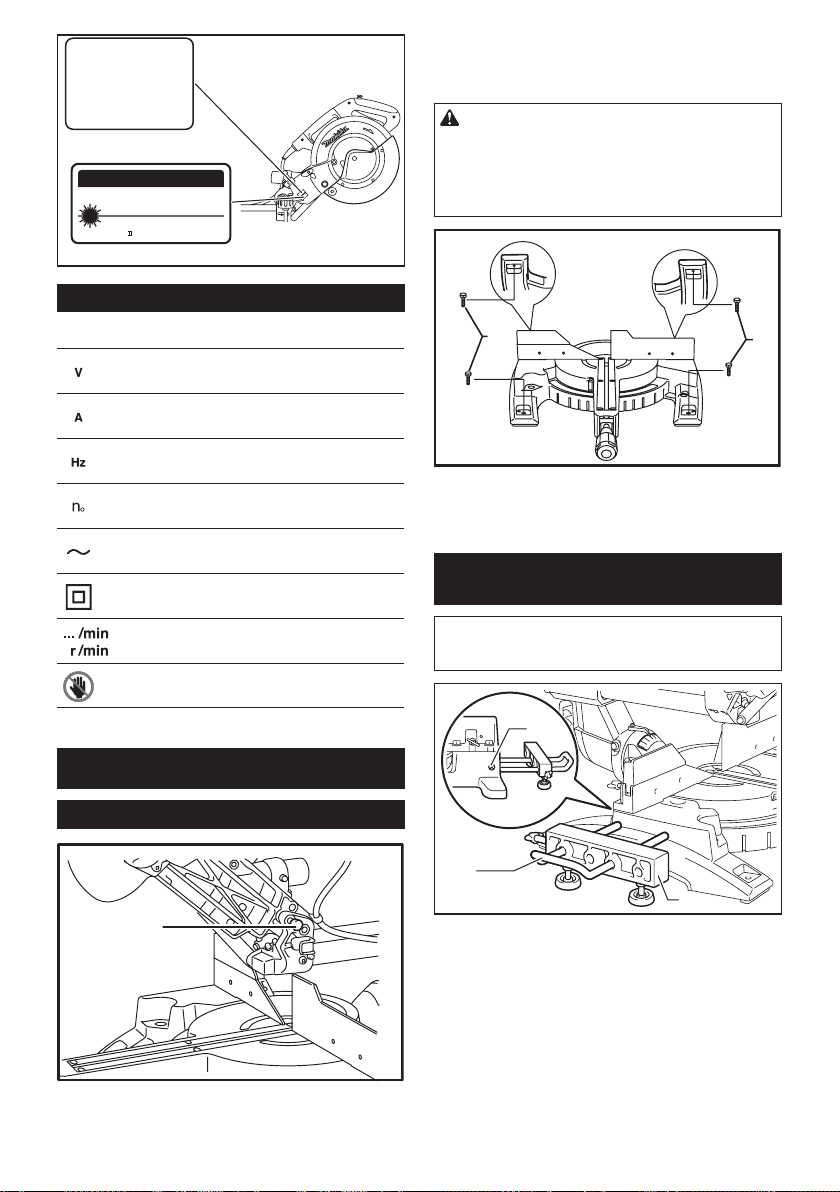

Symbols
The followings show the symbols used for tool.
volts
amperes
hertz
no load speed
alternating current
Class II Construction
revolutions or reciprocation per minute
Donotplacehandorngersclosetothe
blade.
INSTALLATION
Bench mounting
1
►1. Stopper pin
When the tool is shipped, the handle is locked in the
lowered position by the stopper pin. Release the stop-
per pin by simultaneously applying a slight downward
pressure on the handle and pulling the stopper pin.
WARNING:
• Ensure that the tool will not move on the
supporting surface. Movement of the miter
saw on the supporting surface while cutting may
result in loss of control and serious personal
injury.
11
►1. Bolts
This tool should be bolted with four bolts to a level and
stable surface using the bolt holes provided in the tool's
base.Thiswillhelppreventtippingandpossibleinjury.
Installing the holders and holder
assemblies
NOTE: In some countries, the holders and holder
assemblies may not be included in the tool package
as standard accessory.
1
3
2
►1. Holder 2. Holder assembly 3. Screw
The holders and the holder assemblies support work-
pieces horizontally.
Install the holders and the holder assemblies on both
sideasshowninthegure.
Thentightenthescrewsrmlytosecuretheholdersand
the holder assemblies.

7ENGLISH
FUNCTIONAL
DESCRIPTION
WARNING:
• Always be sure that the tool is switched off
and unplugged before adjusting or checking
function on the tool. Failure to switch off and
unplug the tool may result in serious personal
injuryfromaccidentalstart-up.

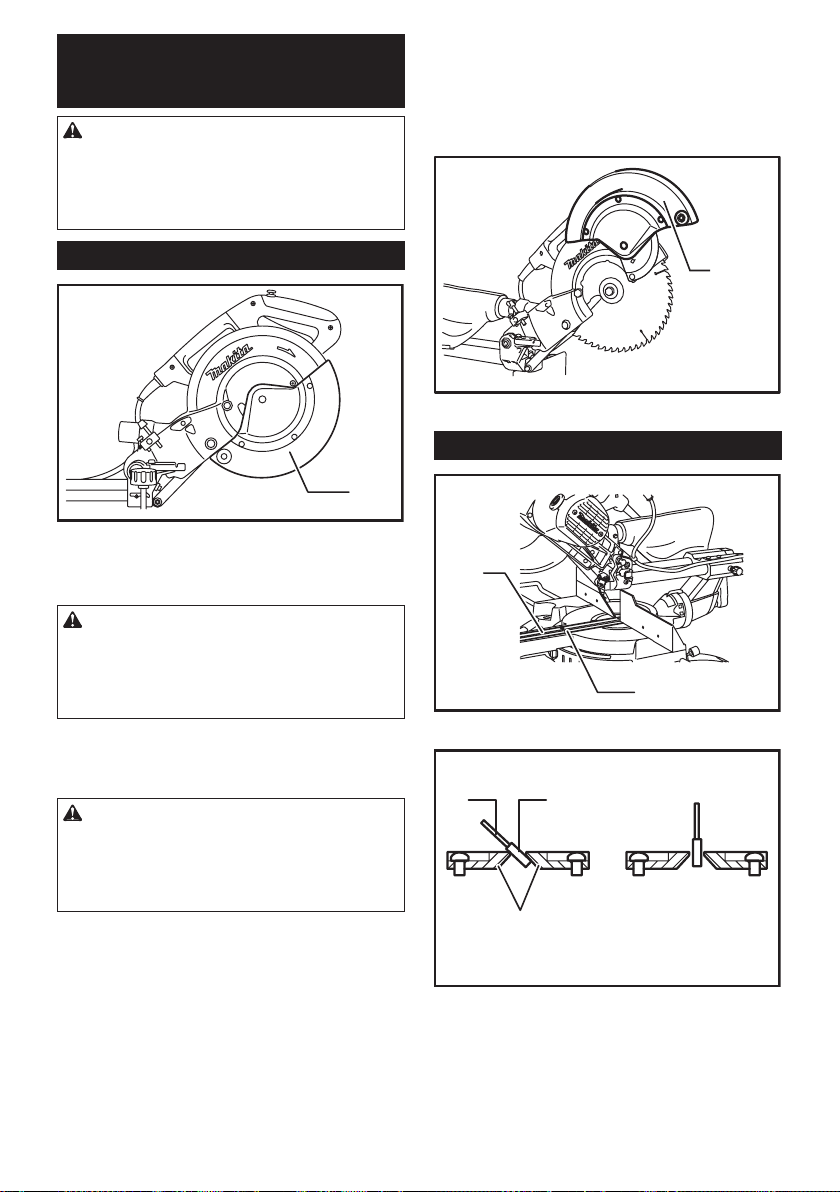

Blade guard
1
►1. Blade guard
When lowering the handle, the blade guard rises auto-
matically. The blade guard returns to its original position
when the cut is completed and the handle is raised.
WARNING:
• Never defeat or remove the blade guard or
the spring which attaches to the guard. An
exposed blade as a result of defeated guarding
mayresultinseriouspersonalinjuryduring
operation.
In the interest of your personal safety, always maintain
the blade guard in good condition. Any irregular opera-
tion of the blade guard should be corrected immediately.
Check to assure spring loaded return action of guard.
WARNING:
• Never use the tool if the blade guard or
spring are damaged, faulty or removed.
Operation of the tool with a damaged, faulty or
removed guard may result in serious personal
injury.
If the see-through blade guard becomes dirty, or saw-
dust adheres to it in such a way that the blade and/or
workpiece is no longer easily visible, unplug the saw
and clean the guard carefully with a damp cloth. Do not
use solvents or any petroleum-based cleaners on the
plastic guard because this may cause damage to the
guard.
If the blade guard becomes dirty and needs to be
cleaned for proper operation follow the steps below:
With the tool switched off and unplugged, use the sup-
plied socket wrench to loosen the hex bolt holding the
center cover. Loosen the hex bolt by turning it counter-
clockwise and raise the blade guard and center cover.
With the blade guard so positioned, cleaning can be
morecompletelyandefcientlyaccomplished.When
cleaning is complete reverse procedure above and
secure bolt. Do not remove spring holding blade guard.
If guard becomes damaged through age or UV light
exposure, contact a Makita service center for a new
guard. DO NOT DEFEAT OR REMOVE GUARD.
1
►1. Blade guard
Positioning kerf board
1
2
►1. Kerf board 2. Screw
12
3
45
►1. Saw blade 2. Blade teeth 3. Kerf board 4. Left
bevel cut 5. Straight cut
This tool is provided with the kerf boards in the turn
base to minimize tearing on the exit side of a cut. The
kerfboardsarefactoryadjustedsothatthesawblade
doesnotcontactthekerfboards.Beforeuse,adjustthe
kerf boards as follows:

8ENGLISH
First, unplug the tool. Loosen all the screws (3 each on
left and right) securing the kerf boards. Re-tighten them
only to the extent that the kerf boards can still be easily
moved by hand. Lower the handle fully and push in the
stopper pin to lock the handle in the lowered position.
Loosen the screw which secures the slide poles. Pull
thecarriagetowardyoufully.Adjustthekerfboards
sothatthekerfboardsjustcontactthesidesofthe
blade teeth. Tighten the front screws (do not tighten
rmly).Pushthecarriagetowardtheguidefencefully
andadjustthekerfboardssothatthekerfboardsjust
contact the sides of blade teeth. Tighten the rear screws
(donottightenrmly).
Afteradjustingthekerfboards,releasethestopper
pin and raise the handle. Then tighten all the screws
securely.
NOTICE:
• After setting the bevel angle ensure that the
kerf boards are adjusted properly. Correct
adjustmentofthekerfboardswillhelpprovide
proper support of the workpiece minimizing work-
piece tear out.

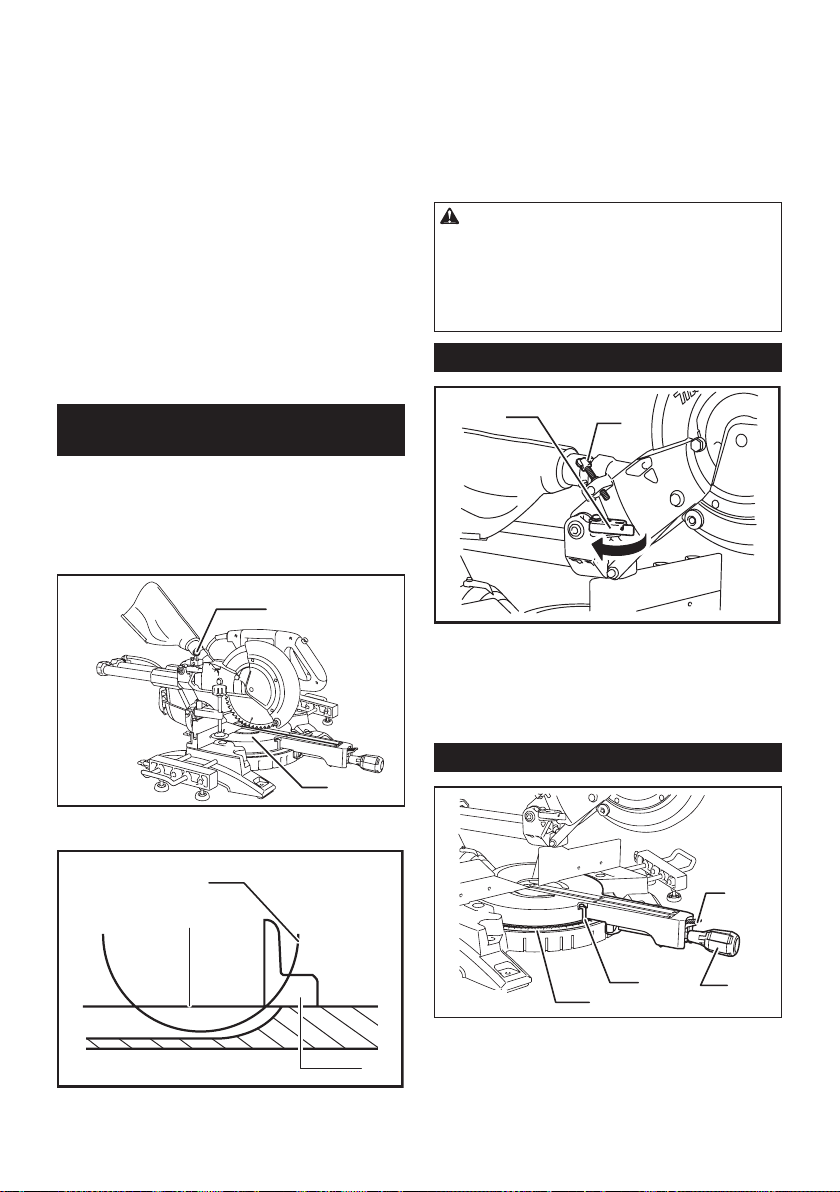

Maintaining maximum cutting
capacity
Thistoolisfactoryadjustedtoprovidethemaximum
cutting capacity for a 255 mm (10") saw blade.
Unplugthetoolbeforeanyadjustmentisattempted.
When installing a new blade, always check the lower
limitpositionofthebladeandifnecessary,adjustitas
follows:
1
2
►1.Adjustingbolt2. Turn base
2
1
3
►1. Top surface of turn base 2. Periphery of blade
3. Guide fence
First, unplug the tool. Push the carriage toward the guide
fence fully and lower the handle completely. Use the
hex.wrenchtoturntheadjustingboltuntiltheperiphery
of the blade extends slightly below the top surface of the
turn base at the point where the front face of the guide
fence meets the top surface of the turn base.
With the tool unplugged, rotate the blade by hand while
holding the handle all the way down to be sure that
the blade does not contact any part of the lower base.
Re-adjustslightly,ifnecessary.
WARNING:
• After installing a new blade and with the tool
unplugged, always be sure that the blade
does not contact any part of the lower base
when the handle is lowered completely. If a
blade makes contact with the base it may cause
kickbackandresultinseriouspersonalinjury.
Stopper arm
12
►1. Stopper arm 2.Adjustingscrew
The lower limit position of the blade can be easily
adjustedwiththestopperarm.Toadjustit,movethe
stopper arm in the direction of the arrow as shown in the
gure.Adjusttheadjustingscrewsothatthebladestops
at the desired position when lowering the handle fully.
Adjusting the miter angle
12
3
4
►1. Miter scale 2. Pointer 3. Lock lever 4. Grip
Loosen the grip by turning counterclockwise. Turn the
turn base while pressing down the lock lever. When you
have moved the grip to the position where the pointer
points to the desired angle on the miter scale, securely
tighten the grip clockwise.

9ENGLISH
CAUTION:
• After changing the miter angle, always secure
theturnbasebytighteningthegriprmly.
NOTICE:
• When turning the turn base, be sure to raise the
handle fully.
Adjusting the bevel angle
1
►1. Lever
Toadjustthebevelangle,loosentheleverattherearof
the tool counterclockwise. Unlock the arm by pushing
the handle somewhat strongly in the direction that you
intend to tilt the saw blade.
NOTE:
• Levercanbeadjustedtoadifferentleverangle
by removing the screw holding the lever and
securing the lever at a desired angle.
1
2
3
4
►1. Lever 2. Arm 3. Pointer 4. Bevel scale
Tilt the saw blade until the pointer points to the desired
angle on the bevel scale. Then tighten the lever clock-
wisermlytosecurethearm.
1
►1. Lever
When tilting the carriage to the right, tilt the carriage
to the left slightly after loosening the lever and press
the releasing button. With the releasing button being
pressed, tilt the carriage to the right.
1
2
3
►1. Pointer 2. Release button 3. Bevel scale
Tilt the saw blade until the pointer points to the desired
angle on the bevel scale. Then tighten the lever clock-
wisermlytosecurethearm.
• When changing bevel angles, be sure to position
the kerf boards appropriately as explained in the
"Positioning kerf boards" section.
CAUTION:
• After changing the bevel angle, always secure
the arm by tightening the lever clockwise.
NOTICE:
• When tilting the saw blade be sure the handle is
fully raised.
• When changing bevel angles, be sure to position
the kerf boards appropriately as explained in the
"Positioning kerf boards" section.

10 ENGLISH

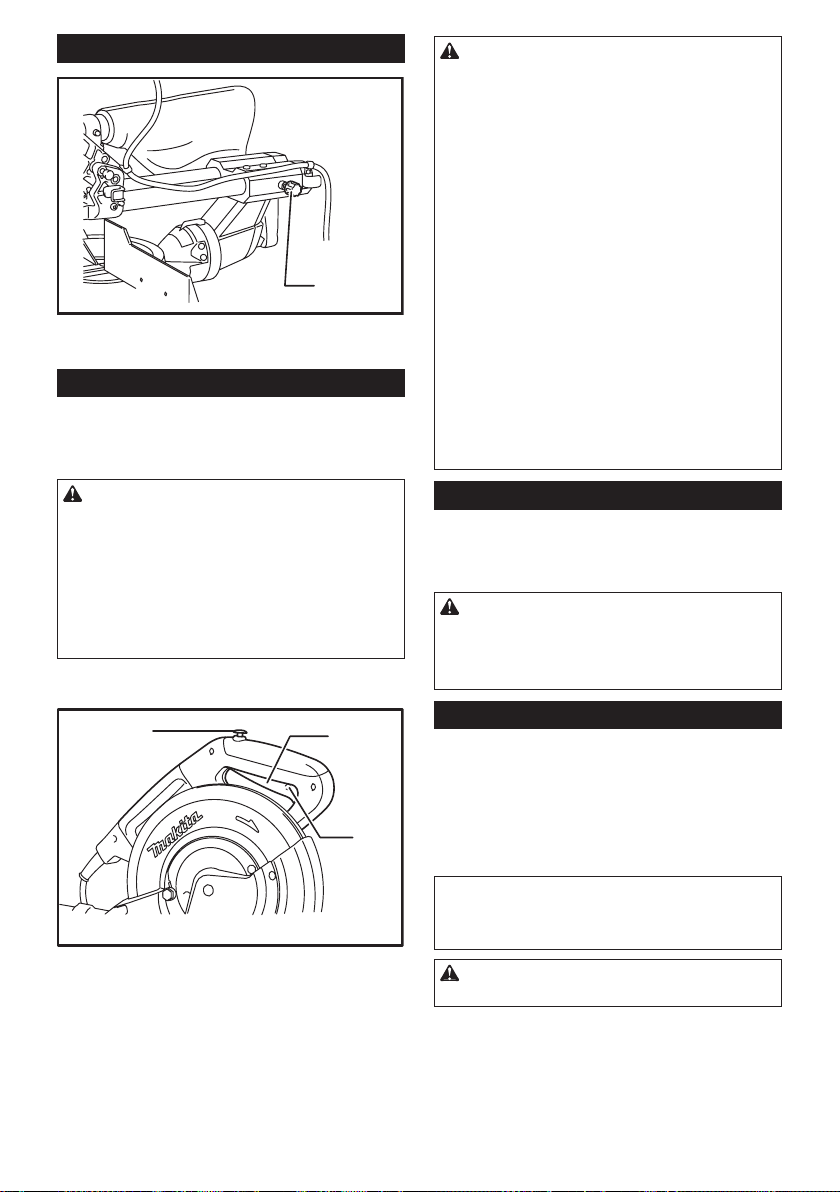

Slide lock adjustment
1
►1. Locking screw
To lock the slide pole, turn the locking screw clockwise.
Switch action
To prevent the switch trigger from being accidentally
pulled, a lock-off button is provided. To start the tool,
press in the lock-off button and pull the switch trigger.
Release the switch trigger to stop.
WARNING:
• Before plugging in the tool, always check to
see that the switch trigger actuates properly
and returns to the "OFF" position when
released. Do not pull the switch trigger hard
without pressing in the lock-off button. This
can cause switch breakage. Operating a tool
with a switch that does not actuate properly
can lead to loss of control and serious personal
injury.
A hole is provided in the switch trigger for insertion of a
padlock to lock the tool off.
12
3
►1. Lock-off button 2. Switch trigger 3. Hole for
padlock
WARNING:
• Do not use a lock with a shank or cable any
smaller than 6.35 mm (1/4") in diameter. A
smaller shank or cable may not properly lock the
tool in the off position and unintentional oper-
ation may occur resulting in serious personal
injury.
• NEVER use tool without a fully operative
switch trigger. Any tool with an inoperative
switch is HIGHLY DANGEROUS and must be
repaired before further usage or serious per-
sonalinjurymayoccur.
• For your safety, this tool is equipped with a lock-
off button which prevents the tool from unin-
tended starting. NEVER use the tool if it runs
when you simply pull the switch trigger without
pressing the lock-off button. A switch in need of
repair may result in unintentional operation and
seriouspersonalinjury.ReturntooltoaMakita
service center for proper repairs BEFORE fur-
ther usage.
• NEVER defeat the lock-off button by taping
down or some other means. A switch with a
defeated lock-off button may result in uninten-
tionaloperationandseriouspersonalinjury.
Electric brake
This tool is equipped with an electric blade brake. If the
tool consistently fails to quickly stop the blade after the
switch trigger is released, have the tool serviced at a
Makita service center.
CAUTION:
• The blade brake system is not a substitute
for the blade guard. Never use tool without a
functioning blade guard. An unguarded blade
mayresultinseriouspersonalinjury.
Electronic function
Soft start feature
This function allows the smooth start-up of the tool by
limiting the start-up torque.
Laser beam action
For model LS1017L only
NOTE:
• Beforetherstuse,installtwoAAdrycellsinthe
cell box. Refer to the section titled "Replacing
the dry cells for laser unit" for the installment.
CAUTION:
• When not in use, be sure to turn off the laser

11 ENGLISH
1
►1. Switch for laser
CAUTION:
• LASER RADIATION
Do not stare into beam.
• Before shifting the laser line or performing main-
tenanceadjustment,besuretounplugthetool.
To turn on the laser beam, press the upper position (I)
of the switch. To turn off the laser beam, press the lower
position (0) of the switch.
Laser line can be shifted to either the left or right side of
the saw blade by loosening the screw holding the laser
unit box and shifting it in the desired direction. After
shifting, be sure to tighten the screw.
1
►1. Screw holding the laser unit box
Laserlineisfactoryadjustedsothatitispositioned
within 1 mm (0.04") from the side surface of the blade
(cutting position).
NOTE:
• When laser line appears dim and hard to see
because of direct sunlight, relocate the work
area to a place where there is less direct
sunlight.

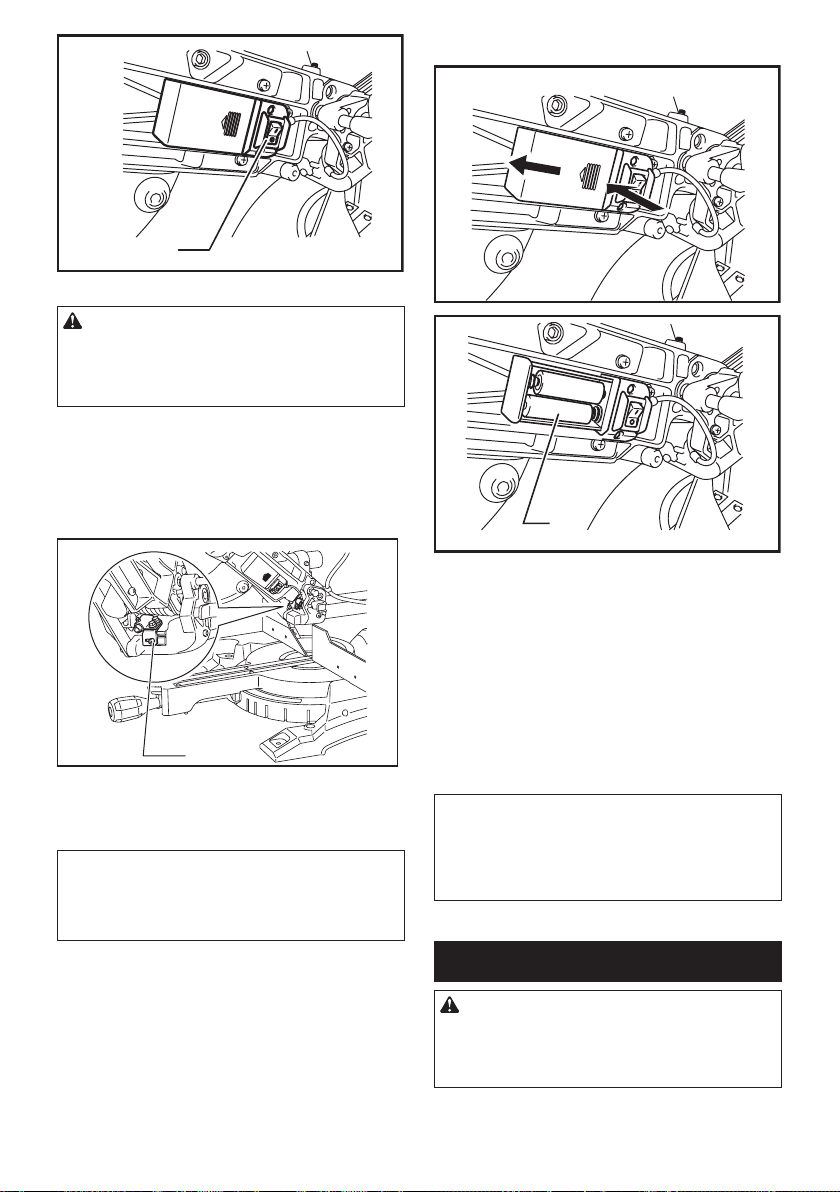

Replacing the dry cells for laser unit
1
►1. Dry cell
Remove the lid for the dry cells for laser unit by sliding
while pressing it. Take out the old dry cells and put the
newonesasshowninthegure.Afterreplacing,return
the lid to cover it.
Cleaning of the lens for the laser light
If the lens for the laser light becomes dirty, or sawdust
adheres to it in such a way that the laser line is no
longer easily visible, unplug the saw and remove and
clean the lens for the laser light carefully with a damp,
soft cloth. Do not use solvents or any petroleum-based
cleaners on the lens.
NOTE:
• When laser line is dim and almost or entirely
invisible because of the direct sunlight in the
indoor or outdoor window-by work, relocate the
work area to a place not exposed to the direct
sunlight.
ASSEMBLY
WARNING:
• Always be sure that the tool is switched off
and unplugged before working on the tool.
Failure to switch off and unplug the tool may
resultinseriouspersonalinjury.

12 ENGLISH
Storage of socket wrench with hex
wrench on its other end
1
2
►1. Socket wrench with hex wrench on its other end
2. Wrench holder
Thesocketwrenchisstoredasshowninthegure.
When the socket wrench is needed it can be pulled out
of the wrench holder. After using the socket wrench it
can be stored by returning it to the wrench holder.

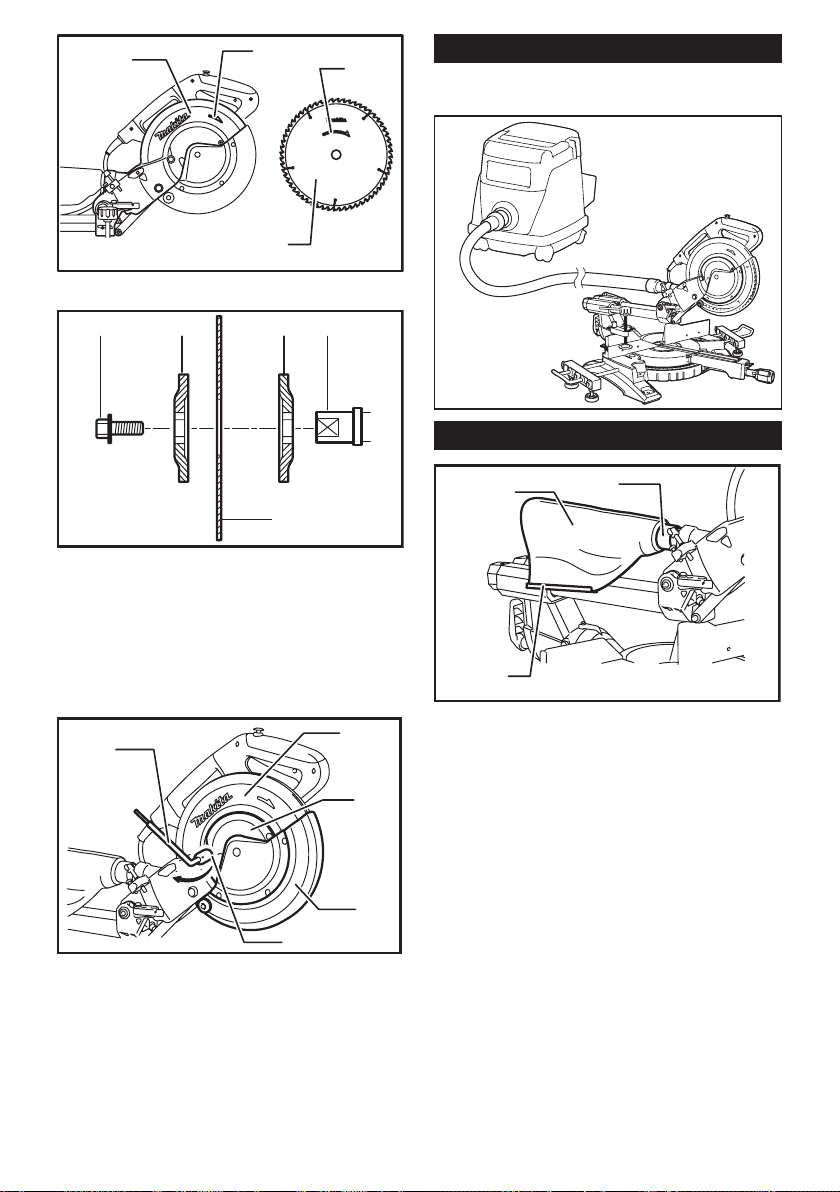

Installing or removing saw blade
WARNING:
• Always be sure that the tool is switched off
and unplugged before installing or removing
the blade. Accidental start up of the tool may
resultinseriouspersonalinjury.
• Use only the Makita socket wrench provided
to install or remove the blade.Failure to use
the wrench may result in overtightening or
insufcienttighteningofthehexboltandserious
personalinjury.
1
►1. Stopper pin
Lock the handle in the raised position by pushing in the
stopper pin.
1
2
3
4
5
►1. Socket wrench 2. Blade case 3. Center cover
4. Hex bolt 5. Blade guard
To remove the blade, use the socket wrench to loosen
the hex bolt holding the center cover by turning it coun-
terclockwise. Raise the blade guard and center cover.
1
2
3
4
5
►1. Blade case 2. Socket wrench 3. Hex bolt 4. Arrow
5. Shaft lock
Press the shaft lock to lock the spindle and use the
socket wrench to loosen the hex bolt clockwise. Then
removethehexbolt,outerangeandblade.
NOTE:
• Iftheinnerangeisremovedbesuretoinstall
it on the spindle with its protrusion facing away
fromtheblade.Iftheangeisinstalledincor-
rectlytheangewillrubagainstthemachine.
WARNING:
• Before mounting the blade onto the spin-
dle, always be sure that the correct ring for
the blade's arbor hole you intend to use is
installed between the inner and the outer
anges. Use of the incorrect arbor hole ring
may result in the improper mounting of the blade
causing blade movement and severe vibration
resulting in possible loss of control during oper-
ationandinseriouspersonalinjury.

13 ENGLISH
123
4
►1. Blade case 2. Arrow 3. Arrow 4. Saw blade
12 4
3
5
►1. Hex bolt 2.Outerange3. Saw blade 4. Inner
ange5. Spindle
To install the blade, mount it carefully onto the spindle,
making sure that the direction of the arrow on the sur-
face of the blade matches the direction of the arrow on
the blade case.
Installtheouterangeandhexbolt,andthenusethe
socket wrench to tighten the hex bolt (left-handed)
securely counterclockwise while pressing the shaft lock.
1
2
3
4
5
►1. Socket wrench 2. Blade case 3. Center cover
4. Hex bolt 5. Blade guard
Return the blade guard and center cover to its original
position. Then tighten the hex bolt clockwise to secure
the center cover. Release the handle from the raised
position by pulling the stopper pin. Lower the handle to
make sure that the blade guard moves properly. Make
sure the shaft lock has released spindle before making
cut.
Connecting a vacuum cleaner
When you wish to perform clean cutting operation,
connect a Makita vacuum cleaner.
Dust bag
1
2
3
►1. Dust nozzle 2. Dust bag 3. Fastener
The use of the dust bag makes cutting operations
cleaner and dust collection easier. To attach the dust
bag,titontothedustnozzle.
When the dust bag is about half full, remove the dust
bag from the tool and pull the fastener out. Empty
the dust bag of its contents, tapping it lightly so as to
remove particles adhering to the insides which might
hamper further collection.

14 ENGLISH

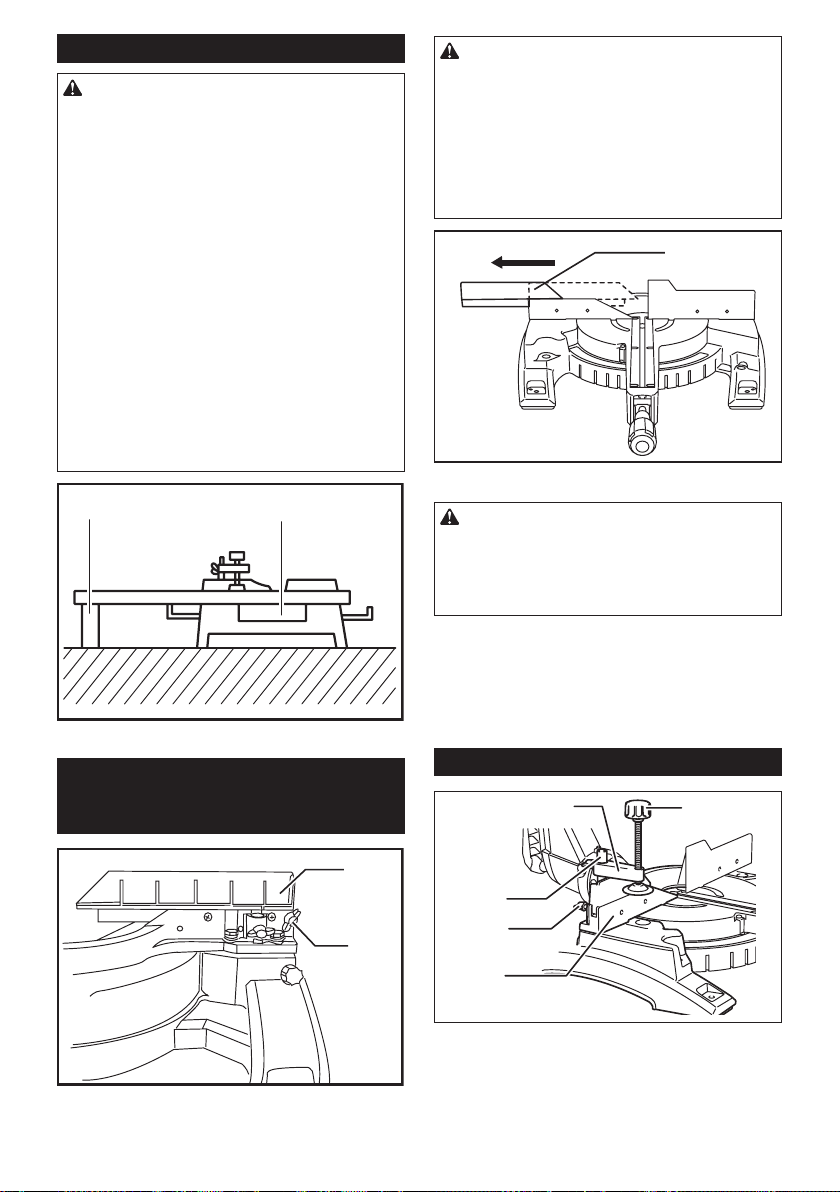

Securing workpiece
WARNING:
• It is extremely important to always secure
the workpiece correctly with the proper type
of vise or crown molding stoppers. Failure to
dosomayresultinseriouspersonalinjuryand
cause damage to the tool and/or the workpiece.
• After a cutting operation do not raise the
blade until it has come to a complete stop.
The raising of a coasting blade may result in
seriouspersonalinjuryanddamagetothe
workpiece.
• When cutting a workpiece that is longer
than the support base of the saw, the mate-
rial should be supported the entire length
beyond the support base and at the same
height to keep the material level. Proper
workpiece support will help avoid blade pinch
and possible kickback which may result in seri-
ouspersonalinjury.Donotrelysolelyonthe
vertical vise and/or horizontal vise to secure the
workpiece. Thin material tends to sag. Support
workpiece over its entire length to avoid blade
pinch and possible KICKBACK.
12
►1. Support 2. Turn base
Guide fence (SLIDING FENCES
which are upper and lower fences)
adjustment
1
2
►1. Sliding fence 2. Clamping screw
WARNING:
• Before operating the tool, make sure that the
slidingfenceissecuredrmly.
•
Before bevel-cutting, make sure that no part of the
tool, especially the blade, contacts the upper and lower
fences when fully lowering and raising the handle in
any position and while moving the carriage through its
full range of travel. If the tool or blade makes contact with
the fence this may result in kickback or unexpected move-
mentofthematerialandseriouspersonalinjury.
1
►1. Sliding fence
CAUTION:
• When performing bevel cuts, slide the sliding
fence to the left and secure it as shown in the
gure.Otherwise,itwillcontactthebladeora
partofthetool,causingpossibleseriousinjury
to the operator.
This tool is equipped with the sliding fence which should
ordinarilybepositionedasshowninthegure.
However, when performing left bevel cuts, set it to the left
positionasshowninthegureifthetoolheadcontactsit.
When bevel-cutting operations are complete, don't for-
get to return the sliding fence to the original position and
secureitbyrmlytighteningtheclampingscrew.
Vertical vise
12
3
4
5
►1. Vise arm 2. Vise knob 3. Vise rod 4. Screw
5. Guide fence
The vertical vise can be installed on either the left or
right side of the guide fence. Insert the vise rod into the
hole in the guide fence and tighten the screw on the
back of the guide fence to secure the vise rod.

15 ENGLISH
Position the vise arm according to the thickness and
shape of the workpiece and secure the vise arm by
tightening the screw. If the screw to secure the vise arm
contacts the guide fence, install the screw on the oppo-
site side of vise arm. Make sure that no part of the tool
contacts the vise when lowering the handle fully and
pulling or pushing the carriage all the way. If some part
contacts the vise, re-position the vise.
Presstheworkpieceatagainsttheguidefenceandthe
turn base. Position the workpiece at the desired cutting
positionandsecureitrmlybytighteningtheviseknob.
WARNING:
• The workpiece must be secured rmly
against the turn base and guide fence with
the vise during all operations. If the workpiece
is not properly secured against the fence the
material may move during the cutting operation
causing possible damage to the blade, causing
the material to be thrown and loss of control
resultinginseriouspersonalinjury.
Horizontal vise (optional accessory)
1
23
►1. Vise plate 2. Vise nut 3. Vise knob
The horizontal vise can be installed in two positions on
either the left or right side of the base. When performing 10°
or greater miter cuts, install the horizontal vise on the side
opposite the direction in which the turn base is to be turned.
Byippingthevisenutcounterclockwise,theviseis
released, and rapidly moves in and out. To grip the work-
piece, push the vise knob forward until the vise plate con-
tactstheworkpieceandipthevisenutclockwise.Then
turn the vise knob clockwise to secure the workpiece.
The maximum width of workpiece which can be secured
by the horizontal vise is 215 mm (8-1/2").
WARNING:
• Always rotate the vise nut clockwise until
the workpiece is properly secured. If the
workpiece is not properly secured the material
may move during the cutting operation causing
possible damage to the blade, causing the
material to be thrown and loss of control result-
inginseriouspersonalinjury.
• When cutting a thin workpiece, such as base
boards, against the fence, always use the hori-
zontal vise.
OPERATION
NOTICE:
• Before use, be sure to release the handle from the
lowered position by pulling the stopper pin.
• Do not apply excessive pressure on the handle
when cutting. Too much force may result in over-
loadofthemotorand/ordecreasedcuttingef-
ciency. Push down handle with only as much force
as is necessary for smooth cutting and without
signicantdecreaseinbladespeed.
• Gently press down the handle to perform the cut. If
the handle is pressed down with force or if lateral
force is applied, the blade will vibrate and leave a
mark (saw mark) in the workpiece and the preci-
sion of the cut will be impaired.
• During a slide cut, gently push the carriage toward
the guide fence without stopping. If the carriage
movement is stopped during the cut, a mark will
be left in the workpiece and the precision of the
cut will be impaired.
WARNING:
• Make sure the blade is not contacting the
workpiece, etc. before the switch is turned
on.
Turning the tool on with the blade in contact with
the workpiece may result in kickback and seri-
ouspersonalinjury.

16 ENGLISH

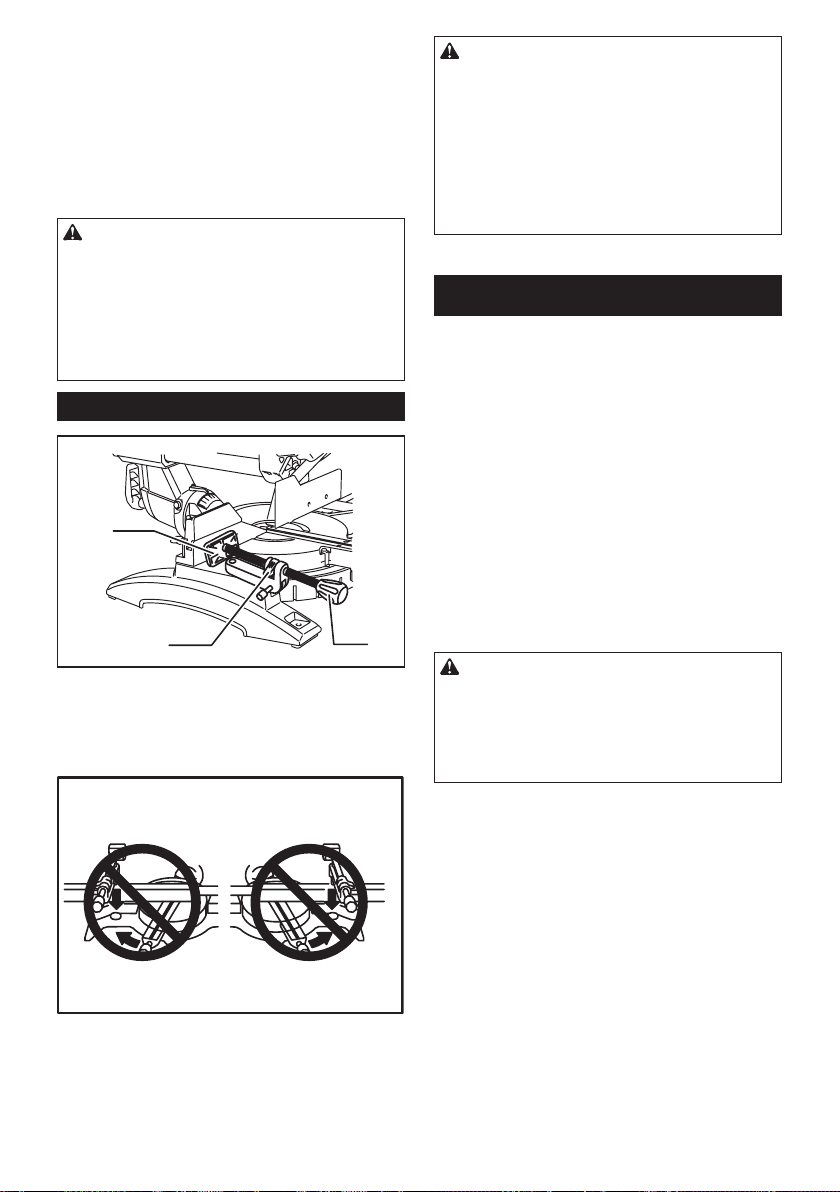

1. Press cutting (cutting small
workpieces)
1
►1. Locking screw
Workpieces up to 91 mm (3-5/8") high and 70 mm
(2-3/4") wide can be cut in the following manner.
Push the carriage toward the guide fence fully and
tighten the locking screw clockwise to secure the
carriage. Secure the workpiece correctly with the
proper type of vise. Switch on the tool without the
blade making any contact and wait until the blade
attains full speed before lowering. Then gently
lower the handle to the fully lowered position to cut
the workpiece. When the cut is completed, switch
off the tool and WAIT UNTIL THE BLADE HAS
COME TO A COMPLETE STOP before returning
the blade to its fully elevated position.
WARNING:
• Firmly tighten the knob clockwise so that
the carriage will not move during operation.
Insufcienttighteningoftheknobmaycause
possible kickback which may result in serious
personalinjury.
2. Slide (push) cutting (cutting wide
workpieces)
1
►1. Locking screw
Loosen the locking screw counterclockwise so
that the carriage can slide freely. Secure the work-
piece with the proper type of vise. Pull the carriage
toward you fully. Switch on the tool without the
blade making any contact and wait until the blade
attains full speed. Press the handle down and
PUSH THE CARRIAGE TOWARD THE GUIDE
FENCE AND THROUGH THE WORKPIECE.
When the cut is completed, switch off the tool
and WAIT UNTIL THE BLADE HAS COME TO A
COMPLETE STOP before returning the blade to
its fully elevated position.
WARNING:
• Whenever performing a slide cut, rst pull
the carriage full towards you and press the
handle all the way down, then push the car-
riage toward the guide fence. Never start the
cut with the carriage not pulled fully toward
you. If you perform the slide cut without the
carriage pulled fully toward you unexpected
kickbackmayoccurandseriouspersonalinjury
may result.
• Never attempt to perform a slide cut by
pulling the carriage towards you. Pulling the
carriage towards you while cutting may cause
unexpected kickback resulting in possible seri-
ouspersonalinjury.
• Never perform the slide cut with the handle
locked in the lowered position.
• Never loosen the locking screw which
secures the carriage while the blade is rotat-
ing. A loose carriage while cutting may cause
unexpected kickback resulting in possible in
seriouspersonalinjury.
3. Miter cutting
Refertothepreviouslycovered"Adjustingthe
miter angle".
4. Bevel cut
Loosen the lever and tilt the saw blade to set
the bevel angle (Refer to the previously covered
"Adjustingthebevelangle").Besuretoretighten
theleverrmlytosecuretheselectedbevelangle
safely. Secure the workpiece with a vise. Make
sure the carriage is pulled all the way back toward
the operator. Switch on the tool without the blade
making any contact and wait until the blade attains
full speed. Then gently lower the handle to the

17 ENGLISH

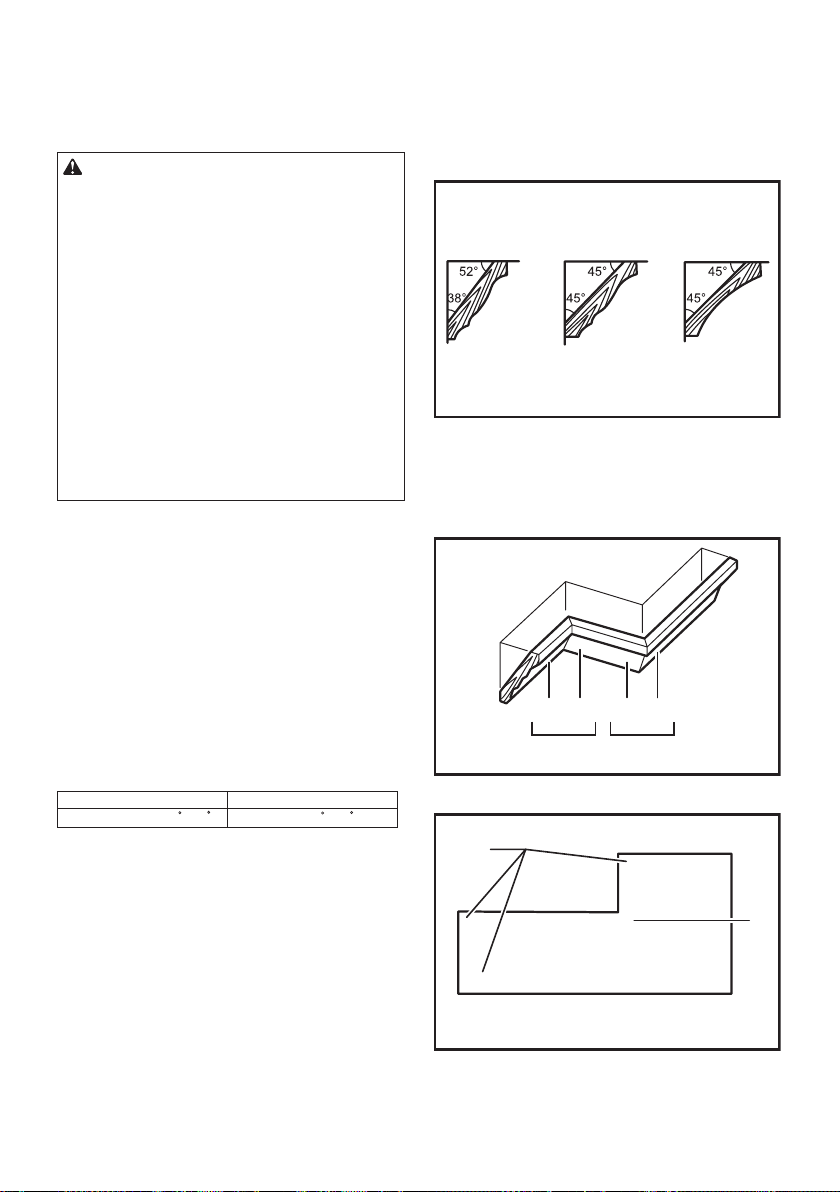

fully lowered position while applying pressure in
parallel with the blade and PUSH THE CARRIAGE
TOWARD THE GUIDE FENCE TO CUT THE
WORKPIECE. When the cut is completed, switch
off the tool and WAIT UNTIL THE BLADE HAS
COME TO A COMPLETE STOP before returning
the blade to its fully elevated position.
WARNING:
• After setting the blade for a bevel cut, before
operating the tool ensure that the carriage
and blade will have free travel through-
out the entire range of the intended cut.
Interruption of the carriage or blade travel during
the cutting operation may result in kickback and
seriouspersonalinjury.
• While making a bevel cut keep hands out of
the path of the blade. The angle of the blade
may confuse the operator as to the actual blade
path while cutting and contact with the blade will
resultinseriouspersonalinjury.
• The blade should not be raised until it has
come to a complete stop. During a bevel cut
the piece cut off may come to rest against the
blade. If the blade is raised while it is rotating
thecut-offpiecemaybeejectedbytheblade
causing the material to fragment which may
resultinseriouspersonalinjury.
NOTICE:
• When pressing down the handle, apply pressure
in parallel with the blade. If a force is applied
perpendicularly to the turn base or if the pressure
direction is changed during a cut, the precision of
the cut will be impaired.
• Beforebevel-cutting,anadjustmentoftheupper
fence and lower fence maybe required. Refer to
thesectiontitled"Guidefenceadjustment".
5. Compound cutting
Compound cutting is the process in which a bevel
angle is made at the same time in which a miter
angle is being cut on a workpiece. Compound
cutting can be performed at the angle shown in
the table.
Miter angle Bevel angle
Left 0 - 45
Left and Right 0 - 45
When performing compound cutting, refer to
"Press cutting", "Slide cutting", "Miter cutting" and
"Bevel cut" explanations.
6. Cutting crown and cove moldings
Crown and cove moldings can be cut on a com-
poundmitersawwiththemoldingslaidatonthe
turn base.
There are two common types of crown moldings
and one type of cove moldings; 52/38° wall angle
crown molding, 45° wall angle crown molding and
45° wall angle cove molding. See illustrations.
123
►1. 52/38° type crown molding 2. 45° type crown
molding 3. 45° type cove molding
Therearecrownandcovemoldingjointswhich
aremadetot"Inside"90°corners((1)and(2)in
Fig. A) and "Outside" 90° corners ((3) and (4) in
Fig. A).
(1) (2) (3)(4)
1 2
Fig.A
1. Inside corner 2. Outside corner
2
(1)
(2)
(1)
(2) (2)
(1)
(2)
(1)
(1)
(2)
(3)(4)
1
►1. Inside corner 2. Outside corner

18 ENGLISH
Measuring
Measurethewalllengthandadjustworkpieceon
table to cut wall contact edge to desired length.
Always make sure that cut workpiece length at the
back of the workpiece is the same as wall length.
Adjustcutlengthforangleofcut.Alwaysusesev-
eral pieces for test cuts to check the saw angles.
When cutting crown and cove moldings, set the
bevel angle and miter angle as indicated in the
table (A) and position the moldings on the top sur-
face of the saw base as indicated in the table (B).
In the case of left bevel cut
Molding
position in
Fig. A
Bevel angle Miter angle
For outside
corner
For inside
corner
52/38° type 45° type
Right 31.6°
45° type
Left 33.9° Left 30°
52/38° type
Left 31.6° Left 35.3°
Right 35.3°
Right 35.3°Right 31.6°
(1)
(2)
(3)
(4)
Table (A)
Molding
position in
Fig. A
Molding edge against
guide fence
(1) Ceiling contact edge should
be against guide fence.
Ceiling contact edge should
be against guide fence.
For
outside
corner
Finished piece
will be on the
Left side of
blade.
Finished piece
will be on the
Right side of
blade.
For inside
corner
Wall contact edge should be
against guide fence.
Finished piece
(2)
(3)
(4)
Table (B)
EXAMPLE In the case of cutting 52/38° type crown
molding for position (1) in Fig. A:
• Tilt and secure bevel angle setting to 33.9°
LEFT.
• Adjustandsecuremiteranglesettingto31.6°
RIGHT.
• Lay crown molding with its broad back (hidden)
surface down on the turn base with its CEILING
CONTACT EDGE against the guide fence on
the saw.
• Thenishedpiecetobeusedwillalwaysbe
on the LEFT side of the blade after the cut has
been made.

19 ENGLISH
Ceiling
Wall
30.1
29.7
29.4
29.0
28.7
28.3
28.0
27.6
27.2
26.9
26.5
26.1
25.8
25.4
25.0
24.7
24.3
23.9
23.6
23.2
22.8
22.5
22.1
21.7
21.3
21.0
20.6
20.2
19.8
19.5
19.1
18.7
18.3
17.9
17.6
17.2
16.8
16.4
16.0
15.6
26.9
26.5
26.1
25.7
25.3
24.9
24.5
24.1
23.7
23.3
22.9
22.6
22.2
21.8
21.4
21.0
20.7
20.3
19.9
19.6
19.2
18.8
18.5
18.1
17.8
17.4
17.1
16.7
16.4
16.0
15.7
15.3
15.0
14.6
14.3
14.0
13.6
13.3
13.0
12.8
101
102
103
104
105
106
107
108
109
110
111
112
113
114
115
116
117
118
119
120
121
122
123
124
125
126
127
128
129
130
131
132
133
134
135
136
137
138
139
140
15.3
14.9
14.5
14.1
13.7
13.3
12.9
12.5
12.2
11.8
11.4
11.0
10.8
10.2
9.8
9.4
9.0
8.6
8.3
7.9
7.5
7.1
6.7
6.3
5.9
5.5
5.1
4.7
4.3
3.9
3.5
3.2
2.8
2.4
2.0
1.6
1.2
0.8
0.4
0.0
12.3
12.0
11.6
11.3
11.0
10.7
10.3
10.0
9.7
9.4
9.0
8.7
8.4
8.1
7.8
7.5
7.1
6.8
6.5
6.2
5.9
5.6
5.3
4.9
4.6
4.3
4.0
3.7
3.4
3.1
2.8
2.5
2.2
1.8
1.5
1.2
0.9
0.6
0.3
0.0
141
142
143
144
145
146
147
148
149
150
151
152
153
154
155
156
157
158
159
160
161
162
163
164
165
166
167
168
169
170
171
172
173
174
175
176
177
178
179
180
Wall to Crown Molding Angle: 52/38 degrees
Compound Miter Saw
Miter and Bevel Angle Settings
000031
Wall Angle
(deg.)
Bevel Angle
(deg.)
Miter Angle
(deg.)
Wall Angle
(deg.)
Bevel Angle
(deg.)
Miter Angle
(deg.)
43.0
42.8
42.5
42.2
41.9
41.7
41.4
41.1
40.8
40.5
40.2
39.9
39.6
39.3
39.0
38.7
38.4
38.1
37.8
37.4
37.1
36.8
36.5
36.2
35.8
35.5
35.2
34.9
34.5
34.2
33.9
33.5
33.2
32.8
32.5
32.2
31.8
31.5
31.1
30.8
30.4
46.8
46.3
45.7
45.1
44.6
44.0
43.5
42.9
42.4
41.9
41.3
40.8
40.3
39.8
39.2
38.7
38.2
37.7
37.2
36.8
36.3
35.8
35.3
34.8
34.4
33.9
33.4
33.0
32.5
32.1
31.6
31.2
30.7
30.3
29.9
29.4
29.0
28.6
28.2
27.7
27.3
60
61
62
63
64
65
66
67
68
69
70
71
72
73
74
75
76
77
78
79
80
81
82
83
84
85
86
87
88
89
90
91
92
93
94
95
96
97
98
99
100
Wall Angle
(deg.)
Bevel Angle
(deg.)
Miter Angle
(deg.)

20 ENGLISH
26.7
26.4
26.1
25.8
25.5
25.2
24.9
24.6
24.2
23.9
23.6
23.3
23.0
22.7
22.3
22.0
21.7
21.4
21.0
20.7
20.4
20.0
19.7
19.4
19.1
18.7
18.4
18.1
17.7
17.4
17.1
16.7
16.4
16.0
15.7
15.4
15.0
14.7
14.3
14.0
30.2
29.8
29.4
28.9
28.5
28.1
27.6
27.2
26.8
26.3
25.9
25.5
25.1
24.7
24.3
23.8
23.4
23.0
22.6
22.2
21.8
21.4
21.0
20.6
20.2
19.8
19.4
19.0
18.6
18.2
17.9
17.5
17.1
16.7
16.3
15.9
15.6
15.2
14.8
14.4
101
102
103
104
105
106
107
108
109
110
111
112
113
114
115
116
117
118
119
120
121
122
123
124
125
126
127
128
129
130
131
132
133
134
135
136
137
138
139
140
13.7
13.3
13.0
12.6
12.3
11.9
11.6
11.2
10.9
10.5
10.2
9.8
9.5
9.2
8.8
8.5
8.1
7.8
7.4
7.1
6.7
6.4
6.0
5.6
5.3
4.9
4.6
4.2
3.9
3.5
3.2
2.8
2.5
2.1
1.8
1.4
1.1
0.7
0.4
0.0
14.1
13.7
13.3
12.9
12.6
12.2
11.8
11.5
11.1
10.7
10.4
10.0
9.6
9.3
8.9
8.5
8.2
7.8
7.5
7.1
6.7
6.4
6.0
5.7
5.3
5.0
4.6
4.3
3.9
3.5
3.2
2.8
2.5
2.1
1.8
1.4
1.1
0.7
0.4
0.0
141
142
143
144
145
146
147
148
149
150
151
152
153
154
155
156
157
158
159
160
161
162
163
164
165
166
167
168
169
170
171
172
173
174
175
176
177
178
179
180

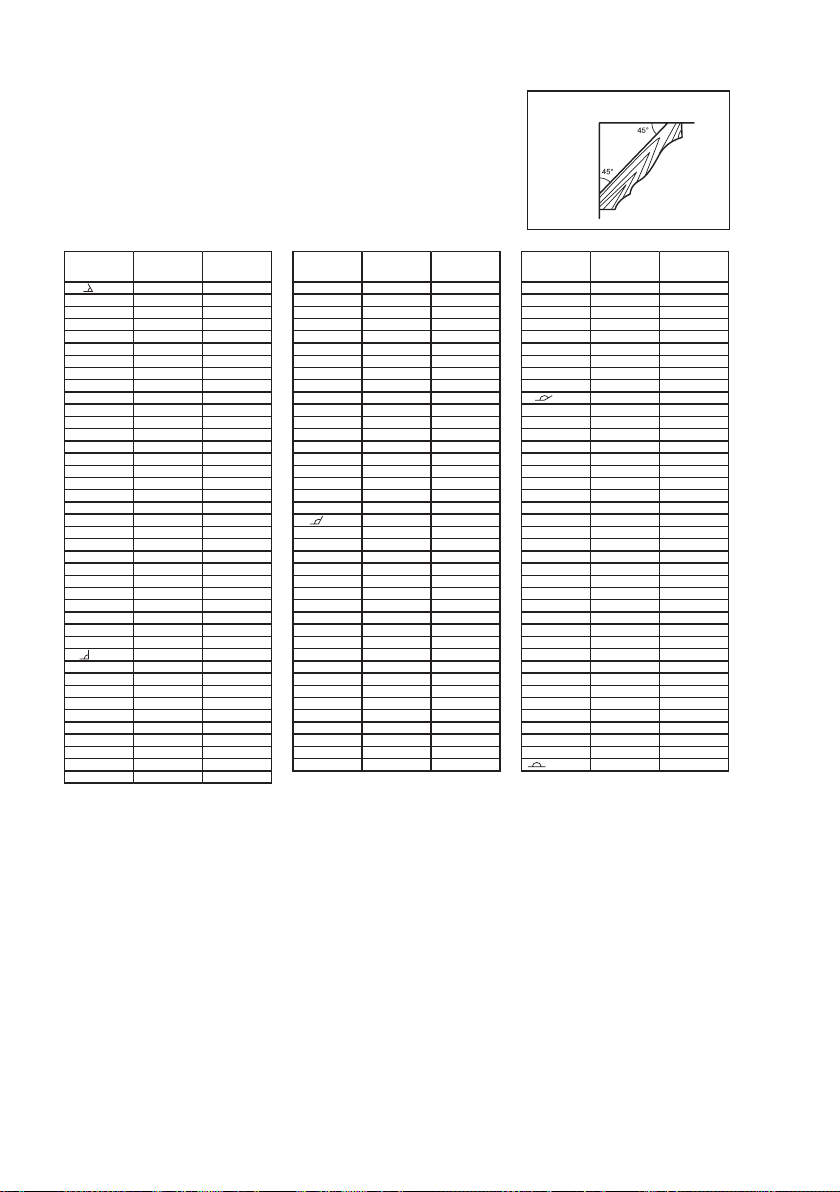

Wall to Crown Molding Angle: 45 degrees
Compound Miter Saw
Miter and Bevel Angle Settings
000032
Wall Angle
(deg.)
Bevel Angle
(deg.)
Miter Angle
(deg.)
Wall Angle
(deg.)
Bevel Angle
(deg.)
Miter Angle
(deg.)
37.8
37.5
37.3
37.1
36.8
36.6
36.4
36.1
35.9
35.6
35.4
35.1
34.9
34.6
34.4
34.1
33.9
33.6
33.3
33.1
32.8
32.5
32.3
32.0
31.7
31.4
31.1
30.9
30.6
30.3
30.0
29.7
29.4
29.1
28.8
28.5
28.2
27.9
27.6
27.3
27.0
50.8
50.2
49.6
49.1
48.5
48.0
47.4
46.9
46.4
45.8
45.3
44.8
44.2
43.7
43.2
42.7
42.1
41.6
41.1
40.6
40.1
39.6
39.1
38.6
38.1
37.7
37.2
36.7
36.2
35.7
35.3
34.8
34.3
33.9
33.4
32.9
32.5
32.0
31.6
31.1
30.7
60
61
62
63
64
65
66
67
68
69
70
71
72
73
74
75
76
77
78
79
80
81
82
83
84
85
86
87
88
89
90
91
92
93
94
95
96
97
98
99
100
Wall Angle
(deg.)
Bevel Angle
(deg.)
Miter Angle
(deg.)
Ceiling
Wall
