Makita LS1219/1 User manual

INSTRUCTION MANUAL
Slide Compound Miter Saw
LS1219
LS1219L
ENGLISH: Original instructions
DOUBLE INSULATION
Read before use.

2ENGLISH
SPECIFICATIONS
Model: LS1219 LS1219L
Blade diameter 305 mm
Hole diameter European countries 30 mm
Countries other than Europe 25.4 mm
Max. kerf thickness of the saw blade 3.2 mm
Max. miter angle Right 60°, Left 60°
Max. bevel angle Right 48°, Left 48°
No load speed (RPM) 3,200 min-1
Laser type -Red Laser 650 nm, Maximum
output
1.6mW ( Laser Class 2M )
Dimensions (L x W x H) 898 mm x 664 mm x 725 mm
Net weight 29.3 kg 29.5 kg
Safety class /II
Cutting capacities (H x W)
Miter angle Bevel angle
45° (left) 0° 45° (right)
0° -61 mm x 382 mm
71 mm x 363mm
92 mm x 382 mm
107 mm x 363 mm
44 mm x 382 mm
54 mm x 363 mm
Thickness of wood
facing on guide
fence for increased
height of cut
20 mm 78 mm × 325 mm 115 mm × 325mm 61 mm × 325 mm
38 mm 80 mm × 292 mm 120 mm × 292 mm -
45° (right and left) -61 mm x 268 mm
71 mm x 255 mm
92 mm x 268 mm
107 mm x 255 mm
44 mm x 268 mm
54 mm x 255 mm
Thickness of wood
facing on guide
fence for increased
height of cut
15 mm -115 mm × 227 mm -
25 mm 120 mm × 212 mm
60° (right and left) - - 92 mm x 185 mm
107 mm x 178 mm
-
Thickness of wood
facing on guide
fence for increased
height of cut
15 mm 115 mm × 155 mm
25 mm 120 mm × 140 mm
Cutting capacities for special cuttings
Type of cutting Cutting capacity
Crown molding 45° type
(with crown molding stopper used)
203 mm
Base board
(with horizontal vise used)
171 mm
• Duetoourcontinuingprogramofresearchanddevelopment,thespecicationshereinaresubjecttochange
without notice.
• Specicationsmaydifferfromcountrytocountry.
• WeightaccordingtoEPTA-Procedure01/2014
Symbols
The following show the symbols used for the equip-
ment. Be sure that you understand their meaning before
use.
Read instruction manual.
DOUBLE INSULATION
Toavoidinjuryfromyingdebris,keep
holding the saw head down, after making
cuts, until the blade has come to a com-
plete stop.
Whenperformingslidecut,rstpullcar-
riage fully and press down handle, then
push carriage toward the guide fence.

3ENGLISH
Donotplacehandorngersclosetothe
blade.
Never look into the laser beam. Direct laser
beammayinjureyoureyes.
Only for EU countries
Do not dispose of electric equipment
together with household waste material! In
observance of the European Directive, on
Waste Electric and Electronic Equipment
and its implementation in accordance with
national law, electric equipment that have
reached the end of their life must be col-
lected separately and returned to an envi-
ronmentally compatible recycling facility.
Intended use
The tool is intended for accurate straight and miter
cutting in wood. With appropriate saw blades, aluminum
can also be sawed.
Power supply
The tool should be connected only to a power supply of
the same voltage as indicated on the nameplate, and
can only be operated on single-phase AC supply. They
are double-insulated and can, therefore, also be used
from sockets without earth wire.
Noise
The typical A-weighted noise level determined accord-
ing to EN62841:
Model LS1219
Sound pressure level (LpA) : 91 dB(A)
Sound power level (LWA) : 100 dB (A)
Uncertainty (K) : 3 dB(A)
Model LS1219L
Sound pressure level (LpA) : 91 dB(A)
Sound power level (LWA) : 100 dB (A)
Uncertainty (K) : 3 dB(A)
WARNING: Wear ear protection.
Vibration
The vibration total value (tri-axial vector sum) deter-
mined according to EN62841:
Model LS1219
Vibration emission (ah) : 2.5 m/s2or less
Uncertainty (K) : 1.5 m/s2
Model LS1219L
Vibration emission (ah) : 2.5 m/s2or less
Uncertainty (K) : 1.5 m/s2
NOTE: The declared vibration emission value has
been measured in accordance with the standard test
method and may be used for comparing one tool with
another.
NOTE: The declared vibration emission value
may also be used in a preliminary assessment of
exposure.
WARNING: The vibration emission during actual
use of the power tool can differ from the declared emission
value depending on the ways in which the tool is used.
WARNING: Be sure to identify safety measures
to protect the operator that are based on an estima-
tion of exposure in the actual conditions of use (taking
account of all parts of the operating cycle such as
the times when the tool is switched off and when it is
running idle in addition to the trigger time).
EC Declaration of Conformity
For European countries only
The EC declaration of conformity is included as Annex A
to this instruction manual.
SAFETY WARNINGS
General power tool safety warnings
WARNING: Read all safety warnings, instruc-
tions, illustrations and specications provided
with this power tool. Failure to follow all instructions
listedbelowmayresultinelectricshock,reand/or
seriousinjury.
Save all warnings and instruc-
tions for future reference.
The term "power tool" in the warnings refers to your
mains-operated (corded) power tool or battery-operated
(cordless) power tool.
Work area safety
1. Keep work area clean and well lit. Cluttered or
dark areas invite accidents.
2. Do not operate power tools in explosive atmo-
spheres, such as in the presence of ammable
liquids, gases or dust. Power tools create sparks
which may ignite the dust or fumes.
3. Keep children and bystanders away while
operating a power tool. Distractions can cause
you to lose control.
Electrical Safety
1. Power tool plugs must match the outlet. Never
modify the plug in any way. Do not use any
adapter plugs with earthed (grounded) power
tools. Unmodiedplugsandmatchingoutletswill
reduce risk of electric shock.
2. Avoid body contact with earthed or grounded
surfaces, such as pipes, radiators, ranges and
refrigerators. There is an increased risk of elec-
tric shock if your body is earthed or grounded.
3. Do not expose power tools to rain or wet con-
ditions. Water entering a power tool will increase
the risk of electric shock.
4. Do not abuse the cord. Never use the cord for
carrying, pulling or unplugging the power tool.
Keep cord away from heat, oil, sharp edges
or moving parts. Damaged or entangled cords
increase the risk of electric shock.

4ENGLISH
5. When operating a power tool outdoors, use an
extension cord suitable for outdoor use. Use of
a cord suitable for outdoor use reduces the risk of
electric shock.
6. If operating a power tool in a damp location
is unavoidable, use a residual current device
(RCD) protected supply. Use of an RCD reduces
the risk of electric shock.
7. Use of power supply via an RCD with a rated
residual current of 30 mA or less is always
recommended.
8.
Power tools can produce electromagnetic elds
(EMF) that are not harmful to the user. However,
users of pacemakers and other similar medical
devices should contact the maker of their device and/
or doctor for advice before operating this power tool.
9. Do not touch the power plug with wet hands.
10. If the cord is damaged, have it replaced by the
manufacturer or his agent in order to avoid a
safety hazard.
Personal Safety
1. Stay alert, watch what you are doing and use
common sense when operating a power tool.
Do not use a power tool while you are tired or
under the inuence of drugs, alcohol or med-
ication. A moment of inattention while operating
powertoolsmayresultinseriouspersonalinjury.
2. Use personal protective equipment. Always
wear eye protection. Protective equipment such
as a dust mask, non-skid safety shoes, hard hat or
hearing protection used for appropriate conditions
willreducepersonalinjuries.
3. Prevent unintentional starting. Ensure the
switch is in the off-position before connecting
to power source and/or battery pack, picking
up or carrying the tool. Carrying power tools with
yourngerontheswitchorenergisingpowertools
that have the switch on invites accidents.
4. Remove any adjusting key or wrench before
turning the power tool on. A wrench or a key left
attached to a rotating part of the power tool may
resultinpersonalinjury.
5. Do not overreach. Keep proper footing and
balance at all times. This enables better control
of the power tool in unexpected situations.
6. Dress properly. Do not wear loose clothing or
jewellery. Keep your hair and clothing away
from moving parts.Looseclothes,jewelleryor
long hair can be caught in moving parts.
7. If devices are provided for the connection of
dust extraction and collection facilities, ensure
these are connected and properly used. Use of
dust collection can reduce dust-related hazards.
8.
Do not let familiarity gained from frequent use
of tools allow you to become complacent and
ignore tool safety principles. A careless action can
causesevereinjurywithinafractionofasecond.
9. Always wear protective goggles to protect
your eyes from injury when using power tools.
The goggles must comply with ANSI Z87.1 in
the USA, EN 166 in Europe, or AS/NZS 1336
in Australia/New Zealand. In Australia/New
Zealand, it is legally required to wear a face
shield to protect your face, too.
It is an employer's responsibility to enforce
the use of appropriate safety protective equip-
ments by the tool operators and by other per-
sons in the immediate working area.
Power tool use and care
1. Do not force the power tool. Use the correct
power tool for your application. The correct
powertoolwilldothejobbetterandsaferatthe
rate for which it was designed.
2. Do not use the power tool if the switch does
not turn it on and off. Any power tool that cannot
be controlled with the switch is dangerous and
must be repaired.
3. Disconnect the plug from the power source
and/or remove the battery pack, if detachable,
from the power tool before making any adjust-
ments, changing accessories, or storing power
tools. Such preventive safety measures reduce
the risk of starting the power tool accidentally.
4. Store idle power tools out of the reach of chil-
dren and do not allow persons unfamiliar with
the power tool or these instructions to operate
the power tool. Power tools are dangerous in the
hands of untrained users.
5. Maintain power tools and accessories. Check
for misalignment or binding of moving parts,
breakage of parts and any other condition that
may affect the power tool’s operation. If dam-
aged, have the power tool repaired before use.
Many accidents are caused by poorly maintained
power tools.
6. Keep cutting tools sharp and clean. Properly
maintained cutting tools with sharp cutting edges
are less likely to bind and are easier to control.
7. Use the power tool, accessories and tool bits
etc. in accordance with these instructions, tak-
ing into account the working conditions and
the work to be performed. Use of the power tool
for operations different from those intended could
result in a hazardous situation.
8. Keep handles and grasping surfaces dry,
clean and free from oil and grease. Slippery
handles and grasping surfaces do not allow for
safe handling and control of the tool in unexpected
situations.
9. When using the tool, do not wear cloth work
gloves which may be entangled. The entangle-
ment of cloth work gloves in the moving parts may
resultinpersonalinjury.

5ENGLISH
Service
1. Have your power tool serviced by a qualied
repair person using only identical replacement
parts. This will ensure that the safety of the power
tool is maintained.
2. Follow instruction for lubricating and chang-
ing accessories.
Safety instructions for mitre saws
1. Mitre saws are intended to cut wood or wood-
like products, they cannot be used with abra-
sive cut-off wheels for cutting ferrous material
such as bars, rods, studs, etc. Abrasive dust
causes moving parts such as the lower guard to
jam.Sparksfromabrasivecuttingwillburnthe
lower guard, the kerf insert and other plastic parts.
2. Use clamps to support the workpiece when-
ever possible. If supporting the workpiece
by hand, you must always keep your hand at
least 100 mm from either side of the saw blade.
Do not use this saw to cut pieces that are too
small to be securely clamped or held by hand.
If your hand is placed too close to the saw blade,
thereisanincreasedriskofinjuryfromblade
contact.
3. The workpiece must be stationary and
clamped or held against both the fence and the
table. Do not feed the workpiece into the blade
or cut "freehand" in any way. Unrestrained
or moving workpieces could be thrown at high
speeds,causinginjury.
4. Push the saw through the workpiece. Do not
pull the saw through the workpiece. To make
a cut, raise the saw head and pull it out over
the workpiece without cutting, start the motor,
press the saw head down and push the saw
through the workpiece. Cutting on the pull stroke
is likely to cause the saw blade to climb on top
of the workpiece and violently throw the blade
assembly towards the operator.
5. Never cross your hand over the intended line
of cutting either in front or behind the saw
blade. Supporting the workpiece "cross handed"
i.e. holding the workpiece to the right of the saw
blade with your left hand or vice versa is very
dangerous.
6. Do not reach behind the fence with either hand
closer than 100 mm from either side of the saw
blade, to remove wood scraps, or for any other
reason while the blade is spinning. The proxim-
ity of the spinning saw blade to your hand may not
beobviousandyoumaybeseriouslyinjured.
7. Inspect your workpiece before cutting. If the
workpiece is bowed or warped, clamp it with
the outside bowed face toward the fence.
Always make certain that there is no gap
between the workpiece, fence and table along
the line of the cut. Bent or warped workpieces
can twist or shift and may cause binding on the
spinning saw blade while cutting. There should be
nonailsorforeignobjectsintheworkpiece.
8. Do not use the saw until the table is clear of all
tools, wood scraps, etc., except for the work-
piece. Small debris or loose pieces of wood or
otherobjectsthatcontacttherevolvingbladecan
be thrown with high speed.
9. Cut only one workpiece at a time. Stacked multi-
ple workpieces cannot be adequately clamped or
braced and may bind on the blade or shift during
cutting.
10. Ensure the mitre saw is mounted or placed on
a level, rm work surface before use. A level
andrmworksurfacereducestheriskofthemitre
saw becoming unstable.
11. Plan your work. Every time you change the
bevel or mitre angle setting, make sure the
adjustable fence is set correctly to support the
workpiece and will not interfere with the blade
or the guarding system. Without turning the tool
"ON" and with no workpiece on the table, move
the saw blade through a complete simulated cut to
assure there will be no interference or danger of
cutting the fence.
12. Provide adequate support such as table exten-
sions, saw horses, etc. for a workpiece that is
wider or longer than the table top. Workpieces
longer or wider than the mitre saw table can tip
if not securely supported. If the cut-off piece or
workpiece tips, it can lift the lower guard or be
thrown by the spinning blade.
13. Do not use another person as a substitute for
a table extension or as additional support.
Unstable support for the workpiece can cause the
blade to bind or the workpiece to shift during the
cutting operation pulling you and the helper into
the spinning blade.
14. The cut-off piece must not be jammed or
pressed by any means against the spinning
saw blade.Ifconned,i.e.usinglengthstops,the
cut-off piece could get wedged against the blade
and thrown violently.
15. Always use a clamp or a xture designed to
properly support round material such as rods
or tubing. Rods have a tendency to roll while
being cut, causing the blade to "bite" and pull the
work with your hand into the blade.
16. Let the blade reach full speed before contact-
ing the workpiece. This will reduce the risk of the
workpiece being thrown.

6ENGLISH
17. If the workpiece or blade becomes jammed,
turn the mitre saw off. Wait for all moving
parts to stop and disconnect the plug from
the power source and/or remove the battery
pack. Then work to free the jammed material.
Continuedsawingwithajammedworkpiececould
cause loss of control or damage to the mitre saw.
18. After nishing the cut, release the switch,
hold the saw head down and wait for the blade
to stop before removing the cut-off piece.
Reaching with your hand near the coasting blade
is dangerous.
19. Hold the handle rmly when making an incom-
plete cut or when releasing the switch before
the saw head is completely in the down posi-
tion. The braking action of the saw may cause
the saw head to be suddenly pulled downward,
causingariskofinjury.
20. Only use the saw blade with the diameter that
is marked on the tool or specied in the man-
ual. Use of an incorrectly sized blade may affect
the proper guarding of the blade or guard opera-
tionwhichcouldresultinseriouspersonalinjury.
21. Only use the saw blades that are marked with
a speed equal or higher than the speed marked
on the tool.
22. Do not use the saw to cut other than wood,
aluminum or similar materials.
23. (For European countries only)
Always use the blade which conforms to
EN847-1.
Additional instructions
1. Make workshop kid proof with padlocks.
2. Never stand on the tool.Seriousinjurycould
occur if the tool is tipped or if the cutting tool is
unintentionally contacted.
3. Never leave the tool running unattended. Turn
the power off. Do not leave tool until it comes
to a complete stop.
4. Do not operate saw without guards in place.
Check blade guard for proper closing before
each use. Do not operate saw if blade guard
does not move freely and close instantly.
Never clamp or tie the blade guard into the
open position.
5. Keep hands out of path of saw blade. Avoid
contact with any coasting blade. It can still
cause severe injury.
6. To reduce the risk of injury, return carriage
to the full rear position after each crosscut
operation.
7. Always secure all moving portions before
carrying the tool.
8. Stopper pin which locks the cutter head down
is for carrying and storage purposes only and
not for any cutting operations.
9. Check the blade carefully for cracks or dam-
age before operation. Replace cracked or dam-
aged blade immediately. Gum and wood pitch
hardened on blades slows saw and increases
potential for kickback. Keep blade clean by
rst removing it from tool, then cleaning it with
gum and pitch remover, hot water or kerosene.
Never use gasoline to clean blade.
10. While making a slide cut, KICKBACK can
occur. KICKBACK occurs when the blade
binds in the workpiece during a cutting oper-
ation and the saw blade is driven rapidly
towards the operator. Loss of control and seri-
ous personal injury can result. If blade begins
to bind during a cutting operation, do not con-
tinue to cut and release switch immediately.
11. Use only anges specied for this tool.
12. Be careful not to damage the arbor, anges
(especially the installing surface) or bolt.
Damage to these parts could result in blade
breakage.
13. Make sure that the turn base is properly
secured so it will not move during operation.
Use the holes in the base to fasten the saw to a
stable work platform or bench. NEVER use tool
where operator positioning would be awkward.
14. Make sure the shaft lock is released before the
switch is turned on.
15. Be sure that the blade does not contact the
turn base in the lowest position.
16. Hold the handle rmly. Be aware that the saw
moves up or down slightly during start-up and
stopping.
17. Make sure the blade is not contacting the
workpiece before the switch is turned on.
18. Before using the tool on an actual workpiece,
let it run for a while. Watch for vibration or
wobbling that could indicate poor installation
or a poorly balanced blade.
19. Stop operation immediately if you notice any-
thing abnormal.
20. Do not attempt to lock the trigger in the "ON"
position.
21. Always use accessories recommended in this
manual. Use of improper accessories such as
abrasive wheels may cause an injury.
22. Some material contains chemicals which may
be toxic. Take caution to prevent dust inhala-
tion and skin contact. Follow material supplier
safety data.
Additional safety rules for the laser
1. LASER RADIATION, DO NOT STARE INTO THE
BEAM OR VIEW DIRECTLY WITH OPTICAL
INSTRUMENTS, CLASS 2M LASER PRODUCT.
SAVE THESE INSTRUCTIONS.
WARNING: DO NOT let comfort or familiarity
with product (gained from repeated use) replace
strict adherence to safety rules for the subject
product. MISUSE or failure to follow the safety
rules stated in this instruction manual may cause
serious personal injury.

7ENGLISH

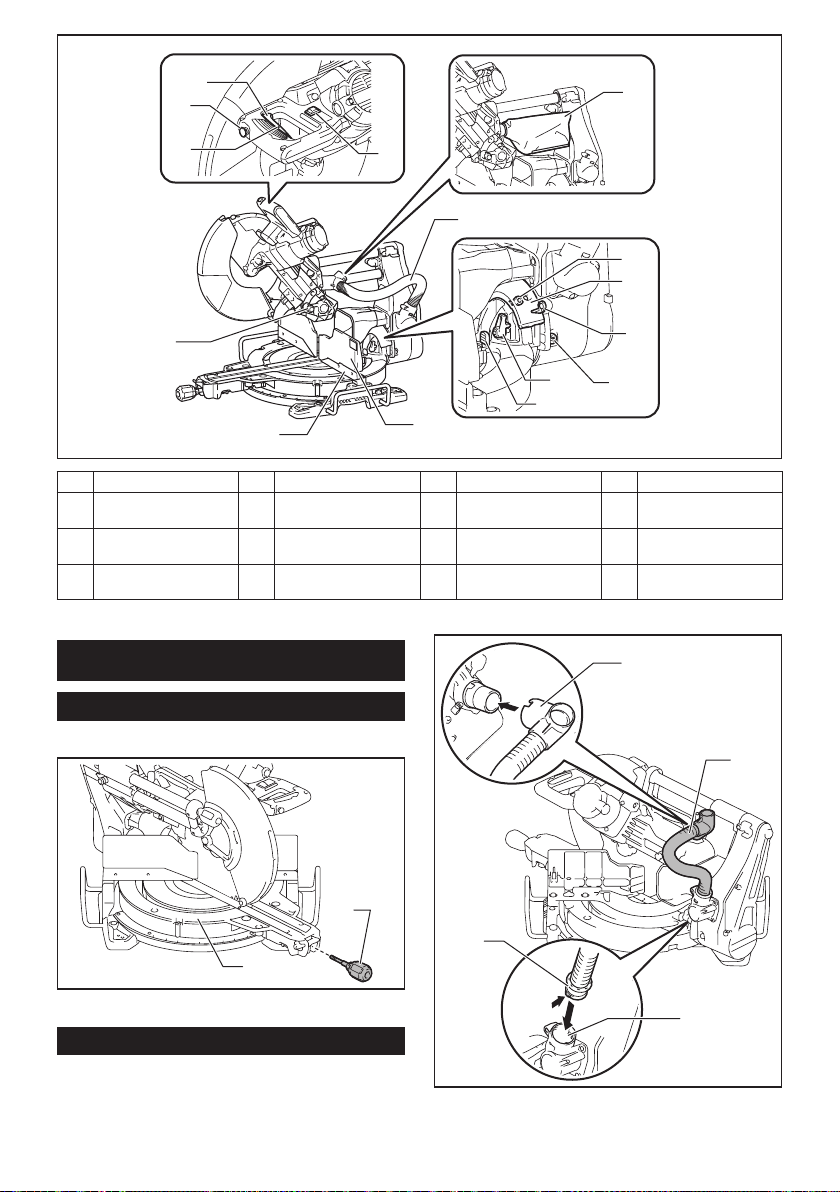

PARTS DESCRIPTION
10 11
12
14
15
3
2
4
5
8
79
13
6
1
16
17
18
19
20 21
1Slide pole 2Stopper pin (for carriage
sliding)
3Vertical vise 4Releasing button (for
right side bevel angle)
5Holder 6Turn base 7Pointer (for miter angle) 8Miter angle scale
9Kerf board 10 Blade case 11 Adjustingscrew(for
laser line)
12 Rangeadjustmentscrew
(for laser line)
13 Blade guard 14 Knob (for bevel angle) 15 Hex wrench 16 Adjustingscrew(for
lower limit position)
17 Adjustingbolt(formaxi-
mum cutting capacity)
18 Stopper arm 19 Lock lever (for turn base) 20 Releasing lever (for turn
base)
21 Grip (for turn base) ------

8ENGLISH
78
5
6
1
2
34
9
10
11
15
13
12
14
1Switch trigger 2Lock-off button 3Hole for padlock 4Switch (for laser line)
5Hose (for dust
extraction)
6Stopper pin (for carriage
elevation)
7Guide fence (lower
fence)
8Guide fence (upper
fence)
9Dust bag 10 0°adjustingbolt(for
bevel angle)
11 Bevel angle scale 12 Releasing lever (for 48°
bevel angle)
13 Latch lever (for bevel
angle)
14 Pointer (for bevel angle) 15 45°adjustingbolt(for
bevel angle)
- -
INSTALLATION
Installing the grip
Screw the threaded shaft of the grip into the turn base.
1
2
►1. Grip 2. Turn base
Installing the dust extraction hose
Connect the dust extraction hose to the tool as
illustrated.
Makesurethattheelbowandthesleevetproperlyto
the ports of the tool.
1
3
2
4
►1. Dust extraction hose 2. Elbow 3. Sleeve 4. Port

9ENGLISH
Bench mounting
When the tool is shipped, the handle is locked in the
lowered position by the stopper pin. While lowering the
handle slightly, pull the stopper pin and rotate it 90°.
1
3
2
►1. Locked position 2. Unlocked position 3. Stopper
pin
This tool should be bolted with four bolts to a level and
stable surface using the bolt holes provided in the tool's
base.Thiswillhelppreventtippingandpossibleinjury.
1
►1. Bolt
WARNING: Ensure that the tool will not move
on the supporting surface. Movement of the miter
saw on the supporting surface while cutting may
resultinlossofcontrolandseriouspersonalinjury.
FUNCTIONAL
DESCRIPTION
WARNING: Always be sure that the tool is
switched off and unplugged before adjusting or
checking function on the tool. Failure to switch off
and unplug the tool may result in serious personal
injuryfromaccidentalstart-up.
Blade guard
1
►1. Blade guard
When lowering the handle, the blade guard rises automat-
ically. The guard is spring loaded so it returns to its original
position when the cut is completed and the handle is raised.
WARNING: Never defeat or remove the blade
guard or the spring which attaches to the guard.
An exposed blade as a result of defeated guarding
mayresultinseriouspersonalinjuryduringoperation.
In the interest of your personal safety, always maintain
the blade guard in good condition. Any irregular opera-
tion of the blade guard should be corrected immediately.
Check to assure spring loaded return action of guard.
WARNING: Never use the tool if the blade
guard or spring are damaged, faulty or removed.
Operation of the tool with a damaged, faulty or
removedguardmayresultinseriouspersonalinjury.
If the see-through blade guard becomes dirty, or saw-
dust adheres to it in such a way that the blade and/or
workpiece is no longer easily visible, unplug the saw and
clean the guard carefully with a damp cloth. Do not use
solvents or any petroleum-based cleaners on the plastic
guard because this may cause damage to the guard.
If the blade guard is especially dirty and vision through
the guard is impaired, unplug the tool and use the sup-
plied wrench to loosen the hex bolt holding the center
cover. Loosen the hex bolt by turning it counterclock-
wise and raise the blade guard and center cover. With
the blade guard so positioned, cleaning can be more
completelyandefcientlyaccomplished.Whencleaning
is complete, reverse procedure above and secure bolt.
Do not remove spring holding blade guard. If guard
becomes discolored through age or UV light exposure,
contact a Makita service center for a new guard. DO
NOT DEFEAT OR REMOVE GUARD.

10 ENGLISH
3
1
2

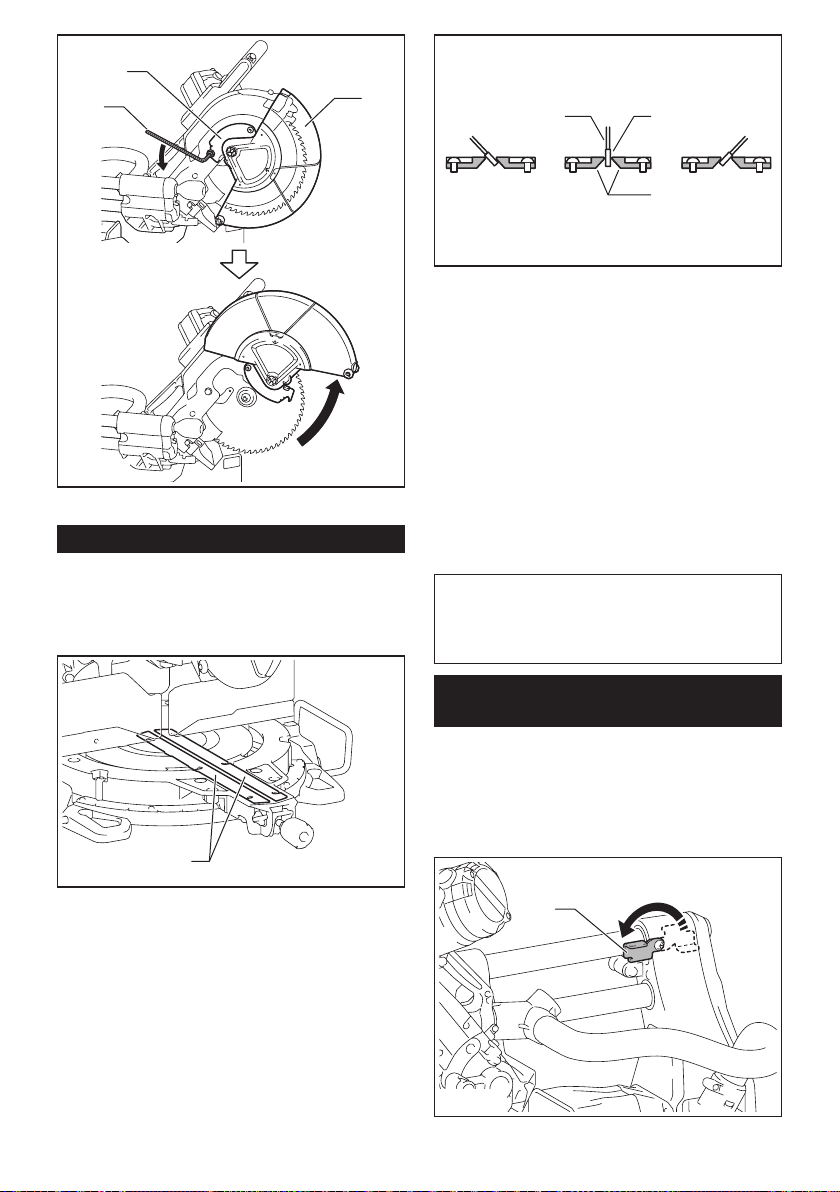

►1. Center cover 2. Hex wrench 3. Blade guard
Kerf boards
This tool is provided with the kerf boards in the turn
base to minimize tearing on the exit side of a cut. The
kerfboardsarefactoryadjustedsothatthesawblade
doesnotcontactthekerfboards.Beforeuse,adjustthe
kerf boards as follows:
1
►1. Kerf board
1
23
4
6
5
►1. Left bevel cut 2. Straight cut 3. Right bevel cut
4. Saw blade 5. Blade teeth 6. Kerf board
First, unplug the tool. Loosen all the screws (2 each
on left and right) securing the kerf boards until the kerf
boards can still be easily moved by hand. Lower the
handle fully, then pull and turn the stopper pin to lock
the handle in the lowered position. Release the stopper
pin on the sliding pole and pull the carriage toward you
fully.Adjustthekerfboardssothatthekerfboardsjust
contact the sides of the blade teeth. Tighten the front
screws(donottightenrmly).Pushthecarriagetoward
theguidefencefullyandadjustthekerfboardssothat
thekerfboardsjustcontactthesidesofbladeteeth.
Tightentherearscrews(donottightenrmly).
Afteradjustingthekerfboards,releasethestopper
pin and raise the handle. Then tighten all the screws
securely.
NOTICE: After setting the bevel angle ensure
that the kerf boards are adjusted properly. Correct
adjustmentofthekerfboardswillhelpprovideproper
support of the workpiece minimizing workpiece tear
out.
Maintaining maximum cutting
capacity
Thistoolisfactoryadjustedtoprovidethemaximum
cutting capacity for a 305 mm saw blade.
When installing a new blade, always check the lower limit
positionofthebladeandifnecessary,adjustitasfollows:
First, unplug the tool. Turn the stopper lever to engaged
position.
1
►1. Stopper lever

11 ENGLISH
Push the carriage toward the guide fence fully and
lower the handle completely.

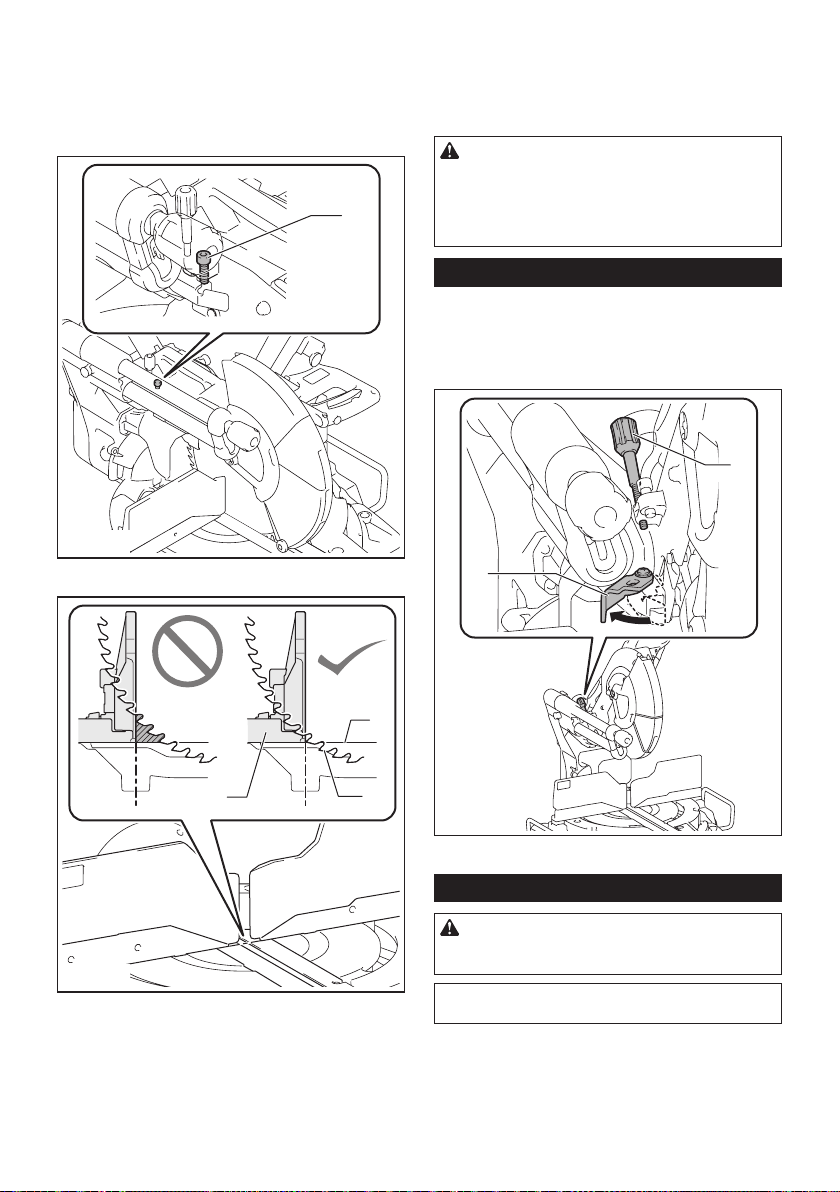

Adjustthebladepositionbyturningtheadjustingbolt
with the hex wrench. The periphery of the blade should
extend slightly below the top surface of the turn base
and also comes to the point where the front face of the
guide fence meets the top surface of the turn base.
1
►1.Adjustingbolt
1
32
►1. Top surface of turn base 2. Periphery of blade
3. Guide fence
With the tool unplugged, rotate the blade by hand while
holding the handle all the way down to be sure that
the blade does not contact any part of the lower base.
Re-adjustslightly,ifnecessary.
Afteradjustment,alwaysreturnthestopperlevertothe
original position.
WARNING: After installing a new blade and
with the tool unplugged, always be sure that the
blade does not contact any part of the lower base
when the handle is lowered completely. If a blade
makes contact with the base it may cause kickback
andresultinseriouspersonalinjury.
Stopper arm
The lower limit position of the blade can be easily
adjustedwiththestopperarm.Toadjustit,turnthe
stopper arm in the direction of the arrow as shown in the
gure.Turntheadjustingscrewsothatthebladestops
at the desired position when lowering the handle fully.
1
2
►1. Stopper arm 2.Adjustingscrew
Adjusting the miter angle
CAUTION: After changing the miter angle,
always secure the turn base by tightening the grip
rmly.
NOTICE: When turning the turn base, be sure to
raise the handle fully.

12 ENGLISH
1
3
2
4
►1. Lock lever 2. Grip 3. Releasing lever 4. Pointer
Rotate the grip counterclockwise to unlock the turn
base. Turn the grip while holding down the lock lever to
move the turn base. Align the pointer with your desired
angle on the scale then tighten the grip.
NOTE: If you depress the releasing lever, you can
move the turn base without holding down the lock
lever. Tighten the grip at your desired position.
This miter saw employs positive stop function. You can
set 0°, 15°, 22.5°, 31.6°, 45°, and 60° right/left miter
angle quickly. To use this function, move the turn base
close to your desired positive stop angle while holding
down the lock lever. Then release the lock lever and
move the turn base forward until the turn base is locked.
Adjusting the bevel angle
NOTICE: Always remove the upper guide fences
and vertical vise before adjusting the bevel angle.
NOTICE: When changing bevel angles, be sure
to position the kerf boards appropriately as
explained in the "Kerf boards" section.
NOTICE: When tilting the saw blade, be sure to
raise the handle fully.
NOTICE: Do not tighten the knob too hard. Doing
so may cause malfunction of the locking mecha-
nism of the bevel angle.
1. Turn the knob on the slide pole counterclockwise.
1
►1. Knob
2. Pull and turn the latch lever to the position as
illustrated.
1
►1. Latch lever
3. Match the pointer with your desired angle on the
scale by moving the carriage then tighten the knob.

13 ENGLISH
1
2
►1. Bevel angle scale 2. Pointer
To tilt the carriage to the right, tilt the carriage to the left
slightly and then tilt it to the right while pressing down
the releasing button.
1
►1. Releasing button
If you perform a bevel cut greater than 45°, move the
carriage while sliding the releasing lever toward the
front of the tool. You can perform up to 48° bevel cut.
1
►1. Releasing lever
This miter saw employs positive stop function. You can
set 22.5° and 33.9° angle to both right and left quickly.
Set the latch lever in the position as illustrated and tilt
the carriage. To change the angle, pull the latch lever
and tilt the carriage.
1
►1. Latch lever
CAUTION: After changing the bevel angle,
always secure the knob.
Slide lock

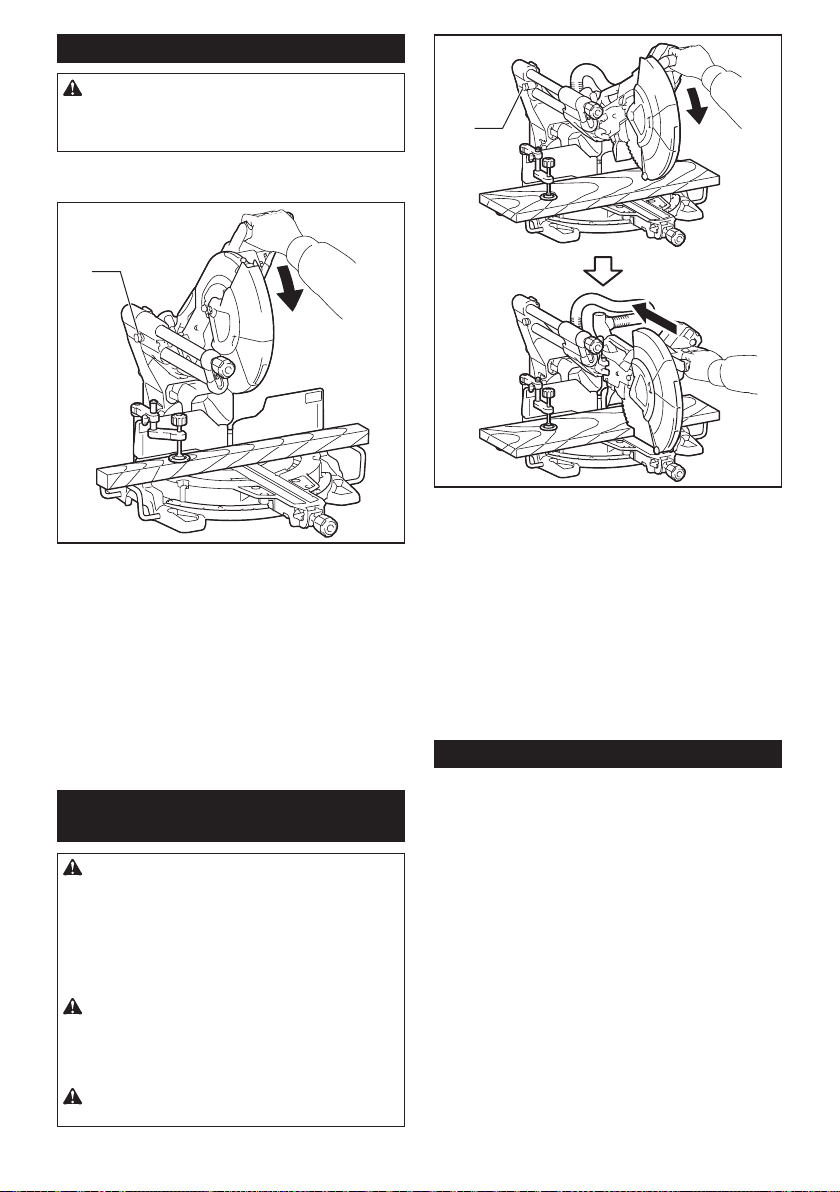

To lock the sliding movement of the carriage, push the
carriage toward the guide fence until it stops. Pull the
stopper pin and rotate it 90°.
3
2
1
►1. Unlocked position 2. Locked position 3. Stopper
pin

14 ENGLISH
Switch action
WARNING: Before plugging in the tool,
always check to see that the switch trigger actu-
ates properly and returns to the "OFF" position
when released. Do not pull the switch trigger hard
without pressing in the lock-off button. This can
cause switch breakage. Operating a tool with a
switch that does not actuate properly can lead to loss
ofcontrolandseriouspersonalinjury.
WARNING: NEVER use tool without a fully
operative switch trigger. Any tool with an inoper-
ative switch is HIGHLY DANGEROUS and must be
repaired before further usage or serious personal
injurymayoccur.
WARNING: NEVER defeat the lock-off button
by taping down or some other means. A switch with
a negated lock-off button may result in unintentional
operationandseriouspersonalinjury.
WARNING: NEVER use the tool if it runs when
you simply pull the switch trigger without press-
ing the lock-off button. A switch in need of repair
may result in unintentional operation and serious
personalinjury.ReturntooltoaMakitaservicecenter
for proper repairs BEFORE further usage.
1
2
3

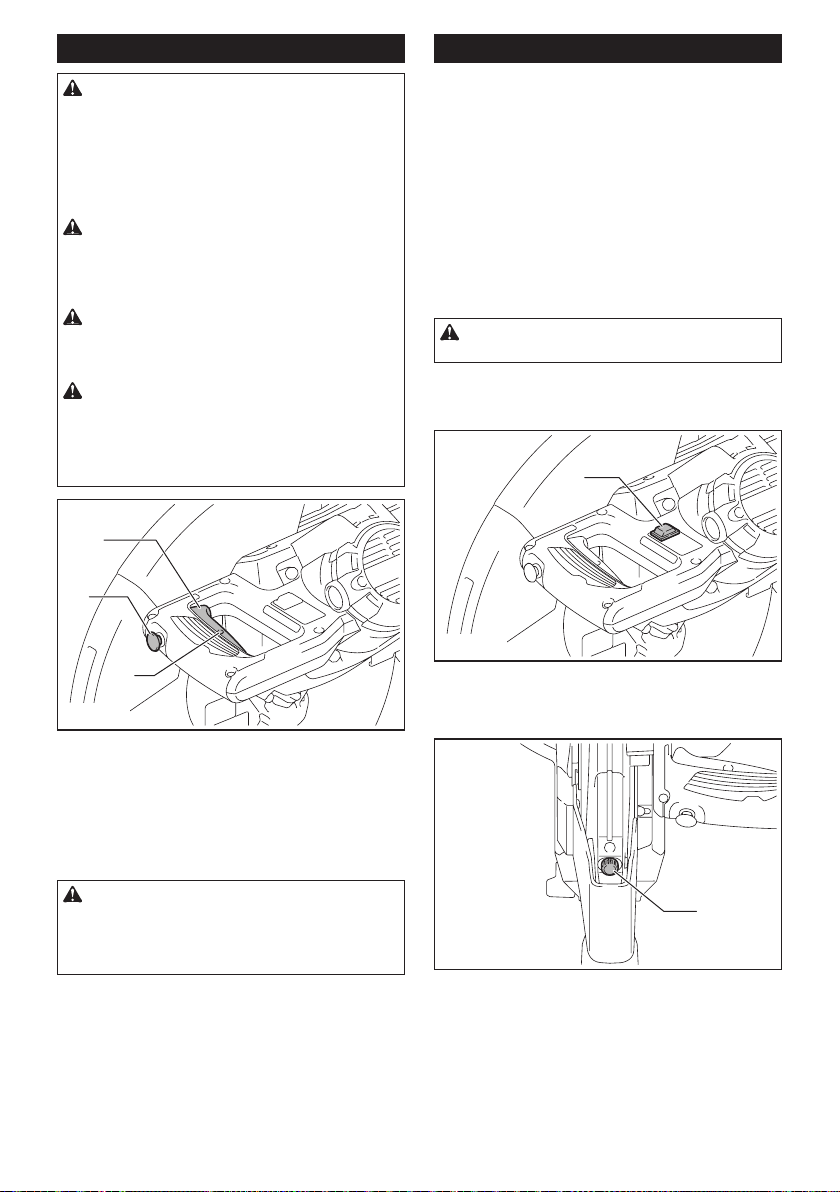

►1. Switch trigger 2. Lock-off button 3. Hole for
padlock
To prevent the switch trigger from being accidentally
pulled, a lock-off button is provided. To start the tool,
press in the lock-off button and pull the switch trigger.
Release the switch trigger to stop.
A hole is provided in the switch trigger for insertion of a
padlock to lock the tool off.
WARNING: Do not use a lock with a shank
or cable any smaller than 6.35 mm in diameter. A
smaller shank or cable may not properly lock the tool
in the off position and unintentional operation may
occurresultinginseriouspersonalinjury.
Electronic function
Constant speed control
The tool is provided with an electronic speed control
which helps maintain a constant blade rotation speed
even under load. A constant blade rotation speed will
result in a very smooth cut.
Soft start feature
This function allows the smooth start-up of the tool by
limiting the start-up torque.
Laser beam action
For model LS1219L only
CAUTION: Never look into the laser beam.
Directlaserbeammayinjureyoureyes.
To turn on the laser beam, press the upper position (I)
of the switch. To turn off the laser beam, press the lower
position (0) of the switch.
1
►1. Switch for laser
Laser line can be shifted to either the left or right side of
thesawbladebyturningtheadjustingscrewasfollows.
1
►1.Adjustingscrew
1. Loosentheadjustingscrewbyturningit
counterclockwise.
2. Withtheadjustingscrewloosened,slidethe
adjustingscrewtotherightorleftasfarasitgoes.
3. Tightentheadjustingscrewrmlyattheposition
where it stops sliding.

15 ENGLISH
NOTE:Laserlineisfactoryadjustedsothatitisposi-
tioned within 1 mm from the side surface of the blade
(cutting position).
NOTE: When laser line appears dim and hard to see
because of direct sunlight, relocate the work area to a
place where there is less direct sunlight.
Aligning the laser line
Align the cutting line on your workpiece with the laser
line.
A
B
A) When you want to obtain the correct size on the left
side of workpiece, shift the laser line to the left of the
blade.
B) When you want to obtain the correct size on the right
side of workpiece, shift the laser line to the right of the
blade.
NOTE: Use wood facing against the guide fence
when aligning the cutting line with the laser line at the
side of guide fence in compound cutting (bevel angle
45° and miter angle right 45°).
ASSEMBLY
WARNING: Always be sure that the tool is
switched off and unplugged before working on
the tool. Failure to switch off and unplug the tool may
resultinseriouspersonalinjury.
Hex wrench storage
When not in use, store the hex wrench as shown in the
guretokeepitfrombeinglost.
1
►1. Hex wrench
Removing and installing saw blade
WARNING: Always be sure that the tool is
switched off and unplugged before installing or
removing the blade. Accidental start up of the tool
mayresultinseriouspersonalinjury.
WARNING: Use only the Makita wrench pro-
vided to install or remove the blade. Failure to use
thewrenchmayresultinovertighteningorinsufcient
tightening of the hex socket bolt and serious personal
injury.
Always lock the carriage with raised position when
removing and installing the blade. Pull the stopper pin
and rotate it 90° with the carriage raised.
3
12
►1. Unlocked position 2. Locked position 3. Stopper
pin

16 ENGLISH
Removing the blade
Loosen the hex bolt holding the center cover using the
hex wrench. Raise the blade guard and center cover.
3
1
2
►1. Center cover 2. Hex wrench 3. Blade guard
Press the shaft lock to lock the spindle and use the hex
wrench to loosen the hex socket bolt. Then remove the
hexsocketbolt,outerangeandblade.
2
3
1
4
5
►1. Shaft lock 2. Hex wrench 3. Hex socket bolt (left-
handed) 4. Loosen 5. Tighten
Installing the blade
Mount the blade carefully onto the spindle, making
sure that the direction of the arrow on the surface of the
blade matches the direction of the arrow on the blade
case.
1
2
►1. Arrow on the blade case 2. Arrow on the blade
Installtheouterangeandhexsocketbolt.Tightenthe
hex socket bolt counterclockwise using the hex wrench
while pressing the shaft lock.
1 2 345
6
►1. Hex socket bolt 2.Outerange3. Saw blade
4.Innerange5. Spindle 6. Ring
NOTICE:Iftheinnerangeisremoved,besureto
install it on the spindle with its protrusion facing away
fromtheblade.Iftheangeisinstalledincorrectly,the
angewillrubagainstthemachine.
Return the blade guard and center cover to its original
position. Then tighten the hex bolt clockwise to secure
the center cover. Unlock the stopper pin to release
carriage from the raised position. Lower the handle to
make sure that the blade guard moves properly. Make
sure shaft lock has released spindle before making cut.
WARNING: Before mounting the blade onto
the spindle, always be sure that the correct ring
for the blade's arbor hole you intend to use is
installed between the inner and the outer anges.
Use of the incorrect arbor hole ring may result in the
improper mounting of the blade causing blade move-
ment and severe vibration resulting in possible loss
of control during operation and in serious personal
injury.

17 ENGLISH
Connecting a vacuum cleaner
When you wish to perform clean cutting operation, con-
nect a Makita vacuum cleaner to the dust nozzle using
a front cuff 24 (optional accessory).
3
12
►1. Front cuff 24 2. Hose 3. Vacuum cleaner
Dust bag
The use of the dust bag makes cutting operations clean
and dust collection easy. To attach the dust bag, remove
the dust extraction hose on the tool and connect the
dust bag.
1
2
►1. Dust extraction hose 2. Dust bag
When the dust bag is about half full, remove the dust
bag from the tool and pull the fastener out. Empty
the dust bag of its contents, tapping it lightly so as to
remove particles adhering to the insides which might
hamper further collection.
1
►1. Fastener
Securing workpiece
WARNING: It is extremely important to always
secure the workpiece correctly with the proper
type of vise or crown molding stoppers. Failure to
dosomayresultinseriouspersonalinjuryandcause
damage to the tool and/or the workpiece.
WARNING: After a cutting operation do not
raise the blade until it has come to a complete
stop. The raising of a coasting blade may result in
seriouspersonalinjuryanddamagetotheworkpiece.
WARNING: When cutting a workpiece that
is longer than the support base of the saw, the
material should be supported the entire length
beyond the support base and at the same height
to keep the material level. Proper workpiece support
will help avoid blade pinch and possible kickback
whichmayresultinseriouspersonalinjury.Donot
rely solely on the vertical vise and/or horizontal vise
to secure the workpiece. Thin material tends to sag.
Support workpiece over its entire length to avoid
blade pinch and possible KICKBACK.
12
►1. Support 2. Turn base

18 ENGLISH
Guide fences
WARNING: Before operating the tool, make
sure that the upper fence is secured rmly.
WARNING: Before bevel-cutting, make sure
that no part of the tool, especially the blade, con-
tacts the upper and lower fences when fully low-
ering and raising the handle in any position and
while moving the carriage through its full range
of travel. If the tool or blade makes contact with
the fence this may result in kickback or unexpected
movementofthematerialandseriouspersonalinjury.
Use upper fences to support the material higher than
the lower fences. Insert the upper fence into the hole on
the lower fence and tighten the clamping screw.
1
2
4
3
2
1
3
4
►1. Upper fence 2. Lower fence 3. Clamping screw
4.Adjustingscrew
NOTICE:Thelowerfencesarexedtothebasein
the factory. Do not remove the lower fences.
NOTICE: If the upper fence is still loose after tight-
eningtheclampingscrew,turntheadjustingscrewto
closeagap.Theadjustingscrewisfactoryadjusted.
You don't need to use it unless needed.
You can store the upper fences onto the holder when
not in use. Use the clip on the upper fence to hold it on
the holder.
2
3
1
►1. Holder 2. Upper fence 3. Clip
Vertical vise
WARNING: The workpiece must be secured
rmly against the turn base and guide fence with
the vise during all operations. If the workpiece is
not properly secured against the fence the material
may move during the cutting operation causing
possible damage to the blade, causing the material
to be thrown and loss of control resulting in serious
personalinjury.
1
2
3
4
►1. Vise arm 2. Vise rod 3. Clamping screw 4. Vise
knob
The vertical vise can be installed in two positions on
either the left or right side of the base. Insert the vise
rod into the hole in the base.
Position the vise arm according to the thickness and
shape of the workpiece and secure the vise arm by
tightening the screw. If the clamping screw contacts
the carriage, install it on the opposite side of vise arm.
Make sure that no part of the tool contacts the vise
when lowering the handle all the way. If some part
contacts the vise, re-position the vise.
Presstheworkpieceatagainsttheguidefenceandthe
turn base. Position the workpiece at the desired cutting
positionandsecureitrmlybytighteningtheviseknob.
NOTE: For a quick setting of workpiece, turning the
vise knob to 90° counterclockwise allows the vise
knob to be moved up and down. To secure the work-
piece after setting, turn the vise knob clockwise.

19 ENGLISH
Horizontal vise
Optional accessory
WARNING: Always rotate the vise nut clock-
wise until the workpiece is properly secured. If
the workpiece is not properly secured the material
may move during the cutting operation causing
possible damage to the blade, causing the material
to be thrown and loss of control resulting in serious
personalinjury.
WARNING: When cutting a thin workpiece,
such as base boards, against the fence, always
use the horizontal vise.
CAUTION: When cutting the workpiece of the
thickness 20 mm or thinner, make sure to use a
spacer block to secure the workpiece.
The horizontal vise can be installed in two positions on
either the left or right side of the base. When performing
22.5° or greater miter cuts, install the horizontal vise on
the side opposite the direction in which the turn base is
to be turned.
1
23
►1. Vise plate 2. Vise nut 3. Vise knob
Byippingthevisenutcounterclockwise,theviseis
released, and rapidly moves in and out. To grip the
workpiece, push the vise knob forward until the vise
platecontactstheworkpieceandipthevisenutclock-
wise. Then turn the vise knob clockwise to secure the
workpiece.
NOTE: The maximum width of workpiece which can
be secured by the horizontal vise is 228 mm.
Holders
WARNING: Always support a long workpiece
so it is level with the top surface of the turn base
for an accurate cut and to prevent dangerous loss
of tool control. Proper workpiece support will help
avoid blade pinch and possible kickback which may
resultinseriouspersonalinjury.
To hold long workpieces horizontally, holders are pro-
vided on both sides of the tool. Loosen the screws and
extend the holders to the appropriate length for holding
the workpiece. Then tighten the screws.
2
1
►1. Holder 2. Screw
OPERATION
WARNING: Make sure the blade is not con-
tacting the workpiece, etc. before the switch
is turned on. Turning the tool on with the blade in
contact with the workpiece may result in kickback and
seriouspersonalinjury.
WARNING: After a cutting operation, do not
raise the blade until it has come to a complete
stop. The raising of a coasting blade may result in
seriouspersonalinjuryanddamagetotheworkpiece.
WARNING: Do not perform any adjustment
such as turning grip, knob, and levers on the tool
while the blade is rotating. Adjustmentwhilethe
bladeisrotatingmayresultinseriouspersonalinjury.
NOTICE: Before use, be sure to unlock the stop-
per pin and release the handle from the lowered
position.
NOTICE: Do not apply excessive pressure on the
handle when cutting. Too much force may result in
overloadofthemotorand/ordecreasedcuttingef-
ciency. Press down handle with only as much force as
necessaryforsmoothcuttingandwithoutsignicant
decrease in blade speed.
NOTICE: Gently press down the handle to per-
form the cut. If the handle is pressed down with force
or if lateral force is applied, the blade may vibrate and
leave a mark (saw mark) in the workpiece and the
precision of the cut may be impaired.
NOTICE: During a slide cut, gently push the
carriage toward the guide fence without stopping.
If the carriage movement is stopped during the cut, a
mark will be left in the workpiece and the precision of
the cut will be impaired.

20 ENGLISH
Press cutting
WARNING: Always lock the sliding movement
of the carriage when performing a press cutting.
Cutting without lock may cause possible kickback
whichmayresultinseriouspersonalinjury.
Workpieces up to 92 mm high and 183 mm wide can be
cut in the following manner.
1
►1. Stopper pin
1. Push the carriage toward the guide fence until it
stops and lock it with the stopper pin.
2. Secure the workpiece with the proper type of vise.
3. Switch on the tool without the blade making any
contact and wait until the blade attains full speed before
lowering.
4. Gently lower the handle to the fully lowered posi-
tion to cut the workpiece.
5. When the cut is completed, switch off the tool and
wait until the blade has come to a complete stop
before returning the blade to its fully elevated position.
Slide (push) cutting (cutting wide
workpieces)
WARNING: Whenever performing a slide cut,
rst pull the carriage full towards you and press
the handle all the way down, then push the car-
riage toward the guide fence. Never start the cut
with the carriage not pulled fully toward you. If
you perform the slide cut without the carriage pulled
fully toward you unexpected kickback may occur and
seriouspersonalinjurymayresult.
WARNING: Never attempt to perform a slide
cut by pulling the carriage towards you. Pulling
the carriage towards you while cutting may cause
unexpected kickback resulting in possible serious
personalinjury.
WARNING: Never perform the slide cut with
the handle locked in the lowered position.
1
►1. Stopper pin
1. Unlock the stopper pin so that the carriage can
slide freely.
2. Secure the workpiece with the proper type of vise.
3. Pull the carriage toward you fully.
4. Switch on the tool without the blade making any
contact and wait until the blade attains full speed.
5. Press the handle down and push the carriage
toward the guide fence and through the workpiece.
6. When the cut is completed, switch off the tool and
wait until the blade has come to a complete stop
before returning the blade to its fully elevated position.
Miter cutting
Refertothepreviouslycovered"Adjustingthemiter
angle".
