Makita DUR190U User manual

INSTRUCTION MANUAL
Cordless Grass Trimmer
DUR190U
DUR190L
DUR191U
DUR191L
ENGLISH: Original instructions
Read before use.

2ENGLISH
SPECIFICATIONS
Model: DUR190U DUR190L DUR191U DUR191L
Type of handle Bike handle Loop handle Bike handle Loop handle
No load speed 3: 6,000 min-1
2: 5,100 min-1
1: 3,500 min-1
Overall length
(without cutting tool)
1,775 mm
Nylon cord diameter 2.0 - 2.4 mm
Applicable cutting tool and
cutting diameter
3-tooth blade
(P/N 191J34-5)
230 mm
4-tooth blade
(P/N 729025-2)
230 mm
Nylon cutting head
(P/N 126674-0)
300 mm
Plastic blade
(P/N 126642-3)
230 mm
Rated voltage D.C. 18 V
Net weight 3.1 - 3.4 kg 2.9 - 3.2 kg 3.4 - 3.7 kg 3.2 - 3.5 kg
• Duetoourcontinuingprogramofresearchanddevelopment,thespecicationshereinaresubjecttochange
without notice.
• Specicationsmaydi󰀨erfromcountrytocountry.
• Theweightmaydi󰀨erdependingontheattachment(s),includingthebatterycartridge.Thelightestandheavi-
est combination, according to EPTA-Procedure 01/2014, are shown in the table.
Applicable battery cartridge and charger
Battery cartridge BL1815N / BL1820 / BL1820B / BL1830 / BL1830B / BL1840 /
BL1840B / BL1850 / BL1850B / BL1860B
Charger DC18RC / DC18RD / DC18RE / DC18SD / DC18SE / DC18SF /
DC18SH
• Some of the battery cartridges and chargers listed above may not be available depending on your region of
residence.
WARNING: Only use the battery cartridges and chargers listed above. Use of any other battery cartridges
andchargersmaycauseinjuryand/orre.
Recommended battery adapter
Battery adapter PDC01
• The battery adapter(s) listed above may not be available depending on your region of residence.
• Before using the battery adapter, read instruction and cautionary markings on the battery adapter.
Noise
Model DUR190U
Cutting tool Sound pressure level (LpA)
dB(A)
Sound power level (LWA)
dB(A)
Applicable
standard
LpA dB(A) Uncer-
tainty (K)
dB(A)
LWA dB(A) Uncer-
tainty (K)
dB(A)
4-tooth blade 77.0 3.9 91.6 2.4
ISO22868
(ISO11806-1)
Nylon cutting head 74.0 1.9 87.1 0.9 ISO22868
(ISO11806-1)/
EN50636-2-91
Plastic blade 75.6 1.3 85.9 2.1 ISO22868
(ISO11806-1)/
EN50636-2-91

3ENGLISH
Model DUR190L
Cutting tool Sound pressure level (LpA)
dB(A)
Sound power level (LWA)
dB(A)
Applicable
standard
LpA dB(A) Uncer-
tainty (K)
dB(A)
LWA dB(A) Uncer-
tainty (K)
dB(A)
4-tooth blade 77.0 3.9 91.6 2.4
ISO22868
(ISO11806-1)
Nylon cutting head 74.0 1.9 87.1 0.9 ISO22868
(ISO11806-1)/
EN50636-2-91
Plastic blade 75.6 1.3 85.9 2.1 ISO22868
(ISO11806-1)/
EN50636-2-91
Model DUR191U
Cutting tool Sound pressure level (LpA)
dB(A)
Sound power level (LWA)
dB(A)
Applicable
standard
LpA dB(A) Uncer-
tainty (K)
dB(A)
LWA dB(A) Uncer-
tainty (K)
dB(A)
4-tooth blade 77.0 3.9 91.6 2.4
ISO22868
(ISO11806-1)
Nylon cutting head 74.0 1.9 87.1 0.9 ISO22868
(ISO11806-1)/
EN50636-2-91
Plastic blade 75.6 1.3 85.9 2.1 ISO22868
(ISO11806-1)/
EN50636-2-91
Model DUR191L
Cutting tool Sound pressure level (LpA)
dB(A)
Sound power level (LWA)
dB(A)
Applicable
standard
LpA dB(A) Uncer-
tainty (K)
dB(A)
LWA dB(A) Uncer-
tainty (K)
dB(A)
4-tooth blade 77.0 3.9 91.6 2.4
ISO22868
(ISO11806-1)
Nylon cutting head 74.0 1.9 87.1 0.9 ISO22868
(ISO11806-1)/
EN50636-2-91
Plastic blade 75.6 1.3 85.9 2.1 ISO22868
(ISO11806-1)/
EN50636-2-91
• Even if the sound pressure level listed above is 80 dB (A) or less, the level under working may exceed 80 dB
(A). Wear ear protection.
NOTE: The declared noise emission value(s) has been measured in accordance with a standard test method and
may be used for comparing one tool with another.
NOTE: The declared noise emission value(s) may also be used in a preliminary assessment of exposure.
WARNING: Wear ear protection.
WARNING: The noise emission during actual use of the power tool can di󰀨er from the declared val-
ue(s) depending on the ways in which the tool is used especially what kind of workpiece is processed.
WARNING: Be sure to identify safety measures to protect the operator that are based on an estimation
of exposure in the actual conditions of use (taking account of all parts of the operating cycle such as the
times when the tool is switched o󰀨 and when it is running idle in addition to the trigger time).

4ENGLISH
Vibration
Model DUR190U
Cutting tool Left hand Right hand Applicable
standard
ah,W (m/s2)
Uncertainty K
(m/s2)
ah,W (m/s2) Uncertainty K
(m/s2)
4-tooth blade 2.5 1.5 2.5 1.5 ISO22867
(ISO11806-1)
Nylon cutting head 2.5 1.5 2.5 1.5 ISO22867
(ISO11806-1)
Plastic blade 2.5 1.5 2.5 1.5 ISO22867
(ISO11806-1)
Model DUR190L
Cutting tool Left hand Right hand Applicable
standard
ah,W (m/s2)
Uncertainty K
(m/s2)
ah,W (m/s2) Uncertainty K
(m/s2)
4-tooth blade 2.5 1.5 2.5 1.5 ISO22867
(ISO11806-1)
Nylon cutting head 2.5 1.5 2.5 1.5 ISO22867
(ISO11806-1)
Plastic blade 2.5 1.5 2.5 1.5 ISO22867
(ISO11806-1)
Model DUR191U
Cutting tool Left hand Right hand Applicable
standard
ah,W (m/s2)
Uncertainty K
(m/s2)
ah,W (m/s2) Uncertainty K
(m/s2)
4-tooth blade 2.5 1.5 2.5 1.5 ISO22867
(ISO11806-1)
Nylon cutting head 2.5 1.5 2.5 1.5 ISO22867
(ISO11806-1)
Plastic blade 2.5 1.5 2.5 1.5 ISO22867
(ISO11806-1)
Model DUR191L
Cutting tool Left hand Right hand Applicable
standard
ah,W (m/s2)
Uncertainty K
(m/s2)
ah,W (m/s2) Uncertainty K
(m/s2)
4-tooth blade 2.5 1.5 2.5 1.5 ISO22867
(ISO11806-1)
Nylon cutting head 2.5 1.5 2.5 1.5 ISO22867
(ISO11806-1)
Plastic blade 2.5 1.5 2.5 1.5 ISO22867
(ISO11806-1)
NOTE: The declared vibration total value(s) has been measured in accordance with a standard test method and
may be used for comparing one tool with another.
NOTE: The declared vibration total value(s) may also be used in a preliminary assessment of exposure.
WARNING: The vibration emission during actual use of the power tool can di󰀨er from the declared
value(s) depending on the ways in which the tool is used especially what kind of workpiece is processed.
WARNING: Be sure to identify safety measures to protect the operator that are based on an estimation
of exposure in the actual conditions of use (taking account of all parts of the operating cycle such as the
times when the tool is switched o󰀨 and when it is running idle in addition to the trigger time).

5ENGLISH
Symbols
The followings show the symbols used for the equipment.
Be sure that you understand their meaning before use.
Take particular care and attention.
Read instruction manual.
15m(50FT)Keep distance at least 15 m.
Danger;beawareofthrownobjects.
Caution; kickback
Wear a helmet, goggles and ear protection.
Wear protective gloves.
Wear sturdy boots with nonslip soles.
Steeltoed safety boots are recommended.
Do not expose to moisture.
Ni-MH
Li-ion
Only for EU countries
Do not dispose of electric equipment or
battery pack together with household waste
material! In observance of the European
Directives, on Waste Electric and Electronic
Equipment and Batteries and Accumulators
and Waste Batteries and Accumulators
and their implementation in accordance
with national laws, electric equipment and
batteries and battery pack(s) that have
reached the end of their life must be col-
lected separately and returned to an envi-
ronmentally compatible recycling facility.
EC Declaration of Conformity
For European countries only
The EC declaration of conformity is included as Annex A
to this instruction manual.
SAFETY WARNINGS
General power tool safety warnings
WARNING: Read all safety warnings, instruc-
tions, illustrations and specications provided
with this power tool. Failure to follow all instructions
listedbelowmayresultinelectricshock,reand/or
seriousinjury.
Save all warnings and instruc-
tions for future reference.
The term "power tool" in the warnings refers to your
mains-operated (corded) power tool or battery-operated
(cordless) power tool.
Work area safety
1. Keep work area clean and well lit. Cluttered or
dark areas invite accidents.
2. Do not operate power tools in explosive atmo-
spheres, such as in the presence of ammable
liquids, gases or dust. Power tools create sparks
which may ignite the dust or fumes.
3. Keep children and bystanders away while
operating a power tool. Distractions can cause
you to lose control.
Electrical safety
1. Power tool plugs must match the outlet. Never
modify the plug in any way. Do not use any
adapter plugs with earthed (grounded) power
tools. Unmodiedplugsandmatchingoutletswill
reduce risk of electric shock.
2. Avoid body contact with earthed or grounded
surfaces, such as pipes, radiators, ranges and
refrigerators. There is an increased risk of elec-
tric shock if your body is earthed or grounded.
3. Do not expose power tools to rain or wet con-
ditions. Water entering a power tool will increase
the risk of electric shock.
4. Do not abuse the cord. Never use the cord for
carrying, pulling or unplugging the power tool.
Keep cord away from heat, oil, sharp edges
or moving parts. Damaged or entangled cords
increase the risk of electric shock.
5. When operating a power tool outdoors, use an
extension cord suitable for outdoor use. Use of
a cord suitable for outdoor use reduces the risk of
electric shock.
6. If operating a power tool in a damp location
is unavoidable, use a residual current device
(RCD) protected supply. Use of an RCD reduces
the risk of electric shock.
7. Power tools can produce electromagnetic
elds (EMF) that are not harmful to the user.
However, users of pacemakers and other similar
medical devices should contact the maker of their
device and/or doctor for advice before operating
this power tool.
Personal safety
1. Stay alert, watch what you are doing and use
common sense when operating a power tool.
Do not use a power tool while you are tired or
under the inuence of drugs, alcohol or med-
ication. A moment of inattention while operating
powertoolsmayresultinseriouspersonalinjury.
2. Use personal protective equipment. Always
wear eye protection. Protective equipment such
as a dust mask, non-skid safety shoes, hard hat or
hearing protection used for appropriate conditions
willreducepersonalinjuries.
3. Prevent unintentional starting. Ensure the
switch is in the o󰀨-position before connecting
to power source and/or battery pack, picking
up or carrying the tool. Carrying power tools with
yourngerontheswitchorenergisingpowertools
that have the switch on invites accidents.
4. Remove any adjusting key or wrench before
turning the power tool on. A wrench or a key left
attached to a rotating part of the power tool may
resultinpersonalinjury.

6ENGLISH
5. Do not overreach. Keep proper footing and
balance at all times. This enables better control
of the power tool in unexpected situations.
6. Dress properly. Do not wear loose clothing or
jewellery. Keep your hair and clothing away
from moving parts.Looseclothes,jewelleryor
long hair can be caught in moving parts.
7. If devices are provided for the connection of
dust extraction and collection facilities, ensure
these are connected and properly used. Use of
dust collection can reduce dust-related hazards.
8.
Do not let familiarity gained from frequent use
of tools allow you to become complacent and
ignore tool safety principles. A careless action can
causesevereinjurywithinafractionofasecond.
9. Always wear protective goggles to protect your eyes
from injury when using power tools. The goggles
must comply with ANSI Z87.1 in the USA, EN 166 in
Europe, or AS/NZS 1336 in Australia/New Zealand. In
Australia/New Zealand, it is legally required to wear
a face shield to protect your face, too.
It is an employer's responsibility to enforce
the use of appropriate safety protective equip-
ments by the tool operators and by other per-
sons in the immediate working area.
Power tool use and care
1. Do not force the power tool. Use the correct
power tool for your application. The correct
powertoolwilldothejobbetterandsaferatthe
rate for which it was designed.
2.
Do not use the power tool if the switch does not turn
it on and o󰀨. Any power tool that cannot be controlled
with the switch is dangerous and must be repaired.
3. Disconnect the plug from the power source
and/or remove the battery pack, if detachable,
from the power tool before making any adjust-
ments, changing accessories, or storing power
tools. Such preventive safety measures reduce
the risk of starting the power tool accidentally.
4.
Store idle power tools out of the reach of children and
do not allow persons unfamiliar with the power tool
or these instructions to operate the power tool. Power
tools are dangerous in the hands of untrained users.
5. Maintain power tools and accessories. Check
for misalignment or binding of moving parts,
breakage of parts and any other condition that
may a󰀨ect the power tool’s operation. If dam-
aged, have the power tool repaired before use.
Many accidents are caused by poorly maintained
power tools.
6. Keep cutting tools sharp and clean. Properly
maintained cutting tools with sharp cutting edges
are less likely to bind and are easier to control.
7. Use the power tool, accessories and tool bits
etc. in accordance with these instructions, tak-
ing into account the working conditions and
the work to be performed. Use of the power tool
foroperationsdi󰀨erentfromthoseintendedcould
result in a hazardous situation.
8. Keep handles and grasping surfaces dry,
clean and free from oil and grease. Slippery
handles and grasping surfaces do not allow for
safe handling and control of the tool in unexpected
situations.
9. When using the tool, do not wear cloth work
gloves which may be entangled. The entangle-
ment of cloth work gloves in the moving parts may
resultinpersonalinjury.
Battery tool use and care
1. Recharge only with the charger specied by
the manufacturer. A charger that is suitable for
onetypeofbatterypackmaycreateariskofre
when used with another battery pack.
2. Use power tools only with specically desig-
nated battery packs. Use of any other battery
packsmaycreateariskofinjuryandre.
3. When battery pack is not in use, keep it away
from other metal objects, like paper clips,
coins, keys, nails, screws or other small metal
objects, that can make a connection from one
terminal to another. Shorting the battery termi-
nalstogethermaycauseburnsorare.
4. Under abusive conditions, liquid may be
ejected from the battery; avoid contact. If con-
tact accidentally occurs, ush with water. If
liquid contacts eyes, additionally seek medical
help.Liquidejectedfromthebatterymaycause
irritation or burns.
5. Do not use a battery pack or tool that is dam-
aged or modied.Damagedormodiedbatteries
may exhibit unpredictable behaviour resulting in
re,explosionorriskofinjury.
6. Do not expose a battery pack or tool to re or
excessive temperature.Exposuretoreortem-
perature above 130 °C may cause explosion.
7. Follow all charging instructions and do not
charge the battery pack or tool outside the
temperature range specied in the instruc-
tions. Charging improperly or at temperatures
outsidethespeciedrangemaydamagethe
batteryandincreasetheriskofre.
Service
1. Have your power tool serviced by a qualied
repair person using only identical replacement
parts. This will ensure that the safety of the power
tool is maintained.
2. Never service damaged battery packs. Service
of battery packs should only be performed by the
manufacturer or authorized service providers.
3. Follow instruction for lubricating and chang-
ing accessories.

7ENGLISH
Important safety instructions for the
tool
WARNING: Read all safety warnings and
all instructions. Failure to follow the warnings and
instructionsmayresultinelectricshock,reand/or
seriousinjury.
Save all warnings and instruc-
tions for future reference.
Intended use
1. This tool is only intended for cutting grass,
weeds, bushes and undergrowth. It should not
be used for any other purpose such as edging
or hedge cutting as this may cause injury.
General instructions
1. Never allow people unfamiliar with these
instructions, people (including children) with
reduced physical, sensory or mental capabil-
ities, or lack of experience and knowledge to
use the tool. Children should be supervised to
ensure that they do not play with the tool.
2. Before starting the tool, read this instruction
manual to become familiar with the handling of
the tool.
3. Do not lend the tool to a person with insu󰀩-
cient experience or knowledge regarding han-
dling of brushcutters and string trimmers.
4. When lending the tool, always attach this
instruction manual.
5. Handle the tool with the utmost care and
attention.
6. Never use the tool after consuming alcohol or
drugs, or if feeling tired or ill.
7. Never attempt to modify the tool.
8. Follow the regulations about handling of
brushcutters and string trimmers in your
country.
Personal protective equipment
1. Wear safety helmet, protective goggles and
protective gloves to protect yourself from
ying debris or falling objects.
2. Wear ear protection such as ear mu󰀨s to pre-
vent hearing loss.
3. Wear proper clothing and shoes for safe
operation, such as a work overall and sturdy,
non-slip shoes. Do not wear loose clothing or
jewelry.Looseclothes,jewelryorlonghaircanbe
caught in moving parts.
4. When touching the cutting blade, wear protec-
tive gloves. Cutting blades can cut bare hands
severely.
Work area safety
1. Operate the tool under good visibility and day-
light conditions only. Do not operate the tool in
darkness or fog.
2. Do not operate the tool in explosive atmo-
spheres, such as in the presence of ammable
liquids, gases or dust. The tool creates sparks
which may ignite the dust or fumes.
3. During operation, never stand on an unstable
or slippery surface or a steep slope. During
the cold season, beware of ice and snow and
always ensure secure footing.
4. During operation, keep bystanders or animals
at least 15 m away from the tool. Stop the tool
as soon as someone approaches.
5. Never operate the tool while people, especially
children, or pets are nearby.
6. Before operation, examine the work area for
stones or other solid objects. They can be
thrown or cause dangerous kickback and result in
seriousinjuryand/orpropertydamage.
7. WARNING: Use of this product can create
dust containing chemicals which may cause
respiratory or other illnesses. Some examples
of these chemicals are compounds found in
pesticides, insecticides, fertilizers and herbi-
cides. Your risk from these exposures varies,
depending on how often you do this type
of work. To reduce your exposure to these
chemicals: work in a well ventilated area, and
work with approved safety equipment, such as
those dust masks that are specially designed
to lter out microscopic particles.
Electrical and battery safety
1. Do not expose the tool to rain or wet condi-
tions. Water entering the tool will increase the risk
of electric shock.
2.
Do not use the tool if the switch does not turn it
on and o󰀨. Any tool that cannot be controlled with
the switch is dangerous and must be repaired.
3. Prevent unintentional starting. Ensure the switch
is in the o󰀨-position before installing a battery
pack, picking up or carrying the tool. Carrying the
toolwithyourngerontheswitchorenergisingthe
tool that have the switch on invites accidents.
4. Do not dispose of the battery(ies) in a re.
The cell may explode. Check with local codes for
possible special disposal instructions.
5. Do not open or mutilate the battery(ies).
Released electrolyte is corrosive and may cause
damage to the eyes or skin. It may be toxic if
swallowed.
6. Do not charge battery in rain, or in wet
locations.

8ENGLISH
Putting into operation
1. Before assembling or adjusting the tool,
remove the battery cartridge.
2. Before handling the cutter blade, wear protec-
tive gloves.
3. Before installing the battery cartridge, inspect
the tool for damages, loose screws/nuts or
improper assembly. Sharpen blunt cutter
blade. If the cutter blade is bent or dam-
aged, replace it. Check all control levers and
switches for easy action. Clean and dry the
handles.
4. Never attempt to switch on the tool if it is dam-
aged or not fully assembled. Otherwise serious
injurymayresult.
5. Adjust the shoulder harness and hand grip to
suit the operator's body size.
6. When inserting a battery cartridge, keep the
cutting attachment clear of your body and
other object, including the ground. It may rotate
whenstartingandmaycauseinjuryordamageto
the tool and/or property.
7. Remove any adjusting key, wrench or blade
cover before turning the tool on. An accessory
left attached to a rotating part of the tool may
resultinpersonalinjury.
8. The cutting tool has to be equipped with the
guard. Never run the tool with damaged guards
or without guards in place!
9. Make sure there are no electrical cables, water
pipes, gas pipes etc. that could cause a hazard
if damaged by use of the tool.
Operation
1. In the event of an emergency, switch o󰀨 the
tool immediately.
2. If you feel any unusual condition (e.g. noise,
vibration) during operation, switch o󰀨 the
tool and remove the battery cartridge. Do not
use the tool until the cause is recognized and
solved.
3. The cutting attachment continues to rotate for
a short period after turning the tool o󰀨. Don't
rush to contact the cutting attachment.
4. During operation, use the shoulder harness.
Keep the tool on your right side rmly.
5. Do not overreach. Keep proper footing and
balance at all times. Watch for hidden obsta-
cles such as tree stumps, roots and ditches to
avoid stumbling.
6. Always be sure of your footing on slopes.
7. Walk, never run.
8. Never work on a ladder or tree to avoid loss of
control.
9. If the tool gets heavy impact or fall, check the
condition before continuing work. Check the
controls and safety devices for malfunction. If
there is any damage or doubt, ask our autho-
rized service center for the inspection and
repair.
10. Take a rest to prevent loss of control caused
by fatigue. We recommend taking a 10 to 20-min-
ute rest every hour.
11. When you leave the tool, even if it is a short
time, always remove the battery cartridge. The
unattended tool with the battery cartridge installed
may be used by unauthorized person and cause
serious accident.
12. If grass or branches get caught between the
cutting attachment and guard, always turn
the tool o󰀨 and remove the battery cartridge
before cleaning. Otherwise the cutting attach-
ment may rotate unintentionally and cause serious
injury.
13. Never touch moving hazardous parts before
the moving hazardous parts have come to
a complete stop and the battery cartridge is
removed.
14. If the cutting attachment hits stones or other
hard objects, immediately turn the tool o󰀨.
Then remove the battery cartridge and inspect
the cutting attachment.
15. Check the cutting attachment frequently
during operation for cracks or damages.
Before the inspection, remove the battery
cartridge and wait until the cutting attachment
stops completely. Replace damaged cutting
attachment immediately, even if it has only
supercial cracks.
16. Never cut above waist height.
17. Before starting the cutting operation, wait until
the cutting attachment reaches a constant
speed after turning the tool on.
18. When using a cutting blade, swing the tool
evenly in half-circle from right to left, like
using a scythe.
19. Hold the tool by insulated gripping surfaces
only, because the cutter blade may contact
hidden wiring. Cutter blades contacting a "live"
wire may make exposed metal parts of the tool
"live" and could give the operator an electric
shock.
20. Do not start the tool when the cutting tool is
tangled with cut grass.
21. Before starting the tool, be sure that the cut-
ting tool is not touching the ground and other
obstacles such as a tree.
22. During operation always hold the tool with
both hands. Never hold the tool with one hand
during use.
23. Do not operate the tool in bad weather or if
there is a risk of lightning.
Cutting tools
1. Do not use a cutting tool which is not recom-
mended by us.
2. Use an applicable cutting attachment for the
job in hand.
— Nylon cutting heads (string trimmer heads)
and plastic blades are suitable for trimming
lawn grass.
— Cutting blades are suitable for cutting weeds,
high grasses, bushes, shrubs, underwood,
thicket, and the like.
— Never use other blades including metal
multi-piecepivotingchainsandailblades.It
mayresultinseriousinjury.

9ENGLISH
3. Only use the cutting tool that are marked with
a speed equal or higher than the speed marked
on the tool.
4. Always keep your hands, face, and clothes
away from the cutting tool when it is rotating.
Failuretodosomaycausepersonalinjury.
5. Always use the cutting attachment guard prop-
erly suited for the cutting attachment used.
6. When using cutting blades, avoid kickback
and always prepare for an accidental kickback.
See the section for Kickback.
7. When not in use, attach the blade cover onto
the blade. Remove the cover before operation.

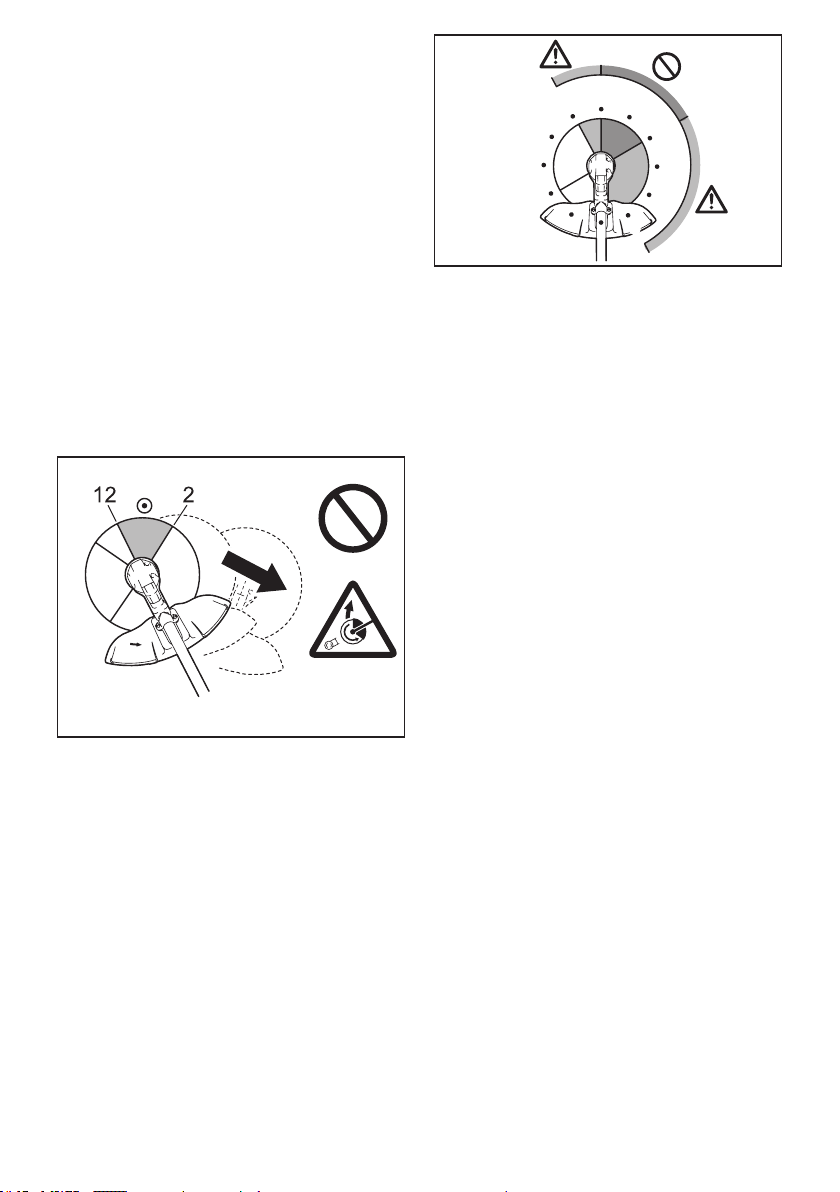

Kickback (Blade thrust)
1. Kickback (blade thrust) is a sudden reaction
to a caught or bound cutting blade. Once it
occurs, the tool is thrown sideway or toward
the operator at great force and it may cause
serious injury.
2. Kickback occurs particularly when applying
the blade segment between 12 and 2 o'clock
to solids, bushes and trees with 3 cm or larger
diameter.
3. To avoid kickback:
1. Apply the segment between 8 and 11
o'clock.
2. Never apply the segment between 12 and
2 o'clock.
3. Never apply the segment between 11 and
12 o'clock and between 2 and 5 o'clock,
unless the operator is well trained and
experienced and does it at his/her own
risk.
4. Never use cutting blades close to solids,
such as fences, walls, tree trunks and
stones.
5. Never use cutting blades vertically, for
such operations as edging and trimming
hedges.
12
1
2
3
4
5
11
10
9
8
Vibration
1. People with poor circulation who are exposed
to excessive vibration may experience injury
to blood vessels or the nervous system.
Vibration may cause the following symptoms
tooccurinthengers,handsorwrists:"Falling
asleep" (numbness), tingling, pain, stabbing sen-
sation, alteration of skin color or of the skin. If any
of these symptoms occur, see a physician!
2. To reduce the risk of "white nger disease",
keep your hands warm during operation and
well maintain the tool and accessories.
Transport
1. Before transporting the tool, turn it o󰀨 and
remove the battery cartridge. Attach the cover
to the cutting blade.
2. When transporting the tool, carry it in a hori-
zontal position by holding the shaft.
3. When transporting the tool in a vehicle, prop-
erly secure it to avoid turnover. Otherwise
damage to the tool and other baggage may result.
Maintenance
1. Have your tool serviced by our authorized
service center, always using only genuine
replacement parts. Incorrect repair and poor
maintenance can shorten the life of the tool and
increase the risk of accidents.
2. Before doing any maintenance or repair work
or cleaning the tool, always turn it o󰀨 and
remove the battery cartridge.
3. Always wear protective gloves when handling
the cutting blade.
4. Always clean dust and dirt o󰀨 the tool. Never
use gasoline, benzine, thinner, alcohol or the
like for the purpose. Discoloration, deformation
or cracks of the plastic components may result.
5. After each use, tighten all screws and nuts.
6. Do not attempt any maintenance or repair not
described in the instruction manual. Ask our
authorized service center for such work.
7. Always use our genuine spare parts and
accessories only. Using parts or accessories
supplied by a third party may result in the tool
breakdown, property damage and/or serious
injury.

10 ENGLISH
8. Request our authorized service center to
inspect and maintain the tool at regular
interval.
9. Always keep the tool in good working condi-
tion. Poor maintenance can result in inferior per-
formance and shorten the life of the tool.
Storage
1. Before storing the tool, perform full cleaning
and maintenance. Remove the battery car-
tridge. Attach the cover to the cutting blade.
2. Store the tool in a dry and high or locked loca-
tion out of reach of children.
3. Do not prop the tool against something, such
as a wall. Otherwise it may fall suddenly and
causeaninjury.
First aid
1. Always have a rst-aid kit close by.
Immediately replace any item taken from the
rst aid kit.
2. When asking for help, give the following
information:
— Place of the accident
— What happened
— Numberofinjuredpersons
— Natureoftheinjury
— Your name
Important safety instructions for
battery cartridge
1. Before using battery cartridge, read all instruc-
tions and cautionary markings on (1) battery
charger, (2) battery, and (3) product using
battery.
2. Do not disassemble battery cartridge.
3. If operating time has become excessively
shorter, stop operating immediately. It may
result in a risk of overheating, possible burns
and even an explosion.
4. If electrolyte gets into your eyes, rinse them
out with clear water and seek medical atten-
tion right away. It may result in loss of your
eyesight.
5. Do not short the battery cartridge:
(1) Do not touch the terminals with any con-
ductive material.
(2) Avoid storing battery cartridge in a con-
tainer with other metal objects such as
nails, coins, etc.
(3) Do not expose battery cartridge to water
or rain.
A battery short can cause a large current
ow, overheating, possible burns and even a
breakdown.
6. Do not store the tool and battery cartridge in
locations where the temperature may reach or
exceed 50 °C (122 °F).
7. Do not incinerate the battery cartridge even if
it is severely damaged or is completely worn
out. The battery cartridge can explode in a re.
8. Be careful not to drop or strike battery.
9. Do not use a damaged battery.
10. The contained lithium-ion batteries are subject
to the Dangerous Goods Legislation require-
ments.
For commercial transports e.g. by third parties,
forwarding agents, special requirement on pack-
aging and labeling must be observed.
For preparation of the item being shipped, consult-
ing an expert for hazardous material is required.
Please also observe possibly more detailed
national regulations.
Tapeormasko󰀨opencontactsandpackupthe
battery in such a manner that it cannot move
around in the packaging.
11. When disposing the battery cartridge, remove
it from the tool and dispose of it in a safe
place. Follow your local regulations relating to
disposal of battery.
12. Use the batteries only with the products
specied by Makita. Installing the batteries to
non-compliantproductsmayresultinare,exces-
sive heat, explosion, or leak of electrolyte.
13. If the tool is not used for a long period of time,
the battery must be removed from the tool.
SAVE THESE INSTRUCTIONS.
CAUTION: Only use genuine Makita batteries.
Use of non-genuine Makita batteries, or batteries that
have been altered, may result in the battery bursting
causingres,personalinjuryanddamage.Itwill
also void the Makita warranty for the Makita tool and
charger.
Tips for maintaining maximum
battery life
1. Charge the battery cartridge before completely
discharged. Always stop tool operation and
charge the battery cartridge when you notice
less tool power.
2. Never recharge a fully charged battery car-
tridge. Overcharging shortens the battery
service life.
3. Charge the battery cartridge with room tem-
perature at 10 °C - 40 °C (50 °F - 104 °F). Let
a hot battery cartridge cool down before
charging it.
4. Charge the battery cartridge if you do not use
it for a long period (more than six months).

11 ENGLISH

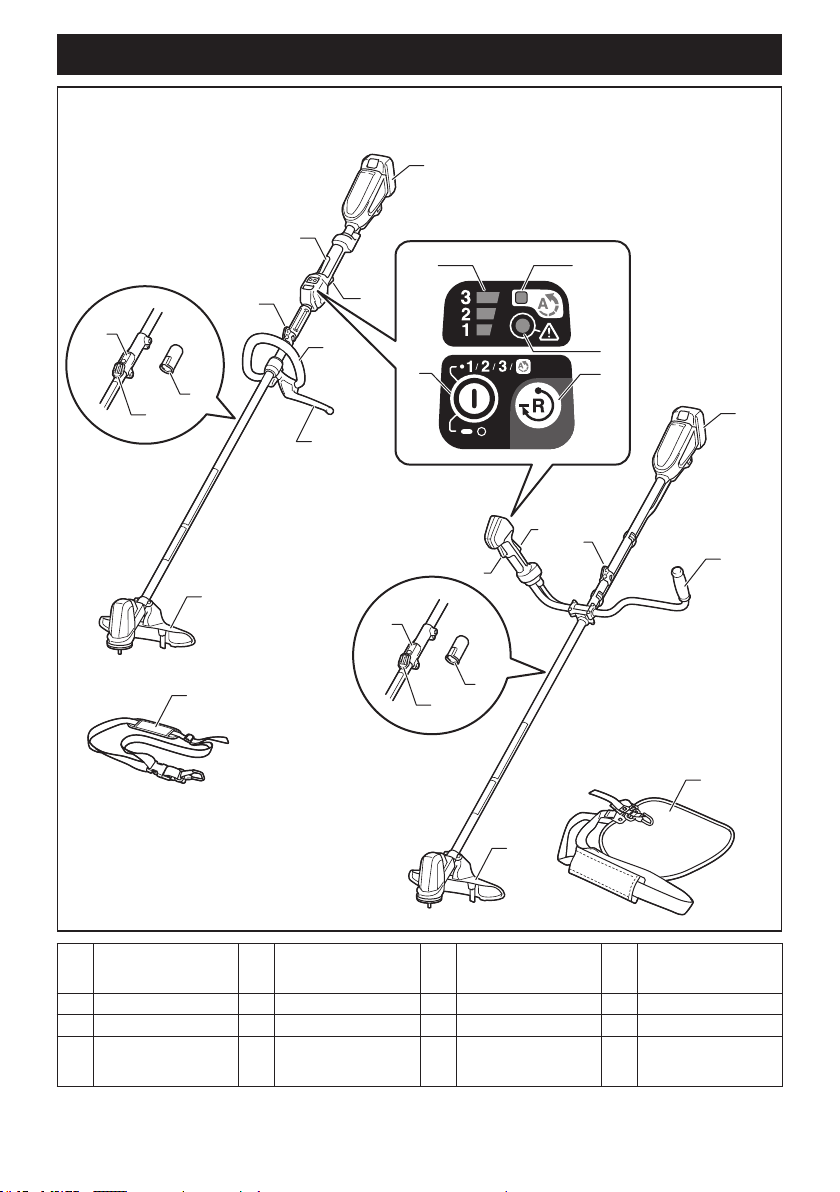

PARTS DESCRIPTION
1 2
3
45
DUR190U
DUR191U
DUR190L
DUR191L
6
14
12
7
8
9
10
11
13
15
14
13
15
16
16
12
10
9
8
7
6
1Speed indicator 2ADT indicator
(ADT = Automatic Torque
Drive Technology)
3Caution lamp 4Main power button
5Reverse button 6Battery cartridge 7Lock-o󰀨lever 8Switch trigger
9Hanger 10 Handle 11 Barrier(countryspecic) 12 Protector
13 Lock lever
(DUR191U and
DUR191L only)
14 Joint cover
(DUR191U and
DUR191L only)
15 Cap
(DUR191U and
DUR191L only)
16 Shoulder harness

12 ENGLISH
FUNCTIONAL
DESCRIPTION
WARNING: Always be sure that the tool is
switched o󰀨 and the battery cartridge is removed
before adjusting or checking function on the tool.
Failuretoswitcho󰀨andremovethebatterycartridge
mayresultinseriouspersonalinjuryfromaccidental
start-up.
Installing or removing battery
cartridge
CAUTION: Always switch o󰀨 the tool before
installing or removing of the battery cartridge.
CAUTION: Hold the tool and the battery car-
tridge rmly when installing or removing battery
cartridge. Failure to hold the tool and the battery
cartridgermlymaycausethemtoslipo󰀨yourhands
and result in damage to the tool and battery cartridge
andapersonalinjury.
1
2
3
►1. Red indicator 2. Button 3. Battery cartridge
To remove the battery cartridge, slide it from the tool
while sliding the button on the front of the cartridge.
To install the battery cartridge, align the tongue on the
battery cartridge with the groove in the housing and slip
it into place. Insert it all the way until it locks in place
with a little click. If you can see the red indicator on the
upper side of the button, it is not locked completely.
CAUTION: Always install the battery cartridge
fully until the red indicator cannot be seen. If not,
itmayaccidentallyfalloutofthetool,causinginjuryto
you or someone around you.
CAUTION: Do not install the battery cartridge
forcibly. If the cartridge does not slide in easily, it is
not being inserted correctly.
Tool / battery protection system
The tool is equipped with a tool/battery protection
system.Thissystemautomaticallycutso󰀨powerto
the motor to extend tool and battery life. The tool will
automatically stop during operation if the tool is placed
under one of the following conditions:
Caution lamp Status
Color On Blinking
Red Overload
Red Overheat
Red Over
discharge
Overload protection
If the tool gets into one of the following situation, the
tool automatically stops and the caution lamp starts
blinking in red:
— The tool is overloaded by entangled weeds or
other debris.
— The cutting tool is locked or kicked back.
— The main power button is turned on while the
switch trigger is being pulled.
In this situation, release the switch trigger and remove
entangled weeds or debris if necessary. After that, pull
the switch trigger again to resume.
CAUTION: If you need to remove the entan-
gled weeds on the tool or release the locked
cutting tool, be sure to turn the tool o󰀨 before you
start.
Overheat protection for tool or battery
If the tool or battery cartridge is overheated, the tool
stops automatically. When the tool or battery cartridge
is overheated, the speed indicator and ADT indicator
goo󰀨andthecautionlamplightsupinred.Letthe
tool and/or battery cool down before turning the tool on
again.
Overdischarge protection
When the battery capacity becomes low, the tool stops
automatically. The speed indicator and ADT indicator go
o󰀨andthecautionlampstartsblinkinginred.
If the tool does not operate even when the switches are
operated, remove the battery cartridge from the tool and
charge it.
Indicating the remaining battery
capacity
Only for battery cartridges with the indicator
1
2
►1. Indicator lamps 2. Check button

13 ENGLISH

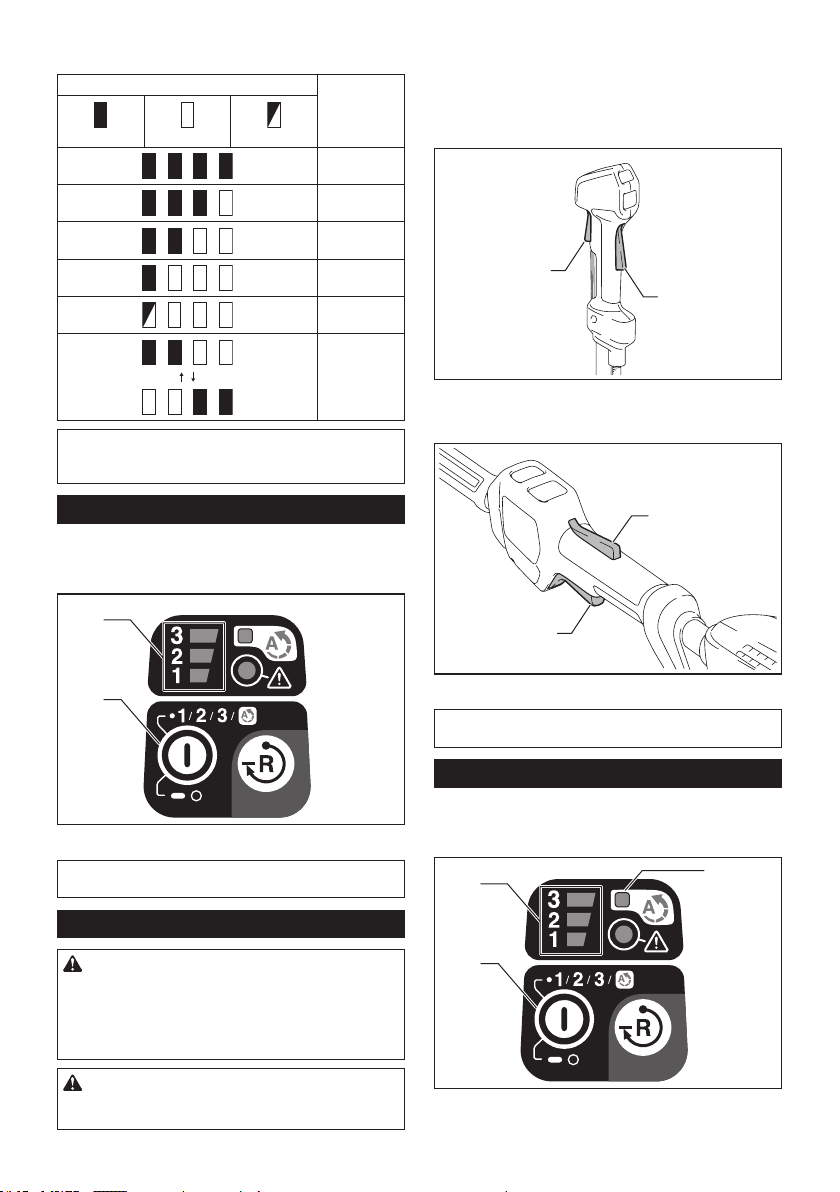

Press the check button on the battery cartridge to indicate the remain-
ing battery capacity. The indicator lamps light up for a few seconds.
Indicator lamps Remaining
capacity
Lighted O󰀨 Blinking
75% to 100%
50% to 75%
25% to 50%
0% to 25%
Charge the
battery.
The battery
may have
malfunctioned.
NOTE: Depending on the conditions of use and the
ambienttemperature,theindicationmaydi󰀨erslightly
from the actual capacity.
Main power switch
Tap the main power button to turn on the tool.
Toturno󰀨thetool,pressandholdthemainpower
buttonuntilthespeedindicatorgoeso󰀨.
2
1
►1. Speed indicator 2. Main power button
NOTE:Thetoolwillautomaticallyturnedo󰀨ifitisleft
without any operations for a certain period of time.
Switch action
WARNING: Before installing the battery car-
tridge on the tool, always check to see that the
switch trigger actuates properly and returns to
the "OFF" position when released. Operating a tool
with a switch that does not actuate properly can lead
tolossofcontrolandseriouspersonalinjury.
CAUTION: Never put your nger on the
switch when carrying. The tool may start uninten-
tionallyandcauseinjury.
To prevent the switch trigger from being accidentally
pulled,alock-o󰀨leverisprovided.
Tostartthetool,graspthehandle(thelock-o󰀨leveris
released by the grasp) and then pull the switch trigger.
To stop the tool, release the switch trigger.
DUR190U and DUR191U
1
2
►1.Lock-o󰀨lever2. Switch trigger
DUR190L and DUR191L
1
2
►1.Lock-o󰀨lever2. Switch trigger
NOTE:Thetoolisautomaticallyturnedo󰀨afterthe
tool is left for a certain period without any operations.
Speed adjusting
You can select the tool speed by tapping the main
power button. Each time you tap the main power button,
the level of speed will change.
2
1
3
►1. Speed indicator 2. Main power button 3. ADT
indicator

14 ENGLISH
Speed indicator Mode Rotation speed
ADT 3,500 - 6,000 min-1
High 6,000 min-1
Medium 5,100 min-1
Low 3,500 min-1
NOTE: When you set ADT (Automatic Torque Drive
Technology), ADT indicator turns on and the tool runs
at optimum rotation speed and torque for the condi-
tion of grass being cut.
Reverse button for debris removal
WARNING: Switch o󰀨 the tool and remove
the battery cartridge before you remove entan-
gled weeds or debris which the reverse rotation
function can not remove.Failuretoswitcho󰀨and
remove the battery cartridge may result in serious
personalinjuryfromaccidentalstart-up.
This tool has a reverse button to change the direction of
rotation. It is only for removing weeds and debris entan-
gled in the tool.
To reverse the rotation, tap the reverse button and pull
theswitchtriggerwhiledepressingthelock-o󰀨lever
when the cutting tool is stopped. The speed indicators
and ADT indicator start blinking, and the cutting tool
rotates in reverse direction when you pull the switch
trigger.
To return to regular rotation, release the trigger and wait
until the cutting tool stops.
3
2
1
►1. Speed indicator 2. ADT indicator 3. Reverse
button
NOTE: During the reverse rotation, the tool operates
only for a short period of time and then automatically
stops.
NOTE: Once the tool is stopped, the rotation returns
to regular direction when you start the tool again.
NOTE: If you tap the reverse button while the cutting
tool is still rotating, the tool comes to stop and to be
ready for reverse rotation.
Electric brake
This tool is equipped with an electric brake. If the tool
consistently fails to quickly stop after the switch trigger
is released, have the tool serviced at our service center.
CAUTION: This brake system is not a substi-
tute for the protector. Never use the tool without
the protector. An unguarded cutting tool may result
inseriouspersonalinjury.
ASSEMBLY
WARNING: Always be sure that the tool is
switched o󰀨 and battery cartridge is removed
before carrying out any work on the tool. Failure to
switcho󰀨andremovethebatterycartridgemayresult
inseriouspersonalinjuryfromaccidentalstart-up.
WARNING: Never start the tool unless it is
completely assembled. Operation of the tool in a
partially assembled state may result in serious per-
sonalinjuryfromaccidentalstart-up.
Installing the handle
For DUR190U and DUR191U only
1. Insert the shaft of the handle into the grip. Align
the screw hole in the grip with the one in the shaft.
Tighten the screw securely.
1
2
3
►1. Grip 2. Screw 3. Handle

15 ENGLISH

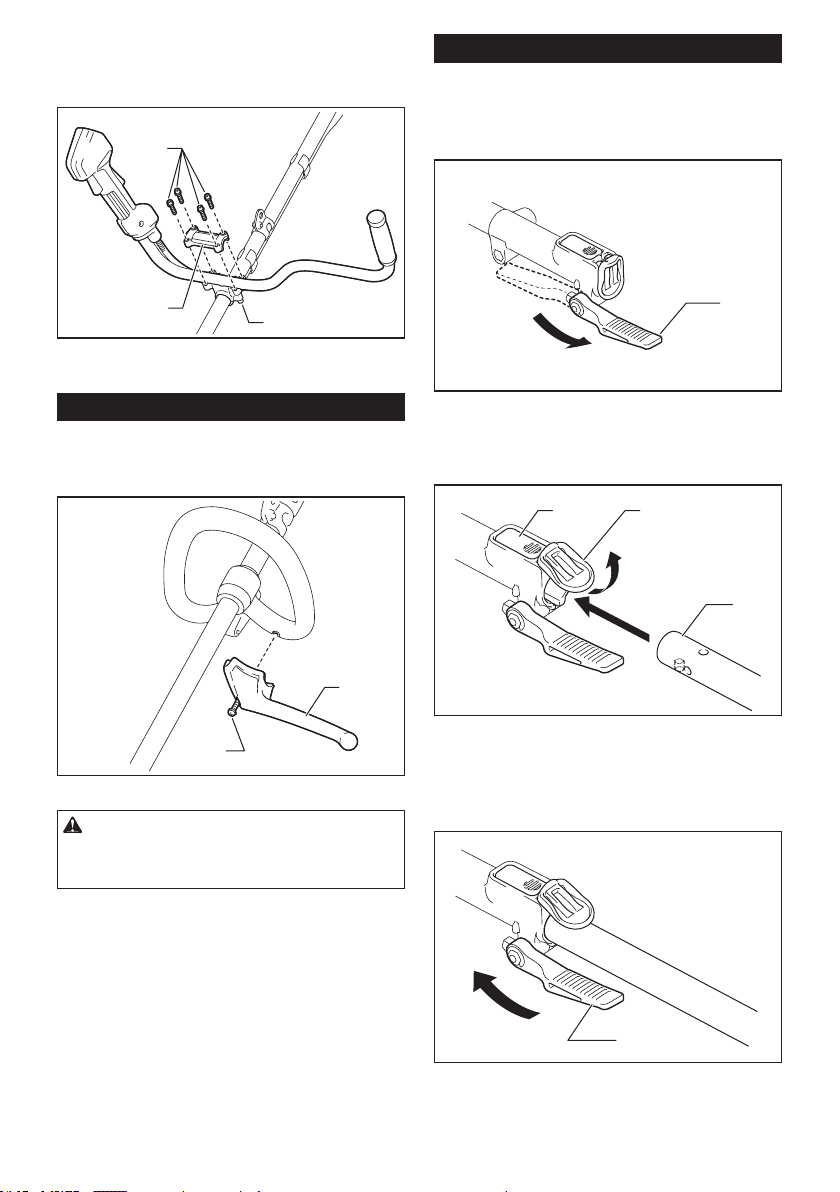

2. Place handle between handle clamp and handle
holder.Adjustthehandletoananglethatprovidesa
comfortable working position and then secure with hex
socket head bolts.
1
2
3
►1. Hex socket head bolt 2. Handle clamp 3. Handle
holder
Attaching the barrier
For DUR190L and DUR191L (country specic)
If the barrier is included in your model, attach it to the
handle using the screw on the barrier.
1
2
►1. Barrier 2. Screw
CAUTION: After assembling the barrier, do
not remove it. The barrier works as a safety part
to prevent you from contacting the cutting blade
accidentally.
Mounting the attachment pipe
For DUR191U and DUR191L only
Mount the attachment pipe to the power unit.
1. Turn the lever to the direction of the arrow shown
inthegure.
1
►1. Lever
2. Pullupthejointcoverandinserttheattachment
pipe while aligning the protrusion on the pipe (cutting
toolside)withtheconcaveportionofthejointpart.
2
1
3
►1. Lock lever 2. Joint cover 3. Pipe
Make sure that the surface of the lock lever is parallel
to the pipe.
3. Turn the lever to the direction of the arrow shown
inthegure.
1
►1. Lever

16 ENGLISH
To remove the pipe, turn the lever to the direction of the
arrowshowninthegureandpullthepipeoutwhile
pressing down the lock lever.
1
2
3
►1. Lever 2. Lock lever 3. Pipe
Installing the protector
WARNING: Never use the tool without the
guard illustrated in place. Failure to do so can
causeseriouspersonalinjury.
CAUTION: Take care not to injure yourself on
the cutter for cutting the nylon cord.
Attach the protector to the clamp using bolts.
1
2
3
►1. Clamp 2. Protector 3. Cutter
Installing the cutting tool
NOTE: The type of the cutting tool(s) supplied as
the standard accessory varies depending on the
countries. The cutting tool is not included in some
countries.
NOTE: Turn the tool upside down so that you can
replace the cutting tool easily.
Cutter blade
CAUTION: When handling a cutter blade,
always wear gloves and put the blade cover on
the blade.
CAUTION: The cutter blade must be well pol-
ished, and free of cracks or breakage. If the cutter
blade hits a stone during operation, stop the tool and
check the cutter blade immediately.
CAUTION: Always use the cutter blade
with the diameter described in the section for
specications.
1
2
3
4
56
7
►1. Nut 2. Cup 3. Clamp washer 4. Cutter blade
5. Spindle 6. Guard 7. Spindle lock button
1. Mount the cutter blade onto the guard so that the
arrows on the cutter blade and protector are pointing in
the same direction.
1
1
►1. Arrow

17 ENGLISH
2. Put the clamp washer and cup onto the cutter
blade.
3. While holding down the spindle lock button,
tighten the nut securely by the box wrench.
1
24
3
►1. Spindle lock button 2. Box wrench 3. Loosen
4. Tighten
To remove the cutting blade, loosen the nut while hold-
ing down the spindle lock button.
Nylon cutting head
NOTICE: Be sure to use genuine Makita nylon
cutting head.
While holding down the spindle lock button, place
the nylon cutting head onto the spindle and tighten it
securely by hand.
1
2
3
4
5
►1. Nylon cutting head 2. Spindle 3. Spindle lock
button 4. Loosen 5. Tighten
To remove the nylon cutting head, loosen the nylon
cutting head while holding down the spindle lock button.
Plastic blade
NOTICE: Be sure to use genuine Makita plastic
blade.
While holding down the spindle lock button, place the
plastic blade onto the spindle and tighten it securely by
hand.
1
2
3
4
5
►1. Plastic blade 2. Spindle 3. Spindle lock button
4. Loosen 5. Tighten
To remove the plastic blade, loosen the plastic blade
while holding down the spindle lock button.
NOTE: You can use the supplied hex wrench to
install/remove the cutting tool. Insert the hex wrench
totheholeasshownintheguretolockthespindle.
1
2
►1. Hex wrench 2. Hole
CAUTION: Always use the supplied wrenches
to install/remove the cutting tool.
CAUTION: Be sure to remove the hex wrench
inserted into the tool head after installing the
cutting tool.

18 ENGLISH
Adjusting the handle/hanger
position
Adjustthehandleandhangerpositiontoobtaincom-
fortable handling of the tool.
For DUR190U and DUR191U
Adjustthehandle/hangerpositionsothatthetool
comes within the range as shown below.
12
3
1The hanger position from the ground
2The cutting tool position from the ground
3The horizontal distance between the hanger and the
unguarded part of the cutting tool
Loosen the hex socket head bolts on the bottom of the
handle holder. Move the handle to a comfortable work-
ing position and then tighten the bolts.
1
2
3
►1. Handle holder 2. Hex socket head bolt 3. Handle
Loosen the Hex socket head bolts on the hanger. Move
the hanger to a comfortable working position and then
tighten the bolts.
1
2
►1. Hex socket head bolt 2. Hanger
For DUR190L and DUR191L
Loosen the hex socket head bolts on the handle. Move
the handle to a comfortable working position and then
tighten the bolts.
12
►1. Hex socket head bolt 2. Handle
Loosen the hex socket head bolt on the hanger. Move
the hanger to a comfortable working position and then
tighten the bolt.
1
2
►1. Hex socket head bolt 2. Hanger

19 ENGLISH
Hex wrench storage
When not in use, store the hex wrench as shown in the
guretokeepitfrombeinglost.
1
►1. Hex wrench
For DUR190L and DUR191L only
1
2
►1. Handle 2. Hex wrench
OPERATION
Attaching the shoulder harness
CAUTION: Always use the shoulder harness
attached to the tool. Before operation, adjust the
shoulder harness according to the user size to
prevent fatigue.
CAUTION: Before operation, make sure that
the shoulder harness is properly attached to the
hanger on the tool.
Connect the hook of the shoulder harness to the hanger
and put the shoulder harness on. Make sure that the
tool is held securely by the shoulder harness.
DUR190U and DUR191U
1
2
►1. Hook 2. Hanger
DUR190L and DUR191L
1
2
►1. Hook 2. Hanger
Detachment
The shoulder harness features a means of quick
release.
DUR190U and DUR191U
1
►1. Strip

20 ENGLISH

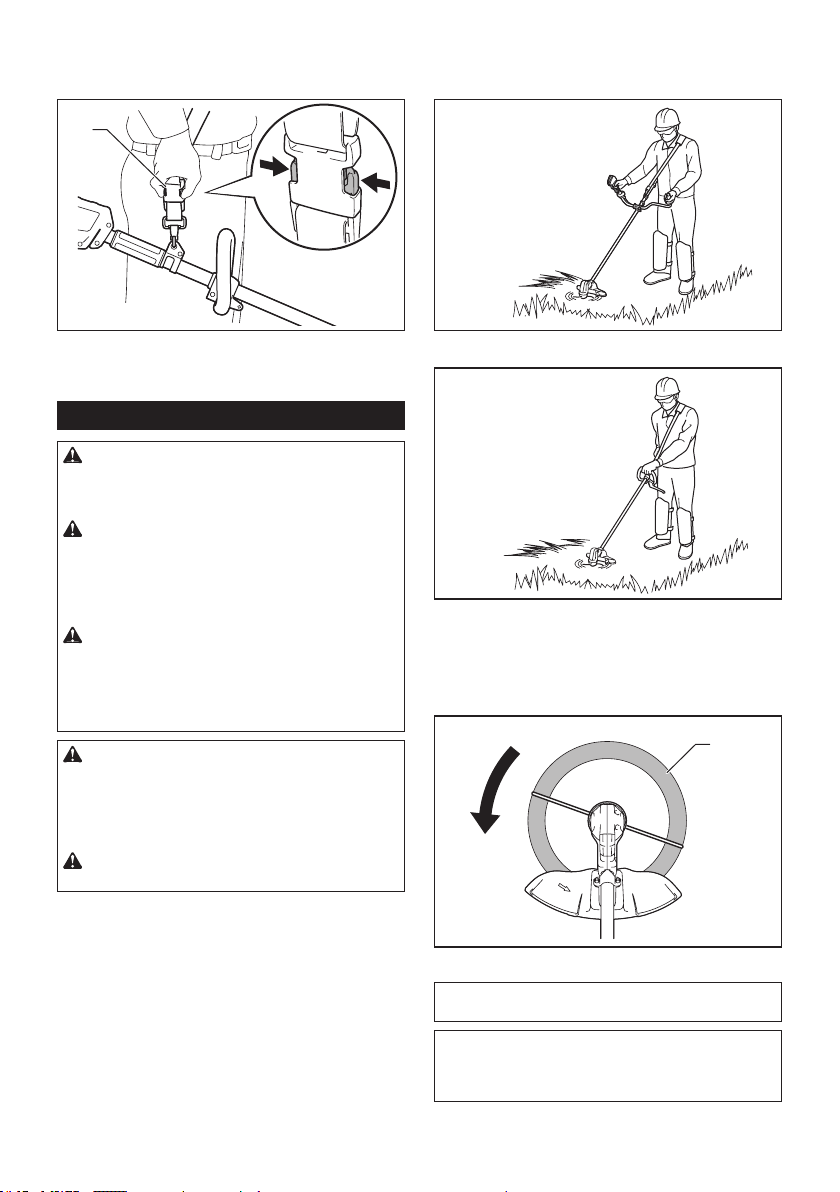

Pull out the strip release the tool from the shoulder
harness.
DUR190L and DUR191L
1
►1. Buckle
Simply squeeze the sides of the buckle to release the
tool from the shoulder harness.
Correct handling of the tool
WARNING: Always position the tool on your
right-hand side. Correct positioning of the tool allows
for maximum control and will reduce the risk of seri-
ouspersonalinjurycausedbykickback.
WARNING: Be extremely careful to maintain
control of the tool at all times. Do not allow the
tool to be deected toward you or anyone in the
work vicinity. Failure to keep control of the tool
couldresultinseriousinjurytothebystanderandthe
operator.
WARNING: To avoid accident, leave more
than 15m (50 ft) distance between operators when
two or more operators work in one area. Also,
arrange a person to observe the distance between
operators. If someone or an animal enters the
working area, immediately stop the operation.
CAUTION: If the cutting tool accidentally
impacts a rock or hard object during operation,
stop the tool and inspect for any damage. If the
cutting tool is damaged, replace it immediately.
Use of a damaged cutting tool may result in serious
personalinjury.
CAUTION: Remove the blade cover from the
cutter blade when cutting the grass.
Correct positioning and handling allow optimum control
andreducetheriskofinjurycausedbykickback.
DUR190U and DUR191U
DUR190L and DUR191L
When using a nylon cutting head (bump & feed
type)
The nylon cutting head is a dual string trimmer head
provided with a bump & feed mechanism.
To feed out the nylon cord, tap the cutting head against
the ground while rotating.
1
►1.Moste󰀨ectivecuttingarea
NOTICE: The bump feed will not operate prop-
erly if the nylon cutting head is not rotating.
NOTE: If the nylon cord does not feed out while
tapping the head, rewind/replace the nylon cord
by following the procedures in the section for the
maintenance.
