INSTRUCTION MANUAL
Cordless Cleaner
CL003G
ENGLISH: Original instructions
Read before use.

2ENGLISH
WARNING
• This appliance can be used by children aged from 8 years and above and persons with reduced physical, sen-
sory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruc-
tion concerning use of the appliance in a safe way and understand the hazards involved.
•
Children shall not play with the appliance. Cleaning and user maintenance shall not be made by children without supervision.
• See the chapter “SPECIFICATIONS” for the type reference of the battery.

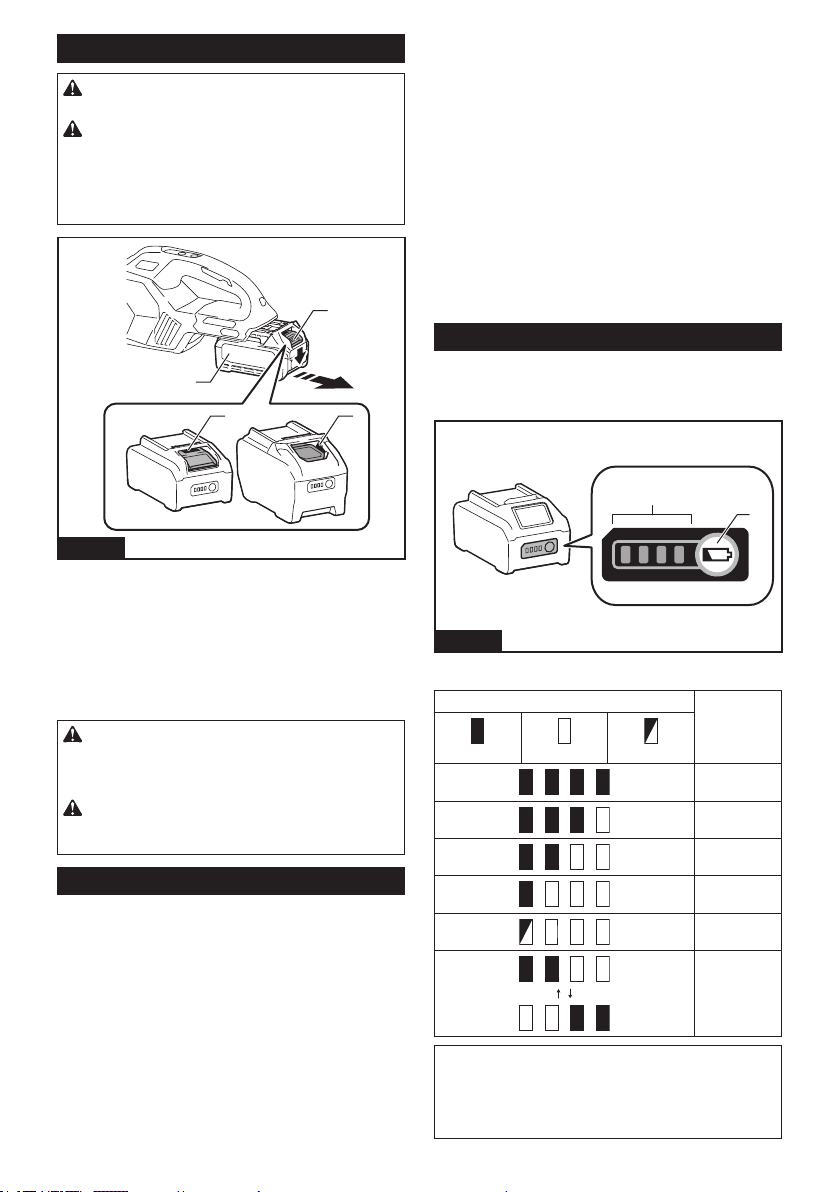

• See the section “Installing or removing battery cartridge” for how to remove or install the battery.
• When disposing the battery cartridge, remove it from the tool and dispose of it in a safe place. Follow your local
regulations relating to disposal of battery.
• If the tool is not used for a long period of time, the battery must be removed from the tool.
• Do not short the battery cartridge.
• See the chapter “MAINTENANCE” for the appropriate details of precautions during user maintenance.
SPECIFICATIONS
Model: CL003G
Capacity 250 mL / 400 mL (country specic)
Continuous use
(with battery BL4025)
1 (Quiet mode) Approx. 80 min
2 (Normal speed mode) Approx. 40 min
3 (High speed mode) Approx. 25 min
4 (Max speed mode) Approx. 16 min
Overall length (with pipe, nozzle, and battery BL4025) 1,106 mm
Rated voltage D.C. 36 V - 40 V max
Net weight 1.9 - 2.6 kg
• Due to our continuing program of research and development, the specications herein are subject to change without notice.
• Specications may di󰀨er from country to country.
• The weight does not include accessories but battery cartridge(s). The lightest and heaviest combination weight
of the appliance and battery cartridge(s) are shown in the table.
Applicable battery cartridge and charger
Battery cartridge BL4020* / BL4025* / BL4040* / BL4050F
* : Recommended battery
Charger DC40RA / DC40RB / DC40RC
• Some of the battery cartridges and chargers listed above may not be available depending on your region of residence.
WARNING: Only use the battery cartridges and chargers listed above. Use of any other battery cartridges
and chargers may cause injury and/or re.
Symbols
The followings show the symbols which may be used
for the equipment. Be sure that you understand their
meaning before use.
Read the instruction manual.
A representative battery applicable to this
product.
Ni-MH
Li-ion
Only for EU countries
Due to the presence of hazardous com-
ponents in the equipment, waste electrical
and electronic equipment, accumulators
and batteries may have a negative impact
on the environment and human health.
Do not dispose of electrical and electronic appli-
ances or batteries with household waste!
In accordance with the European Directive
on waste electrical and electronic equipment
and on accumulators and batteries and
waste accumulators and batteries, as well as
their adaptation to national law, waste elec-
trical equipment, batteries and accumulators
should be stored separately and delivered
to a separate collection point for municipal
waste, operating in accordance with the
regulations on environmental protection.
This is indicated by the symbol of the
crossed-out wheeled bin placed on the
equipment.

3ENGLISH
Intended use
The tool is intended for collecting dry dust.
SAFETY WARNINGS
Cordless cleaner safety warnings
WARNING: IMPORTANT! READ CAREFULLY
all safety warnings and all instructions BEFORE
USE. Failure to follow the warnings and instructions
may result in electric shock, re and/or serious injury.
1. Do not expose to rain. Store indoors.
2. Do not allow to be used as a toy. Close
attention is necessary when used by or near
children.
3. Use only as described in this manual. Use only
manufacturer's recommended attachments.
4. Do not use with damaged battery. If appliance
is not working as it should, has been dropped,
damaged, left outdoors, or dropped into water,
return it to a service center.
5. Do not handle appliance with wet hands.
6. Do not put any object into openings. Do not
use with any opening blocked; keep free of
dust, lint, hair, and anything that may reduce
air ow.
7. Keep hair, loose clothing, ngers, and all parts
of body away from openings and moving parts.
8.
Turn o󰀨 all controls before removing the battery.
9. Use extra care when cleaning on stairs.
10. Do not use to pick up ammable or combusti-
ble liquids, such as gasoline, or use in areas
where they may be present.
11. Use only the charger supplied by the manufac-
turer to recharge.
12. Do not pick up anything that is burning or
smoking, such as cigarettes, matches, or hot
ashes.
13.
Do not use without dust bag and/or lters in place.
14. Do not charge the battery outdoors.
15. Recharge only with the charger specied by
the manufacturer. A charger that is suitable for
one type of battery pack may create a risk of re
when used with another battery pack.
16. Use appliances only with specically desig-
nated battery packs. Use of any other battery
packs may create a risk of injury and re.
17. When (the) battery pack is not in use, keep
it away from other metal objects, like paper
clips, coins, keys, nails, screws or other small
metal objects, that can make a connection
from one terminal to another.
18. Under abusive conditions, liquid may be
ejected from the battery; avoid contact. If con-
tact accidentally occurs, ush with water.
19. Do not use a battery pack or appliance that
is damaged or modied. Damaged or modied
batteries may exhibit unpredictable behaviour
resulting in re, explosion or risk of injury.
20. Do not expose a battery pack or appliance
to re or excessive temperature. Exposure
to re or temperature above 130 °C may cause
explosion.
21. Follow all charging instructions and do not
charge the battery pack or appliance outside
the temperature range specied in the instruc-
tions. Charging improperly or at temperatures
outside the specied range may damage the
battery and increase the risk of re.
SAVE THESE INSTRUCTIONS.
ADDITIONAL SAFETY RULES
This appliance is intended for household use.
1. Read this instruction manual and the charger
instruction manual carefully before use.
2. Do not pick up the following materials:
— Hot materials such as lit cigarettes or
spark/metal dust generated by grinding/
cutting metal
— Flammable materials such as gasoline,
thinner, benzine, kerosene or paint
— Explosive materials like nitroglycerin
— Ignitable materials such as Aluminum,
zinc, magnesium, titanium, phosphorus
or celluloid
— Wet dirt, water, oil or the like
— Hard pieces with sharp edges, such as
wood chips, metals, stones, glasses,
nails, pins or razors
— Powder to clot such as cement or toner
— Conductive dust such as metal or carbon
— Fine particle like concrete dust
Such action may cause re, injury and/or prop-
erty damage.
3. Stop operation immediately if you notice any-
thing abnormal.
4. If you drop or strike the cleaner, check it care-
fully for cracks or damage before operation.
5. Do not bring close to stoves or other heat
sources.
6. Do not block the intake hole or vent holes.
SAVE THESE INSTRUCTIONS.
Important safety instructions for
battery cartridge
1. Before using battery cartridge, read all instruc-
tions and cautionary markings on (1) battery
charger, (2) battery, and (3) product using
battery.
2. Do not disassemble or tamper with the battery
cartridge. It may result in a re, excessive heat,
or explosion.
3. If operating time has become excessively
shorter, stop operating immediately. It may
result in a risk of overheating, possible burns
and even an explosion.
4. If electrolyte gets into your eyes, rinse them
out with clear water and seek medical atten-
tion right away. It may result in loss of your
eyesight.

4ENGLISH
5. Do not short the battery cartridge:
(1) Do not touch the terminals with any con-
ductive material.
(2) Avoid storing battery cartridge in a con-
tainer with other metal objects such as
nails, coins, etc.
(3) Do not expose battery cartridge to water
or rain.
A battery short can cause a large current
ow, overheating, possible burns and even a
breakdown.
6. Do not store and use the tool and battery car-
tridge in locations where the temperature may
reach or exceed 50 °C (122 °F).
7. Do not incinerate the battery cartridge even if
it is severely damaged or is completely worn
out. The battery cartridge can explode in a re.
8. Do not nail, cut, crush, throw, drop the battery
cartridge, or hit against a hard object to the
battery cartridge. Such conduct may result in a
re, excessive heat, or explosion.
9. Do not use a damaged battery.
10. The contained lithium-ion batteries are subject
to the Dangerous Goods Legislation require-
ments.
For commercial transports e.g. by third parties,
forwarding agents, special requirement on pack-
aging and labeling must be observed.
For preparation of the item being shipped, consult-
ing an expert for hazardous material is required.
Please also observe possibly more detailed
national regulations.
Tape or mask o󰀨 open contacts and pack up the
battery in such a manner that it cannot move
around in the packaging.
11. When disposing the battery cartridge, remove
it from the tool and dispose of it in a safe
place. Follow your local regulations relating to
disposal of battery.
12. Use the batteries only with the products
specied by Makita. Installing the batteries to
non-compliant products may result in a re, exces-
sive heat, explosion, or leak of electrolyte.
13. If the tool is not used for a long period of time,
the battery must be removed from the tool.
14. During and after use, the battery cartridge may
take on heat which can cause burns or low
temperature burns. Pay attention to the han-
dling of hot battery cartridges.
15. Do not touch the terminal of the tool imme-
diately after use as it may get hot enough to
cause burns.
16. Do not allow chips, dust, or soil stuck into the
terminals, holes, and grooves of the battery
cartridge. It may cause heating, catching re,
burst and malfunction of the tool or battery car-
tridge, resulting in burns or personal injury.
17. Unless the tool supports the use near
high-voltage electrical power lines, do not use
the battery cartridge near a high-voltage elec-
trical power lines. It may result in a malfunction
or breakdown of the tool or battery cartridge.
18. Keep the battery away from children.
SAVE THESE INSTRUCTIONS.
CAUTION: Only use genuine Makita batteries.
Use of non-genuine Makita batteries, or batteries that
have been altered, may result in the battery bursting
causing res, personal injury and damage. It will
also void the Makita warranty for the Makita tool and
charger.
Tips for maintaining maximum
battery life
1. Charge the battery cartridge before completely
discharged. Always stop tool operation and
charge the battery cartridge when you notice
less tool power.
2. Never recharge a fully charged battery car-
tridge. Overcharging shortens the battery
service life.
3. Charge the battery cartridge with room tem-
perature at 10 °C - 40 °C (50 °F - 104 °F). Let
a hot battery cartridge cool down before
charging it.
4. When not using the battery cartridge, remove
it from the tool or the charger.
5. Charge the battery cartridge if you do not use
it for a long period (more than six months).
FUNCTIONAL
DESCRIPTION
CAUTION: Always be sure that the tool is
switched o󰀨 and the battery cartridge is removed
before adjusting or checking function on the tool.
CAUTION: Take care not to trap nger(s)
between cleaner and battery as shown in diagram
when loading battery. Trapping nger(s) may cause
injury.
Fig.1

5ENGLISH
Installing or removing battery cartridge
CAUTION: Always switch o󰀨 the tool before
installing or removing of the battery cartridge.
CAUTION: Hold the tool and the battery car-
tridge rmly when installing or removing battery
cartridge. Failure to hold the tool and the battery
cartridge rmly may cause them to slip o󰀨 your hands
and result in damage to the tool and battery cartridge
and a personal injury.
11
2
3
Fig.2
► 1. Red indicator 2. Button 3. Battery cartridge
To remove the battery cartridge, slide it from the tool
while sliding the button on the front of the cartridge.
To install the battery cartridge, align the tongue on the
battery cartridge with the groove in the housing and slip
it into place. Insert it all the way until it locks in place
with a little click. If you can see the red indicator as
shown in the gure, it is not locked completely.
CAUTION: Always install the battery cartridge
fully until the red indicator cannot be seen. If not,
it may accidentally fall out of the tool, causing injury to
you or someone around you.
CAUTION: Do not install the battery cartridge
forcibly. If the cartridge does not slide in easily, it is
not being inserted correctly.
Battery protection system
The tool is equipped with a tool/battery protection sys-
tem. This system automatically cuts o󰀨 power to the
motor to extend tool and battery life. The tool will auto-
matically stop during operation if the tool or battery is
placed under one of the following conditions.
Overloaded:
The tool/battery is operated in a manner that causes it
to draw an abnormally high current.
In this situation, turn the tool o󰀨 and stop the application
that caused the tool to become overloaded. Then turn
the tool on to restart.
If the tool does not start, the tool/battery is overheated.
In this situation, let the tool/battery cool before turning
the tool on again.
Low battery voltage:
The remaining battery capacity is too low and the tool will not
operate. In this situation, remove and recharge the battery.
Protections against other causes:
Protection system is also designed for other causes
that could damage the tool and allows the tool to stop
automatically. Take all the following steps to clear the
causes, when the tool has been brought to a temporary
halt or stop in operation.
1. Turn the tool o󰀨, and then turn it on again to
restart.
2. Charge the battery(ies) or replace it/them with
recharged battery(ies).
3. Let the tool and battery(ies) cool down.
If no improvement can be found by restoring protection
system, then contact your local Makita Service Center.
Indicating the remaining battery capacity
Press the check button on the battery cartridge to indi-
cate the remaining battery capacity. The indicator lamps
light up for a few seconds.
1
2
Fig.3
► 1. Indicator lamps 2. Check button
Indicator lamps Remaining
capacity
Lighted O󰀨 Blinking
75% to 100%
50% to 75%
25% to 50%
0% to 25%
Charge the
battery.
The battery
may have
malfunctioned.
NOTE: Depending on the conditions of use and the
ambient temperature, the indication may di󰀨er slightly
from the actual capacity.
NOTE: The rst (far left) indicator lamp will blink when
the battery protection system works.

6ENGLISH

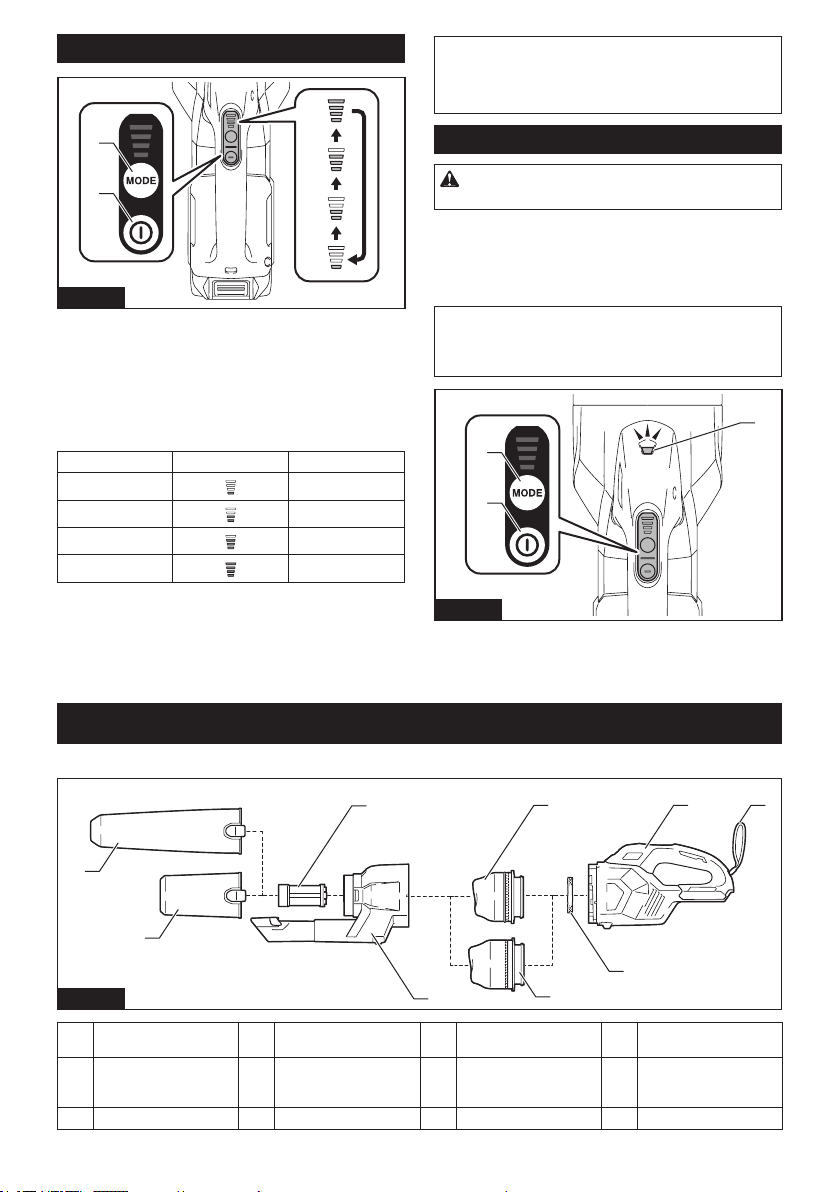

Switch action
1
2
1
2
3
4
Fig.4
► 1. Suction power change button 2. ON/OFF button
To start the cleaner, simply push the ON/OFF button. To
switch o󰀨, push the ON/OFF button again.
You can change the suction power of the cleaner in
four steps by pushing the suction power change button.
Each push on this button repeats the Quiet/Normal/
High/Max mode in a cycle.
Level Indication Mode
1Quiet mode
2
Normal speed mode
3High speed mode
4Max speed mode
NOTE: You can change the suction power before
turning on the cleaner.
NOTE: The cleaner starts the operation with the
same suction power as the last operation.
Lighting up the lamp
CAUTION: Do not look in the light or see the
source of light directly.
To turn on the lamp, push the suction power change
button. The lamp goes o󰀨 in approximately 10 seconds.
While the cleaner is running, the lamp turns on.
The lamp goes out approximately 10 seconds after
stopping operation.
NOTE: When the remaining battery capacity gets low,
the lamp starts blinking. The timing, at which the lamp
starts blinking depends on the temperature at work
place and the battery cartridge conditions.
1
2
3
Fig.5
► 1. Suction power change button 2. ON/OFF button
3. Lamp
PARTS DESCRIPTION
Country specic
1
2
3
4
5
6
7
89
Fig.6
1250 mL dust case
(Optional accessory)
2400 mL dust case
(Optional accessory)
3Mesh lter 4Cyclone body
5
High performance lter
(Filter frame in gray color)
(Optional accessory)
6HEPA lter (Filter frame
in white color) (Optional
accessory)
7Sponge sheet 8Cleaner body
9
Hand strap (Country specic) ------

7ENGLISH
ASSEMBLY
CAUTION: Always be sure that the tool is
switched o󰀨 and the battery cartridge is removed
before carrying out any work on the tool.
NOTICE: Make sure all the attachments and com-
ponents are secured in place properly before use.
Installing and removing cleaner
attachments
CAUTION: After installing attachments, check if
they are securely installed. If the attachments are installed
imperfectly, they may come o󰀨 and cause personal injury.
CAUTION: Be careful not to hit your hand on
the wall etc. when removing the attachments.

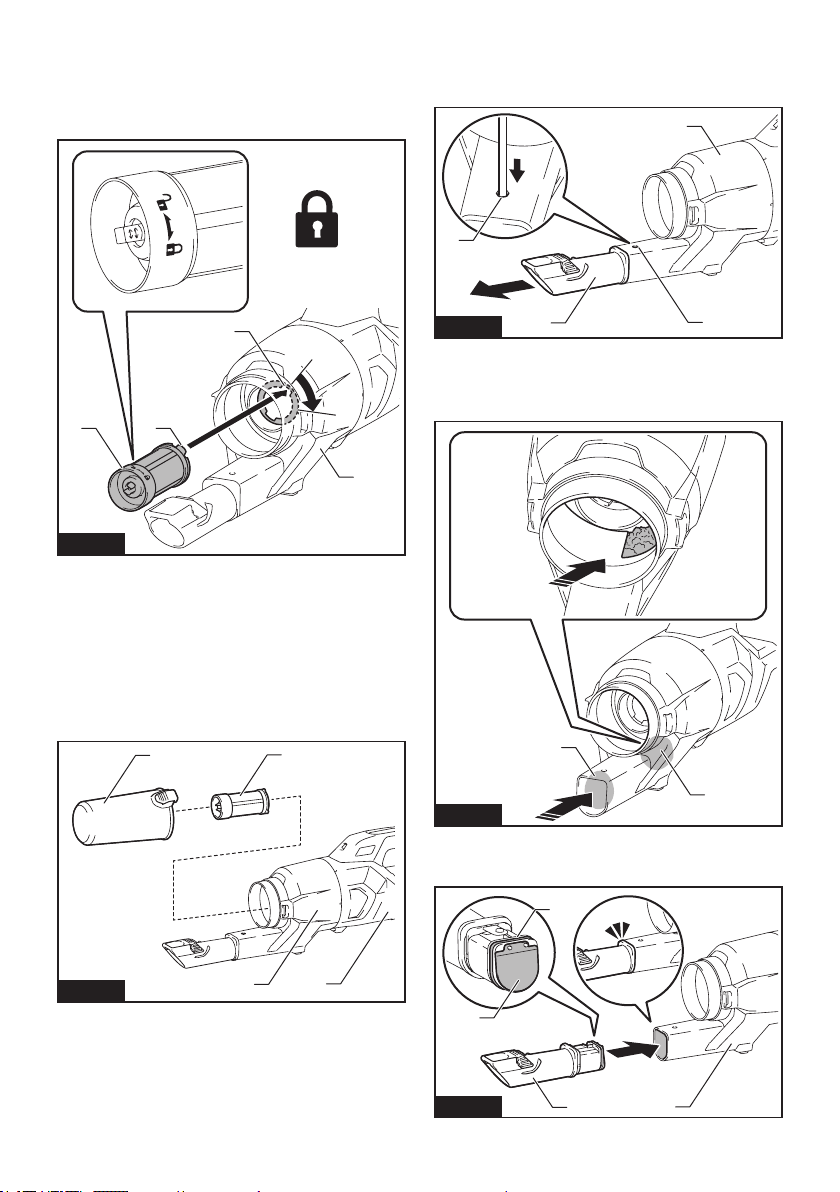

When using attachment with lock function
To install attachment, insert it to the suction inlet of the cleaner
until it clicks. Make sure that the attachment is locked.
1
23
Fig.7
►
1. Suction inlet 2. Attachment with lock function 3. Hook
NOTICE: When installing the attachment with
lock function, be sure to align the release button
on the cleaner with the hook on the attachment. If
they are not aligned, the attachment will not be locked
and may come o󰀨 from the cleaner.
To remove attachment, pull it o󰀨 the cleaner while
pressing and holding the arms of the release button.
1
2
3
4
Fig.8
► 1. Release button 2. Arm of release button
3. Attachment with lock function 4. Suction inlet
When using attachment without lock
function
NOTICE: To install attachment without lock func-
tion, insert it into the suction inlet of the cleaner
by twisting it as shown in the gure. To detach
attachment, release it from the cleaner by twist-
ing it as shown in the gure. Avoid twisting the
attachment in the direction opposite to the arrow
in the gure as it may loosen the cyclone unit.
Fig.9
OPERATION
CAUTION: Do not move your face close to
the air vent when operating the cleaner. If foreign
objects are blown into eyes, it may result in personal
injury.
NOTICE: Avoid using the cleaner in a horizontal
or upward facing position. It may otherwise cause
the mesh lter to become clogged.
NOTICE: Always use the cleaner with lters
installed. Using the cleaner without lters may result
in a motor malfunction.
NOTICE: Empty the dust case in the cyclone unit
when dust has accumulated. Continued use will
result in weakened suction force.
The cyclone unit helps reduce the amount of dust that
enters into the cleaner, enhancing the suction perfor-
mance with simple and easy dust disposing.

8ENGLISH
Cleaning (Suction)
Nozzle
With 250 mL dust case only
Attach the nozzle to clean o󰀨 tables, desks, furniture,
etc. The nozzle slips on easily.
1
Fig.10
► 1. Nozzle
Nozzle + Extension wand (Straight pipe)
The extension wand ts in between the nozzle and the
cleaner itself. This arrangement is convenient for clean-
ing a oor in a standing position.
1
2
3
Fig.11
► 1. Cleaner body 2. Extension wand 3. Nozzle
Corner nozzle
Fit on the corner nozzle for cleaning corners and crev-
ices of a car or furniture.
1
2
Fig.12
► 1. Corner nozzle 2. Cleaner body
You can store the corner nozzle in the nozzle holder.
1
2
Fig.13
► 1. Nozzle holder 2. Corner nozzle
CAUTION: Be careful not to trap nger(s)
between the corner nozzle and the nozzle holder.
Trapping nger(s) may cause injury.
Corner nozzle + Extension wand
(Straight pipe)
In tight quarters where the cleaner itself cannot
squeeze in, or in high places hard to reach, use this
arrangement.
12
3
Fig.14
► 1. Corner nozzle 2. Extension wand 3. Cleaner body
Cleaning without nozzle
With 250 mL dust case only
You can pick up powder and dust without nozzle.
Fig.15

9ENGLISH

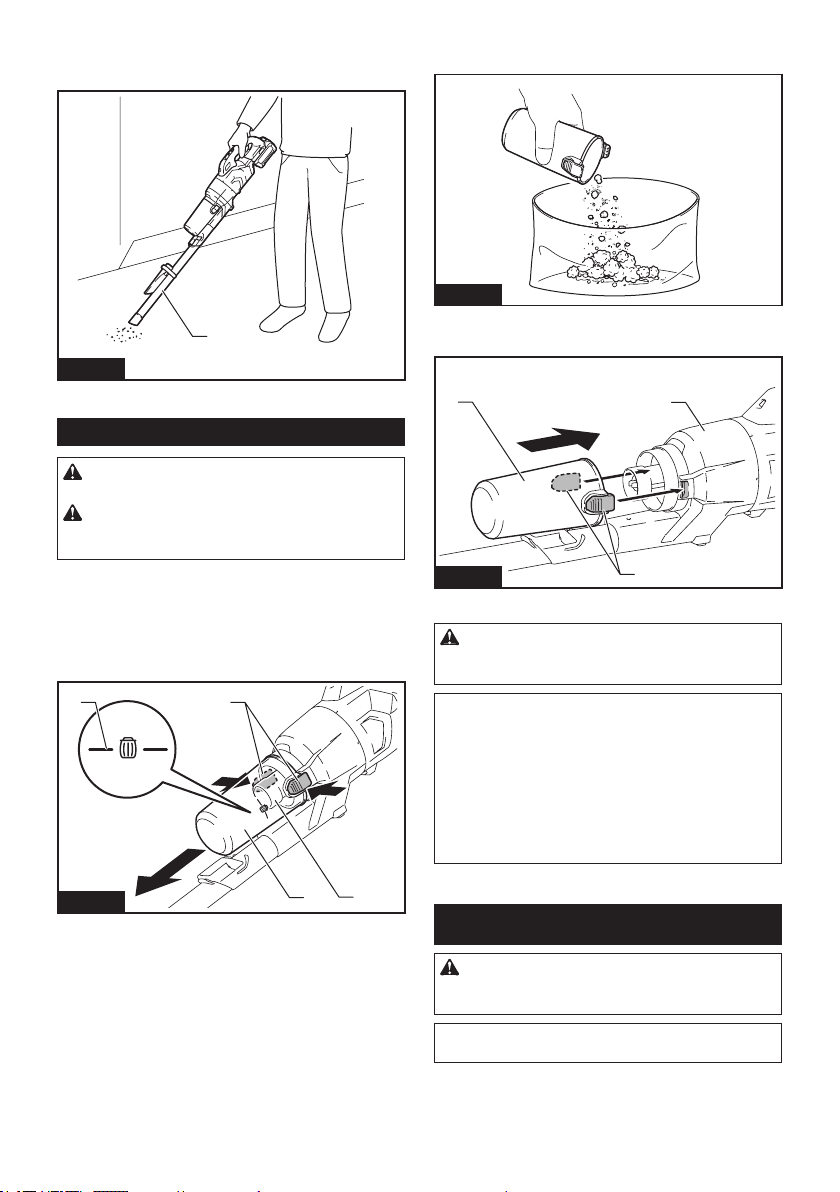

For picking up dust on a oor in a standing position, it is
convenient to attach the extension wand (straight pipe)
to the cleaner.
1
Fig.16
► 1. Extension wand
Disposing of dust
CAUTION: Empty the dust case before it
becomes too full, or the suction force weakens.
CAUTION: Be careful not to trap nger(s)
between the dust case and cyclone body when
reassembling.
Dispose of accumulated dust as follows before it
exceeds the dust disposal line.
1. Point the cleaner head downwards, hold the dust
case rmly, and then pull it apart from the cyclone body
while pressing and holding the release buttons on both
sides of the dust case.
1
2
3
4
Fig.17
► 1. Dust disposal line 2. Dust case 3. Release but-
tons 4. Mesh lter
2. Empty the dust case and clean the adhered dust
o󰀨 the mesh lter.
Fig.18
3. Place the dust case back onto the cyclone body to
secure it in place with clicks.
1
2
3
Fig.19
► 1. Dust case 2. Release buttons 3. Cyclone body
CAUTION: The dust may y up when dis-
posed out of the dust case. Be careful not to let
the dust get into your eyes.
NOTICE: When the dust case becomes dirty,
remove and wash it with water. Dry the dust case
thoroughly before reassembly and use.
NOTICE: Make sure all the attachments and com-
ponents are secured in place properly before use.
NOTICE: If the suction force does not recover
even after disposing of the dust and cleaning the
mesh lter, check whether dust has accumulated
inside the cyclone body or clogging has occurred.
MAINTENANCE
CAUTION: Always be sure that the tool is
switched o󰀨 and the battery cartridge is removed before
attempting to perform inspection or maintenance.
NOTICE: Never use gasoline, benzine, thinner, alcohol
or the like. Discoloration, deformation or cracks may result.
To maintain product SAFETY and RELIABILITY,
repairs, any other maintenance or adjustment should
be performed by Makita Authorized or Factory Service
Centers, always using Makita replacement parts.

10 ENGLISH

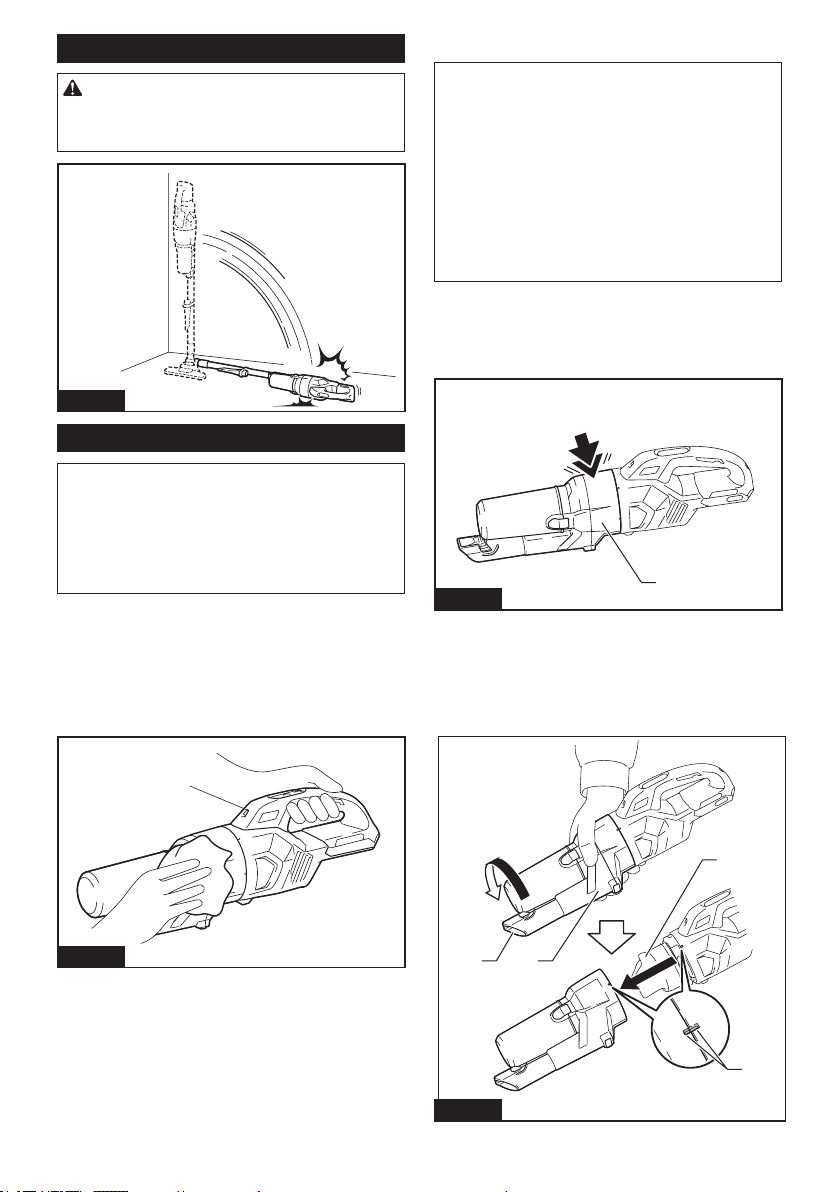

After use
CAUTION: Putting the cleaner against the
wall without any other support may cause the
cleaner to fall down, resulting in personal injury
or damage to the cleaner.
Fig.20

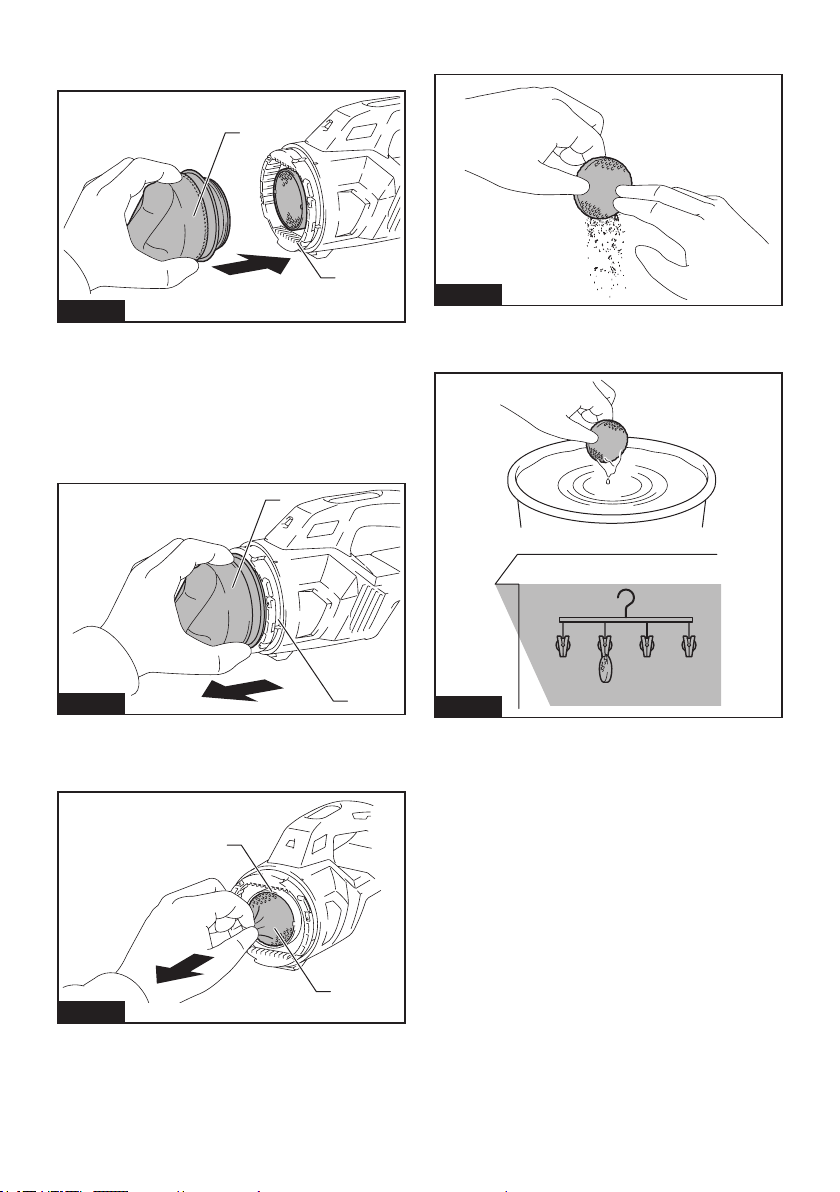

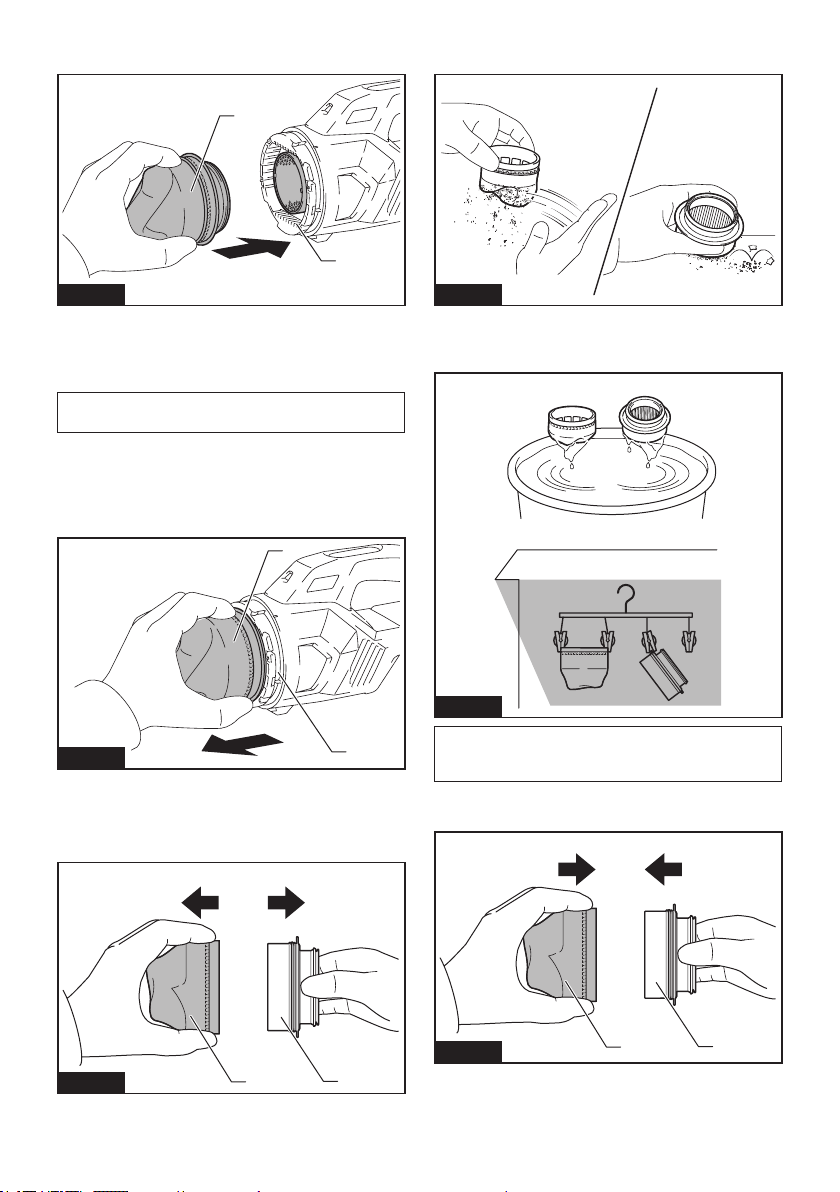

Regular maintenance

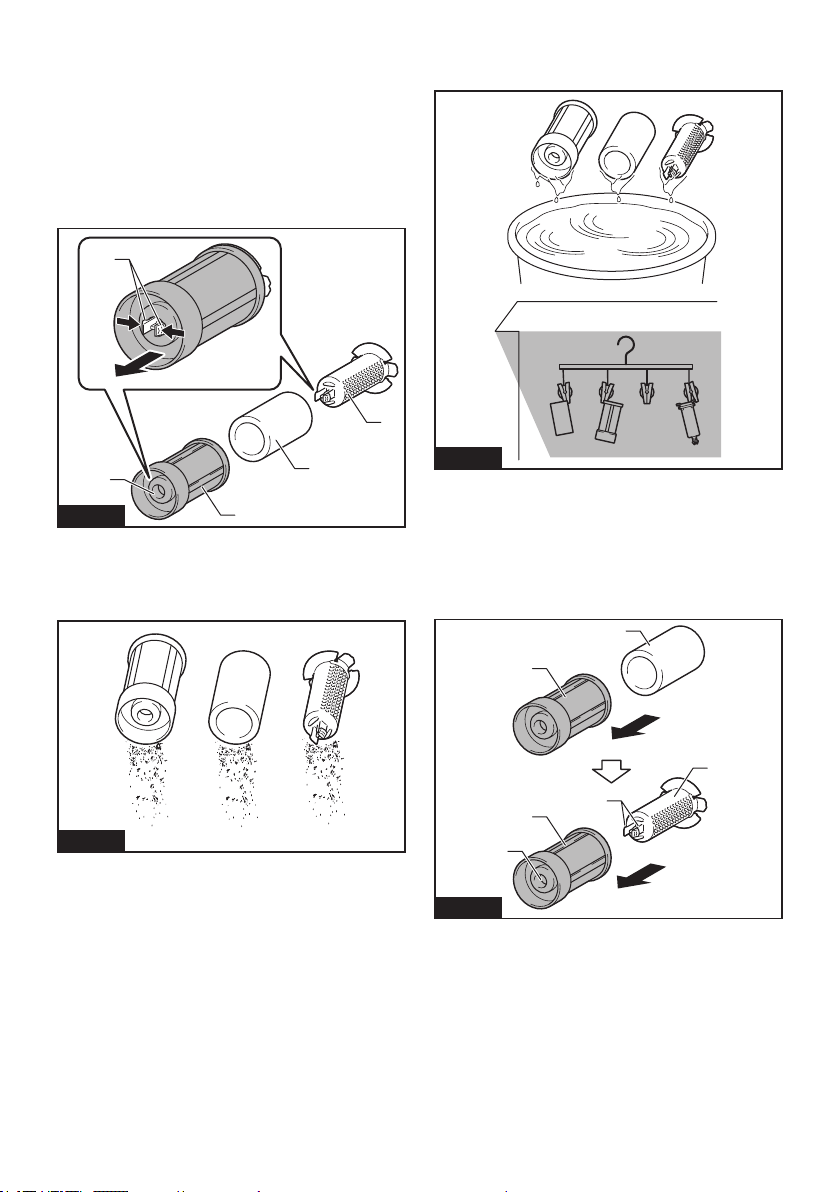

NOTICE: Clean the lters in the cyclone unit
when they become clogged. Continued use in the
clogged condition may result in heating or motor
malfunction.
NOTICE: Do not blow dust sticking on the
cleaner and lters by air duster. It brings dust into
the housing and causes failure.
Routine maintenance is required to restore normal
operating conditions.
Cleaner body
Wipe o󰀨 the outside (cleaner body) of the cleaner using
a cloth dampened in soapy water, and clean out the
suction openings.
Fig.21
Cyclone unit and lters
NOTICE: Dust o󰀨 and clean out inside the
cyclone unit and lters, when suction perfor-
mance becomes less e󰀨ective regardless of the
amount of dust collected in the dust case.
NOTICE: After washing lters, dry them thor-
oughly before use. Insu󰀩ciently dried lters may
cause poor suction and shorten the service life of the
motor.
NOTICE: After cleaning lters and sponge sheet,
be sure to re-install them before use. If you use the
cleaner without lters and sponge sheet, dust comes
into the motor housing and causes malfunction.
Cyclone unit
1. Tap the cyclone unit several times with your hand
to remove dust adhering to the inner surface of the
cyclone unit and lter.
1
Fig.22
► 1. Cyclone unit
2. With the suction inlet pointing downwards, turn the
cyclone unit as shown in the gure aligning the pointer
on the cyclone unit with that on the cleaner body to
disengage the lock. Then detach the cyclone unit from
the cleaner body slowly and straightly.
21
3
4
Fig.23
► 1. Cyclone unit 2. Suction inlet 3. Pointers 4. Filter

11 ENGLISH
NOTE: Dust may y out when the cyclone unit is
disassembled. It is recommended to place a garbage
bag underneath the cyclone unit.
3. Dust o󰀨 inside the cyclone unit and lter.
Fig.24
4. Place the cyclone unit back onto the cleaner body,
aligning the pointer on the cyclone unit with that on the
cleaner body. Then turn the cyclone unit as shown in
the gure until it is secured in place.
3
1
2
Fig.25
► 1. Cyclone unit 2. Cleaner body 3. Pointers
High performance lter
Optional accessory
1.
Disassemble the cyclone unit from the cleaner body.
2. Hold the mounting end of high performance lter
and pull it apart from the cleaner body.
1
2
Fig.26
► 1. High performance lter 2. Cleaner body
3.
Wipe and shake dust o󰀨 the high performance lter by hand.
Fig.27
4. Wash the high performance lter in soapy water
when it is clogged with dust and dirt. Dry it out thor-
oughly in the shade before use.
Fig.28
NOTE:
Avoid fastening the attachment end (rubber sealing
ring) of high performance lter when hanging it up for drying.

12 ENGLISH
5. Hold the mounting end of high performance lter
and squeeze it back into the cleaner body.
1
2
Fig.29
► 1. High performance lter 2. Cleaner body
HEPA lter
Optional accessory
NOTICE: Do not rub or scratch the HEPA lter
with hard objects such as a brush and a paddle.
1. Disassemble the cyclone unit from the cleaner
body.
2. Hold the mounting end of HEPA lter (covered with
high performance prelter) and pull it apart from the
cleaner body.
1
2
Fig.30
► 1. HEPA lter (covered with high performance prel-
ter) 2. Cleaner body
3. Disassemble the high performance prelter from
the HEPA lter by hand twisting.
1
2
Fig.31
► 1. High performance prelter 2. HEPA lter
4. Wipe and shake dust o󰀨 the high performance
prelter and HEPA lter by hand.
Fig.32
5. Wash the high performance prelter and HEPA
lter in soapy water. Rinse and dry them thoroughly in
the shade before use.
Fig.33
NOTE: Avoid fastening the attachment end (rubber
sealing ring) of HEPA lter when hanging it up for
drying.
6. Attach the high performance prelter onto the
HEPA lter.
12
Fig.34
► 1. High performance prelter 2. HEPA lter

13 ENGLISH
7. Hold the mounting end of HEPA lter (covered with
high performance prelter) and squeeze it back into the
cleaner body.
1
2
Fig.35
► 1. HEPA lter (covered with the high performance
prelter) 2. Cleaner body
Sponge sheet
1. Disassemble the cyclone unit from the cleaner
body.
2. Hold the mounting end of lter and pull it apart
from the cleaner body.
1
2
Fig.36
► 1. Filter 2. Cleaner body
3. Pull the sponge sheet o󰀨 from the suction
opening.
1
2
Fig.37
► 1. Sponge sheet 2. Suction opening
4. Wipe and shake dust o󰀨 the sponge sheet by
hand.
Fig.38
5. Wash the sponge sheet in soapy water when it is
clogged with dust and dirt. Dry it out thoroughly in the
shade before use.
Fig.39

14 ENGLISH
6. Place the sponge sheet back in the original
position. Make sure that the left and right edges of the
sponge sheet are secured with stoppers and no gap
between the sponge sheet and suction opening.
1
3
2
Fig.40
► 1. Sponge sheet 2. Stopper 3. Suction opening
7. Hold the mounting end of lter and squeeze it
back into the cleaner body.
1
2
Fig.41
► 1. Filter 2. Cleaner body
Condition-based maintenance
NOTICE: Clean the mesh lter in the cyclone
unit when they become clogged. Continued use in
the clogged condition may result in heating or motor
malfunction.
Deep and spot cleaning needs to be carried out accord-
ing to your tool performance.
Mesh lter
Clean up the mesh lter placed in the cyclone unit when
no suggested improvement on suction performance has
been found after completing regular maintenance.
1. Hold the dust case rmly and pull it apart from the
cyclone body while pressing and holding the release
buttons on both sides of the dust case.
3
2
1
Fig.42
► 1. Dust case 2. Cyclone body 3. Release buttons
2. Turn the mesh lter as shown in the gure to dis-
engage the lock. Then detach it from the cyclone body.
1
Fig.43
► 1. Mesh lter

15 ENGLISH
3. Disassemble the mesh lter into three compo-
nents: prelter, tubular sponge lter and mesh pipe.
i Squeeze the guide stoppers on top of the mesh
pipe together.
ii Pass the guide stoppers down through the guide
hole on top of the prelter.
iii Pull the the prelter along the tubular sponge lter
and mesh pipe.
iv Remove the tubular sponge lter from the mesh
pipe.
1
2
3
4
5
Fig.44
► 1. Prelter 2. Tubular sponge lter 3. Mesh pipe
4. Guide stoppers 5. Guide hole
4. Wipe and shake dust o󰀨 the lters and mesh pipe
by hand.
Fig.45
5. Wash the lters and mesh pipe in soapy water
when they are clogged with dust and dirt. Dry them out
thoroughly in the shade before use.
Fig.46
6. Reassemble the mesh lter.
i Insert the tubular sponge lter into the prelter.
ii Insert the mesh pipe into the tubular sponge lter
and prelter, passing the guide stoppers on top of the
mesh pipe through the guide hole on top of the prelter.
iii Push the mesh pipe through the tubular sponge
lter and prelter until it lock in place with a click.
1
4
5
1
3
2
Fig.47
► 1. Prelter 2. Tubular sponge lter 3. Mesh pipe
4. Guide stoppers 5. Guide hole

16 ENGLISH
7. Attach the mesh lter back into the cyclone body
aligning the hooks on the mesh lter with the ports on
the suction outlet of the cyclone body. Turn the mesh
lter as shown in the gure until the hooks are locked
with a click. Make sure that the mesh lter is installed
securely.
1
2
3
4
Fig.48
► 1. Mesh lter 2. Cyclone body 3. Hook 4. Port
Air channels in cyclone unit
Incoming foreign substance may block the air channels
in the cyclone unit and laden air ows. Remove any
obstacles in the air path if the suction performance is
being a󰀨ected remarkably.
1. Disassemble the cyclone unit into three compo-
nents: dust case, mesh lter and cyclone body.
12
34
Fig.49
► 1. Dust case 2. Mesh lter 3. Cyclone body
4. Cleaner body
2. Press and hold the guide stopper on the inlet pipe
down through the locking hole on the cyclone body
using the hand tool with a point. Then detach the inlet
pipe from the cyclone body.
12
3
4
Fig.50
►
1. Inlet pipe 2. Guide stopper 3. Cyclone body 4. Locking hole
3. Clean o󰀨 any substance found in the air channels.
Foreign substance is likely to get stuck around an incoming air port.
1
2
Fig.51
► 1. Suction inlet 2. Incoming air port
4.
Insert the inlet pipe back in place until it is securely locked.
12
4
3
Fig.52
► 1. Inlet pipe 2. Cyclone body 3. O-ring 4. Flap valve

17 ENGLISH
NOTICE: Be sure that the O-ring and ap valve
are securely in place before reassembly. Suction
performance can be a󰀨ected if the cyclone unit is
operated without the O-ring and ap valve in place.
5. Reassemble the cyclone unit, and attach it onto
the cleaner body.
Troubleshooting
Before asking for repairs, check the following points.
Symptom Area to be investigated Fixing method
Weak suction power Is dust case or inside cyclone unit full of
dust?
Empty dust case or inside cyclone unit.
Are lters clogged? Dust down or wash high performance lter/HEPA
lter/sponge sheet/mesh lter.
Anything to block incoming air channels? Clean any dust and objects out of air openings and
channels.
Is battery cartridge discharged? Charge battery cartridge.
Not working Is battery cartridge discharged? Charge battery cartridge.
Noise and vibration Are lters clogged? Dust down or wash high performance lter/HEPA
lter/sponge sheet/mesh lter.
Anything to block openings or holes? Clean any dust and objects out of nozzles, pipes
and air openings.
Is suction inlet of nozzle or pipe closed? Uncover and open suction inlet of nozzle and pipe.
CAUTION: Do not attempt to repair the cleaner by yourself.
OPTIONAL
ACCESSORIES
CAUTION: These accessories or attachments
are recommended for use with your Makita tool
specied in this manual. The use of any other
accessories or attachments might present a risk of
injury to persons. Only use accessory or attachment
for its stated purpose.
If you need any assistance for more details regard-
ing these accessories, ask your local Makita Service
Center.
• Extension wand (Straight pipe)
• Nozzle
• Nozzle for carpet
• Shelf brush
• Corner nozzle
• Round brush
• Flexible hose
• High performance lter
• HEPA lter
• Seat nozzle
• Crevice nozzle
• Tool bag
• Makita genuine battery and charger
NOTE: Some items in the list may be included in the
tool package as standard accessories. They may
di󰀨er from country to country.

18

19

www.makita.com
Makita Europe N.V.
Makita Corporation
3-11-8, Sumiyoshi-cho,
Anjo, Aichi 446-8502 Japa
n
Jan-Baptist Vinkstraat 2,
3070 Kortenberg, Belgium
885966-229
EN
20211221
