Malone SaddleUp PRO MPG110 User manual

MALONE
R
MALONE
R
DownLoaderDownLoaderTM
J-STYLE FOLDING KAYAK CARRIER
12’ Safety LinesJawz Universal Adapters Mounting BoltsKayak Carriers Load Straps T-Knobs
60mm
70mm
Installation & Loading Instructions - Please Read Before Beginning
1
3
2
. Insert Mounting Bolt through one hole of a Jawz adapter.
Insert washer and loosely apply a T-knob. See image 2.
. Faites passer le boulon de fixation dans l’un des trous
d’un adaptateur Jawz puis vissez légèrement un bouton
en ‘‘T’’ à la base du boulon. (Figure 2)
. Prior to installation, insert a bolt into the mounting holes in
the bottom of the carriers. Push upward to open the two
mounting hole covers located in the Base pads.
. Insert a Mounting Bolt into one mounting hole from the top
side. Rotate and close the mounting hole cover.
See image 1.
. Insérez un boulon de fixation dans l’un des trous hexagonaux
situés sur le côté supérieur du support.
(Figure 1)
. Place the carrier onto the front cross bar with the boarding
ramp facing out. Swing the Jawz under the cross bar as
shown. See image 3.
. Placez le support sur la barre transversale avant, la rampe
de chargement vers l’extérieur. Faites passer l’adaptateur
Jawz sous la barre transversale, tel qu’indiqué. (Figure 3)
1
Mounting Bolt Washers
Base Pad
Covers
IMPORTANT WARNING: Allvehiculartransports are potentially hazardous. Any person(s) using Malone products are personallyresponsiblefor
following the given directions for use and/or installation and accepts full responsibility for any and all damages or injury of any kind including death,
which may result from their use and/or installation.
It is critical that all Malone racks and accessories be properly and securely attached to your vehicle. Improper attachment could result in a serious
accident, and could cause serious bodily injury or death to you or to others. You are responsible for securing the racks and accessories to your car,
checking the attachment’s prior to use, and periodically inspecting the products for adjustment, wear, and damage.
You must read and understand all of the instructions and cautions supplied with your Malone products(s) prior to installation or use. If you do not
understand all of the instructions and cautions, or, if you have no mechanical experience and are not thoroughly familiar with the installation
procedures, you should have the product installed by a professional installer.
8818
MPG110
MALONE
R
MPG111MD
Installation & Loading Instructions
SaddleUp PROSaddleUp PRO
TM
UNIVERSAL KAYAK CARRIERS
Mounting
Bolt
1
2
3
4
Step 1: Installing the Carriers onto the Cross Rails
. Insert a mounting bolt into the right side hex hole. See image 1.
. Insert mounting bolt through one hole of a Jawz mounting adapter and loosely
apply T-knob. See image 2.
. Place the carrier onto the front cross rail with the bottom rounded side towards the
outside of the vehicle. Swing the Jawz under the cross rail as shown. See image 3.
. Insert a mounting bolt into the left side hex hole and down through the Jawz
mounting adapter. See image 4.
T-knob
Jawz
Mounting
Bolt
Outside
Edge
12’ Bow & Stern LinesJawz Universal Adapters Mounting Bolts
40mm
50mm
12’ Load Straps
MPGMD109-F
Kayak Carrier
MPGMD109-R
Kayak Carrier
For SaddleUp Pro MPG109MD-F, set of 2: Follow instructions 1-6.
For SaddleUp Pro MPG109MD-R, set of 2: Follow instructions 7-11.
For SaddleUp Pro MPG110MD, set of 4: Follow instructions 1-20.
TM
TM
TM
TM
TM
TM
TM
Please Read Before Beginning:

Product Saddle Up Pro™
Parent MPG/ER # MPG110
Revision # A
Date: 9/26/2019
SKU # DESCRIPTION Image
2022 Saddle Up Pro™ Saddle (MPG110,1001), Single
3006 Rear Saddle Cover (MPG110,1001) (Set of 2)
2030 15' Carrier Webbing Strap - Color: Green, Single
MPG306 Bow & Stern Tie Down (set of 2)
MPG361 50mm bolt (set of 4)
MPG362 60mm bolt (set of 4)
MPG369 T Knob (set of 4)
MPG303NH Jawz2™ Adapter (set of 2)
MPG303 Jawz 2™ V-Style Mounting Kit w/50mm & 60mm bolts & T-knobs

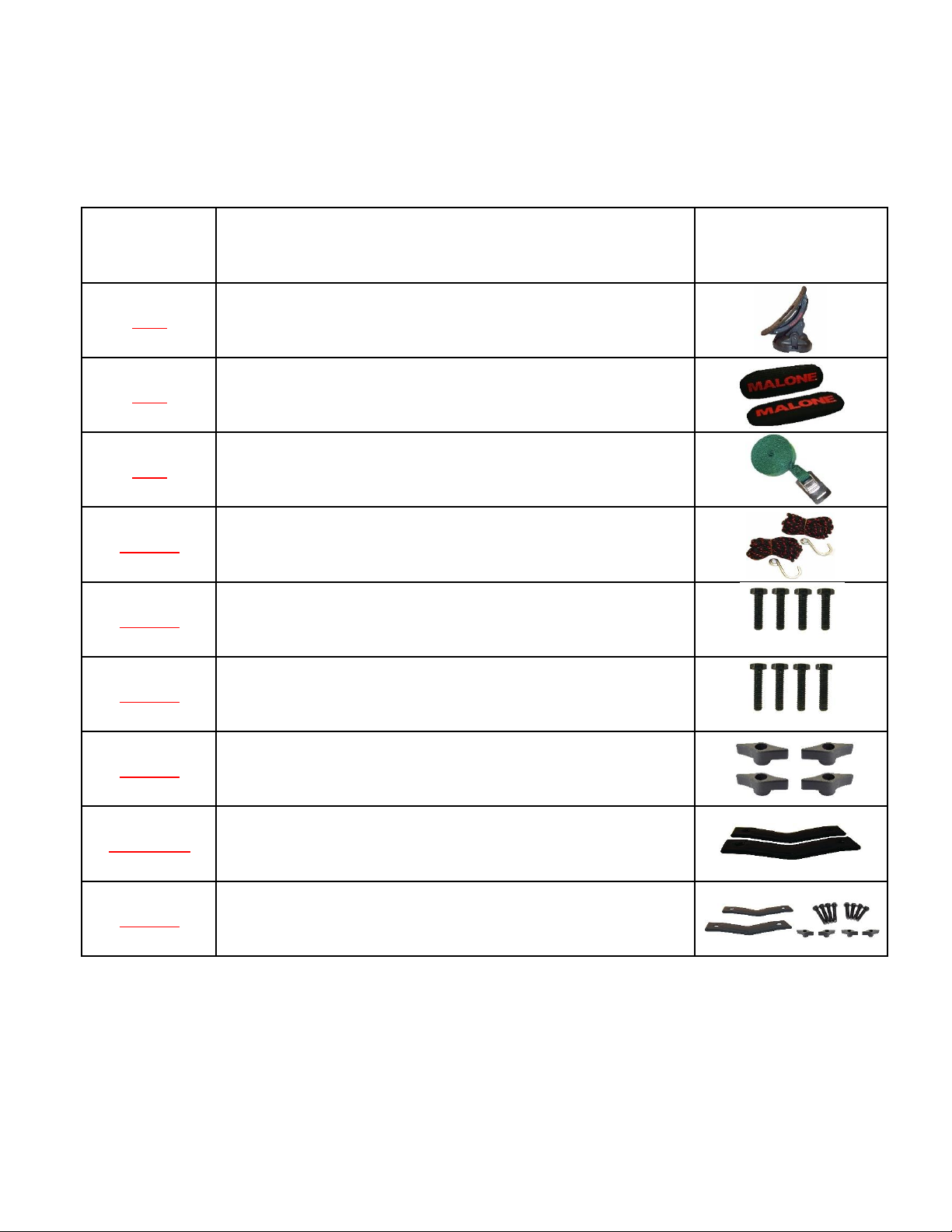

Spare Part Listing

MALONE
R
SaddleUp PROSaddleUp PRO
TM
UNIVERSAL KAYAK CARRIERS
Installation & Loading Instructions - Please Read Before Beginning
MPG307-11-B
Load Straps (2)
MPG303
Jawz Fit Adapters (4)
50mm Bolts (8), 60mm Bolts (8)
T-knobs (8)
MPG110
Kayak Saddles (4)
Saddle Pads (2)
MPG306
Bow & Stern Lines (2)
2
Installing the Saddle Pads:
Unfasten the pad’s Velcro retaining strap. Install one end of the pad over
the top of the kayak saddle. Pull down to smooth out wrinkles in the pad’s
fabric. Note: Conrm the pad is installed as shown. See Image 1.
1
2
3
Pushing down rmly; work the end of the reversed pad down and over the
bottom of the saddle. Conrm both pads ends are fully seated and aligned
with the top and bottom of the saddle. See Image 3.
R
Holding the bottom of the pad; turn
approximately 2”of the fabric back
so that it is inside-out. See Image 2.
TM
Load Straps (2)

TM
Installation & Loading Instructions - MPG110 SaddleUp Pro
Installing the Saddle Pads (continued):
MALONE
R
Rev 2/16
MPG110
3
5
There are now two saddles without pads that will be installed on the vehicle’s front cross rail
and two saddles with pads that are installed on the rear cross rail. See Image 5.
6
Installing the Saddles to the Cross Rails:
Insert a mounting bolt (50mm or 60mm) into one hex hole on the side of the base as
shown. See Image 6.
7
4
Jawz
T-Knob xxxxxxxxxxxxx
TM
Insert mounting bolt through one hole of a Jawz
adapter and loosely apply a T-knob. See Image 7.
TM
Finish by fastening the pad’s Velcro retaining strap between the kayak
saddle frame and pad as shown. See Image 4. Repeat Steps 1-4 to install
the second pad and saddle.
R
R
Mounting Bolt
TM

Installation & Loading Instructions - MPG110 SaddleUp Pro

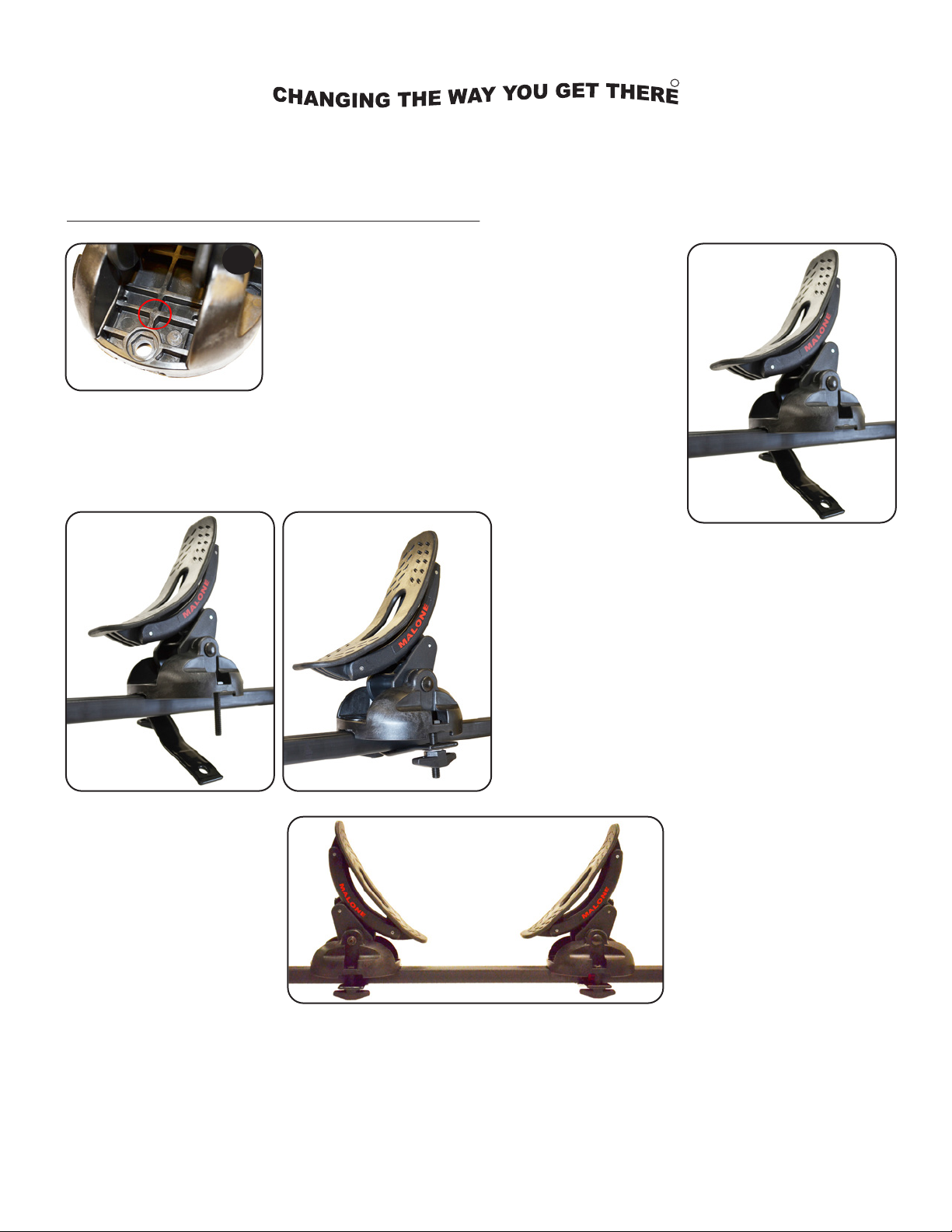

Installing the Saddles to the Cross Rails (continued):
MALONE
R
Rev 2/16
MPG110
4
89
Position the Jawz adapter directly under the cross rail. See Image 9.
TM
10 11
Repeat Steps 6-11 for the second saddle. Note: Conrm that both saddles are installed with the directional
arrow, noted in Step 8, facing inwards. There are now two saddles without pads installed on the vehicle’s
front cross rail. See Image 12.
12
Place the saddle onto the front cross bar with the
directional arrow facing inward. See Image 8.
Insert a mounting bolt into the remaining hex
hole on the other side of the base. See Image 10.
Insert the mounting bolt through the remaining
hole in the Jawz adapter and loosely apply a
T-knob. See image 11.
TM
Note: The base of the carrier has a
rectangular “cutout” that has been
included for square cross bar t.
This “cutout” does not effect the
t or function of the carriers when
installed to round or oval shaped
cross bars.

Installing the Saddles to the Cross Rails (continued):
Repeat Steps 6-11 for the two saddles with pads installed on the rear cross rail. Note: Conrm that both
saddles are each installed with the directional arrow, noted in Step 8, facing inwards. See Image 13.
There are now four loosely installed saddles; two without pads mounted on the front cross rail, and, two
with pads mounted on the rear cross rail. See Image 14.
MALONE
R
Rev 2/16
MPG110
5
Position the kayak at the rear of the vehicle. Lift the front of the kayak
up and place into the rear saddles. Push kayak forward. See Image 15.
13
13 14
Loading & Securing the Kayak:
Center the kayak on the front and rear saddles. Adjust
the saddles to achieve maximum hull contact. Securely
tighten all eight of the T-knobs. See Image 16.
Installation & Loading Instructions - MPG110 SaddleUp Pro
15
16

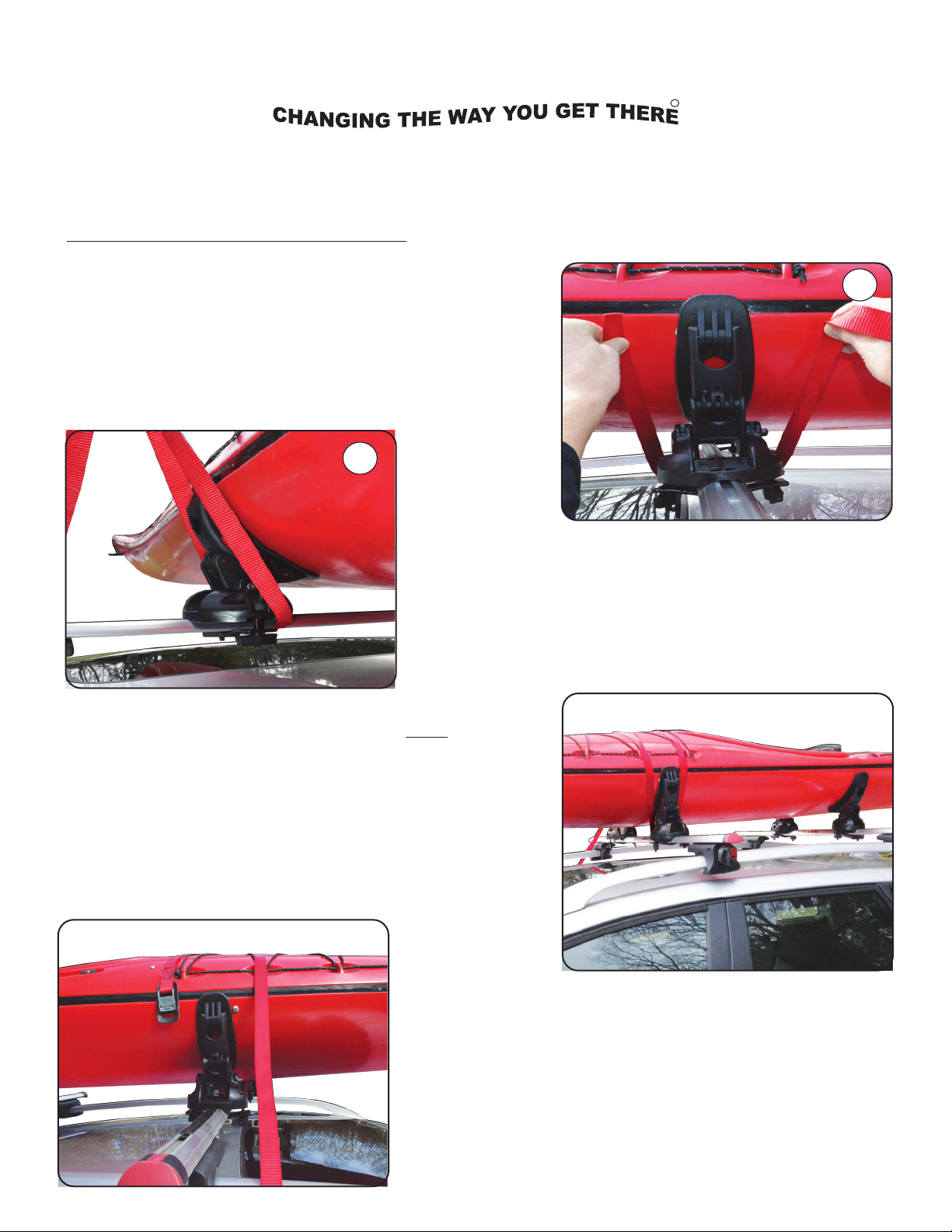

Loading & Securing the Kayak (continued):
MALONE
R
Rev 2/16
MPG110
6
With the loop positioned over the kayak, pull the free end of
the strap down until the buckle end is at the top edge of the
kayak. See Image 20.
18
Pull the free end up until both ends of the strap are even and
a loop has been created. See Image 18.
19
Place the strap loop up and over the kayak. Note: Conrm
that the strap remains tight under the cross rail and correctly
positioned in front of the Jawz adapter. See Image 19.
TM
Installation & Loading Instructions - MPG110 SaddleUp Pro
Dress the free end of a strap under the cross rail and in front of
the Jawz mounting adapter. See Image 17.
TM
20
17

21
Loading & Securing the Kayak (continued):
MALONE
R
7
Attach the MPG370 bow & stern safety lines to the kayak and
vehicle. See following pages. See Image 22.
Failure to correctly install and/or deploy the MPG370 safety
lines voids all warranty and Malone liability for damages or
injury.
Installation & Loading Instructions - MPG110 SaddleUp Pro
Dress the free end of the strap under the cross rail and in
front of the Jawz mounting adapter. Pull the free end up
and insert through the buckle. Pull down to tighten.
See Image 21.
Repeat Steps 17-21 for the second set of saddles. Conrm
that the kayak is rmly held in place on all four saddles and
the straps are well secured.
TM
22
MPG306
MPG306

MPG370 BOW & STERN LINE KIT
MALONE
R
Thread free end
of cord through
hook.
Create a “left
over right”
knot & tighten.
Create a “right
over left”
knot & tighten.
Pull to test for
knot strength.
A B C D
Attach hook to rope (steps A-D)
Keeping the rope tight and
S-hook in place, thread the
free end up and through a
strong point on the kayak
F
Make a loop in the rope
12” to 14” away
from the kayak or canoe.
G
Attach and dress rope to vehicle and boat (steps E-O)
Attach S-hook to vehicle
tow ring or other sturdy
body part.
E
Bend the loop over leaving
a large opening as shown.
H
Opening
Pass the loop through the
opening.
I
Pull to create a tight knot.
JK
Thread the free end of
the rope
through the loop.
L
Pull the free end up until
the rope
is sufficiently tight.
M
Hold the rope secure with
one hand. Form a knot with the free
end and tighten. Form
a second knot for
safety purposes.
N
The line should be tight
and secure. Repeat for
second tie-down.
O
MPG306 BOW & STERN LINE KIT
NOTE: NOT REQUIRED ONTRAILER PACKAGES
