Manitowoc Grove GMK 5250L User manual

Operating Instructions
3 302 633 en
27.09.2017

27.09.2017
3 302 633 en Operating Instructions GMK5250L
Important note
Any type of duplication or excerpt from
this document, even in electronic form,
is not subject to the revision service of
Manitowoc Crane Group Germany GmbH.
© Copyright reserved by
Manitowoc Crane Group Germany GmbH
Industriegelände West
D-26389 Wilhelmshaven, Germany
Tel: [+49] (0)44 21 294-0
Fax: +[49] (0) 44 21 294-301
The passing on or duplication of this document as well as the utilisation and disclosure of its contents is prohibited unless
expressly permitted. Infringement will incur liability for compensation. All rights pertaining to registration of patent or utility
model are reserved. The original language of this document is German.

Additional page GMK 3 302 652 en 1
31.08.2017
1Reduction of slewing speed – can be switched
on and off
In addition to the specifications in the lifting capacity table and operating
manual supplied, the automatic reduction of the slewing speed can be
switched off under certain conditions.
1.1 Important notes
These additional pages describe only this special function.
Also observe all specifications and safety instructions in the Operating
Instructions and lifting capacity table supplied.
With reduction
switched on
Depending on the degree of utilisation and the working radius, the slewing
speeds are automatically reduced to the maximum permissible levels listed
in the lifting capacity table under the comments on slewing speed.
With reduction
switched off
If the maximum slewing speeds listed in the supplied lifting capacity table are
exceeded, the buzzer tone sounds and a warning symbol is displayed.
The slewing speed is not reduced.
GRisk of accidents due to excessive slewing speed!
Observe the specified maximum permissible slewing speeds. This prevents
the truck crane from being subjected to excessive dynamic loads, which
can lead to damage to crane sections and the truck crane overturning.
Always slow down and accelerate the slewing movement slowly and avoid
swinging loads.
When reduction is switched off, you as crane operator are responsible for
a slewing speed that is suitable the current loading case.

31.08.2017
2 3 302 652 en Additional page GMK
1.2 Operation
1.2.1 Additional and modified operating elements
In the Superstructure lock menu
– Operation
–Display
Menu-independent displays
Warning messages on the RCL display
1The display switches to this position – was
previously at position (2)
2Slewing speed reduction on/off
3Reduction on – green
4Reduction off – grey
–Blue:Reduction on
–Red: Maximum permissible slewing
speed exceeded

Additional page GMK 3 302 652 en 3
31.08.2017
1.2.2 Switching reduction off and on
HThe reduction of the slewing speed is switched on with the ignition.
Switching reduction off
You can only switch off the reduction if the
slewing range type Standard has been entered.
•Select and confirm the symbol (2).
– Display symbol (1) – green.
– Warning message display (3) – blue.
The slewing speed is not reduced auto-
matically.
If the maximum permissible slewing speed
is exceeded, the buzzer tone sounds once
and the warning message (3) is displayed –
red.
HThe entered limitations for the power unit speed of the slewing gear are still
valid and the continuous speed reductions due to the working range limiter
are still active.
Switching reduction on
•Select and confirm the symbol (2).
– Symbol (1) – grey displayed.
– The warning message (3) disappears.
The slewing speed is reduced automatically.
The reduction is automatically switched on
when you enter the slewing range type
MAXbase.

31.08.2017
4 3 302 652 en Additional page GMK
Blank page

Additional pages GMK 3 302 716 en 1
08.02.2018
The display RCL (1) shows the outrigger spans
in metres (feet).
The control units (2) indicate the outrigger
spans in per cent.
The percentage values in the enclosed lifting
capacity table and the enclosed operating instruc-
tions deviate from the percentage values actu-
ally displayed on the control units (2) as they
are based on different principles.
These additional pages give an overview for different crane types of what
per cent you have to move the outrigger beams on the control units in order
to obtain the desired outrigger span.
HDepending on the operating instructions supplied, the outrigger spans are
given as the overall width or additionally as an individual width.
s
GMK5250L / GMK5200-1 / GMK5180-1
Length specifications Percentages
Overall widths Individual widths Control
unit
Lifting
capacity
table
7.800 m (25.6 ft) 3.900 m (12.8 ft) 100% 100%
6.854 m (22.4 ft) 3.427 m (11.2 ft) 81% 83%
5.910 m (19.4 ft) 2.955 m (9.7 ft) 63% 66%
4.310 m (14.2 ft) 2.155 m (7.1 ft) 31% 50%
2.710 m (8.8 ft) 1.355 m (4.4 ft) 0% 0%
Outrigger spans
Overview metres (feet) / per cent

08.02.2018
2 3 302 716 en Additional pages GMK
GMK5150/GMK5150L
Length specifications Percentages
Overall widths Individual widths Control
unit
Lifting
capacity
table
7.600 m (24.9 ft) 3.800 m (12.5 ft) 100% 100%
6.700 m (22.0 ft) 3.350 m (11.0 ft) 83% 83%
5.900 m (19.4 ft) 2.950 m (9.7 ft) 61% 66%
5.100 m (16.7 ft) 2.550 m (8.4 ft) 51% 50%
2.500 m (8.2 ft) 1.250 m (4.1 ft) 0% 0%
GMK4100L-1
Length specifications Percentages
Overall widths Individual widths Control
unit
Lifting
capacity
table
7.200 m (23.6 ft) 3.600 m (11.8 ft) 100% 100%
6.250 m (20.6 ft) 3.125 m (10.3 ft) 81% 80%
5.300 m (17.4 ft) 2.650 m (8.7 ft) 61% 60%
3.800 m (12.4 ft) 1.900 m (6.2 ft) 31% 40%
2.340 m (7.6 ft) 1.170 m (3.8 ft) 0% 0%
GMK3060
Length specifications Percentages
Overall widths Individual widths Control
unit
Lifting
capacity
table
6.20 m (20.3 ft) 3.10 (10.2 ft) 100%
None4.40 m (14.4 ft) 2.20 (7.2 ft) 51%
2.32 m (7.6 ft) 1.16 (3.8 ft) 0%

Additional pages GMK 3 302 808 en 1
31.08.2018
In the Operating manual supplied, it is noted that special care must be taken when
telescoping in the emergency programe (1), as no automatic monitoring takes
place.
If you move the telescoping cylinder without a telescopic section (return run),
please also note all the information in these additional pages.
(A) – These specifications apply to the outermost
telescopic section (3) – on all fixed lengths.
•Always stop extending the telescopic cylin-
der (1) once the locking point (2) on the
outermost telescopic section (3) has been
reached.
There is no automatic shutdown.
(B) – If you move too far past the locking point (2),
the cylinder tube (4) will hit the main boom
head (5) at the front.
This can lead to damage which makes telescop-
ing the main boom no longer possible.
Telescoping emergency programe
Return run of the telescoping cylinder
SRisk of damage during return run of the telescopic cylinder!
Always stop extending once the locking point on the outermost telescopic section
has been reached.
This prevents damage to the boom system through a collision between the
telescoping cylinder and the main boom head.

31.08.2018
2 3 302 808 en Additional pages GMK
Blank page

Additional pages GMK 3 302 839 en 1
28.11.2018
In addition to the information given in the operating instructions supplied, the
heating system and air-conditioning system in the crane cab can also be
operated from the driver's cab. This enables, for example, the crane cab to
be preheated while driving.

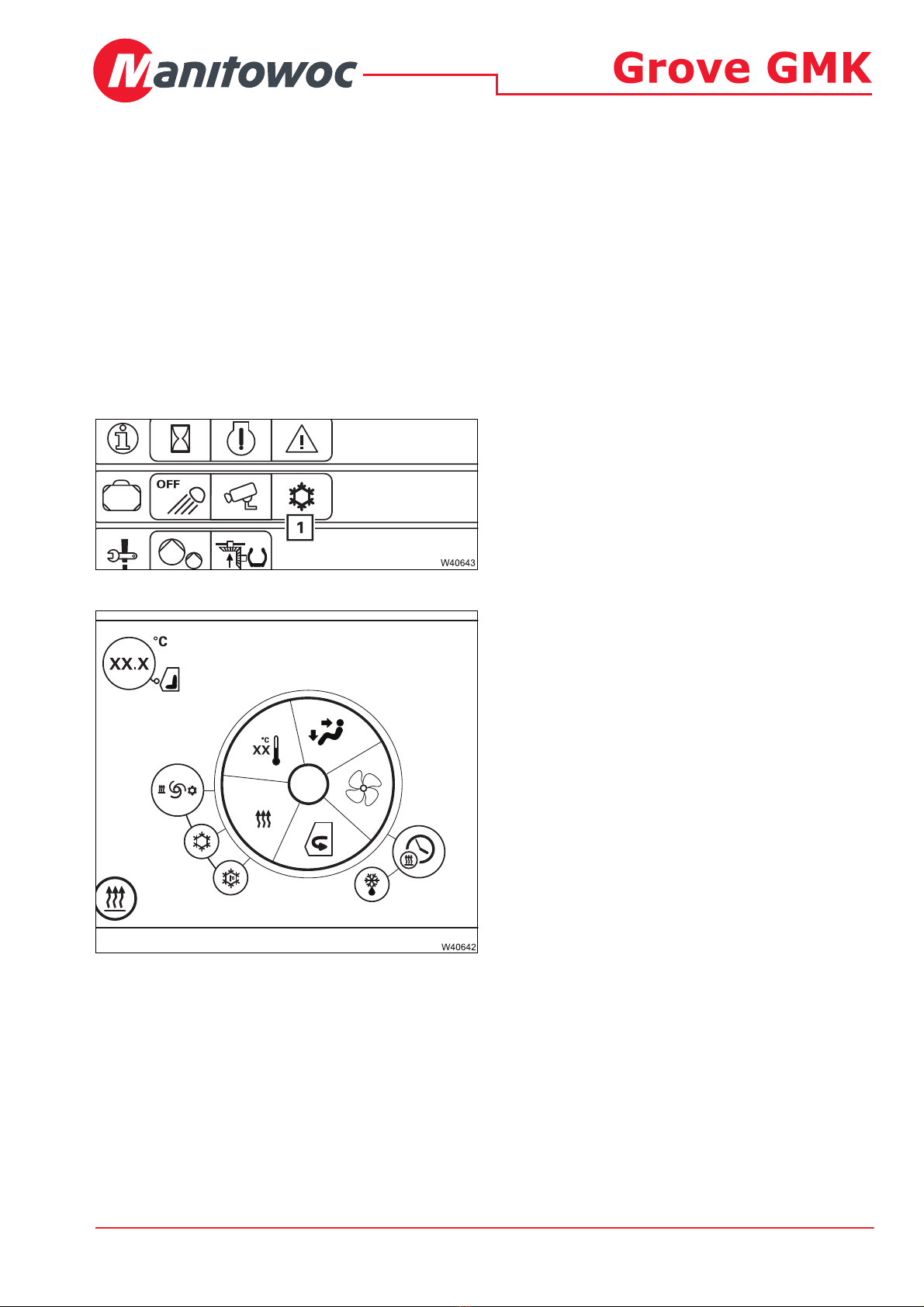

Additional operating elements
In the Various controls menu group – only in newer
program versions.
Operation
The Crane cab heating/air-conditioning system menu
is identical to the menu in the crane cab.
It is operated in the same way as in the crane cab
and is described in the supplied operating manual.
After switching on the ignition in the driver's cab,
the heating system and air-conditioning system in
the crane cab must always be switched off.
Crane cab heating and air-conditioning system
Operation from the driver's cab
1Crane cab heating/air-conditioning system
menu

28.11.2018
2 3 302 839 en Additional pages GMK
Blank page

Additional pages MAXbase 3 302 801 en-us 1
24.08.2018
In addition to the information in the supplied Operating manual there are lifting
capacity tables for further outrigger spans. These additional pages only show the
additional outrigger spans.
Outrigger span type Three / One
Three outrigger beams are extended the same distance and one outrigger beam
has a smaller outrigger span.
GMK5180-1 / GMK5200-1 / GMK5250L
– One outrigger span smaller – Left
– One outrigger span smaller – Right
There are no separate lifting capacity tables
for this type. The lifting capacities for the
type One outrigger span smaller – left are ena-
bled in a correspondingly mirrored slewing
range; àSupplied operating manual.
MAXbase
Additional outrigger spans
FR FL RR RL
I3.900 m
(12.8 ft)
2.155 m
(7.1 ft)
3.900 m
(12.8 ft)
3.900 m
(12.8 ft)
II 3.900 m
(12.8 ft)
3.900 m
(12.8 ft)
3.900 m
(12.8 ft)
2.155 m
(7.1 ft)
FR FL RR RL
III 2.155 m
(7.1 ft)
3.900 m
(12.8 ft)
3.900 m
(12.8 ft)
3.900 m
(12.8 ft)
IV 3.900 m
(12.8 ft)
3.900 m
(12.8 ft)
2.155 m
(7.1 ft)
3.900 m
(12.8 ft)

24.08.2018
2 3 302 801 en-us Additional pages MAXbase
Blank page

Operating Instructions GMK5250L 3 302 633 en
27.09.2017
The operating instructions consist of the
following chapters
1 Overview
2 Basic safety instructions
3 Operating elements for driving
4 Starting the engine for driving / switching it off
5 Driving
6 Driving modes and rigging for on-road driving
7 Malfunctions in driving mode
8 Operating elements for crane operation
9 Starting/switching off the engine – for crane
operation
10 Crane operation
11 Rigging work
12 Driving with a rigged truck crane
13 Transportation
14 Malfunctions during crane operation
15 Index

3 302 633 en Operating Instructions GMK5250L
27.09.2017
Blank page

Operating Instructions GMK5250L 3 302 633 en
27.09.2017
1
1 Overview
1.1 Accidents . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1 - 1
1.2 Branch offices. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1 - 3
1.2.1 Manitowoc Crane Care . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1 - 3
1.2.2 Dealer list. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1 - 3
1.3 Warranty specifications . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1 - 3
1.4 Terms used. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1 - 4
1.5 Technical data . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1 - 7
1.5.1 Maximum lifting capacity (DIN/ISO/EN) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1 - 7
1.5.2 Maximum lifting capacity (ASME B 30.5) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1 - 7
1.5.3 Dimensions and weights of the truck crane, axle loads . . . . . . . . . . . . . . . . . . . 1 - 8
1.5.4 Dimensions and weights of removable parts. . . . . . . . . . . . . . . . . . . . . . . . . . . . 1 - 10
1.5.5 Carrier . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1 - 15
1.5.6 Superstructure . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1 -19
1.6 Documentation supplied . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1 - 23
1.6.1 Questions on documentation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1 - 24
1.7 Notes on the operating manual . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1 - 25
1.7.1 What do the symbols used mean? . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1 - 25
1.7.2 How is the operating manual structured? . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1 - 27
1.7.3 How do I find the information I need? . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1 - 29
1.7.4 What information is available for operations planning? . . . . . . . . . . . . . . . . . . 1 - 32
1.8 Conversion table for US measuring units. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1 - 33
1.9 Training – Information. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1 - 35
1.10 Identification . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1 - 36
1.11 EC Declaration of Conformity. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1 - 38

3 302 633 en Operating Instructions GMK5250L
27.09.2017

Operating Instructions GMK5250L 3 302 633 en
27.09.2017
2
2 Basic safety instructions
2.1 Intended use . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2 - 1
2.1.1 Improper use . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2 -2
2.2 Organisational measures . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2 - 3
2.3 Personnel qualifications . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2 - 5
2.4 Safety instructions for driving the truck crane. . . . . . . . . . . . . . . . . . . . . . . . . . . . 2 - 6
2.5 Safety instructions for crane operation. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2 - 7
2.6 Instructions on transporting persons . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2 - 10

3 302 633 en Operating Instructions GMK5250L
27.09.2017
