Mark-10 F Series User manual

Series F
TEST FRAMES
Quick Start Guide
Force and torque measurement engineered better
Mark-10 Corporation
11 Dixon Avenue
Copiague, NY 11726
888-MARK-TEN
Tel: [phone]
Fax: [phone]
www.mark-10.com
[email protected]
32-1223
0121
Models:
F755 | F755S | F1505 | F1505S
IntelliMESUR®Software
FURTHER INFORMATION
User’s Guide
www.mark-10.com/downloads/product-downloads/
manualSeriesF.pdf
Download user’s guides, data sheets, software,
solid models, and more.
www.mark-10.com/downloads
INSTALLING THE SOFTWARE (-IM MODELS)
For model numbers ending in “-IM”, a separate
license is provided to install onto the user’s device.
Locate the box containing a USB ash drive and
USB dongle, as shown at left.
Plug in the ash drive, then locate and double-click
the le “setup.exe”. Refer to the User’s Guide for
complete instructions.

Thank you!
Thank you for purchasing a Mark-10 Series F Test
Frame. With proper usage, we are condent that you
will get many years of great service with this product.
Mark-10 instruments are ruggedly built for many years
of service in laboratory and industrial environments.
Please read through this Quick Start Guide and the
complete User’s Guide before use.

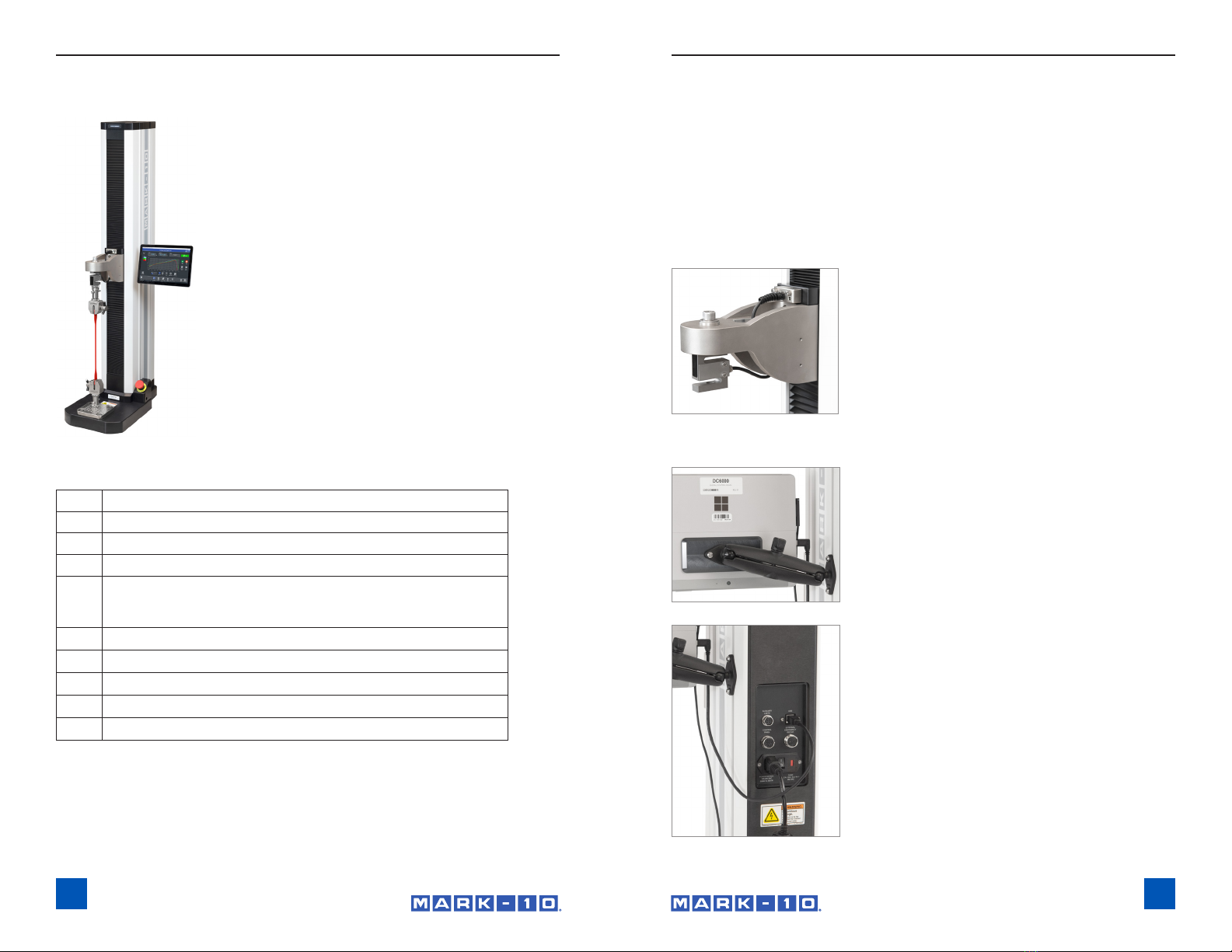

Series F Test Frames - Models F755, F755S, F1505, F1505S
SETUP
IN THE BOX
Quick Start Guide
Qty. Description
1 Control panel, mounting bracket, and hardware (-IMT models only)
1USB ash drive containing software installation les (-IM models only)
1 USB dongle (-IM models only)
1 USB cable
-IMT models: right-angle C to B
-IM models: A to B
1 Eye end kit for base
2 Lock ring for eye end
2 Spanner wrench
1 Power cord
1 Allen wrench set
2 3
INSTALLING A FORCE SENSOR
INSTALLING THE CONTROL PANEL (-IMT MODELS)
Place the test frame on a clean, at and level work area free from vibration.
Ensure that the rear of the column is easily accessible to connect the power cord
and connection cables. To prevent tipping, it is suggested to mount the test frame
to a work bench via screws fastened into the underside of the base. Connect the
power cord to an outlet.
Install the sensor to the underside of the crosshead
using the supplied socket head screw and hard-
ware. Plug the connector into the connector into the
receptacle in the top front surface of the crosshead,
then fasten the two thumbscrews, as shown at left.
Grips and xtures may be threaded onto the under-
side of the sensor.
Test frame part numbers ending in “-IMT”, for exam-
ple Model F1505-IMT, include a Windows tablet with
attached ball mount and mounting bracket, pack-
aged separately. The mounting arm is pre-installed
into the front right slot in the test frame column via
two screws.
Loosen the knob su󰀩ciently to slide the ball, mount-
ed to the rear of the tablet, into the arm. Orient the
tablet horizontally, with the USB-C port positioned
on the left side. Adjust the viewing angle as desired,
then tighten the knob.
Connect the included USB cable between the
USB-C port and the USB-B port in the rear of col-
umn, and connect the AC adapter connector.
Plug in the AC adapter and press the Power button,
in the lower right corner of the tablet. The tablet will
boot up directly into the IntelliMESUR application. If
not, select the IntelliMESUR®icon in the Windows
home screen.
