Wichtiger Hinweis:
Dieses Produkt ist nur für den Einbau durch Märklin
Digital-Fachhändler vorgesehen. Achten Sie bitte
darauf, dass die Seite 27 vollständig ausgefüllt wird.
Nur beim Einbau durch autorisierte Märklin Digital-
Fachhändler oder Reparateure gilt die 24-monatliche
Garantie.
I. Einbauhinweise
Hinweis: Diese Elektronik ist nur für einmotorige
MAXI-Dampflokomotiven mit dreiachsigem Standard-
Fahrgestell geeignet (z. B. 5450, 5451, 5452 etc.).
Bei dem MAXI Modell der E 69 (z. B. 54201) und
der V 60 (54321) ist ein Einbau nur möglich, wenn
die Beleuchtungsanschlüsse geändert werden.
Bei dem Dampflokmodell „Glaskasten“ (z. B. 54504)
und dem Modell der bayerischen D VI (z. B. Lok aus
54104) kann diese Elektronik nur eingebaut werden,
wenn die aufgelötete Zusatzplatine für die Funktions-
ausgänge entfernt wird. Alle diese Modelle daher nur
von einem autorisierten Reparaturbetrieb umrüsten
lassen. Die sonstigen zweiachsigen Dampflok-Modelle
(z. B. Lok aus 54406) können problemlos umge-
rüstet werden.

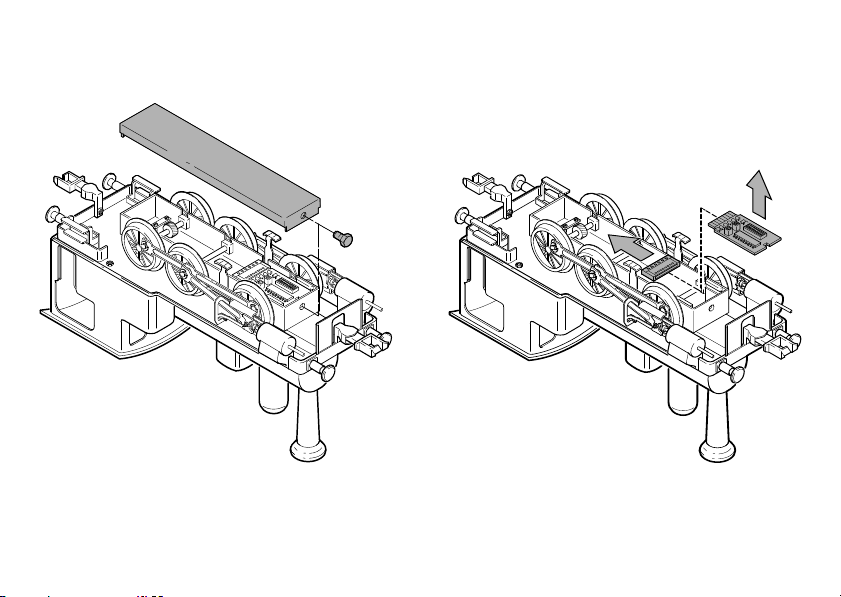

1. Entfernen Sie die Getriebeabdeckung auf der
Unterseite der Lok (Abb. ➀).
2. Entfernen Sie die Steckbuchse an der DELTA /
Wechselstromelektronik (Abb. ➁).
3. Entfernen Sie die DELTA / Wechselstromelektronik.
2

3
➀➁

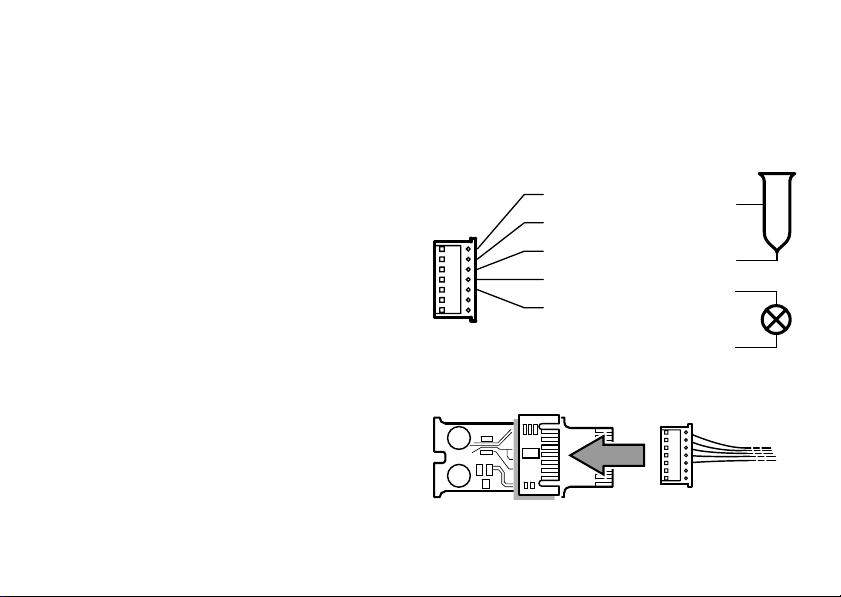

4. Schließen sie die gewünschten Zusatzfunktionen
an (Abb. ➂). Pro Funktionsausgang können Ver-
braucher mit einer maximalen Stromaufnahme
von 200 mA angeschlossen werden. Kürzen bzw.
entfernen Sie nicht benötigte Anschlussleitungen.
5. Schließen Sie den Zusatzstecker für Funktionen
an die Platine an (Abb. ➃).

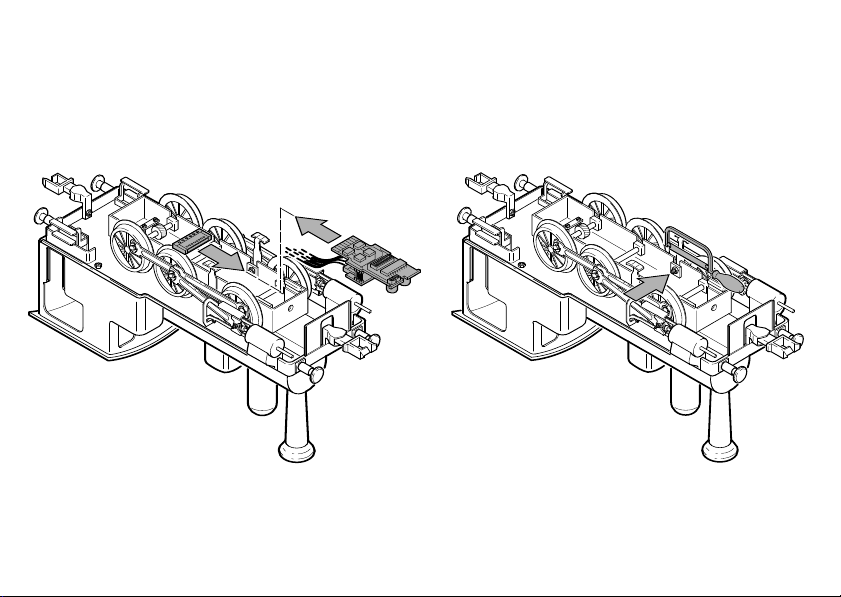

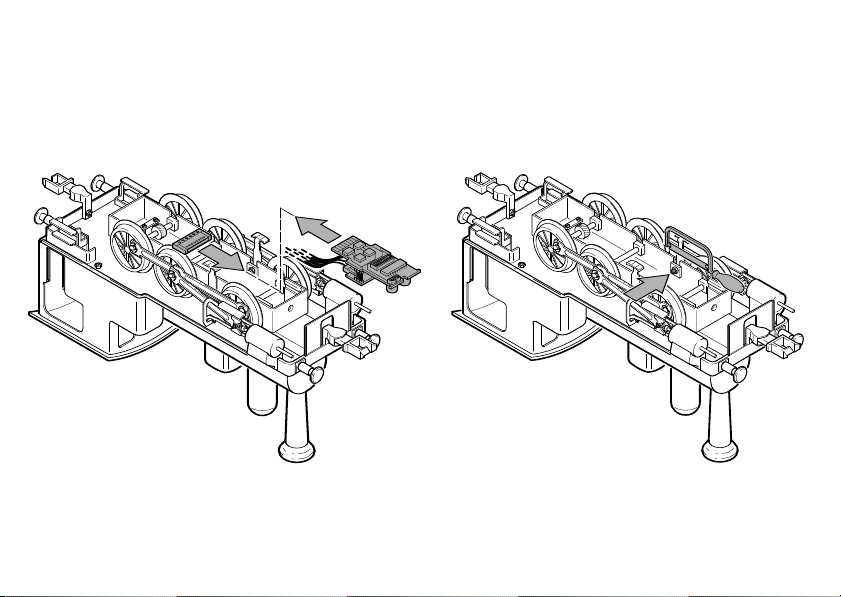

6. Stecken Sie die Elektronik in die Halterung (Abb. ➄).
Sollten die Schrauben der Stromabnehmer
Kontakt zur Elektronik besitzen, so sind die
Schrauben zu kürzen! (Abb. ➅).
7. Stecken Sie die Steckbuchse auf den Anschluss
der Hauptplatine.
8. Stellen Sie die gewünschte Betriebsart, Adresse,
Höchstgeschwindigkeit und Anfahr- / Bremsver-
zögerung ein (=> Kap. II).
9. Setzen Sie wieder die Getriebeabdeckung auf.
Achten Sie darauf, dass die Stromabnehmer
zwischen den ersten beiden Achsen nicht von
der Halteplatte eingeklemmt werden!
Hinweis: Die Funktionsanschlüsse und die
Anschlüsse der Hauptplatine sind so ausgeführt,
dass sie weder gegeneinander noch in ihrer Position
vertauscht werden können. Nie Gewalt beim Auf-
stecken der Anschlüsse ausüben.
4
➃
braun/rot
braun/grün
orange
violett
orange
orange
braun/rot
braun/grün
orange
➂

5
➄➅

II. Bedienungshinweise
Diese Lokomotive wurde nachträglich mit dem
Märklin Hochleistungsantrieb 60955 für einmotorige
Märklin MAXI-Lokomotiven ausgestattet. Dieses
Modell kann über ein Märklin Wechselstrom-Fahr-
gerät, über ein Gleichstromfahrgerät (0-18 V), über
die Märklin DELTA Station 6607 oder über Märklin
Digital gesteuert werden. Die Einstellung der einzelnen
Betriebsarten erfolgt manuell.
Einstellen der Digitaladresse / Betriebsart
1. Entfernen Sie die Getriebeabdeckung auf der
Unterseite der Lok.

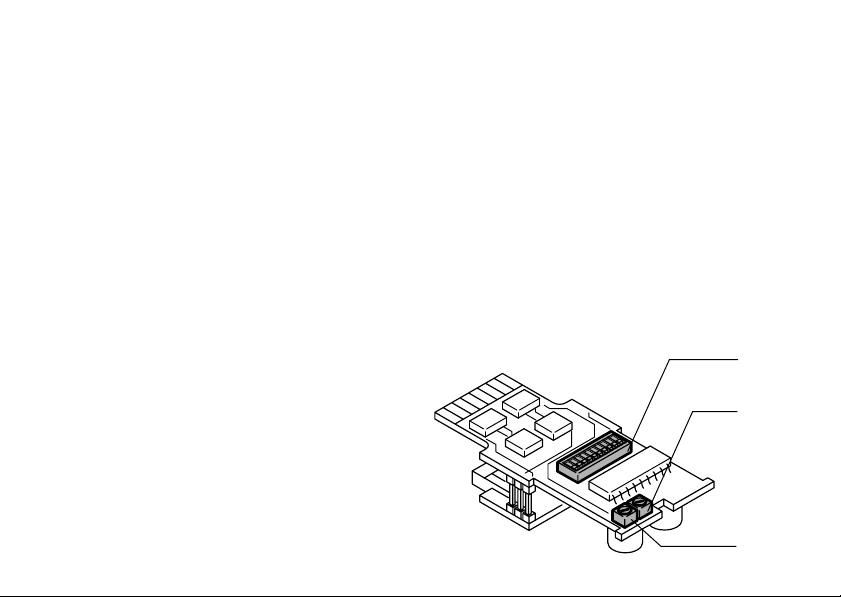

2. Am 10-stelligen Codierschalter (1) wird die Adresse
und die Betriebsart eingestellt.
– Schalter 1 bis 8: Einstellen der Digital / DELTA-
Adresse nach Tabelle auf Seite 26
(Stellung der Schalter 9 und 0: ohne Einfluss).
– Schalter 9: ohne Beschaltung.
– Schalter 1 bis 8 auf off,
Schalter 0 auf off: Betriebsart Wechselstrom.
– Schalter 1 bis 8 auf off,
Schalter 0 auf on: Betriebsart Gleichstrom.
Einstellen der Höchstgeschwindigkeit
Drehen Poti (3) nach rechts
= höhere Endgeschwindigkeit.
Drehen Poti (3) nach links
= niedrigere Endgeschwindigkeit.
Einstellen der Anfahr- / Bremsverzögerung
Drehen Poti (2) nach rechts
= Zunahme der Anfahr- und Bremsverzögerung.
Drehen Poti (2) nach links
= Abnahme der Anfahr- und Bremsverzögerung.
6
(1)
(2)
(3)

Schalten der Funktionsausgänge

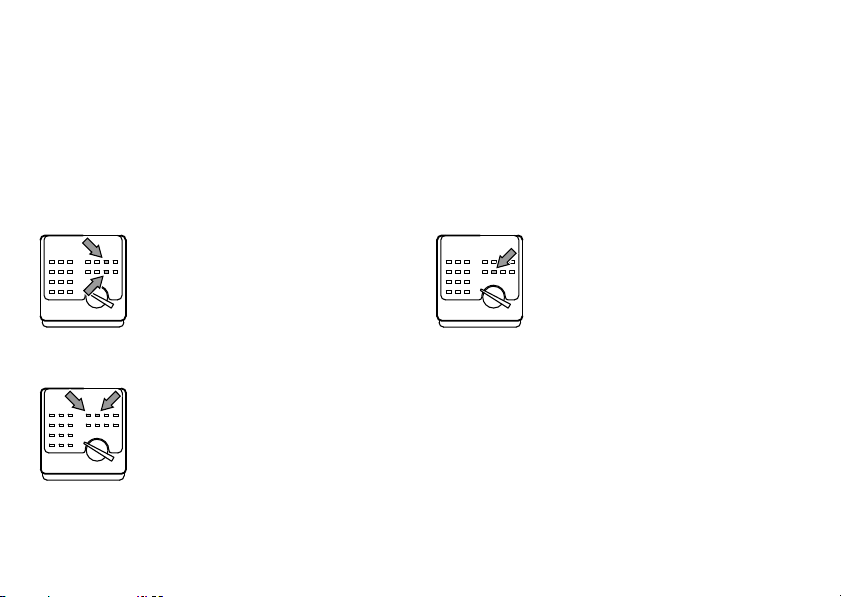

Als Digital-Zentraleinheit ist nur die Control Unit 6021
verwendbar. Der vierfach Betriebsarten-Schalter auf
der Rückseite der Control Unit muss entweder in der
Stellung UNIVERSAL (Schalter 1, 3 und 4 = auf off,
Schalter 2 = auf on) oder CONTROL UNIT (Schalter 1,
2 und 3 auf on, Schalter 4 auf off) stehen.
Der unter „function“ in der Technischen
Information angegebene elektrische
Verbraucher wird mit der Taste
„function“ auf der Control Unit 6021
eingeschaltet und mit der Taste „off“
ausgeschaltet.
Der unter „f1“ („f2“) in der Technischen
Information angegebene elektrische
Verbraucher wird durch Drücken der
Taste „f1“ („f2“) auf der Control Unit
6021 eingeschaltet und durch eine
weitere Betätigung der entsprechenden
Taste wieder ausgeschaltet.
Durch Einschalten der Funktion „f4“
über die Taste „f4“ auf der Control Unit
wird die eingestellte Anfahr- und
Bremsverzögerung auf den minimalen
Wert gesetzt.
Fahreigenschaften
Der Hochleistungsantrieb 60955 sorgt für deutlich
verbesserte Fahreigenschaften der MAXI-Lokomotiven.
Bitte beachten Sie jedoch, dass durch die Art der
Motoren nicht die hervorragenden Fahreigenschaften
der Märklin Profi 1 Modelle erreicht werden können.
7
L 0 F
7 8 9
4 5 6 f3 f4 go
1 2 3 f1 f2 off stop
function
L 0 F
7 8 9
4 5 6 f3 f4 go
1 2 3 f1 f2 off stop
function
L 0 F
7 8 9
4 5 6 f3 f4 go
1 2 3 f1 f2 off stop
function

Important:
This product is designed for installation by authorized
Märklin digital dealers only. Please make sure that
the technical information (Page 27) is complete.
The 24 month warranty is valid only when the instal-
lation is done by authorized Märklin digital dealers
or service stations.
I. Instructions for Installation
Important: This electronic circuit is only suitable for
single-motor MAXI steam locomotives with the three-
axle standard frame (example: 5450, 5451, 5452, etc.).
It can be installed in the MAXI model of the E 69
(example: 54201) and the V 60 (54321) when the
connections for the headlights are changed. This
electronic circuit can be installed in the “Glaskasten”
steam locomotive model (example: 54504) and the
model of the Bavarian D VI (example: locomotive
from the 54104 set) only when the auxiliary circuit
board for the function outputs soldered to the main
circuit board is removed. All of these models should
be converted only by an authorized repair center.
The other two-axle steam locomotive models
(example: locomotive from the 54406 set) can be
converted without any problem.
1. Remove the drive gear cover plate on the bottom
of the locomotive (ill. ➀).
2. Remove the connector socket on the DELTA /
alternating current electronic circuit (ill. ➁).
3. Remove the DELTA / alternating current electronic
circuit.
8

9
➀➁

4. Connect the desired auxiliary functions (ill. ➂).
Users with a maximum current draw of 200 milli-
amps can be connected to each function output.
Shorten or remove connecting wires that are not
necessary.
5. Connect the supplemental plug for functions to
the circuit board (ill. ➃).
6. Insert the circuit board into its holder (ill. ➄).
If the screws for the electrical pickups come into
contact with the circuit board, then they must be
shortened! (ill. ➅).
7. Insert the plug into its connector on the main
circuit board.
8. Set the desired mode of operation, address,
maximum speed, and acceleration/braking delay
(=> Section II).
9. Put the drive gear cover plate back on. Be careful
that the electrical pickups between the first two
axles do not become jammed by the cover plate!
Important: The function connections and the
connections on the main circuit board are designed
in such a way that you cannot mistakenly connect
the plug for one to the other and vice versa, nor can
the plugs be put into the socket connectors the
reverse of what they should be. Never use force
when inserting the plugs.
10
➃
brown/red
brown/green
orange
violet
orange
orange
brown/red
brown/green
orange
➂

11
➄➅

II. Operating Information
This locomotive has been retrofitted with the 60955
Märklin high-efficiency propulsion for single motor
Märklin MAXI locomotives. This model can be con-
trolled with a Märklin alternating current train control
transformer, a direct current power pack (0-18 volts),
the Märklin 6607 DELTA Station, or with Märklin
Digital. The settings for individual operating modes
are done manually.
Setting the Digital Address / Mode of Operation
1. Remove the drive gear cover plate on the bottom
of the locomotive.
2. The address and mode of operation are set with
the 10 coding switches (1).
– Switches 1 to 8: For setting the Digital / DELTA
address according to Table page 26
(Switches 9 and 0 have no function here).
– Switch 9: not wired up.
– Switches 1 to 8 at off,
Switch 0 at off: alternating current mode of
operation.
– Switches 1 to 8 at off,
Switch 0 at on: direct current mode of operation.
Setting the Maximum Speed
Turn pot adjustment (3) to the right
– higher end speed.
Turn pot adjustment (3) to the left
– lower high end speed.
Setting the Acceleration/Braking Delay
Turn pot adjustment (2) to the right
– increase in the acceleration / braking delay.
Turn pot adjustment (2) to the left
– decrease in the acceleration / braking delay.
12
(1)
(2)
(3)

Turning the Functions Outputs On and Off
Only the 6021 Control Unit can be used as a central
unit. The four operating mode switches on the rear
of the unit must be set either for the UNIVERSAL
setting (Switches 1, 3, and 4 at off, Switch 2 at on)
or the CONTROL UNIT setting (Switches 1, 2, and 3
at on, Switch 4 at off).
The electrical user indicated in the
technical information under “function”
is turned on with the “function” button
on the 6021 Control Unit and off with
the “off” button.
The electrical users indicated in the
technical information under “f1” (“f2”)
are turned on by pressing the “f1”
(“f2”) button once on the 6021
Control Unit, and are turned off by pres-
sing the same button a second time.
The acceleration/braking delay are set
at their minimum value by turning the
“f4” function on with the button “f4”
on the Control Unit.
Operating Characteristics
The 60955 high-efficiency propulsion provides clearly
improved operating characteristics on MAXI loco-
motives. Please note that the outstanding operating
characteristics of the Märklin standard 1 Gauge
locomotives cannot be reached with the type of
motors installed in the MAXI locomotives.
13
L 0 F
7 8 9
4 5 6 f3 f4 go
1 2 3 f1 f2 off stop
function
L 0 F
7 8 9
4 5 6 f3 f4 go
1 2 3 f1 f2 off stop
function
L 0 F
7 8 9
4 5 6 f3 f4 go
1 2 3 f1 f2 off stop
function

Remarque importante:
Ce produit ne peut être installé que par un détaillant-
spécialiste Märklin. Vérifiez si les informations tech-
niques sont bien complètes (page 27).
La garantie Märklin de 24 mois n’est valable que
si le produit est installé par un détaillant-spécialiste
ou un réparateur Märklin Digital agréé.
I. Remarque sur le montage:
Remarque: Cette électronique ne convient que
pour les locomotives à vapeur MAXI à un moteur et
châssis à 3 essieux standard (par ex. 5450, 5451,
5452, etc.).
Avec les locomotives MAXI E 69 (par ex. 54201) et
V 60 (54321), le montage n’est possible que si les
connexions pour les feux sont modifiées. Avec la
locomotive à vapeur „Glaskasten“ (par ex. 54504) et
la locomotive bavaroise D VI (par ex. loco de 54104),
cette électronique ne peut être installée que si la
platine complémentaire pour sorties de fonction est
enlevée. Tous ces modèles réduits ne peuvent être
modifiés que par un atelier de réparation agréé.
Les autres modèles de locomotives à vapeur à deux
essieux (par ex. loco de 54406) peuvent être modi-
fiés sans problèmes.
1. Enlevez le couvercle du mécanisme d’engrenages
situé sous la locomotive (fig. ➀).
2. Enlevez la douille de l’électronique DELTA-courant
alternatif (fig. ➁).
3. Enlevez l’électronique DELTA-courant alternatif.
14

15
➀➁

4. Raccordez les dispositifs de fonctions additionnels
souhaités (fig. ➂). Ne peuvent être raccordés aux
sorties pour fonction que des appareils consom-
mant au maximum 200 mA par sortie. Ne raccour-
cissez pas ou n’enlevez pas les câbles utilisés.
5. Raccordez la fiche auxiliaire pour fonctions à la
platine (fig. ➃).
6. Enfichez l’électronique dans le support (fig. ➄).
Si les vis des patins de prise de courant risquent
d’être en contact avec l’électronique, raccourcissez-
les! (fig. ➅).
7. Enfichez la douille dans le raccord de la platine
principale.
8. Réglez le mode d’exploitation, l’adresse, la vitesse
maximale et la temporisation de démarrage et de
ralentissement souhaités (=> chap. II).
9. Reposez le couvercle du mécanisme d’engrenages.
Veillez à ce que les patins de prise de courant
situés entre les deux premiers essieux ne se
retrouvent pas coincés!
Avis: les bornes de connexion pour fonctions et les
bornes de connexion de la platine principale sont
réalisées de telle sorte qu’elles ne peuvent être
permutées entre elles. Ne forcez jamais lors de
l’enfichage.
16
➃
brun-rouge
brun-vert
orange
violet
orange
orange
brun-rouge
brun-vert
orange
➂

17
➄➅

II. Remarques sur l’utilisation
Cette locomotive a été équipée ultérieurement d’un
moteur 60955 à hautes performances prévu pour les
locomotives MAXI Märklin à un seul moteur. Ce modèle
peut être commandé soit par un régulateur Märklin
courant alternatif, soit par un régulateur Märklin cou-
rant continu (0-18 V), soit par une station DELTA 6607,
soit par une alimentation Digital Märklin. Le réglage
du mode d’exploitation se fait manuellement.
Réglage de l’adresse digitale /
du mode d’exploitation
1. Enlevez le couvercle du mécanisme d’engrenages
situé sous la locomotive.
2. L’adresse et le mode d’exploitation sont réglés
à l’aide du sélecteur à 10 positions (1).
– Sélecteurs 1 à 8: réglage de l’adresse DELTA /
Digital selon le tableau page 26
(la position des sélecteurs 9 et 0 n’a aucune influence).
– Sélecteur 9: sans branchement.
– Sélecteurs 1 à 8 sur OFF, sélecteur 0 sur OFF:
exploitation en courant alternatif.
– Sélecteurs 1 à 8 sur OFF, sélecteur 0 sur ON:
exploitation en courant continu.
Réglage de la vitesse maximale
Tourner le potentiomètre (3) vers la droite
= vitesse plus élevée.
Tourner le potentiomètre (3) vers la gauche
= vitesse moins élevée.
Réglage de la temporisation de démarrage et
de ralentissement
Tourner le potentiomètre (2) vers la droite
= augmentation de la temporisation de démarrage
et de ralentissement.
Tourner le potentiomètre (2) vers la gauche
= diminution de la temporisation de démarrage
et de ralentissement.
18
(1)
(2)
(3)

Commutation des sorties pour fonctions
N’utilisez que la Control Unit 6021 comme unité
centrale Digital. Le sélecteur quadruple de mode
d’exploitation situé sur la face arrière de la Control
Unit doit être positionné ou bien sur le mode
UNIVERSAL (sélecteurs 1, 3 et 4 sur off ; sélecteur
2 sur on), ou bien sur le mode CONTROL UNIT
(sélecteurs 1, 2 et 3 sur on; sélecteur 4 sur off).
L’appareil consommateur désigné
sous le terme “function” dans
l’information technique est activé
à l’aide de la touche “function” sur
la Control Unit 6021 et désactivé
à l’aide de la touche “off”.
L’appareil consommateur désigné
sous le terme “f1” (“f2”) dans l’infor-
mation technique est activé à l’aide
de la touche “f1” (“f2”) sur la
Control Unit 6021 et désactivé à
l’aide de la même touche par une
seconde pression sur celle-ci.
En enclenchant la fonction “f4” à
l’aide la touche “f4” sur la Control Unit,
on règle la temporisation de démarrage
et de ralentissement sur la valeur
minimale.
Caractéristiques de marche
L’électronique à hautes performances 60955 assure
des caractéristiques de fonctionnement nettement
améliorées sur les locomotives MAXI. Notez cepen-
dant que, compte tenu du type de moteur, les éton-
nantes caractéristiques de marche des modèles
Profi 1 Märklin ne peuvent pas être égalées.
19
L 0 F
7 8 9
4 5 6 f3 f4 go
1 2 3 f1 f2 off stop
function
L 0 F
7 8 9
4 5 6 f3 f4 go
1 2 3 f1 f2 off stop
function
L 0 F
7 8 9
4 5 6 f3 f4 go
1 2 3 f1 f2 off stop
function

Belangrijke opmerking:
Dit produkt is alleen bestemd voor inbouw door
de Märklin-digitaal winkelier. Let er op a.u.b.,
dat pagina 27 volledig ingevuld wordt.
Alleen bij inbouw door de geautoriseerde Märklin-
digitaal winkelier of het Märklin service centrum is
de Märklin garantie van 24 maanden geldig.
I. Inbouwaanwijzingen
Opmerking: deze elektronicamodule is bestemd
voor één motorige MAXI-stoomlocomtieven met een
drie-assig, standaard drijfwerk (bijv. 5450, 5451,
5452 e.d.) Bij het MAXI model van de E 69 (bijv. 54201)
en van de V 60 (54321) is het inbouwen alleen
mogelijk als de verlichtingsaansluitingen gewijzigd
worden. Bij het stoomlocomotiefmodel “Glaskasten”
(bijv. 54504) en het model van de Beierse D VI
(bijv. de loc uit 54104) kan de elektronicamodule
alleen ingebouwd worden als de extra printplaat
voor de functie uitgangen verwijderd word. Al deze
modellen dienen daarom alleen door een geautori-
seerd reparatiebedrijf omgebouwd te worden.
De andere twee-assige stoomlocomotief modellen
(bijv. loc uit 54406) kunnen zonder probleem omge-
bouwd worden.
1. Verwijder de afdekplaat tussen de wielen aan
de onderzijde van de loc (fig. ➀).
2. Neem de stekker van de DELTA- / wisselstroom-
elektronica los (fig. ➁).
3. Verwijder de DELTA- / wisselstroom-elektronica.
20
Table of contents
Languages:
Other Marklin Digital Media Converter manuals
Popular Media Converter manuals by other brands

Allied Telesis
Allied Telesis Converteon AT-CV5000 installation guide

Gefen
Gefen EXT-VGA-2-DVISP user manual

Schumacher Electric
Schumacher Electric XI75B owner's manual

alfatronix
alfatronix PowerVerter Series Operating & assembly instructions

Avaya
Avaya CU-360 quick start guide

Lumagen
Lumagen Vision series Quick reference guide
