Martin FENG SHUI 91-7706 User manual

IMPORTANT NOTICE
YOU WILL FEEL A SLIGHT
“BOUNCE-BACK” WHEN YOU SIT DOWN.
THIS IS NORMAL: NOT A DEFECT.
THE PNEUMATIC CYLINDER FOR THE
SEAT HEIGHT ADJUSTMENT REACTS TO
YOUR WEIGHT BY GIVING A LITTLE
Model’s
91-7706 & 91-7709
Assembled 91-7709
Parts
A. [1] Base Plate
Mechanism
B. [1] Cylinder
[a] 91-8006 model
[b] 91-8009 model
E. [1] 5-Star Base
C. [5] Castors
G. [1] Backrest H. [1] Seat
4444 Lawton Avenue, Detroit MI 48208 USA
Tel:[phone] •Fax:[phone]
E-mail: [email protected]
Visit us at:
www.MartinUniversalDesign.com
Assembled 91-7706
F. [1] Foot Ring with Knob
IMPORTANT
If you have difficulty assembling your chair or need customer service assis-
tance. Please call: Martin Universal Design, Inc. Customer Service Hot Line at
1-800-366-7337. If you need additional parts, it is not necessary to contact your
dealer, our Customer Service Rep. will forward them to you immediately.
a. b.
D. [1] Plastic Ring insert
Model 91-7706 only
J. [1] Black Cylinder
Bellows
Model 91-7709 only
I. [10] M6x20 Hex Head Screws

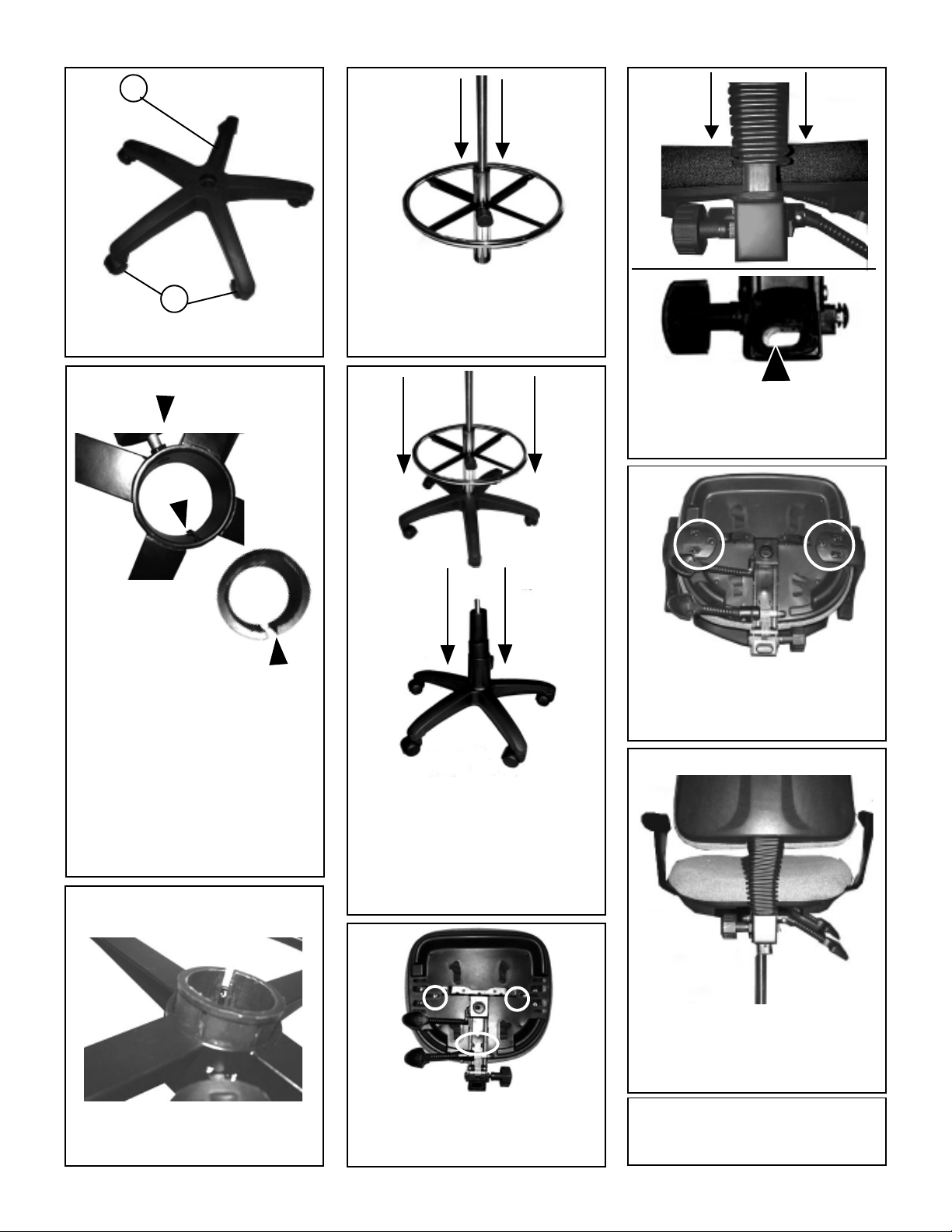

1.
Place 5-star base (E) face down and
push [5] castors (C) into each position.
E
C
Attach backrest (G) to seat mechanism,
by inserting backrest support bar into
oval hole in mechanism. Tighten knob
on mechanism to secure.
2 b.
THIS STEP IS ONLY FOR
MODEL 91-8006 ONLY.
Before attaching foot ring (F) to cylinder
(B). Begin by loosening the knob on the
foot ring and position the plastic ring
insert properly, by making sure the cut
ends of the insert run parallel with the
weld on the inside of the foot ring hole.
NOTE: THIS MUST BE POSITIONED
PROPERLY TO ALLOW THE
CYLINDER TO SLIDE THROUGH THE
INSERT EASILY.
2 a. knob on foot ring
weld
Cut ends of plastic
insert must run parallel
with the weld.
Continue by placing insert into ring of
foot ring. Push until plastic insert is flush
with foot ring .
2 c.
Once plastic insert (D) is in proper
position, slide cylinder down through
foot ring and tighten knob . After chair
is assembled completely, you may
adjust foot ring to desired height.
3.
PLEASE NOTE: If you have model
number 91-8009, your assembly will
be the same but instead of foot ring
you will need to place black bellows
over top of cylinder after inserting
cylinder into base.
Insert wider end of cylinder into hole in
base, as shown above.
Model #
91-8009
Model #
91-8006
5.
Attach mechanism (A) to seat (H)
using [4] 7/8” screws (J) . See picture
above for specified locations that are
circled.
6.
7.
Attach armrests to bottom side of seat
using [3] 1” screws and 3 washers
(I) per armrest. Please see circled
areas in the above picture for locations
of screw holes.
8.
Attach seat/backrest/armrest assembly
to cylinder by inserting top of cylinder
into hole on bottom of seat mechanism.
Weight of sitting on seat will secure seat
assembly to cylinder.
NOTE: 2 Paddles below seat
are for seat height adjustment
and Backrest tilt adjustments.
created02/06RPI
