MARTINDALE HANDYPAT HPAT400 User manual

HPAT400 HANDYPAT
InstructIon
Manual

GENERAL SAFETY INFORMATION: Always read before proceeding.
Warning
These instructions contain both information and warnings that are
necessary for the safe operation and maintenance of this product. It
is recommended that you read the instructions carefully and ensure
that the contents are fully understood. Failure to understand and
to comply with the warnings and instructions can result in serious
injury, damage or even death.
In order to avoid the danger of electrical shock, it is important that
proper safety measures are taken when working with voltages
exceeding 30V AC RMS, 42V AC peak or 60V DC.
This product must only be used by a competent person capable of
interpreting the results under the conditions and for the purposes for
which it has been constructed. Particular attention should be paid
to the Warnings, Precautions and Technical Specifications. Always
check the unit is in good working order before use and that there are
no signs of damage to it. Do not use if damaged.
Where applicable other safety measures such as use of protective
gloves, goggles etc. should be employed.
Please keep these instructions for future reference. Updated
instructions and product information are available at: www.
martindale-electric.co.uk/instruct
REMEMBER: SAFETY IS NO ACCIDENT
MEANING OF SYMBOLS:
Equipment complies with relevant EU Directives
AC (Alternating Current)
Caution - refer to accompanying documents
Caution - risk of electric shock
End of life disposal of this equipment should be
in accordance with relevant Local Directives

Thank you for buying one of our products. For safety
and full understanding of its benefits please read
this manual before use.
CONTENTS
1 INTRODUCTION
1.1 Unpacking and Inspection 1
1.2 Description & Overview 1
2 GENERAL OPERATION & FUNCTIONS
2.1 Precautions 3
2.2 Power On/Off 4
2.3 Display Indicators 4
2.4 Connector Descriptions 5
2.5 Press Button Description 6
2.6 Contrast Adjustment 7
2.7 Fixed Test Settings 7
2.8 Battery Low Message 8
2.9 Auto Power Down 8
2.10 Inadvertent Connection of Mains 8
Supply Voltage
3 PERFORMING APPLIANCE & LEAD TESTS
3.1 Preliminary Checks and Set Up 9
3.2 IEC Lead Test 10
3.3 Class I Test 11
3.4 Class II Test 13
3.5 Extension Lead Testing 14
3.6 Fuse Check Failure 16
3.7 Earth Continuity/Insulation Failure 17

4 MAINTENANCE
4.1 Fitting Batteries 18
4.2 Calibration 18
4.3 Cleaning 19
4.4 Repair & Service 19
4.5 Storage Conditions 19
5 WARRANTY 20
TECHNICAL SPECIFICATION

1. INTRODUCTION
1.1 Inspection
Examine the shipping carton for any sign of damage.
Inspect the unit and any accessories for damage. If
there is any damage then consult your distributor.
Unpack the HPAT400 and check that you have the
following accessories:
Instructions
Test Probe with crocodile clip (TL67)
6 x Alkaline AA batteries
IEC Adaptor Lead (Ex332)
Zip carry case
Inspect the unit and its accessories for any damage.
If any item is missing or there is damage to any item,
consult your distributor immediately.
Refer to section 4.1 for installation of batteries.
1.2 Description
The battery powered HPAT400 HANDYPAT is a
Portable Appliance Tester with the following features:
Insulation Test
Insulation Test at 500V.
Automatic Test Sequence for Fixed Pass Levels
A connection diagram is shown in this handbook and
on the label on the unit. When the test type is selected,
the HPAT400 will run automatically through the test
sequence without any further user interaction unless
a failure is encountered. Pass or Fail outcome is
displayed only.
1

2
Default pass level on Class I.
≤0.20 Ω = PASS
IEC Lead Test
The HPAT400 can also be used to check IEC leads
and extension leads for earth continuity, insulation, and
correct polarity, (Martindale Ex332 IEC lead required for
extension lead testing).
The HPAT400 will perform the following test types:
IEC Lead test sequence
Class I test sequence
Class II test sequence

2. GENERAL OPERATION & FUNCTIONS
2.1 Precautions
This product has been designed with your safety in mind,
but please pay attention to the following warnings and
cautions before use.
Warning
Before use check the unit for cracks or any other
damage. Make sure the unit is free from dust, grease
and moisture. Also check any associated leads and
accessories for damage. Do not use if damaged. Be sure
the HPAT400 is in good working order before use.
Warning
The HPAT400 and this instruction manual are intended
for use by personnel who are adequately trained and
familiar with IET Code of Practice for Portable Appliance
Testing.
Warning
Do not use the HPAT400 if the battery cover is not fitted.
Warning
Do not connect the HPAT400 to the mains supply via
the IEC inlet.
Warning
Use batteries of the specified type in the HPAT400.
Warning
Do not touch the appliance being tested or the test probe
tip when the HPAT400 is performing an electrical test.
Where possible, use the crocodile clip provided to attach
the probe to the appliance. 3

4
Caution
Avoid severe mechanical shock or vibration and extreme
temperature.
Caution
Remove the batteries from the HPAT400 when not in use
for an extended period, to avoid risk of corrosion from
leaking batteries. (Refer to 4.1 Fitting Batteries).
2.2 Power On/Off
Hold down the green power button for at least 1 second to
power on the HPAT400. The HPAT400 will power on at the
SELECT TEST screen.
To power off the HPAT400 hold down the green power
button for at least 1 second.
2.3 Display Indicators
Indicates insulation test voltage will occur at front
panel mains socket, during the test sequence.
SKIP Various secondary functions are assigned to button
EXIT temporarily. These are indicated by suitably marked
button images on the display, when they apply.

2.4 Connector Descriptions
1) UK GB mains Socket to BS1363 - used to connect
the appliance under test.
2) 4mm socket - used for Class I Earth Continuity/Class
II Insulation Test probe.
3) IEC input socket - used for IEC lead testing.
Do not connect to mains supply.
1
2
3
5

2.5 Press Button Description
Green Power Button Hold for 1 second to power
up or power down the HPAT400.
LEAD Selects the Lead Test automatic test sequence
CLASS I Selects the Class I automatic test sequence.
CLASS II Selects the Class II automatic test sequence.
backlight LCD display button ON/OFF
Buttons are assigned temporary functions at certain
points in tests. Temporary function is indicated on the
display for an image of the corresponding button.
6

2.6 Contrast Adjustment
If required the display contrast can be adjusted at power
up.
To enable the contrast adjustment hold down the
CLASS II + ON button at power-up.
Press the LEAD or CLASS I button repeatedly to adjust
contrast as indicated on display.
Press CLASS II to accept and exit.
2.7 Fixed Test Settings
Insulation Test voltage 500V DC
Fixed Pass Levels
Earth Continuity
Lead ≤ 0.20 Ω = PASS
Class I ≤0.20 Ω = PASS
Insulation
Lead: ≥ 1.0 MΩ
Class I: ≥ 1.0 MΩ
Class II: ≥ 2.0 MΩ
7

2.8 Battery Low Message
When the batteries discharge to a predetermined low
threshold value, the HPAT400 will display ‘batt low’
message.
2.9 Auto Power Down
If the HPAT400 remains inactive for a period of 10
minutes or the HPAT400 batteries approach a level
where the HPAT400 can no longer function correctly, the
HPAT400 will automatically power down. The message
‘Auto Power Down’ will be displayed on the screen for 3
seconds before Auto Power Down.
Display results will be lost when Auto Power Down
occurs.
When the HPAT400 is next powered up, it reverts to
Select Test screen.
2.10 Inadvertent Connection of Mains Supply
Voltage
If mains voltage is inadvertently applied to the HPAT400,
via the IEC socket (3) at the top end, an internal buzzer
will sound continuously and ‘Err’ will be displayed on
the HPAT400 display. All HPAT400 press buttons will
be inhibited until the source of the applied voltage is
removed.
This is a safety feature only. The HPAT should not be
used to determine if a mains socket is live.
8

3 PERFORMING APPLIANCE & LEAD TESTS
Warning
The HPAT400 and this Instruction Manual are intended
for use by personnel who are adequately trained and
familiar with IET Code of Practice for Portable Appliance
Testing.
3.1 Preliminary Checks and Set Up
Ensure that the appliance under test is NOT
plugged into the mains supply when removing
fuses.
Appliance Visual and Fuse Checks
uVisually inspect the appliance for any damage.
uVisually inspect the appliance mains lead and mains
plug for any damage.
uCheck that the fuse in the mains plug is of the correct
rating.
uCheck that any accessible fuses on the appliance are
of the correct rating.
uDO NOT proceed with electrical testing if any of
the visual or fuse checks fail.
IEC Lead/Extension Lead Visual and Fuse Checks
uVisually inspect the lead and plug for any damage.
uVisually inspect the extension lead socket for any
damage.
uCheck that the fuse in the plug is of the correct rating.
uDO NOT proceed with electrical testing if any of
the visual or fuse checks fail.
9

3.2 IEC Lead Test
Always refer to and perform 3.1 before proceeding
The following are performed:-
Earth Continuity measurement - measures resistance
of the lead earth.
Insulation measurement - measures resistance between
earth and line and between earth and neutral.
Wiring Polarity check - checks for open or short circuit
wiring and crossed wiring.
Test Connections

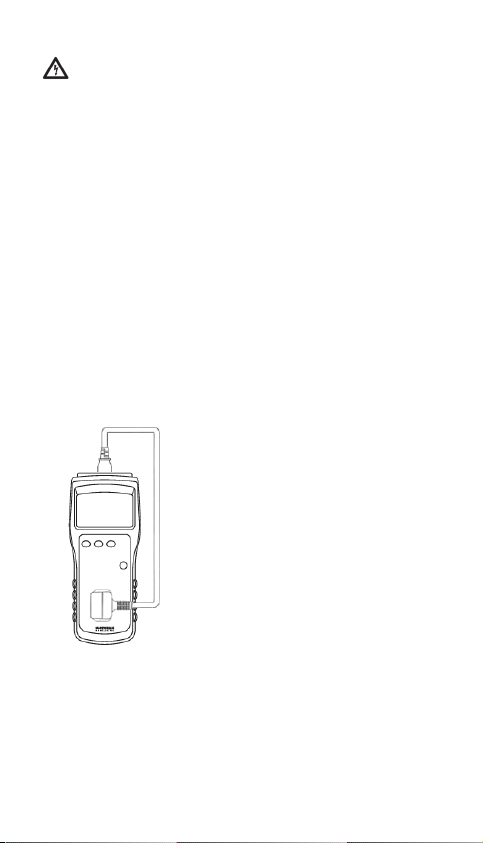

uRefer to the IEC Lead connection diagram below.
uPlug the IEC lead plug into the HPAT400 front panel
mains socket (1).
uConnect the other end of the IEC lead to the HPAT400
IEC input socket (3).
IEC Lead
Connection
Automatic Test Sequence
uPress LEAD to select the IEC Lead test and display
the test screen.
uThe HPAT400 will perform the Lead Earth Continuity
Test, Class I Insulation Test and wiring polarity check
with no further interaction from the operator unless the
test fails.
10

If ‘FAIL’ is displayed after the Lead Earth Continuity or
Class I Insulation Test, refer to 3.7 (Earth Continuity/
Insulation Failure)
Result of Test
uAt the end of the IEC lead test the HPAT400 will
display ‘PASS’ or ‘FAIL’ to indicate the overall result
of the test.
If ‘FAIL’ is displayed after the Class I Earth Continuity
or Class I Insulation Test, refer to 3.7 (Earth Continuity/
Insulation Failure).
3.3 Class I Test
Always refer to and perform 3.1 before proceeding
The following are performed for a Class I appliance test:-
Fuse check - checks Live-Neutral continuity through
appliance
Class I Earth Continuity measurement - measures
resistance between earth and exposed metalwork.
Class I Insulation measurement - measures resistance
between earth and live and between earth and neutral.
Test Connections
uRefer to the Class I connection diagram below.
uPlug the appliance mains plug into the HPAT400 front
panel mains socket (1).
uConnect the test probe to the HPAT400 4mm test
probe socket (2) and connect the other end to any
exposed metal work on the appliance.
uSwitch ON the test appliance.
11

Class I Test
Connections
Automatic Test Sequence
uPress CLASS I to select the Class I appliance test
and display the test screen.
uThe HPAT400 will perform the fuse check, Class I
Earth Continuity and Class I Insulation Tests with no
further interaction from the operator unless the test
fails.
If ‘SWITCH ON?’ is displayed after the fuse check, refer
to 3.6 (Fuse Check Failure).
If ‘FAIL’ is displayed after the Class I Earth Continuity
or Class I Insulation Test, refer to 3.7 (Earth Continuity/
Insulation Failure).
Result of Test
uAt the end of the Class I appliance test the HPAT400
will display ‘PASS’ or ‘FAIL’ to indicate the overall
result of the test.
uIf the appliance being tested has more than one
instance of exposed metalwork, it is advisable to
connect the test probe to each in turn and repeat the
test.
12

3.4 Class II Test
Always refer to and perform 3.1 before proceeding
The following are performed for a Class II appliance test:
Fuse check - checks Live-Neutral continuity through
appliance.
Insulation measurement - measures resistance between
live and exposed metalwork and between neutral and
exposed metalwork.
Test Connections
uRefer to the Class II connection diagram below.
uPlug the appliance mains plug into the HPAT400 front
panel mains socket (1).
uConnect the test probe to the HPAT400 4mm test
probe socket (2) and connect the other end to any
exposed metal work on the appliance.
uSwitch ON the test appliance.
Class II Test
Connection
Automatic Test Sequence
uPress CLASS II to select the Class II appliance test
and display the test screen.
uThe HPAT400 will perform the fuse check and Class
13

II insulation test with no further interaction from the
operator unless the test fails.
If ‘SWITCH ON?’ is displayed after the fuse check, refer
to 3.6 (Fuse Check Failure).
If ‘FAIL’ is displayed after the Class II Insulation Test,
refer to 3.7.
Result of Test
uAt the end of the Class II appliance test the HPAT400
will display ‘PASS’ or ‘FAIL’ to indicate the overall
result of the test.
uIf the appliance being tested has more than one
instance of exposed metalwork, it is advisable to
connect the test probe to each in turn and repeat the
test.
uWhere the appliance being tested has one or more
areas of possible insulation breakdown, such as
cooling slots or cover joints, it is advisable to wrap
metal foil tightly around the appliance and connect the
test probe to the metal foil then repeat the test.
3.5 Extension Lead Testing
Always refer to and perform 3.1 before proceeding
To test extension leads the HPAT400 IEC Lead Test
is used with connections as detailed below. Refer to 3.2
(IEC Lead Test).
A Martindale Ex332 IEC mains lead (or similar) is
required to perform extension lead tests.
Test Connections
uRefer to the Extension Lead connection diagram
below.
uPlug the extension lead plug into the HPAT400 front
panel mains socket (1).
14

15
uPlug the Ex332 IEC lead mains plug into the
extension lead socket.
uConnect the other end of the Ex332 IEC lead to the
HPAT400 IEC input socket (3).
uSwitch ON the extension lead, if it has a switch fitted.
Extension Lead
Connection
Ex332
Automatic Test Sequence
uPress LEAD to select the IEC Lead test and display
the test screen.
uThe HPAT400 will perform the Lead Earth Continuity
Test, Class I Insulation Tests and wiring polarity
check with no further interaction from the operator
unless the test fails.
If ‘FAIL’ is displayed after the lead Earth Continuity or
Class I Insulation Tests, refer to 3.7 (Earth Continuity/
Insulation Failure)
Result of Test
uAt the end of the IEC lead test the HPAT400 will
display ‘PASS’ or ‘FAIL’ to indicate the overall result
of the test.

16
3.6 Fuse Check Failure
Display indicates ‘SWITCH ON?’
Possible Reasons for Failure
uAppliance mains switch not set to the ON position.
Rectify and restart the test,
uAppliance not correctly connected to the HPAT400.
Rectify and restart the test,
uRuptured fuse.
Remove any fuse(s) and check fuse continuity by
an alternative means. Ensure that the appliance is
disconnected from any mains power whilst fuses are
being examined.
Re-insert any fuses.
Reconnect appliance to HPAT400, ensure operating
switch of appliance is ON and restart whichever Class
of test had been desired.
uAppliance internal circuitry.
If the fuse(s) are proved to be undamaged, the
‘SWITCH ON?’ remark on display may be due to a
switching device inside the appliance that only operates
when the appliance is energized at mains voltage.
A ‘fail’ in such circumstances does not necessarily
mean a fuse is ruptured or the appliance is faulty.
When the ‘SWITCH ON?’ message is displayed, the
HPAT automatic testing can be allowed to continue by
selecting ‘SKIP’.
Exit Test
If it is decided that the appliance is faulty, when the
‘SWITCH ON?’ message is displayed, the test should
be terminated by selecting ‘EXIT’ and unplugging the
appliance from the HPAT.
