Marway Optima 320 Series User manual

Optima™320 Series
Power Distribution Units
Operating Guide and Reference
Aug 2022 : P/N 501058-000 Rev D
Optima 3
ON
OFF
Optima 3
ON
OFF
ON
OFF
Optima 3
ON
OFF
V
A

Page 2
Optima 320 Series
1General 3
1.1 Documentation Symbols (EN)................................................ 3
1.2 Safety Notices (EN)................................................................. 3
1.3 Symboles de Documentation (FR)......................................... 4
1.4 Avis de sécurité (FR)............................................................... 4
1.5 General Description ............................................................... 5
1.6 Product Models....................................................................... 5
1.7 Product Ratings ...................................................................... 6
2Installation 7
2.1 Installation Notes.................................................................... 7
3Operation 8
3.1 Startup .................................................................................... 8
3.2 Breakers.................................................................................. 8
3.3 Digital Meter ........................................................................... 8
4 Specications 9
5Contact and Support 10
5.1 Repairs ..................................................................................10
5.2 Contact Options....................................................................10
5.3 Two Year Warranty ................................................................10

Page 3
Optima 320 Series
1 General
1.1 Documentation Symbols (EN)
Safety and warning notices as well as general notices in this document are shown in a box with a symbol as follows:
Symbol for a life threatening danger.
Symbol for general safety notices (instructions and damage protection bans) or important
information for operation.
Symbol for general notices.
1.2 Safety Notices (EN)
Mortal danger - Hazardous voltage
• This product is classied as pluggable equipment. The mains inlet plug serves as the disconnect
device. The mains inlet plug shall be installed so that it is easily accessible.
• This product is equipped with a safety ground connection through the mains inlet plug, as well as
a redundant chassis ground screw on the rear panel. Ensure that the product is properly grounded
before applying power.
• Disconnect all power to the product prior to servicing control signal cabling.
• Do not open this product as it contains no user serviceable parts inside. All service concerns
should be directed to Marway Power Solutions.
• If this product is used in a manner which does not comply with this instruction manual, the
protection provided by the equipment may be impaired.
• All work on connections must be carried out under zero voltage (output disconnect), and may only
be performed by qualied and informed persons. Improper actions can cause fatal injury as well as
serious material damage.
• This product is intended for indoor use only and should not be exposed to excess moisture. Avoid
any use of liquids near the equipment, and condition which cause condensation.
• This product is intended for installation in a restricted access location by a skilled person.
• This product is intended for use by an instructed person.
• The equipment is only approved for use within the connection limits stated on the product label.
• The ratings for all output receptacles are marked on the chassis. Be sure to observe the ratings for
all connected load equipment.

Page 4
Optima 320 Series
1.3 Symboles de Documentation (FR)
Les consignes de sécurité et avertissements, ainsi que les avis généraux gurant dans ce document sont présentés dans
un encadré avec un symbole, comme illustré ci-dessous.
Symbole pour les avis de danger potentiellement mortel.
Symbole pour les avis de mise en garde pour la sécurité personnelle ou pour la protection de
l’équipement.
Symbole pour les avis importants concernant le fonctionnement.
1.4 Avis de sécurité (FR)
Danger de mort – Tension dangereuse
• Ce produit est classé comme un équipement enchable. La prise d’alimentation secteur sert de
dispositif de déconnexion. La prise d’alimentation secteur doit être installée de manière à être
facilement accessible.
• Ce produit est équipé d’une mise à la terre de sécurité via la prise d’alimentation secteur,
ainsi que d’une vis redondante de mise à la terre du châssis. Assurez-vous que le produit est
correctement mis à la terre avant de le mettre sous tension.
• Débranchez toute alimentation électrique du produit avant d’effectuer l’entretien du câblage des
signaux de commande.
• N’ouvrez pas ce produit, car il ne contient aucune pièce réparable par l’utilisateur. Tous les
problèmes de service doivent être adressés à Marway Power Solutions.
• Si ce produit est utilisé d’une manière non conforme au présent manuel d’instructions, la
protection fournie par l’équipement peut être compromise.
• Tous les travaux sur les connexions doivent être effectués sous une tension nulle et ne doivent
être effectués que par des techniciens qualiés et compétents. Des actions inappropriées peuvent
entraîner des blessures mortelles et des dommages matériels graves.
• Ce produit est conçu pour une utilisation à l’intérieur uniquement et ne doit pas être exposé à
une humidité excessive. Évitez toute utilisation de liquides à proximité de l’équipement et les
conditions susceptibles de provoquer de la condensation.
• Ce produit est destiné à être installé par une personne qualiée dans un endroit à accès restreint.
• Ce produit est destiné à être utilisé par une personne qui a reçu des instructions appropriées.
• L’utilisation de l’équipement est approuvée uniquement dans les limites de connexion indiquées
sur l’étiquette du produit.
• Les valeurs nominales de toutes les prises de sortie sont indiquées sur leur boîtier. Assurez-vous
de respecter les valeurs nominales de tous les équipements de charge raccordés.

Page 5
Optima 320 Series
1.5 General Description
The Optima 320 Series (model numbers MPD 320XXX) is a family of 11 power distribution units (PDUs) designed for use
with a single-phase supply power of either 120 Vac or 100–240 Vac.
Each PDU receives mains power through an inlet located at the rear of the 1U chassis. Power is distributed to all outlets
on one or two branches depending on the model. A variety of inlet and outlet connectors is available.
All models except the 320001 include surge suppression, an EMI lter, an indicator for each circuit breaker, and an
external chassis ground lug. For models with cords, a 10 foot cord is included. All models are UL and CE certied.
All models are constructed of a steel chassis, are designed for xed mounting within a 1U rack space in an EIA-310
compliant rack enclosure, and include removable/reversible mounting brackets.
1.6 Product Models
Marway’s Standard Products Catalog includes more detailed tables with exact model number congurations with inlets,
outlets, and options identied.
Model* Inlet Outlet Configuration (B: back, F: front) Breakers Meter
Conguration IEC
C13
IEC
C19
NEMA
5-15R
NEMA
5-20R
320001 5-15P cord B: 12
F: 2 None
320002 5-15P cord B: 12
F: 2 (1) 15A
320003 5-20P cord B: 12
F: 2 (1) 20A
320004 C20 chassis B: 12
F: 2 (1) 20A
320005 5-15P cord B: 8
F: 8 (2) 15A
320006 L5-30P B: 8
F: 8 (2) 20A
320007 C20 chassis B: 10
F: 10 (2) 20A
320008 L6-30P B: 6
F: 6
B: 2
F: 2 (2) 20A
320009 5-15P cord B: 12
F: 2 (1) 15A Yes
320010 5-20P cord B: 12
F: 2 (1) 20A Yes
320011 C20 chassis B: 12
F: 2 (1) 20A Yes
* Each model number begins with MPD and is followed by a –000 (allowing for future variations).

Page 6
Optima 320 Series
1.7 Product Ratings
By model number, the following are the corresponding inlet and outlet ratings.
Model Inlet Rating Outlet Ratings
320001
320002
320009
120 Vac, 1ɸ, 50/60 Hz
12 A continuous
(15 A maximum)
• 120 Vac, 1ɸ, 12 A continuous (15 A max.) per 5-15R receptacle
• 12 A continuous (15 A max.) total per unit (regardless of receptacle
count used)
320005
120 Vac, 1ɸ, 50/60 Hz
12 A continuous
(15 A maximum)
• 120 Vac, 1ɸ, 12 A continuous (15 A max.) per 5-15R receptacle
• 12 A continuous (15 A max.) total per outlet group / circuit breaker
(regardless of receptacle count used)
• 12 A continuous (15 A max.) total per unit (regardless of receptacle
count used)
• Note: the front and rear circuits are for exibility, not double capacity.
320003
320010
120 Vac, 1ɸ, 50/60 Hz
16 A continuous
(20 A maximum)
• 120 Vac, 1ɸ, 16 A continuous (20 A max.) per 5-20R receptacle
• 16 A continuous (20 A max.) total per unit (regardless of receptacle
count used)
320004
320011
100–240 Vac, 1ɸ, 50/60 Hz
16 A maximum
• 100–240 Vac, 1ɸ, 10 A maximum per C13 receptacle
• 16 A maximum total per unit (regardless of receptacle count used)
320006
120 Vac, 1ɸ, 50/60 Hz
24 A continuous
(30 A maximum)
• 120 Vac, 1ɸ, 16 A continuous (20 A max.) per 5-20R receptacle
• 16 A continuous (20 A max.) total per outlet group / circuit breaker
(regardless of receptacle count used)
• 24 A continuous (30 A max.) total per unit (regardless of receptacle
count used)
320007 100–240 Vac, 1ɸ, 50/60 Hz
16 A maximum
• 100–240 Vac, 1ɸ, 10 A maximum per C13 receptacle
• 16 A maximum total per outlet group / circuit breaker (regardless of
receptacle count used)
• 16 A maximum total per unit (regardless of receptacle count used)
• Note: the front and rear circuits are for exibility, not double capacity.
320008
100–240 Vac, 1ɸ, 50/60 Hz
24 A continuous
(30 A maximum)
• 100–240 Vac, 1ɸ, 10 A maximum per C13 receptacle
• 100–240 Vac, 1ɸ, 16 A maximum per C19 receptacle
• 16 A continuous (20 A max.) total per outlet group (regardless of
receptacle count used)
• 24 A continuous (30 A max.) total per unit (regardless of receptacle
count used)

Page 7
Optima 320 Series
2 Installation
2.1 Installation Notes
The following guidance must be followed for proper installation of the product.
1. Mounting: This product is designed for mounting in an EIA-310 compliant 19” rack. The user is responsible for
ensuring the mounting method provides adequate structural support for the product, and any attached cables.
The user is also responsible for ensuring the mounting location provides adequate ventilation to dissipate heat
generated during operation of the product. Ensure the product is securely mounted before applying power.
2. Chassis ground: The rear of the chassis includes a redundant chassis ground screw and ground wire. If desired for
your installation location, connect the chassis ground wire to the rack cabinet using an appropriate fastener.
3. Optionally, connect the appropriate cables between the PDU outlets and the equipment being powered by the PDU.
This may be done later according to the startup procedures suitable to the end-user’s equipment and application.
4. PDU Main Breaker: Ensure the Main Breaker on the front of the PDU is in the off position before connecting the
PDU’s inlet cable to the facility power source. (It is best to switch all breakers to the off position.)
5. Facility Power Source: The single-phase facility power source for this product must include an overcurrent protective
device capacity as dened in the table below.
Main Inlet
Continuous
Current
Rating
Mains
Protection
Required
NEMA 5-15P 12 A 15 A
NEMA 5-20P 16 A 20 A
IEC C20 16 A 20 A
NEMA L5-30P 24 A 30 A
NEMA L6-30P 24 A 30 A

Page 8
Optima 320 Series
2.2 Installation Mounting
EN — These products are heavy. The ange mounting ears are designed to hold the PDU securely
against the rack mounting rails, but are NOT designed to support the weight of the product
vertically. The end user is responsible for ensuring the product’s weight is properly supported by the
rack’s infrastructure (which may require adding support rails).
FR — Ces produits sont lourds. Les oreilles de montage à bride sont conçues pour maintenir
solidement l’unité de distribution de l’alimentation contre les rails de montage, mais NE sont
pas conçues pour soutenir le poids du produit verticalement. Il incombe à l’utilisateur nal de
s’assurer que le poids du produit est correctement supporté par l’infrastructure du bâti (ce qui peut
nécessiter l’ajout de rails de support).

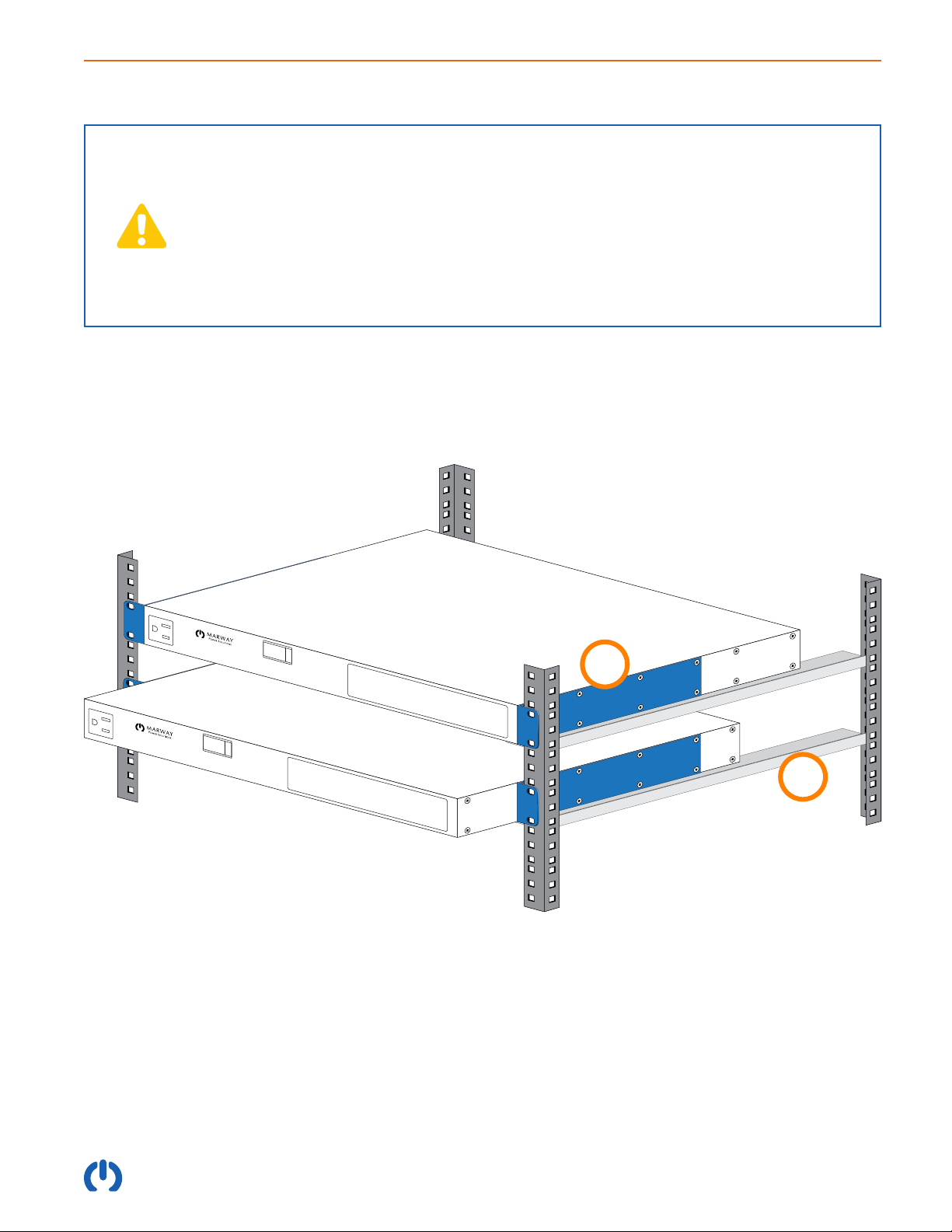

(A) The mounting ears, highlighted in blue, can be positioned ush with the front, or recessed from the front. They can also
be ipped (not shown) to mount the rear panel ush or recessed from the rear of the PDU.
(B) The PDU should be supported by rails (not provided). The PDU is too heavy to mount only with the ears.
Optima
Optima
A
B

Page 9
Optima 320 Series
3 Operation
3.1 Startup
Switch the breaker(s) on the PDU chassis to the off position.
Insert the PDU’s inlet connector into the facility mains power source. If there is a facility power disconnect, switch that to
the On position. At this point, the PDU is energized, though the indicator lamps will be off.
Switch the PDU’s breaker(s) to the On position, and the indicator(s) will be lit. All outlets are now powered.
3.2 Breakers
Various models have one breaker or two circuit breakers. The 320001 does not have a circuit breaker.
When there is a single breaker, in effect this behaves like a main breaker, protecting the whole unit, and providing on/off
control for the whole unit.
When there are two breakers, each breaker protects one group of outlets. Outlets are organized into identical groups. The
breaker on the front panel protects the outlets on the front panel, and the breaker on the back panel protects the outlets
on the back panel. (The back panel is the one with the inlet connection.)
Each breaker has it’s own indicator. When lit, power is being supplied to the correlating outlet group.
3.3 Digital Meter
Some models include the monitoring and digital display of volts and amps. The meter will auto rotate every 5 seconds
between the volts and amps values. Volts are shown as whole numbers. Amps are shown with one decimal place. Both
values are ≤ ± 2%, and are recalculated every 15 seconds.
V
A
V
A

Page 10
Optima 320 Series
4 Specications
Inlet Voltage Options
• 120 Vac, 50/60 Hz, single phase
• 100–240 Vac, 50/60 Hz, single phase
• All voltages are listed as nominal input sources.
Current Capacity Options
• 12 A continuous load / 15 A maximum (5-15P inlet)
• 16 A maximum (C20 inlet)
• 16 A continuous load / 20 A maximum (5-20P inlet)
• 24 A continuous load / 30 A maximum (L5-30P, L6-30P inlets)
• Based on NEC regulations, traditional load ratings are de-rated to
80% for continuous duty. For example, a traditional 30 A maximum
rating is now interpreted and labeled as a 24 A continuous duty
rating. Optima current ratings are shown with continuous/maxi-
mum rating values.
Overload Protection (standard)
• All models (except 320001) include UL 489 circuit breakers.
• All 120 Vac models (except 320001) use single-pole breakers.
• All 100-240 Vac models use double-pole breakers.
• All multi-breaker models are wired with one outlet group per
breaker.
Regulatory
• All models certied to UL 62368-1.
• All models CE marked.
Environment
• Operating Temperature: 32°F to 122°F
• Maximum Altitude: 6,562 feet
• Relative Humidity: 5% to 85% non-condensing
Digital Meter (some units)
• Volts RMS is measured ± 2%, updated every 15 s.
• Amps RMS is measured ± 2%, updated every 15 s.
Surge Suppression (standard)
• All models (except 320001) include a varistor.
• 120 Vac models (except 320001) have a single-pulse energy
rating of 200 joules.
• 240 Vac models have a single-pulse energy rating of 350 joules.
• All models (except 320001) have a peak surge current rating of
10,000 A for a single pulse 8x20µs wave.
EMI Filter (standard)
• All models (except 320001) include an EMI lter.
• All models have ≤ 0.6 mA leakage.
Optima 3
ON
OFF
19.00
17.12
1.72
4.72 (320001)
7.87 (all others)
Weight varies slightly by model up to approximately 6.5 lbs.
Model 320002 shown.
Dimensions are typical of all models.
1.25
100
90
80
70
60
50
40
30
20
10
0
0.1 110 100
300
Frequency in MHz
db
Typical Insertion Loss
15 A Units
20 A Units Common Mode Differential Mode
Common Mode Differential Mode

Page 11
Optima 320 Series
5 Contact and Support
5.1 Repairs
If not otherwise arranged between Marway and the customer, repairs must be carried out by Marway. The unit must be
returned to Marway clearly labeled with a Return Materials Authorization (RMA) number. Contact Marway Support to
obtain an RMA. Package the equipment adequately and send it, together with a detailed description of the problem, and if
still under warranty, a copy of the invoice, to the address below.
5.2 Contact Options
Problems with or questions about operation of the unit, use of optional components, with the documentation or software,
can be addressed to technical support either by telephone or email.
Address Email Telephone
Marway Power Solutions
1721 S. Grand Ave.
Santa Ana, CA 92705
Technical support:
[e-mail]
All other issues:
[e-mail]
714-917-6200
5.3 Two Year Warranty
Marway Power Solutions warrants each of its manufactured units to be as described in its specications, made with
quality materials and good workmanship, but also limited by this warranty and no other.
Two Year Warranty — For a period of two years following the date of shipment, Marway will repair or exchange, at Marway’s
sole discretion, any unit purchased shown to be defective in materials or workmanship when used for its intended
purpose. This will be done at no charge to the purchaser. Purchaser will return unit(s) at its own expense and only with
prior autorization from the factory. Instructions will be given by an authorized factory representative at the time an inquiry
is made. All repairs will be made at Marway Power Solutions’ corporate headquarters.
Transferability — This warranty is fully transferable to the end user if the purchaser is an original equipment manufacturer
and the Marway unit is a component of their product or system sold to an end user.
Further Limitations — Marway’s liability under the terms of this warrenty and the purchase and sale of its units is limited
to the repair or replacement of its units. Marway shall in no situation be liable for any special, consequential damages
or other damages of any kind or nature. Marway’s warranty does not cover units damaged by accident, abuse, misuse,
unauthorized repair and such-the-like occurences out of Marway’s control.
Exclusion of all Implied Warranties — There are no warranties which extend beyond description on the face hereof. There
are no warranties that any unit is t for any particular purpose nor that they are merchantable.

Optima™320 Series Power Distribution Units
Operating Guide P/N 501058-000 Rev D
© 2021–2022, Marway Power Systems, Inc. All rights reserved.
Optima™, Optima RCM™, Commander™, TwinPower™, mPower™, and mPower DC™ are trademarks of Marway Power
Systems, Inc. All other trademarks are the property of their respective owners.
Global Support Contacts
Web: www.marway.com
Email: [e-mail]
[e-mail]
Phone: [phone] (7am–5pm PST)
ere may be updates to this documentation at:
http://www.marway.com/docs
Marway Power Solutions
1721 S. Grand Ave., Santa Ana, CA 92705
800-462-7929 •[e-mail]
