Poly CCX 700 Business Media Phone Hardware
The following figure displays the hardware features on Poly CCX 700 business media
phones. The table lists each feature numbered in the figure.
Product Sheet: Masergy UCaaS
Poly CCX 700 Phone Hardware Feature Descriptions
Reference
Number Feature Feature Description
1Reversible tab
Secures the handset in the cradle when you position your
phone stand at a high angle. To secure the handset, remove
the tab, reverse it so the protrusion points up, and reinsert it.
Position the handset so the protrusion on the tab fits into the
slot on the handset.
2Privacy Shutter Allows you to cover the camera lens.
3Built-in Camera Enables you to send video during a video-enabled call.
4Camera LED Turns green when the camera is on and sending video. Turns
amber when you are not sending video.
Poly CCX 700 IP Phone –Overview
Poly CCX 700 Business Media IP Phone
Overview of Phone Hardware, Icons, and Status Indicators

Contact Us: USA +1 [phone] |UK [phone] |[e-mail]
Poly CCX 700 Phone Hardware Feature Descriptions
Product Sheet: Masergy UCaaS
Reference
Number Feature Feature Description
5Touchscreen
Enables you to select items and navigate menus on the touch-
sensitive screen. Tap the screen to select and highlight screen
items. To scroll, touch the screen, and swipe your finger up,
down, right, or left.
6Message waiting
indicator Flashes red to indicate when you have new messages.
7Application Command* Displays when the phone is powered on and the service is
available. Icon may vary.
8, 9Volume Keys Adjusts the volume of the handset, headset, speaker, and
ringer.
10 Headset Indicator Displays when the phone is powered on. The icon glows green
or blue when a headset is connected and activated.
11 Speakerphone Indicator Displays when the phone is powered on. The icon glows green
when activated.
12 USB port(s)
CCX 700 phones contain one USB-A port and one USB-C port.
Enables you to attach a USB flash drive or USB headset.
13 Speaker Provides ringer and speakerphone audio output.
14 Mute Key Mutes local audio during calls and conferences.

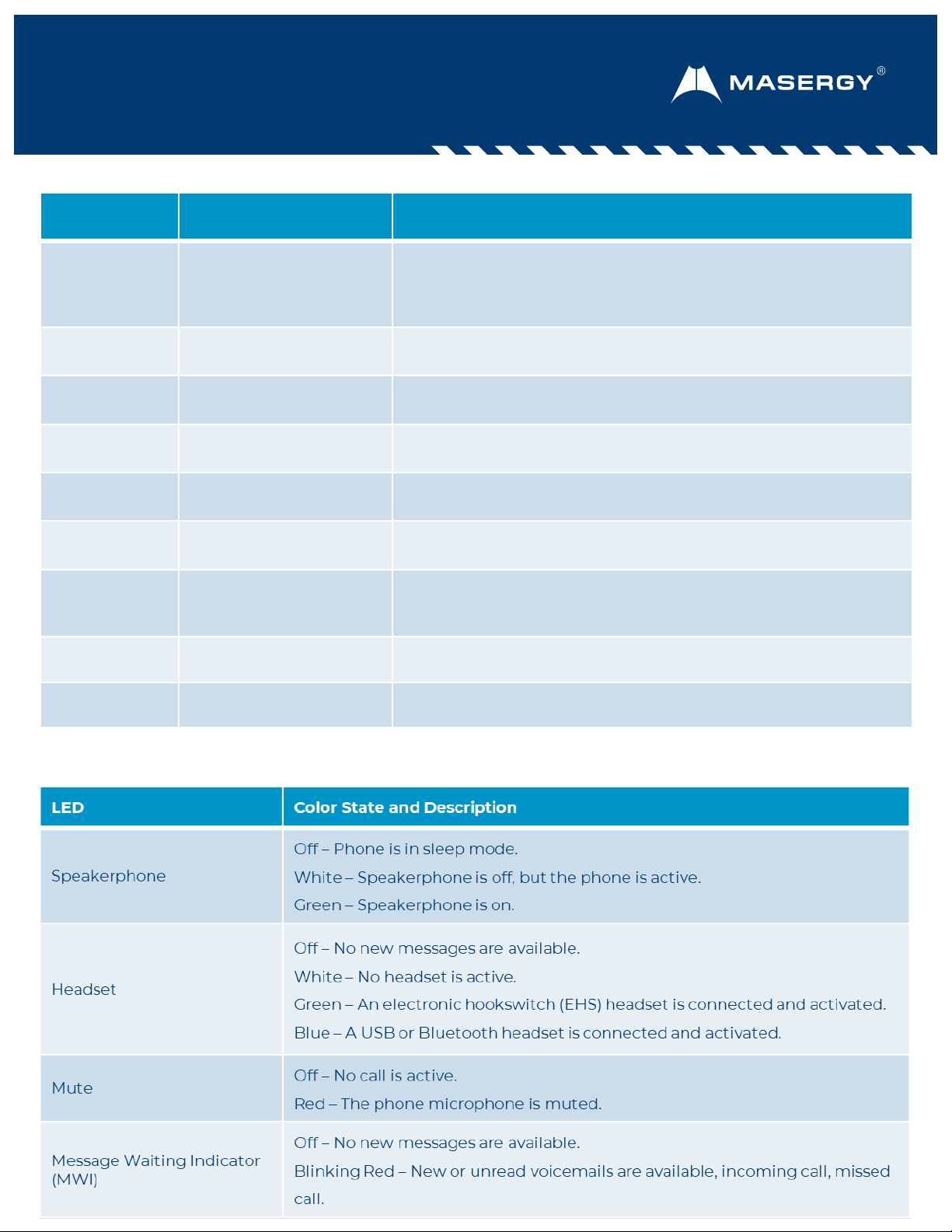

Poly CCX Series LED Indicators
The LEDs on Poly CCX phones indicate phone and accessory states.
Poly CCX 700 IP Phone –Overview
Poly CCX 700 Business Media IP Phone

Contact Us: USA +1 [phone] |UK [phone] |[e-mail]
Poly CCX Series Icon and Status Indicators
The following table displays the icons and status indicators that display on the phone.
Icons and Status Indicators
Product Sheet: Masergy UCaaS
Poly CCX 700 IP Phone –Overview
Poly CCX 700 Business Media IP Phone
Icon Description Icon Description
Registered Line Received Call
Unregistered Line Bluetooth
Active Call USB attached
Call Forwarding enabled Do Not Disturb enabled
Missed Call Configuration Warning message
Placed Call
