MASSEY FERGUSON MF2210 User manual

Workshop Service Manual
Tractor
VISION INNOVATION LEADERSHIP QUALITY RELIABILITY SUPPORT PRIDE COMMITMENT
Models: 2210 / 2225 / 2235
MF
2210 / 2225 / 2235

TABLE OF CONTENTS
Chap. 1 INTRODUCTION
Chap.2 SPLITTING THE ASSEMBLIES
Chap.3 ENGINE
Chap.4 CLUTCH
Chap.5 TRANSMISSION
Chap. 6 4WD FRONT AXLE
Chap.7 POWERTAKE-OFF
Chap.8 HYDRAULIC CIRCUIT
Chap.9 ELECTRONIC POWER LIFT
Chap.10CAB
Chap. 11 ELECTRICAL SYSTEM
Chap. 12 SPECIAL TOOLS
TABLEOFCONTENTS
Find manuals at https://best-manuals.com

1 - 1
INTRODUCTION
INDEX
Sect. 1 Reading the manual..................................................................1-3
1-1 Introduction ...................................................................1-4
1-2 Strutture of the manual..................................................1-4
Sect. 2 Tractor identification and technical specifications. ..............1-5
2-1 Tractor identification ......................................................1-6
2-2 Weights and dimensions ...............................................1-7
2-3 Engine specifications ....................................................1-8
2-4 Clutch specifications .....................................................1-9
2-5 Transmission specifications ..........................................1-9
2-6 Power take-off specifications.......................................1-12
2-7 2WD axle.....................................................................1-12
2-8 4WD front axle specifications (DNX) ...........................1-13
2-9 Specifications of 4WD front axle with bevel gear pairs..... 1-14
2-10 Hydraulic circuit specifications ............................... 1-15
Sect. 3 Working in safety. ...................................................................1-17
3-1 Essential rules for accident prevention........................1-18
3-2 Danger decals .............................................................1-24
3-3 Replacing tractor parts ................................................1-25
3-4 Safe use of the tractor..................................................1-25
Sect. 4 Pre-delivery inspections and maintenance...........................1-27
4-1 General information .....................................................1-28
4-2 Inspections before delivery..........................................1-28
4-3 Routine maintenance guide.........................................1-29
CHAP.1
Find manuals at https://best-manuals.com

1 - 2
INTRODUCTION
CHAP.1
Sect. 5 Conversion tables. ..................................................................1-31
5-1 Length .........................................................................1-32
5-2 Area.............................................................................1-35
5-3 Volume ........................................................................1-36
5-4 Weight .........................................................................1-39
5-5 Pressure......................................................................1-41
5-6 Moment of rotation.......................................................1-43
5-7 Temperature................................................................1-45
Sect. 6 Sealants. ..................................................................................1-47
Sect. 7 Table of bolt driving torques. .................................................1-49
Sect. 8 General assembly instructions. .............................................1-51
8-1 Seals...................................................................................1-52
8-2 O-Ring seals.......................................................................1-53
8-3 Bearings .............................................................................1-54
Find manuals at https://best-manuals.com

1 - 3
INTRODUCTION
INDEX
Sect.1 Reading the manual
1-1 Introduction ...................................................................1-4
1-2 Structure of the manual.................................................1-4
CHAP.1
Reading the manual
Find manuals at https://best-manuals.com

1 - 4
INTRODUCTION
Sect.1 - Reading the manual
1-1 Introduction
The purpose of this manual is to provide the owner
and user of MF 2210 - 2225 - 2235 tractors with clear
instructions on how to split the tractor parts.
It is designed for use by the workshop head since it
does not give details about the disassembly, re-as-
sembly and adjustment operations for all the assem-
blies, but just for those that require particular know-
ledge or recommendations.
Before reading the manual, it is essential to read
sect.3: WORKING IN SAFETY in order to prevent errors
or mistakes that could jeopardize the safety of the
technicians in the workshop.
The information in this manual was up to date at the
timeof publication.Massey Fergusonreservesthe ri-
ghttomake modificationswithoutbeingobligedtogive
notice.
Please contact your area dealer or the importer if di-
screpancies are discovered or for any other require-
ment.
1.2 Structure of the manual
Themanual is dividedinto chapters(chap.) and each
chapter into sections (sect.). Page numbering begins
with 1 for each chapter with the number of the chap-
teritself alongside.
Example: 5-7 indicates page 7 of chapter 5.
Numbering of the figures also begins with 1 in each
chapter with the chapter number alongside.
Example: Fig. 73-5, indicates figure 73 of chapter 5.
The tools required for all the disassembly, re-as-
sembly and adjustment operations are listed at the
end of each chapter or important section. Not all the
tools listed at the end of the chapter or section are,
however, mentioned in the text, just those conside-
red essential for correct disassembly, re-assembly
and adjustment of the assembly in question.
Theconstructional drawingsof allthetoolsdescribed
in the various chapters or sections are listed in chap-
ter12 toallow thedealer toprovide hisworkshop with
all those considered of importance.
Find manuals at https://best-manuals.com

1 - 5
INTRODUCTION
INDEX
Sect.2 Tractor identification and technical specifications
2-1 Tractor identification ......................................................1-6
2-2 Weights and dimensions ...............................................1-7
2-3 Engine specifications ....................................................1-8
2-4 Clutch specifications .....................................................1-9
2-5 Transmission specifications ..........................................1-9
2-6 Power take-off specifications.......................................1-12
2-7 2WD axle.....................................................................1-12
2-8 4WD front axle specifications (DNX) ...........................1-13
2-9 Specifications of 4WD front axle with bevel gear pairs..... 1-14
2-10 Hydraulic circuit specifications ............................... 1-15
CHAP.1
Tractor identification and technical specifications
Find manuals at https://best-manuals.com

1 - 6
INTRODUCTION
Sect. 2 - Tractor identification and technical specifications
2-1 Tractor identification
The tractor is identified by a serial number stamped
on the rear part of the transmission housing and on
the bonnet. The engine also has its own serial num-
ber stamped on the engine block.
Toensure aquick andefficient servicewhen ordering
spare parts or asking for technical specifications or
other information, always state the chassis and engi-
ne serial number.
Chassis serial number .............................................
Engine serial number...............................................
Cab serial number ...................................................
Typeof tractor..........................................................
Owner / Operator.....................................................
Dealer's or Agent's address.....................................
................................................................................
Delivery date ...........................................................
Warranty expiry date................................................
Fig.1-1
A -Engine serial number
(engineblock)
B - Chassis type and serial number
(on front radiator core)
Type and serial number of the front axle
(on axle housing). Cab type and serial number (on rear cab piller).
Fig.2-1
Type of tractor and chassis serial number
(lower dashboard panel).
Fig.4-1
Fig.3-1
Find manuals at https://best-manuals.com

1 - 7
INTRODUCTION
GENERAL SPECIFICATIONS MF 2210 MF 2225 MF 2235
2WD 4WD 2WD 4WD 2WD 4WD
With tyres:
- Front 750-16 320/70 R20 7.50-16 320/70 R24 7.50-16 320/70 R24
- Rear 14.9 R28 420/70 R28 480/70 R30480/80 R30 480/80 R30480/70 R30
WEIGHTS
In running order,
with cab without ballast kg 2350 2470 2350 2550 2350 2550
with front / rear ballast kg 2850 3000 2880 3080 2880 3080
DIMENSIONS
A - Height at cab mm 2360 2423 2360 2445 2360 2445
B - Wheelbase mm 2006 2006 - 2154 - 2154
C - Maximum length
- without front ballast mm 3650 3605 - 3708 - 3708
- with front ballast mm 3915 3915 - 4017 - 4017
D - Ground clearance:
- under tow hook mm 250 395 270 455 270 455
- under front axle mm - 445 - 415 - 415

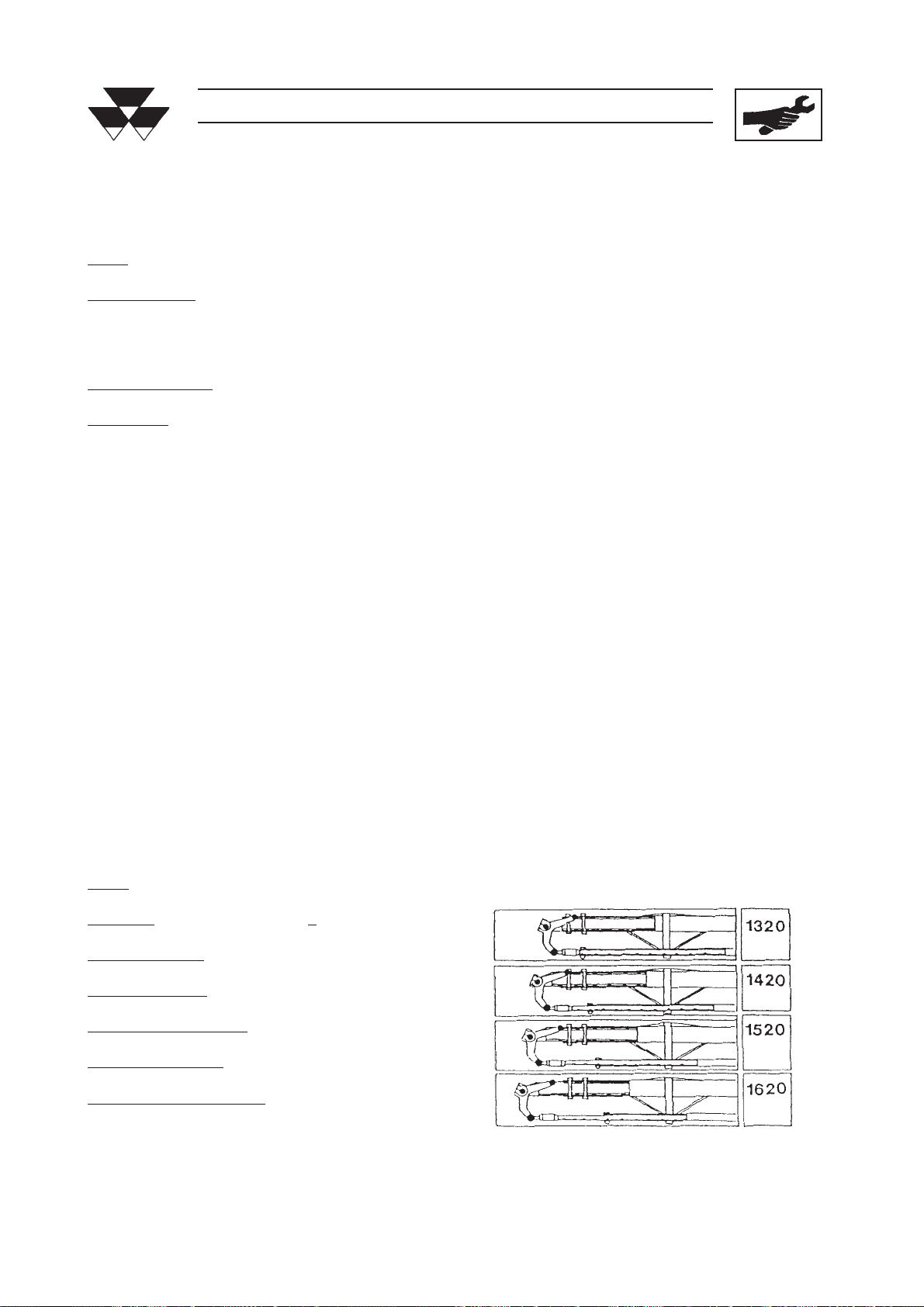

E - Rear track (see tables) mm 1320-1620 1436-1696 1320-1620 1578-1848 1320-1620 1578-1848
F - Front track (see tables) mm 1354-1850 1562-1962 1562-1962 1562-1962 1562-1962 1562-1962
G - Maximum width:
- front axle mm 2245 2270 2348 2348 2348 2348
- rear axle mm 1732 1755 - 1549 - 1549
Tractor identification and technical specifications
2-2 Weights and
dimensions
Fig.5-1
Find manuals at https://best-manuals.com

1 - 8
INTRODUCTION
Tractor identification and technical specifications
2-3 Engine specifications
SHERPA SPECIFICATIONS MF 2210 MF 2225
With tyres: Front 280/70-R20 300/70-R20
- Rear 14.9 - R28 420/70-R28
WEIGHTS
I n running order, with cab without ballast kg 2430 2500
with front / rear ballast kg 2960 3030
DIMENSIONS
A - Height at cab mm 2354 2385
B - Min/max width mm 1732/2244 1777/2286
C - Ground clearance mm 335 345
D - Wheelbase mm 1996 2123
E - Max length (with 2 ballasts) mm 3904 3904
F - Tracks: Front min/max mm 1325/1675 1325/1675
- Rear min/max mm 1354/1866 1354/1866
ENGINE MF 2210 MF 2225 MF 2235
Type: Perkins diesel, with direct injection
Model 903.27 1004.40 1004.42
Aspiration Natural Natural Natural
Number of cylinders 3 4 4
Bore mm 95 100 103
Stroke mm 127 127 127
Swept volume liters 2.7 3.99 4.233
Compression ratio 17.25:1 17.25:1 17.25:1
Power(DIN 700200) HP/kW 54/39.7 66/48.6 78/57
Max. speed under load RPM 2300 2200 2200
Max. speed with no load RPM 2475 2375 2310
Max. torque (DIN 70020) Nm 193.1 - 284
Max. torque speed RPM 1350 - 1400
Idling rate RPM 750 750 750
VALVEGEAR
Type Overhead valves controlled by tappets
tappet gap with engine cold:
- Intake (mm) 0.20 0.20 0.20
- Exhaust (mm) 0.45 0.45 0.45
FUEL SYSTEM
Fuel pump AC-DELCO AC-DELCO AC-DELCO
Injection pump ROTARY LUCAS DP 202 ROTARY LUCAS DP 202 ROTARY LUCAS DP 202
Filter on injection pump delivery CAV CAV CAV
Injection order 1-2-3 1-3-4-2 1-3-4-2
Injectors PERKINS PERKINS PERKINS
Injector pressure setting (bar) 296 296 290
Cold starting device Thermostarter
Air filter Dry, with two elements removable for maintenance
Find manuals at https://best-manuals.com

1 - 9
INTRODUCTION
Tractor identification and technical specifications
2-4 Clutch specifications
Manufacturer LX (OX)
Type Single-plate (with hydraulic PTO)
Double-plate (with mechanical PTO)
Dimensions 11"(280mm.)Single-plate(MF2210-2225)
11"(245/280mm.)Double-plate(MF2210-2225)
12"(304.8mm.)Single-plate(MF2235)
12"/11(304.8/880mm.)Double-plate(MF2235)
Material Gearshift plate with 5 cerametallic plaques
Organic PTO plate
2-5 Transmission specifications
Manufacturer MasseyFerguson
Gearbox
Speeds Four synchronized speeds with infinitely meshed
helical gears
Typeof reductionranges Three forwardranges(Slow-Normal-Fast)
Creeper(7.333reduction).
Reverseshuttle Synchronized ongearboxinput
Number of speeds 12 forward and 12 reverse speeds with standard gearbox
15 forward and 15 reverse speeds with optional
24 forward and 24 reverse speeds with creeper
30 forward and 30 reverse speeds with optional gearbox
48/60 forward and 48/60 reverse speeds with Hi-Lo
Rear axle
Bevelgearpair 9/37withhelicaltoothing,Gleasontype(MF2210)
11/41withhelicaltoothing,Gleasontype(MF2225-2235)
Finalreduction Straight-toothtypewith10/51or11/49ratios(MF2210)
or11/62ratio(MF2225-2235)
Total reductionratio 23.23 or 20.29
Typeof Differential With two planetaries
Differential lock With mechanical or electrohydraulic control,
mechanicallyengaged
Disengaged by means of the brakes (electrohydraulic control)
Rear brakes
Type Oil cooled multiple-plate type
Number of friction disks 8 (4 each side)
Friction disk material Graphitizedresin
Disk diameter 166x110mm
Totalbraking area 1900 cm
2
Diameter of braking cylinder 25.4 mm
Parking brake Mechanical, engaged by a hand lever
Rear brakes (4WD axle)
Type Oil colled multiple plate
Number of friction disks 8 (2 each side)
Friction disk material Graphitizedresin
Disk diameter 143x91 mm
Totalbraking area 764.5 cm
2

1 - 10
INTRODUCTION
Tractor identification and technical specifications

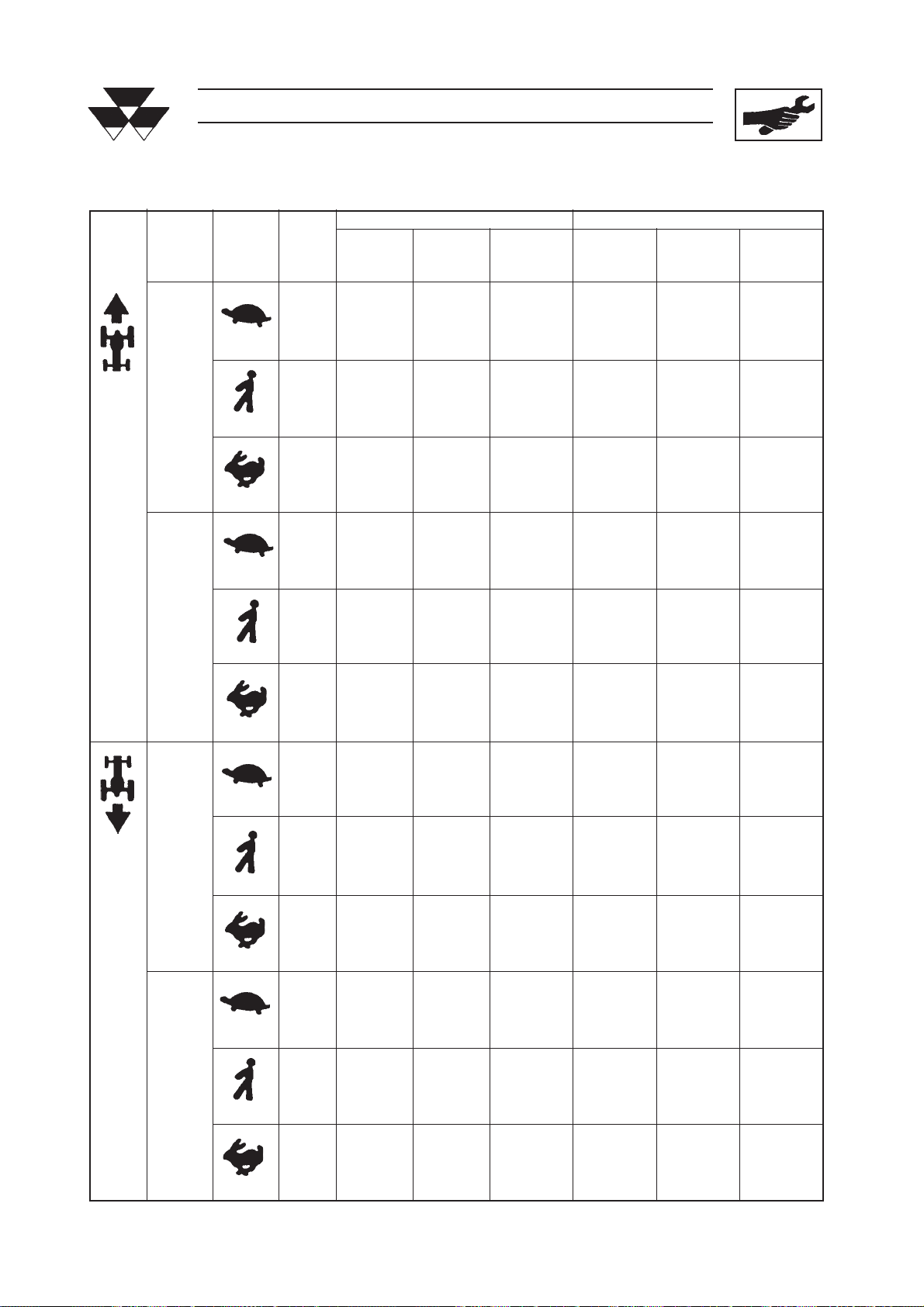

MF 2210 Speed in kph with 2200 RPM engine rate. Gearbox: 4 gears = 30 kph; 5 gears = 40 kph
1 0.16 0.16 0.17 0.19 0.20 0.21
2 0.21 0.22 0.24 0.26 0.27 0.28
3 0.30 0.32 0.34 0.37 0.39 0.40
4 0.41 0.42 0.45 0.50 0.51 1.54
Slow 5 0.55 0.56 0.60 0.66 0.68 0.72
1 0.43 0.45 0.48 0.52 0.54 0.57
2 0.58 0.60 0.63 0.70 0.72 0.76
3 0.82 0.86 0.90 0.99 1.03 1.08
4 1.11 1.14 1.20 1.33 1.37 1.44
Standard 5 1.47 1.52 1.60 1.77 1.83 1.92
1 1.18 1.22 1.29 1.42 1.47 1.54
2 1.59 1.64 1.73 1.91 1.97 2.07
3 2.27 2.34 2.46 3.63 3.75 3.94
4 3.03 3.13 3.29 3.63 3.75 3.94
Fast* 5 4.03 4.17 4.38 4.83 5.00 5.25
1 1.19 1.23 1.29 1.43 1.48 1.56
2 1.60 1.65 1.74 1.92 1.98 2.08
3 2.28 2.36 2.48 2.74 2.83 2.97
4 3.04 3.15 3.31 3.65 3.78 3.96
Slow 5 4.06 4.20 4.40 4.86 5.03 5.27
1 3.19 3.30 3.47 3.83 3.96 4.15
2 4.28 4.42 4.64 5.13 5.30 5.56
3 6.11 6.32 6.63 7.32 7.57 7.94
4 8.15 8.42 8.85 9.76 10.09 10.59
Standard 5 10.8 11.21 11.77 12.99 13.43 14.09
1 8.73 9.02 9.46 10.45 10.80 11.33
2 11.68 12.08 12.68 13.99 14.47 15.18
3 16.68 17.24 18.04 19.97 20.64 21.59
4 22.25 23.00 24.13 26.64 27.54 28.89
Fast 5 29.62 30.63 32.14 35.46 36.67 38.47
1 0.16 0.16 0.17 0.20 0.20 0.21
2 0.21 0.22 0.24 0.26 0.27 0.29
3 0.31 1.32 1.34 1.38 0.39 0.41
4 0.41 0.43 0.45 0.50 0.52 0.54
Slow 5 0.55 0.57 0.61 0.67 0.69 0.73
1 0.44 0.45 0.48 0.53 0.54 0.57
2 0.59 0.61 0.64 0.71 0.73 0.77
3 0.84 0.87 0.91 1.01 1.04 1.09
4 1.11 1.16 1.22 1.34 1.39 1.46
Standard 5 1.49 1.54 1.62 1.79 1.85 1.94
1 1.21 1.25 1.32 1.45 1.50 1.58
2 1.62 1.68 1.76 1.95 2.02 2.11
3 2.32 2.39 2.52 2.78 2.87 3.02
4 3.09 3.20 3.36 3.71 3.83 4.02
Fast 5 4.12 4.27 4.48 4.94 5.11 5.36
1 1.21 1.25 1.31 1.45 1.50 1.57
2 1.62 1.67 1.75 1.94 2.00 2.10
3 2.31 2.39 2.51 2.77 2.86 3.00
4 3.08 3.19 3.34 3.69 3.82 4.00
Slow 5 4.10 4.24 4.45 4.91 5.08 5.33
1 3.23 3.34 3.51 3.87 4.00 4.20
2 4.32 4.48 4.69 5.18 5.36 5.62
3 6.18 6.39 6.70 7.40 7.65 8.02
4 8.23 8.52 8.94 9.86 10.20 10.70
Standard 5 10.96 11.34 11.90 13.13 13.58 14.24
1 8.82 9.12 9.57 10.56 10.92 11.46
2 11.82 12.22 12.82 14.15 14.63 15.35
3 16.85 17.42 18.29 20.18 20.86 21.89
4 22.48 23.35 24.39 26.92 27.83 29.20
Fast 5 29.94 30.96 32.48 35.84 37.06 38.88
12.4R28 13.6R28 14.9R28 12.4R28 13.6R28 14.9R28
420/70R24 380/70R28 420/70R28 420/70R24 380/70R28 420/70R28
12.4R32 12.4R32
Option Range Gear
FORWARDSPEEDS
REVERSESHUTTLE
CREEPER*
STANDARDSPEEDSCREEPERSTANDARDSPEEDS
Hi-Lo Engaged Hi-Lo Disengaged

1 - 11
INTRODUCTION
1 0.18 0.17 0.16 0.22 0.21 0.19
2 0.24 0.23 0.21 0.29 0.28 0.26
3 0.35 0.33 0.31 0.42 0.40 0.37
4 0.46 0.45 0.41 0.56 0.54 1.50
Slow 5 0.62 0.60 0.55 0.74 0.71 0.66
1 0.49 0.47 0.43 0.58 0.56 0.52
2 0.65 0.63 0.58 0.78 0.75 0.70
3 0.93 0.90 0.83 1.12 1.08 1.00
4 1.25 1.20 1.11 1.49 1.44 1.33
Standard 5 1.66 1.60 1.48 1.99 1.92 1.77
1 1.33 1.29 1.19 1.60 1.54 1.42
2 1.79 1.72 1.59 2.14 2.06 1.91
3 2.55 2.46 2.28 3.06 2.95 2.73
4 3.41 3.28 3.04 4.08 3.93 3.64
Fast 5 4.54 4.37 4.05 5.43 5.24 4.85
1 1.34 1.29 1.20 1.61 1.55 1.43
2 1.80 1.73 1.60 2.15 2.08 1.92
3 2.57 2.48 2.29 3.08 2.96 2.74
4 3.43 3.30 3.06 4.10 3.95 3.66
Slow 5 4.56 4.40 4.07 5.46 5.27 4.87
1 3.59 3.46 3.20 4.30 4.15 3.84
2 4.81 4.64 4.29 5.77 5.56 5.14
3 6.87 6.62 6.13 8.23 7.93 7.34
4 9.16 8.83 8.17 10.97 10.58 9.79
Standard 5 12.20 11.76 10.88 14.61 14.08 13.03
1 9.81 9.46 8.75 11.75 11.32 10.48
2 13.14 12.67 11.72 15.74 15.17 14.04
3 18.75 18.07 16.72 22.45 21.64 20.03
4 25.01 24.11 22.31 29.95 28.87 26.72
Fast 5 33.30 32.10 29.71 39.88 38.44 35.57
1 0.18 0.17 0.16 0.22 0.21 0.19
2 0.24 0.24 0.22 0.29 0.28 0.26
3 0.35 1.34 1.31 1.42 0.40 0.37
4 0.47 0.45 0.42 0.56 0.54 0.50
Slow 5 0.62 0.60 0.56 0.75 0.72 0.67
1 0.49 0.47 0.44 0.59 0.57 0.53
2 0.56 0.64 0.59 0.79 0.76 0.70
3 0.94 0.91 0.84 1.13 1.09 1.01
4 1.26 1.21 1.12 1.51 1.45 1.34
Standard 5 1.68 1.62 1.50 2.01 1.94 1.79
1 1.35 1.30 1.20 1.61 1.56 1.44
2 1.81 1.74 1.61 2.16 2.09 1.93
3 2.58 2.49 2.30 3.09 2.98 2.76
4 3.44 3.32 3.07 4.12 3.98 3.68
Fast 5 4.59 4.42 4.09 5.49 5.29 4.90
1 1.36 1.31 1.21 1.62 1.57 1.45
2 1.82 1.75 1.62 2.18 2.10 1.94
3 2.60 2.50 2.31 3.11 3.00 2.77
4 3.46 3.34 3.09 4.15 4.00 3.70
Slow 5 4.61 4.44 4.11 5.52 5.32 4.92
1 3.63 3.50 3.24 4.35 4.19 3.88
2 4.87 4.69 4.34 5.83 5.62 5.20
3 6.94 6.69 6.19 8.32 8.02 7.42
4 9.26 8.93 8.26 11.09 10.69 9.89
Standard 5 12.33 11.88 11.00 14.76 14.23 13.17
1 9.91 9.56 8.84 11.87 11.44 10.59
2 13.28 12.80 11.85 15.91 15.33 14.19
3 18.95 18.27 16.90 22.69 21.87 20.24
4 25.28 24.37 22.55 30.27 29.18 27.00
Fast 5 33.66 32.45 30.02 40.30 38.85 35.95
14.9R 30 16.9R 28 16.9R 24 14.9R 30 16.9R 28 16.9R 24
480 / 70R 30 540 / 65R 28 480 / 70R 30 540 / 65R 28
Option Range Gear
FORWARDSPEEDS
REVERSESHUTTLE
CREEPER
STANDARDSPEEDSSTANDARDSPEEDS STANDARDSPEEDSSTANDARDSPEEDS
STANDARDSPEEDSCREEPERSTANDARDSPEEDS
Hi-Lo Engaged Hi-Lo Disengaged
Tractor identification and technical specifications
MF 2225-2235 Speed in kph with 2200 RPM engine rate. Gearbox: 4 gears = 30 kph; 5 gears = 40 kph

1 - 12
INTRODUCTION
Tractor identification and technical specifications
2-6 Power take-off specifications
Type: Independent
Type of clutch: Mechanical with two speeds 540/750 or 540/1000 RPM
Electrohydraulic with 2 or 4 speeds engaged by a hydraulic clutch
and with electrohydraulic control
PTO output shaft In compliance with Asae standards13/8 (34.9 mm) with 6 splines
PTO speed Rotation rate
540 RPM with engine at 2070 RPM
540 ECO RPM with engine at 1339 RPM
(Basic assembly). (2-speed PTO).
540 ECO RPM with engine at 1373 RPM
(on request). (4-speed hydraulic PTO).
1000 RPM with engine at 2107 RPM
(on request). (4-speed hydraulic PTO).
540 RPM PTO with drive reversal with engine at 2061 RPM
(on request 4-speed PTO in certain markets only).
PTOproportional toground speed(MF2210); PTOshaft turnsper wheel
revolution: 10.677 (10 / 51 rear final drives).
PTOproportional toground speed(MF 2225-2235);PTO shaftturns per
wheelrevolution: 10.769 (11/ 62rear finaldrives).
2-7 2WD axle
Type: Boxed and swivelling around the central pivot
N° tracks 4
Min. track width 1320 mm
Max. track width 1620 mm
Track width increases 100 mm
Max. turning angle 55°
Max. angle of oscillation 12°
Fig. 6-1

1 - 13
INTRODUCTION
Tractor identification and technical specifications
2-8 4WD (DNX) front axle specifications
Type of axle In spheroidal cast iron, oscillating with central pivot
Type of reductions Standardaxle withcentralpinion andringgear ( MF2210-2225 ):39/8
Standardaxle withcentralpinionand ringgear( MF2235 ):53/13
Sherpaaxle withcentralpinion andringgear ( MF2210-2225 ):41/9
Sherpaaxle withcentralpinion andringgear ( MF2210-2225 ):51/13
Standardaxlewithdroppedfinaldrive ( MF2210-2225 ):47/11
Sperpa axle dropped final drive 4.6
Clutch control Mechanical with hand lever or electrohydraulic
Ratio between front and rear axle 1.430 with 4 WD
2.500 with Fast Run
Type of hydraulic clutch Hydraulic clutch for 4 WD with oil-cooled disks
electrohydraulic control with 1:1 input/output ratio
Hydraulic clutch with oil-cooled disks for Fast Run
with automatic engagement when the steering angle
exceeds35°.
Input/output ratio 1:1.78
Max. steering angle 55°
Max. angle swing 8°
Turning radius 3054 mm.

1 - 14
INTRODUCTION
Tractor identification and technical specifications
2-9 Technical specifications of 4WD front axle with bevel gear pairs
Type of axle In spheroidal cast iron swivelling around a
centralpivot
Type of reductions Central pinion and ring gear 14/32
20/26 and 18/41 double bevel drive
and 3.333 epicyclic final drive
Clutch control Mechanical with hand lever or electrohydraulic
Ratio between front and rear axle 1.430 with 4WD
2.543 with Fast Run
Type of hydraulic clutch Hydraulic clutch for 4WD with oil-cooled disks,
electrohydraulic control and 1:1 input/output ratio
Hydraulic clutch with oil-cooled discs for Fast Run
with automatic engagement when the steering an-
gleexceeds 35°.
1:1.78 input/output ratio
Max. steering angle 52°
Max. axle swing 8°
Turning radius 3054 mm.

1 - 15
INTRODUCTION
Tractor identification and technical specifications
2-10 Hydraulic circuit specifications
PUMP
Type Double gear type (in tandem)
Make Bosch.
Model A - 510 - 845 - 262
Pump / engine RPM ratio 1:1.25
Max.operating pressure 180 bar
Max. flow at enginerate 39 l/min MF 2210 / 54 l/min MF 2225 - 2235
Max. flow at enginerate 39 l/min MF 2210 / 54 l/min MF 2225 - 2235
Position at side of engine
Drive Timing system gears
Quantity of hydraulic oil / transmission 35 l.
Typeof oil transfluidAS/B.
FILTERS
Type(on theintake) With single washable metal gauze cartridge
filtering degree 40 micron
Type (on thedelivery) with single replaceable paper cartridge
filtering degree 15/20 micron
STEERING SYSTEM
System Power steering system
Make Danfoss
Type Orbitrol ospc 70 4 W.D. Orbitrol ospc 50 2 W.D.
4 WD nominal cylinder 70cc.per rev.
2 WD nominal cylinder 50cc.per rev.
Calibratingvalve 155
±
5
0
(built into the valve system block)
Antishockvalve calibration 205 bar (built into the valve system block)
Steering cylinder Quantity 1
Type double-acting,balanced
Make MasseyFerguson
dimensions 32 x 48 x 242 /2 mm.
pump delivery 27.3 l. / min. at 2600 RPM engine rate
steering wheel turns 2 turns to the right
steering wheel turns 1.75 turns to the left
steering wheel diameter 360 mm.
HYDRAULIC POWER PACK
Make Comatrol
Type Electrohydraulic
Low pressure calibrating valve 18 bar
Cooling circuit calibrating valve 5 bar
Compensatingvalve Modular
Forced lubrication valve 1.5 bar
Oil outlet towards the transmission Spray lubrication
Uses BLc - PTO/FRn - STr - DTi
Typeof engagement Electrohydraulic
±
5
0

1 - 16
INTRODUCTION
AUXILIARY CONTROL VALVES
Make SLX
Operation Standard-Single/ doubleacting, hydraulic,with “Kickout”
automatic release
Type Open center with “Push - Pull” quick couplings
Calibratingvalve 180
±
5
0
bar
Max.flowrate 35 l. / min.
Max.quantity 3 elements
Connection to circuit in series
Position at rear
HYDRAULIC MECHANICAL POWER LIFT
Make Mita / Massey Ferguson
Operatingmode position / draft control
intermix - float mode lowering adjustment
Hydraulic system with open-center
Standard cylinder single-acting
Dimensions ø 90 x 116 stroke
Supplementary cylinders 2 single-acting types
dimensions ø 40 x 220 stroke
Calibratingvalve 180
±
5
0
bar
Antishockvalve 200
±
5
0
bar
LIFTING CAPACITY
Standard 2100 Kg.
With 2 supplementary cylinders 3400 Kg.
lower links Class 1 and 2
third point with hydraulic ram (optional)
Tractor identification and technical specifications

1 - 17
INTRODUCTION
INDEX
Sect. 3 Working in safety
3-1 Essential rules for prevention ......................................1-18
3-2 Safety decals...............................................................1-24
3-3 Replacing tractor parts................................................1-26
3-4 Safe use of the tractor.................................................1-26
CHAP.1
Working in safety

1 - 18
INTRODUCTION
Sect.3 - Working in safety
3-1 Essential rules
for prevention
The structures, systems and equipment in repair
shops must conform to the current laws governing
labour safety in order to safeguard the health and
safety of each worker.
Although they are obviously only partial, the regula-
tions given in this section inform the workers about
the dangers they may encounter on the job.
Always bear your safety and that of others in mind
whenever you work on a machine, whichever type it
maybe.
To work in complete safety, it is essential to know the
nature of the job, to correctly use the tools and mate-
rials required and to rely on your common sense
To prevent accidents, it is important to:
-BEHAVE correctly and act with caution;
- Pay ATTENTION and keep your actions under
control;
- Comply with the REGULATIONS and rules of
behaviour of a general character.
Per
operaresempre
in
This is the warning symbol. Take care when
you see it on the machine or in the manual
as it indicates a potential danger hazard.
To
work
in
alwaysthinkbeforeacting!
To
work
in
SAFETY
