MasterCraft 052-9867-0 User manual

headline bars
continuation tabs
notes
warnings
IMPORTANT:
Please read this manual carefully before running this
heater and save it for reference.
INSTRUCTION
MANUAL
CEILING-MOUNTED HEATER
Model No: 052-9867-0

headline bars
continuation tabs
notes
warnings
headline bars
continuation tabs
notes
warnings

headline bars
continuation tabs
notes
warnings
headline bars
continuation tabs
notes
warnings
3
headline bars
continuation tabs
notes
warnings
NOTE:
If any parts are missing or damaged, or if you have any questions, please call our
toll-free helpline at 1-800-689-9928.
SAVE THESE INSTRUCTIONS
This manual contains important safety and operating instructions.
Read all instructions and follow them with use of this product.
TABLE OF CONTENTS
Safety Guidelines 4
Technical Specifications 6
Key Parts Diagram 7
Assembly Instructions 8
Maintenance 12
Warranty 14
TABLE OF CONTENTS

headline bars
continuation tabs
notes
warnings
headline bars
continuation tabs
notes
warnings
4
SAFETY GUIDELINES
model no. 052-9867-0 | contact us 1-800-689-9928
SAFETY GUIDELINES
When using this electric unit, basic safety precautions should always be followed to reduce the
risk of fire, electric shock, and injury to persons, including the following:o not wear loose clothing
that may become entangled in the impeller or other moving parts.
1. Read ALL instructions before using this unit.
2. CAUTION: Risk of electric shock. DO NOT open or try to repair the heater yourself.
3. This heater may get hot when in use. To avoid burns, DO NOT let bare skin touch hot
surfaces. If provided, use handles when moving this heater.
4. Keep combustible materials, such as furniture, pillows, bedding, paper, clothes, and curtains
at least 3’ (0.9 m) from the front of the heater and keep them away from the sides, top and
rear. DO NOT place towels or other objects on the heater.
5. Extreme caution is necessary when any heater is used by or near children or the disabled, or
any time the heater is operating.
6. Do not operate this heater unattended or while sleeping.
7. DO NOT operate any heater with a damaged cord, or after the heater malfunctions, has
been dropped or damaged in any manner. Return heater to authorized service facility for
examination, electrical or mechanical adjustment, or repair.
8. This heater is not intended for use in bathrooms, laundry areas and similar indoor locations.
NEVER locate heater where it may fall into a bathtub or other water container. To protect
against electrical hazards, DO NOT immerse in water or other liquids. This heater is not
intended to be a primary heat source or replacement for a furnace.
9. DO NOT touch the control panel or plug with a wet hand.
10. DO NOT run cord under carpeting. DO NOT cover cord with throw rugs, runners, or similar
coverings. Arrange cord away from traffic areas and where it will not be tripped over.
11. DO NOT insert or allow foreign objects to enter any ventilation or exhaust opening as this
may cause an electric shock or fire, or damage the heater.
12. To prevent a possible fire, DO NOT block the air intakes or exhaust in any manner. DO NOT
use on soft surfaces, like a bed, where openings may become blocked.
13. A heater has hot and arcing or sparking parts inside. DO NOT use in areas where gasoline,
paint, explosive and/or flammable liquids are used or stored. Keep unit away from heated
surfaces and open flames.
14. Always plug heaters directly into a wall outlet/receptacle. Never use with an extension cord
or relocatable power tap (outlet/power strip).
15. To avoid fire or shock hazard, plug the unit directly into a 120 V AC electrical outlet.
16. To disconnect heater, turn controls to OFF, then remove plug from outlet. Pull firmly on the
plug. DO NOT unplug by pulling on the cord.
17. Always unplug the unit before moving or cleaning, or whenever the heater is not in use.
18. Use only for intended household use as described in this manual. Any other use not recommended
by the manufacturer may cause fire, electric shock, or injury to persons. The use of attachments
not recommended or sold by unauthorized dealers may cause hazards.
19. DO NOT use outdoors.
20. WARNING: To reduce the risk of fire or electric shock, DO NOT use this unit with any solid-
state speed control device.
21. DO NOT attempt to repair or adjust any electrical or mechanical functions this unit. Doing so
will void your warranty. The inside of the unit contains no user-serviceable parts. Qualified
personnel should perform all servicing only.
22. Connect to properly-grounded outlets only.

5
headline bars
continuation tabs
notes
warnings
headline bars
continuation tabs
notes
warnings
5
SAFETY GUIDELINES
THERMAL CUT-OFF PROTECTION FEATURE
• This heater is equipped with a thermal cut-off protection feature. When the heater’s internal
components reach a certain temperature that could cause overheating and possible fire, the
heater will automatically shut off. To reset, turn the heater off. Unplug the heater and let it
cool down for around 20 minutes. Plug the heater back into the wall outlet and operate the
heater as described in the operating instructions.
1. PET OWNERS NOTE: The health of birds and some small pets are extremely sensitive to the
fumes given off during the initial use of many appliances. Although these fumes are not
harmful to humans, it is recommended that this heater not be used around birds and small
pets during its initial use until the manufacturing corrosion coatings burn off.
2. This appliance is not intended for use by persons (including children) with reduced physical,
sensory or mental capabilities, or lack of experience and knowledge, unless they have been
given supervision or instruction concerning use of the appliance by a person responsible for
their safety.
3. Children should be supervised to ensure that they do not play with the appliance.
4. WARNING: In order to avoid overheating, do not cover the heater.
5. Save these instructions.

model no. 052-9867-0 | contact us 1-800-689-9928
66
model no. 052-9867-0 | contact us 1-800-689-9928
TECHNICAL SPECIFICATIONS
headline bars
continuation tabs
notes
warnings
FEATURES
Adjustable Angle Halogen Light
Pull String Switch Controls Heat Settings and Halogen Light
High Efficiency Quartz Elements Provides Safe Heat
Power Indicator Light
Durable Metal Housing
90°Tilting Bracket
3-Prong Bracket
SPECIFICATIONS
Model 052-9867-0
Power 120 V AC / 12.5 A
Frequency 60 Hz
Settings High 1500 W, Low 750 W
model no. 052-9867-0 | contact us 1-800-689-9928

headline bars
continuation tabs
notes
warnings
7
PARTS LIST
No. Description Qty.
1Mounting Arm
Connected to mounting bracket
1
2 Arm Release Button
Push button on both sides to release heater from mounting bracket
1
3 Power Setting Indicator
0= Off Position
I = Position 1: 750 W; One Element
II = Position 2: 1500 W; Two Elements
III = Position 3: 750 W; One Element with Light
VI = Position 4: 1500 W; Two Elements with Light
1
4 Pull Cord
To select power settings
1
5 Halogen Lamp 1
KEY PARTS DIAGRAM
4
2
3
5
1

headline bars
continuation tabs
notes
warnings
model no. 052-9867-0 | contact us 1-800-689-9928
8

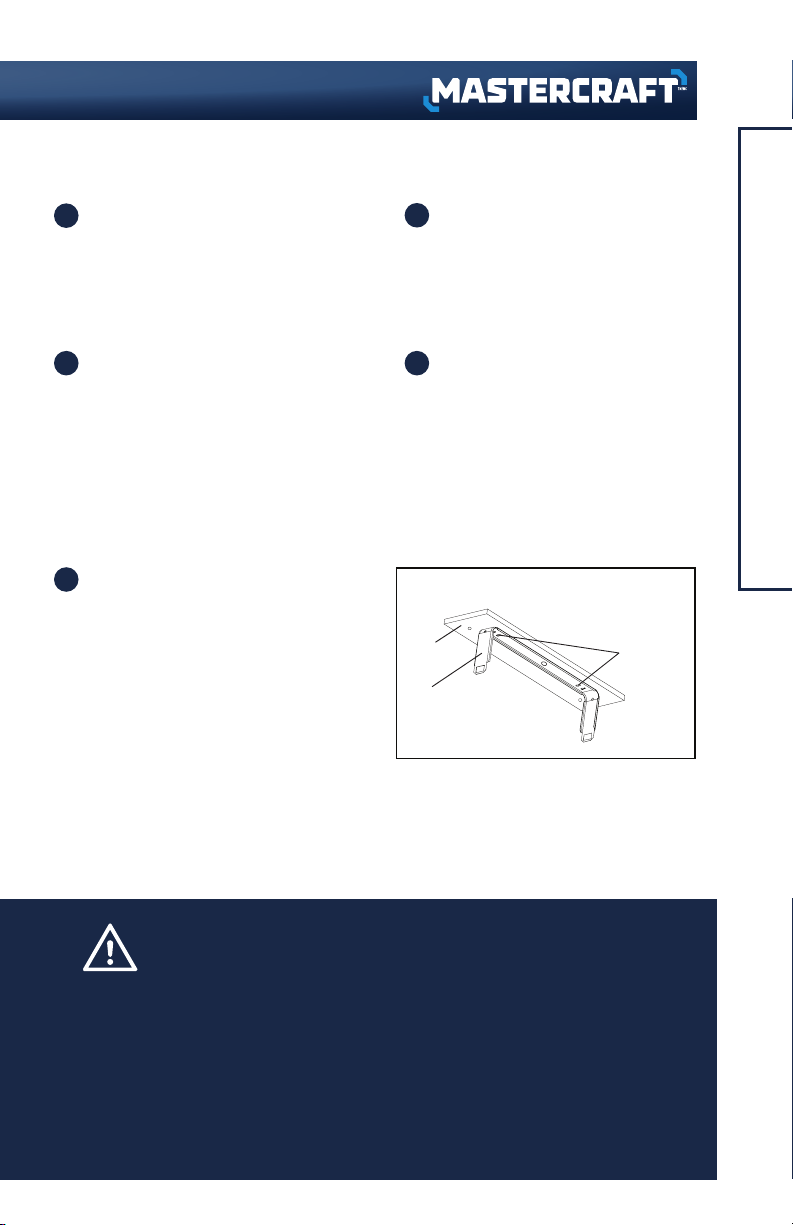

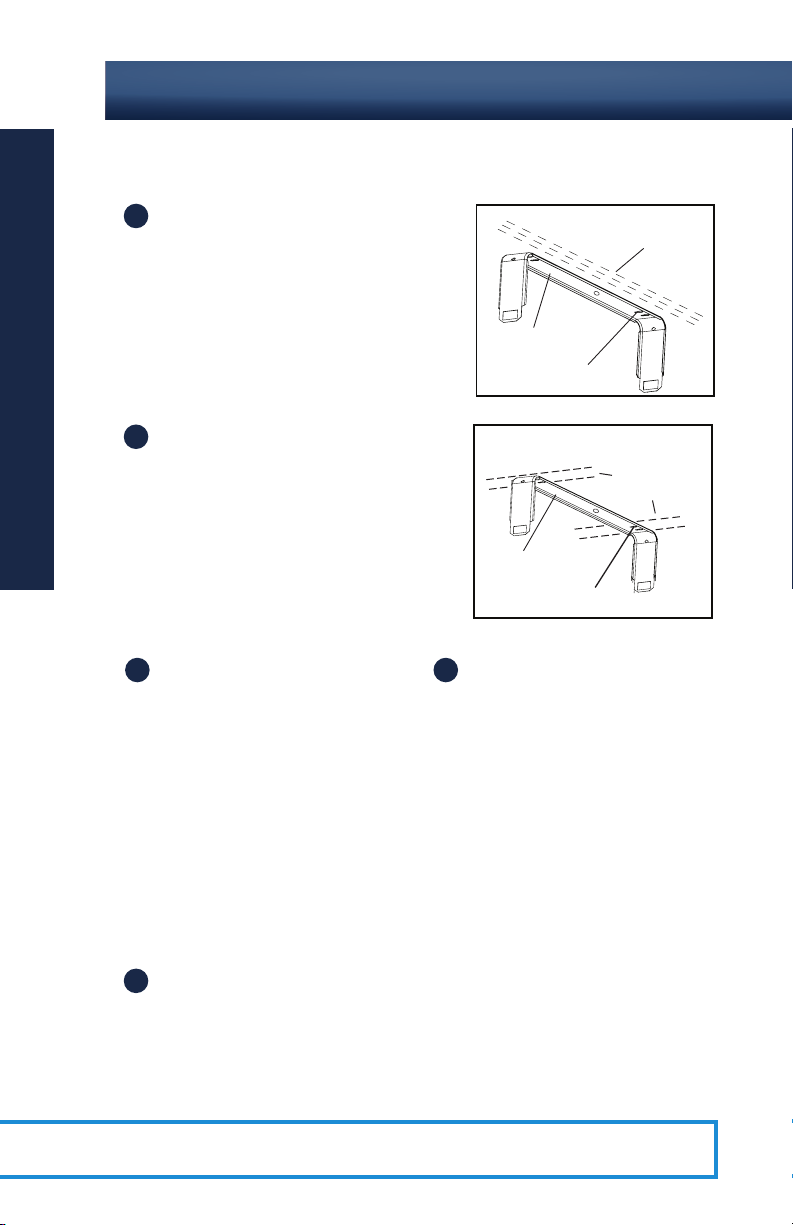

Locate a desired position on your
ceiling in the area to be warmed.
Heater should be at least 3’ (0.9 m)
away from the nearest wall or other
combustible material.
1
Using the mounting bracket as a
template, line up one of the key slots
at each end of the bracket with one
or two joists and mark the slotted
openings. If you cannot line up the
holes in the bracket with the joists
you will have to use other mounting
methods. See “Mounting Board
Installation.”
4
The mounting bracket may be attached
to a single joist (Fig. 1) or span across
two joists (Fig. 2). Failure to mount
heater to joists can result in injury
and/or fire hazards.
2
Using a 1/8” (3.2 mm) drill bit, drill a hole in the centre of each marked key slot.
Install the two screws provided leaving about 1/4” (6.4 mm) between the head of
the screw and the mounting surface. Slip the mounting bracket over the screw
heads and slide the bracket to engage the screws in the slots. Tighten screws
securely.
5
If you are installing the bracket to an
unfinished ceiling with exposed joists,
proceed to step 4. On a finished ceiling,
the joists are hidden behind the ceiling
dry wall or plaster. You must locate and
mark the location of the centre of the
joists in the mounting area. Joists are
typically 1 1/2” (3.8 cm) wide and 16”
(40.6 cm) or 18” (45.7 cm) apart. They
usually run parallel with the narrow
dimension of the room. A “stud finder,”
available at most hardware stores, may
help in locating the centre of these
hidden joists.
3
MOUNTING BRACKET INSTALLATION
NOTE: Heater should be at least 3’ (0.9 m) away from the nearest wall or other combustible material.
ASSEMBLY INSTRUCTIONS
JOIST
(MAY BE COVERED
WITH DRYWALL)
MOUNTING
BRACKET
KEY SLOTS
Mounting to 1 Joist — Figure 1
MOUNTING
BRACKET
KEY SLOTS
Mounting to 2 Joists — Figure 2
JOIST
(MAY BE COVERED
WITH DRYWALL)

9
headline bars
continuation tabs
notes
warnings
Locate a desired position on your
ceiling in the area to be warmed.
Heater should be at least 3’ (0.9 m)
away from the nearest wall or other
combustible material.
1
The mounting bracket may be attached
to a single joist (Fig. 1). Failure to
mount heater to joists can result in
injury and/or fire hazards.
2
If you are installing the bracket to an
unfinished ceiling with exposed joists,
proceed to step 4. On a finished ceiling
the joists are hidden behind the ceiling
dry wall or plaster. You must locate and
mark the location of the center of a
joist in the mounting area.
3
Using a 3/16” (4.8 mm) drill bit, drill a
hole in the centre of the joist. Line up
the bracket with the hole and install
the bracket using the large screw
and washer provided. Tighten screw
securely and then back off about a ½
turn to be able to swivel the heater to
desired position.
4
WARNING!
• Always remove screw from each arm first before attaching heater to mounting bracket.
• Do not forget to replace the screws back in each arm after attaching heater; otherwise, heater could slide out of
mounting bracket and cause injury or damage.
WARNING!
• Do not adjust the heater while it is operating. Do not adjust the halogen lamp while it is operating.
• The metal parts of the housing and the lampshade get very hot and can cause a burn.
• Always turn your heater off and allow time for it to cool before adjusting.
WARNING!
• Do not attempt to remove the heater one arm at a time as this could cause damage to the heater cabinet.
WARNING!
• The rotating arms on this heater will not fold flat with the body of the heater for safety reasons.
• Attempting to fold this heater flat could cause damage to the heater housing.
FPO
ASSEMBLY INSTRUCTIONS

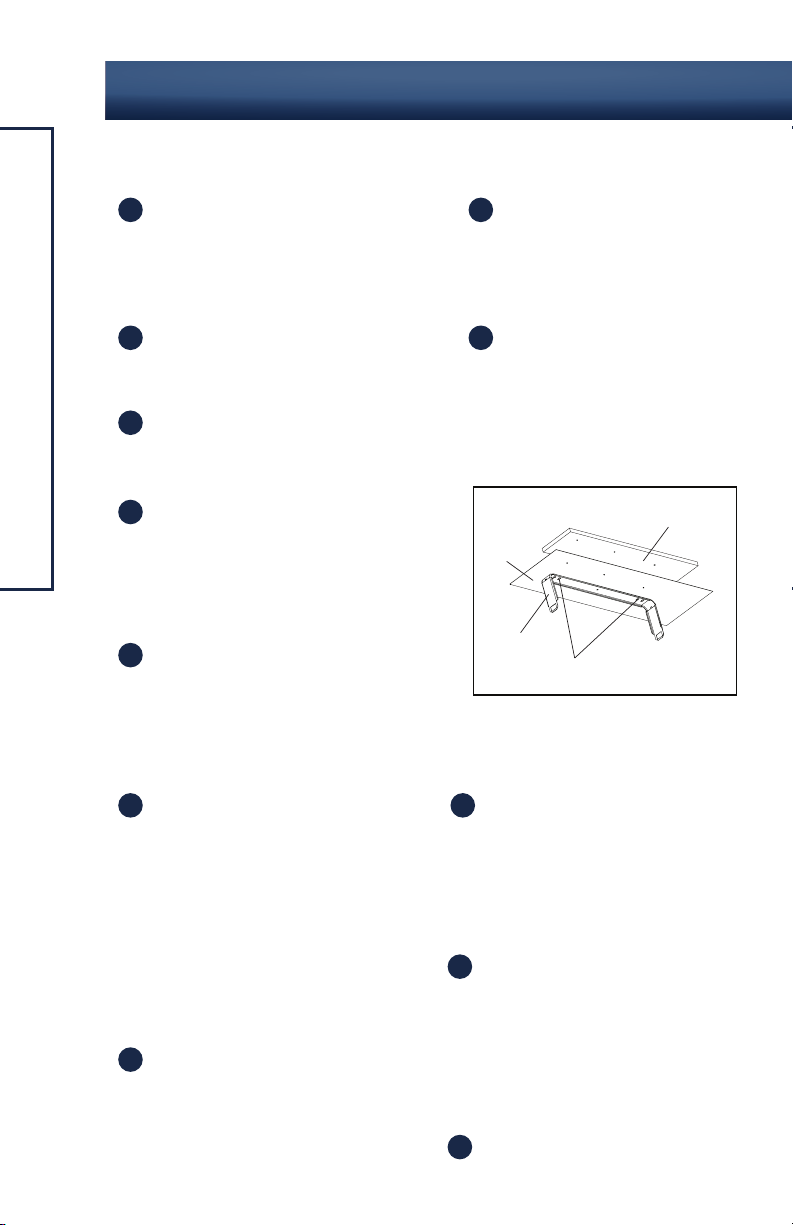

If your joists are more that 18” (45.7 cm)
apart, or you have chosen to mount the heater
at an angle to the joists, as in a corner or to
a suspended ceiling, a mounting board will
be needed to provide a surface to attach the
mounting bracket (Fig. 3). The mounting board
should be a board measuring approximately
1” (2.5 cm) thick by 2” (5.1 cm) wide, and
long enough to span two or more joists. For
either swivel or key slot installations, securely
bolt or screw the mounting board into desired
position. Continue with the installation following
the instructions for the desired heater bracket
mounting installation.
1
MOUNTING BOARD INSTALLATION (IF REQUIRED)
SWIVEL MOUNTING INSTALLATION
MOUNTING
BOARD
MOUNTING
BRACKET
KEY SLOTS
Mounting Board Installation — Figure 3

headline bars
continuation tabs
notes
warnings
10
model no. 052-9867-0 | contact us 1-800-689-9928
ASSEMBLY INSTRUCTIONS
Select a ceiling tile in the desired
location and a mounting installation
option (either swivel or key slot
installation. See previous page for
option descriptions).
1
Your heater is equipped with rotating
arms at each end of the unit. To
conserve space in shipment, these
arms are in line with the heater body
and must be repositioned before
installation. With your heater laying
face down, rotate each arm slowly
upward until they are perpendicular
to the body. For safety reasons, once
rotated, the arms cannot be returned
to their original position.
1
Using the mounting bracket as a
template, mark the tile with the
appropriate hole location(s).
2
Remove screw from both arms; then,
holding the heater by the arms (one in
each hand), slide the arms onto the
mounting bracket until it locks into
place.
2
Replace the screws in each arm after
attaching heater. Do not forget to
replace the screws back into each arm
and nut after you finish attaching it
to the heater; otherwise, the heater
can slide out of mounting bracket and
cause injury or damage.
3
Construct a mounting board exactly 23
3/4” (60.3 cm) long for a 24” (61 cm)
grid. See “Mounting Board Installation.”
3
Remove the marked tile from the
ceiling. Position the mounting board
behind the tile and behind the marked
hole location(s). Make sure the ends
of the mounting board and the tile are
aligned.
4
Drill 1/8” (3.2 mm) holes THROUGH
THE TILE AND MOUNTING BOARD
WHERE MARKED.
5
Using the hardware supplied, attach
the mounting bracket to the mounting
board with the ceiling tile sandwiched
in between. (See Fig. 4)
6
Reinstall assembled heater bracket/
ceiling tile/mounting board in
ceiling. Refer to “Attaching Heater
to Mounting Bracket” in these
instructions.
7
SUSPENDED CEILING MOUNTING INSTALLATION
ATTACHING HEATER TO MOUNTING BRACKET
Plug the heater into a 120 V AC
grounded outlet. Keep the cord away
from the front of the heater. Always
plug heaters directly into a wall outlet/
receptacle. Never use with an extension
cord or relocatable power tap (outlet/
power strip). Always unplug heater/fan
when not in use.
4
Adjust the angle and rotation of the
heater to direct the heat where needed.
5
KEY SLOT
HOLES
MOUNTING
BOARD
CEILING
TILE
MOUNTING
BRACKET
Suspended Ceiling — Figure 4

11
headline bars
continuation tabs
notes
warnings
ASSEMBLY INSTRUCTIONS
Unplug heater and allow to cool.
1
Inspect heater for damage which may
have occurred during shipment. DO
NOT operate if any damage is noted.
Return damaged heater to retailer or
factory for repair or replacement.
1
Install heater to an overhead location
(SEE ASSEMBLY INSTRUCTIONS).
2
Plug heater into 120 V AC, 60 Hz AC
grounded outlet.
3
Rotate heater to aim in desired
direction.
4
Set power setting indicator to the
desired position by pulling the
pull-cord.
5
Remove screw from each arm.
2
Push in the two tabs on the outside of
each arm.
3
Grasp both arms and simultaneously
pull the unit down while holding the
tabs in.
4
REMOVING HEATER FROM MOUNTING BRACKET
OPERATING INSTRUCTIONS

headline bars
continuation tabs
notes
warnings
headline bars
continuation tabs
notes
warnings
model no. 052-9867-0 | contact us 1-800-689-9928
12
headline bars
continuation tabs
notes
warnings
headline bars
continuation tabs
notes
warnings
model no. CZQTV5MCT | contact us 1-800-689-9928
CLEANING
Make sure to disconnect the plug from the wall outlet before any servicing is started. Always allow
the heater to cool completely. Do not pour water on or submerge any portion of heater or any
other liquid. Allow unit to completely dry before plugging the heater into a receptacle.
1. Turn off the power switch.
2. Unplug the unit and let it cool completely.
3. To keep the heater clean, the outer shell may be cleaned with a soft, damp cloth. You may
use a mild detergent if necessary. After cleaning, dry the unit with a soft cloth. CAUTION: DO
NOT let liquid enter the heater.
4. If it becomes necessary to clean the interior, first remove the heater from the mounting
bracket (see installation instructions). Then remove 4 screws from the grille. Be sure to
reattach the grille with the screws before operating heater again. Never touch the quartz
elements with bare hands. Do not use cleaners on the inside of the heater. Simply wipe any
debris with a moist cloth.
5. Wait until the unit is completely dry before use.
Note:
• DO NOT use alcohol, gasoline, abrasive powders, furniture polish, or rough brushes to
clean the heater. This may cause damage or deterioration to the surface of the heater.
• DO NOT immerse the heater in water.
STORAGE
• After cleaning, store the heater in a cool, dry location when not in use. To prevent dust and
dirt build-up, use the original packaging to repack the unit.
MAINTENANCE

13
headline bars
continuation tabs
notes
warnings
headline bars
continuation tabs
notes
warnings
headline bars
continuation tabs
notes
warnings
headline bars
continuation tabs
notes
warnings
13
WARNING!
This heater has a voltage rating of 120 V. The cord has a three-prong plug and should be connected to a properly
grounded three prong outlet.
DO NOT DEFEAT THE SAFETY PURPOSE OF THE GROUNDED PLUG.
WARNING!
It is normal for the power cord to feel warm to the touch; however, a loose fit between the outlet and the plug may
cause overheating of the plug. If the plug is loose, do not use this outlet. Rather, try inserting the plug into a different
outlet. Contact a qualified electrician to inspect the original outlet.
WARNING!
• Replacement bulb rating must not exceed 25 W.
• Never touch a halogen lamp with bare hands. Oil residue from bare hands will cause lamp failure.
FPO
REPLACING HALOGEN LAMP
1. This model heater features an exclusive, replaceable halogen lamp system. In
the event that a halogen lamp in this heater should break, burn-out or become
inefficient, you can purchase replacement halogen lamps. Halogen lamps (use only
type G9, 120 V, 60 Hz, 25 W) are available at most hardware and home
centre stores.
2. Unplug heater, then remove it from mounting bracket.
3. Open lamp cover: Remove the screw located at the side of lamp cover. Open the
lamp by using the tip of a screwdriver to lift off the lamp cover.
4. Remove old lamp: Grasp the old lamp and carefully pull it out of the lamp holder.
5. Install new lamp: Install new lamp using clean cloth or gloves. Insert end of the lamp
into the lamp holder.
Warning: Replacement bulb rating must not exceed 25 W.
6. Close lamp cover and re-install screw. Snap heater onto properly installed mounting
bracket before use.
1313
MAINTENANCE

model no. 052-9867-0 | contact us 1-800-689-9928
14
headline bars
continuation tabs
notes
warnings
WARRANTY INFORMATION
This Mastercraft product is guaranteed for a period of one (1) year from the date of original retail purchase, against
defects in materials and workmanship.
Subject to the conditions and limitations described below, this product, if returned to us with proof of purchase within
the stated warranty period and if covered under this warranty, will be repaired or replaced (with the same model, or one
of equal value or specification), at our option. We will bear the cost of any repair or replacement and any costs of labour
relating thereto.
This warranty is subject to the following conditions and limitations
a. a bill of sale verifying the purchase and purchase date must be provided;
b. this warranty will not apply to any product or part thereof which is worn or broken or which has become inoperative due
to abuse, misuse, accidental damage, neglect or lack of proper installation, operation or maintenance (as outlined in the
applicable owner’s manual or operating instructions) or which is being used for industrial, professional, commercial or rental
purposes;
c. this warranty will not apply to normal wear and tear or to expendable parts or accessories that may be supplied with the
product which are expected to become inoperative or unusable after a reasonable period of use;
d. this warranty will not apply to routine maintenance and consumable items such as, but not limited to, fuel, lubricants, vacuum
bags, blades, belts, sandpaper, bits, fluids, tune-ups or adjustments;
e. this warranty will not apply where damage is caused by repairs made or attempted by others (i.e., persons not authorized by
the manufacturer);
f. this warranty will not apply to any product that was sold to the original purchaser as a reconditioned or refurbished product
(unless otherwise specified in writing);
g. this warranty will not apply to any product or part thereof if any part from another manufacturer is installed therein or any
repairs or alterations have been made or attempted by unauthorized persons;
h. this warranty will not apply to normal deterioration of the exterior finish, such as, but not limited to, scratches, dents, paint
chips, or to any corrosion or discolouring by heat, abrasive and chemical cleaners; and
i. this warranty will not apply to component parts sold by and identified as the product of another company, which shall be
covered under the product manufacturer’s warranty, if any.
Additional Limitations
This warranty applies only to the original purchaser and may not be transferred. Neither the retailer not the manufacturer
shall be liable for any other expense, loss or damage, including, without limitation, any indirect, incidental, consequential
or exemplary damages arising in connection with the sale, use or inability to use this product.
Notice to Consumer
This warranty gives you specific legal rights, and you may have other rights, which may vary from province to province.
The provisions contained in this warranty are not intended to limit, modify, take away from, disclaim or exclude any
statutory warranties set forth in any applicable provincial or federal legislation.
Made in China.
Imported by Mastercraft Canada Toronto, Canada M4S 2B8
model no. 052-9867-0 | contact us 1-800-689-9928
