Matatakitoyo Torque Tools Metric ETT-15N User manual
ETT-15N
Models covered
Range：1 Nm - 15 Nm
TORQUE
1. Study this instruction before use.
2. Please wear gloves and goggles when working.
3. Always check for loose wires and cables on and around tester before beginning operation.
4. Keep tester and charger away from water, always store in a dry place and safe environment.
5. Over torque will cause tool damage and personal injury.
6. Never use additional accessories with this tester that were not included and are not from this manufac
turer, doing so could result in damage to the tester.
7. Always operate tester in a clean and organized work place.
8. This tester should always be kept clean, dry, and free from oil and grease.
9. This tester should be recalibrated a period of 1 years.
To contact with local vendor, an authorized repair center for supporting.
10. Always unplug tester before inspecting, cleaning, or performing maintenance on the tester.
Manual
WARNING
BEFORE STARTING
MAINTENCE AND STORAGE
SPECIFICATION
Color： Black or Silver
E-mail:[email protected]om
www.matatakitoyo.com
Made in Taiwan
MATATAKITOYO TOOL CO., LTD.
No. 63, Ln. 493, Sec. 3, Zhongshan Rd., Tanzi Dist.,
Taichung City 42754, Taiwan
TEL : 886-4-2533 5893
Manufacturer
Jul. 2020
02
Edition
ITEM NO. Range D
ASockets 1 Sockets 2W H
ETT-15N
ETT-30N
ETT-150N
ETT-500N
ETT-1000N
ETT-2000N
2.94
2.94
3.44
4.06
4.06
4.56
205
205
205
205
205
205
155
155
155
155
155
155
76
76
76
76
76
76
1/4” x 11mm
1/4” x 11mm
3/8” x 14mm
1/2” x 27mm
3/4” x 27mm
3/4” x 32mm
11
11
14
27
27
32
N/A
N/A
1/4” x 14mm
3/8”F x 1/2”M
1/2” x 27mm
1/2” x 32mm
1-15 Nm
1.5-30 Nm
7.5-150 Nm
25-500 Nm
50-1000 Nm
100-2000 Nm
KG
ITEM NO. Range D
ASockets 1 Sockets 2W H
ETT-11F
ETT-22F
ETT-110F
ETT-370F
ETT-740F
ETT-1500F
2.94
2.94
3.44
4.06
4.06
4.56
205
205
205
205
205
205
11
11
14
27
27
32
155
155
155
155
155
155
76
76
76
76
76
76
1/4” x 11mm
1/4” x 11mm
3/8” x 14mm
1/2” x 27mm
3/4” x 27mm
3/4” x 32mm
N/A
N/A
1/4” x 14mm
3/8”F x 1/2”M
1/2” x 27mm
1/2” x 32mm
0.74-11 ft.lb
1-22 ft.lb
5-110 ft.lb
18-370 ft.lb
36-740 ft.lb
75-1500 ft.lb
KG
Accessories
Unit : mm
Accessories
Metric
SAE
H
W
D
A
H
W
D
A
ETT-15N & 30N
ETT-11F & 22F
Other items
1. Clean this tool by wiping with a clean cloth after operation and storage in a dry environment.
2. Do not dip any type of liquid in this tool. This may damage the internal of this tool.
1 Years

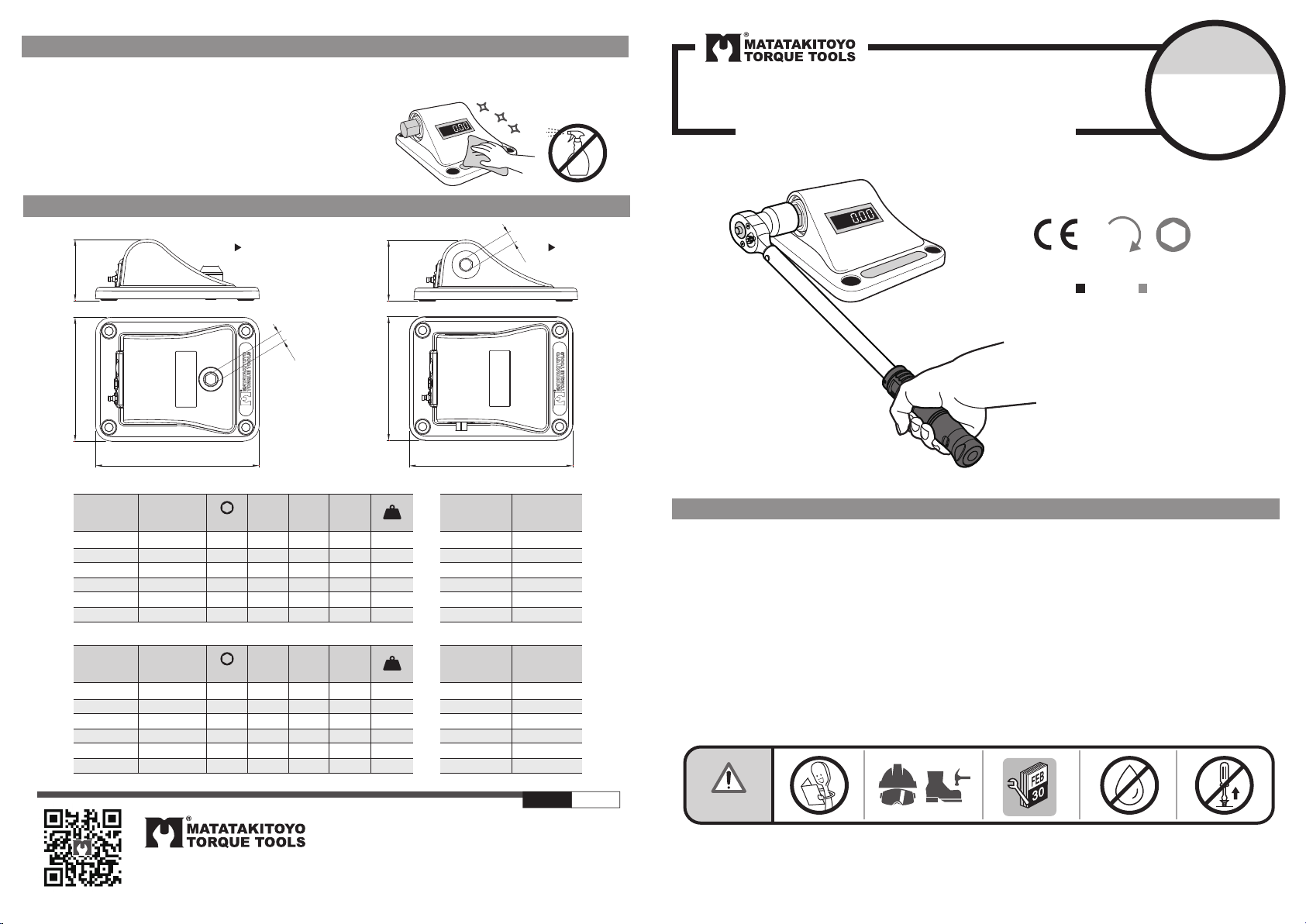

OPERATION MANUAL
Easy Torque Tester
1

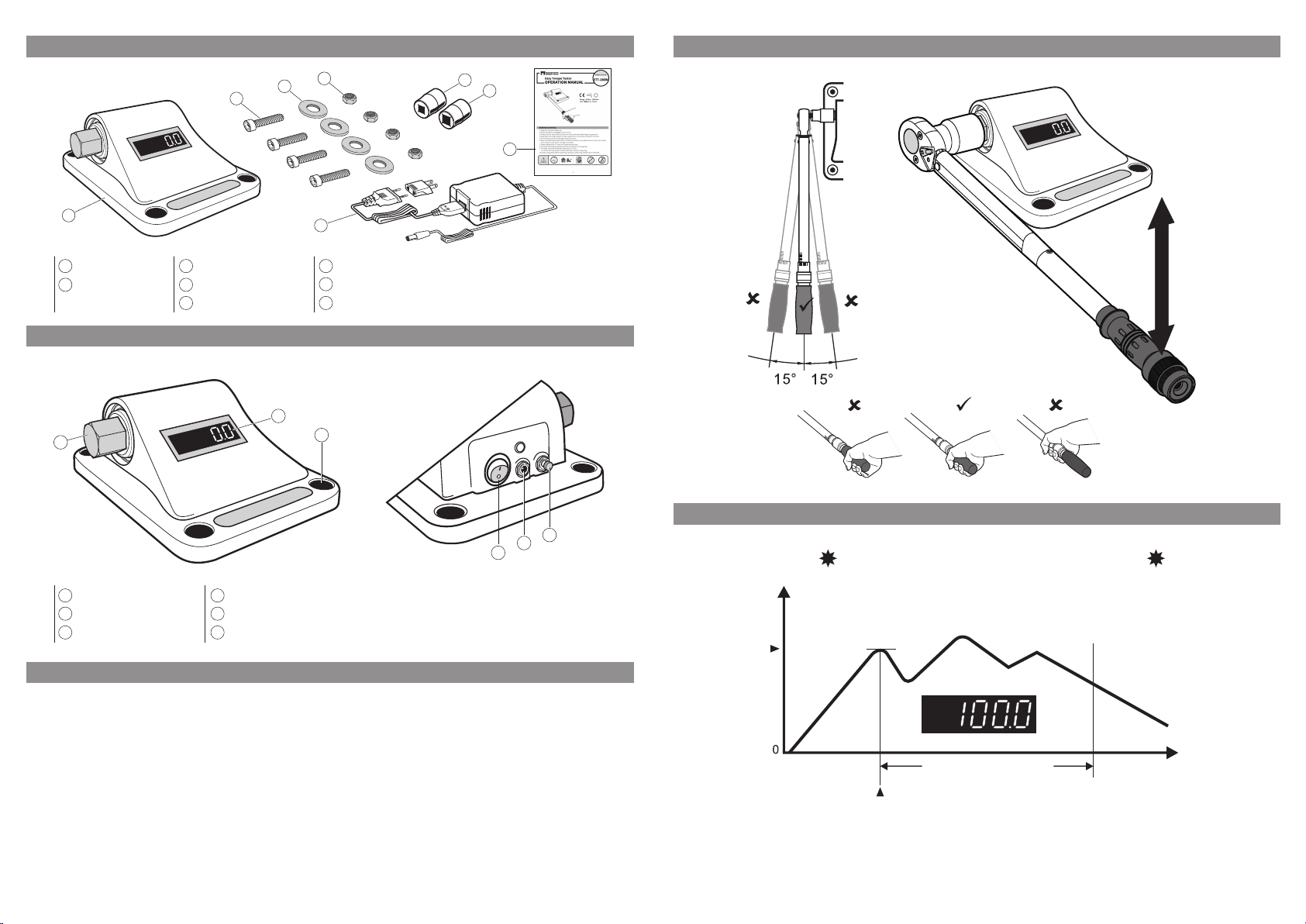

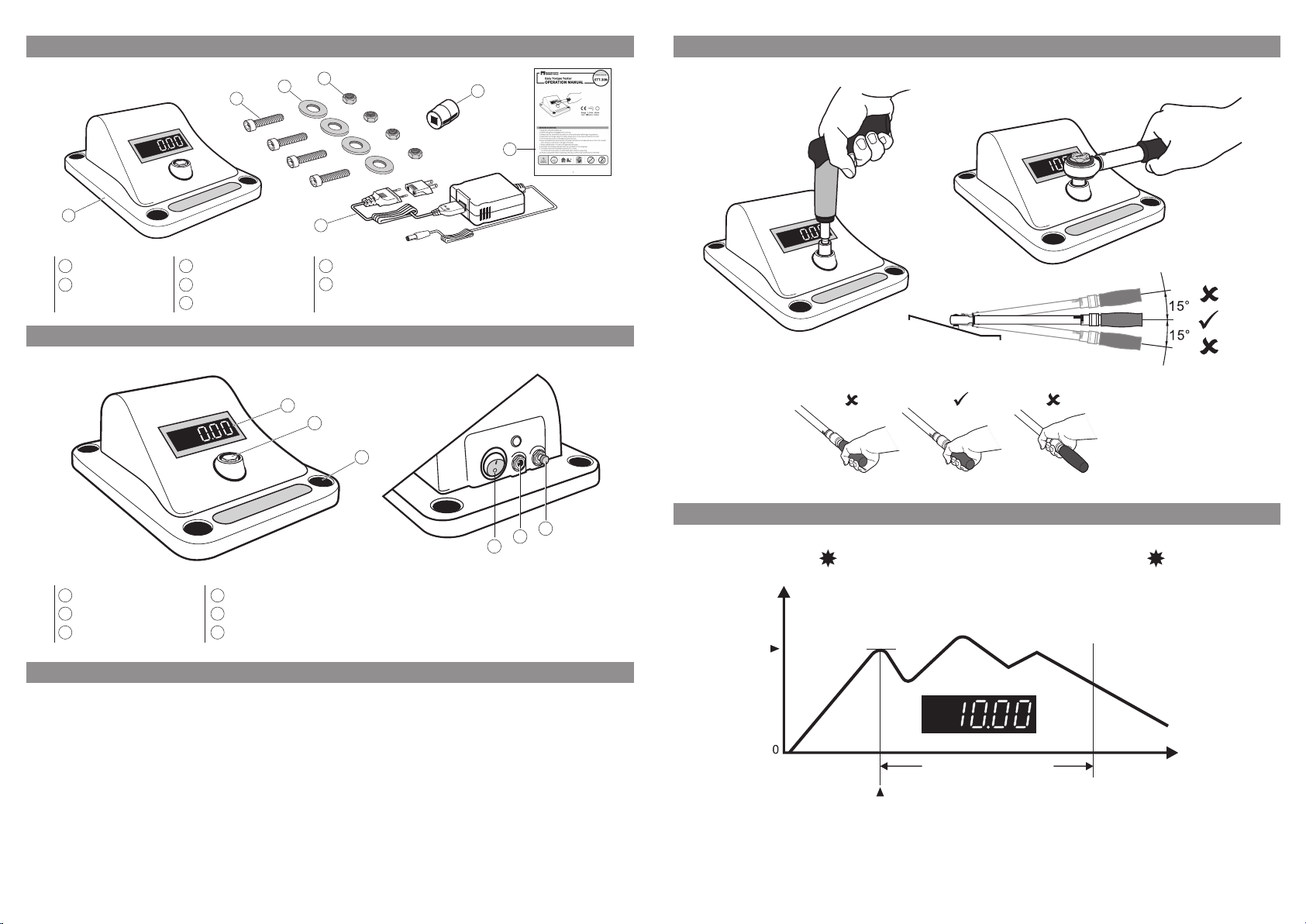

CHECK YOUR PARTS POSITION
TIMING
FUNCTION
TECHNICAL SPECIFICATION
3 M10 x 45 mm x 4
4 Washer x 4
5 Nut x 4
1 BODY
2 DC adapter
6 SOCKET 1/4”x 11 mm
7 Manual
2
7
345
4 Power switch
5 DC lnput (9V 1.6A)
6 Reset
1 11 mm (Hex)
2 5 Digits Display
3 4 Holes Ø10
1. Direction & Accuracy : C.W. ±1%
2. Indicator : 5 Digits (update rate of 5 per second)
3. Temp. Range-Operating : +5℃ to +40℃
4. Temp. Range-Storage : -20℃ to +70℃
5. Auto Reset Hold Time : 2 Seconds
6. Calibration : According to BS7882:2008 method
7. Sampling Rate : 333 SPS
Each test require release torque from 0
10 Nm
Torsion
ResetDelay time 2 Seconds
1 st peak value (Peak hold)
Example for click type torque wrench with a single measurement
1
6
1
2
6
3
45
2 3
ETT-30N
Models covered
Range：1.5 Nm - 30 Nm
TORQUE
1. Study this instruction before use.
2. Please wear gloves and goggles when working.
3. Always check for loose wires and cables on and around tester before beginning operation.
4. Keep tester and charger away from water, always store in a dry place and safe environment.
5. Over torque will cause tool damage and personal injury.
6. Never use additional accessories with this tester that were not included and are not from this manufac
turer, doing so could result in damage to the tester.
7. Always operate tester in a clean and organized work place.
8. This tester should always be kept clean, dry, and free from oil and grease.
9. This tester should be recalibrated a period of 1 years.
To contact with local vendor, an authorized repair center for supporting.
10. Always unplug tester before inspecting, cleaning, or performing maintenance on the tester.
Manual
WARNING
BEFORE STARTING
MAINTENCE AND STORAGE
SPECIFICATION
Color： Black or Silver
E-mail:[email protected]om
www.matatakitoyo.com
Made in Taiwan
MATATAKITOYO TOOL CO., LTD.
No. 63, Ln. 493, Sec. 3, Zhongshan Rd., Tanzi Dist.,
Taichung City 42754, Taiwan
TEL : 886-4-2533 5893
Manufacturer
Jul. 2020
02
Edition
ITEM NO. Range D
ASockets 1 Sockets 2W H
ETT-15N
ETT-30N
ETT-150N
ETT-500N
ETT-1000N
ETT-2000N
2.94
2.94
3.44
4.06
4.06
4.56
205
205
205
205
205
205
155
155
155
155
155
155
76
76
76
76
76
76
1/4” x 11mm
1/4” x 11mm
3/8” x 14mm
1/2” x 27mm
3/4” x 27mm
3/4” x 32mm
11
11
14
27
27
32
N/A
N/A
1/4” x 14mm
3/8”F x 1/2”M
1/2” x 27mm
1/2” x 32mm
1-15 Nm
1.5-30 Nm
7.5-150 Nm
25-500 Nm
50-1000 Nm
100-2000 Nm
KG
ITEM NO. Range D
ASockets 1 Sockets 2W H
ETT-11F
ETT-22F
ETT-110F
ETT-370F
ETT-740F
ETT-1500F
2.94
2.94
3.44
4.06
4.06
4.56
205
205
205
205
205
205
11
11
14
27
27
32
155
155
155
155
155
155
76
76
76
76
76
76
1/4” x 11mm
1/4” x 11mm
3/8” x 14mm
1/2” x 27mm
3/4” x 27mm
3/4” x 32mm
N/A
N/A
1/4” x 14mm
3/8”F x 1/2”M
1/2” x 27mm
1/2” x 32mm
0.74-11 ft.lb
1-22 ft.lb
5-110 ft.lb
18-370 ft.lb
36-740 ft.lb
75-1500 ft.lb
KG
Accessories
Unit : mm
Accessories
Metric
SAE
H
W
D
A
H
W
D
A
ETT-15N & 30N
ETT-11F & 22F
Other items
1. Clean this tool by wiping with a clean cloth after operation and storage in a dry environment.
2. Do not dip any type of liquid in this tool. This may damage the internal of this tool.
1 Years
OPERATION MANUAL
Easy Torque Tester
1
CHECK YOUR PARTS POSITION
TIMING
FUNCTION
TECHNICAL SPECIFICATION
3 M10 x 45 mm x 4
4 Washer x 4
5 Nut x 4
1 BODY
2 DC adapter
6 SOCKET 1/4”x 11 mm
7 Manual
2
7
345
4 Power switch
5 DC lnput (9V 1.6A)
6 Reset
1 11 mm (Hex)
2 5 Digits Display
3 4 Holes Ø10
1. Direction & Accuracy : C.W. ±1%
2. Indicator : 5 Digits (update rate of 5 per second)
3. Temp. Range-Operating : +5℃ to +40℃
4. Temp. Range-Storage : -20℃ to +70℃
5. Auto Reset Hold Time : 2 Seconds
6. Calibration : According to BS7882:2008 method
7. Sampling Rate : 333 SPS
Each test require release torque from 0
10 Nm
Torsion
ResetDelay time 2 Seconds
1 st peak value (Peak hold)
Example for click type torque wrench with a single measurement
1
6
1
2
6
3
45
2 3

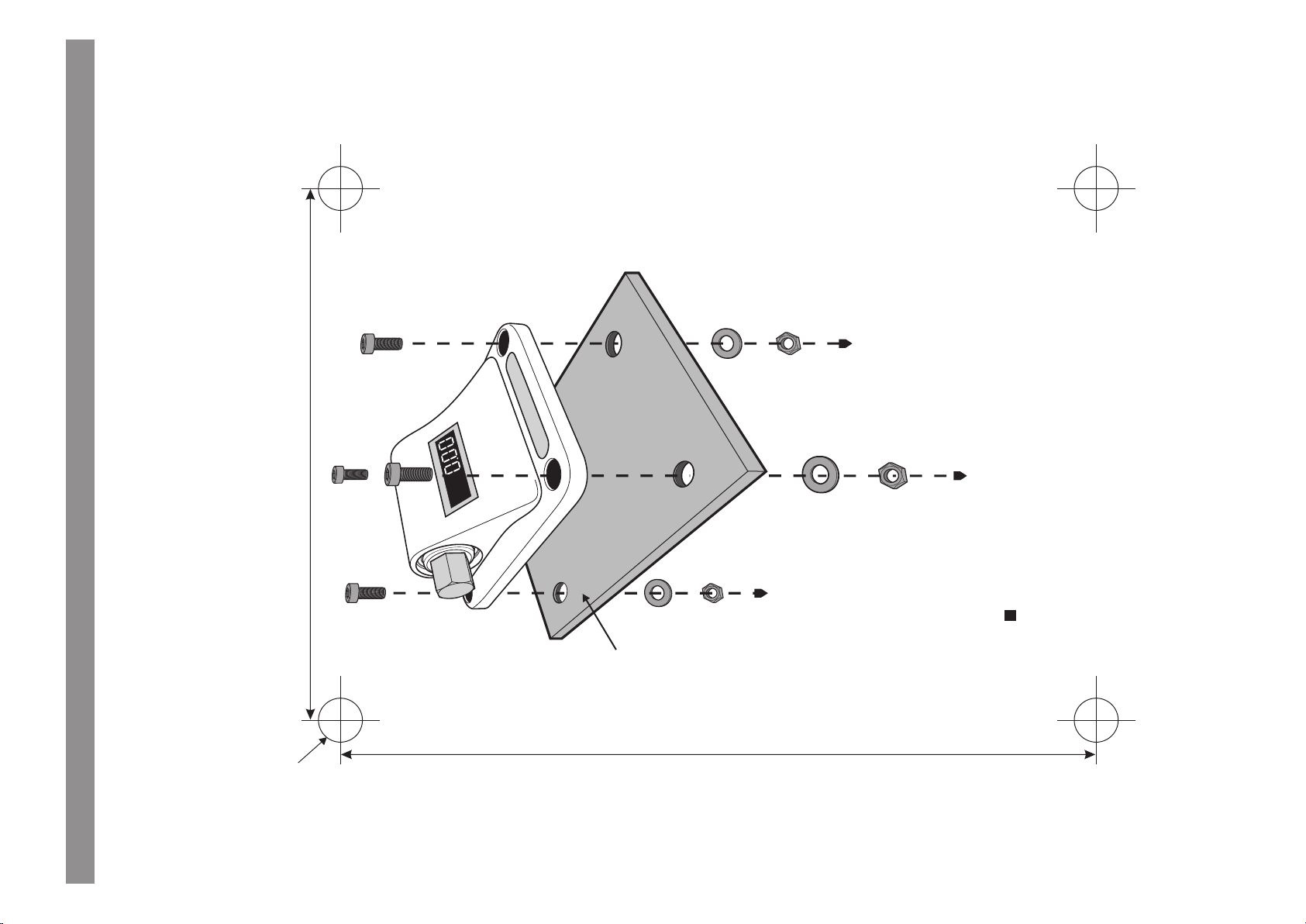

INSTALLATION
4 Holes Ø10
Mount Board
1:1 Print this page
Mount Board needs to be more than 6 mm
(Mount Board not include)
121 mm
172 mm
ETT-150N
Models covered
Range：7.5 Nm - 150 Nm
TORQUE
1. Study this instruction before use.
2. Please wear gloves and goggles when working.
3. Always check for loose wires and cables on and around tester before beginning operation.
4. Keep tester and charger away from water, always store in a dry place and safe environment.
5. Over torque will cause tool damage and personal injury.
6. Never use additional accessories with this tester that were not included and are not from this manufac
turer, doing so could result in damage to the tester.
7. Always operate tester in a clean and organized work place.
8. This tester should always be kept clean, dry, and free from oil and grease.
9. This tester should be recalibrated a period of 1 years.
To contact with local vendor, an authorized repair center for supporting.
10. Always unplug tester before inspecting, cleaning, or performing maintenance on the tester.
Manual
WARNING
BEFORE STARTING
MAINTENCE AND STORAGE
SPECIFICATION
Color： Black or Silver
E-mail:[email protected]om
www.matatakitoyo.com
Made in Taiwan
MATATAKITOYO TOOL CO., LTD.
No. 63, Ln. 493, Sec. 3, Zhongshan Rd., Tanzi Dist.,
Taichung City 42754, Taiwan
TEL : 886-4-2533 5893
Manufacturer
Jul. 2020
02
Edition
ITEM NO. Range D
ASockets 1 Sockets 2W H
ETT-15N
ETT-30N
ETT-150N
ETT-500N
ETT-1000N
ETT-2000N
2.94
2.94
3.44
4.06
4.06
4.56
205
205
205
205
205
205
155
155
155
155
155
155
76
76
76
76
76
76
1/4” x 11mm
1/4” x 11mm
3/8” x 14mm
1/2” x 27mm
3/4” x 27mm
3/4” x 32mm
11
11
14
27
27
32
N/A
N/A
1/4” x 14mm
3/8”F x 1/2”M
1/2” x 27mm
1/2” x 32mm
1-15 Nm
1.5-30 Nm
7.5-150 Nm
25-500 Nm
50-1000 Nm
100-2000 Nm
KG
ITEM NO. Range D
ASockets 1 Sockets 2W H
ETT-11F
ETT-22F
ETT-110F
ETT-370F
ETT-740F
ETT-1500F
2.94
2.94
3.44
4.06
4.06
4.56
205
205
205
205
205
205
11
11
14
27
27
32
155
155
155
155
155
155
76
76
76
76
76
76
1/4” x 11mm
1/4” x 11mm
3/8” x 14mm
1/2” x 27mm
3/4” x 27mm
3/4” x 32mm
N/A
N/A
1/4” x 14mm
3/8”F x 1/2”M
1/2” x 27mm
1/2” x 32mm
0.74-11 ft.lb
1-22 ft.lb
5-110 ft.lb
18-370 ft.lb
36-740 ft.lb
75-1500 ft.lb
KG
Accessories
Unit : mm
Accessories
Metric
SAE
H
W
D
A
H
W
D
A
ETT-15N & 30N
ETT-11F & 22F
Other items
1. Clean this tool by wiping with a clean cloth after operation and storage in a dry environment.
2. Do not dip any type of liquid in this tool. This may damage the internal of this tool.
1 Years
OPERATION MANUAL
Easy Torque Tester
1
CHECK YOUR PARTS POSITION
TIMING
FUNCTION
TECHNICAL SPECIFICATION
3 M10 x 45 mm x 4
4 Washer x 4
5 Nut x 4
1 BODY
2 DC adapter
6 SOCKET 3/8”x 14 mm
7 SOCKET 1/4”x 14 mm
8 Manual
1
1
2
2
67
8
3
3
45
4 Power switch
5 DC lnput (9V 1.6A)
6 Reset
1 14 mm (Hex)
2 5 Digits Display
3 4 Holes Ø10
1. Direction & Accuracy : C.W. ±1%
2. Indicator : 5 Digits (update rate of 5 per second)
3. Temp. Range-Operating : +5℃ to +40℃
4. Temp. Range-Storage : -20℃ to +70℃
5. Auto Reset Hold Time : 2 Seconds
6. Calibration : According to BS7882:2008 method
7. Sampling Rate : 333 SPS
Each test require release torque from 0
100 Nm
Torsion
ResetDelay time 2 Seconds
1 st peak value (Peak hold)
Example for click type torque wrench with a single measurement
6
45
2 3
ETT-500N
Models covered
Range: 25 Nm - 500 Nm
TORQUE
1. Study this instruction before use.
2. Please wear gloves and goggles when working.
3. Always check for loose wires and cables on and around tester before beginning operation.
4. Keep tester and charger away from water, always store in a dry place and safe environment.
5. Over torque will cause tool damage and personal injury.
6. Never use additional accessories with this tester that were not included and are not from this manufac
turer, doing so could result in damage to the tester.
7. Always operate tester in a clean and organized work place.
8. This tester should always be kept clean, dry, and free from oil and grease.
9. This tester should be recalibrated a period of 1 years.
To contact with local vendor, an authorized repair center for supporting.
10. Always unplug tester before inspecting, cleaning, or performing maintenance on the tester.
Manual
WARNING
BEFORE STARTING
MAINTENCE AND STORAGE
SPECIFICATION
Color: Black or Silver
E-mail:[email protected]om
www.matatakitoyo.com
Made in Taiwan
MATATAKITOYO TOOL CO., LTD.
No. 63, Ln. 493, Sec. 3, Zhongshan Rd., Tanzi Dist.,
Taichung City 42754, Taiwan
TEL : 886-4-2533 5893
Manufacturer
Jul. 2020
02
Edition
ITEM NO. Range D
ASockets 1 Sockets 2W H
ETT-15N
ETT-30N
ETT-150N
ETT-500N
ETT-1000N
ETT-2000N
2.94
2.94
3.44
4.06
4.06
4.56
205
205
205
205
205
205
155
155
155
155
155
155
76
76
76
76
76
76
1/4” x 11mm
1/4” x 11mm
3/8” x 14mm
1/2” x 27mm
3/4” x 27mm
3/4” x 32mm
11
11
14
27
27
32
N/A
N/A
1/4” x 14mm
3/8”F x 1/2”M
1/2” x 27mm
1/2” x 32mm
1-15 Nm
1.5-30 Nm
7.5-150 Nm
25-500 Nm
50-1000 Nm
100-2000 Nm
KG
ITEM NO. Range D
ASockets 1 Sockets 2W H
ETT-11F
ETT-22F
ETT-110F
ETT-370F
ETT-740F
ETT-1500F
2.94
2.94
3.44
4.06
4.06
4.56
205
205
205
205
205
205
11
11
14
27
27
32
155
155
155
155
155
155
76
76
76
76
76
76
1/4” x 11mm
1/4” x 11mm
3/8” x 14mm
1/2” x 27mm
3/4” x 27mm
3/4” x 32mm
N/A
N/A
1/4” x 14mm
3/8”F x 1/2”M
1/2” x 27mm
1/2” x 32mm
0.74-11 ft.lb
1-22 ft.lb
5-110 ft.lb
18-370 ft.lb
36-740 ft.lb
75-1500 ft.lb
KG
Accessories
Unit : mm
Accessories
Metric
SAE
H
W
D
A
H
W
D
A
ETT-15N & 30N
ETT-11F & 22F
Other items
1. Clean this tool by wiping with a clean cloth after operation and storage in a dry environment.
2. Do not dip any type of liquid in this tool. This may damage the internal of this tool.
1 Years
OPERATION MANUAL
Easy Torque Tester
1
CHECK YOUR PARTS POSITION
TIMING
FUNCTION
TECHNICAL SPECIFICATION
3 M10 x 45 mm x 4
4 Washer x 4
5 Nut x 4
1 BODY
2 DC adapter
6 SOCKET 1/2”x 27 mm
7 SOCKET 3/8”x 27 mm
8 Manual
1
1
2
2
67
8
3
3
45
4 Power switch
5 DC lnput (9V 1.6A)
6 Reset
1 27 mm (Hex)
2 5 Digits Display
3 4 Holes Ø10
1. Direction & Accuracy : C.W. ±1%
2. Indicator : 5 Digits (update rate of 5 per second)
3. Temp. Range-Operating : +5℃ to +40℃
4. Temp. Range-Storage : -20℃ to +70℃
5. Auto Reset Hold Time : 2 Seconds
6. Calibration : According to BS7882:2008 method
7. Sampling Rate : 333 SPS
Each test require release torque from 0
100 Nm
Torsion
ResetDelay time 2 Seconds
1 st peak value (Peak hold)
Example for click type torque wrench with a single measurement
6
45
2 3
ETT-1000N
Models covered
Range : 50 Nm - 1000 Nm
TORQUE
1. Study this instruction before use.
2. Please wear gloves and goggles when working.
3. Always check for loose wires and cables on and around tester before beginning operation.
4. Keep tester and charger away from water, always store in a dry place and safe environment.
5. Over torque will cause tool damage and personal injury.
6. Never use additional accessories with this tester that were not included and are not from this manufac
turer, doing so could result in damage to the tester.
7. Always operate tester in a clean and organized work place.
8. This tester should always be kept clean, dry, and free from oil and grease.
9. This tester should be recalibrated a period of 1 years.
To contact with local vendor, an authorized repair center for supporting.
10. Always unplug tester before inspecting, cleaning, or performing maintenance on the tester.
Manual
WARNING
BEFORE STARTING
MAINTENCE AND STORAGE
SPECIFICATION
Color : Black or Silver
E-mail:[email protected]om
www.matatakitoyo.com
Made in Taiwan
MATATAKITOYO TOOL CO., LTD.
No. 63, Ln. 493, Sec. 3, Zhongshan Rd., Tanzi Dist.,
Taichung City 42754, Taiwan
TEL : 886-4-2533 5893
Manufacturer
Jul. 2020
02
Edition
ITEM NO. Range D
ASockets 1 Sockets 2W H
ETT-15N
ETT-30N
ETT-150N
ETT-500N
ETT-1000N
ETT-2000N
2.94
2.94
3.44
4.06
4.06
4.56
205
205
205
205
205
205
155
155
155
155
155
155
76
76
76
76
76
76
1/4” x 11mm
1/4” x 11mm
3/8” x 14mm
1/2” x 27mm
3/4” x 27mm
3/4” x 32mm
11
11
14
27
27
32
N/A
N/A
1/4” x 14mm
3/8”F x 1/2”M
1/2” x 27mm
1/2” x 32mm
1-15 Nm
1.5-30 Nm
7.5-150 Nm
25-500 Nm
50-1000 Nm
100-2000 Nm
KG
ITEM NO. Range D
ASockets 1 Sockets 2W H
ETT-11F
ETT-22F
ETT-110F
ETT-370F
ETT-740F
ETT-1500F
2.94
2.94
3.44
4.06
4.06
4.56
205
205
205
205
205
205
11
11
14
27
27
32
155
155
155
155
155
155
76
76
76
76
76
76
1/4” x 11mm
1/4” x 11mm
3/8” x 14mm
1/2” x 27mm
3/4” x 27mm
3/4” x 32mm
N/A
N/A
1/4” x 14mm
3/8”F x 1/2”M
1/2” x 27mm
1/2” x 32mm
0.74-11 ft.lb
1-22 ft.lb
5-110 ft.lb
18-370 ft.lb
36-740 ft.lb
75-1500 ft.lb
KG
Accessories
Unit : mm
Accessories
Metric
SAE
H
W
D
A
H
W
D
A
ETT-15N & 30N
ETT-11F & 22F
Other items
1. Clean this tool by wiping with a clean cloth after operation and storage in a dry environment.
2. Do not dip any type of liquid in this tool. This may damage the internal of this tool.
1 Years
OPERATION MANUAL
Easy Torque Tester
1
CHECK YOUR PARTS POSITION
TIMING
FUNCTION
TECHNICAL SPECIFICATION
3 M10 x 45 mm x 4
4 Washer x 4
5 Nut x 4
1 BODY
2 DC adapter
6 SOCKET 3/4”x 27 mm
7 SOCKET 1/2”x 27 mm
8 Manual
1
1
2
2
67
8
3
3
45
4 Power switch
5 DC lnput (9V 1.6A)
6 Reset
1 27 mm (Hex)
2 5 Digits Display
3 4 Holes Ø10
1. Direction & Accuracy : C.W. ±1%
2. Indicator : 5 Digits (update rate of 5 per second)
3. Temp. Range-Operating : +5℃ to +40℃
4. Temp. Range-Storage : -20℃ to +70℃
5. Auto Reset Hold Time : 2 Seconds
6. Calibration : According to BS7882:2008 method
7. Sampling Rate : 333 SPS
Each test require release torque from 0
100 Nm
Torsion
ResetDelay time 2 Seconds
1 st peak value (Peak hold)
Example for click type torque wrench with a single measurement
6
45
2 3
ETT-2000N
Models covered
Range : 100 Nm - 2000 Nm
TORQUE
1. Study this instruction before use.
2. Please wear gloves and goggles when working.
3. Always check for loose wires and cables on and around tester before beginning operation.
4. Keep tester and charger away from water, always store in a dry place and safe environment.
5. Over torque will cause tool damage and personal injury.
6. Never use additional accessories with this tester that were not included and are not from this manufac
turer, doing so could result in damage to the tester.
7. Always operate tester in a clean and organized work place.
8. This tester should always be kept clean, dry, and free from oil and grease.
9. This tester should be recalibrated a period of 1 years.
To contact with local vendor, an authorized repair center for supporting.
10. Always unplug tester before inspecting, cleaning, or performing maintenance on the tester.
Manual
WARNING
BEFORE STARTING
MAINTENCE AND STORAGE
SPECIFICATION
Color : Black or Silver
E-mail:[email protected]om
www.matatakitoyo.com
Made in Taiwan
MATATAKITOYO TOOL CO., LTD.
No. 63, Ln. 493, Sec. 3, Zhongshan Rd., Tanzi Dist.,
Taichung City 42754, Taiwan
TEL : 886-4-2533 5893
Manufacturer
Jul. 2020
02
Edition
ITEM NO. Range D
ASockets 1 Sockets 2W H
ETT-15N
ETT-30N
ETT-150N
ETT-500N
ETT-1000N
ETT-2000N
2.94
2.94
3.44
4.06
4.06
4.56
205
205
205
205
205
205
155
155
155
155
155
155
76
76
76
76
76
76
1/4” x 11mm
1/4” x 11mm
3/8” x 14mm
1/2” x 27mm
3/4” x 27mm
3/4” x 32mm
11
11
14
27
27
32
N/A
N/A
1/4” x 14mm
3/8”F x 1/2”M
1/2” x 27mm
1/2” x 32mm
1-15 Nm
1.5-30 Nm
7.5-150 Nm
25-500 Nm
50-1000 Nm
100-2000 Nm
KG
ITEM NO. Range D
ASockets 1 Sockets 2W H
ETT-11F
ETT-22F
ETT-110F
ETT-370F
ETT-740F
ETT-1500F
2.94
2.94
3.44
4.06
4.06
4.56
205
205
205
205
205
205
11
11
14
27
27
32
155
155
155
155
155
155
76
76
76
76
76
76
1/4” x 11mm
1/4” x 11mm
3/8” x 14mm
1/2” x 27mm
3/4” x 27mm
3/4” x 32mm
N/A
N/A
1/4” x 14mm
3/8”F x 1/2”M
1/2” x 27mm
1/2” x 32mm
0.74-11 ft.lb
1-22 ft.lb
5-110 ft.lb
18-370 ft.lb
36-740 ft.lb
75-1500 ft.lb
KG
Accessories
Unit : mm
Accessories
Metric
SAE
H
W
D
A
H
W
D
A
ETT-15N & 30N
ETT-11F & 22F
Other items
1. Clean this tool by wiping with a clean cloth after operation and storage in a dry environment.
2. Do not dip any type of liquid in this tool. This may damage the internal of this tool.
1 Years
OPERATION MANUAL
Easy Torque Tester
1
CHECK YOUR PARTS POSITION
TIMING
FUNCTION
TECHNICAL SPECIFICATION
3 M10 x 45 mm x 4
4 Washer x 4
5 Nut x 4
1 BODY
2 DC adapter
6 SOCKET 3/4”x 32 mm
7 SOCKET 1/2”x 32 mm
8 Manual
1
1
2
2
67
8
3
3
45
4 Power switch
5 DC lnput (9V 1.6A)
6 Reset
1 32 mm (Hex)
2 5 Digits Display
3 4 Holes Ø10
1. Direction & Accuracy : C.W. ±1%
2. Indicator : 5 Digits (update rate of 5 per second)
3. Temp. Range-Operating : +5℃ to +40℃
4. Temp. Range-Storage : -20℃ to +70℃
5. Auto Reset Hold Time : 2 Seconds
6. Calibration : According to BS7882:2008 method
7. Sampling Rate : 333 SPS
Each test require release torque from 0
100 Nm
Torsion
ResetDelay time 2 Seconds
1 st peak value (Peak hold)
Example for click type torque wrench with a single measurement
6
45
2 3
INSTALLATION
4 Holes Ø10
Mount Board
1:1 Print this page
Mount Board needs to be more than 6 mm
(Mount Board not include )
121 mm
172 mm
This manual suits for next models
11
Table of contents
Other Matatakitoyo Torque Tools Test Equipment manuals
