Safety Information
Read instruction manual fully prior to operating this tool.
Safety Messages
Matco Tools provides safety messages to cover reasonable situations that may be encountered
when operating service equipment. It is the responsibility of operators and servicing technicians
to be knowledgeable about the procedures, tools and materials used, and to satisfy themselves
that the procedures, tools and materials will not compromise their safety, that of others in the
workplace or the tool.
ONLY SANIDATE®ALL PURPOSE DISINFECTANT IS APPROVED FOR USE WITH HIGH
FLOW MISTING GUN. FOR EFFECTIVE TREATMENT PAY CLOSE ATTENTION TO:
1. CORRECT MIX RATIO OF SANIDATE®FLUID
2. AIR PRESSURE SET TO 80psi

HFMT3L
www.matcotools.com 2010179-33
Warning
• SaniDate®All Purpose Disinfectant is effective in the treatment of bacteria and viruses
only by following the below strict treatment instructions
• Mix Ratio: 1 fl. oz. (30ml) SaniDate®All Purpose Disinfectant to 2.1 pt. (1L) of water
• Ensure mixture is fully diluted prior to commencement of treatment
• Sanitizing Gun operating air pressure: 80psi
• Operate Sanitizing Gun into interior of vehicle until all air space is fully misted
• Ensure that all surfaces of treatment area are evenly coated
• Required contact time for effective treatment: 10 minutes
• Only SaniDate®All Purpose Disinfectant is approved for use with the High Flow
Misting Gun
1. Mixture Preparation
1.1 Using suitable measurement
vessel, measure out the
required amount of SaniDate®
All Purpose Disinfectant for
required mixture volume.
Mixing Ratios
Mixing Volume
Water
SaniDate®
Volume
Pints L fl. oz. ml
2.1 1 1 30
4.2 2 2 60
6.3 3 3 90
Treatment

2010179-33
www.matcotools.com

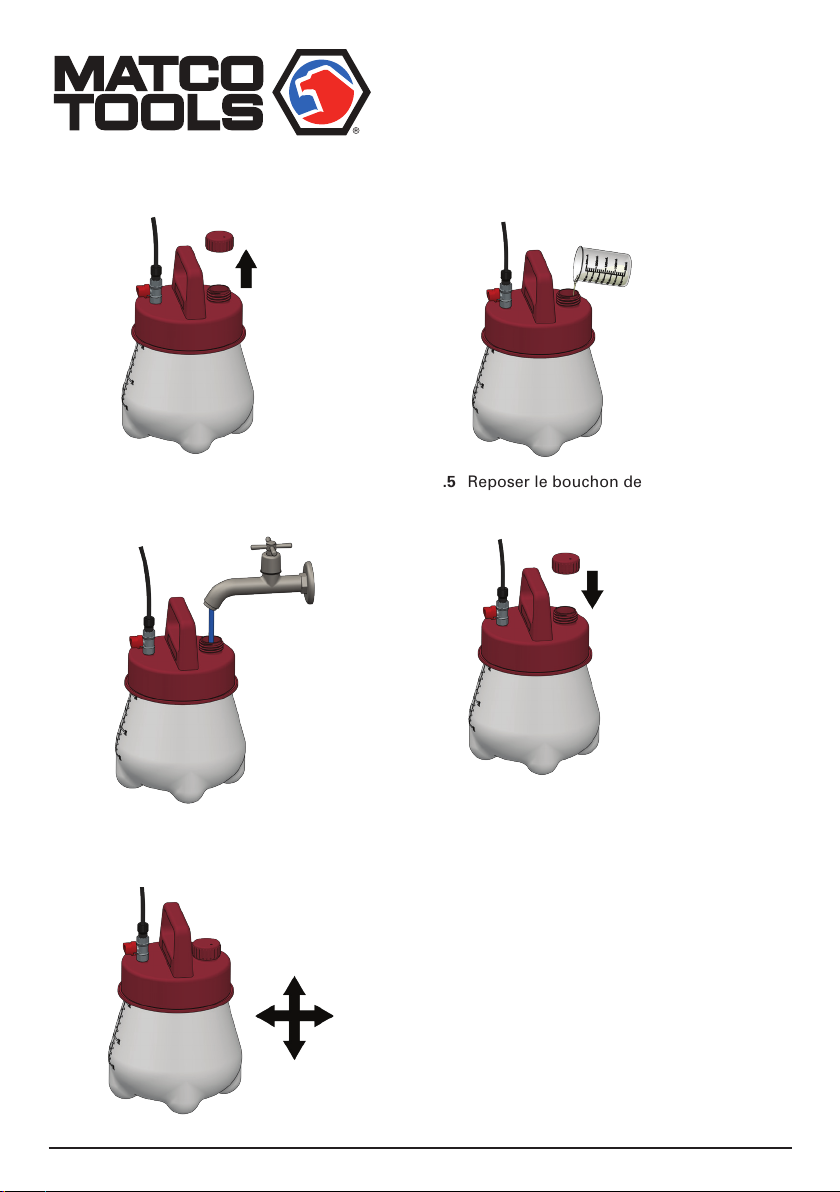

1.3 Pour SaniDate®All Purpose
Disinfectant into container.
1.4 Fill water to required container
level indicator for mix volume.
1.2 Remove fill cap from container.
1.5 Refit fill cap.
1.6 Shake container vigorously for minimum
of 30 seconds to ensure complete dilution.

HFMT3L
www.matcotools.com 2010179-33

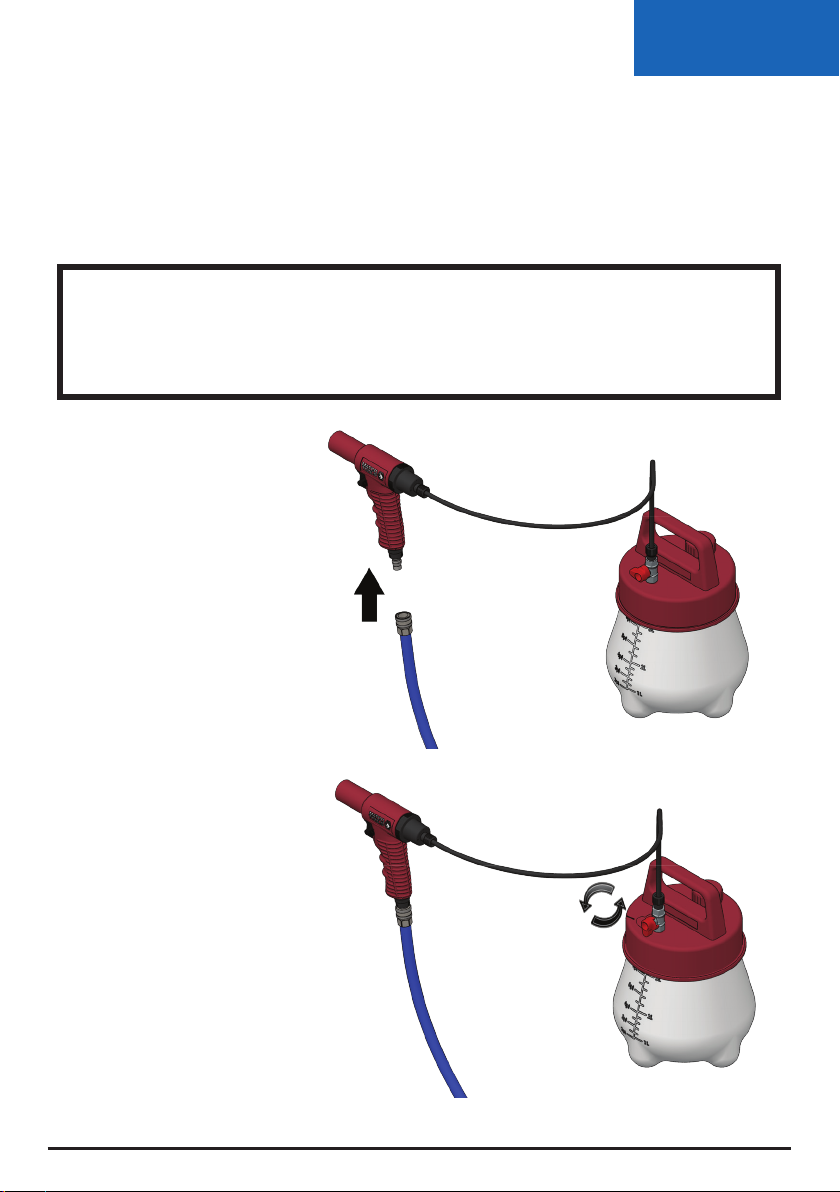

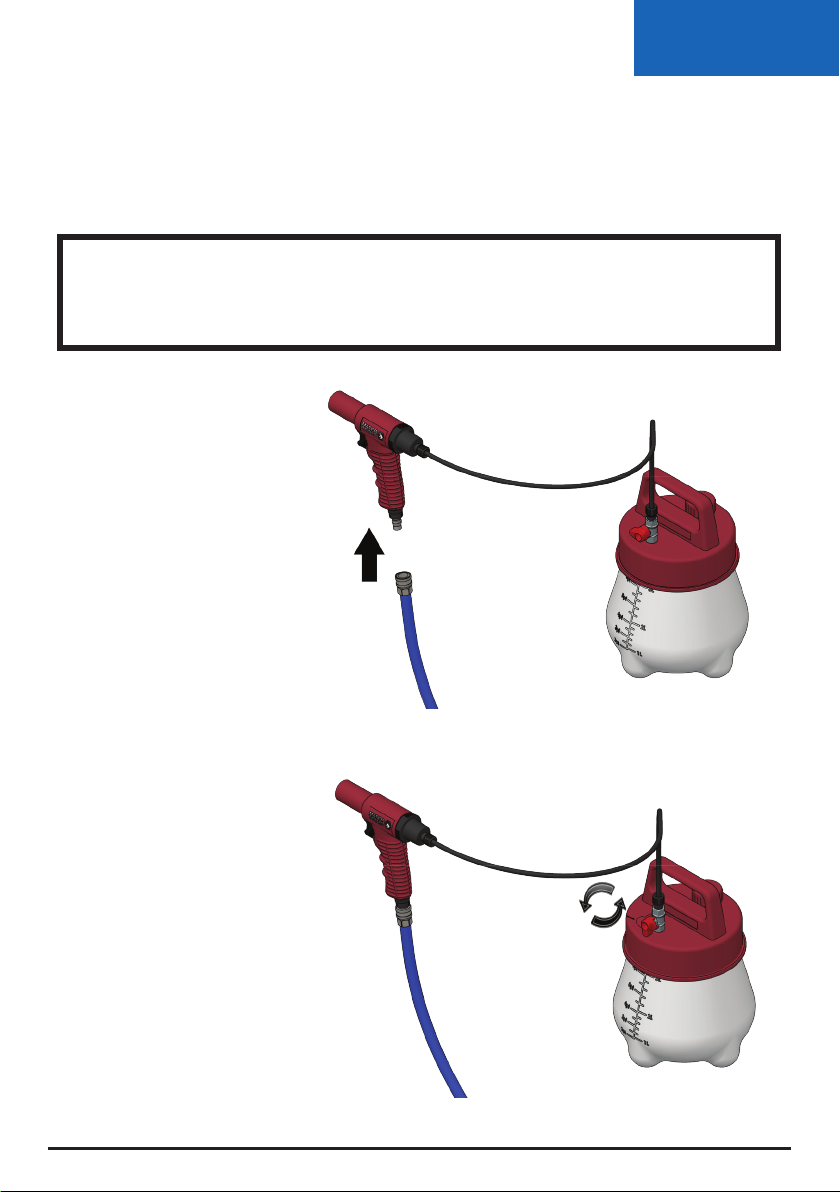

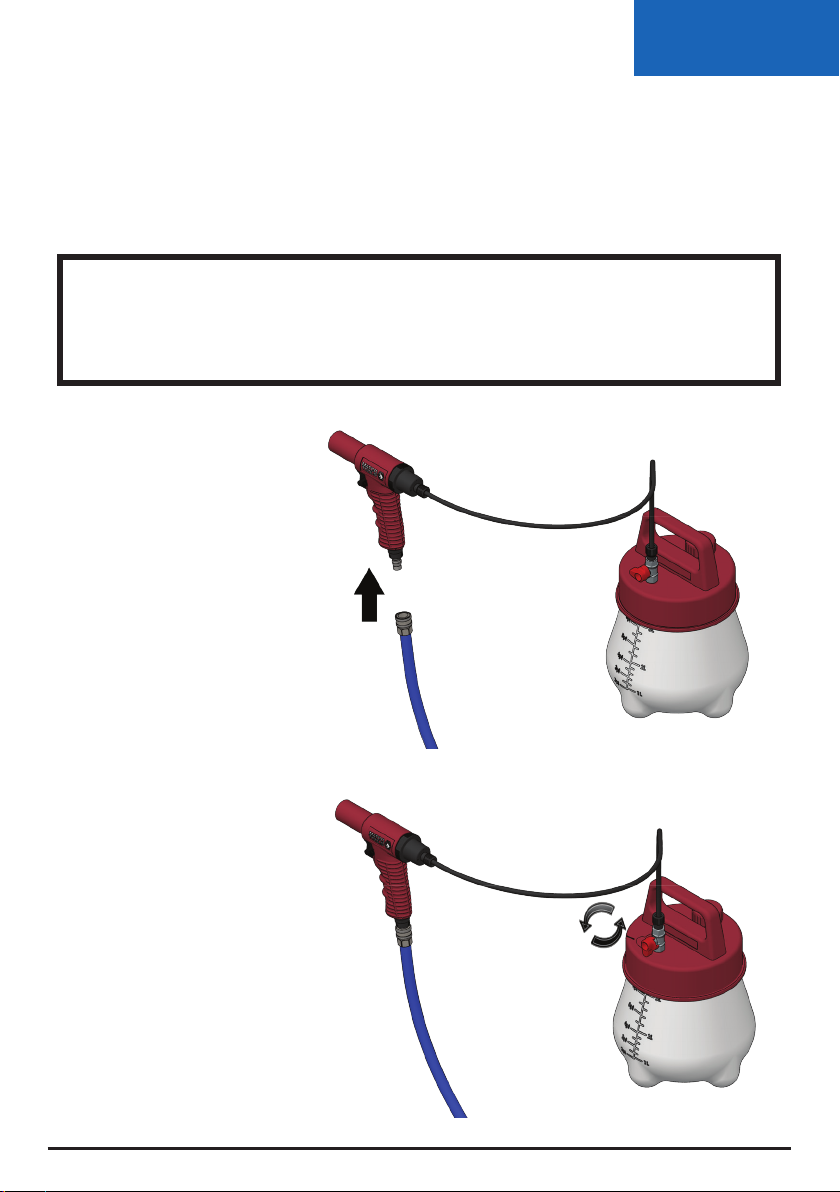

2. High Flow Misting Tool Operation
2.2 Turn flow control tap to ‘ON’
position.
2.1 Connect air supply
(max 80psi) to High Flow
Misting Tool.
Warning
To ensure correct High Flow Misting Tool operation air pressure must be regulated to 80psi.

2010179-33
www.matcotools.com
2.4 Insert gun nozzle into vehicle and
operate air trigger.
2.3 Crack open driver door of vehicle.
Important Note:
Ensure all windows are open prior to commencing treatment.
2.6 Move to each door opening and
repeat step 2.5.
2.5 Once mist begins to flow, move
gun nozzle in circular motion to
create maximum coverage.
2.7 At the completion of treatment
close all doors, leave windows
lowered and allow vehicle to sit
for minimum of 10 minutes.
2.8 To clear residual fluid from misting
gun, turn ‘OFF’ flow control tap and
continue to operate air supply for a
short period.

HFMT3L
www.matcotools.com 2010179-33
11
66
6
11
4
10
12
8
7
9
2
3
5
1
13

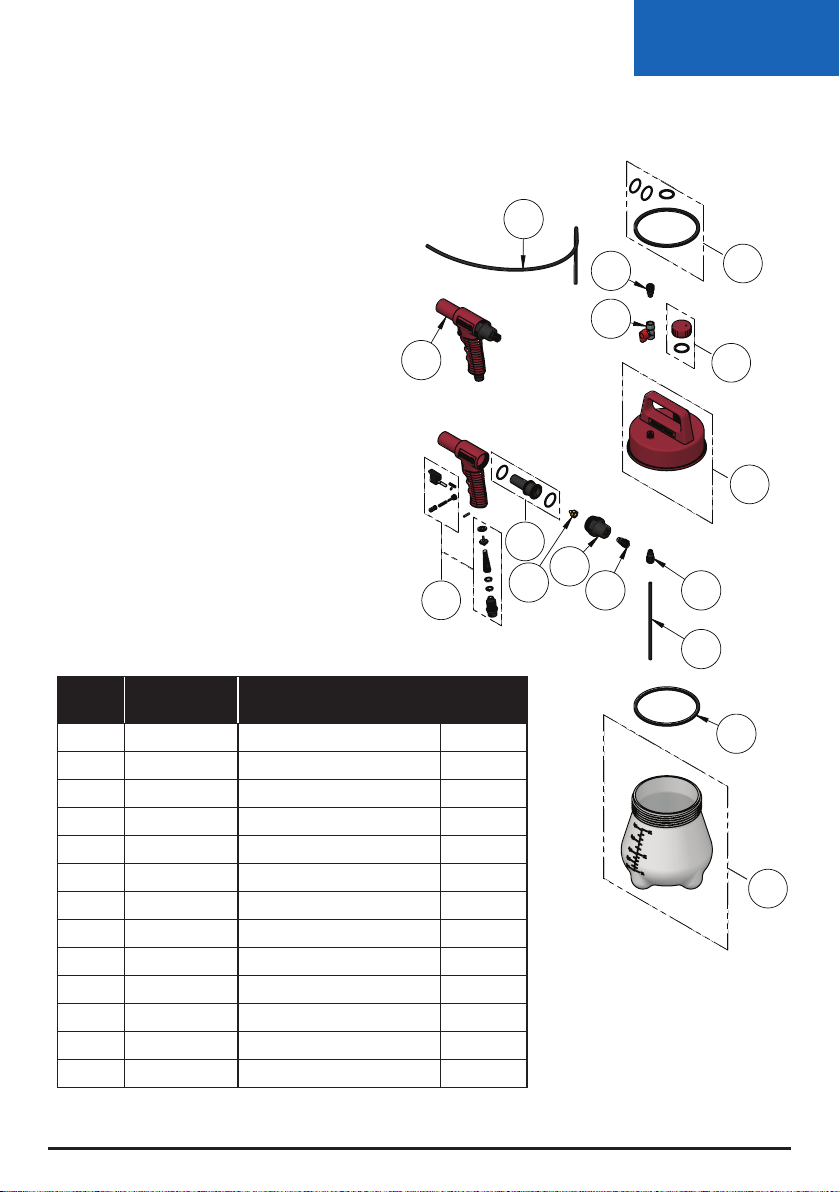

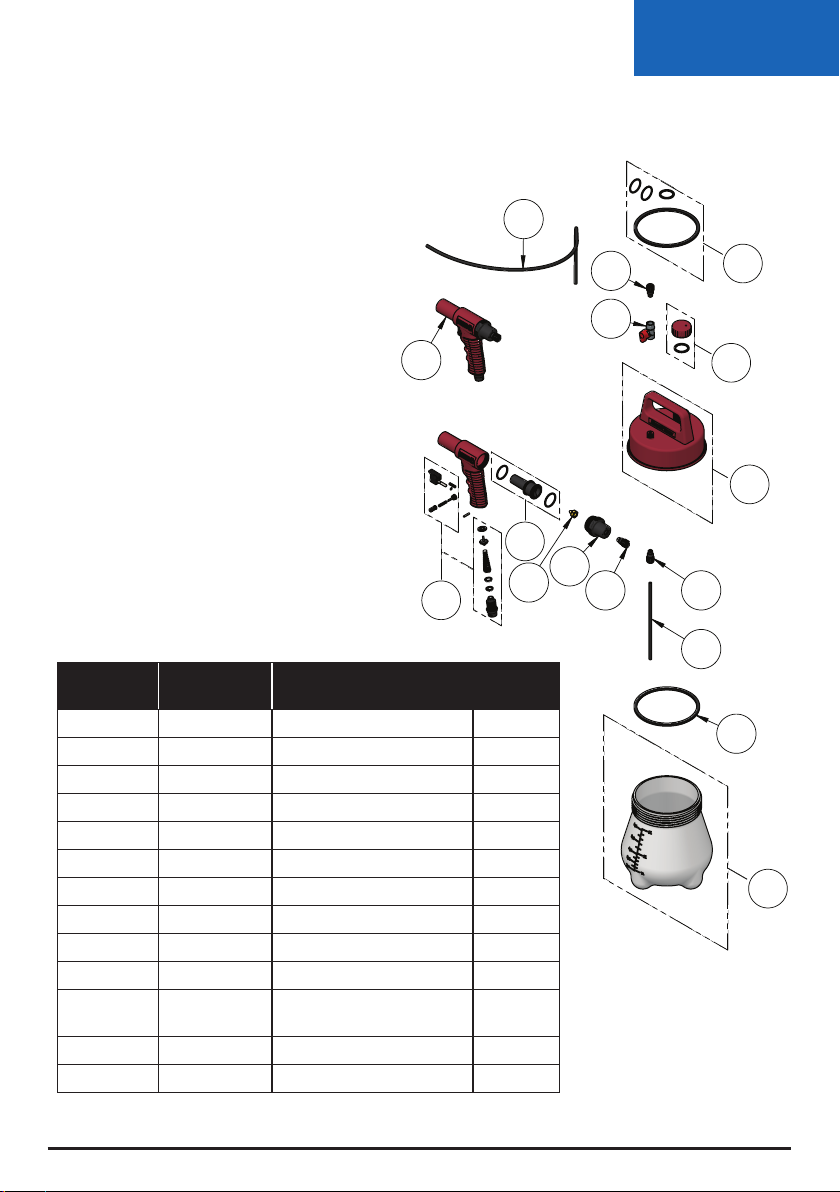

Item
No.
Part No. Description QTY.
1 82001-MAT Misting Gun 1
2 85201
Gun Service Kit 1
3 82002
Mister Assembly 1
4 82003
Spray Jet 1
5 82004 Tail Fitting 1
6 82005
Hose Fitting 2
7
82006-MAT Container Cap 1
8
82007-MAT Fill Cap 1
9 80051
Container 1
10 71922
Ball Valve 1
11 82008
Pressure & Pick Up Hose 1
12 82009
Seal Kit 1
13 80055
Cap Seal 1
Item
No. Part No. Description Quantity
1 82001-MAT Misting Gun 1
2 85201 Gun Service Kit 1
3 82002 Mister Assembly 1
4 82003 Spray Jet 1
5 82004 Tail Fitting 1
6 82005 Hose Fitting 2
7 82006-MAT Container Cap 1
8 82007-MAT Fill Cap 1
9 80051 Container 1
10 71922 Ball Valve 1
11 82008 Pressure & Pick Up Hose 1
12 82009 Seal Kit 1
13 80055 Cap Seal 1
