Matco Tools MATACTT2V User manual

1901026-12
TIG TORCH
OWNER’S MANUAL
01/2019
WARNING:
Read carefully and understand all ASSEMBLY AND OPERATION
INSTRUCTIONS before operating. Failure to follow the safety rules and other
basic safety precautions may result in serious personal injury.

1901026-12
TIG TORCH
EFFECTIVE DECEMBER 1, 2015
LIMITED WARRANTY
This warranty applies to the original purchaser and is
subject to the terms and conditions listed below.
This Limited Warranty is for new equipment sold
after the above date, providing coverage for defects
in material and workmanship at the time it is
shipped from the factory.
Limited to the warranty periods below, Matco Tools
will repair or replace the item under warranty that
fails due to defects in material and workmanship.
Matco Tools must be notified within 30 days of the
failure, so as to provide instructions on how to
proceed with the repair of your welder and warranty
claim processing. Warranty period begins at the time
the welder is purchased from an Authorized Matco
Tools distributor. Keep your receipt as proof of
purchase.
Warranty Periods
Limited Warranty is divided into three categories. No
Warranty, 1 year and 3 year.
No Warranty
Normal wear items, MIG gun parts (contact tips,
nozzle, contact tip adapter, MIG gun liner), drive roll,
electrode holder, ground clamps, plasma torch parts
(nozzle, electrode, diffuser, cover), and TIG torches
are considered consumable items and are not
covered under warranty.
1 Year Accessories Warranty
Parts and Labor on MIG gun parts (except those
listed under normal wear items), cables, regulator,
and plasma torch (except those listed under normal
wear items) are covered for 1 year. Any shipping
related to warranty repair is the responsibility of the
customer.
1 Year/3 Year Welder Warranty
Please see your product information to determine if
your product has a 1 year or 3 year warranty. This
warranty covers Parts and Labor on items such as:
transformer, reactor, rectifier, solenoid valve, PC
board, switches, controls, gas valve, drive motor,
drive system other than drive roll and any other
component that requires the removal of the sheet
metal to access. Any shipping related to warranty
repair is the responsibility of the customer.
Voiding Warranty
Warranty does not apply to: shipping damage,
misuse and abuse of the unit and alteration of the
unit in any way.
Warranty Claim
This is a Parts and Labor warranty. Contact the
Matco Tools distributor you purchased the unit
from. Retain your receipt in the case a warranty
claim is needed. No warranty will be provided
without the original receipt from an authorized
Matco Tools distributor. To make a warranty claim,
contact your Matco Tools distributor. That Matco
Tools distributor will contact the customer service
department for warranty instructions.

1901026-12
GENERAL SAFETY RULES
WARNING: Read and understand
all instructions. Failure to follow all
instructions listed below may result in
serious injury or death.
CAUTION: Do not allow persons
to operate or assemble this unit until
they have read this manual and have
developed a thorough understanding of
how this unit works.
WARNING: The warnings,
cautions, and instructions discussed in
this instruction manual cannot cover all
possible conditions or situations that
could occur. It must be understood by the
operator that common sense and caution
are factors which cannot be built into this
product, but must be supplied by the
operator.
SAVE THESE INSTRUCTIONS
IMPORTANT SAFETY
CONSIDERATIONS
1.1 Your Welding Environment
-Keep the environment you will be welding
in free from flammable materials.
-Always keep a fire extinguisher accessible
to your welding environment.
-Always have a qualified person install and
operate this equipment.
-Make sure the area is clean, dry and
ventilated. Do not operate the welder in
humid, wet or poorly ventilated areas.
-Always have your welder maintained by a
qualified technician in accordance with
local, state and national codes.
-Always be aware of your work
environment. Be sure to keep other people,
especially children, away from you while
welding.
-Keep harmful arc rays shielded from the
view of others.
-Mount the welder on a secure bench or cart
that will keep the welder secure and prevent
it from tipping over or falling.
1.2 Your Welder’s Condition
-Check ground cable, power cord and
welding cable to be sure the insulation is not
damaged. Always replace or repair
damaged components before using the
welder.
-Check all components to ensure they are
clean and in good operating condition
before use.
1.3 Use of Your Welder
Do not operate the welder if the output
cable, electrode, torch, wire or wire feed
system is wet. Do not immerse them in
water. These components and the welder
must be completely dry before attempting to
use them.
-Follow the instructions in this manual.
-Keep welder in the off position when not in
use.
-Connect ground lead as close to the area
being welded as possible to ensure a good
ground.
-Do not allow any body part to come in
contact with the welding wire if you are in
contact with the material being welded,
ground or electrode from another welder.
-Do not weld if you are in an awkward
position. Always have a secure stance while
welding to prevent accidents. Wear a safety
harness if working above ground.
-Do not drape cables over or around your
body.

1901026-12
-Wear a full coverage helmet with
appropriate shade (see ANSI Z87.1 safety
standard) and safety glasses while welding.
-Wear proper gloves and protective clothing
to prevent your skin from being exposed to
hot metals, UV and IR rays.
-Do not overuse or overheat your welder.
Allow proper cooling time between duty
cycles.
-Keep hands and fingers away from moving
parts and stay away from the drive rolls.
-Do not point torch at any body part of
yourself or anyone else.
-Always use this welder in the rated duty
cycle to prevent excessive heat and failure.
1.4 Specific Areas of Danger, Caution or
Warning Electrical Shock
Electric arc welders can produce
a shock that can cause injury or
death. Touching electrically live parts can
cause fatal shocks and severe burns. While
welding, all metal components connected to
the wire are electrically live. Poor ground
connections are a hazard, so secure the
ground lead before welding.
-Wear dry protective apparel: coat, shirt,
gloves and insulated footwear.
-Insulate yourself from the work piece.
Avoid contacting the work piece or ground.
- Do not attempt to repair or maintain the
welder while the power is on.
-Inspect all cables and cords for any
exposed wire and replace immediately if
found.
-Use only recommended replacement
cables and cords.
-Always attach ground clamp to the work
piece or work table as close to the weld
area as possible.
-Do not touch the torch and the ground or
grounded work piece at the same time.
-Do not use a welder to thaw frozen pipes.
Fumes and Gases
-Fumes emitted from the welding
process displace clean air and can
result in injury or death.
-Do not breathe in fumes emitted by the
welding process. Make sure your breathing
air is clean and safe.
-Work only in a well-ventilated area or use a
ventilation device to remove welding fumes
from the environment where you will be
working.
-Do not weld on coated materials
(galvanized, cadmium plated or containing
zinc, mercury or barium). They will emit
harmful fumes that are dangerous to
breathe. If necessary use a ventilator,
respirator with air supply or remove the
coating from the material in the weld area.
-The fumes emitted from some metals when
heated are extremely toxic. Refer to the
material safety data sheet for the
manufacturer’s instructions.
-Do not weld near materials that will emit
toxic fumes when heated. Vapors from
cleaners, sprays and degreasers can be
highly toxic when heated.
UV and IR Arc Rays
The welding arc produces
ultraviolet (UV) and infrared (IR)
rays that can cause injury to your eyes and
skin. Do not look at the welding arc without
proper eye protection.
-Always use a helmet that covers your full
face from the neck to top of head and to the
back of each ear.
-Use a lens that meets ANSI standards and
safety glasses. For welders under 160 amp
output, use a shade 10 lens; for above 160
amp, use a shade 12. Refer to the ANSI
standard Z87.1 for more information.

1901026-12
-Cover all bare skin areas exposed to the
arc with protective clothing and shoes.
Flame-retardant cloth or leather shirts,
coats, pants or coveralls are available for
protection.
-Use screens or other barriers to protect
other people from the arc rays emitted from
your welding.
-Warn people in your welding area when
you are going to strike an arc so they can
protect themselves.
Fire Hazards
Do not weld on containers or pipes
that contain or have had
flammable, gaseous or liquid combustibles
in them. Welding creates sparks and heat
that can ignite flammable and explosive
materials.
-Do not operate any electric arc in areas
where flammable or explosive materials are
present.
-Remove all flammable materials within 35
feet of the welding arc. If removal is not
possible, tightly cover them with fireproof
covers.
-Take precautions to ensure that flying
sparks do not cause fires or explosions in
hidden areas, cracks or areas you cannot
see.
-Keep a fire extinguisher close in the case
of fire.
-Wear garments that are oil-free with no
pockets or cuffs that will collect sparks.
-Do not have on your person any items that
are combustible, such as lighters or
matches.
-Keep work lead connected as close to the
weld area as possible to prevent any
unknown, unintended paths of electrical
current from causing electrical shock and
fire hazards.
Hot Materials
Welded materials are hot and can
cause severe burns if handled
improperly.
-Do not touch welded materials with bare
hands.
-Do not touch the torch after welding until it
has had time to cool down.
Sparks/Flying Debris
Welding creates hot sparks that
can cause injury. Chipping slag off
welds creates flying debris.
-Wear protective apparel at all times: ANSI-
approved safety glasses or shield, welder’s
hat and ear plugs to keep sparks out of ears
and hair. Electromagnetic Field
-Electromagnetic fields can
interfere with various electrical and
electronic devices such as pacemakers.
-Consult your doctor before using any
electric arc welder or cutting device.
-Keep people with pacemakers away from
your welding area when welding.
-Do not wrap cable around your body while
welding.
-Wrap the torch and ground cable together
whenever possible.
-Keep the torch and ground cables on the
same side of your body.
Shielding Gas Cylinders Can
Explode
High pressure cylinders can
explode if damaged, so treat them carefully.
-Never expose cylinders to high heat,
sparks, open flames, mechanical shocks or
arcs.
-Do not touch cylinder with the torch.
-Do not weld on the cylinder

1901026-12
-Always secure cylinder upright to a cart or
stationary object.
-Keep cylinders away from welding or
electrical circuits.
-Use the proper regulators, gas hose and
fittings for the specific application.
-Do not look into the valve when opening it.
-Use protective cylinder cap whenever
possible.
1.5 Proper Care, Maintenance and Repair
-Always have power disconnected when
working on internal components.
- Do not touch or handle PC board without
being properly grounded with a wrist strap.
Put PC board in static proof bag to move
or ship.
-Do not put hands or fingers near moving
parts such as drive rolls of fan.
USE AND CARE
Do not modify this unit in any way.
Unauthorized modification may impair
the function and/or safety and could
affect the life of the equipment. There
are specific applications for which this
unit was designed.
Always check for damaged or worn
out parts before using this unit.
Broken parts will affect the operation.
Replace or repair damaged or worn
parts immediately.
Store idle. When this unit is not in use,
store it in a secure place out of the
reach of children. Inspect it for good
working condition prior to storage and
before re-use.
TECHNICAL SPECIFICATIONS
Item
Description
Max Amperage
150 amp
Cooling Method
Air-Cooled
Duty Cycle
35% @ 150 amp
Suggested Tungsten
.020 to 1/16"
Torch Cable Length
10 ft.
Torch Style
17V
Weight
6 lbs.

1901026-12

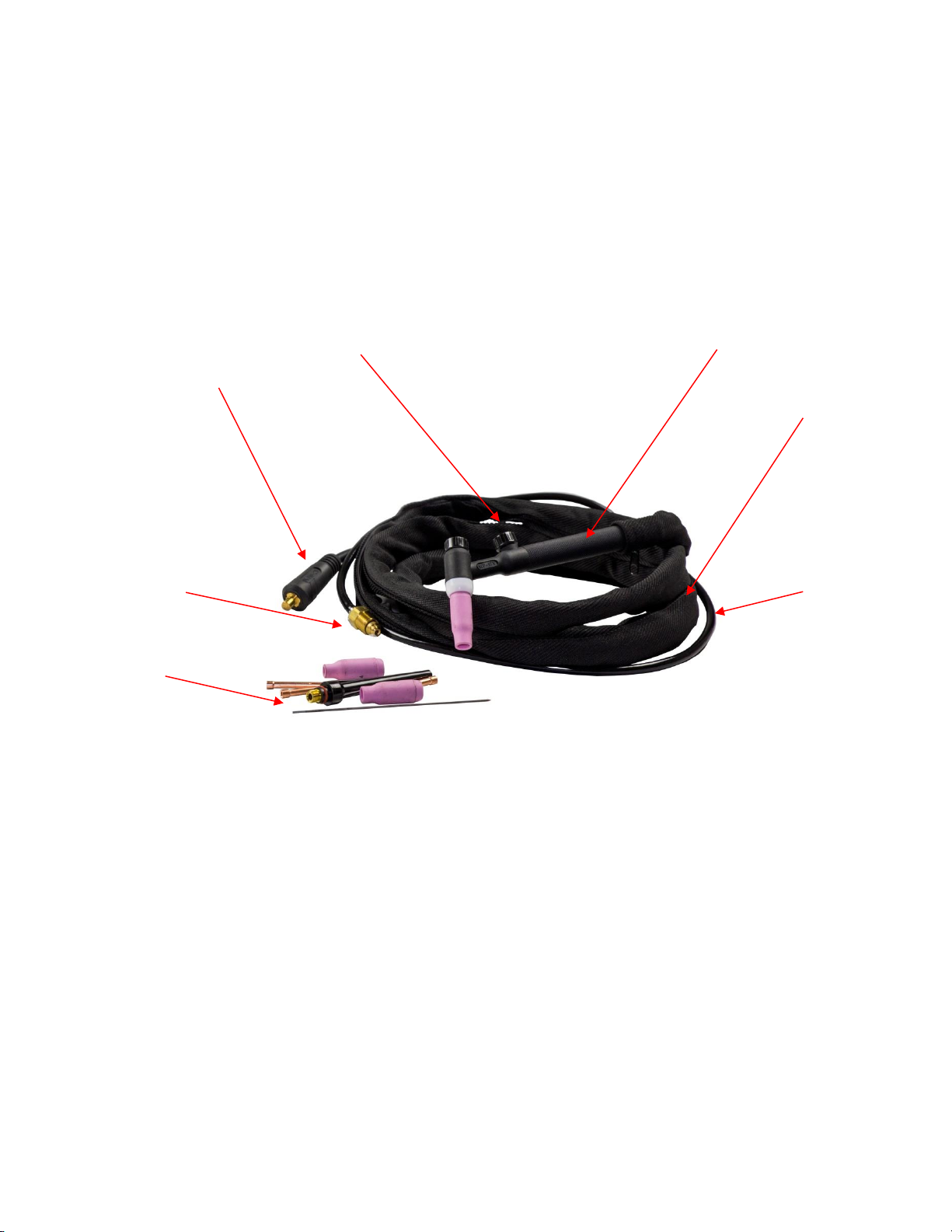

KNOW YOUR TORCH
Description
This Air Cooled TIG torch is designed to operate with dinse receptacle size 35-70 type welders
for DC lift start TIG welding on steels or stainless steels. This torch may also be used on other
TIG welding units with Dinse 35-70 twist lock style weld terminals. The Air Cooled TIG torch is
rated at 150A at 35% duty cycle. This torch is ideal for light fabrication, welding repair and
maintenance operations.
GAS VALVE
Twist the gas valve counter clockwise to
open gas flow to the Torch and clockwise to
close gas flow.
35-70 DINSE CONNECTION
This is a twist lock style connection. It
delivers the welding power from the welder
to the arc.
SHIELDING GAS THREADED
CONNECTION
This threaded connection system for
shielding gas allows for quick and easy
installation on standard inert gas fittings.
EXTRA COLLETS, TUNGSTEN, END CAP
(LONG) AND NOZZLES
These parts come standard with the Matco
MATACTT2V Torch.
TORCH BODY
This provides a sturdy and easy to handle
torch body to aid in a comfortable fit for your
TIG welding applications
SLEEVED CLOTH COVER
This cover provides a durable protective
shield for your cables and hoses running
inside the TIG Torch.
FIXED GAS LINE
This provides an ample length of hose to
reach your shielding gas cylinder and
welder.
Gas Valve
Weld Power
Connector (35-70)
Fixed Gas
line
Shielding Gas
Quick Connect
Extra collets, Tungsten,
end cap (long), and
Nozzles
Sleeved cloth
cover
Torch Body

1901026-12
INSTALLATION
EXPOSURE TO A WELDING ARC IS
EXTREMELY HARMFUL TO THE EYES
AND SKIN! Prolonged exposure to the
welding arc can cause blindness and
burns. Never strike an arc or begin
welding until you are adequately
protected. Wear flame-proof welding
gloves, a heavy long sleeved shirt,
trousers without cuffs, high topped
shoes, and an ANSI approved welding
helmet.
1. INSTALLATION OF TIG TORCH
1.1 Remove Ground Cable and install in the 35-
70 dinse connection. This sets up the TIG torch
for DC Electrode Negative which is needed for
DC TIG welding of steels and stainless steels.
1.2 Secure the ground clamp to the surface you
are welding.
1.3 Connect your regulator and gas hose to the
bottle of shielding gas. Typically 100% argon is
used for most TIG applications. Connect the TIG
torch gas connection to the regulator.
1.4 Connect the TIG torch weld power
connector to the negative (-) connection. This
sets up the TIG torch for DC Electrode Negative
which is needed for DC TIG welding of steels
and stainless steels.
1.5 Move the process selector switch on your
welder into stick mode. This puts the machine
into the constant current mode needed for TIG
welding.
Be aware that the TIG torch is now electrically
hot. Keep TIG torch away from the grounded
work surface until ready to weld.
1.6 Set Amperage on the front of the welder.
1.7 Turn on the input power switch on your
welder.
Be aware that the TIG torch is now electrically
hot. Keep TIG torch away from the grounded
work surface until ready to weld.
1.8 Turn the TIG Torch gas valve clockwise to
start the flow of shielding gas. After welding, turn
the TIG torch gas valve counter-clockwise to
turn off the flow of shielding gas.
1.9 Touch tungsten to work piece and lift away
to start arc.
DC TIG OPERATION
EXPOSURE TO A WELDING ARC IS
EXTREMELY HARMFUL TO THE EYES
AND SKIN! Prolonged exposure to the
welding arc can cause blindness and
burns. Never strike an arc or begin
welding until you are adequately
protected. Wear flame-proof welding
gloves, a heavy long sleeved shirt,
trousers without cuffs, high topped
shoes, and an ANSI approved welding
helmet.
Be aware that the TIG torch will be
electrically HOT when the Input Power
Switch on the welder is turned on.
1. Remove the ground cable and the
electrode holder from the weld output
connections. Install the ground cable to the
Positive (+) weld output connection.
2. Secure the ground clamp to the work
piece

1901026-12
3. Connect a regulator to a bottle of
ARGON gas. Then connect the gas
connection from the TIG torch to the
regulator.
4. Connect the TIG torch weld cable to the
Negative (-) weld output connection.
5. Set desired amperage on the amperage
control knob on the front panel of the
welder.
6. Turn on the input power switch on the
welder.
7. Turn on the regulator on the bottle of
shielding gas and adjust the regulator to
approximately 20 CFH. Then open the
shielding gas valve on the torch to start the
flow of shielding gas.
8. Follow these steps for striking an arc
while TIG welding.
8.1 Open the shielding gas valve on the
torch handle to begin gas flow.
8.2 Rest the TIG torch nozzle on the
work piece taking care to not touch the
installed tungsten electrode.
8.3 Twist the torch to make contact
between the work piece and the tungsten.
8.4 Lift torch away from the work piece
about 1/8 inch.
8.4 Move down the joint to be welded
by pushing the torch.
8.5 Insert filler metal in the leading
edge of the weld puddle as needed.
MAINTENANCE
•Maintain your MATCO TIG TORCH. It
is recommended that the general
condition of MATCO TIG TORCH be
examined before it is used. Keep
MATCO TIG TORCH in good repair by
adopting a program of conscientious
repair and maintenance. Have
necessary repairs made by qualified
service personnel.
•Periodically clean dust, dirt, grease, etc.
from your torch.
•Replace power cord, ground cable,
ground clamp, or electrode assembly
when damaged or worn.

1901026-12

1901026-12
Distributed by
MATCO TOOLS
4403 ALLEN ROAD
STOW OH 44224
www.matcotools.com
Made in China
