Matrix U7xe-04 User manual

U7XE-04 BIKE
SERVICE MANUAL

CHAPTER 1: SERIAL NUMBER LOCATION ................................................................... 1
CHAPTER 2: IMPORTANT SAFETY INSTRUCTIONS
2.1 Read and Save These Instructions ........................................................................... 3
2.2 Electrical Requirements ............................................................................................ 4
CHAPTER 3: PREVENTATIVE MAINTENANCE
3.1 Recommended Cleaning Tips ................................................................................... 5
3.2 Check for Damaged Parts ......................................................................................... 5
3.3 Care and Maintenance Instructions .......................................................................... 6
3.4 Touch Screen Care and Cleaning.............................................................................. 7
CHAPTER 4: CONSOLE OVERLAY AND WORKOUT DESCRIPTION
4.1 Console Description .................................................................................................. 8
4.2 Workout Setup Steps ................................................................................................. 9
CHAPTER 5: MANAGER MODE
5.1 Manager Mode Overview .......................................................................................... 10

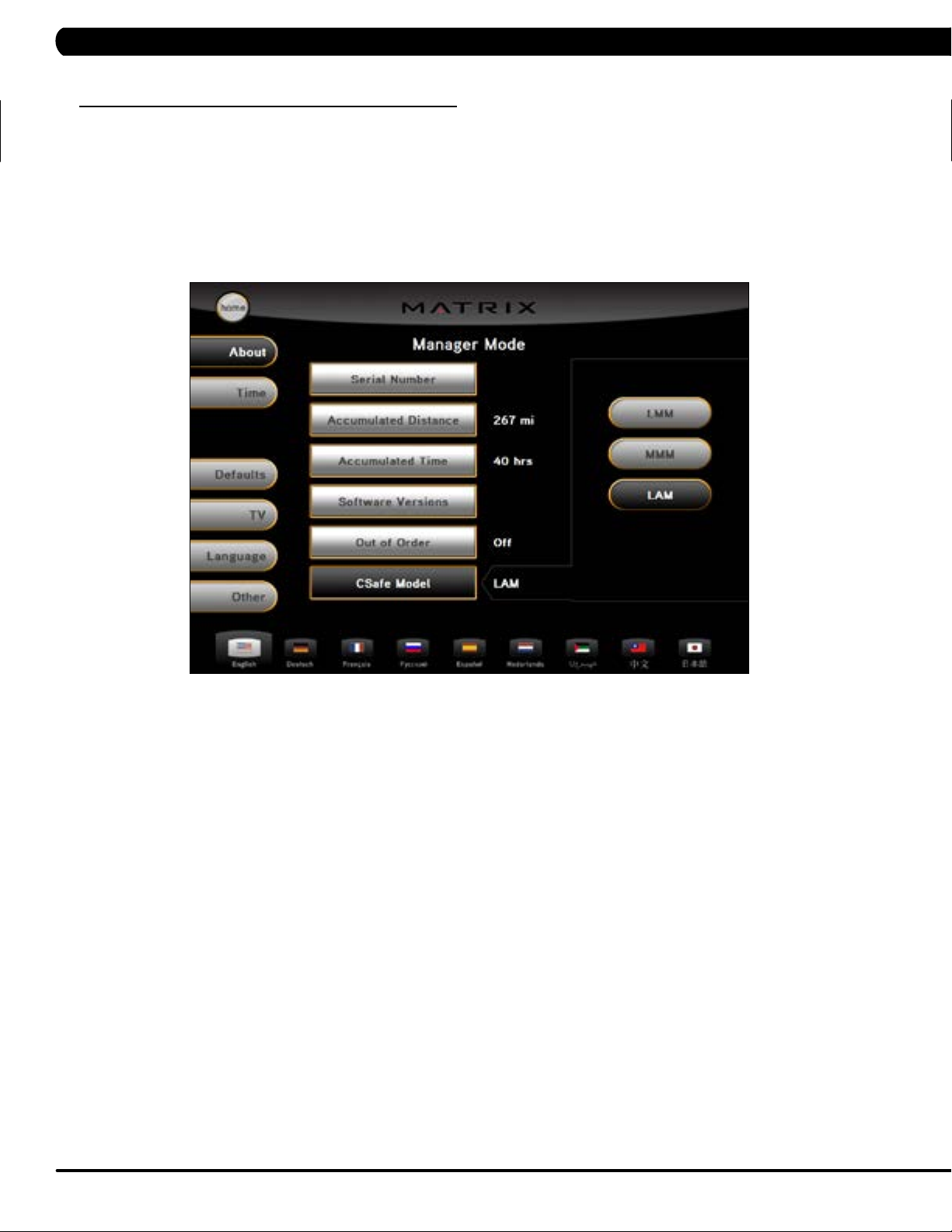

5.2 Manager Mode - About Tab........................................................................................ 11
5.3 Manager Mode - Time Tab......................................................................................... 12
5.4 Manager Mode - Defaults Tab.................................................................................... 12
5.5 Manager Mode - TV Tab ............................................................................................ 13
5.6 Manager Mode - Language Tab................................................................................. 14
5.7 Manager Mode - Other Tab........................................................................................ 15
CHAPTER 6: ENGINEERING MODE
6.1 Engineering Mode Overview...................................................................................... 16
6.2 Engineering Mode - Calibration Tab........................................................................... 16
6.3 Engineering Mode - Statistics Tab ............................................................................. 17
6.4 Engineering Mode - Errors Tab .................................................................................. 17
6.5 Engineering Mode - Clubs Tab................................................................................... 18
6.6 Engineering Mode - Club ID Tab................................................................................ 18
6.7 Engineering Mode – Other Tab .................................................................................. 19
CHAPTER 7: SERVICE MODE
7.1 Service Mode Overview ............................................................................................. 20
7.2 Service Mode - Setup Tab.......................................................................................... 21
7.3 Service Mode - Test Tab ............................................................................................ 22
7.4 Service Mode - Log Tab ............................................................................................. 23
7.5 Service Mode - Date & Time Tab ............................................................................... 23
CHAPTER 8: TROUBLESHOOTING
8.1 Electrical Diagram ..................................................................................................... 24
8.2 LCB LED Indicators.................................................................................................... 28
8.3 LCB Wiring Connections............................................................................................ 29
8.4 Troubleshooting - Error 04A0..................................................................................... 30
8.5 Troubleshooting - Error 04B0..................................................................................... 31
8.6 Troubleshooting - Error 0248 ..................................................................................... 32
8.7 Troubleshooting - Error 02B4..................................................................................... 33
8.8 Troubleshooting - Error 02AB .................................................................................... 34
8.9 Troubleshooting - Error 01AC .................................................................................... 35
8.10 Troubleshooting - No Resistance Issues ................................................................... 36
8.11 Troubleshooting - Touch Pad Issues.......................................................................... 37
8.12 Troubleshooting - Heart Rate Issues ......................................................................... 38
8.13 TV Troubleshooting - Overview.................................................................................. 39
TABLE OF CONTENTS

III
8.14 TV Troubleshooting - Picture Fuzzy or Unclear......................................................... 40
8.15 TV Troubleshooting - TV Will Not Turn On ................................................................ 41
8.16 TV Troubleshooting - Entertainment Keypad Issues ................................................. 42
CHAPTER 9: PART REPLACEMENT GUIDE
9.1 Console Replacement..................................................................................................... 43
9.2 Heart Rate Handlebar Replacement ............................................................................. 44
9.3 Heart Rate Grip Replacement ....................................................................................... 45
9.4 Cup Holder Replacement ............................................................................................... 46
9.5 Console Keypad / Overlay Replacement ....................................................................... 47
9.6 Console Mast Removal................................................................................................... 49
9.7 Seat Pad Replacement ................................................................................................... 50
9.8 Seat Post Replacement .................................................................................................. 51
9.9 Seat Post Insert Replacement ....................................................................................... 52
9.10 Pedal Replacement......................................................................................................... 53
9.11 Shrouds Removal............................................................................................................ 54
9.12 Lower Control Board Replacement ............................................................................... 55
9.13 Battery Replacement ...................................................................................................... 56
9.14 Drive Belt Replacement .................................................................................................. 57
9.15 Generator Belt Replacement .......................................................................................... 58
9.16 Generator Replacement.................................................................................................. 59
9.17 Pulley Axle Set Replacement.......................................................................................... 60
9.18 Crank Axle Set Replacement.......................................................................................... 62
9.19 Rear Stabilizer Replacement .......................................................................................... 63
9.20 Front Stabilizer Replacement ......................................................................................... 64
9.21 Testing the Bike............................................................................................................... 65
CHAPTER 10: BIKE SPECIFICATIONS AND ASSEMBLY GUIDE
10.1 U7xe-04 Bike Specifications ...................................................................................... 66
10.2 Fasteners and Assembly Tools .................................................................................. 67
10.3 Assembly Instructions ............................................................................................... 68
10.4 Adjusting the Pedal Straps and Seat ......................................................................... 72
10.5 Leveling the Bike........................................................................................................ 73
10.6 TV Programming Instructions..................................................................................... 74
CHAPTER 11: SOFTWARE UPGRADE GUIDE
11.1 Software Upgrade Instructions................................................................................... 76
TABLE OF CONTENTS

1
1.1 SERIAL NUMBER LOCATION
A serial number plate is located below the bottom of the console mast beneath a rubber boot. There is also a serial number tag on the middle
of the main frame pointed towards the floor.
CHAPTER 1: SERIAL NUMBER LOCATION

2
CONSOLE SERIAL NUMBER LOCATION
1.1 SERIAL NUMBER LOCATION
CONSOLE SERIAL NUMBER LOCATION
CHAPTER 1: SERIAL NUMBER LOCATION

3
CAUTION! If you experience chest pains, nausea, dizziness,
or shortness of breath, stop exercising immediately and con-
sult your physician before continuing.
CAUTION! Any changes or modifications to this equipment
could void the product warranty.
2.1 READ AND SAVE THESE INSTRUCTIONS
To ensure your safety and protect the equipment, read all
instructions before operating the MATRIX U7xe-04 Bike.
To ensure proper use of the Matrix U7xe-04 Bike, make sure
that all users read this manual. Remind the users that before
undertaking any fitness program, they should obtain complete
physical examinations from their physicians. If, at any time while
exercising, the user experiences dizziness, pain, or shortness of
breath, nausea or feels faint, he or she must stop immediately.
* This bike is only to be used for its intended purpose described
in this manual. Do not use attachments that have not been recom-
mended by Matrix.
* Never drop or insert objects into any opening. Keep hands away
from moving parts. If the item cannot be reached, contact a Matrix
authorized dealer for assistance.
* Never operate the unit if it is damaged, not working properly, when
it has been dropped, or has been dropped in water.
* Keep hands and feet clear at all times from moving parts to avoid
injury.
* Do not use this product outdoors, near swimming pools or in areas
of high humidity.
* Do not operate where aerosol (spray) products are being used or
when oxygen is being administered.
* Do not use this product in bare feet. Do not wear shoes with heels,
leather soles, cleats, or spikes while exercising.
* Do not remove the side covers. Service should only be done by an
authorized service technician.
* Close supervision is necessary when used near children, invalids,
or disabled people.
* When the bike is in use, young children and pets should be kept at
least 3 meters / 10 feet away.
* Assemble and operate the bike on a solid, level surface.
* Never face backward while using the Matrix U7xe-04 Bike.
* Use the stationary handlebars when mounting or dismounting the
bike.
* Do not wear clothing that might catch on any moving parts of this
bike.
CHAPTER 2: IMPORTANT SAFETY INSTRUCTIONS

4
2.2 ELECTRICAL REQUIREMENTS
CHAPTER 2: IMPORTANT SAFETY INFORMATION
CONSOLE POWER
The Matrix Upright Bike console has a battery that makes it self powered. This means that even if the unit is not plugged in, the console may
still have power for up to 12 hours. If the console power needs to be reset or turned off, press and hold the CHANNEL UP and CHANNEL
DOWN keys for 3-5 seconds until the console turns off. The console power will also need to be reset if settings are changed in Manager,
Engineering, or Service Modes.
GROUNDING INSTRUCTIONS:
The Matrix U7xe-04 Upright Bike must be grounded. If it should malfunction or break down, grounding provides a path of least resistance for
electric current to reduce the risk of electric shock. The Bike is equipped with a cord having an equipment grounding conductor and a grounding
plug. The plug must be plugged into an appropriate outlet that is properly installed and grounded in accordance with all local codes and
ordinances. If the user does not follow these grounding instructions, the user could void the Matrix limited warranty.
DANGER: Improper connection of the equipment grounding conductor can result in the risk of electric shock. Check with a qualified electrician
if the user is in doubt as to whether the product is properly grounded. Do not modify the plug provided with the product if it will not fit the outlet,
have a proper outlet installed by an electrician.
The Matrix 7xe Series Upright Bike is designed to be self powered. NOTE: If an add on TV (using a bracket) or Virtual Active is added to the
unit, it must be plugged in, or the TV and Virtual Active will not operate correctly. If the Bike will be plugged in, follow the requirements below.
MATRIX DEDICATED CIRCUIT/ELECTRICAL REQUIREMENT INFO
All Matrix Bikes require the use of a 15 amp or 20 amp “dedicated circuit,” with a non-looped (isolated) neutral/ground, for the power requirement.
Quite simply this means that each outlet you plug Bikes into should not have anything else running on that same circuit besides other Bikes (up to
3 per 15 amp circuit and 4 per 20 amp circuit). The easiest way to verify this is to locate the main circuit breaker box, and turn off the breaker(s)
one at a time. Once a breaker has been turned off, the only thing that should not have power to it are the Bikes in question. No lamps, vending
machines, fans, sound systems, or any other item should lose power when you perform this test.
Non-looped (isolated) neutral/grounding means that each circuit must have an individual neutral/ground connection coming from it, and terminating
at an approved earth ground. You cannot “jumper” a single neutral/ground from one circuit to the next.
In addition to the dedicated circuit requirement, the proper gauge wire must be used from the circuit breaker box, to each outlet that will have the
maximum number of units running off of it. If the distance from the circuit breaker box, to each outlet, is 100 ft or less, then 12 gauge wire may be
used. For any distance greater than 100 ft from the circuit breaker box to the outlet, 10 gauge wire must be used.
For your safety and Bike performance, the ground on this circuit must be non-looped. Please refer to NEC article 210-21 and 210-23. Your Bike is
provided with a power cord with a plug listed below and requires the listed outlet. Any alterations of this power cord could void all warranties for
this product. Multiple Bikes can be powered on one dedicated circuit. (3 units per 15 Amp and 4 units per 20 Amp dedicated circuit.)

5
CHAPTER 3: PREVENTATIVE MAINTENANCE
3.1 RECOMMENDED CLEANING TIPS
DO NOT use any equipment that is damaged or has worn or broken parts. Use only replacement parts supplied by Matrix Fitness Systems.
MAINTAIN LABELS AND NAMEPLATES. Do not remove labels for any reason. They contain important information. If unreadable or missing,
contact Matrix Fitness Systems for a replacement. 1-866-693-4863, www.matrixfitness.com
MAINTAIN ALL EQUIPMENT Preventative maintenance is the key to smooth operating equipment. Equipment needs to be inspected at regular
intervals. Defective components must be replaced immediately. Improperly working equipment must be kept out of use until it is repaired.
Ensure that any person(s) making adjustments or performing maintenance or repair of any kind is qualified to do so. Matrix Fitness Systems will
provide service and maintenance training at our corporate facility upon request or in the field if proper arrangements are made.
3.2 CHECK FOR DAMAGED PARTS
In order to maximize life span, and minimize down time, all Matrix Fitness Equipment requires regularly
scheduled cleaning.
YOU WILL NEED:
- Mild dish soap and water mixture in a spray bottle (10:1 water to soap ratio).
- Lint free 100% cotton cleaning cloths or Microfiber cleaning cloths.
- Vacuum / Shop Vac with extendable hose and soft brush attachment.
- Corrosion Block (available from Matrix - part # ZMS4001374).
DAILY:
1. Wipe down the unit after each use with a mild dish soap and water mixture. NOTE: Spray the soap / water mixture onto the cloth.
NEVER spray directly onto the equipment. We recommend that you do NOT allow customers to use spray bottles to clean the equipment. If
the cleaner is sprayed directly on the equipment or overspray is present, it may cause your equipment to rust and / or cause damage to con-
sole overlays.
WEEKLY:
1. With a clean dry 100% lint free cloth and water / soap mixture, wipe down the entire frame so it is free of dust, dirt, and sweat.
2. With a clean dry 100% lint free cloth and water / soap mixture, wipe down the entire console area including the hand grips and hand rails.
3. Use a computer screen cleaner or LCD / LED screen cleaner on the touch portion of the console (see Section 3.4).
MONTHLY:
1. Vacuum under and around the Bike. If you need to move it, unplug the unit first.
2. Remove the shrouds and use a vacuum to remove any dust or dirt built up under the covers. NOTE: Be careful not to damage or unplug
any of the wiring.
3. Apply Corrosion Block to the metal part of the iPod cable.

6
3.3 CARE AND MAINTENANCE INSTRUCTIONS
CHAPTER 3: PREVENTATIVE MAINTENANCE
In order to maximize life span, and minimize down time, all MATRIX equipment requires regular cleaning, and maintenance items performed on
a scheduled basis. This section contains detailed instructions on how to perform these items and the frequency of which they should be done.
Some basic tools and supplies will be necessary to perform these tasks which include (but may not be limited to):
* Metric Allen wrenches
* #2 Phillips head screwdriver
* Adjustable wrench
* Commercial Pedal wrench (available from Matrix - part # ZMS4001254)
You may periodically see addendums to this document, as the Matrix Technical Support Team identifies items that require specific attention, the
latest version will always be available on the Matrix web site at www.matrixfitness.com.
DAILY MAINTENANCE ITEMS
1) Look and listen for loose fasteners, unusual noises, and any other indications that the equipment may be in need of service.
2) Attempt to wobble the unit from side to side and front to back. Level if needed (see Section 10.5).
WEEKLY MAINTENANCE ITEMS
1) Check the pedal straps for damage.
2) Clean the grooves on the foot pedals.
MONTHLY MAINTENANCE ITEMS
1) Frequently vacuum the floor beneath the unit to prevent the accumulation of dust and dirt which can affect the smooth operation of the unit.
2) Check that the pedal and crank assembly are tight with no free play or wobble in them. Make sure to use a commercial grade pedal wrench to
get the pedals as tight as possible.
3) Check the condition of the seat upholstery. Make sure that the seat adjustment mechanism is operating correctly.
YEARLY MAINTENANCE ITEMS
1) Remove the front shrouds and check the belt for damage, alignment, and proper tension.

7
3.4 TOUCH SCREEN CARE & CLEANING
CHAPTER 3: PREVENTATIVE MAINTENANCE
TOUCH SCREEN CARE AND CLEANING
* The touch screen requires very little maintenance. We recommend that you periodically clean the touch screen surface with a clean dry 100%
lint free cloth and water / soap mixture or a computer or LCD / LED screen cleaner.
* It is very important to avoid using any other chemical on the touch screen.
* Always dampen the cloth and clean the screen. Do not spray the water / soap mixture on the screen itself, the drips can seep into the display
or stain the bezel.
* After cleaning, make sure the surface is dry. There should not be any left over solvent to seep into the display.
* It is very important to handle the touch screen with care. Do not use excessive force when cleaning.
* Do not use any sharp materials to clean the touch screen surfaces.
* Do not use high pressure air, water, or steam to clean the touch screen surface.
