Matrix G7-S12 User manual

OWNERS MANUAL
ULTRA Single-Station Strength
G7-S12 Pectoral Fly

Table Of Contents
Safety, General Care & Maintenence ....................................................................................................................3
Getting Started (Product Specifications).............................................................................................................5
Assembly Information .............................................................................................................................................6
Markings ....................................................................................................................................................................7
Parts List ...................................................................................................................................................................8
Installation & Assembly: Value Line
Part 1 Weight Stack & User Frame Assembly....................................................................................... 10
Part 2 Seat Assembly............................................................................................................................... 12
Part 3 Arm Assembly ............................................................................................................................... 14
Part 4 Pad Assembly ................................................................................................................................ 21
Part 5 Plastics Assembly.........................................................................................................................24

3
IMPORTANT SAFETY INSTRUCTIONS
IMPORTANT SAFETY INFORMATION
It is the sole responsibility of the purchaser of Matrix products to instruct all individuals, whether they are the end user or
supervising personnel on proper usage of the equipment.
It is recommended that all users of Matrix exercise equipment be informed of the following information prior to its use.
PROPER USAGE
Do not use any equipment in any way other than designed or intended by the manufacturer. It is imperative that Matrix
equipment be used properly to avoid injury.
Keep hands and feet clear at all times from moving parts to avoid injury.
CHECK FOR DAMAGED PARTS
1. DO NOT use any equipment that is damaged and or has worn or broken parts. Use only replacement parts supplied by
your country’s local Matrix dealer.
2. MAINTAIN LABELS AND NAMEPLATES: Do not remove labels for any reason. They contain important information.
If unreadable or missing, contact your Matrix dealer for a replacement.
3. SECURING EQUIPMENT: All equipment MUST be secured to the floor to stabilize and eliminate rocking or tipping over.
This must be performed by a licensed contractor.
4. MAINTAIN ALL EQUIPMENT: Preventative maintenance is the key to smooth operating equipment as well as keeping
your liability to a minimum. Equipment needs to be inspected at regular intervals.
5. Ensure that any person(s) making adjustments or performing maintenance or repair of any kind is qualified to do so.
Matrix dealers will provide service and maintenance training at our corporate facility upon request.

4
IMPORTANT SAFETY INSTRUCTIONS
WARNING:This product contains chemicals known to the State of California
to cause cancer and birth defects or other reproductive harm.
WARNING:SERIOUS INJURY CAN OCCUR ON THIS EQUIPMENT. FOLLOW
THESE PRECAUTIONS TO AVOID INJURY!
1. Never allow children on strength training equipment. Teenagers must be supervised at all times while using this
equipment.
2. All warnings and instructions should be read and proper instruction obtained prior to use.
3. Use this equipment for its intended purposes only.
4. NEVER allow resistance straps, ropes or other means be attached to this equipment, as this may result in serious
injury.
5. NEVER use this equipment for support during stretching, as this may result in serious injury.
6. Cease exercise if you feel faint or dizzy. Obtain a medical exam before beginning an exercise program.
7. Keep body, hair, clothing and accessories free and clear of all moving parts.
8. Inspect the machine before use. DO NOT use machine if it appears damaged or inoperable.
9. Check to see that the selector pin is completely inserted into the weight stack.
10. NEVER use this machine with the weight stack pinned in an elevated position.
11. NEVER use dumbells or other means to incrementally increase the weight resistance. Only use the means provided
directly from the manufacturer.
12. This equipment should only be used in supervised areas where access and control are regulated by the owner.

5

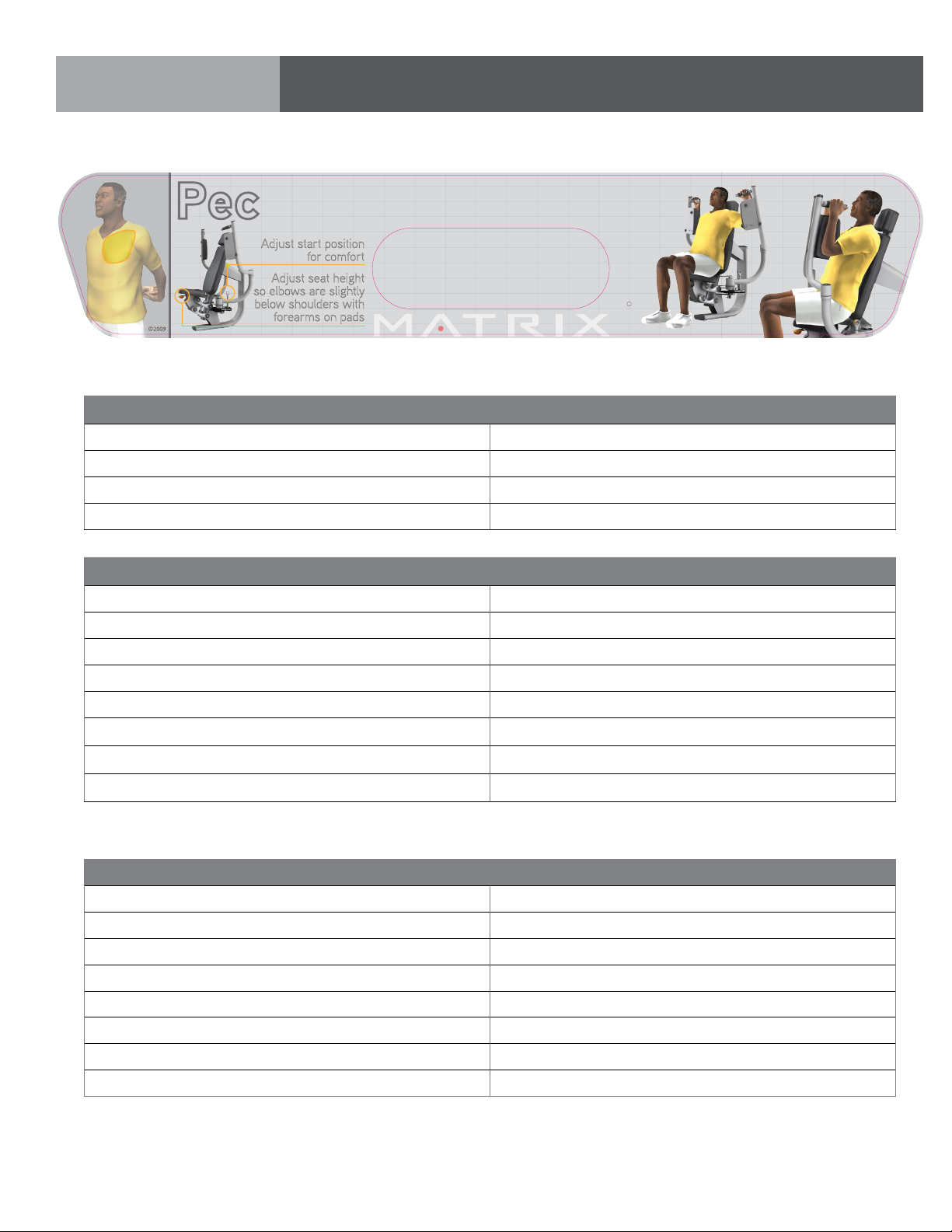

GETTING STARTED
EXERCISE PLACARD | PRODUCT SPECIFICATIONS | MAINTENANCE CHECKLIST
EXERCISE PLACARD
PRODUCT SPECIFICATIONS
TECH SPECS
Maximum User Weight 136 kg / 300 lbs.
Maximum Training Weight 109 kg / 240 lbs.
Product Weight 260 kg / 573 lbs.
Overall Dimensions (L x W x H) 118.7 x 167.1 x 138.4 cm / 46.7" x 65.8" x 54.5"
WARRANTY (Valid in USA only)
Frame (not coatings) 10 years
Weight stacks 5 years
Pulleys 5 years
Pivot bearings 5 years
Any items not specified 3 years
Labor (excluding upholstery/cables/grips) 3 years
Upholstery/cables/grips/springs 1 year
Accessories 6 months
MAINTENANCE CHECKLIST
ACTION FREQUENCY
Clean Upholstery Daily
Inspect Cables Daily
Clean Guide Rods Monthly
Inspect Hardware Monthly
Inspect Frame Bi-Annually
Clean Machine As Needed
Clean Grips As Needed
Lubricate Guide Rods As Needed
Upholstery & Grips should be cleaned with a non-ammonia based cleaner or a mild soap and water. Guide rods should be
lubricated with Teflon based lubricant. Apply the lubricant to a cotton cloth and then apply up and down the guide rods.
FlyPec
FlyPec
Adjust seat height
so elbows are slightly
below shoulders with
forearms on pads
Adjust start position
for comfort
Start Finish

6
ASSEMBLY
UNPACKING | TOOLS REQUIRED
UNPACKING
Thank you for purchasing a Matrix product. This machine is an EN957-1 and EN957-2 compliant Class S product. Your Matrix
product is inspected before it is packaged. It is shipped in multiple pieces to facilitate the compact packaging of the
machine. Prior to assembly, confirm all the components by matching them with the exploded diagrams. Carefully unpack the
unit from this box and dispose of the packing materials in accordance with your local laws.
CAUTION
The weight of the product is 573 lbs. (260 kg) not including the weight stack. The weight stack for this machine is 240 lbs. (109
kg). To avoid injury to yourself and prevent damage to the frame components, be sure to have proper assistance removing the
frame pieces from this box. Please be sure to install the equipment on a stable base, properly level the machine and leave at
least two feet of clearance to enter and exit the machine. Maximum user weight for this machine is 300 lbs.
TOOLS REQUIRED FOR ASSEMBLY
3MM L-Shaped Allen Wrench
4MM L-Shaped Allen Wrench
5MM L-Shaped Allen Wrench
6MM L-Shaped Allen Wrench
8MM L-Shaped Allen Wrench
10MM L-Shaped Allen Wrench
Phillips & Standard Screwdrivers
8MM Open-End Wrench
13MM Open-End Wrench
17MM Open-End Wrench.
19MM Open-End Wrench
Adjustable Wrench
Blue Locktite 242 must be used on all fasteners that are not assembled with Nylock Nuts.

7

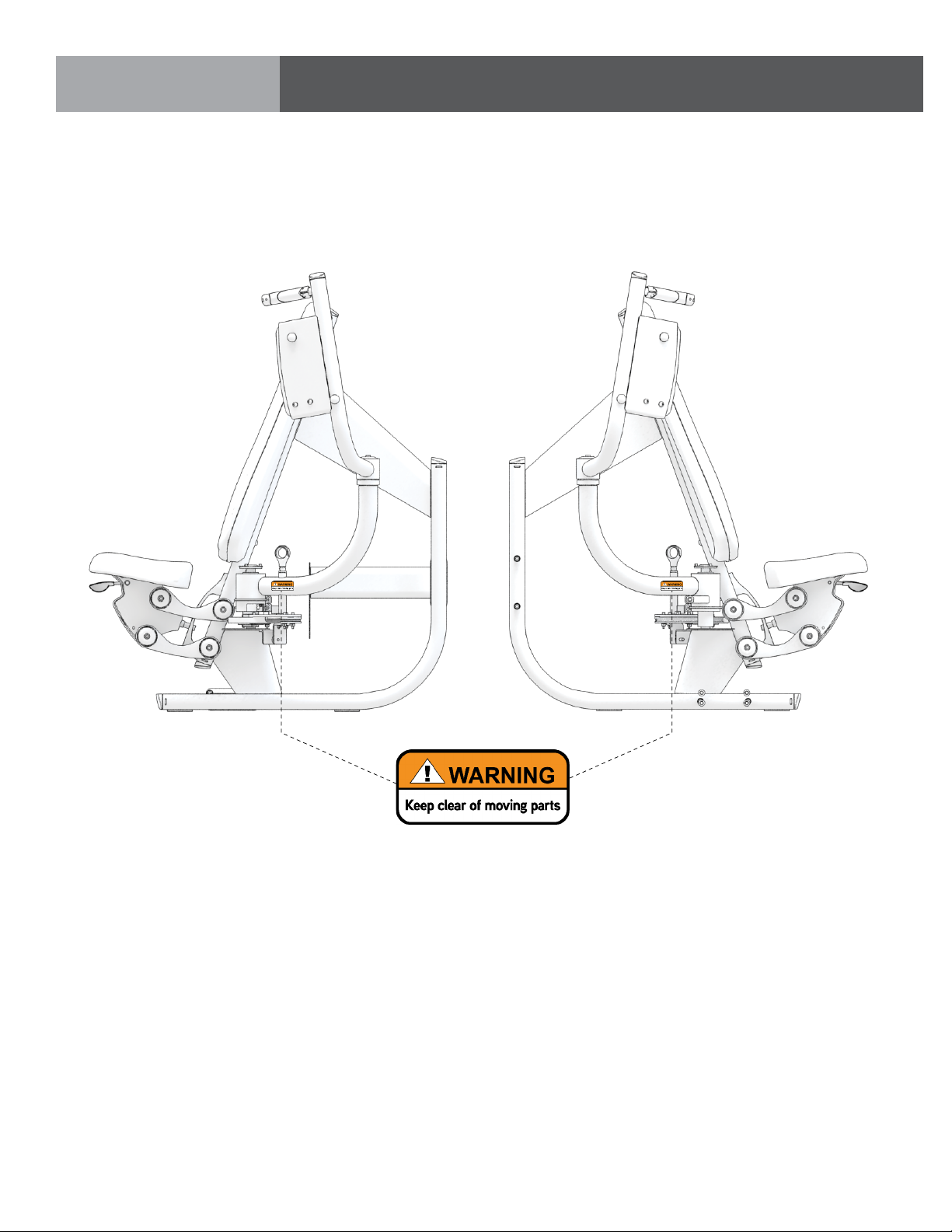

MARKINGS
WARNING LABEL LOCATIONS
Hazard warning sticker [both arms]

8
Parts List
ID DESCRIPTION QTY
1Lower Connecting Tube 1
2 M10 X 30L Socket Head Cap Screw 8
3 M10 Flat Washer 12
4 Weight Stack 1
5 M10 Nylock Nut 4
6Upper Connecting Tube 1
7 M10 X 75L Socket Head Cap Screw 4
8 User Frame 1
9 M10 Saddle Washer 4
10 M8 X 25L Socket Head Cap Screw 8
11 Medium Pivot Cap 10
12 Seat Link 4
13 Axle 4
14 Spring 2
15 Seat 1
16 Axle 2
17 Right Lower Arm Assembly 1
18 M5 X 12L Socket Head Cap Screw 6
19 M5 Flat Washer 6
20 Cap 2
21 Axle Locking Sleeve 2
22 Wave (Spring) Washer 2
23 CAM 1
24 Spacer 1
25 Left Lower Arm Assembly 1
26 M5 X 12L Button Head Cap Screw 2
27 ROM Adjustment Cable 2
28 Cable Retainer 2
29 M10 X 20L Socket Head Cap Screw 2
30 Snap Ring 4
31 Flat Washer (38 OD) 12
32 Left Upper Arm Assembly 1
33 Right Upper Arm Assembly 1
34 M10 X 15L Socket Head Cap Screw 2
35 M10 X 25L Socket Head Cap Screw 2

9
ID DESCRIPTION QTY
36 Bumper 2
37 Arm Pad 2
38 M10 X 20L Button Head Cap Screw 4
39 Head Rest Assembly 1
40 M10 X 75L Button Head Cap Screw 4
41 Back Pad Assembly 1
42 Pad 1
43 M10 X 20L Hex Bolt 4
44 Rear Shroud 1
45 Left Front Shroud 1
46 Right Front Shroud 1
47 M8 X 60L Socket Head Cap Screw 4
48 Top Cap 1
Parts List

10

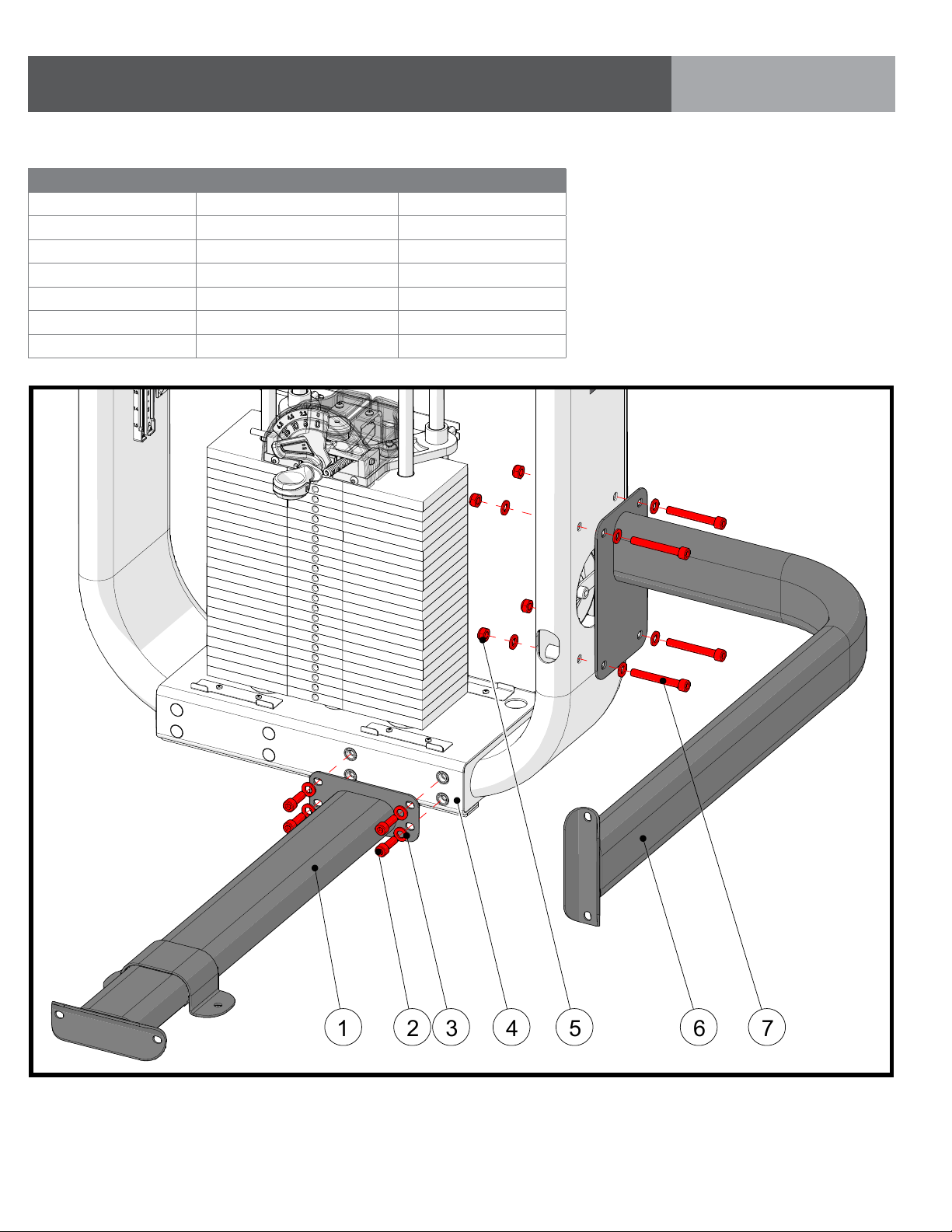

PART 1: USER FRAME ASSEMBLY
STEP 1 | WEIGHT STACK INSTRUCTIONS & NOTES
ID DESCRIPTION QUANITY
1Lower Connecting Tube 1
2 M10 X 30L SHC 4
3 M10 Flat Washer 12
4 Weight Stack 1
5 M10 Nylock Nut 4
6Upper Connecting Tube 1
7 M10 X 75L SHC 4
Install the user frame hardware as shown, but DO NOT FULLY TIGHTEN .
ASSEMBLY
4
5
3
2
7
1
6

11

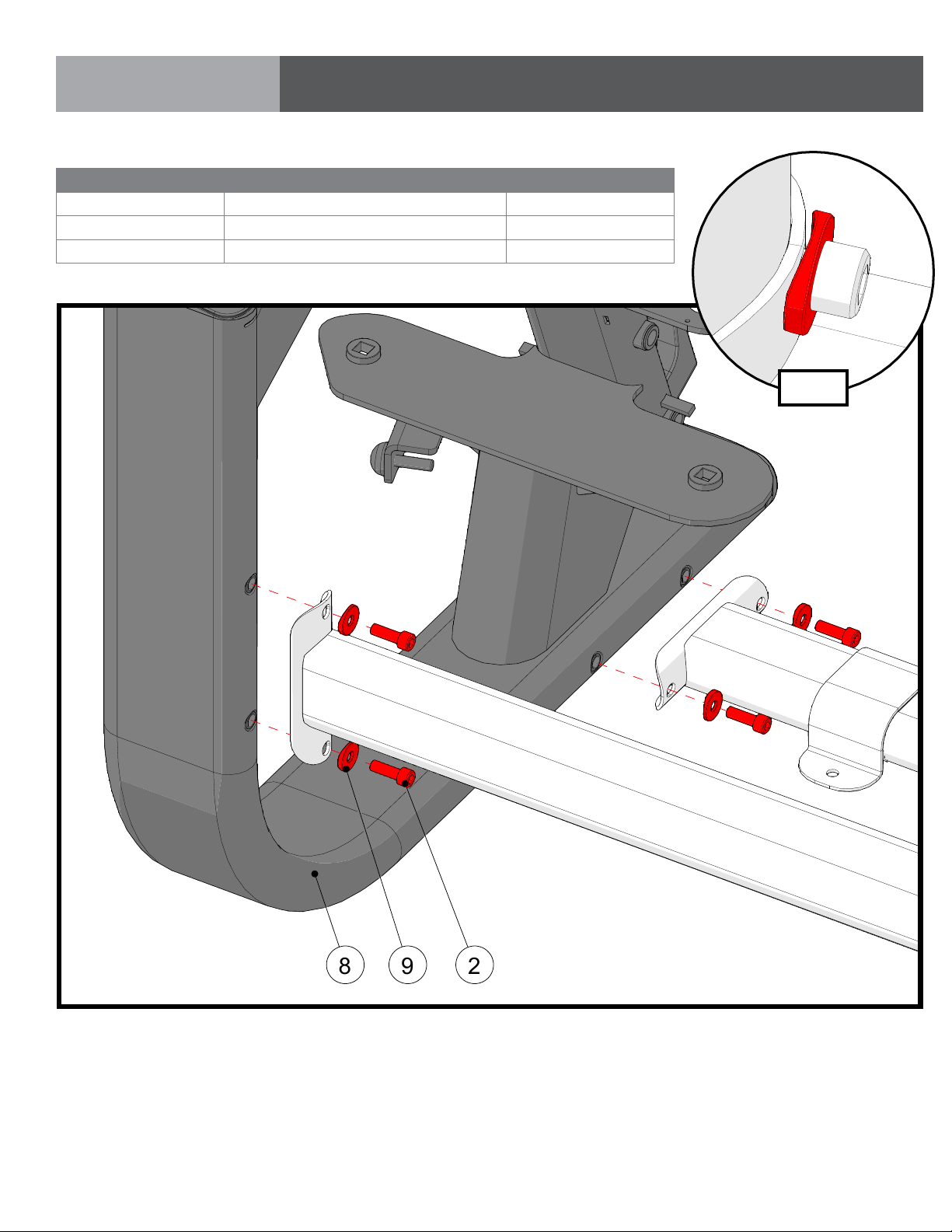

STEP 2 | USER FRAME INSTRUCTIONS & NOTES
ID DESCRIPTION QUANITY
2 M10 X 30L SHC 4
8 User Frame 1
9 M10 Saddle Washer 4
ASSEMBLY
PART 1: USER FRAME ASSEMBLY
8
9
2
View A
• Install the user frame hardware as shown, being sure to orient the saddle washer as shown in
View A.
• Ensurethattheframeislevelandthatalloorpadscontacttheoorequally,
• TorqueallM10FrameHardwareonpages10&11to:77N-m/57ft-lbs.

12
STEP 1 | SEAT LINK ASSEMBLY INSTRUCTIONS & NOTES
ID DESCRIPTION QUANITY
10 M8 X 25L SHC 2
11 Medium Pivot Cap 2
12 Seat Link 1
13 Axle 2
14 Spring 1
15 Seat 1
ASSEMBLY
PART 2: SEAT ASSEMBLY
Tightento39N-m/29ft-
lbs.
Outer tab of spring must be secured behind
frame reaction bar.
Ensure bottom links are assembled correctly
by testing spring tension.
10
11
12
13
14
15
*Note: Shoulder Press
seat assembly is shown
-butstepsandcompo-
nents are identical for
the Pec Fly

13
STEP 2 | SEAT ASSEMBLY INSTRUCTIONS & NOTES
ID DESCRIPTION QUANITY
10 M8 X 25L SHC 6
11 Medium Pivot Cap 6
12 Seat Link 3
13 Axle 2
14 Spring 1
ASSEMBLY
PART 2: SEAT ASSEMBLY
Tightento39N-m/29ft-lbs.
Rotate seat to
engage pull pin
Assemble
upper axles,
links and
pivot caps

14
PART 3: ARM ASSEMBLY
STEP 1 | RIGHT ARM ASSEMBLY INSTRUCTIONS & NOTES
ID DESCRIPTION QUANITY
16 Axle 1
17 Right Lower Arm Assembly 1
ASSEMBLY
16
17
Squareendofaxle
must be located
as shown

15
STEP 2 | RIGHT ARM ASSEMBLY INSTRUCTIONS & NOTES
ID DESCRIPTION QUANITY
18 M5 X 12L SHC 3
19 M5 Flat Washer 3
20 Cap 1
21 Axle Locking Sleeve 1
22 Wave (Spring) Washer 1
ASSEMBLY
21
22
19
20
18
PART 3: ARM ASSEMBLY
Torqueto7N-m/5ft-lbs.

16
STEP 3 | LEFT ARM ASSEMBLY INSTRUCTIONS & NOTES
ID DESCRIPTION QUANITY
16 Axle 1
23 CAM 1
24 Spacer 1
25 LeftLowerArmAssembly(w/pullpin) 1
ASSEMBLY
PART 3: ARM ASSEMBLY
25
23
24
16
Squareendofaxlemust
be located as shown

17

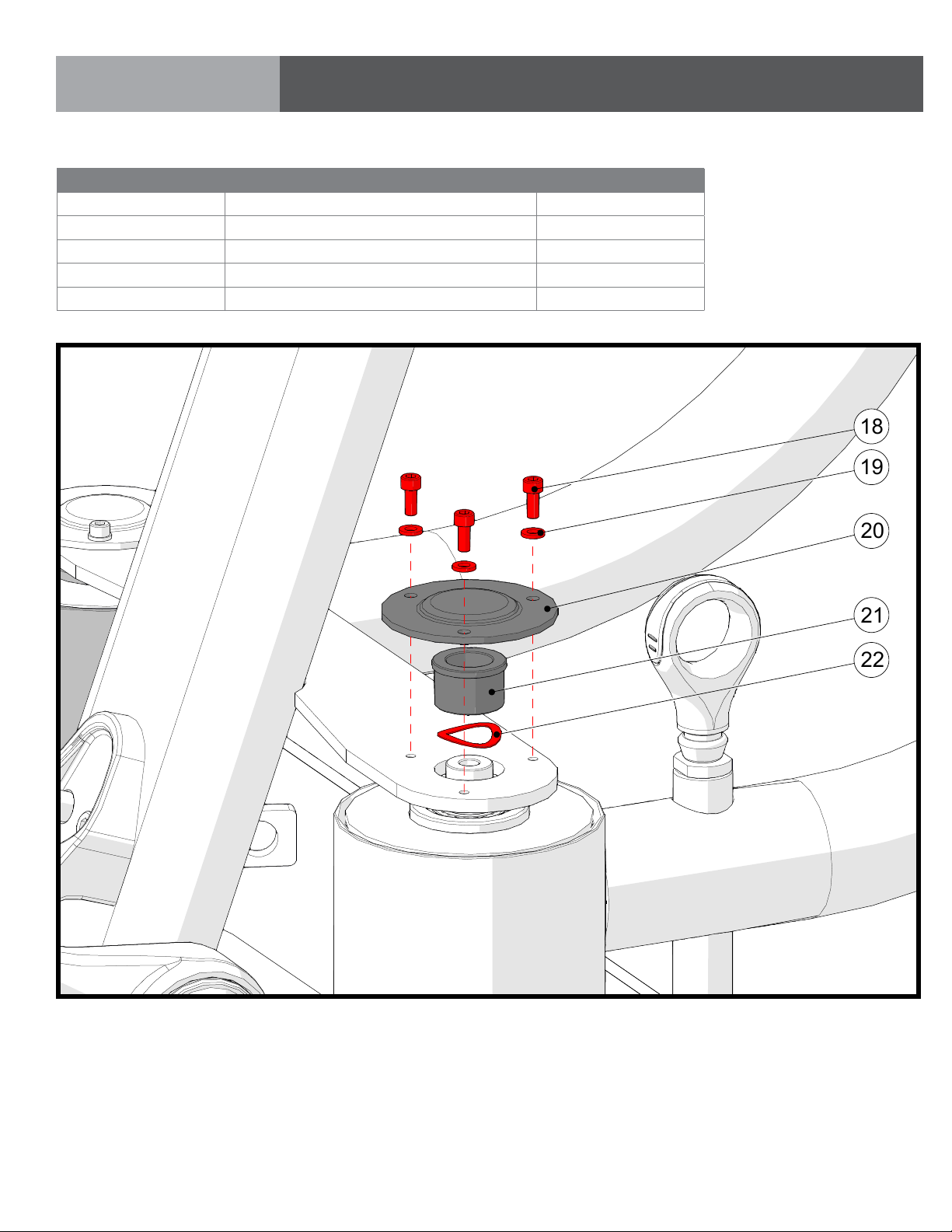

STEP 4 | LEFT ARM ASSEMBLY INSTRUCTIONS & NOTES
ID DESCRIPTION QUANITY
18 M5 X 12L SHC 3
19 M5 Flat Washer 3
20 Cap 1
21 Axle Locking Sleeve 1
22 Wave (Spring) Washer 1
ASSEMBLY
PART 3: ARM ASSEMBLY
Torqueto7N-m/5ft-lbs.
22
21
19
20
18

18
ASSEMBLY

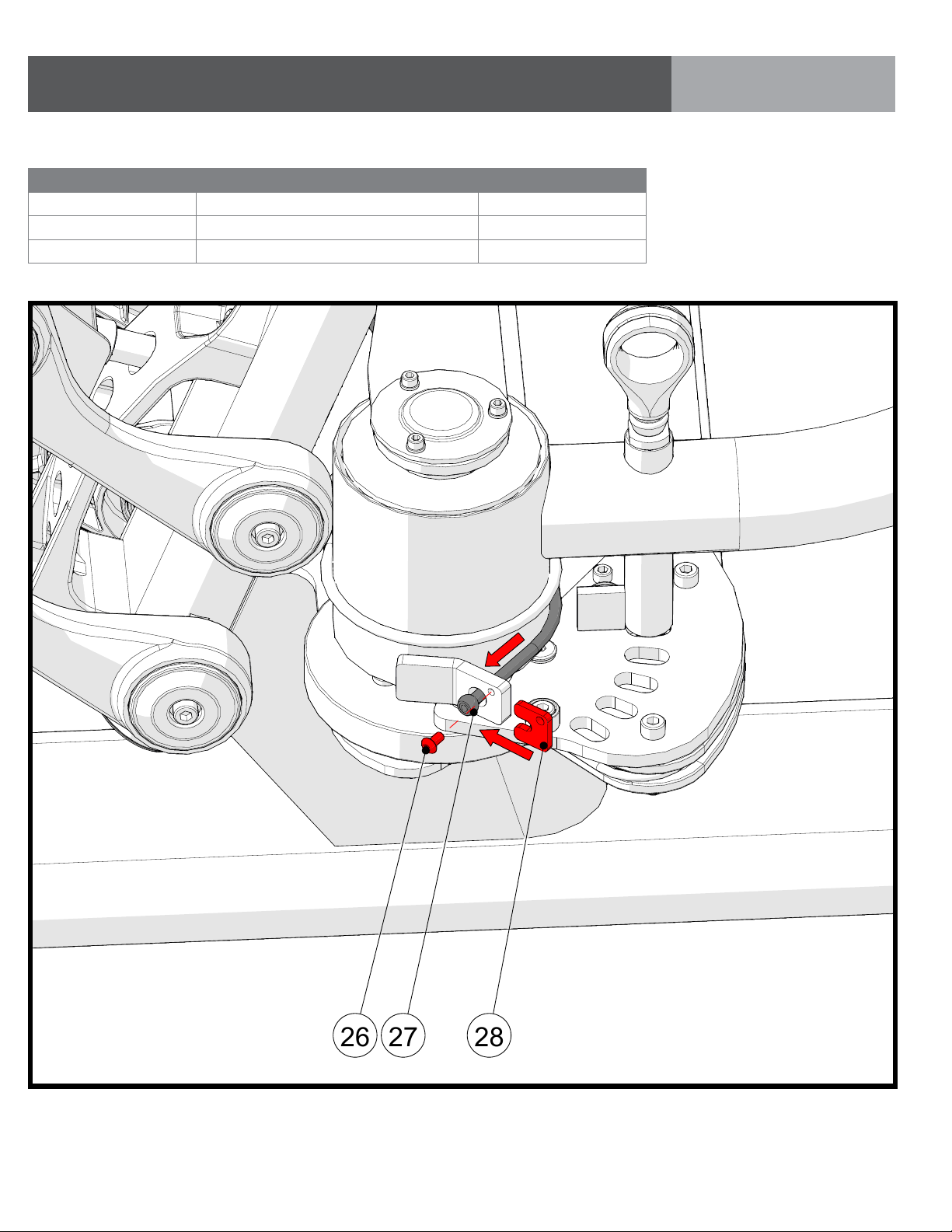

STEP 5 | ROM ADJUSTMENT CABLE ASSEMBLY INSTRUCTIONS & NOTES
PART 3: ARM ASSEMBLY
27
28
26
Torqueto7N-m/5ft-lbs.
ID DESCRIPTION QUANITY
26 M5 X 12L BHC 2
27 ROM Adjustment Cable 2
28 Cable Retainer 2

19
STEP 5 | ROM ADJUSTMENT ASSEMBLY INSTRUCTIONS & NOTES
ASSEMBLY
PART 3: ARM ASSEMBLY
Assemble“gure8”cablesasshown
TightenM12jamnutsto77N-m/57ft-lbs.

20
ASSEMBLY

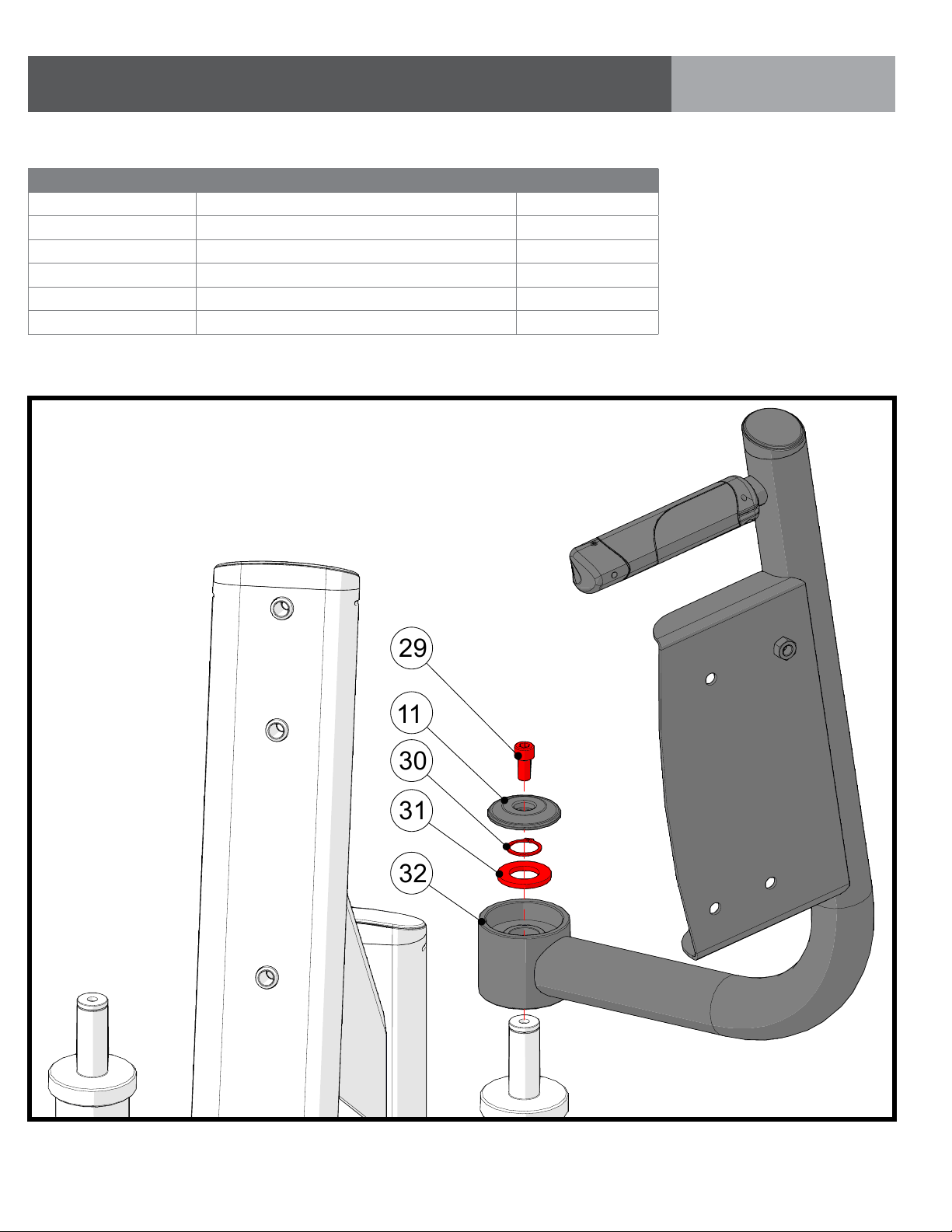

STEP 6 | UPPER ARM ASSEMBLY INSTRUCTIONS & NOTES
PART 3: ARM ASSEMBLY
ID DESCRIPTION QUANITY
11 Medium Pivot Cap 2
29 M10 X 20L SHC 2
30 Snap Ring 2
31 Washer (38 OD) 12
32 Left Upper Arm Assembly 1
33 Right Upper Arm Assembly (Not Shown) 1
32
31
30
11
29
Torqueto77N-m/57ft-lbs.
*Note:Onlyleftsideisshown,quantitiesreectbothleftandright.
