Matrix RXP User manual

RXP (AR12 )
SERVICE MANUAL

CHAPTER 1: SERIAL NUMBER LOCATION ........................................................... 1
CHAPTER 2: IMPORTANT SAFETY INSTRUCTIONS
2.1 Read and Save These Instructions............................................................................. 2
2.2 Locating the Unit ......................................................................................................... 2
2.3 Before Getting Started ............................................................................................... 3
CHAPTER 3: PREVENTATIVE MAINTENANCE
3.1 Care and Maintenance Instruction ............................................................................ 4
CHAPTER 4: CONSOLE OVERLAY AND WORKOUT DESCRIPTION
4.1 Console Description ................................................................................................... 5
CHAPTER 5: MANAGER MODE
5.1 Using Manager Mode ................................................................................................. 8
5.2 Manager Mode Overview............................................................................................ 9
CHAPTER 6: SERVICE MODE
6.1 Using Service Mode .................................................................................................. 12
6.2 Service Mode Overview .............................................................................................. 13
CHAPTER 7: ENGINEERING MODE
7.1 Using Engineering Overview...................................................................................... 16
7.2 Engineering Mode Overview...................................................................................... 17
CHAPTER 8: TROUBLESHOOTING
8.1 Electrical Diagram ...................................................................................................... 20
8.2 LCB LED Indicators ................................................................................................... 23
8.3 Charging The Battery ................................................................................................. 24
8.4 Error Code List............................................................................................................ 25
CHAPTER 9: PARTS REPLACEMENT GUIDE
9.1 Control Board Set Replacement ................................................................................. 26
9.2 Key Control Board Replacement ................................................................................ 27
9.3 TFT-LCD Module Set / Touch Panel Replacement..................................................... 28
9.4Receiver Set Replacement ......................................................................................... 29
9.5 Generator Replacement.............................................................................................. 31
9.6 ECB Replacement....................................................................................................... 32
9.7 Tension Control Replacement ..................................................................................... 34
9.8 Spiral Spring Set Replacement................................................................................... 37
9.9 Belt Pulley Set Replacement ...................................................................................... 38
9.10 Fly Wheel Set Replacement ....................................................................................... 40
9.11 Battery Replacement ................................................................................................... 42
9.12 LCB Replacement ....................................................................................................... 43
CHAPTER 10: SPECIFICATIONS AND ASSEMBLY GUIDE
10.1 RXP Specifications...................................................................................................... 44
10.2 Fasteners and Assembly Tools ................................................................................... 44
10.3 Assembly Instructions ................................................................................................ 45
10.4 Phoenix Console WI-FI Set Installation ..................................................................... 48
10.5 Phoenix Console RFID Set Installation ...................................................................... 51
CHAPTER 11: SOFTWARE UPGRADE GUIDE
11.1 Software Upgrade Instructions ................................................................................... 55
TABLE OF CONTENTS

1
1.1 SERIAL NUMBER LOCATION
CHAPTER 1: SERIAL NUMBER LOCATION

2
2.1 READ AND SAVE THESE INSTRUCTIONS
CHAPTER 2: IMPORTANT SAFETY INSTRUCTIONS
This Rower is intended for commercial use. To ensure your safety and protect the equipment, read all instructions before operating the MATRIX
Rower.
Use the Rower for its intended purpose as described in this manual. Do not use attachments that have not been recommended by the
manufacturer.
Never drop or insert any object into any opening in the product. If an object should drop inside, carefully retrieve it while the unit is not in use. If
the item cannot be reached, contact Matrix Fitness or authorized dealers.
Never operate the Rower if it is not working properly, or if it has been damaged or immersed in water. Return it to Matrix Fitness or authorized
dealers for examination and repair.
Keep hands and feet clear at all times from moving parts to avoid injury.
Do not reach into, or underneath the unit, and do not tip the unit on its side during operation.
Do not use the Matrix Rower outdoors, near swimming pools or in areas of high humidity.
Do not operate where aerosol (spray) products are being used or when oxygen is being administered.
Do not remove the side shrouds. Service should only be done by an authorized service technician.
Close supervision is necessary when used near children, invalids or disabled people.
When the Rower is in use, young children and pets should be kept at least three meters / ten feet away.
Assemble and operate the unit on a solid, level surface. Place the unit at least one meter / three feet of clearance from any obstructions, including
walls and furniture.
Do not wear any clothing that might catch on any moving parts of this Rower.
Place handle in hooks before letting go.
Do not let handle fly into console bracket.
Perform proper maintenance as described in the Maintenance section of this manual.
CAUTION: If you experience chest pain, nausea, dizziness or shortness of breath, STOP exercising immediately and consult a physician
before continuing.
CAUTION: Any changes or modifications to this equipment could void the product warranty.

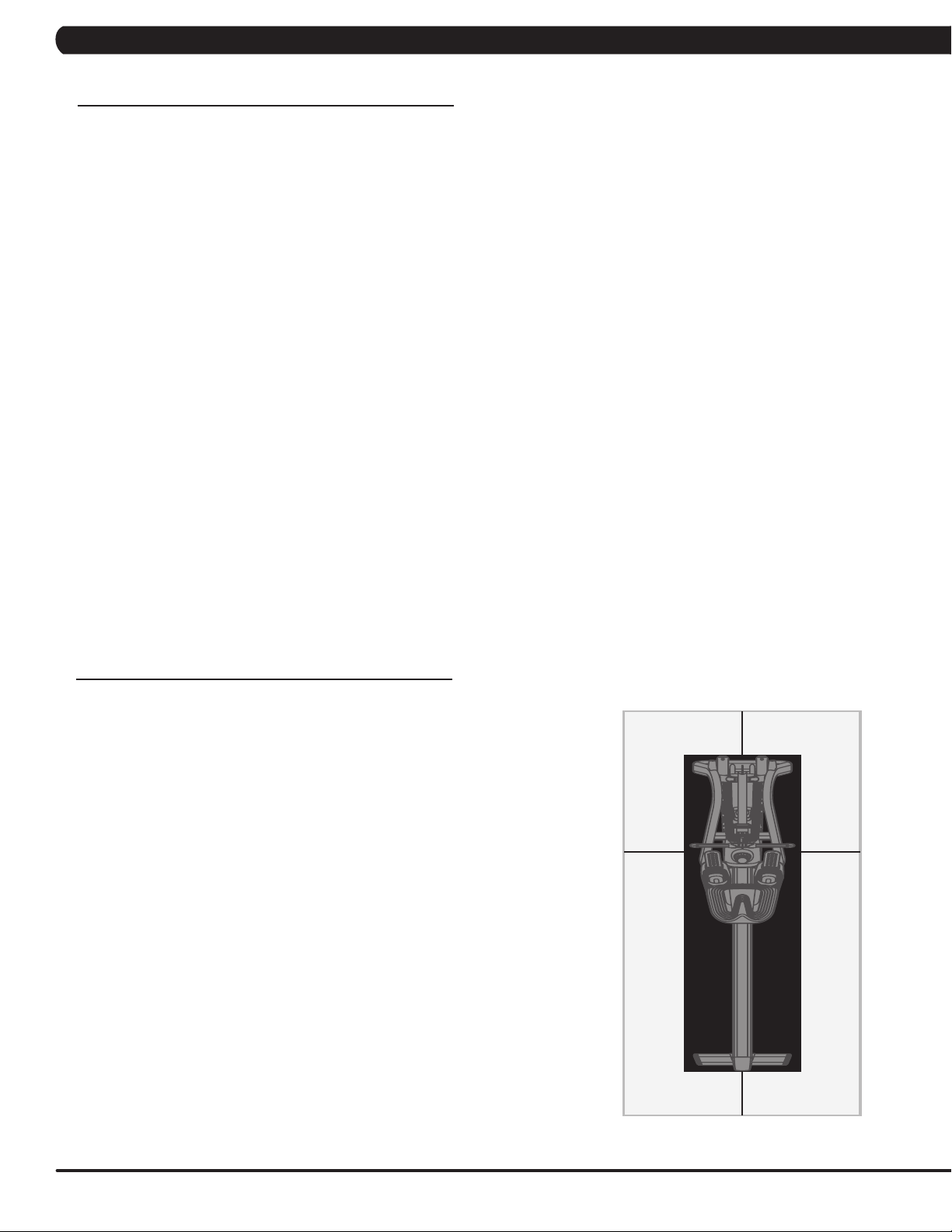

2.2 LOCATING THE UNIT
0.6 m
2 ft
0.6 m2 ft
0.6 m
2 ft
LOCATION OF THE UNIT
Place the equipment on a level and stable surface away from direct sunlight. The intense
UV light can cause discoloration on the plastics. Locate your equipment in an area with
cool temperatures and low humidity. Ensure a minimum clearance width of 0.6 meters (24”)
for access to and passage around MATRIX equipment. Please note, 0.91 meters (36”) is
the ADA recommended clearance width for individuals in wheelchairs. Do not place the
equipment in any area that will block any vent or air openings. The equipment should not be
located in a garage, covered patio, near water or outdoors.
Store the vertical unit on a solid and level surface.
0.6 m2 ft

3
CHAPTER 2: IMPORTANT SAFETY INSTRUCTIONS
2.3 BEFORE GETTING STARTED
GETTING STARTED
Read the Owner’s Manual before setting up the Matrix Rower. Place the unit where it will be used before beginning the setup procedure.
CHOOSING A LOCATION
The site should be well-lit and well-ventilated. Place the Rower on a structurally solid at surface and kept a few feet from the wall or any equipment.
If the site has a heavy plush carpet, to protect the carpeting and machinery, you should place a rigid plastic base under the unit.
Please do not place the Rower in an area of high humidity, such as the vicinity of a steam room, indoor pool, or sauna. Exposure to intensive water
vapour or chlorine could adversely affect the electronics, as well as other parts of the machine.
BEFORE YOUR FIRST ROW
Consult your physician. Be sure that it is not dangerous for you to undertake a strenuous exercise program.
Improper technique such as extreme layback or jumping off the seat can result in injury.
Start each workout with several minutes of easy rowing for a warm-up.
Start your exercise program gradually. Row no more than 5 minutes the rst day to let your body adjust to the new exercise.
Gradually increase your rowing time and intensity over the rst two weeks. Do not row at full power until you are
comfortable with the technique and have rowed for at least a week. Like any physical activity, if you increase the volume
and intensity too rapidly, fail to warm up properly, or use poor technique, you will increase the risk of injury.
The best resistance setting for a great cardiovascular workout is in the range of 3-5. Rowing with the resistance setting too
high can be detrimental to your training program because it may reduce your output and increase your risk of injury.
Aim for a stroke rate (spm) of between 24 and 30 spm (strokes per minute).

4
3.1 CARE AND MAINTENANCE INSTRUCTION
DO NOT use any equipment that is damaged and or has worn or broken parts. Use only replacement parts supplied by your country’s local
MATRIX dealer.
MAINTAIN LABELS AND NAMEPLATES: Do not remove labels for any reason. They contain important information. If unreadable or missing,
contact your MATRIX dealer for a replacement.
MAINTAIN ALL EQUIPMENT: Preventative maintenance is the key to smooth operating equipment as well as keeping your liability to a
minimum. Equipment needs to be inspected at regular intervals.
Ensure that any person(s) making adjustments or performing maintenance or repair of any kind is qualified to do so. MATRIX dealers will
provide service and maintenance training at our corporate facility upon request.
DAILY MAINTENANCE ITEMS
Look and listen for loose fasteners, unusual noises, and any other indications that the equipment may be in need of service. If you notice any of
these, obtain service.
Matrix Fitness recommends the Rower be cleaned before and after each workout. The following daily maintenance tips will keep your unit
operating at peak performance:
Use a damp, soft cloth with water or mild liquid detergent to clean all exposed surfaces. DO NOT use ammonia, chlorine, or acid-based
cleaners.
Keep the display console free of fingerprints and salt build-up caused by sweat.
Frequently vacuum the floor underneath the unit to prevent the accumulation of dust and dirt, which can affect the smooth operation of the unit.
Check for dust inside flywheel with flashlight.
QUARTERLY MAINTENANCE ITEM
Inspect rope for damage, wear, frays and inspect crimp under rubber collar, replace if suspect.
CHAPTER 3: PREVENTATIVE MAINTENANCE

5
CHAPTER 4: CONSOLE OVERLAY AND WORKOUT DESCRIPTION

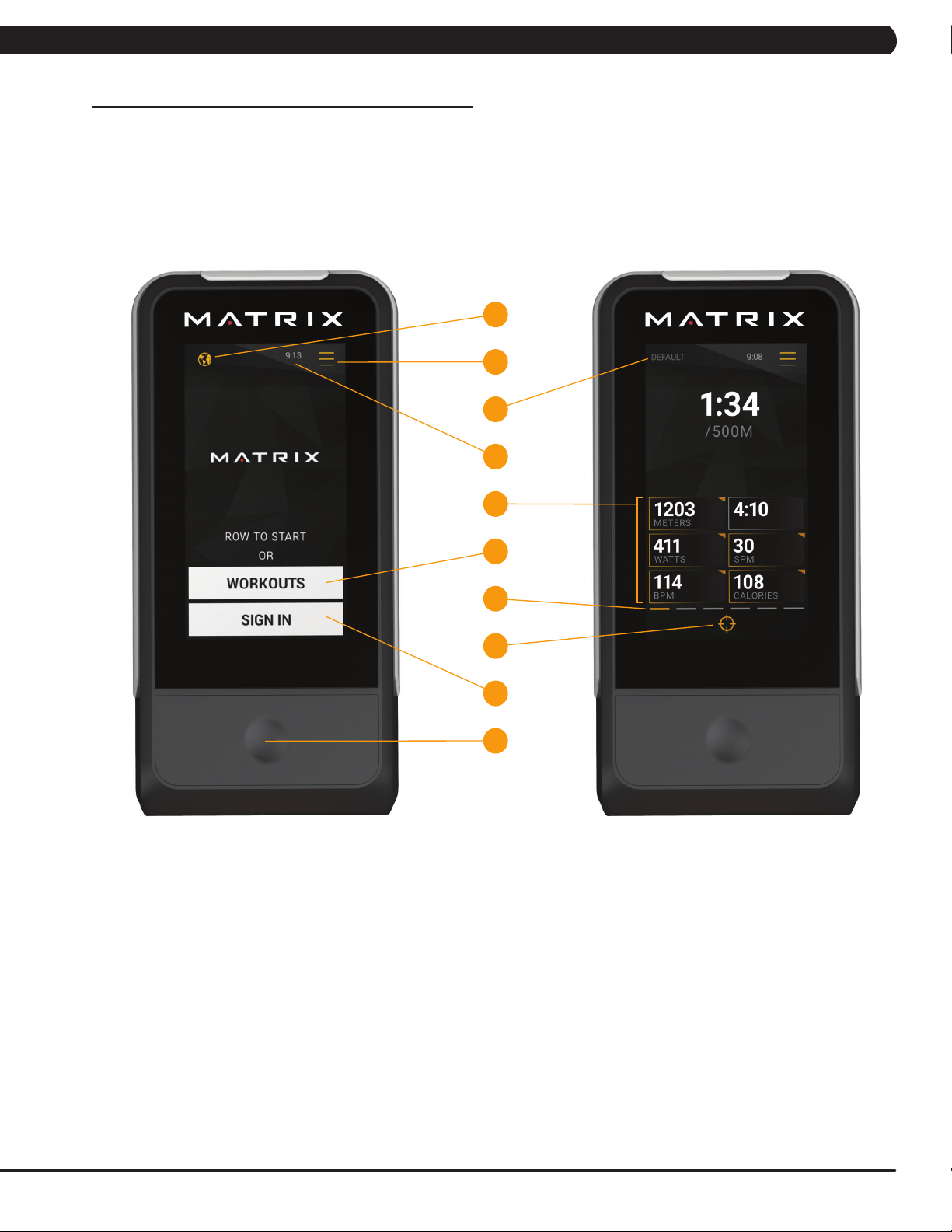

4.1 CONSOLE DESCRIPTION
HOME SCREEN DEFAULT SCREEN (500M SPLIT)
A
I
E
H
B
F
J
C
G
D

6
CHAPTER 4: CONSOLE OVERLAY AND WORKOUT DESCRIPTION
4.1 CONSOLE DESCRIPTION - CONTINUED
The RXP has a fully integrated touch screen display. All information required for workouts is explained on screen. Exploration of
the interface is highly encouraged.
A) POWER BUTTON: Press to wake display/power on. Press and hold for 3 seconds to put display to sleep. Press and hold for
10 seconds to power off.
B) LANGUAGE SELECTION
C) CLOCK
D) MENU: Touch to access various functions before or during your workout.
E) WORKOUTS: Touch to access a variety of target training options or preset workouts, fitness tests and drag ratio.
F) SIGN IN: Touch to sign in using your XID (RXP-WF, RXP-WFRF).
G) CURRENT SCREEN: Displays what screen you are currently viewing.
H) FEEDBACK WINDOWS: Displays Time, SPM, Watts, Heart Rate (BPM), Distance or Calories. Feedback varies based on
current screen.
I) CHANGE SCREEN: Swipe display left or right to cycle between different run screen options. Or select a metric with an
orange triangle to go straight to a desired screen.
J) TARGET TRAINING SCREEN: Press to return to target training screen when a target training option has been set. Press the
target icon to set a specific training goal and activate the LED color wrap.
• PERSONAL INFO: Enter weight, age and gender to ensure caloric data and the power-to-weight ratio is more accurate.
• BATTERY: Battery level is shown at the bottom of the MENU screen. Rowing can wake/power the console on. If the RXP is
being used in the self-powered mode and the battery continues to deplete, please plug in the Rower RXP.

7
FIRST TIME SETUP SCREENS
CHAPTER 4: CONSOLE OVERLAY AND WORKOUT DESCRIPTION
4.1 CONSOLE DESCRIPTION - CONTINUED
Note:
1. The Network Setup / Features only show including Wi-Fi board console.
2. The console serial number writes from barcode: CFC26ODMJHTXXXXXXXXXXX.

8
CHAPTER 5: MANAGER MODE

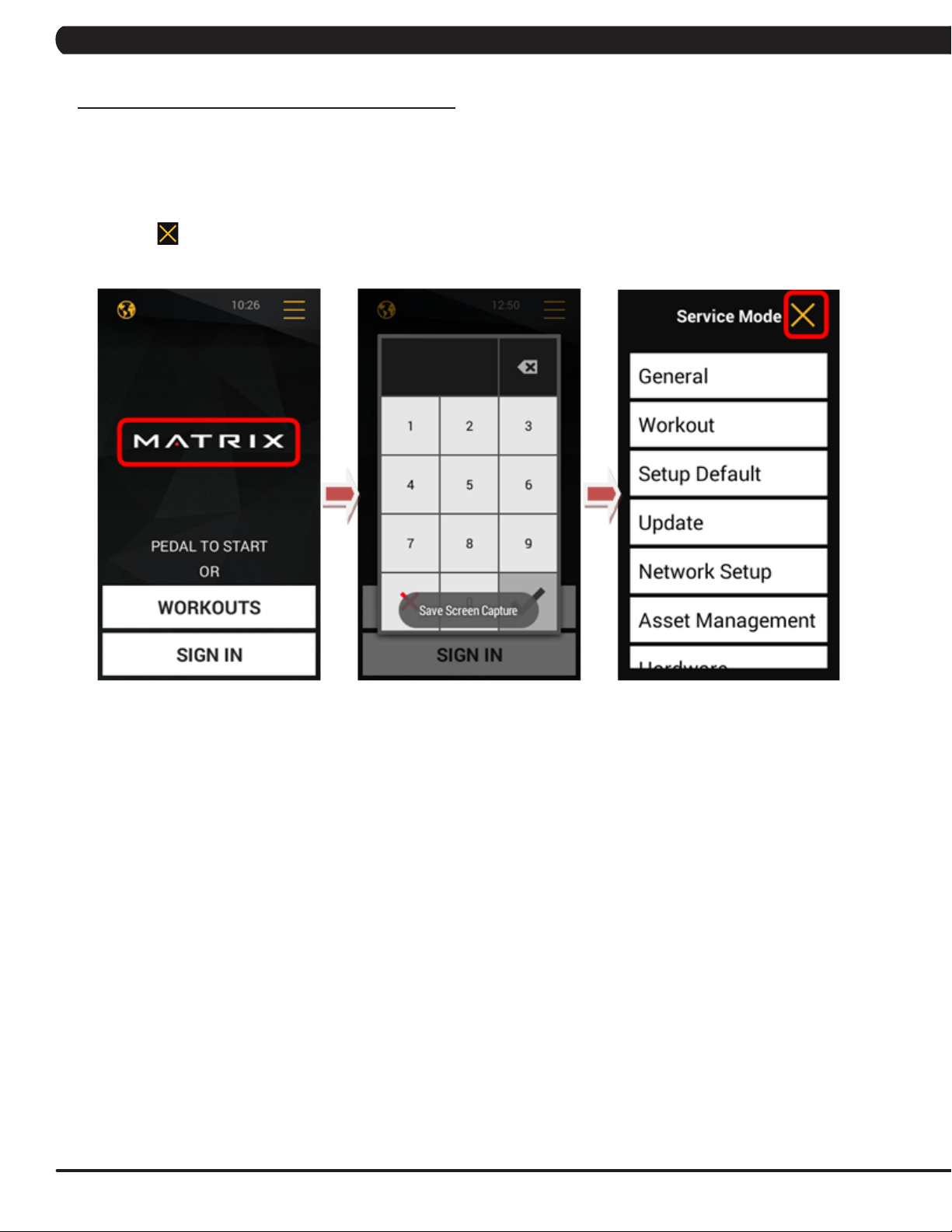

5.1 USING MANAGER MODE
1) To enter Manager Mode, hold the screen "MATRIX" for 5's, when the display will show the keyboard, press "ENTER, 1, 0, 0, 1, ENTER" on
the number keypad and Manager Mode will appear on the display.
2) Manager Mode is divided into 9 tabs, located on the left side of the screen. They are General, Workout, Setup Defaults, Update, Network
Setup, Asset Management, Hardware , Statistic and Service.
3) Choose a tab by touching the screen over the desired tab.
4) Each of the tabs has options that will appear once you have chosen that particular tab.
5) Press the " " to exit Manager Mode.

9
CHAPTER 5: MANAGER MODE
5.2 MANAGER MODE OVERVIEW
Category Name Models Default Range Units Comments
General
Accumulated
Distance ROWER 0 -
(TAEHU)
Miles/Km Read Only
(CS)Floors
Accumulated Time ROWER 0 - Hours Read Only
Date Format ROWER MM/DD/YYYY MM/DD/YYYY, DD/MM/
YYYY, YYYY/MM/DD
Date Format selected here is
displayed everywhere a date is
displayed on the console.
Date ROWER RTC Date 2000-2099/01 - Values are scrollable
-12/1-31
Time Format ROWER 12 Hour 12 Hour, 24 Hour - -
Time Zone ROWER Central Time - - -
Time ROWER RTC Time 00-23:00-59:00-59 12hr/24hr Values are scrollable
Screen Timeout ROWER 30 15, 30, 60, 90, 120 Seconds -
Software Version ROWER - GUI Read Only
Firmware Versions ROWER - OS, D52, LCB, and MCU - Read Only
Language Select ROWER English (U.S.) See Languages Table - -
Demo Mode ROWER No Yes/No - -
DAPI Environment ROWER Production Dev, QA, Staging,
Production -
Indicates what server the console
connects to for web connected ser-
vices (workout tracking, web apps).
Restore to Factory
Defaults ROWER - - -
If the Restore to Factory Defaults
option is selected, user is brought to
the language select page of the First
Time Setup.
Workouts
Pause Time ROWER 3 1-5 Minutes -
Target Training
Tolerance SPM ROWER 10 1, 2, 3, 4, 5, 6, 7, 8, 9,10 +/-
Field value determines what RPM
values will be in range of the desired
Target in Matrix Target Training
workouts that use RPM as their
goal.
Target Training
Tolerance
Distance
ROWER 10 1, 2, 3, 4, 5, 6, 7, 8, 9,10 %
Field value determines what
Distance values will be in range of
the desired Target in Matrix Target
Training workouts that use Distance
as their goal.
Target Training
Tolerance
Calories
ROWER 10 1, 2, 3, 4, 5, 6, 7, 8, 9,10 %
Field value determines what
Distance values will be in range of
the desired Target in Matrix Target
Training workouts that use Distance
as their goal
Setup
Default
Age ROWER 30 14-99 Years -
Weight ROWER 150lbs/65kg 80-350lbs/35-159kg lbs/kg -
Gender ROWER Female Male/Female - -
Default Workout
Time ROWER 30 5~120 Minutes For Max see workout category
Default Workout
Distance ROWER 100mile/16KM 1~1000(Mile / KM) Mile / KM For Max see workout category
Default Workout
Calories ROWER 300 50~2000 Calories For Max see workout category

10
5.2 MANAGER MODE OVERVIEW -CONTINUED
CHAPTER 5: MANAGER MODE
Category Name Models Default Range Units Comments
Update
Automatic
Update ROWER Check Check/No Check - Check for and install updates on an automatic schedule.
Automatic
Update
Time
ROWER
If automatic update box above is
checked, the console will look for an up-
date via RSCU at the time dened here
Check For
Updates ROWER Check For Updates Check For Updates/Install -
Check DAPI server for updates. If up-
dates are found they will be listed under
Available Updates and the button will
display Install.
Update
From USB ROWER Update From USB Update From USB/Install -
Check a connected USB drive for up-
dates. If updates are found they will be
listed under Available Updates and the
button will display Install.
Network
Setup
MAC
Address ROWER Hardware Specied
0.0.0.0.0.0 -
255.255.255.255.255.255
Byte.Byte.
Byte. Byte.
Byte.Byte
Mac address is polled from the installed
hardware.
IP Address ROWER Hardware
Specied
0.0.0.0.0.0 -
255.255.255.255.255.255
Byte.Byte.
Byte. Byte.
Byte.Byte
Mac address is polled from the installed
hardware.
Wi- Setup ROWER - - - Opens Wi setup.
Asset
Manage-
ment
Facility ID ROWER 0 0-10000 - -
Serial
Number -
Console
ROWER
C(for Console)
+ Prex(Type)
+ Derivative
Model(A-Z, AA,
etc.) +YYM-
MXXXXX
- -
The software will only be able to provide
the ‘C’ and prex based on the detected
console, the user must enter the rest.
This is then validated by DAPI.
Serial
Number -
Frame
ROWER
F (for Frame) +
Prex (Type)+
Derivative
Model (A-Z,
AA,etc.) +
YYMMXXXXX
- -
The software will only be able to provide
the ‘C’ and prex based on the detected
console, the user must enter the rest.
This is then validated by DAPI.
Workout
Tracking ROWER Checked Can be checked OR not checked -If checked, workout data is sent to Work- out Tracking network.
Asset Man-
agement ROWER Checked Can be checked OR not checked -If checked, workout data is sent to Asset Management.
Show Cus-
tom Logo ROWER Checked Can be checked OR not checked -
Might need to run a workout rst/wait 5
minutes for logo to appear.
-If checked and a Custom Logo has
NOT been uploaded to Asset Manage-
ment for the Facility ID the console is set
at, the MATRIX logo will be displayed on
the welcome screen.

11
Category Name Models Default Range Units Comments
Hardware
RFID Tag Type ROWER 100 0~100 -
Only activates if RFID hardware is dtected
Any tags in range of RFID antenna will be
read and tag type, if supported, will display
RFID UID ROWER - - -
Only activates if RFID hardware is de-
tected
-UID, is tag type is supported, will be
displayed in decimal
Disassociate RFID
Tag ROWER - - -
-Popup should launch instructing user to
swipe tag they wish to disassociate
-Only activates if RFID hardware is de-
tected
Backlight
Brightness ROWER 100 0-100 - Set the brightness of the screen.
LED Brightness ROWER 6 0~8 -
User can press on the eld to change the
brightness
-Closer to 8, brighter the Target Training
LEDs
-Closer to 0, dimmer the Target Training
LEDs
Screen Color Test ROWER Write Test
Pattern
White/Red/Green/
Blue/ Black /All -
Pressing the Screen Color Test will display
the color chosen above on the entire
console.
Suspend Time ROWER 1 hour Max -
Slider: Default Value: 1 Hour | Min Value:
10 Min | Max Value: Innite -Puts console
into an off/sleep mode if no activity for
value selected. -Console boot up time from
us pend till it’s fully operational is approx 7
seconds.
ANT+ Setting ROWER not
checked
Can be checked or
not checked -
If enabled, sends Ant+ prole (what perfor-
mance IQ and Fitmetrix) to receiver so that
it can displayed
Prole Type ROWER FIT FIT / Bike Power Denes the data that is being sent to the
Group Display
Broadcast Heart
Rate ROWER not checked
Can be checked or
not checked --If enabled, will broadcast Heart Rate to group display.
Use Custom
Device ROWER not checked
Can be checked or
not checked -If enabled, will display custom device id. -Based on Ant+ ID that is being sent.
Device ID ROWER - - -
If Use Custom Device is enabled, this
becomes an editable eld where user can
dene Device ID.
ANT+ Heart Rate
Promixity Search ROWER off off / on - Proximity setting is to lter HR monitors by signal strength
LED Test ROWER - - - Pressing the button opens up the LED test
screen.
LCB Data ROWER - - - Displays raw data from LCB
Statistics ROWER
Service
Create Service
Entry ROWER - - -
Pressing button starts the process of creat-
ing a new entry. The rst pop up is where
the user selects which type of service was
done.
Delete Service
Entry ROWER - - - Pressing delete button deletes that service entry.
CHAPTER 5: MANAGER MODE
5.2 MANAGER MODE OVERVIEW -CONTINUED

12
CHAPTER 6: SERVICE MODE
6.1 USING SERVICE MODE
1) To enter Service Mode, hold the screen "MATRIX" for 5's, when the display will show the keyboard, press "ENTER, 2, 0, 0, 1, ENTER" on
the number keypad and Manager Mode will appear on the display.
2) Service Mode is divided into 10 tabs, located on the left side of the screen. They are General, Workout, Setup Defaults, Update, Network
Setup, Asset Management, Hardware, Statistics, Service and Experimental.
3) Choose a tab by touching the screen over the desired tab.
4) Each of the tabs has options that will appear once you have chosen that particular tab.
5) Press the " " to exit Manager Mode.

13
CHAPTER 6: SERVICE MODE
6.2 SERVICE MODE OVERVIEW
Category Name Models Default Range Units Comments
General
Accumulated
Distance ROWER 0 -
(TAEHU)
Miles/Km Read Only
(CS)Floors
Accumulated Time ROWER 0 - Hours Read Only
Date Format ROWER MM/DD/YYYY MM/DD/YYYY, DD/MM/
YYYY, YYYY/MM/DD
Date Format selected here is
displayed everywhere a date is
displayed on the console.
Date ROWER RTC Date 2000-2099/01 - Values are scrollable
-12/1-31
Time Format ROWER 12 Hour 12 Hour, 24 Hour - -
Time Zone ROWER Central Time - - -
Time ROWER RTC Time 00-23:00-59:00-59 12hr/24hr Values are scrollable
Screen Timeout ROWER 30 15, 30, 60, 90, 120 Seconds -
Software Version ROWER - GUI Read Only
Firmware Versions ROWER - OS, D52, LCB, and MCU - Read Only
Language Select ROWER English (U.S.) See Languages Table - -
Demo Mode ROWER No Yes/No - -
DAPI Environment ROWER Production Dev, QA, Staging,
Production -
Indicates what server the console
connects to for web connected ser-
vices (workout tracking, web apps).
Restore to Factory
Defaults ROWER - - -
If the Restore to Factory Defaults
option is selected, user is brought to
the language select page of the First
Time Setup.
Workouts
Pause Time ROWER 3 1-5 Minutes -
Target Training
Tolerance SPM ROWER 10 1, 2, 3, 4, 5, 6, 7, 8, 9,10 +/-
Field value determines what RPM
values will be in range of the desired
Target in Matrix Target Training
workouts that use RPM as their
goal.
Target Training
Tolerance
Distance
ROWER 10 1, 2, 3, 4, 5, 6, 7, 8, 9,10 %
Field value determines what
Distance values will be in range of
the desired Target in Matrix Target
Training workouts that use Distance
as their goal.
Target Training
Tolerance
Calories
ROWER 10 1, 2, 3, 4, 5, 6, 7, 8, 9,10 %
Field value determines what Calorie
values will be in range of the desired
Target in Matrix Target Training
workouts that use Calories as their
goal.
Setup
Default
Age ROWER 30 14-99 Years -
Weight ROWER 150lbs/65kg 80-350lbs/35-159kg lbs/kg -
Gender ROWER Female Male/Female - -
Default Workout
Time ROWER 30 5~120 Minutes For Max see workout category
Default Workout
Distance ROWER 100mile/16KM 1~1000(Mile / KM) Mile / KM For Max see workout category
Default Workout
Calories ROWER 300 50~2000 Calories For Max see workout category

14
CHAPTER 6: SERVICE MODE
6.2 SERVICE MODE OVERVIEW - CONTINUED
Category Name Models Default Range Units Comments
Update
Automatic
Update ROWER Check Check/No Check - Check for and install updates on an automatic schedule.
Automatic
Update
Time
ROWER - - -
If automatic update box above is
checked, the console will look for an up-
date via RSCU at the time dened here.
Check For
Updates ROWER Check For Updates Check For Updates/Install -
Check DAPI server for updates. If up-
dates are found they will be listed under
Available Updates and the button will
display Install.
Update
From USB ROWER Update From USB Update From USB/Install -
Check a connected USB drive for up-
dates. If updates are found they will be
listed under Available Updates and the
button will display Install.
Network
Setup
MAC
Address ROWER Hardware Specied
0.0.0.0.0.0 -
255.255.255.255.255.255
Byte.Byte.
Byte. Byte.
Byte.Byte
Mac address is polled from the installed
hardware.
IP Address ROWER Hardware
Specied
0.0.0.0.0.0 -
255.255.255.255.255.255
Byte.Byte.
Byte. Byte.
Byte.Byte
Mac address is polled from the installed
hardware.
Wi-Fi
Setup ROWER - - - Opens Wi setup.
Asset
Manage-
ment
Facility ID ROWER 0 0-10000 - -
Serial
Number -
Console
ROWER
C(for Console)
+ Prex(Type)
+ Derivative
Model(A-Z, AA,
etc.) +YYM-
MXXXXX
- -
The software will only be able to provide
the ‘C’ and prex based on the detected
console, the user must enter the rest.
This is then validated by DAPI.
Serial
Number -
Frame
ROWER
F (for Frame) +
Prex (Type)+
Derivative
Model (A-Z,
AA,etc.) +
YYMMXXXXX
- -
The software will only be able to provide
the ‘C’ and prex based on the detected
console, the user must enter the rest.
This is then validated by DAPI.
Workout
Tracking ROWER Checked Can be checked OR not checked -If checked, workout data is sent to Work- out Tracking network.
Asset Man-
agement ROWER Checked Can be checked OR not checked -If checked, workout data is sent to Asset Management.
Show Cus-
tom Logo ROWER Checked Can be checked OR not checked -
Might need to run a workout rst/wait 5
minutes for logo to appear.
-If checked and a Custom Logo has
NOT been uploaded to Asset Manage-
ment for the Facility ID the console is set
at, the MATRIX logo will be displayed on
the welcome screen.
Experi-
mental
Enable
Persistent
Logs
ROWER
The settings on this page are used to
manage experimental features and
advanced logging. These settings can
frequently change and are used for
testing and debugging new features.
Enabling any of these options may affect
system stability and potentially expose
the user's personal information.
Enable
Data Col-
lection
ROWER

15
CHAPTER 6: SERVICE MODE
6.2 SERVICE MODE OVERVIEW - CONTINUED
Category Name Models Default Range Units Comments
Hardware
RFID Tag Type ROWER 100 0~100
Only activates if RFID hardware is dtected
Any tags in range of RFID antenna will be
read and tag type, if supported, will display
RFID UID ROWER
Only activates if RFID hardware is de-
tected
-UID, is tag type is supported, will be
displayed in decimal
Disassociate RFID
Tag ROWER
-Popup should launch instructing user to
swipe tag they wish to disassociate
-Only activates if RFID hardware is de-
tected
Backlight
Brightness ROWER 100 0-100 - Set the brightness of the screen.
LED Brightness ROWER 6 0~8
User can press on the eld to change the
brightness
-Closer to 8, brighter the Target Training
LEDs
-Closer to 0, dimmer the Target Training
LEDs
Screen Color Test ROWER Write Test
Pattern
White/Red/Green/
Blue/ Black /All -
Pressing the Screen Color Test will display
the color chosen above on the entire
console.
Suspend Time ROWER 1 hour Max -
-Slider: Default Value: 1 Hour | Min Value:
10 Min | Max Value: Innite
-Puts console into an off/sleep mode if no
activity for value selected. -Console boot
up time from us pend till it’s fully opera-
tional is approx 7 seconds.
ANT+ Setting ROWER not
checked
can be checked or
not checked -
If enabled, sends Ant+ prole (what perfor-
mance IQ and Fitmetrix) to receiver so that
it can displayed
Prole Type ROWER FIT FIT / Bike Power -
If enabled, sends Ant+ prole (what perfor-
mance IQ and Fitmetrix) to receiver so that
it can displayed
Broadcast Heart
Rate ROWER not checked
can be checked or
not checked --If enabled, will broadcast Heart Rate to group display.
Use Custom
Device ROWER not checked
can be checked or
not checked - If enabled, will display custom device id.
Device ID ROWER - - -
If Use Custom Device is enabled, this
becomes an editable eld where user can
dene Device ID.
ANT+ Heart Rate
Proximity Search ROWER off off / on Proximity setting is to lter HR monitors by signal strength
LED Test ROWER - - - Pressing the button opens up the LED test
screen.
LCB Data ROWER - - - Displays raw data from LCB
Statistics
Service
Create Service
Entry ROWER - - -
Pressing button starts the process of creat-
ing a new entry. The rst pop up is where
the user selects which type of service was
done.
Delete Service
Entry ROWER - - - Pressing delete button deletes that service entry.

16
CHAPTER 7: ENGINEERING MODE
7.1 USING ENGINEERING MODE
1) To enter Engineering Mode, hold the screen "MATRIX" for 5's, when the display will show the keyboard, press "ENTER, 3, 0, 0, 1, ENTER"
on the number keypad and Manager Mode will appear on the display.
2) Engineering Mode is divided into 12 tabs, located on the left side of the screen. They are General, Workout, Setup Defaults, Update, Network
Setup, Asset Management, Hardware, Management, Statistics, Service, Errors and Experimental.
3) Choose a tab by touching the screen over the desired tab.
4) Each of the tabs has options that will appear once you have chosen that particular tab.
5) Press the " " to exit Manager Mode.

17
CHAPTER 7: ENGINEERING MODE
7.2 ENGINEERING MODE OVERVIEW
Category Name Models Default Range Units Comments
General
Accumulated
Distance ROWER 0 -
(TAEHU)
Miles/Km Read Only
(CS)Floors
Accumulated Time ROWER 0 - Hours Read Only
Date Format ROWER MM/DD/YYYY MM/DD/YYYY, DD/MM/
YYYY, YYYY/MM/DD
Date Format selected here is
displayed everywhere a date is
displayed on the console.
Date ROWER RTC Date 2000-2099/01 - Values are scrollable
-12/1-31
Time Format ROWER 12 Hour 12 Hour, 24 Hour - -
Time Zone ROWER Central Time - - -
Time ROWER RTC Time 00-23:00-59:00-59 12hr/24hr Values are scrollable
Screen Timeout ROWER 30 15, 30, 60, 90, 120 Seconds -
Software Version ROWER - GUI Read Only
Firmware Versions ROWER - OS, D52, LCB, and MCU - Read Only
Language Select ROWER English (U.S.) See Languages Table - -
Demo Mode ROWER No Yes/No - -
DAPI Environment ROWER Production Dev, QA, Staging,
Production -
Indicates what server the console
connects to for web connected ser-
vices (workout tracking, web apps).
Restore to Factory
Defaults ROWER - - -
If the Restore to Factory Defaults
option is selected, user is brought to
the language select page of the First
Time Setup.
Workouts
Pause Time ROWER 3 1-5 Minutes -
Target Training
Tolerance SPM ROWER 10 1, 2, 3, 4, 5, 6, 7, 8, 9,10 +/-
Field value determines what RPM
values will be in range of the desired
Target in Matrix Target Training
workouts that use RPM as their
goal.
Target Training
Tolerance
Distance
ROWER 10 1, 2, 3, 4, 5, 6, 7, 8, 9,10 %
Field value determines what
Distance values will be in range of
the desired Target in Matrix Target
Training workouts that use Distance
as their goal.
Target Training
Tolerance
Calories
ROWER 10 1, 2, 3, 4, 5, 6, 7, 8, 9,10 %
Field value determines what Calorie
values will be in range of the desired
Target in Matrix Target Training
workouts that use Calories as their
goal.
Setup
Default
Age ROWER 30 14-99 Years -
Weight ROWER 150lbs/65kg 80-350lbs/35-159kg lbs/kg -
Gender ROWER Female Male/Female - -
Default Workout
Time ROWER 30 5~120 Minutes For Max see workout category
Default Workout
Distance ROWER 100mile/16KM 1~1000(Mile / KM) Mile / KM For Max see workout category
Default Workout
Calories ROWER 300 50~2000 Calories For Max see workout category

18
CHAPTER 7: ENGINEERING MODE
7.2 ENGINEERING MODE OVERVIEW - CONTINUED
Category Name Models Default Range Units Comments
Update
Automatic
Update ROWER Check Check/No Check - Check for and install updates on an automatic schedule.
Automatic
Update
Time
ROWER - - -
If automatic update box above is
checked, the console will look for an up-
date via RSCU at the time dened here.
Check For
Updates ROWER Check For Updates Check For Updates/Install -
Check DAPI server for updates. If up-
dates are found they will be listed under
Available Updates and the button will
display Install.
Update
From USB ROWER Update From USB Update From USB/Install -
Check a connected USB drive for up-
dates. If updates are found they will be
listed under Available Updates and the
button will display Install.
Network
Setup
MAC
Address ROWER Hardware Specied
0.0.0.0.0.0 -
255.255.255.255.255.255
Byte.Byte.
Byte. Byte.
Byte.Byte
Mac address is polled from the installed
hardware.
IP Address ROWER Hardware
Specied
0.0.0.0.0.0 -
255.255.255.255.255.255
Byte.Byte.
Byte. Byte.
Byte.Byte
Mac address is polled from the installed
hardware.
Wi-Fi
Setup ROWER - - - Opens Wi setup.
Asset
Manage-
ment
Facility ID ROWER 0 0-10000 - -
Serial
Number -
Console
ROWER
C(for Console)
+ Prex(Type)
+ Derivative
Model(A-Z, AA,
etc.) +YYM-
MXXXXX
- -
The software will only be able to provide
the ‘C’ and prex based on the detected
console, the user must enter the rest.
This is then validated by DAPI.
Serial
Number -
Frame
ROWER
F (for Frame) +
Prex (Type)+
Derivative
Model (A-Z,
AA,etc.) +
YYMMXXXXX
- -
The software will only be able to provide
the ‘C’ and prex based on the detected
console, the user must enter the rest.
This is then validated by DAPI.
Workout
Tracking ROWER Checked Can be checked OR not checked -If checked, workout data is sent to Work- out Tracking network.
Asset Man-
agement ROWER Checked Can be checked OR not checked -If checked, workout data is sent to Asset Management.
Show Cus-
tom Logo ROWER Checked Can be checked OR not checked -
Might need to run a workout rst/wait 5
minutes for logo to appear.
-If checked and a Custom Logo has
NOT been uploaded to Asset Manage-
ment for the Facility ID the console is set
at, the MATRIX logo will be displayed on
the welcome screen.
Error CLear All ROWER - - - Pressing Clear All button clears all of the
Errors.
Experi-
mental
Enable
Persistent
Logs
ROWER - - -
The settings on this page are used to
manage experimental features and
advanced logging. These settings can
frequently change and are used for
testing and debugging new features.
Enabling any of these options may affect
system stability and potentially expose
the user's personal information.
Enable
Data Col-
lection
ROWER - - -
