OWNERS MANUAL
Versa Single-Station Strength
VS-S78 Glute

Table Of Contents
Safety, General Care & Maintenence .............................................3
Getting Started (Product Specifications)......................................5
Assembly Information ......................................................................6
Markings .............................................................................................7
Parts List ............................................................................................8
Installation & Assembly: Value Line
Part 1 Weight Stack & User Frame Assembly........................9
Part 2 Cable Assembly ..............................................................14
Part 3 Exercise Arm Assembly ................................................15
Part 4 Pad Assembly..................................................................17
Part 5 Plastics Assembly ..........................................................19
Installation & Assembly: Optional Kits
Part 6 Premium Kit Assembly ..................................................22

3
IMPORTANT SAFETY INSTRUCTIONS
IMPORTANT SAFETY INFORMATION
It is the sole responsibility of the purchaser of Matrix products to instruct all individuals, whether they are the end user or
supervising personnel on proper usage of the equipment.
It is recommended that all users of Matrix exercise equipment be informed of the following information prior to its use.
PROPER USAGE
Do not use any equipment in any way other than designed or intended by the manufacturer. It is imperative that Matrix
equipment be used properly to avoid injury.
Keep hands and feet clear at all times from moving parts to avoid injury.
CHECK FOR DAMAGED PARTS
1. DO NOT use any equipment that is damaged and or has worn or broken parts. Use only replacement parts supplied by your
country’s local Matrix dealer.
2. MAINTAIN LABELS AND NAMEPLATES: Do not remove labels for any reason. They contain important information.
If unreadable or missing, contact your Matrix dealer for a replacement.
3. SECURING EQUIPMENT: All equipment MUST be secured to the floor to stabilize and eliminate rocking or tipping over. This
must be performed by a licensed contractor.
4. MAINTAIN ALL EQUIPMENT: Preventative maintenance is the key to smooth operating equipment as well as keeping your
liability to a minimum. Equipment needs to be inspected at regular intervals.
5. Ensure that any person(s) making adjustments or performing maintenance or repair of any kind is qualified to do so.
Matrix dealers will provide service and maintenance training at our corporate facility upon request.

4
IMPORTANT SAFETY INSTRUCTIONS
WARNING: This product contains chemicals known to the State of
California to cause cancer and birth defects or other reproductive harm.
WARNING: SERIOUS INJURY CAN OCCUR ON THIS EQUIPMENT. FOLLOW
THESE PRECAUTIONS TO AVOID INJURY!
1. Never allow children on strength training equipment. Teenagers must be supervised at all times while using this
equipment.
2. All warnings and instructions should be read and proper instruction obtained prior to use.
3. Use this equipment for its intended purposes only.
4. NEVER allow resistance straps, ropes or other means be attached to this equipment, as this may result in serious
injury.
5. NEVER use this equipment for support during stretching, as this may result in serious injury.
6. Cease exercise if you feel faint or dizzy. Obtain a medical exam before beginning an exercise program.
7. Keep body, hair, clothing and accessories free and clear of all moving parts.
8. Inspect the machine before use. DO NOT use machine if it appears damaged or inoperable.
9. Check to see that the selector pin is completely inserted into the weight stack.
10. NEVER use this machine with the weight stack pinned in an elevated position.
11. NEVER use dumbells or other means to incrementally increase the weight resistance. Only use the means provided
directly from the manufacturer.
12. This equipment should only be used in supervised areas where access and control are regulated by the owner.

5

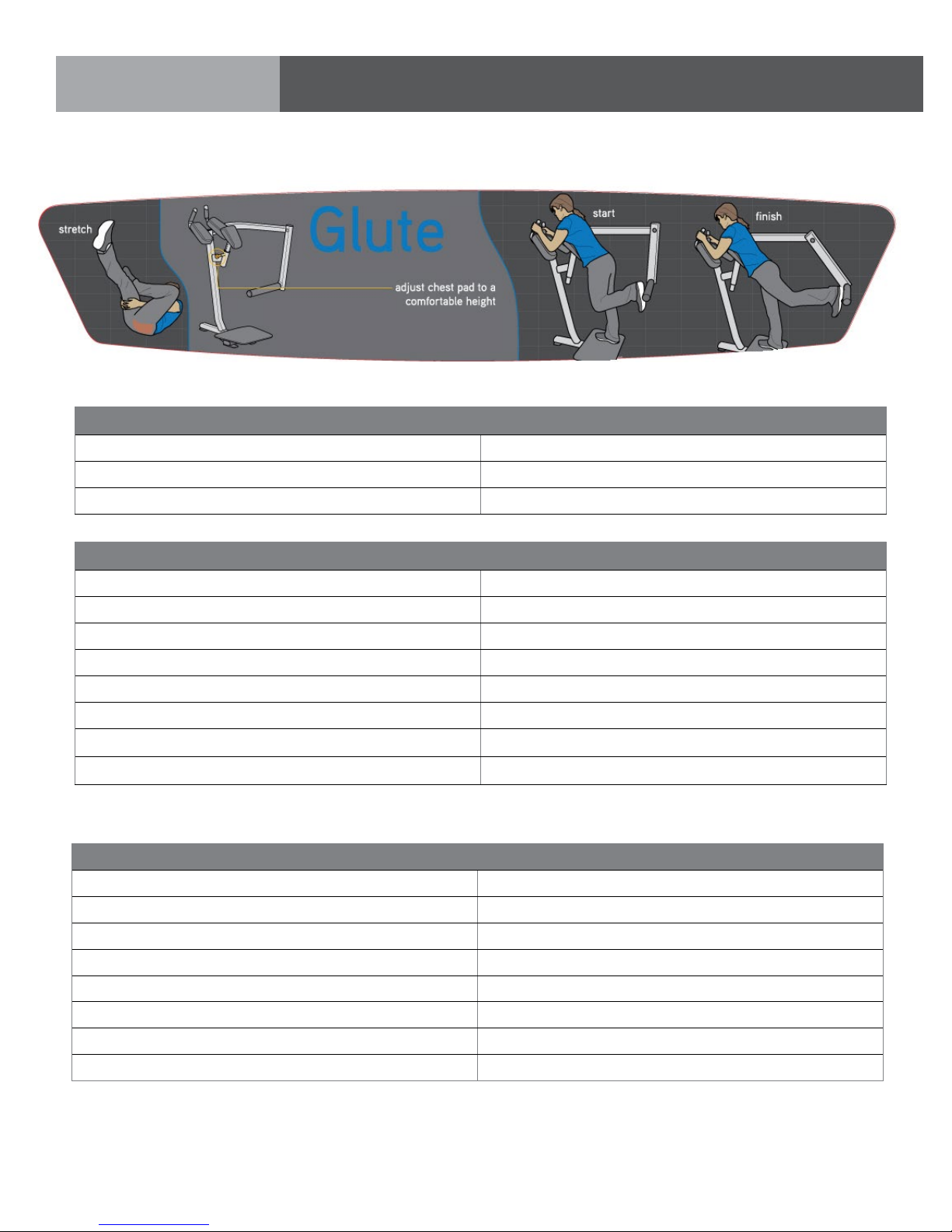

GETTING STARTED
TECH SPECS
Overall dimensions 53”L X 40”W X 66”H
Weight 450 lbs (205 kg)
Shipping weight 300 lbs (137 kg)
WARRANTY (Valid in USA only)
Frame (not coatings) 10 years
Structural parts 10 years
Weight stacks 5 years
Pulleys 5 years
Pivot bearings 5 years
Any items not specified 3 years
Labor (excluding upholstery/cables/grips) 3 years
Upholstery/cables/grips/springs 1 year
ACTION FREQUENCY
Clean Upholstery Daily
Inspect Cables Daily
Clean Guide Rods Monthly
Inspect Hardware Monthly
Inspect Frame Bi-Annually
Clean Machine As Needed
Clean Grips As Needed
Lubricate Guide Rods As Needed
Upholstery & Grips should be cleaned with a non-ammonia based cleaner or a mild soap and water. Guide rods should be
lubricated with Teflon based lubricant. Apply the lubricant to a cotton cloth and then apply up and down the guide rods.
MAINTENANCE CHECKLIST
EXERCISE PLACARD | PRODUCT SPECIFICATIONS | MAINTENANCE CHECKLIST
PRODUCT SPECIFICATIONS
EXERCISE PLACARD

6
ASSEMBLY
UNPACKING | TOOLS REQUIRED
UNPACKING
Thank you for purchasing a Matrix product. This machine is an EN957-1 and EN957-2 compliant Class S product. Your
Matrix product is inspected before it is packaged. It is shipped in multiple pieces to facilitate the compact packaging of the
machine. Prior to assembly, confirm all the components by matching them with the exploded diagrams. Carefully unpack
the unit from this box and dispose of the packing materials in accordance with your local laws.
CAUTION
The weight of the product is 300 lbs. (137 kg) not including the weight stack. The weight stack for this machine is 150
lbs. (68 kg). To avoid injury to yourself and prevent damage to the frame components, be sure to have proper assistance
removing the frame pieces from this box. Please be sure to install the equipment on a stable base, properly level the
machine and leave at least two feet of clearance to enter and exit the machine. Maximum user weight for this machine is
300 lbs.
TOOLS REQUIRED FOR ASSEMBLY
3MM L-Shaped Allen Wrench
4MM L-Shaped Allen Wrench
5MM L-Shaped Allen Wrench
6MM L-Shaped Allen Wrench
8MM L-Shaped Allen Wrench
10MM L-Shaped Allen Wrench
Phillips & Standard Screwdrivers
8MM Open-End Wrench
13MM Open-End Wrench
17MM Open-End Wrench.
19MM Open-End Wrench
Adjustable Wrench
Blue Locktite 242 must be used on all fasteners that are not assembled with Nylock Nuts

7

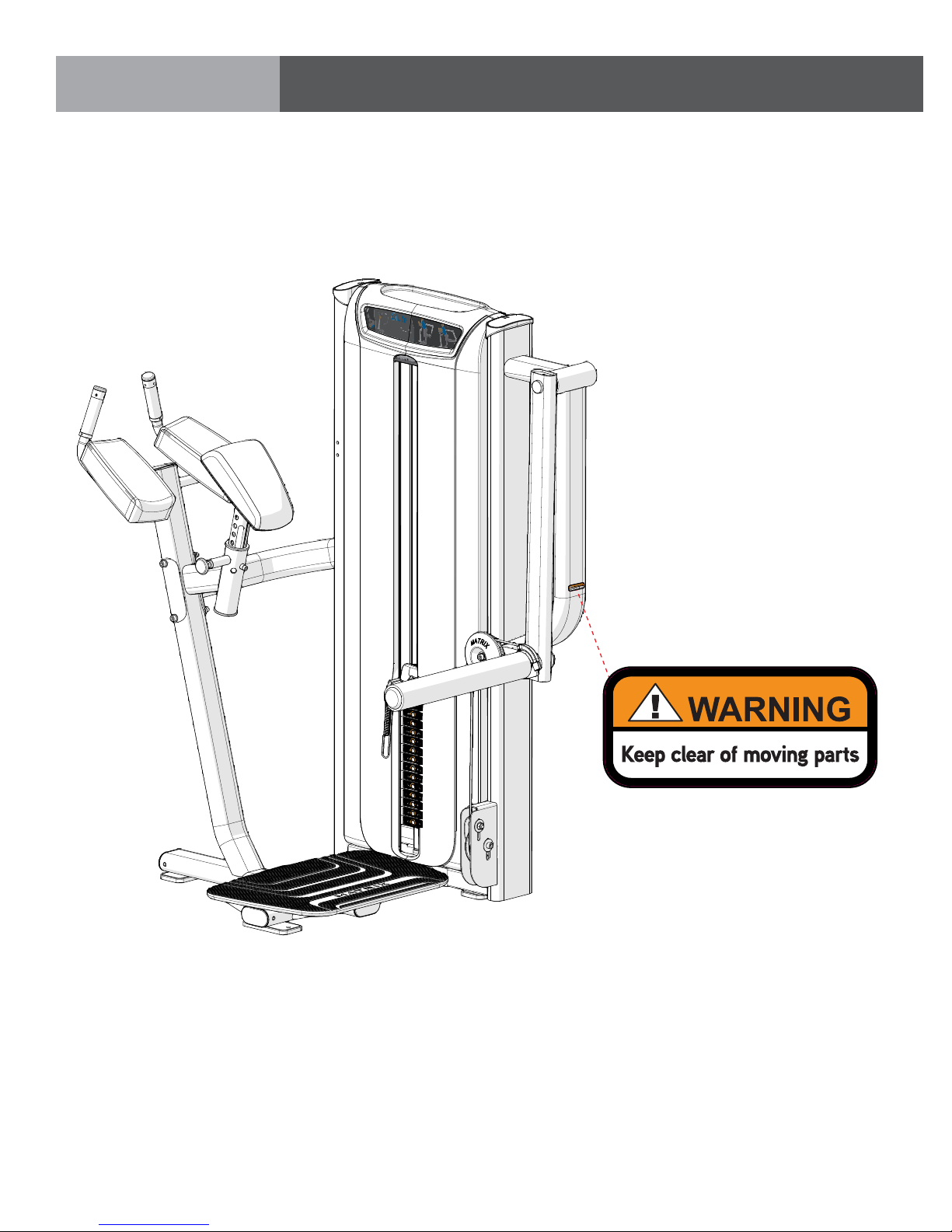

MARKINGS
WARNING LABEL LOCATIONS

8
Parts List
ID DESCRIPTION QTY
1 M10 X 125L Socket Head Cap Screw 4
2 M10 Flat Washer 25
3 Wide Cupped Flange 1
4 User Frame 1
5 M10 Nylock Nut 4
6 Upper Connecting Tube 1
7 M10 X 20L Socket Head Cap Screw 16
8 Outer Footpad Support Tube 1
9 Inner Footpad Support Tube 1
10 Weight Stack Frame 1
11 M8 X 20L Flathead Countersunk Screw 4
12 Foot Plate 1
13 M8 Flat Washer 6
14 M8 Nylock Nut 4
15 Rubber Footpad 1
16 Rear Stack Support 1
17 M10 Flat Washer (Small Diameter) 4
18 M8 X 25L Socket Head Cap Screw 6
19 M10 X 55L Socket Head Cap Screw 1
20 Pulley Cover 1
21 Pulley 1
22 Cable Keeper 1
23 Cable 1
24 Exercise Arm 1
25 Large M10 Flat Washer (Ø38 mm) 1
26 Black Pivot Cover 1
27 M10 X 25L Socket Head Cap Screw 5
28 Arm Pad 2
29 Chest Pad 1
30 Chest Pad Adjustment Tube 1

9
ID DESCRIPTION QTY
31 Front Shroud 1
32 Rear Shroud 1
33 Large M8 Flat Washer (Ø20 mm) 4
34 Top Cap 1
35 Top Cap Cover 2
PREMIUM KIT COMPONENTS
1P Wing 1
2P Rep Counter 1
3P Towel Hook 1
4P ASG Pull Grip 2
5P Premium Pullpin 1
Parts List

10
2
6
5
7
9
10
4
3
8
1
PART 1: USER FRAME ASSEMBLY
STEP 1 | USER FRAME INSTRUCTIONS & NOTES
ID DESCRIPTION QUANTITY
1 M10 X 125L SHC 4
2 M10 Flat Washer 14
3 Wide Cupped Flange 1
4 User Frame 1
5 M10 Nylock Nut 4
6 Upper Connecting Tube 1
7 M10 X 20L SHC 6
8 Outer Footpad Support 1
9 Inner Footpad Support 1
10 Weight Stack Frame 1
Install the user frame hardware as shown, but DO NOT FULLY TIGHTEN .
ASSEMBLY

11
12
11
14
13
Tip machine back to access lower hardware (items 13 & 14)
PART 1: USER FRAME ASSEMBLY
STEP 2 | FOOT PAD INSTRUCTIONS & NOTES
ID DESCRIPTION QUANTITY
11 M8 X 20L FHSC 4
12 Foot Plate 1
13 M8 Flat Washer 4
14 M8 Nylock Nut 4
ASSEMBLY
Torque M8 hardware to: 39 N-m/29 ft-lbs.
Install the user frame hardware as shown.
Ensure that the frame is level and that all floor pads contact the floor equally,
Torque all M10 Frame Hardware on page 10 to: 77 N-m/57 ft/lbs.

12

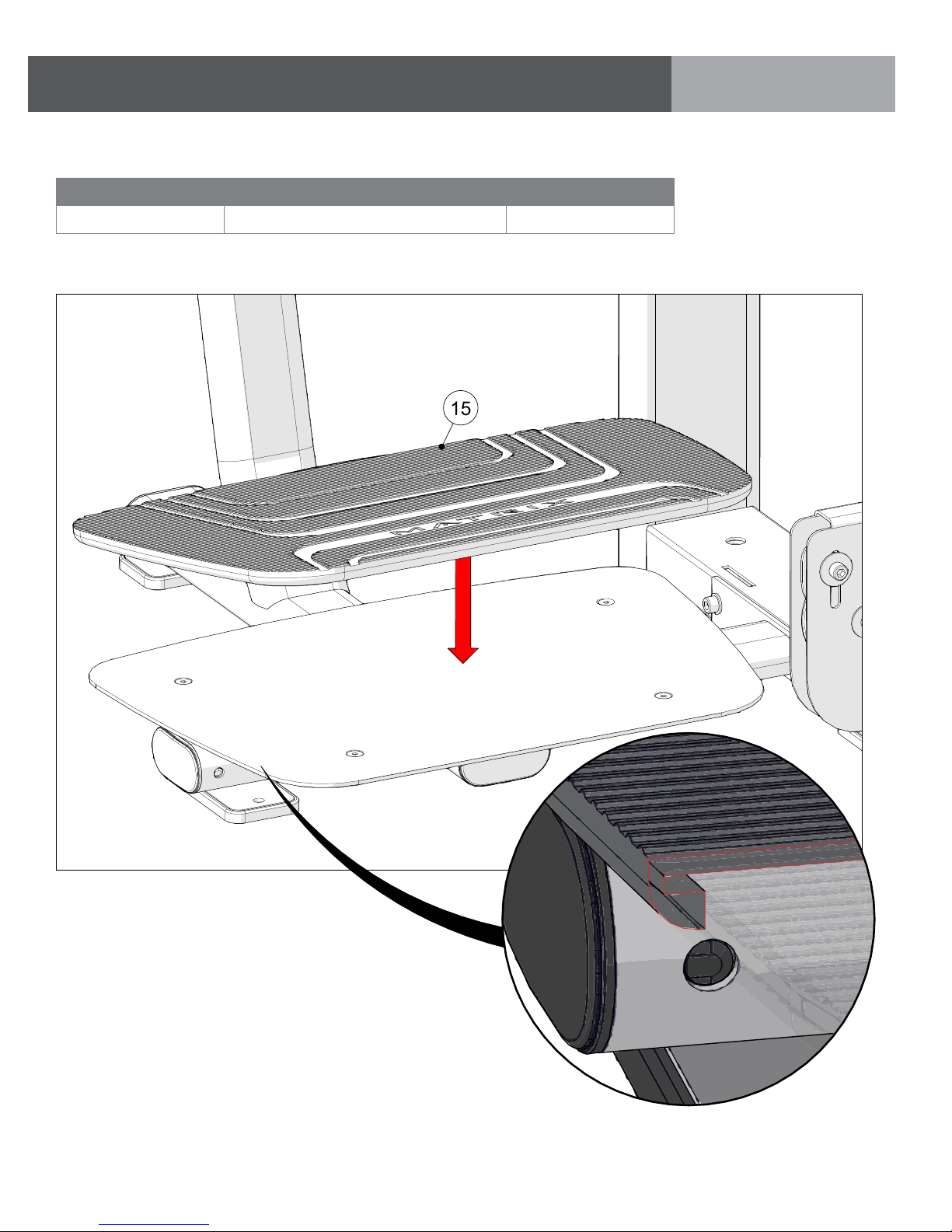

STEP 3 | RUBBER PAD INSTRUCTIONS & NOTES
ID DESCRIPTION QUANTITY
15 Rubber Footpad 1
ASSEMBLY
PART 1: USER FRAME ASSEMBLY
15
Wrap the entire lip of pad
around the metal foot plate
as shown in detail view.

13

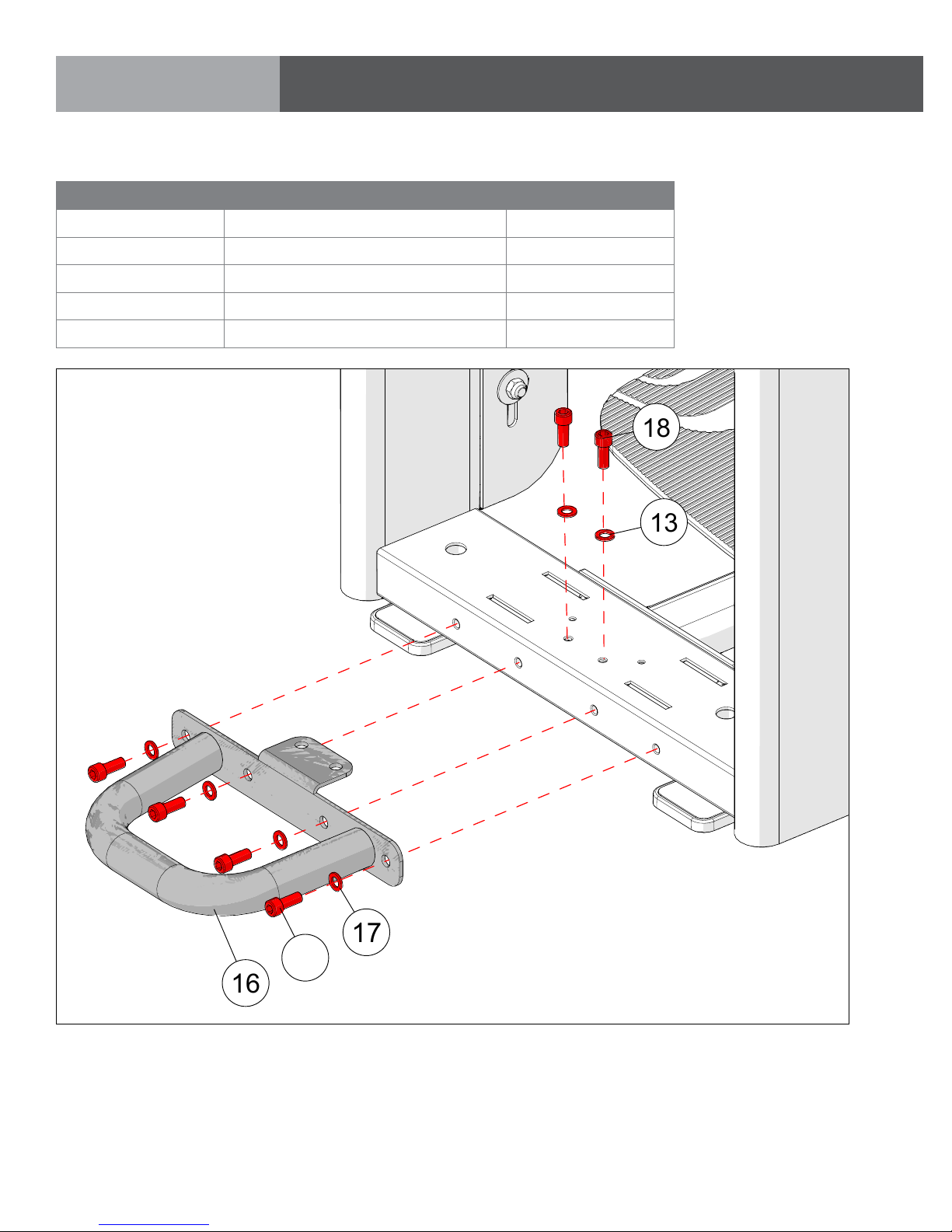

PART 1: STACK & USER FRAME ASSEMBLY
STEP 4 | WEIGHT STACK TO USER FRAME ASSEMBLY INSTRUCTIONS & NOTES
ID DESCRIPTION QUANTITY
7 M10 X 20L SHC 4
13 M8 Flat Washer 2
16 Rear Stack Support 1
17 M10 Flat Washer (Small Dia.) 4
18 M8 X 25L SHC 2
ASSEMBLY
13
18
17
16
7
Torque M10 Hardware to: 77 N-m/57 ft/lbs.
Torque M8 hardware to: 39 N-m/29 ft-lbs.

14

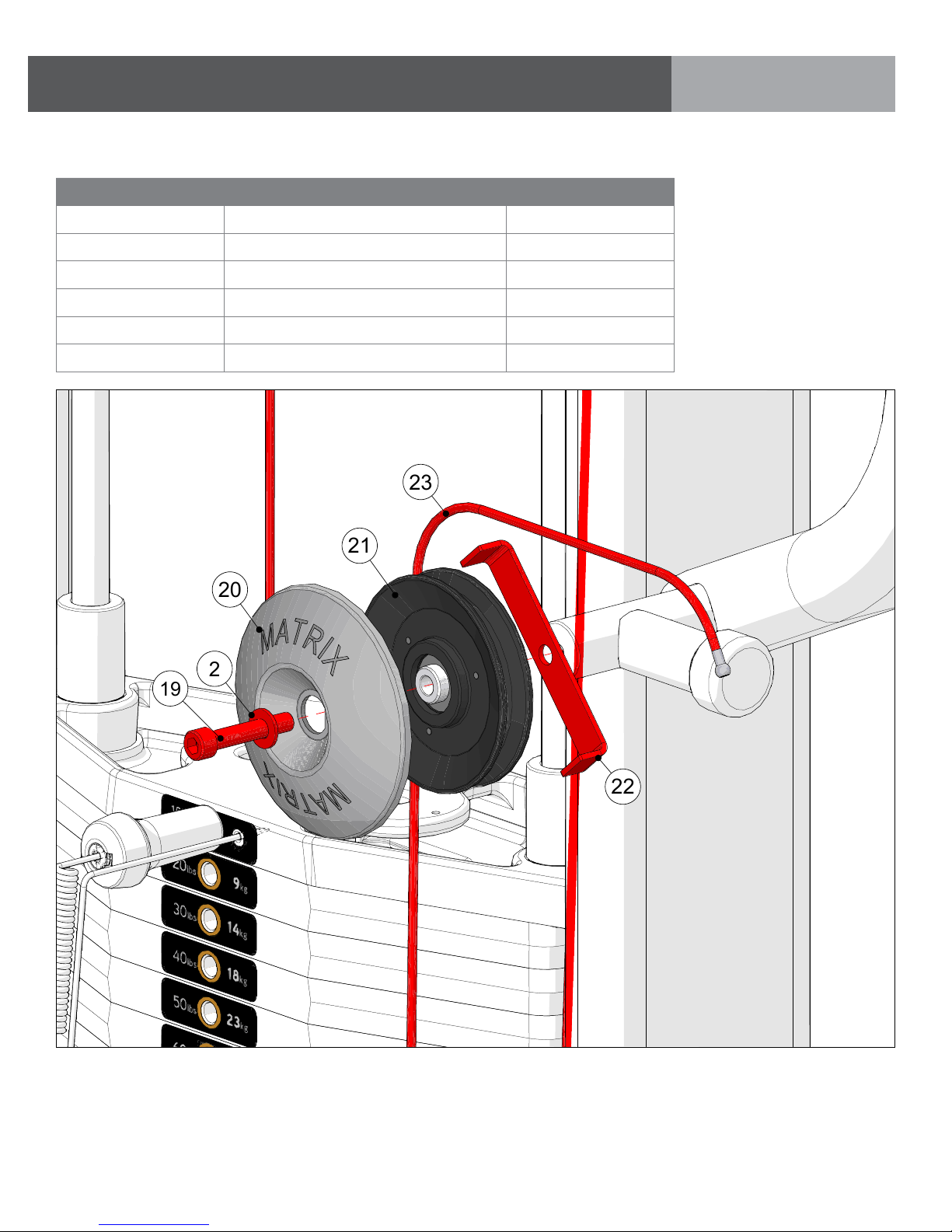

STEP 1 | PULLEY ASSEMBLY INSTRUCTIONS & NOTES
ID DESCRIPTION QUANTITY
2 M10 Flat Washer 1
19 M10 X 55L SHC 1
20 Pulley Cover 1
21 Pulley 1
22 Cable Keeper 1
23 Cable 1
Install the pulley and pulley guard as shown.
Tighten to 77 N-m/57 ft-lbs.
ASSEMBLY
PART 2: CABLE ASSEMBLY
23
21
22
20
2
19

15
ASSEMBLY

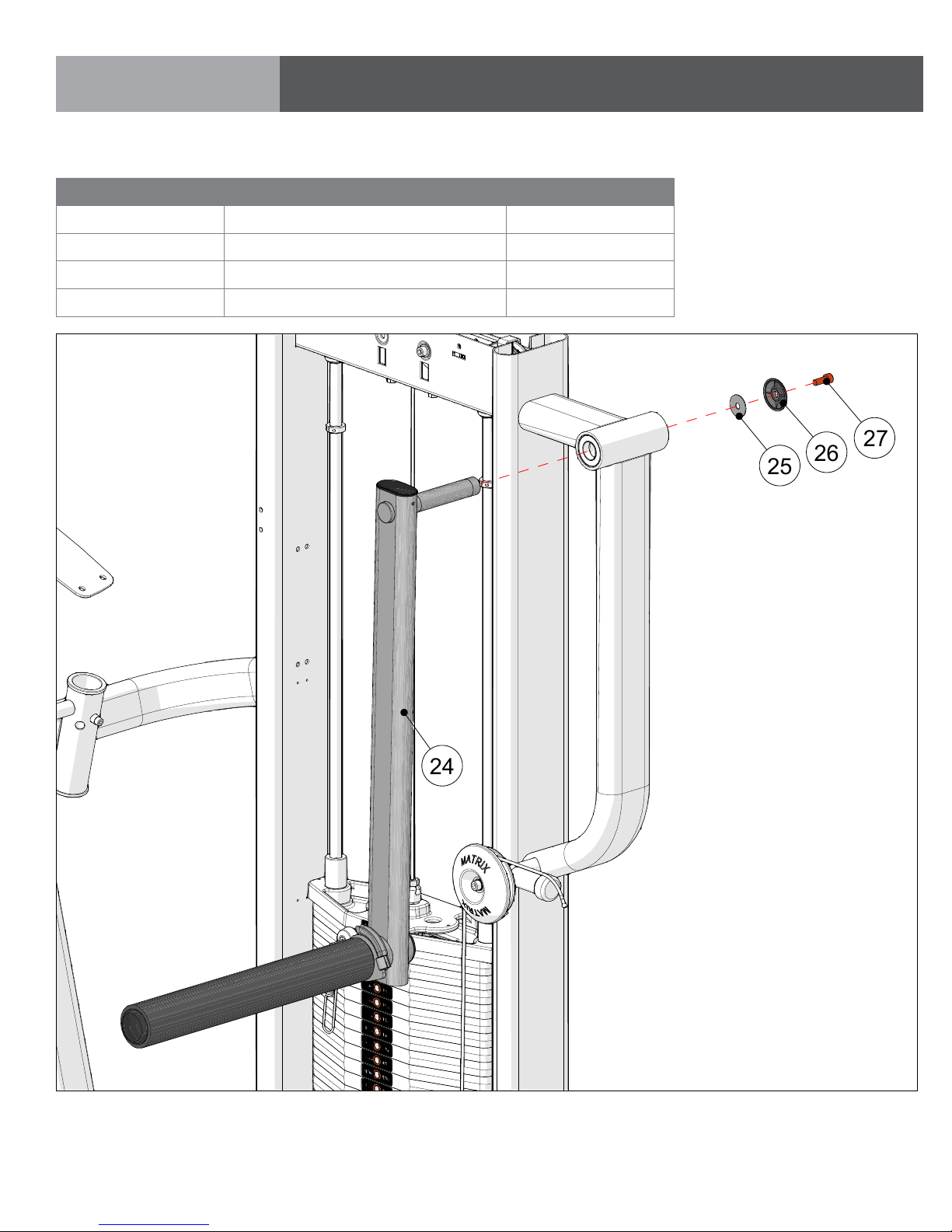

STEP 1 | EXERCISE ARM ASSEMBLY INSTRUCTIONS & NOTES
PART 3: EXERCISE ARM ASSEMBLY
ID DESCRIPTION QUANTITY
24 Exercise Arm 1
25 M10 Washer (Ø38 mm) 1
26 Black Pivot Cover 1
27 M10 X 25L SHC 1
27
26
25
24
Torque to 77 N-m/57 ft-lbs.

16
PART 3: EXERCISE ARM ASSEMBLY
STEP 2 | EXERCISE ARM AND CABLE ASSEMBLY INSTRUCTIONS & NOTES
Cable tension is adjusted by raising or lowering pulley as shown in View A.
Note: Nuts for adjustable pulley must be on inside towards weight plates.
ASSEMBLY
View A

17
STEP 1 | ARM PAD ASSEMBLY INSTRUCTIONS & NOTES
ID DESCRIPTION QUANTITY
2 M10 Flat Washer 6
7 M10 X 20L SHC 6
28 Arm Pad 2
Install the pad as shown.
Tighten to 27 N-m/20 ft-lbs.
ASSEMBLY
PART 4: PAD ASSEMBLY
28
2
7

18
ASSEMBLY
STEP 2 | CHEST PAD ASSEMBLY INSTRUCTIONS & NOTES
PART 4: PAD ASSEMBLY
ID DESCRIPTION QUANTITY
2 M10 Flat Washer 4
27 M10 X 25L SHC 4
29 Chest Pad 1
30 Chest Pad Adjustment Tube 1
30
2
27
29
Install the pad as shown.
Tighten to 27 N-m/20 ft-lbs.
Remove limit pin before assembling pad assembly.
Reinstall after installing pad assembly

19
STEP 1 | SHROUD ASSEMBLY ASSEMBLY INSTRUCTIONS & NOTES
PART 5: PLASTICS ASSEMBLY
ID DESCRIPTION QUANTITY
31 Front Shroud 1
32 Rear Shroud (Not shown) 1
ASSEMBLY
Install the weight stack shrouds as shown.
Position hangers in their lowest position
31

20

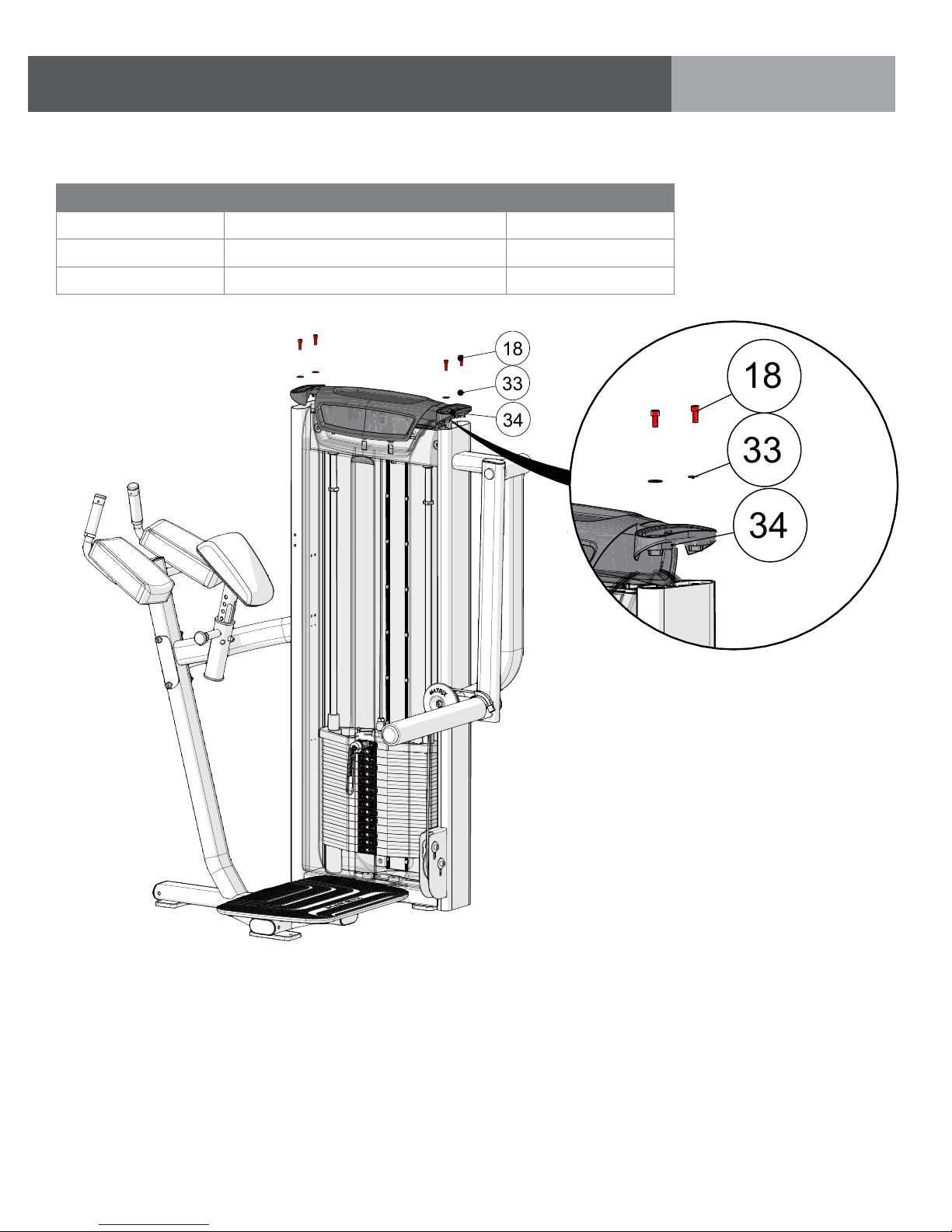

STEP 2 | TOP CAP ASSEMBLY INSTRUCTIONS & NOTES
ID DESCRIPTION QUANTITY
18 M8 X 25L SHC 4
33 M8 Flat Washer (20 mm diameter) 4
34 Top Cap 1
ASSEMBLY
PART 5: PLASTICS ASSEMBLY
Install the top cap onto the weight stack as shown.
Torque to 17 N-m/147 in-lbs.
Position top cap so that the instructional placard faces the user.
34
33
18
34
33
18
